engine overheat HONDA PILOT 2023 Owners Manual

Quick Reference Guide
33
Handling the Unexpected (P749)
Flat Tire (P751)
●Park in a safe location and replace the
flat tire with the spare tire located under
the cargo area.
Indicators Come On (P771)
●Identify the indicator and consult the
owner’s manual.
Engine Won’t Start (P762)
●If the battery is dead, jump start using a
booster battery.
Blown Fuse (P778)
●Check for a blown fuse if an electrical
device does not operate.
Overheating (P769)
●Park in a safe location. If you do not see
steam under the hood, open the hood,
and let the engine cool down.
Emergency Towing (P785)
●Call a professional towing service if you
need to tow your vehicle.
23 PILOT-31T906000_03.book 33 ページ ２０２２年１０月３１日　月曜日　午前１０時２６分

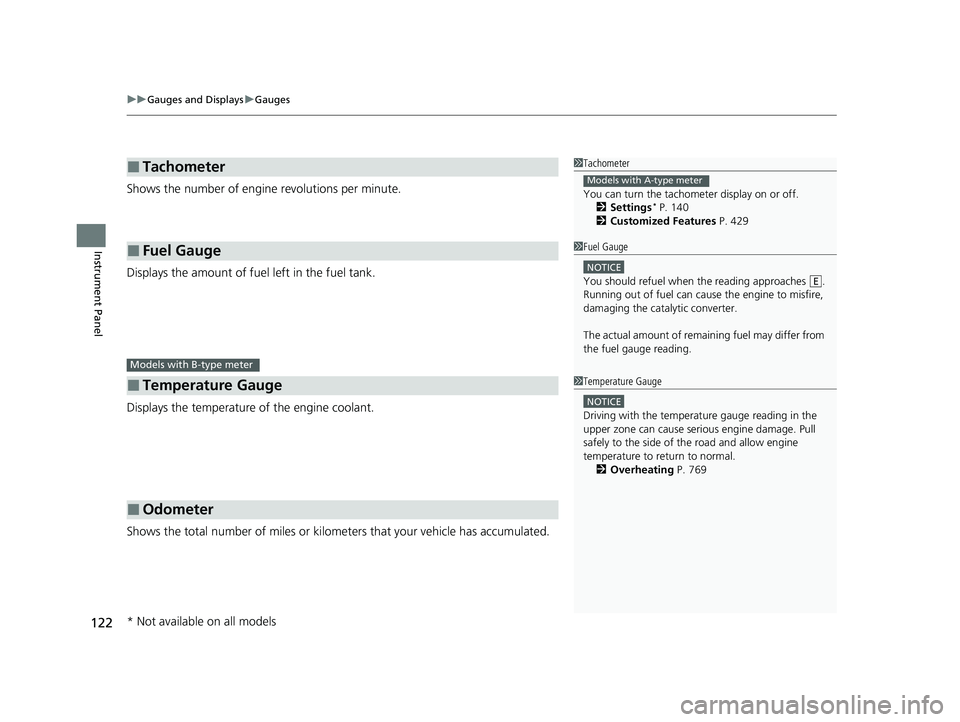

uuGauges and Displays uGauges
122
Instrument Panel
Shows the number of engine revolutions per minute.
Displays the amount of fuel left in the fuel tank.
Displays the temperature of the engine coolant.
Shows the total number of miles or kilome ters that your vehicle has accumulated.
■Tachometer
■Fuel Gauge
■Temperature Gauge
■Odometer
1Tachometer
You can turn the tachom eter display on or off.
2 Settings
* P. 140
2 Customized Features P. 429
Models with A-type meter
1Fuel Gauge
NOTICE
You should refuel when the reading approaches .
Running out of fuel can cause the engine to misfire,
damaging the cata lytic converter.
The actual amount of remain ing fuel may differ from
the fuel gauge reading.E
Models with B-type meter
1 Temperature Gauge
NOTICE
Driving with the temperat ure gauge reading in the
upper zone can cause serious engine damage. Pull
safely to the side of th e road and allow engine
temperature to return to normal.
2 Overheating P. 769
* Not available on all models
23 PILOT-31T906000_03.book 122 ページ ２０２２年１０月３１日　月曜日　午前１０時２６分

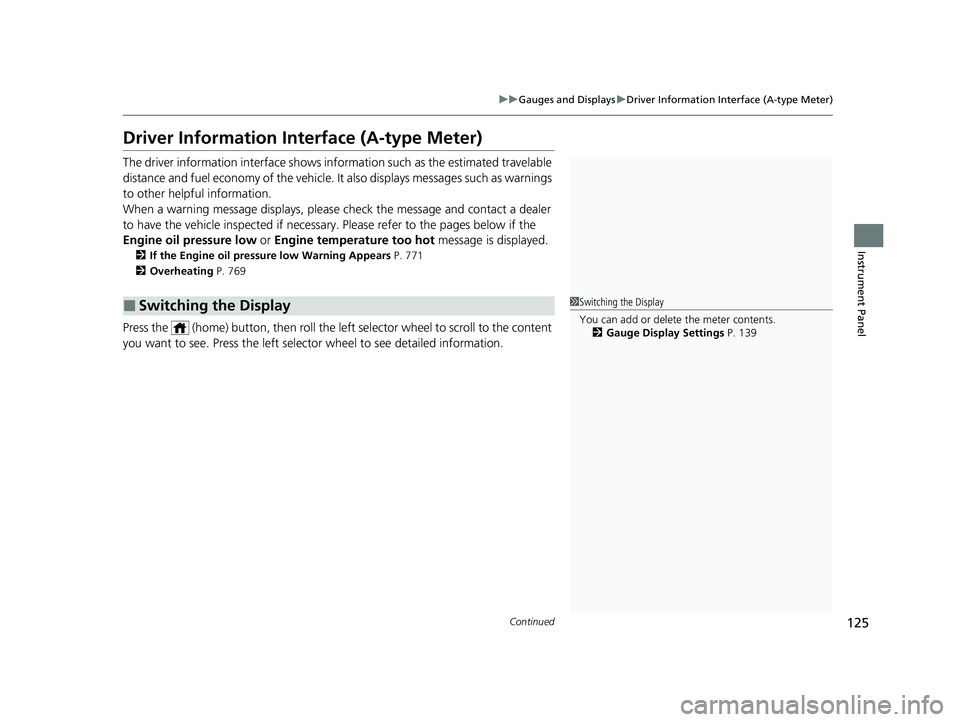

125
uuGauges and Displays uDriver Information Interface (A-type Meter)
Continued
Instrument Panel
Driver Information In terface (A-type Meter)
The driver information interface shows information such as the estimated travelable
distance and fuel economy of the vehicle. It also displays messages such as warnings
to other helpful information.
When a warning message displays, please check the message and contact a dealer
to have the vehicle inspected if necessary. Please refer to the pages below if the
Engine oil pressure low or Engine temperature too hot message is displayed.
2If the Engine oil pressure low Warning Appears P. 771
2 Overheating P. 769
Press the (home) button, th en roll the left selector wheel to scroll to the content
you want to see. Press the left sele ctor wheel to see detailed information.
■Switching the Display1Switching the Display
You can add or delete the meter contents.
2 Gauge Display Settings P. 139
23 PILOT-31T906000_03.book 125 ページ ２０２２年１０月３１日　月曜日　午前１０時２６分

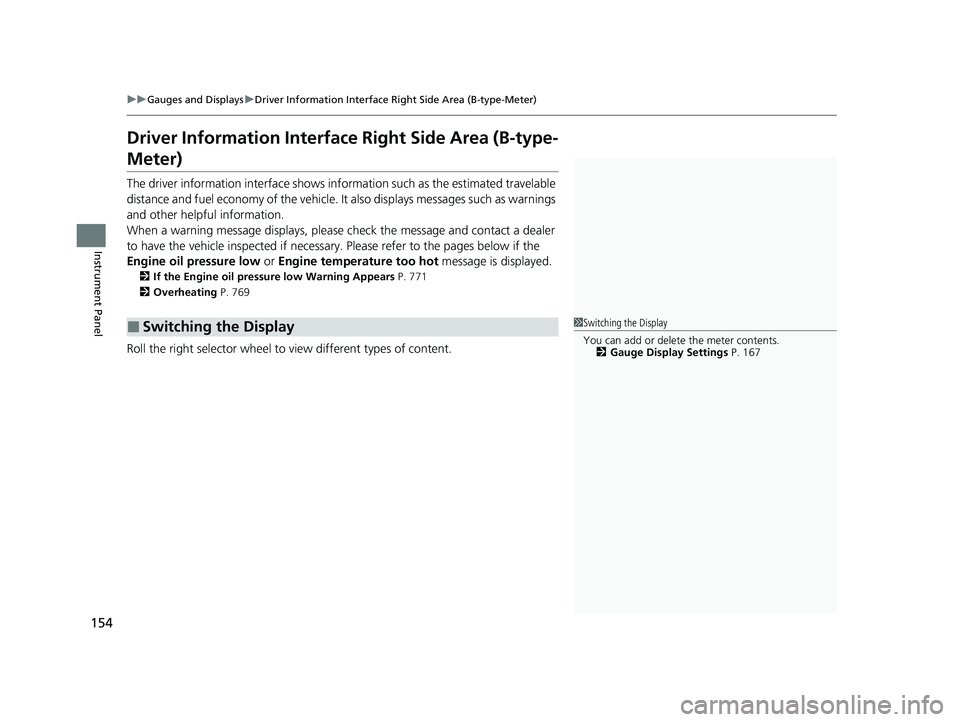

154
uuGauges and Displays uDriver Information Interface Ri ght Side Area (B-type-Meter)
Instrument Panel
Driver Information Interface Right Side Area (B-type-
Meter)
The driver information interface shows in formation such as the estimated travelable
distance and fuel economy of the vehicle. It also displays messages such as warnings
and other helpful information.
When a warning message displays, please check the message and contact a dealer
to have the vehicle inspected if necessary . Please refer to the pages below if the
Engine oil pressure low or Engine temperature too hot message is displayed.
2If the Engine oil pressure low Warning Appears P. 771
2 Overheating P. 769
Roll the right selector wheel to view different types of content.
■Switching the Display1Switching the Display
You can add or delete the meter contents.
2 Gauge Display Settings P. 167
23 PILOT-31T906000_03.book 154 ページ ２０２２年１０月３１日　月曜日　午前１０時２６分

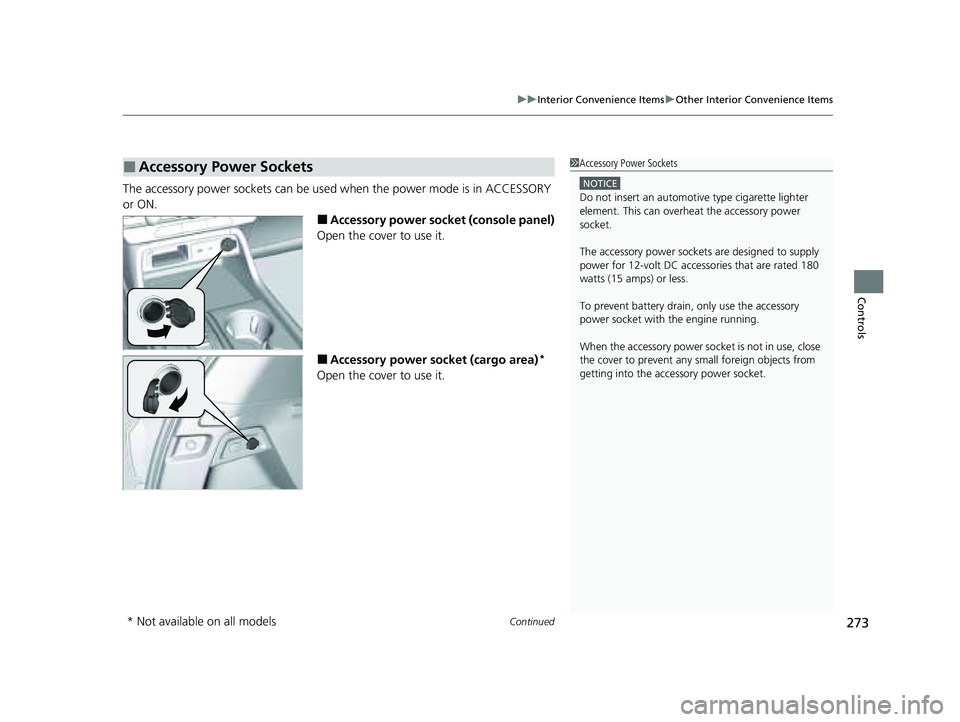

Continued273
uuInterior Convenience Items uOther Interior Convenience Items
Controls
The accessory power sockets can be used when the power mode is in ACCESSORY
or ON.
■Accessory power socket (console panel)
Open the cover to use it.
■Accessory power socket (cargo area)*
Open the cover to use it.
■Accessory Power Sockets1 Accessory Power Sockets
NOTICE
Do not insert an automotive type cigarette lighter
element. This can overheat the accessory power
socket.
The accessory power socket s are designed to supply
power for 12-volt DC accessories that are rated 180
watts (15 amps) or less.
To prevent battery drain, only use the accessory
power socket with the engine running.
When the accessory power soc ket is not in use, close
the cover to prevent any small foreign objects from
getting into the accessory power socket.
* Not available on all models
23 PILOT-31T906000_03.book 273 ページ ２０２２年１０月３１日　月曜日　午前１０時２６分

749
Handling the Unexpected
This chapter explains how to handle unexpected troubles.
ToolsTypes of Tools .................................. 750
If a Tire Goes Flat Changing a Flat Tire ......................... 751
Engine Does Not Start Checking the Engine ........................ 762
If the Keyless Remote Battery is Weak .. 764
Emergency Engine Start ................... 765
Emergency Engine Stop ................... 766
If the Battery Is Dead ....................... 767
Overheating How to Handle Overheating ............. 769 Indicator Coming On/Blinking
If the Engine oil pressure low Warning
Appears ............................................. 771
If the Charging System Indicator Comes On ....772If the Malfunction Indicator Lamp Comes
On or Blinks ................................... 772
If the Brake System Indicator (Red) Comes
On or Blinks ................................... 773
If the Electric Power Steering (EPS) System Indicator Comes On ....................... 774
If the Brake System Indicator (Red) Comes On or Blinks at the Same Time When the Brake
System Indicator (Amber) Comes On .. 775 If the Low Tire Pressure/TPMS Indicator
Comes On or Blinks ....................... 776
If the Transmission System Indicator Blinks
along with the Warning Message ....... 777
Fuses Fuse Locations ................................. 778
Inspecting and Changing Fuses ........ 783
Emergency Towing ........................... 785
If You Cannot Unlock the Fuel Fill Door.. 786If You Cannot Open the Tailgate .... 787
Refueling
Refueling From a Portable Fuel
Container ................................... 788
23 PILOT-31T906000_03.book 749 ページ ２０２２年１０月３１日　月曜日　午前１０時２６分

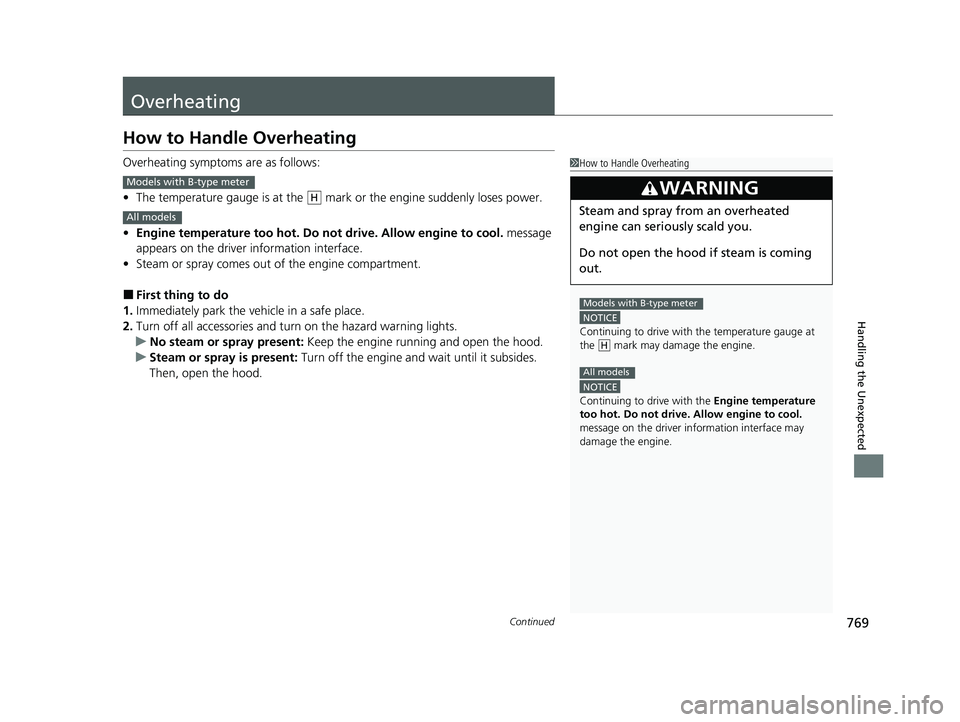

769Continued
Handling the Unexpected
Overheating
How to Handle Overheating
Overheating symptoms are as follows:
•The temperature gauge is at the mark or the engine suddenly loses power.
• Engine temperature too hot. Do no t drive. Allow engine to cool. message
appears on the driver information interface.
• Steam or spray comes out of the engine compartment.
■First thing to do
1. Immediately park the vehicle in a safe place.
2. Turn off all accessories and turn on the hazard warning lights.
u No steam or spray present: Keep the engine running and open the hood.
u Steam or spray is present: Turn off the engine and wait until it subsides.
Then, open the hood.
1 How to Handle Overheating
NOTICE
Continuing to drive with the temperature gauge at
the mark may damage the engine.
NOTICE
Continuing to drive with the Engine temperature
too hot. Do not drive. Allow engine to cool.
message on the driver information interface may
damage the engine.
3WARNING
Steam and spray from an overheated
engine can seri ously scald you.
Do not open the hood if steam is coming
out.
Models with B-type meter
H
All models
Models with B-type meter
H
All models
23 PILOT-31T906000_03.book 769 ページ ２０２２年１０月３１日　月曜日　午前１０時２６分

uuOverheating uHow to Handle Overheating
770
Handling the Unexpected
■Next thing to do
1.Check that the cooling fan is operating and
stop the engine once Engine temperature
too hot. Do not drive. Allow engine to
cool. on the driver information interface
disappears.
u If the cooling fan is not operating,
immediately stop the engine.
2. Once the engine has cooled down, inspect
the coolant level an d check the cooling
system components for leaks.
u If the coolant level in the reserve tank is
low, add coolant until it reaches the
MAX mark.
u If there is no coolan t in the reserve tank,
check that the radiator is cool. Remove
the engine compartment cover. Cover
the radiator cap with a heavy cloth and
open the cap. If necessary, add coolant
up to the base of the filler neck, and put
the cap back on.
2 Engine Compartment Cover P. 708
■Last thing to do
Once the engine has cooled sufficiently, restart it and check the driver information
interface.
If Engine temperature too hot. Do not drive. Allow engine to cool. does not
appear, resume driving. If it appear s again, contact a dealer for repairs.
1How to Handle Overheating
If the coolant is leaking, contact a dealer for repairs.
Use water as an emergency/temporary measure only.
Have a dealer flush the system with proper antifreeze
as soon as possible.
3WARNING
Removing the radiator cap while the
engine is hot can cause the coolant to spray
out, seriously scalding you.
Always let the engine and radiator cool
down before removing the radiator cap.
MAX MIN
Reserve
Tank
23 PILOT-31T906000_03.book 770 ページ ２０２２年１０月３１日　月曜日　午前１０時２６分

776
uuIndicator Coming On/BlinkinguIf the Low Tire Pressure/TPMS Indicator Comes On or Blinks
Handling the Unexpected
If the Low Tire Pressure/TPMS Indicator Comes On or
Blinks
■Reasons for the indicator to come on or blink
A tire pressure is significantly low. If there is a problem with the TPMS
with Tire Fill Assist or the spare tire is installed, the indicator blinks for
about one minute, and then stays on.
■What to do when the indicator comes on
Drive carefully and avoid abrupt cornering and hard braking.
Stop your vehicle in a safe place. Ch eck the tire pressure and adjust the
pressure to the specified level. The sp ecified tire pressure is on a label on
the driver side doorjamb.
■What to do when the indica tor blinks, then remains on
Have the tire inspected by a dealer as soon as possible. If the spare tire
causes the indicator to blink, change the tire to a full-size tire. The
indicator goes off after driving for a few miles (kilometers).
1If the Low Tire Pressure/TPMS Indicator Comes On or Blinks
NOTICE
Driving on an extremely underinflated tire can cause
it to overheat. An overheated tire can fail. Always
inflate your tires to the prescribed level.
TPMS with Tire Fill Assist provides visual and audible
assistance during tire pre ssure adjustment. With the
power mode in ON and the transmission in
( P, while
you adjust tire pressure up or down, the system alerts
you as follows:
Below recommended pressure: The beeper
sounds and exterior lights flash once every five
seconds.
At recommended pressure: The beeper sounds
and exterior lights flash ra pidly for three seconds with
five seconds intervals.
Above recommended pressure: The beeper
sounds and lights flash tw ice every two seconds.
When a certain amount of time has passed since
activation, Tire Fill Assist wi ll be canceled until you set
the power mode to OFF.
You cannot use Tire Fill Assist if the engine was
started by the remote engine start
*, or if there is a
malfunction in the system. If Tire Fill Assist does not
work, use a tire pressure gauge.
* Not available on all models
23 PILOT-31T906000_03.book 776 ページ ２０２２年１０月３１日　月曜日　午前１０時２６分

806
Index
Coolant (Engine)....................................... 714
Adding to the Radiator ............................ 715
Adding to the Reserve Tank ..................... 714
Overheating............................................. 769
Creeping (Automatic Transmission) ........ 532
Cross Traffic Monitor ................................ 668
Cup Holders ............................................... 264
Customer Service Information ................. 801
Customize Display ..................................... 152
Customized Features ........................ 421, 429
D
Daytime Running Lights ........................... 225
Dead Battery ............................................. 767
Defaulting All the Settings .............. 428, 455
Defrosting the Windshield and Windows .................................................. 285
Detachable Anchor ..................................... 54
Devices that Emit Radio Waves ................ 793
Dimming
Headlights ............................................... 220
Rearview Mirror ....................................... 236
Dipstick (Engine Oil) ................................. 710
Display Setup .................................... 303, 347
Door Mirrors ............................................. 237
Doors ......................................................... 178
Auto Door Locking .................................. 195
Auto Door Unlocking ............................... 195
Door Open Message .................................. 42
Keys ........................................................ 178 Locking/Unlocking the Doors from
the Inside .............................................. 192
Locking/Unlocking the Doors from the Outside ........................................... 181
DOT Tire Quality Grading ........................ 731
Drive Mode System .................................. 548
Driver Attention Monitor ................ 132, 160
Driver Information Interface
Switching the Display ...................... 125, 154
Driver Information Interface (A-type Meter) ........................................ 125
Driver Information Interface Left Side Area (B-type-Meter) ........................................ 151
Driver Information Interface Right Side Area
(B-type-Meter) ........................................ 154
Driving ...................................................... 501
Automatic Transmission .......................... 532
Braking ................................................... 652
Off-Highway Driving Guidelines............... 519
Shifting Gear ........................................... 533
Starting the Engine.................................. 524
Driving Position Memory System ............ 233
Dust and Pollen Filter ............................... 741
E
Eco Assist® System ...................................... 14
Elapsed Time ..................................... 130, 159
Electric Power Steering (EPS) System Indicator.......................................... 106, 774
Electronic Stability Control (ESC) ............. 555Emergency
................................................ 785
Emissions Testing (Readiness Codes) ...... 795
Engine Coolant .................................................. 714
If the Battery Is Dead............................... 767
Number .................................................. 792
Oil .......................................................... 709
Starting................................................... 524
Switch Buzzer ................................. 218, 219
Engine Compartment Cover .................... 708
Engine Coolant ........................................ 714
Adding to the Radiator ........................... 715
Adding to the Reserve Tank .................... 714
Overheating ............................................ 769
Temperature Gauge ................................ 122
Engine Oil ................................................. 709
Adding ................................................... 711
Checking ................................................ 710
Displaying Oil Life ................................... 696
Engine oil pressure low Warning ............. 771
Recommended Engine Oil ....................... 709
Engine oil pressure low Warning ............ 771
ENGINE START/STOP Button .................... 217
EPS (Electric Power Steering) System ...... 774
Exhaust Gas Hazard (Carbon Monoxide) .. 95
Exterior Care (Cleaning) .......................... 744
Exterior Mirrors ........................................ 237
23 PILOT-31T906000_03.book 806 ページ ２０２２年１０月３１日　月曜日　午前１０時２６分
