fuse box HONDA PILOT 2023 Owners Manual

Visual Index
10
Quick Reference Guide❚Power Window Switches (P210)
❚Memory Buttons* (P234)
❚SET Button* (P234)
❚Driver’s Front Airbag (P62)
❚Hood Release Handle (P706)
❚Glove Box (P263)
❚Driver’s Knee Airbag (P67)
❚Accessory Power Socket (P273)
❚Rearview Mirror (P236)
❚HomeLink® Buttons* (P457)
❚Passenger’s Front Airbag (P62)
❚Door Mirror Controls (P237)
❚Master Door Lock Switch (P194)
❚USB Ports (P293)
❚Passenger’s Knee Airbag (P67)
❚Wireless Charger* (P275)
❚Interior Fuse Box (P782)
❚Interior Fuse Box (P780)
23 PILOT-31T906000_03.book 10 ページ ２０２２年１０月３１日　月曜日　午前１０時２６分

uuTowing a Trailer uTowing Preparation
512
Driving

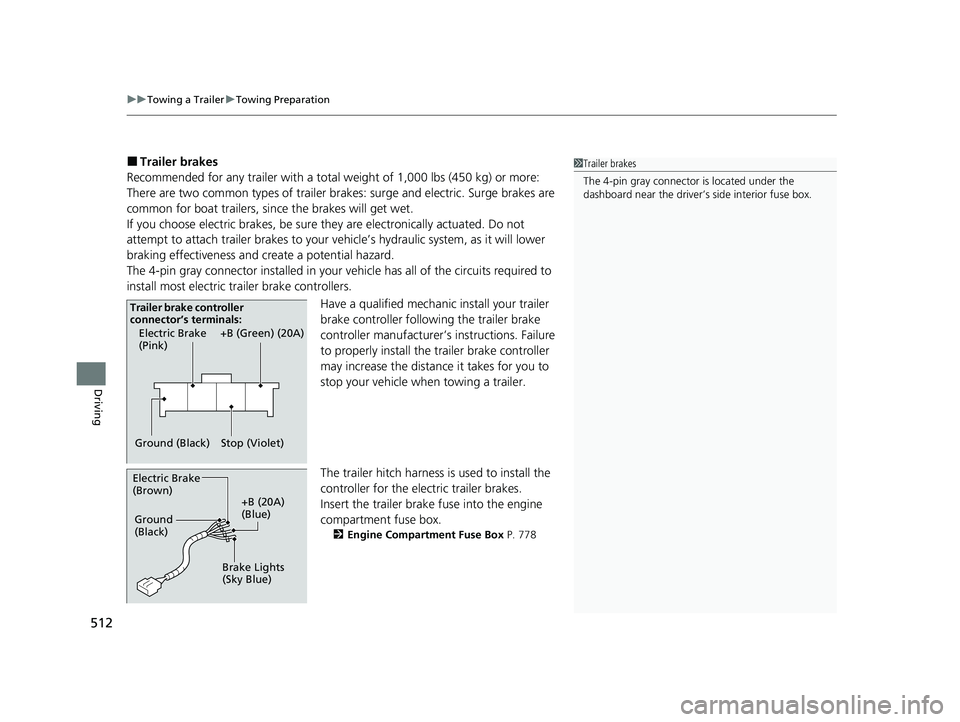

■Trailer brakes
Recommended for any trailer with a total weight of 1,000 lbs (450 kg) or more:
There are two common types of trailer brake s: surge and electric. Surge brakes are
common for boat trailers, since the brakes will get wet.
If you choose electric brakes, be sure they are electronically actuated. Do not
attempt to attach trailer brakes to your ve hicle’s hydraulic system, as it will lower
braking effectiveness and create a potential hazard.
The 4-pin gray connector installed in your vehicle has all of the circuits required to
install most electric trailer brake controllers.
Have a qualified mechanic install your trailer
brake controller following the trailer brake
controller manufacturer’s instructions. Failure
to properly install the trailer brake controller
may increase the distance it takes for you to
stop your vehicle when towing a trailer.
The trailer hitch harness is used to install the
controller for the electric trailer brakes.
Insert the trailer brake fuse into the engine
compartment fuse box.
2 Engine Compartment Fuse Box P. 778
1Trailer brakes
The 4-pin gray connector is located under the
dashboard near the driver’s side interior fuse box.
Electric Brake
(Pink)
Ground (Black) +B (Green) (20A)
Stop (Violet)
Trailer brake controller
connector’s terminals:
Electric Brake
(Brown)
+B (20A)
(Blue)
Ground
(Black)
Brake Lights
(Sky Blue)
23 PILOT-31T906000_03.book 512 ページ ２０２２年１０月３１日　月曜日　午前１０時２６分

778
Handling the Unexpected

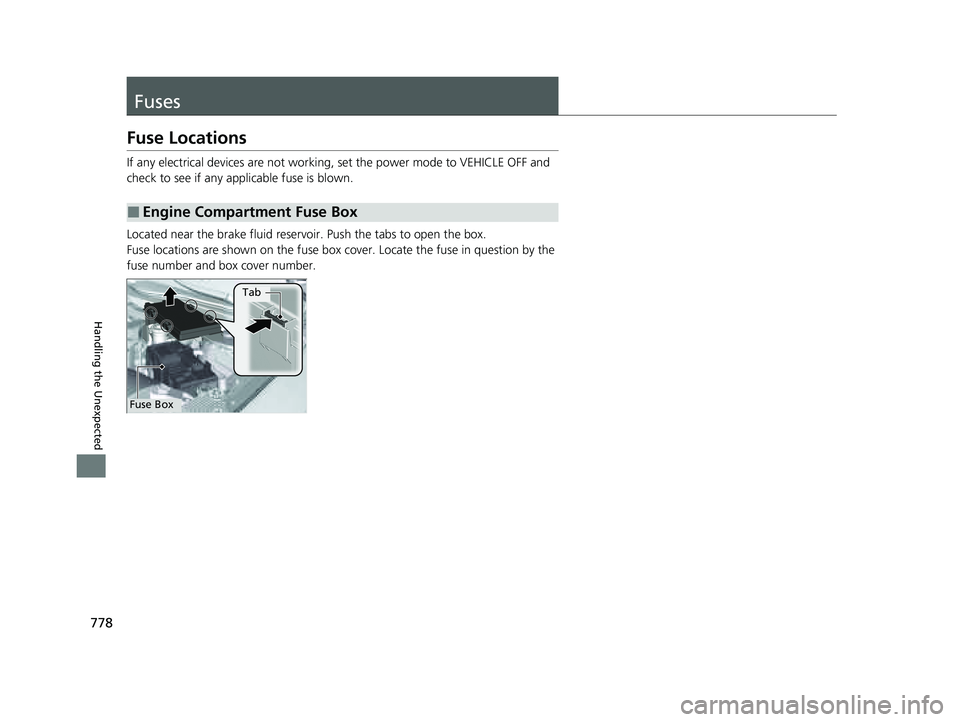

Fuses
Fuse Locations
If any electrical devices are not working, set the power mode to VEHICLE OFF and
check to see if any app licable fuse is blown.
Located near the brake fluid reservoir. Push the tabs to open the box.
Fuse locations are shown on the fuse box cover. Locate the fuse in question by the
fuse number and box cover number.
■Engine Compartment Fuse Box
Fuse Box
Tab
23 PILOT-31T906000_03.book 778 ページ ２０２２年１０月３１日　月曜日　午前１０時２６分

779
uuFuses uFuse Locations
Continued
Handling the Unexpected
■Circuit protected and fuse rating
Circuit ProtectedAmps
1BATTERY225 A
2 Idle Stop 1 (30 A)
Idle Stop 2 (30 A)
EPS 80 A
FET Main 1 70 A
Fuse Box Main 1 60 A
Fuse Box Option 1 60 A Rear Blower 30 A
3
ACM30 A
Starter Cut30 A
Sub Fan Motor30 A
Heater Motor40 A
Accessory Power Socket Main*(40 A)
Rear Defogger40 A
Fuse Box Option 260 A
4 AC Power Outlet*(30 A)
EBB 40 A
Power Tailgate
*(40 A)
ABS/VSA FSR 40 A - 60 A
Wiper Motor 30 A
Fuse Box Main 2 60 A
5
FET Main 230 A
ABS/VSA Motor40 A
IG Main 230 A
SRM 230 A
SRM 130 A
AWD*(30 A)
IG Main 130 A
6 Condenser Fan 30 A
7Trailer Main*(30 A)
8 Power Tailgate*(20 A)
9Back Up Audio*(15 A)
10 - -
11Back Up10 A
12 Trailer Charge*(20 A)
13Trailer Brake*(20 A)
14 Horn 15 A
15--
16 VBU 10 A
17--
18 - -
19FI Main20 A
20 Injector 20 A
21TCU 115 A
22 IG Coil 15 A
23Hazard15 A
24 Right H/L 15 A
25Stop5 A
Circuit ProtectedAmps
26 Left H/L 15 A
27TCU 310 A
28 TCU 2 10 A
29--
30 - -
31Front Washer15 A
32 Battery Sensor 10 A
33Shutter Grille10 A
34 IG1 START 5 A
35Battery Fan5 A
36 FI ECU 5 A
37--
38 IG1 PCS 5 A
39IGPS RAD10 A
40 IGPS VSSV*(10 A)
41--
Circuit ProtectedAmps
* Not available on all models
23 PILOT-31T906000_03.book 779 ページ ２０２２年１０月３１日　月曜日　午前１０時２６分

780
uuFuses uFuse Locations
Handling the Unexpected

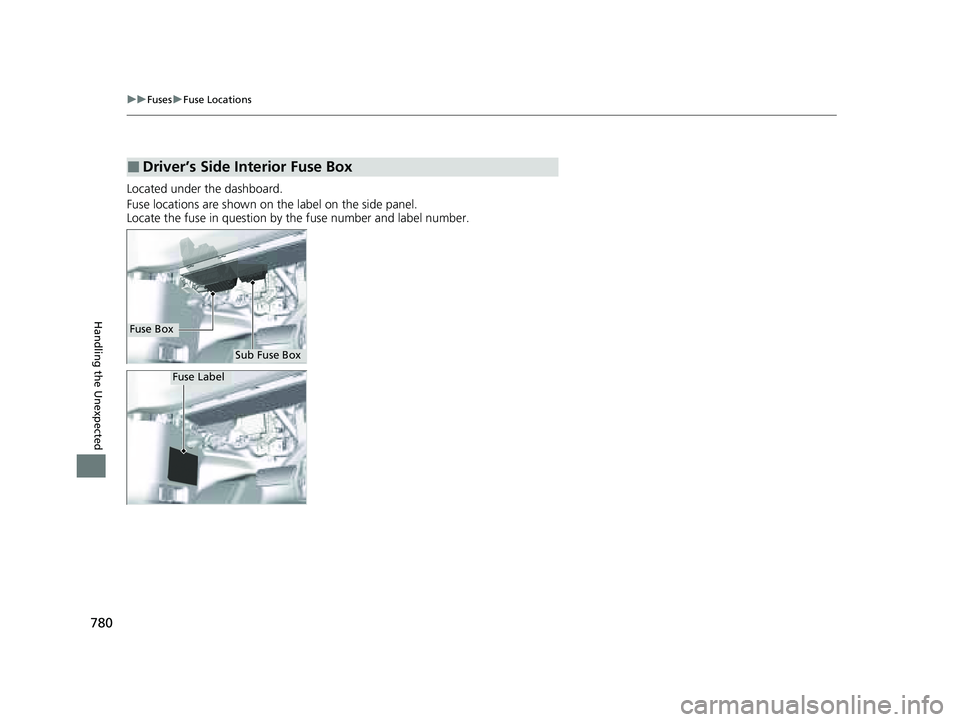

Located under the dashboard.
Fuse locations are shown on the label on the side panel.
Locate the fuse in question by the fuse number and label number.
■Driver’s Side Interior Fuse Box
Fuse Box
Sub Fuse Box
Fuse Label
23 PILOT-31T906000_03.book 780 ページ ２０２２年１０月３１日　月曜日　午前１０時２６分

781
uuFuses uFuse Locations
Continued
Handling the Unexpected

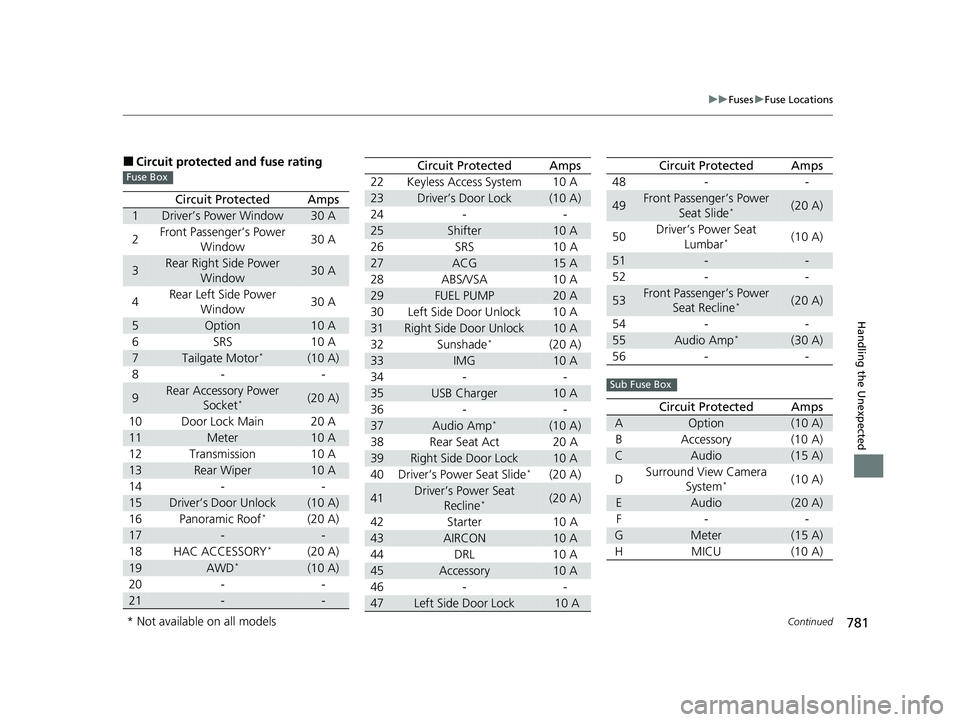

■Circuit protected and fuse rating
Circuit ProtectedAmps
1Driver’s Power Window30 A
2 Front Passenger’s Power
Window 30 A
3Rear Right Side Power
Window30 A
4 Rear Left Side Power
Window 30 A
5Option10 A
6 SRS 10 A
7Tailgate Motor*(10 A)
8- -
9Rear Accessory Power Socket*(20 A)
10 Door Lock Main 20 A
11Meter10 A
12 Transmission 10 A
13Rear Wiper10 A
14 - -
15Driver’s Door Unlock(10 A)
16 Panoramic Roof*(20 A)
17--
18 HAC ACCESSORY*(20 A)
19AWD*(10 A)
20 - -
21--
Fuse Box22 Keyless Access System 10 A
23Driver’s Door Lock(10 A)
24 - -
25Shifter10 A
26 SRS 10 A
27ACG15 A
28 ABS/VSA 10 A
29FUEL PUMP20 A
30 Left Side Door Unlock 10 A
31Right Side Door Unlock10 A
32 Sunshade*(20 A)
33IMG10 A
34 - -
35USB Charger10 A
36 - -
37Audio Amp*(10 A)
38 Rear Seat Act 20 A
39Right Side Door Lock10 A
40 Driver’s Power Seat Slide*(20 A)
41Driver’s Power Seat Recline*(20 A)
42 Starter 10 A
43AIRCON10 A
44 DRL 10 A
45Accessory10 A
46 - -
47Left Side Door Lock 10 A
Circuit ProtectedAmps
48 - -
49Front Passenger’s Power
Seat Slide*(20 A)
50 Driver’s Power Seat
Lumbar
*(10 A)
51--
52 - -
53Front Passenger’s Power Seat Recline*(20 A)
54 - -
55Audio Amp*(30 A)
56 - -
Circuit ProtectedAmps
AOption(10 A)
B Accessory (10 A)
CAudio(15 A)
D Surround View Camera
System
*(10 A)
EAudio(20 A)
F- -
GMeter(15 A)
HMICU (10 A)
Circuit ProtectedAmps
Sub Fuse Box
* Not available on all models
23 PILOT-31T906000_03.book 781 ページ ２０２２年１０月３１日　月曜日　午前１０時２６分

782
uuFuses uFuse Locations
Handling the Unexpected

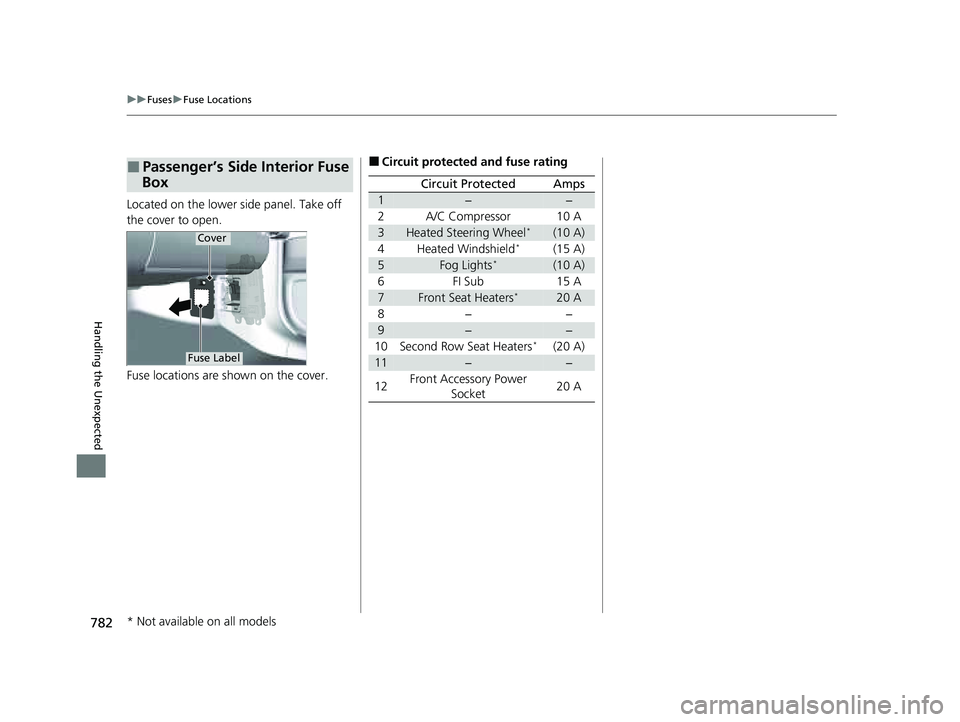

Located on the lower side panel. Take off
the cover to open.
Fuse locations are shown on the cover.
■Passenger’s Side Interior Fuse
Box
Cover
Fuse Label
■Circuit protected and fuse rating
Circuit ProtectedAmps
1−−
2A/C Compressor10 A
3Heated Steering Wheel*(10 A)
4Heated Windshield*(15 A)
5Fog Lights*(10 A)
6FI Sub15 A
7Front Seat Heaters*20 A
8−−
9−−
10Second Row Seat Heaters*(20 A)
11−−
12Front Accessory Power
Socket20 A
* Not available on all models
23 PILOT-31T906000_03.book 782 ページ ２０２２年１０月３１日　月曜日　午前１０時２６分

783
uuFuses uInspecting and Changing Fuses
Continued
Handling the Unexpected

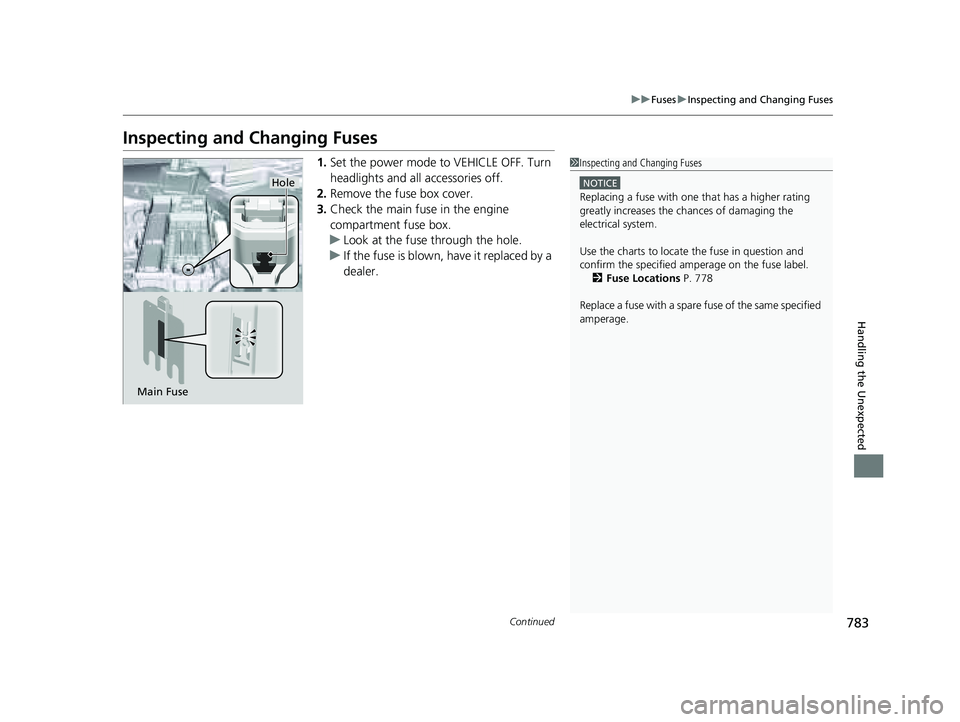

Inspecting and Changing Fuses
1. Set the power mode to VEHICLE OFF. Turn
headlights and all accessories off.
2. Remove the fuse box cover.
3. Check the main fuse in the engine
compartment fuse box.
u Look at the fuse through the hole.
u If the fuse is blown, have it replaced by a
dealer.1Inspecting and Changing Fuses
NOTICE
Replacing a fuse with on e that has a higher rating
greatly increases the chances of damaging the
electrical system.
Use the charts to locate the fuse in question and
confirm the specified amperage on the fuse label. 2 Fuse Locations P. 778
Replace a fuse with a spare fuse of the same specified
amperage.
Hole
Main Fuse
23 PILOT-31T906000_03.book 783 ページ ２０２２年１０月３１日　月曜日　午前１０時２６分

uuFuses uInspecting and Changing Fuses
784
Handling the Unexpected

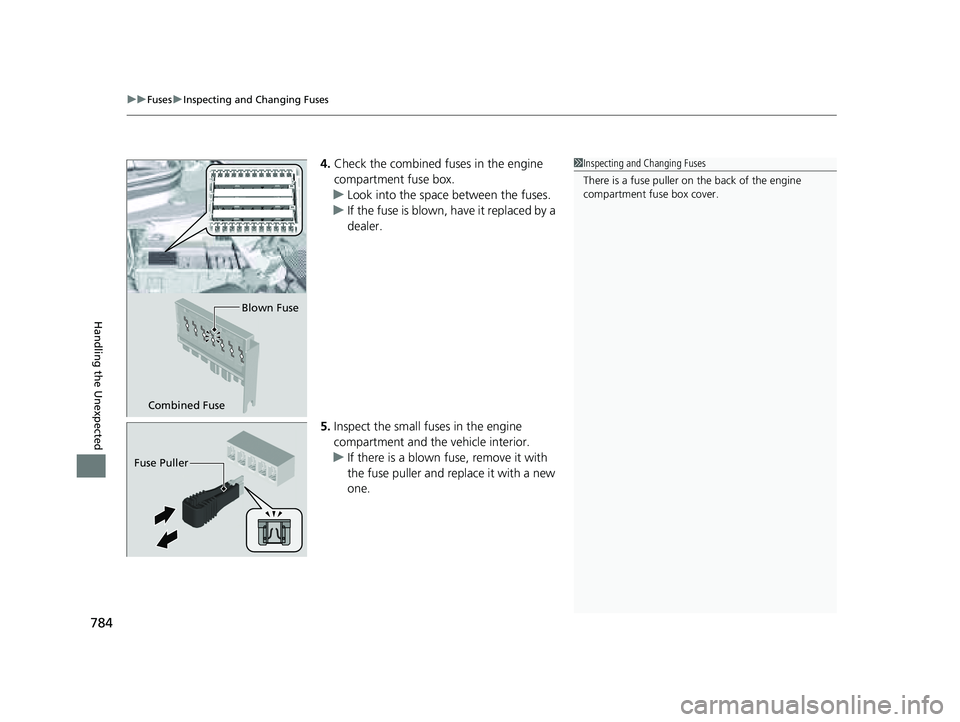

4. Check the combined fuses in the engine
compartment fuse box.
u Look into the space between the fuses.
u If the fuse is blown, have it replaced by a
dealer.
5. Inspect the small fuses in the engine
compartment and the vehicle interior.
u If there is a blown fuse, remove it with
the fuse puller and replace it with a new
one.1Inspecting and Changing Fuses
There is a fuse puller on the back of the engine
compartment fuse box cover.
Combined Fuse Blown Fuse
Fuse Puller
23 PILOT-31T906000_03.book 784 ページ ２０２２年１０月３１日　月曜日　午前１０時２６分

807
Index
F
Features.................................................... 291
Filters Dust and Pollen....................................... 741
Oil .......................................................... 712
Flat Tire ..................................................... 751
Floor Mats ................................................ 743
Fluids
Automatic Transmission .......................... 716
Brake ...................................................... 717
Engine Coolant ....................................... 714
Transfer Assembly ................................... 716
Windshield Washer ................................. 717
FM/AM Radio ................................... 304, 352
Fog Light Indicator .................................. 108
Folding Down the Second Row Seat ...... 244
Folding Down the Third Row Seat .......... 250
Foot Brake ................................................ 655
Front Airbags (SRS) .................................... 62
Front Seat Heaters ................................... 280
Front Seats Adjusting ................................................ 239
Front Sensor Camera ............................... 648
Fuel ..................................................... 29, 686
Average Fuel Economy .................... 128, 157
Economy................................................. 689
Gauge .................................................... 122
Instant Fuel Economy ...................... 128, 157
Low Fuel Indicator................................... 105
Range ............................................. 128, 157
Recommendation.................................... 686 Refueling ................................................. 686
Fuel Economy ............................................ 689
Fuel Fill Door ............................................. 687
Unable to Unlock ..................................... 786
Fuses .......................................................... 778
Inspecting and Changing ......................... 783
Locations ................................. 778, 780, 782
G
Gasoline (Fuel) Average Fuel Economy .................... 128, 157
Economy ................................................. 689
Gauge ..................................................... 122
Information ............................................. 686
Instant Fuel Economy ....................... 128, 157
Low Fuel Indicator ................................... 105
Refueling ................................................. 686
Gauge Display Settings .................... 139, 167
Gauges ...................................................... 121
Gear Position Indicator .................... 103, 535
Gear Shift Positions Automatic Transmission ........................... 533
Glass (care) ................................................ 745
Glove Box .................................................. 263
H
Handling the Unexpected ........................ 749
HandsFreeLink ® (HFL) ....................... 459, 479
Automatic Import of Ce llular Phonebook and
Call History .................................... 471, 489
Automatic Transferring.................... 469, 488
Favorite Contacts ............................ 472, 490
HFL Buttons..................................... 459, 479
HFL Menus ...................................... 462, 482
HFL Status Display ........................... 461, 481
In Case of Emergency .............................. 496
Limitations for Manual Operation .... 461, 481
Making a Call .................................. 474, 492
Options During a Call ...................... 478, 495
Phone Setup.................................... 464, 484
Receiving a Call ............................... 477, 494
Ringtone ......................................... 469, 488
Hazard Warning Button .............................. 8
HD Radio
TM............................................... 353
Head Restraints ................................ 253, 257
Headlights ................................................. 220
Aiming .................................................... 718
Auto High-Beam ..................................... 226
Dimming ................................................. 220
Operating................................................ 220
Head-Up Display ....................................... 169
Heated Door Mirrors ................................ 232
Heated Steering Wheel ............................ 279
Heated Windshield ................................... 232
Heaters (Front Seat) ................................. 280
Heaters (Seat) ................................... 281, 282
23 PILOT-31T906000_03.book 807 ページ ２０２２年１０月３１日　月曜日　午前１０時２６分
