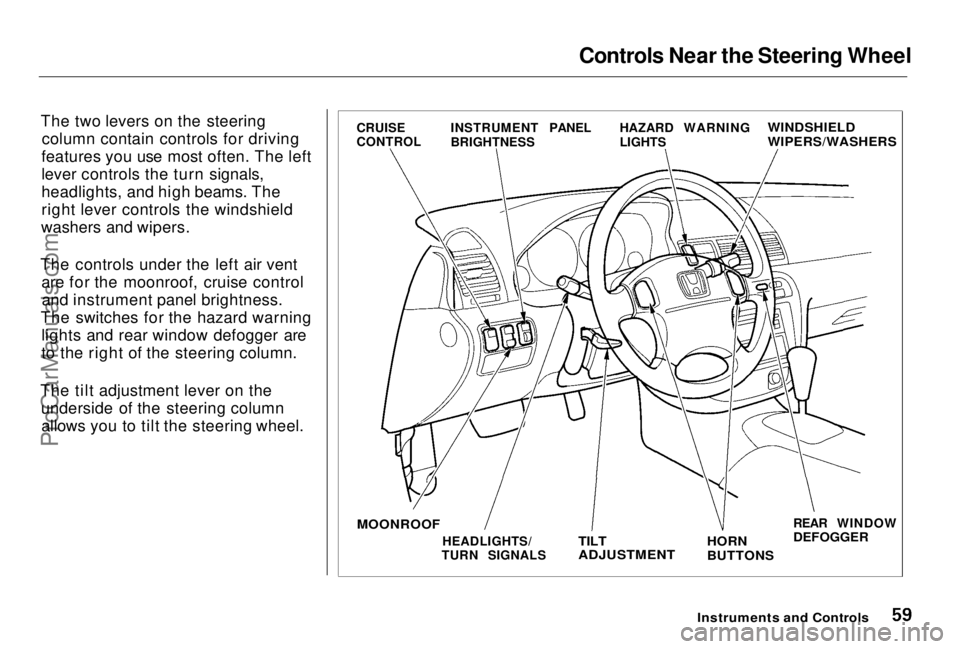

Controls Near the Steering Wheel
The two levers on the steering column contain controls for driving
features you use most often. The left
lever controls the turn signals,
headlights, and high beams. The
right lever controls the windshield
washers and wipers.
The controls under the left air vent are for the moonroof, cruise controland instrument panel brightness.
The switches for the hazard warning lights and rear window defogger are
to the right of the steering column.
The tilt adjustment lever on the underside of the steering columnallows you to tilt the steering wheel.

Instruments and Controls

CRUISE
CONTROL
INSTRUMENT PANEL
BRIGHTNESS HAZARD WARNING
LIGHTS
WINDSHIELD

WIPERS/WASHERS

REAR WINDOW

DEFOGGER

HORN

BUTTONS

TILT

ADJUSTMENT

HEADLIGHTS/
TURN SIGNALS

MOONROOFProCarManuals.comMain Menu Table of Contents s t

Steering Wheel Controls

Even with the cruise control turned on, you can still use the accelerator

pedal to speed up for passing. After
completing the pass, take your foot

off the accelerator pedal. The vehicle

will return to the set cruising speed.

Resting your foot on the brake or
clutch pedal will cause the cruise

control to cancel.
Cancelling the Cruise Control

You can cancel the cruise control in
any of these ways:
Tap the brake or clutch pedal. Press the SET/decel and RE-
SUME/accel buttons at the same

time.
Press the Cruise Control Master

Switch.

When you tap the brake or clutch pedal, or press the SET and RE-SUME buttons at the same time, the
CRUISE CONTROL light on the
instrument panel will go out and the
vehicle will begin to slow down. You can use the accelerator pedal in the
normal way.
If you use the brake or clutch pedal
to cancel cruise control, the system
remembers the previously-set cruising speed. To return to that speed, accelerate to above 25 mph
(40 km/h) and press the RESUME/
accel button until the CRUISE CON-
TROL light comes on. The vehicle will accelerate to the same cruisingspeed as before.
If you cancel cruise control by
pressing the SET and RESUME
buttons at the same time, the previously-set cruising speed iserased. To use the cruise control,
accelerate to the desired cruisingspeed and press the SET/decel

button.

Pressing the Cruise Control Master
Switch turns the system completelyoff and erases the previous cruising
speed from memory. To use the
system again, refer to Using the

Cruise Control.

Instruments and ControlsProCarManuals.comMain Menu Table of Contents s t

Digital Clock

The digital clock displays the time
with the ignition switch ON (II). To set the clock:
1. Turn the ignition switch ON (II) to display the time.
2. Swing down the front cover of the wide button under the clockdisplay. You will see HOUR, MIN,
and RESET buttons.
3. Press and hold the HOUR button until the hour advances to the
desired time.
4. Press and hold the MIN (minute) button until the numbers advance
to the desired time. You can use the RESET button to
quickly set the time to the nearest
hour. If the displayed time is before
the half hour, pressing RESET
button sets the clock back to the previous hour. If the displayed timeis after the half hour, pressing
RESET button sets the clock for-
ward to the beginning of the next
hour. For example: 1:06 would RESET to 1:00.
1:52 would RESET to 2:00.
Instruments and Controls
HOUR
MIN
RESETProCarManuals.comMain Menu Table of Contents s t

Heating and Cooling

Proper use of the Heating and
Cooling system can make the

interior dry and comfortable, and

keep the windows clear for best

visibility.

What Each Control Does
Fan Control Lever
Sliding this lever to the right
increases the fan's speed, which
increases air flow.
Temperature Control Lever
Sliding this lever to the right
increases the temperature of the air

flow.

Air Conditioning (A/C) Button
This button turns the air condi- tioning ON and OFF. The indicator
in the button lights when the A/C is
on.
Rear Window Defogger Button
This button turns the rear window defogger on and off (see page 63). Recirculation Button
This button controls the source of the air going into the system. When
the indicator in this button is lit, air
from the vehicle's interior is sentthrough the system again (Recircula-
tion mode). When the indicator is off,air is brought in from outside the
vehicle (Fresh Air mode).
Comfort and Convenience Features MODE BUTTONS
REAR WINDOW
DEFOGGER BUTTON RECIRCULATION
BUTTON
TEMPERATURE CONTROL LEVER FAN CONTROL

LEVER
AIR CONDITIONING
BUTTONProCarManuals.comMain Menu Table of Contents s t

Heating and Cooling

Mode Buttons Use the MODE buttons to select the
vents the air flows from. Some air
will flow from the dashboard corner
vents in all modes. Air flows from the center
and corner vents in the dashboard. Air flow is divided between
the vents in the dashboard and the
floor vents. Air flows from the floor

vents.
Air flow is divided between
the floor vents and the defroster
vents at the base of the windshield. Air flows from the defroster
vents at the base of the windshield. When you select the system
automatically switches to Fresh Air
mode and turns on the A/C.

Comfort and Convenience FeaturesProCarManuals.comMain Menu Table of Contents s t

Heating and Cooling

It is best to leave the system in Fresh
Air mode under almost all conditions. Keeping the system in Recirculation
mode, particularly with the A/C off,
can cause the windows to fog up.
Switch to Recirculation mode when
you are driving through smoky or dusty conditions, then switch back to
Fresh Air mode when the condition

clears.

The outside air intakes for the heating and cooling system are at
the base of the windshield. Keep
these clear of leaves and other
debris.
Ventilation

The flow-through ventilation system
draws in outside air, circulates it
through the interior, then exhausts it
through vents near the rear window. 1. Slide the temperature control lever
all the way to the left.
Make sure the A/C is off. 2. Select and Fresh Air mode.
3. Set the fan to the desired speed.

CONTINUED

Comfort and Convenience Features
MODE BUTTONS


RECIRCULATION
BUTTON
TEMPERATURE CONTROL LEVER FAN CONTROL

LEVER

AIR CONDITIONING
BUTTONProCarManuals.comMain Menu Table of Contents s t

Heating and Cooling

To Cool with A/C

1. Turn on the A/C by pressing the button. The light in the button
should come on.
2. Make sure the temperature control lever is all the way to the

left.
3. Select

4. If the outside air is humid, select
Recirculation mode. If the outside
air is dry, select Fresh Air mode.
5. Set the fan to the desired speed.
Comfort and Convenience Features MODE BUTTONS


RECIRCULATION
BUTTON
TEMPERATURE CONTROL LEVER FAN CONTROL

LEVER
AIR CONDITIONING

BUTTONProCarManuals.comMain Menu Table of Contents s t

Heating and Cooling

To Defog and Defrost

To remove fog from the inside of the
windows:

1. Switch the fan on.
2. Select

When you select the
system automatically switches to
Fresh Air mode and turns on the
A/C.
3. Adjust the temperature control lever so the air flow from thedefroster vents feels warm.
4. Turn on the rear window defogger to help clear the rear window.
When you switch to another mode from the A/C stays on.
Press the A/C button to turn if off.
Comfort and Convenience Features MODE BUTTONS


REAR WINDOW
DEFOGGER BUTTON RECIRCULATION
BUTTON

AIR CONDITIONING
BUTTON

FAN CONTROL

LEVER

TEMPERATURE
CONTROL LEVERProCarManuals.comMain Menu Table of Contents s t

Audio System

AM/FM/CD Audio System

Your Honda's audio system providesclear reception on both AM and FM
bands, while the preset buttons allow
you to easily select your favorite
stations.

The Anti-theft feature will disable the system if it is disconnected from
the vehicle's battery. To get thesystem working again, you must
enter a code number (see page 117).

Comfort and Convenience Features
AM/FM 1-2 BUTTON

TUNE BAR

PWR/VOL KNOB
PRESET BUTTONS
SEEK BARProCarManuals.comMain Menu Table of Contents s t

Audio System

Operating the Radio
The ignition switch must be in
ACCESSORY (I) or ON (II) to operate the audio system. Turn the
system on by pushing the PWR/
VOL knob. Adjust the volume by turning the same knob.
The band and frequency that the radio was last tuned to is displayed.
To change bands, press the AM/FM 1-2 button. On the FM band, ST will
be displayed if the station is broad- casting in stereo. Stereo reproduc-
tion on AM is not available. You can use any of three methods to
find radio stations on the selected
band: TUNE, SEEK, or the Preset

buttons.
TUNE— Use the TUNE bar to tune

the radio to a desired frequency. Press the side of the bar to tune
to a higher frequency, and the side to tune to a lower
frequency. The frequency numbers
will start to change rapidly. Release
the bar when the display reaches the desired frequency. To change the
frequency in small increments, press and release the TUNE bar quickly. SEEK — The SEEK function
searches the band for a station with
a strong signal. To activate it, press the SEEK bar on either the or
side, then release it.
Depending on which side you press,
the system scans upward or down-
ward from the current frequency. It stops when it finds a station with a
strong signal.
Preset — You can store the fre-
quencies of your favorite radiostations in the six preset buttons.
Each button will store one frequency on the AM band, and two on the FM

band.

CONTINUED

Comfort and Convenience Features
