Fuses

All the electrical circuits in your vehicle have fuses to protect them
from a short circuit or overload.
These fuses are located in two fuse boxes.
The under-hood fuse box is locatedin the back of the engine compart-
ment on the passenger's side. Toopen it, push the tab as shown. The interior fuse box is underneath
the dashboard on the driver's side.
To open it, turn the knob as shown.
Taking Care of the Unexpected

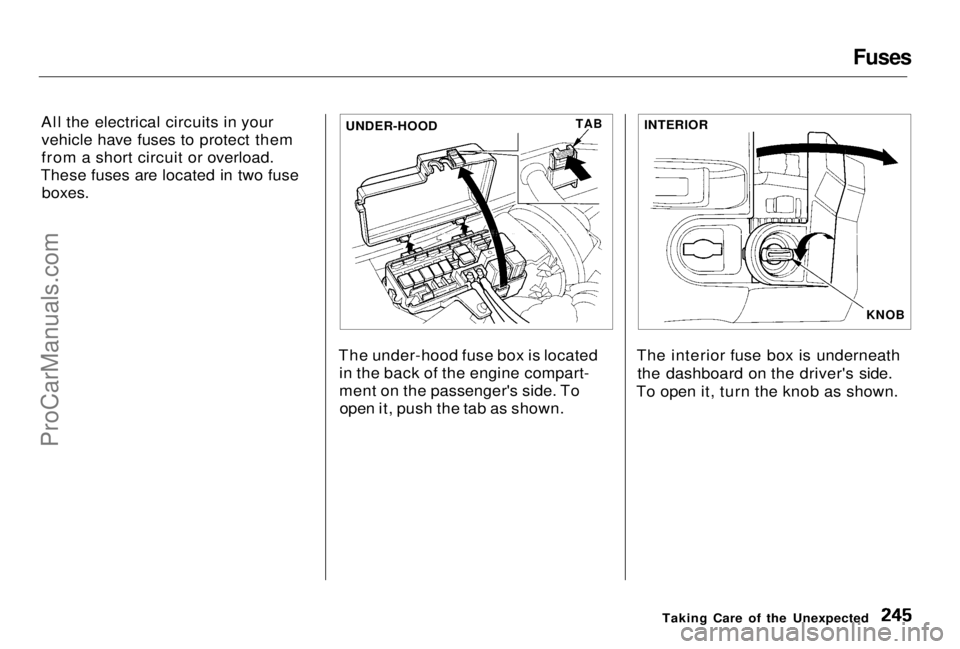

UNDER-HOOD

TAB

INTERIOR

KNOBProCarManuals.comMain Menu Table of Contents s t

Fuses

Checking and Replacing Fuses

If something electrical in your
vehicle stops working, the first thing you should check for is a blown fuse. Determine from the chart on pages 248 and 249, or the diagram on the
fuse box lid, which fuse or fuses control that component. Check those
fuses first, but check all the fuses
before deciding that a blown fuse is not the cause. Replace any blown
fuses and check the component's
operation.

1. Turn the ignition switch to LOCK (0). Make sure the headlights and
all other accessories are off.
2. Remove the cover from the fuse
box.
3. Check each of the large fuses in
the under-hood fuse box by
looking through the top at the wireinside. Removing these fuses
requires a Phillips-head screw-driver. 4. Check the smaller fuses in the
under-hood fuse box and all the
fuses in the interior fuse box by
pulling out each fuse with the fuse
puller provided in the interior fuse
box.
Taking Care of the Unexpected

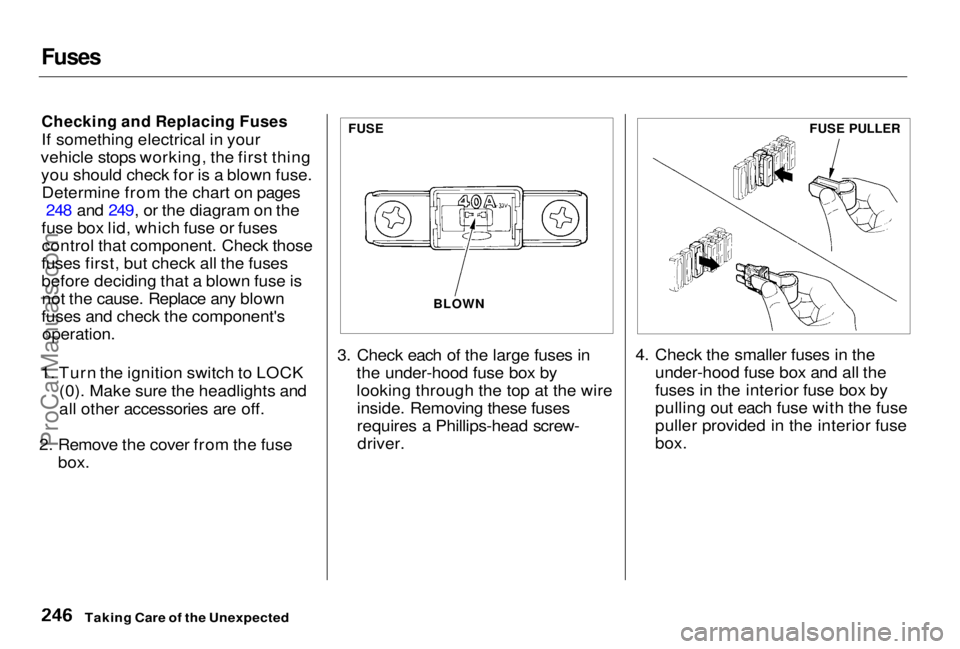

FUSE

BLOWN
FUSE PULLERProCarManuals.comMain Menu Table of Contents s t

Fuses

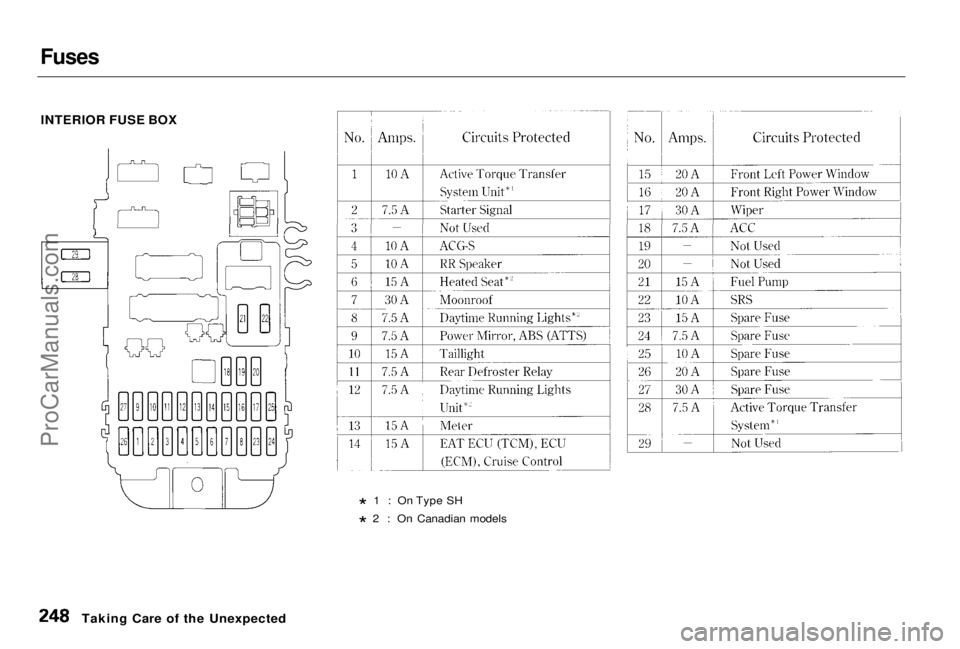

INTERIOR FUSE BOX
* 1 : On Type SH
* 2 : On Canadian models
Taking Care of the UnexpectedProCarManuals.comMain Menu Table of Contents s t

Fuses

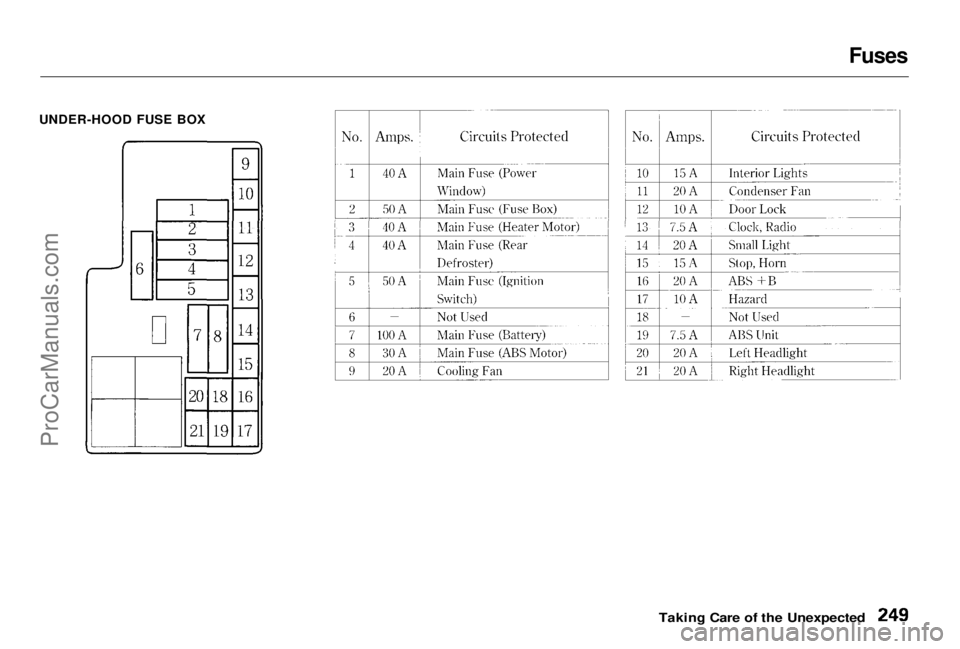

UNDER-HOOD FUSE BOX

Taking Care of the UnexpectedProCarManuals.comMain Menu Table of Contents s t
