Drivin
g in Ba d Weathe r

Rain, fog, and snow conditions re-
quire a different driving technique
because of reduced traction and
visibility. Keep your car well- maintained and exercise greater
caution when you need to drive in
bad weather. The cruise control should not be used in these condi-
tions. Drivin
g Techniqu e — Always drive
slower than you would in dry
weather. It takes your car longer to react, even in conditions that mayseem just barely damp. Apply
smooth, even pressure to all the
controls. Abrupt steering wheel
movements or sudden, hard appli-

cation of the brakes can cause loss of

control in wet weather. Be extra
cautious for the first few miles (kilometers) of driving while you
adjust to the change in driving
conditions. This is especially true in
snow. A person can forget some
snow-driving techniques during the
summer months. Practice is needed
to relearn those skills.
Exercise extra caution when driving
in rain after a long dry spell. After
months of dry weather, the first
rains bring oil to the surface of the
roadway, making it slippery.
Visibilit
y — Being able to see

clearly in all directions and being
visible to other drivers are important in all weather conditions. This is
more difficult in bad weather. To beseen more clearly during daylight
hours, turn on your headlights.
Inspect your windshield wipers and
washers frequently. Keep the wind-shield washer reservoir full of the
proper fluid. Have the windshield
wiper blades replaced if they start to streak the windshield or leave parts
unwiped. Use the defrosters and air
conditioning to keep the windows
from fogging up on the inside (see

page 104).

Drivin g

Drivin
g in Ba d Weathe r

Tractio n — Check your tires
frequently for wear and proper pressure. Both are important in
preventing "hydroplaning" (loss of
traction on a wet surface). In the
winter, mount snow tires on all four
wheels for the best handling.
Watch road conditions carefully, they can change from moment tomoment. Wet leaves can be as slip-
pery as ice. "Clear" roads can have
patches of ice. Driving conditions can be very hazardous when the
outside temperature is near freezing.
The road surface can become covered with areas of water puddles
mixed with areas of ice, so your
traction can change without warning.
Be careful when downshifting. If
traction is low, you can lock up the drive wheels for a moment and cause
a skid. Be very cautious when passing, or
being passed by other vehicles. The spray from large vehicles reduces
your visibility, and the wind buffeting
can cause you to lose control.

Driving

Towin
g a Traile r

Your Honda has been designed primarily to carry passengers and
their cargo. You can use it to tow a
trailer if you carefully observe the
load limits, use the proper equipment,and follow the guidelines in this

section.

Loa d Limit s Tota
l Traile r Weight : The total
weight of the trailer and everything loaded in it must not
exceed 1,000 Ibs (450 kg). Towing
a load that is too heavy can
seriously affect your vehicle's
handling and performance. It can also damage the engine anddrivetrain. Tongu
e Load : The weight that
the tongue of a fully-loaded trailer
puts on the hitch should be
approximately 10 percent of the
trailer weight. Too little tongue
load can make the trailer unstable and cause it to sway. Too much
tongue load reduces front-tire
traction and steering control.
To achieve a proper tongue load, start by loading 60 percent of the
load toward the front of the trailer and 40 percent toward the rear, then
readjust the load as needed.
Gros
s Vehicl e Weigh t Ratin g

(GVWR) :

The total weight of the vehicle, all occupants, all cargo, and the
tongue load must not exceed: 3,835 Ibs (1,740 kg)
Gros
s Axl e Weigh t Ratin g

(GAWR) :

The total weight of the vehicle, all occupants, all cargo, and the
tongue load must not exceed:
2,160 Ibs (980 kg)
on the front axle
1,685 Ibs (765 kg)
on the rear axle

Drivin g
Exceeding load limits or
improperly loading your vehicle
and trailer can cause a crash in
which you can be seriously injured or killed.
Check the loading of your
vehicle and trailer carefully before starting to drive.

Towin
g a Traile r

Checkin g Load s

The best way to confirm that vehicle and trailer weights are within limits
is to have them checked at a public
scale.

Using a suitable scale or a special
tongue load gauge, check the tongue
load the first time you set up a
towing combination (a fully-loaded
vehicle and trailer), then recheck the
tongue load whenever the conditions
change.
Towin
g Equipmen t an d
Accessorie s
Towing can require a variety of equipment, depending on the size of
your trailer, how it will be used, and how much load you are towing.
Discuss your needs with your trailer
sales or rental agency, and follow the
guidelines in the rest of this section.
Also make sure that all equipment is properly installed and that it meets
federal, state, province, and local
regulations.

Hitches

Any hitch used on your vehicle must be properly bolted to the underbody.
Safety Chain

Always use a safety chain. Make sure that it is secured to both the
trailer and hitch, and that it crosses
under the tongue so it can catch the
trailer if it becomes unhitched. Leave enough slack to allow the
trailer to turn corners easily, but do not let the chain drag on the ground.
CONTINUED

Drivin g

Towin
g a Traile r

Trailer Brakes

Honda recommends that any trailer
having a total weight of 1,000 Ibs (450 kg) or more be equipped with
its own electric or surge-type brakes.
If you choose electric brakes, be sure they are electronically actuated.
Do not attempt to tap into your
vehicle's hydraulic system. No matter how successful it may seem,any attempt to attach trailer brakes
to your vehicle's hydraulic system
will lower braking effectiveness and create a potential hazard.
Trailer Lights

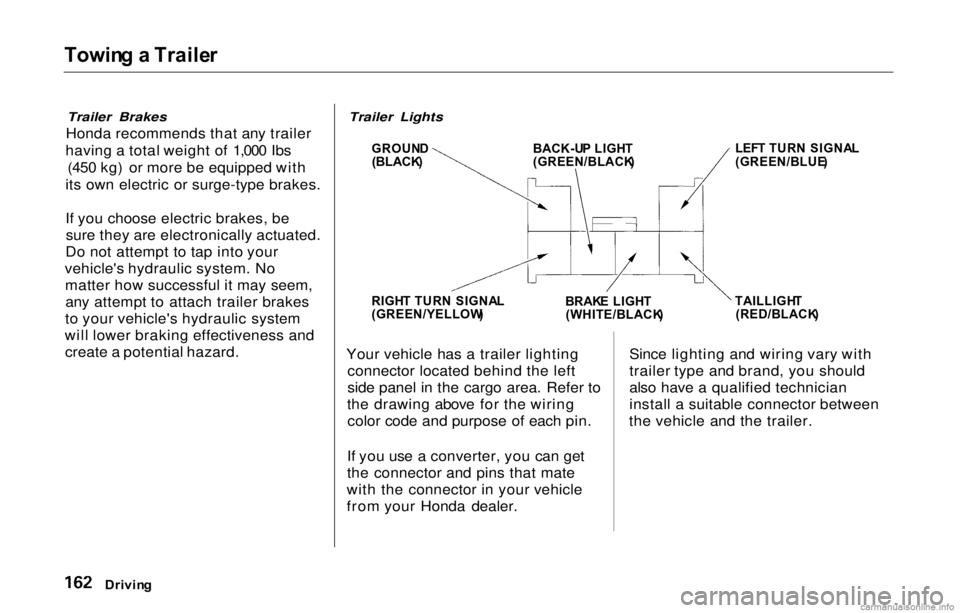

Your vehicle has a trailer lighting connector located behind the left
side panel in the cargo area. Refer to
the drawing above for the wiring color code and purpose of each pin.
If you use a converter, you can get
the connector and pins that mate
with the connector in your vehicle
from your Honda dealer. Since lighting and wiring vary with
trailer type and brand, you should
also have a qualified technician
install a suitable connector between
the vehicle and the trailer.

Drivin g
LEF
T TUR N SIGNA L
(GREEN/BLUE )
GROUN
D

(BLACK )
BACK-U
P LIGH T
(GREEN/BLACK )
RIGH T TUR N SIGNA L
(GREEN/YELLOW )BRAK
E LIGH T
(WHITE/BLACK )TAILLIGH
T
(RED/BLACK )

Towin
g a Traile r

Additional Trailer Equipment
Many states and Canadian provinces
require special outside mirrors when
towing a trailer. Even if they don't,
you should install special mirrors if
you cannot clearly see behind you, or if the trailer creates a blind spot.
Ask your trailer sales or rental agency if any other items are
recommended or required for your

towing situation.
Pre-To
w Checklis t
When preparing to tow, and before driving away, be sure to check the

following:
The vehicle has been properly
serviced, and the tires, brakes,
suspension, and cooling system
are in good operating condition.
All weights and loads are within limits (see pages 160 and 161). The hitch, safety chain, and any
other attachments are secure. All items on and in the trailer are
properly secured and cannot shift
while you drive. The lights and brakes on your
vehicle and the trailer are workingproperly. Your vehicle tires and spare are
properly inflated (see page 206), and the trailer tires and spare are
inflated as recommended by the
trailer maker.
Driving

Towing a Traile r
Drivin g Safel y Wit h a Traile r
The added weight, length, and height of a trailer will affect your
vehicle's handling and performance, so driving with a trailer requires
some special driving skills and
techniques.
For your safety and the safety of
others, take time to practice driving
maneuvers before heading for the open road, and follow the guidelines
discussed below.
Towing Speeds and Gears
Drive slower than normal in alldriving situations, and obey posted
speed limits for vehicles with trailers.
If you have an automatic
transmission, use D
4 position when
towing a trailer on level roads. D
3 is
the proper shift lever position to use
when towing a trailer in hilly terrain. (See "Driving on Hills" in the next
column for additional gear
information.)
Making Turns and Braking
Make turns more slowly and wider
than normal. The trailer tracks a smaller arc than your vehicle, and it
can hit or run over something the
vehicle misses. Allow more time and distance for braking. Do not brake or
turn suddenly as this could cause the
trailer to jackknife or turn over.
Driving on Hills
When climbing hills, closely watch
your temperature gauge. If it nears the red mark, turn the airconditioning off, reduce speed and, ifnecessary, pull to the side of the
road to let the engine cool.
If the automatic transmission shifts
frequently between 3rd and 4th
gears while going up a hill, shift to
D3.
If you must stop when facing uphill,
use the foot brake or parking brake.
Do not try to hold the vehicle in
place by pressing on the accelerator, as this can cause the automatic
transmission to overheat.
When driving down hills, reduce
your speed and shift down to 2nd gear. Do not "ride" the brakes, andremember it will take longer to slowdown and stop when towing a trailer.
Drivin g

Towin
g a Traile r

Handling Crosswinds and Buffeting

Crosswinds and air turbulence
caused by passing trucks can disrupt

your steering and cause trailer
swaying. When being passed by a

large vehicle, keep a constant speed
and steer straight ahead. Do not try
to make quick steering or braking
corrections.

Backing Up
Always drive slowly and have someone guide you when backing up.
Grip the bottom of the steering
wheel; then turn the wheel to the left to get the trailer to move to the left,and turn the wheel right to move the
trailer to the right.
Parking

Follow all normal precautions when
parking, including firmly setting the
parking brake and putting the
transmission in Park (automatic) or in 1 st or Reverse (manual). Also,
place wheel chocks at each of the trailer's tires.
Driving

166

Maintenanc
e

This section explains why it is important to keep your car well
maintained and to follow basic
maintenance safety precautions.
This section also includes Maintenance Schedules for normal
driving and severe driving conditions,
a Maintenance Record, and instruc-
tions for simple maintenance tasks
you may want to take care of
yourself.
If you have the skills and tools to per-
form more complex maintenance
tasks on your Honda, you may want to purchase the Service Manual. See
page 279 for information on how toobtain a copy, or see your Honda

dealer.
Maintenance Safety....................... 168
Important Safety Precautions ..169
Maintenance Schedule.................. 170
Required Maintenance Record.... 177 Owner Maintenance Checks........ 17
9

Fluid Locations............................... 180

Engine Oil.......................................

181

Adding Oil...................................
181

Recommended Oil.....................
181

Synthetic Oil............................... 182

Additives.....................................182
Changing
the Oil and Filter...... 183
Cooling System.............................. 185 Adding Engine Coolant............. 185Replacing Engine Coolant........ 187
Windshield Washers..................... 190
Transmission Fluid........................ 19

1

Automatic Transmission.......................... 19

1

5-speed ManualTransmission.......................... 192
Brake an
d Clutch Fluid................. 193
Brake System............................. 193 Clutch System............................ 194
Power Steering............................... 194
Air Cleaner Element...................... 195
Hood Latch.....................................

196

Spark Plugs.....................................
196

Replacement...............................
196

Specifications.............................
198

Battery............................................
198

Wiper Blades.................................. 200
Air Conditionin g
System............... 202
Air Conditioning Filter.................. 203 Drive Belts...................................... 204
Timing Belt..................................... 204
Tires................................................ 205

Inflation.......................................205

Inspection................................... 206
Maintenance............................... 20

7

Tire Rotation.............................. 208
Replacing Tire s
and Wheels .... 208
Wheels and Tires....................... 209
Winter Driving...........................209
Snow Tires.............................. 210

Tire Chains............................. 210
Lights..............................................

211

Headlight Aimimg..................... 213
Replacing Bulbs........................ .
214
Storing Your Car............................ 225
Maintenance
