If Your Vehicle Gets Stuck
288
To avoid damage to your vehicle, use
the tie down hooks f or straight, f lat
ground towing only. Do not tow at an
angle. These hooks should not be used
f or open-road towing.
—
—y
y
(yy

Thediagramsinthissectiongive
you the dimensions and capacities of
your vehicle, and the locations of the
identif ication numbers. It also
includes inf ormation you should
know about your vehicle’s tires and
emissions control systems.................
Identif ication Numbers .290
................................
Specif ications .292
DOT Tire Quality Grading
......................
(U.S. Vehicles) .294
Unif orm Tire Quality ..................................
Grading .294
.................................
Treadwear .294
......................................
Traction .294
.............................
Temperature .295
.................................
Tire Labeling .296 .......................
Emissions Controls .297
.....................
The Clean Air Act .297
Crankcase Emissions Control
....................................
System .297
Evaporative Emissions Control ....................................
System .297
Onboard Ref ueling Vapor ................................
Recovery .297
...
Exhaust Emissions Controls .298
....................
PGM-FI System .298
Ignition Timing Control
................................
System .298
Exhaust Gas Recirculation ...................
(EGR) System .298
Three Way Catalytic ...........................
Converter .298
....................
Replacement Parts .298
..
Three Way Catalytic Converter .299
..............
State Emissions Testing .300
T echnical Inf ormation
Technical Inf ormation
289
—
—y
y
(yy

Your vehicle has several identif ying
numbers in various places.

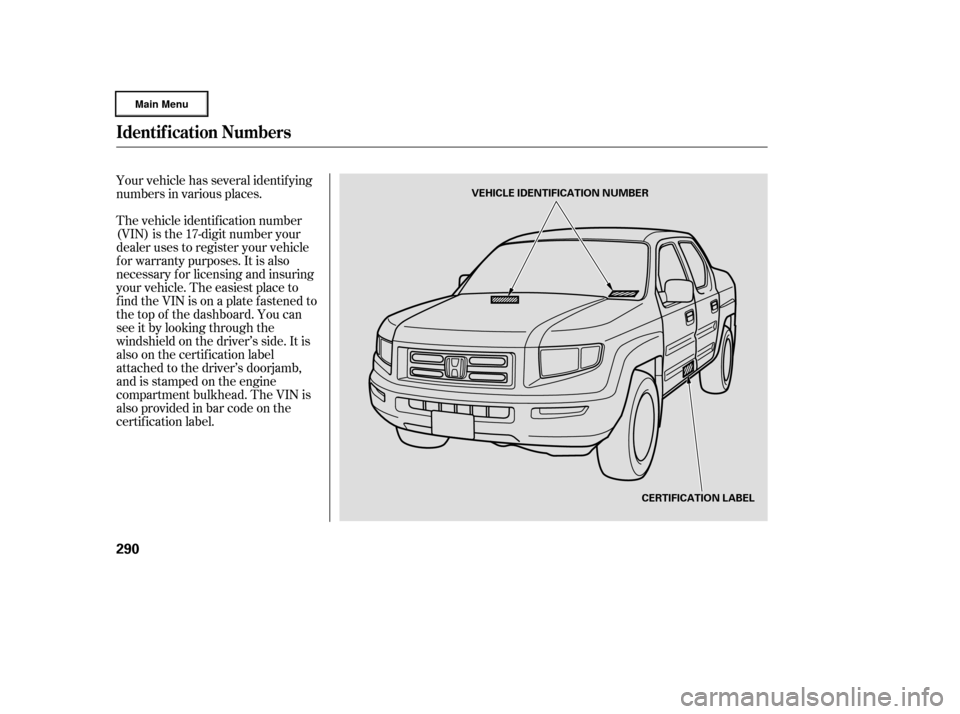

The vehicle identif ication number
(VIN) is the 17-digit number your
dealer uses to register your vehicle
f or warranty purposes. It is also
necessary f or licensing and insuring
your vehicle. The easiest place to
find the VIN is on a plate fastened to
the top of the dashboard. You can
seeitbylookingthroughthe
windshield on the driver’s side. It is
also on the certification label
attached to the driver’s doorjamb,
and is stamped on the engine
compartment bulkhead. The VIN is
also provided in bar code on the
certif ication label.
Identif ication Numbers
290
VEHICLE IDENTIFICATION NUMBERCERTIFICATION LABEL
—
—y
y
(yy

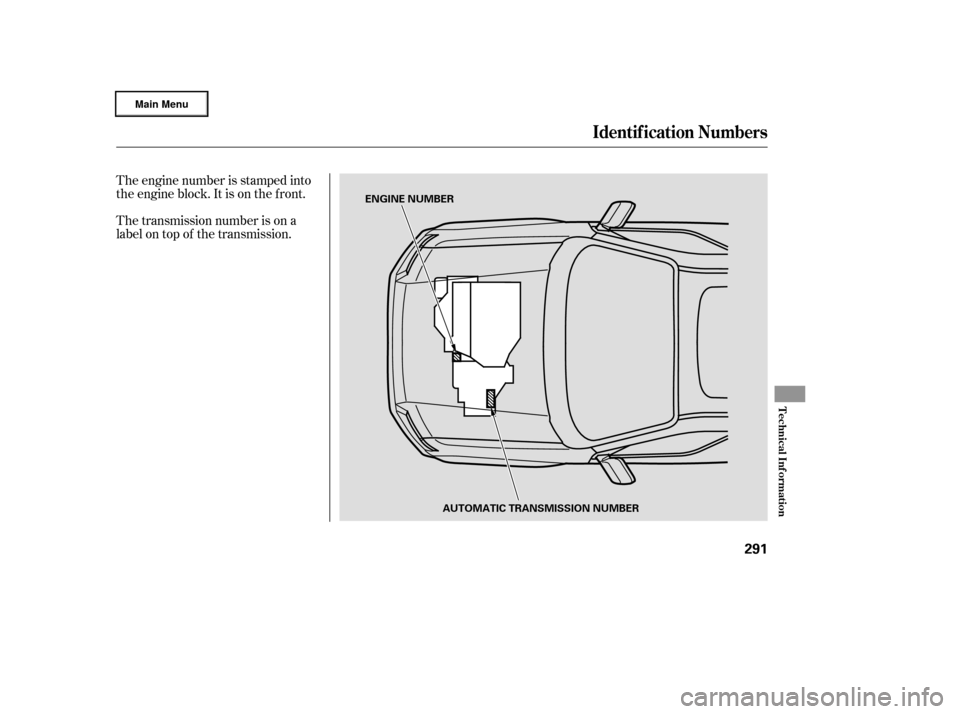

The engine number is stamped into
the engine block. It is on the f ront.
The transmission number is on a
label on top of the transmission.
Identif ication Numbers
Technical Inf ormation
291
ENGINE NUMBERAUTOMATIC TRANSMISSION NUMBER
—
—y
y
(yy

ÎÎ
Î
Î
Î
µµ Î
Î
Î
Î
Î
Specif ications
292
Capacities
Dimensions
Weights
Air Conditioning 1.64 US gal (6.2
)
2.14 US gal (8.1)
4.5 US qt (4.3
)
4.2 US qt (4.0
)
5.3 US qt (5.0
)
3.3 US qt (3.1)
8.6 US qt (8.1)
206.7 in (5,250 mm)
78.0 in (1,980 mm)
70.3 in (1,785 mm)
2.79 US qt (2.64
)
3.01 US qt (2.85)
0.45 US qt (0.43
)
0.48 US qt (0.45)
0.16 US gal (0.6
) 4.8 US qt (4.5
)
Excluding the oil remaining in the engine. Including the coolant in the reserve tank and that remaining in the
engine.
Reserve tank capacity:
Fuel tank
Engine
coolant
Engine oil
Automatic
transmission
fluid
Rear
differential
fluid
Transfer
assembly
fluid
Windshield
washer
reservoir
Length
Width
Height
Wheelbase
Track
122.0 in (3,100 mm)
67.1 in (1,705 mm)
66.9 in (1,700 mm) 22.01 US gal (83.3
)
See the tire information label
attached to the driver’s doorjamb.
Gross vehicle weight rating
Gross combined weight
rating (GCWR)
Maximum load limit
(Payload)
The GCWR must be reduced 2 percent for every 1,000 feet (305
meters) of elevation.
Refrigerant type
Charge quantity
Lubricant type HFC-134a (R-134a)
21.2 23.0 oz (600 650 g) ND-OIL8 Approx.
Front
Rear
1:
2:Change
Total
Change
Including
filter
Without
filter
Total
Change
Total
Change
Total
Change
Total
10,088 lbs (4,575 kg)
1:
2:
3: On vehicles without moonroof or navigation system 1,530 lbs (690 kg)
1,480 lbs (670 kg)
On vehicles with moonroof and navigation system
1 1
2
2
3
——y

y
(yy

µ
µ
µ
µ
µ
µ
µ
µ
µ
µ
µ
µ
µ
µ
µ
µ
µ
Specif ications
Technical Inf ormation
293
Fuses
Battery Engine
Alignment
Tires
Lights
60/55 W (HB2)
12 V
12 V 28/8 W
12 V 21 W
12 V 21/5 W
12 V 18 W
12 V 3 CP
12 V 3 CP
12 V
12 V 8W
5W
12 V 3 CP
12 V 1.4 W Interior
Under-hood
See page285or the fuse label
attached to the inside of the fuse
box lid under the dashboard.
See page284or the fuse box lid.
Capacity 12 V 12 V
3.8 W
2W
12 V 3.4 W Type
BorexStroke
Displacement
Compression ratio
Spark plugs
Toe-in
Camber
Caster
Size
Pressure3.50 x 3.66 in (89.0 x 93.0 mm)
211.8 cu-in (3,471 cm
)
10.0 : 1
IZFR5K-11
SKJ16DR-M11
0.00 in (0.0 mm)
0.00 in (0.0 mm) 0°50’
0°50’
1°53’
P245/65R17 105S
T165/90R17 105M
32 psi (220 kPa , 2.2 kgf/cm
)
60 psi (420 kPa , 4.2 kgf/cm)
Headlights
Front turn signal/Parking/
Hazard lights
Rear turn signal/hazard lights
Brake/Taillights
Back-up lights
License plate lights
High-mount brake lights
Individual map lights
Bed lights
Console compartment light
Glove box light
Vanity mirror light
Door courtesy lights
12 V 72 AH/20 HR
Front/Rear
Spare
Front/Rear
Spare Front
Rear
Front
Rear
Front
Front
Rear
NGK:
DENSO:
High/Low
(Amber)
Water cooled 4-stroke SOHC VTEC,V6 gasoline engine
—
—y

y
(yy

µ
The tires on your vehicle meet all
U.S. Federal Saf ety Requirements.
All tires are also graded f or
treadwear, traction, and temperature
perf ormance according to
Department of Transportation
(DOT) standards. The f ollowing
explains these gradings.
Quality grades can be f ound where
applicable on the tire sidewall
between the tread shoulder and the
maximum section width. For
example: The treadwear grade is a compara-
tive rating based on the wear rate of
the tire when tested under controlled
conditions on a specif ied government
test course. For example, a tire
graded 150 would wear one and one-
half (1 1/2) times as well on the
government course as a tire graded
100. The relative perf ormance of
tires depends upon the actual condi-
tions of their use, however, and may
depart signif icantly f rom the norm
due to variations in driving habits,
service practices, and dif f erences in
road characteristics and climate.The traction grades, f rom highest to
lowest, are AA, A, B, and C. Those
grades represent the tire’s ability to
stop on wet pavement as measured
under controlled conditions on
specif ied government test surf aces
of asphalt and concrete. A tire
marked C may have poor traction
perf ormance.
Warning: The traction grade
assignedtothistireisbasedon
straight-ahead braking traction tests,
and does not include acceleration,
cornering, hydroplaning, or peak
traction characteristics.
All passenger car tires must conf orm
to Federal Saf ety Requirements in
addition to these grades. Unif orm T ire Quality Grading
T readwear 200
Traction AA
Temperature A Treadwear Traction AA, A, B, C
DOT Tire Quality Grading (U.S. Vehicles)
294
—
—y

y
(yy

µWarning: The temperature grade f or
this tire is established f or a tire that
is properly inf lated and not
overloaded. Excessive speed,
underinf lation, or excessive loading,
either separately or in combination,
can cause heat buildup and possible
tire f ailure.
The temperature grades are A (the
highest), B, and C, representing the
tire’s resistance to the generation of
heat and its ability to dissipate heat
when tested under controlled
conditions on a specif ied indoor
laboratory test wheel. Sustained high
temperature can cause the material
of the tire to degenerate and reduce
tire life, and excessive temperature
can lead to sudden tire f ailure. Grade
C corresponds to a level of
perf ormance that all passenger car
tires must meet under the Federal
Motor Vehicle Saf ety Standard No.
109. Grades B and A represent
higher levels of perf ormance on the
laboratory test wheel than the
minimum required by law.
DOT Tire Quality Grading (U.S. Vehicles)
Temperature A,B,C
Technical Inf ormation
295
—
—y
y
(yy

µ
µ
µ
µ
µ
µ µ
µ
µ
µ
µ
µ
µ
The tires that came on your vehicle
have a number of markings. Those
you should be aware of are described
below.
Whenever tires are replaced, they
should be replaced with tires of the
same size. Following is an example
of tire size with an explanation of
what each component means.
Rim diameter in inches.
Load index (a numerical code
associated with the maximum
load the tire can carry).
Speed symbol (an
alphabetical code indicating
the maximum speed rating).
The tire identif ication number (TIN)
is a group of numbers and letters
that look like the f ollowing example
TIN.
Tire construction code (R
indicates radial). Aspect ratio (the tire’s section
height as a percentage of its
width). Tire width in millimeters. Vehicletype(Pindicates
passenger vehicle). This indicates that the tire
meets all requirements of
the U.S. Department of
Transportation.Manuf acturer’s
identification mark. Tire type code.
Date of manuf acture.
The maximum air
pressurethetirecan
hold.
Max Press
Max Load The maximum load the
tire can carry at
maximum air pressure.
R DOT
B97RFW6X
2202
65 245 P 17
105
S
Tire Labeling
Tire Size
T ire Ident if icat ion NumberMaximum T ire Pressure
Maximum T ire L oad
296
P245/65R17 105S DOT B97R FW6X 2202
—
—y

y
(y
y

Î
ÎThe burning of gasoline in your
vehicle’s engine produces several by-
products. Some of these are carbon
monoxide (CO), oxides of nitrogen
(NOx), and hydrocarbons (HC).
Gasoline evaporating f rom the tank
also produces hydrocarbons. Con-
trolling the production of NOx, CO,
and HC is important to the environ-
ment. Under certain conditions of
sunlight and climate, NOx and HC
react to f orm photochemical ‘‘smog.’’
Carbon monoxide does not contri-
bute to smog creation, but it is a
poisonous gas. The United States Clean Air Act
sets standards f or automobile
emissions. It also requires that
automobile manufacturers explain to
owners how their emissions controls
workandwhattodotomaintain
them. This section summarizes how
the emissions controls work.
In Canada, Honda vehicles comply
with the Canadian emission
requirements, as specif ied in an
agreement with Environment
Canada, at the time they are
manuf actured.
Your vehicle has a positive
crankcase ventilation system. This
keeps gasses that build up in the
engine’s crankcase f rom going into
the atmosphere. The positive
crankcase ventilation valve routes
them from the crankcase back to the intake manif old. They are then
drawn into the engine and burned.
As gasoline evaporates in the f uel
tank, an evaporative emissions
control canister f illed with charcoal
adsorbs the vapor. It is stored in this
canister while the engine is of f . Af ter
the engine is started and warmed up,
the vapor is drawn into the engine
and burned during driving.
The onboard ref ueling vapor
recovery (ORVR) system captures
the f uel vapors during ref ueling. The
vapors are adsorbed in a canister
f illed with activated carbon. While
driving, the f uel vapors are drawn
into the engine and burned of f .
Emissions Cont rols
The Clean Air Act
Crankcase Emissions Control
System
Evaporative Emissions Control
System
Onboard Ref ueling Vapor
Recovery
Technical Inf ormation
297
—
—y
y
(yy
