The glove box light comes on when
the parking lights are on.Some larger styles of sunglasses
may not f it in the holder.
These hooks are not designed f or
large or heavy items.
To open the sunglasses holder, push
on the rear edge. Make sure the
holder is closed while you are driving.
Open the glove box by pulling up on
thehandle.Closeitwithafirmpush.
Lock or unlock the glove box with
the master key.
Glove Box Sunglasses Holder
Coat Hooks
Interior Convenience Items
Inst rument s and Cont rols
117
SUNGLASSES HOLDER
An open glove box can cause
serious injury to your passenger
inacrash,evenifthe
passenger is wearing the seat
belt.
Always keep the glove box
closed while driving.
\f—\f—y

y
(\fy\f
y
2008 Ridgeline

There are three accessory power
sockets in your vehicle. Two
accessory power sockets are above
the center pocket on the dashboard,
and another is on the back of the
center console.These sockets are intended to supply
power f or 12 volt DC accessories
that are rated 120 watts or less (10
amps).
To use an accessory power socket,
the ignition switch must be in the
ACCESSORY (I) or ON (II) position.None of the sockets will power an
automotive type cigarette lighter
element. When both sockets are
being used, the combined power
rating of the accessories should be
120 watts or less (10 amps).
A ccessory Power Sockets
Interior Convenience Items
118
FRONT REAR
\f—\f—y
y
(\fy\f
y
2008 Ridgeline

Pull up the vanity mirror cover to use
it.
The light comes on when you pull up
the cover.
The light will not come on if the sun
visor is slid outward.
Make sure you put the sun visor
back in place when you are getting
into or out of the vehicle.
In this position, the sun visor can be
adjusted by moving it on its slider.
Do not use the extended sun visor
over the inside mirror.
To use the sun visor, pull it down.
Whenusingthesunvisorforthe
side window, remove the support rod
f rom the clip, and swing it out.
Sun Visor Vanity Mirror
Interior Convenience Items
Inst rument s and Cont rols
119
SUN VISOR
\f—\f—y

y
(\fy\f
y
2008 Ridgeline

When the interior light control switch isin the ON position: When the switch is in the OFF position:
When the switch is in the door position:
None of the lights come on when a
door is opened.
The map lights in the f ront can be
turned on and of f by pushing each
lens. The rear map lights cannot
be used.
All the individual map lights and
the rear console light come on and
stay on as long as the switch
remains in the ON position. The individual map lights and the
rear console light come on when
any door is opened, or when the
remote transmitter or the key is
used to unlock the doors. When
the doors are closed, each
individual map light can be turned
on and of f by pushing the lens.
The lights fade out about 30
seconds after all the doors are
closed.
With any door lef t open and the
key removed f rom the ignition
switch, the lights stay on about 3
minutes, then go out.
Interior L ight Control Switch
Interior Lights
120
ON
OFF
DOOR POSITION
\f—\f—y
y
(\fy\f
y
2008 Ridgeline

Turn on a f ront individual map light
by pushing the lens. Push the lens
again to turn it off. With the interior
light control switch in the door
position, a rear map light can be
turned on by pushing the lens. Push
the lens again to turn it off.The courtesy light in each door
comes on when you open that door.
The light around the ignition switch
only comes on when you open the
driver’s door. Af ter you close the
door, the ignition switch light f ades
out in about 30 seconds.
The courtesy light in the back of the
center console comes on when you
open any door with the interior light
control switch in the door position.
Af ter you close the doors, the light
f ades out.
The map lights stay on when the
interior light control switch is in the
door position and the map light
switch is on.
The courtesy light between the f ront
map lights comes on when you turn
the parking lights on. To adjust its
brightness, turn the instrument
panel brightness control dial on the
dashboard (see page ).78
If equipped
Individual Map L ights Individual Interior L ights Courtesy L ight
Interior Lights
Inst rument s and Cont rols
121
\f—\f—y
y
(\fy\f
y
2008 Ridgeline

If you turn the ignition switch to
ACCESSORY (I) or LOCK (0)
without turning of f the bed lights,
the lights and the indicator will
remain on, then go of f af ter 20
minutes (see page ).
Your vehicle has bed lights in the
pickup bed: a light on each f ront
upper and rear bottom side. With the
shif t lever in the Park position, the
bed lights come on when you push
the bed light switch on the
dashboard, swing open the tailgate,
or open the In-Bed Trunk. The
indicator on the instrument panel
alsocomesontoremindyouthatthe
bed lights are on. To turn of f the lights, push the light
switch again, or close the tailgate
and the In-Bed Trunk.
When you move the shif t lever out of
the Park position, the bed lights go
of f and cannot be used. 69
Bed L ights
122
BED LIGHT SWITCH
\f—\f—y
y
(\fy\f
y
2008 Ridgeline

The standard audio system has
many f eatures. This section
describes those f eatures and how to
use them. (If you have an optional
audio system, ref er to the operating
instructions that came with it.)
The heating and air conditioning
system in your vehicle provides a
comf ortable driving environment in
all weather conditions.
Your vehicle has an anti-theft audio
system that requires a code number
to enable it.
The security system helps to
discourage vandalism and thef t of
your vehicle..............
Vents, Heating, and A/C .124
...........................
Using the A/C .128
Using Automatic Climate
...................................
Control .130
........................
Rear Ventilation .131
..........
Dual Temperature Control .132
..............
Climate Control Sensors .134
..........
Playing the AM/FM Radio .135
............
AM/FM Radio Reception .142
.
Playing the XM
Satellite Radio .144
..........
Playing a CD, CD Changer .150
....................
Protecting Your CDs .161
CD Player/Changer Error
...................................
Messages .164
................
Remote Audio Controls .165
...
Playing an Optional Audio Unit .165
.................
Radio Thef t Protection .166
..........................
Setting the Clock .167
............................
Security System .168
...............................
Cruise Control .169
.........................................
Compass .172
HomeLink Universal
................................
Transceiver .175
On all models except RT, RTX, and
Canadian LX
Features
Features
123
\f—\f—y
y
(\fy\f
y
2008 Ridgeline

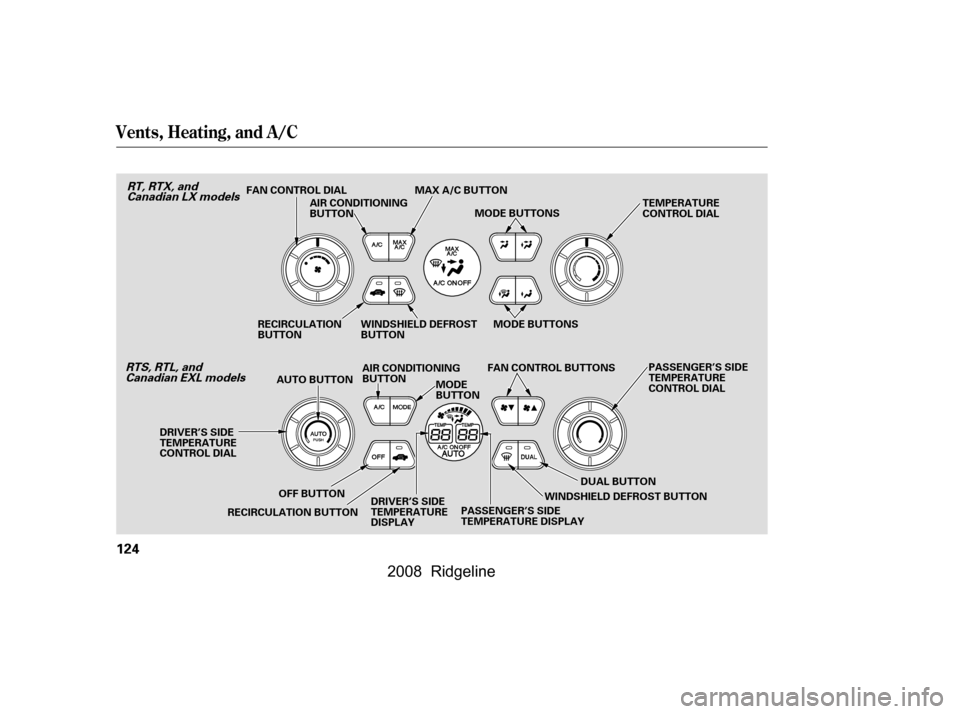

Vents, Heating, and A/C
124
FAN CONTROL DIALMODE BUTTONSTEMPERATURE
CONTROL DIAL
RECIRCULATION
BUTTON WINDSHIELD DEFROST
BUTTON
PASSENGER’S SIDE
TEMPERATURE
CONTROL DIAL
DRIVER’S SIDE
TEMPERATURE
CONTROL DIAL OFF BUTTON WINDSHIELD DEFROST BUTTONDUAL BUTTON
AIR CONDITIONING
BUTTON
MAX A/C BUTTON
MODE BUTTONS
AIR CONDITIONING
BUTTON
AUTO BUTTON
DRIVER’S SIDE
TEMPERATURE
DISPLAY
RECIRCULATION BUTTON
PASSENGER’S SIDE
TEMPERATURE DISPLAY
MODE
BUTTON
FAN CONTROL BUTTONS
RTS, RTL, and
Canadian EXL models
RT,RTX,and
Canadian LX models
\f—\f—y
\fy
(\fy\f
y
2008 Ridgeline

Turn the dial clockwise to increase
the fan speed and airflow. Turn the
dial counterclockwise to decrease it.Turning this dial clockwise increases
the temperature of the airflow.
On RTS, RTL, and Canadian EXL
models, see pages and f or
inf ormation on automatic climate
control and semi-automatic operation.
Select the f an speed by pressing the
fan control buttons ( or ).
The f an speed is shown in vertical
bars on the display.
When the indicator in the DUAL
button is of f , both sides adjust to the
driver’s side temperature.
Push the DUAL button. When the
indicator in the button is on, turn the
dials to adjust the temperature.
The driver and passenger can select
independent temperature settings.
You can set the temperatures for the
driver’s side and the passenger’s side
separately when this button is
pressed (indicator on). When the
indicator in the DUAL button is of f ,
you can adjust both sides to the
same temperature with the driver’s
side temperature control dial.
Press the DUAL button to select
dual temperature control mode (see
page ).
130131
132
On RTS, RTL, and Canadian EXLmodels
On RT, RTX, and Canadian LX models On RTS, RTL, and Canadian EXL
models
On RTS, RTL, and Canadian EXL models On RT, RTX, and Canadian LX models
Vents, Heating, and A/C
Fan Control
Temperature Control Dual Button
Features
125
\f—\f—y

y
(\fy\f
\fy
2008 Ridgeline

The outside air intakes f or the
heating and cooling system are at
the base of the windshield. Keep this
area clear of leaves and other debris.
Thesystemshouldbeleftinfresh
air mode under almost all conditions.
Keeping the system in recirculation
mode, particularly with the A/C of f ,
can cause the windows to fog up.
Switch to recirculation mode when
driving through dusty or smoky
conditions, then return to fresh air
mode.Use the mode control buttons to
select the vents air flows from. Some
air will f low f rom the dashboard
corner vents in all modes.
When the recirculation indicator is
on, air f rom the vehicle’s interior is
sent throughout the system again.
When the indicator is off, air is
brought in f rom the outside of the
vehicle (fresh air mode).
Press the A/C button to turn the air
conditioningonandoff.Youwillsee
A/C ON or A/C OFF in the display.
When you turn the A/C of f , the
system cannot regulate the inside
temperature if you set the
temperature control below the
outside temperature.
Each time you press the MODE
button (On RTS, RTL, and Canadian
EXL models) or either mode button
(On RT, RTX, and Canadian LX
models), the display shows the mode
selected.
Air f lows f rom the f loor
vents. Airf low is divided between
the vents in the dashboard, rear and
the f loor vents. Air flows from the center,
corner, and rear vents in the
dashboard.
Recirculation Button Mode Control
Air Conditioning (A/C) Button
Vents, Heating, and A/C
126
\f—\f—y
y
(\fy\f

y
