HONDA RIDGELINE 2008 1.G Owners Manual

Playing the AM/FM Radio
Features
137

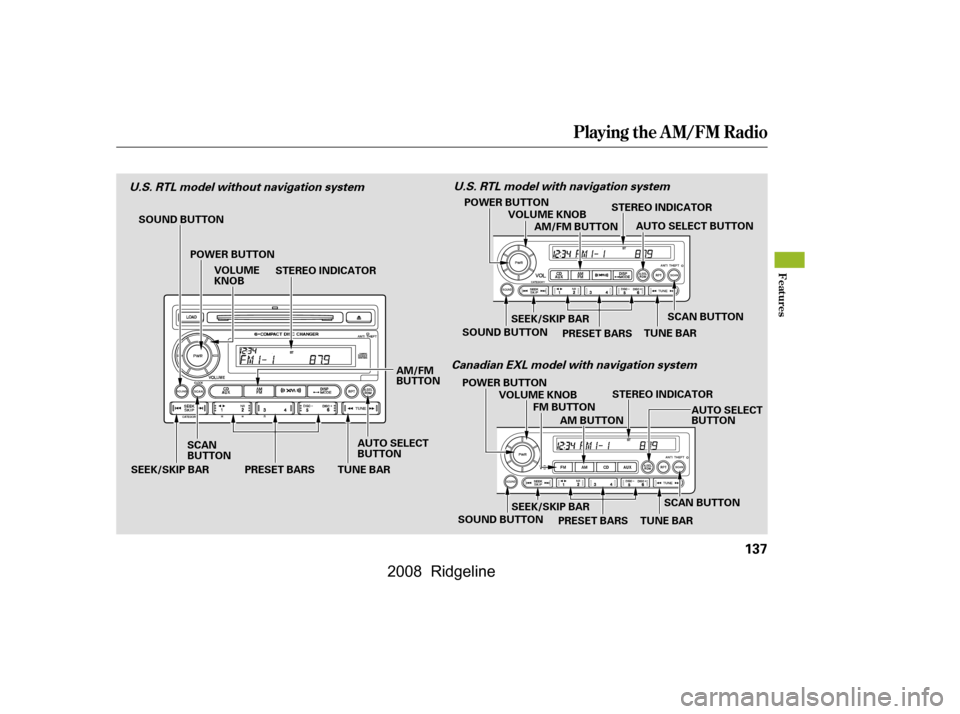

AM/FM
BUTTON
STEREO INDICATOR
VOLUME
KNOB
TUNE BAR
PRESET BARS
SCAN
BUTTON SOUND BUTTON
TUNE BAR
PRESET BARS
SEEK/SKIP BAR AUTO SELECT
BUTTONAM/FM BUTTON
SCAN BUTTON
SOUND BUTTON STEREO INDICATOR
TUNE BAR
PRESET BARS
SEEK/SKIP BAR
SCAN BUTTON
POWER BUTTON
VOLUME KNOB
VOLUME KNOB FM BUTTON
AM BUTTON
SEEK/SKIP BAR
AUTO SELECT BUTTON
AUTO SELECT
BUTTON
POWER BUTTON
POWER BUTTON
SOUND BUTTON
STEREO INDICATOR
U.S. RTL model without navigation system
U.S. RTL model with navigation system
Canadian EXL model with navigation system
\f—\f—y
y
(\fy\f
y
2008 Ridgeline

µ
µ µµ µ
µ
The ignition switch must be in the
ACCESSORY (I) or ON (II) position.
Turn the system on by pushing the
PWR button or the AM/FM button
(AMorFMbuttononCanadian
models). Adjust the volume by
turning the volume knob.
You can use any of f ive methods to
f ind radio stations on the selected
band: tune, seek, scan, the preset
bars, and auto select.
Pushing the AUDIO button will also
turn on the system (see page ).
The band and f requency that the
radio was last tuned to is displayed.
To change bands, press the AM/FM
button (AM or FM button). On the
FM band, ST will be displayed if the
stationisbroadcastinginstereo.
Stereo reproduction in AM is not
available. Use the TUNE bar to tune
the radio to a desired f requency.
Press the side of the bar to tune
to a higher f requency, and press the side to tune to a lower
f requency.
The SEEK f unction
searches up and down from the
current f requency to f ind a station
with a strong signal. To activate it,
press the or side of the
bar, then release it.
The scan f unction samples
all stations with strong signals on the
selected band. To activate it, press
the SCAN button, then release it.
You will see SCAN in the display.
The system will scan f or a station with a strong signal. When it f inds
one, it will stop and play that station
f or about 10 seconds.
If you do nothing, the system will
scan f or the next strong station and
play it f or 10 seconds. When it plays
a station that you want to listen to,
press the SCAN button again.
Repeat steps 1 through 3 to store a
total of six stations on AM and
twelve stations on FM.
Pick a preset number (1 6), and
hold it until you hear a beep.
Usethetune,seek,orscan
function to tune the radio to a
desired station.
Select the desired band, AM or
FM. FM1 and FM2 let you store
twelve stations. Each side of the bars
(1 6) can store one station on AM,
and two stations on FM.
1.
2.
3.
4.
140
On vehicles with navigation system
T o Play the A M/FM Radio T o Select a Station
TUNE
SEEK
SCANPRESET
Playing the AM/FM Radio
138
\f—\f—y


y
(\fy\f
y
2008 Ridgeline

µµ
µ µ
µ
µ
If you do not like the stations auto
select has stored, you can store
other f requencies on the preset bars
as previously described.
,pressthe
A. SEL (auto select) button. This
restores the presets you originally
set.
If you are
traveling far from home and can no
longer receive your preset stations,
you can use the auto select feature to
find stations in the local area.
Press the A. SEL button. ‘‘A.SEL’’
f lashes in the display, and the system
goes into scan mode f or several
seconds. It stores the f requencies of
six AM, and twelve FM stations in
the preset bars.
You will see a ‘‘0’’ displayed af ter
pressing a preset bar if auto select
cannot f ind a strong station f or every
preset bar. Eachmodeisshowninthedisplayas
it changes. Turn the VOLUME knob
to adjust the setting to your liking.
When the level reaches the center,
youwillsee‘‘ ’’inthedisplay.
The system will automatically return
the display to the selected audio
mode about 5 seconds af ter you stop
adjusting a mode.
Adjusts the
strength of sound f rom the
subwoof er speaker.
Adjusts the bass.Adjusts the treble.
Adjusts the front-to-back
strength of the sound.
Adjusts the side-to-
side strength of the sound.
Press the SOUND button repeatedly
to display the SUBWOOFER (if
equipped), BASS, TREBLE, FADER,
and BALANCE settings.
To turn of f auto select
If equipped
Playing the AM/FM Radio
AUTO SELECT
SUBWOOFER
BASS
TREBLE
FADER
BAL ANCE
Adjusting the Sound
Features
139
\f—\f—y

y
(\fy\f
y
2008 Ridgeline

µ
µ
In addition to the knobs, buttons, and
bars on the radio control panel, you
can operate some of the radio
controls on the navigation system
screen. To adjust the sound, push the
AUDIO button, then enter the sound
grid by touching the SOUND icon on
the display.
While you are listening to the radio,
you can change to another band by
pressing the AUDIO button next to
the navigation system screen, and
then touching the desired band icon
(FM1, FM2, or AM).
AUTO SELECT, SCAN, and SOUND
are adjustable f rom the navigation
screen. For an explanation of these
f unctions, see pages and .
Touch the
A.SEL icon to activate the auto select
f unction. You will see A.SEL f lashing
on the display.
Touch the SCAN icon to
activate the scan function. You will
see SCAN on the display. Touch the
icon again to deactivate it. 138139
On vehicles with navigation system
Operating the Radio on the
Navigation System Screen
AUTO SELECT
SCANA djust ing t he Sound
Playing the AM/FM Radio
140
AUDIO BUTTON
\f—\f—y
y
(\fy\f
y
2008 Ridgeline

µ
µ µ

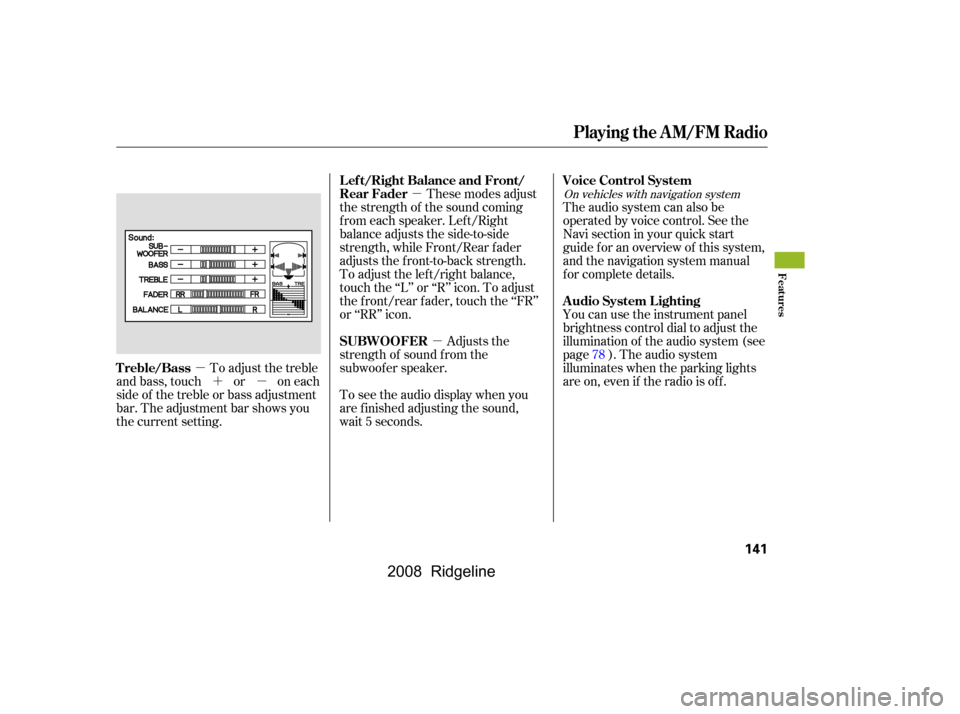

´µ These modes adjust
the strength of the sound coming
f rom each speaker. Lef t/Right
balance adjusts the side-to-side
strength, while Front/Rear f ader
adjusts the front-to-back strength.
To adjust the left/right balance,
touch the ‘‘L’’ or ‘‘R’’ icon. To adjust
the f ront/rear f ader, touch the ‘‘FR’’
or ‘‘RR’’ icon. You can use the instrument panel
brightness control dial to adjust the
illumination of the audio system (see
page ). The audio system
illuminates when the parking lights
are on, even if the radio is of f .
The audio system can also be
operated by voice control. See the
Navi section in your quick start
guide f or an overview of this system,
and the navigation system manual
f or complete details.
To adjust the treble
and bass, touch or on each
side of the treble or bass adjustment
bar. The adjustment bar shows you
the current setting. Adjusts the
strength of sound f rom the
subwoof er speaker.
To see the audio display when you
are f inished adjusting the sound,
wait 5 seconds. 78On vehicles with navigation system
Playing the AM/FM Radio
L ef t/Right Balance and Front/
Rear Fader
A udio System L ighting
Voice Control System
Treble/Bass SUBWOOFER
Features
141
\f—\f—y
y
(\fy\f
y
2008 Ridgeline

The radio can receive the complete
AM and FM bands.
Those bands cover these f requen-
cies:
AM band: 530 to 1,710 kHz
FM band: 87.7 to 107.9 MHz
Radio stations on the AM band are
assigned f requencies at least 10 kHz
apart (530, 540, 550). Stations on the
FM band are assigned f requencies at
least 0.2 MHz apart (87.9, 88.1, 88.3). Driving very near the transmitter ofa station that is broadcasting on a
f requency close to the f requency of
the station you are listening to can
also af f ect your radio’s reception.
You may temporarily hear both
stations,orhearonlythestationyou
are close to.
How well the radio receives stations
is dependent on many f actors, such
as the distance from the station’s
transmitter, nearby large objects,
atmospheric conditions, and even
items stored on the roof rack.
A radio station’s signal gets weaker
as you get f arther away f rom its
transmitter. If you are listening to an
AM station, you will notice the sound
volume becoming weaker, and the
stationdriftinginandout.If youare
listening to an FM station, you will
see the stereo indicator f lickering of f
and on as the signal weakens.
Eventually, the stereo indicator will
go of f and the sound will f ade
completely as you get out of range of
the station’s signal.
Stations must use these exact
f requencies. It is f airly common f or
stations to round-of f the f requency in
their advertising, so your radio could
display a f requency of 100.9 even
though the announcer may identif y
the station as ‘‘FM101.’’
Radio Frequencies Radio Reception
A M/FM Radio Reception
142
\f—\f—y
y
(\fy\f
y
2008 Ridgeline

Radio signals, especially on the FM
band, are def lected by large objects
such as buildings and hills. Your
radio then receives both the direct
signal f rom the station’s transmitter,
and the def lected signal. This causes
the sound to distort or flutter. This is
a main cause of poor radio reception
in city driving.Radio reception can be af f ected by
atmospheric conditions such as
thunderstorms, high humidity, and
even sunspots. You may be able to
receive a distant radio station one
day and not receive it the next day
because of a change in conditions.
Electrical interf erence f rom passing
vehicles and stationary sources can
cause temporary reception problems.
As required by the FCC:
Changes or modif ications not expresslyapproved by the party responsible f orcompliance could void the user’sauthority to operate the equipment.
A M/FM Radio Reception
Features
143
\f—\f—y
y
(\fy\f
y
2008 Ridgeline

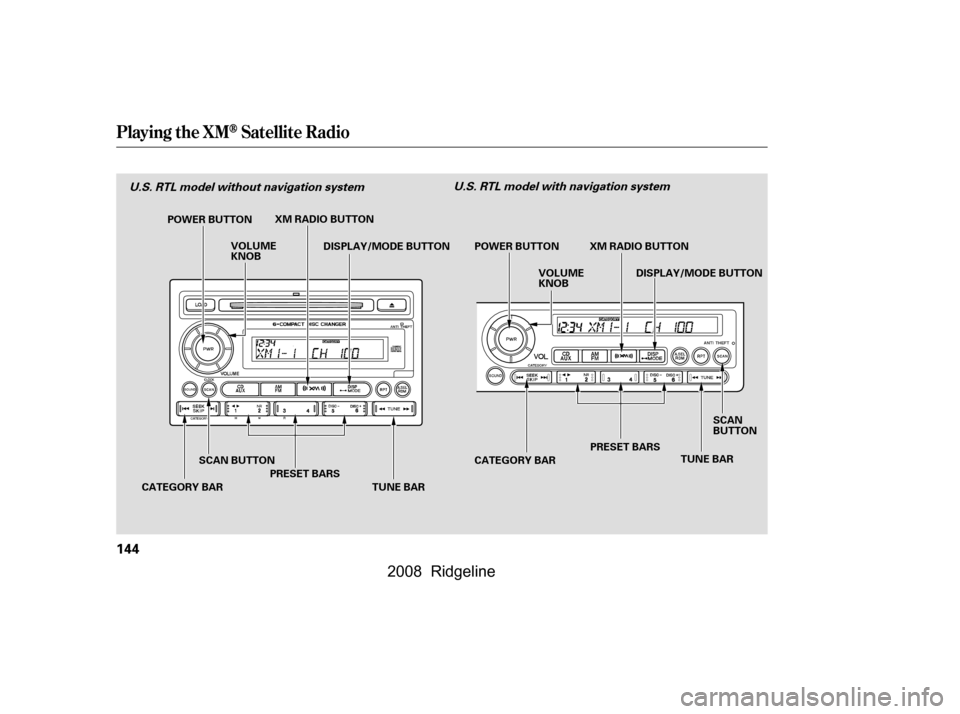

Playing the XMSatellite Radio
144
POWER BUTTONTUNE BAR
VOLUME
KNOB
DISPLAY/MODE BUTTON
PRESET BARS
SCAN BUTTON
CATEGORY BAR POWER BUTTON
VOLUME
KNOB
CATEGORY BAR DISPLAY/MODE BUTTON
PRESET BARS TUNE BARSCAN
BUTTON
XM RADIO BUTTON
XM RADIO BUTTON
U.S. RTL model without navigation systemU.S. RTL model with navigation system
\f—\f—y
y
(\fy\f
y
2008 Ridgeline

µOn the audio display, you will see the
selected CHANNEL (number),
CATEGORY, NAME (artist name),
and TITLE (music title).
Your audio system is capable of
receiving XM
Satellite Radio
anywhere in the United States,
except Hawaii and Alaska.
You may experience periods when
XM Radio does not transmit the
artist’s name and song title
inf ormation. If this happens, there is
nothing wrong with your system.
XM
is a registered trademark of
XM Satellite Radio, Inc.
XM radio receives signals f rom two
satellites to produce clear, high-
quality digital reception. It of f ers
many channels in several categories.
Along with a large selection of
dif f erent types of music, XM radio
allows you to view channel and
category selections in the display.
The navigation system screen also
shows all XM inf ormation when the
AUDIO button is pressed.
To listen to XM radio, turn the
ignition switch to the ACCESSORY
(I) or ON (II) position. Push the
PWR button to turn on the audio system, and press the ‘‘XM’’ button.
Adjust the volume by turning the
volume knob. The last channel you
listened to will show in the display.
You can also change to the XM radio
while you are listening to an FM
station, AM station, CD, etc., by
touching the XM1 or XM2 icon on
the audio display (navigation system
screen).
To switch between
channel mode and category mode,
press and hold the DISP/MODE
button until the mode changes.
In channel mode, you can select all
of the available channels. In category
mode, such as Jazz, Rock, Classical,
etc., you can select all of the
channels within that category.
Each time you press and release the
DISP/MODE button, the display
changes in the f ollowing sequence:
Channel name, channel number,
category, artist name, and music title.
CONT INUED
U.S. RTL model only
Playing the XMSatellite Radio
Operating the XM Radio MODE
Features
145
On vehicles with navigation system
\f—\f—y
\f\f\fy
(\fy\f
\fy
2008 Ridgeline

µµ
µ µ
Press the TUNE bar to
change channel selections. Press f or higher numbered channels
and f or lower numbered
channels. In the category mode, you
can only select channels within that
category.
Press either side of the CATEGORY
bar ( or ) to select another
category.
The scan f unction gives
you a sampling of all channels while
in the channel mode. In the category
mode, only the channels within that
category are scanned. To activate
scan, press the SCAN button or
touch the SCAN icon on the screen.
The system plays each channel in
numerical order f or a f ew seconds,
then selects the next channel. When
you hear a channel you want to listen
to, press the button or touch the icon
again. Youcanstoreupto12
preset channels using each side of
the preset bar or preset icons on the
screen. Each side of the bar stores
one channel f rom the XM1 band and
one channel f rom the XM2 band. Pick a preset number (icon) you
want f or that channel. Press and
hold the bar (icon) until you hear a
beep.
Repeat steps 2 and 3 to store the
f irst six channels.
Once a channel is stored, press and
release the proper side of the preset
bar (icon) to tune to it.
To store a channel:
Press the XM button. Either XM1
or XM2 will show in the display.
Usethetune,seek,orscan
function to tune to a desired
channel. Press the XM button again or
touch the other XM icon (XM1 or
XM2) on the audio display. Store
the next six channels using steps 2
and 3.
In category mode, only channels
within that category can be selected.
In channel mode, all channels can be
selected.
1.
2. 3.
4.
5.
Playing the XMSatellite Radio
TUNE
SEEK /SK IP (CA T EGORY)
SCANPreset
146
\f—\f—y
\f\f
y
(\fy\f

y
2008 Ridgeline
