This indicator normally comes on f or
a f ew seconds when you turn the
ignition switch to the ON (II)
position.
If itcomesonandstaysonatany
other time, or if it does not come on
when you turn the ignition switch to
the ON (II) position, there is a
problem with the VSA system. Take
your vehicle to a dealer to have it
checked. Without VSA, your vehicle
still has normal driving ability, but
will not have VSA traction and
stability enhancement. See pagef or more inf ormation on the
VSA system. It comes on along with the VSA
system indicator if there is a
problem with the VSA system.
It flashes when VSA is active (see
page ).
Itcomesonasareminderthatyou
have turned off the vehicle
stability assist (VSA) system.
This indicator has three f unctions:
This indicator normally comes on f or
a f ew seconds when you turn the
ignition switch to the ON (II)
position. For more inf ormation, see
page . This indicator comes on f or a f ew
seconds when you turn the ignition
switch to the ON (II) position. It
remindsyouthatitistimetotake
your vehicle in f or scheduled
maintenance. The maintenance main
items and sub items will be displayed
in the information display. See page
f or more inf ormation on the
maintenance minder.
This indicator goes of f when your
dealer resets it after completing the
required maintenance service.
1.
2.
3. 215
215
215 239
Vehicle Stability Assist
(VSA ) System Indicator
VSA A ctivation Indicator Maintenance Minder
Indicator
Instrument Panel Indicators
Inst rument s and Cont rols
67
\f—\f—y
y
(\fy\f\fy
2008 Ridgeline

This indicator normally comes on f or
a f ew seconds when you turn the
ignition switch to the ON (II)
position.This indicator normally comes on f or
a f ew seconds when you turn the
ignition switch to the ON (II)
position.
If this indicator comes on and stays
on at any other time, or if it does not
come on when you turn the ignition
switch to the ON (II) position, there
is a problem with the TPMS. With
this indicator on, the low tire
pressure indicator and the tire
pressure monitor will not come on
when a tire loses pressure. Take the
vehicle to your dealer to have the
system checked.
The appropriate tire indicator will
come on along with the low tire
pressure indicator if a tire is
signif icantly underinf lated or has
suddenly lost pressure. See
for what to
do if this indicator comes on.
If it comes on while driving, it
indicates that one or more of your
vehicle’s tires are signif icantly low
on pressure.
If this happens, pull to the side of the
road when it is saf e, check which tire
has lost the pressure on the tire
pressure monitor, and determine the
cause. If it is because of a f lat tire,
replace the flat tire with the compact
spare (see page ), and have the
f lat tire repaired as soon as possible.
If two or more tires are underinf lated,
call a prof essional towing service
(see page ). Ref er to page
f or more inf ormation. 276
208 298 Tire Pressure Monitoring
System (T PMS) Indicator
Low Tire Pressure
Indicator T ire Pressure Monitor
Low
Tire Pressure Indicator
Instrument Panel Indicators
68
\f—\f—y
y
(\fy\f\fy
2008 Ridgeline

This indicator reminds you that the
bed lights are on. With the shif t lever
in the Park position, they come on
when you push the light switch on
the dashboard, swing open the
tailgate, or open the In-Bed Trunk.This indicator reminds you that the
In-Bed Trunk is open. If you do not
close it, the indicator stays on for
about 3 minutes. See page f or
more inf ormation.
This indicator reminds you that the
back window is not completely
closed when you turn the ignition
switch f rom the ON (II) position to
the ACCESSORY (I) or LOCK (0)
position. With the ignition switch in
the ACCESSORY (I) position, it goes
of f af ter about 30 seconds. With the
ignition switch in the LOCK (0)
position, it goes of f af ter about 3
minutes.
If you turn the ignition switch to the
ACCESSORY (I) or LOCK (0)
position without turning of f the bed
lights, this indicator will remain on,
andthengooff after20minutes.See
page f or more inf ormation. If you remove the ignition key, turn
of f the lights, and open the driver’s
door without closing the back
window, you will hear f ive beeps and
see the indicator blink. If you do not
close the back window bef ore the
beeper stops, the indicator stops
blinking but remains on. It will go of f
af ter about 3 minutes. See pagef or more inf ormation.
96
122
108Back Window Open
Indicator
Bed L ights On Indicator In-Bed T runk Open
Indicator
Instrument Panel Indicators
Inst rument s and Cont rols
69
\f—\f—y
y
(\fy\f\fy
2008 Ridgeline

To switch the information display
between the odometer, trip meter
and outside temperature (if
equipped), and engine oil lif e and
maintenance service items, press the
SELECT button repeatedly.
This shows the total distance your
vehicle has been driven. It measures
miles in U.S. models and kilometers
in Canadian models.
It is illegal under U.S. f ederal law and
Canadian provincial regulations to
disconnect, reset, or alter the
odometer with the intent to change
the number of miles or kilometers
indicated.
Odometer
Gauges
70

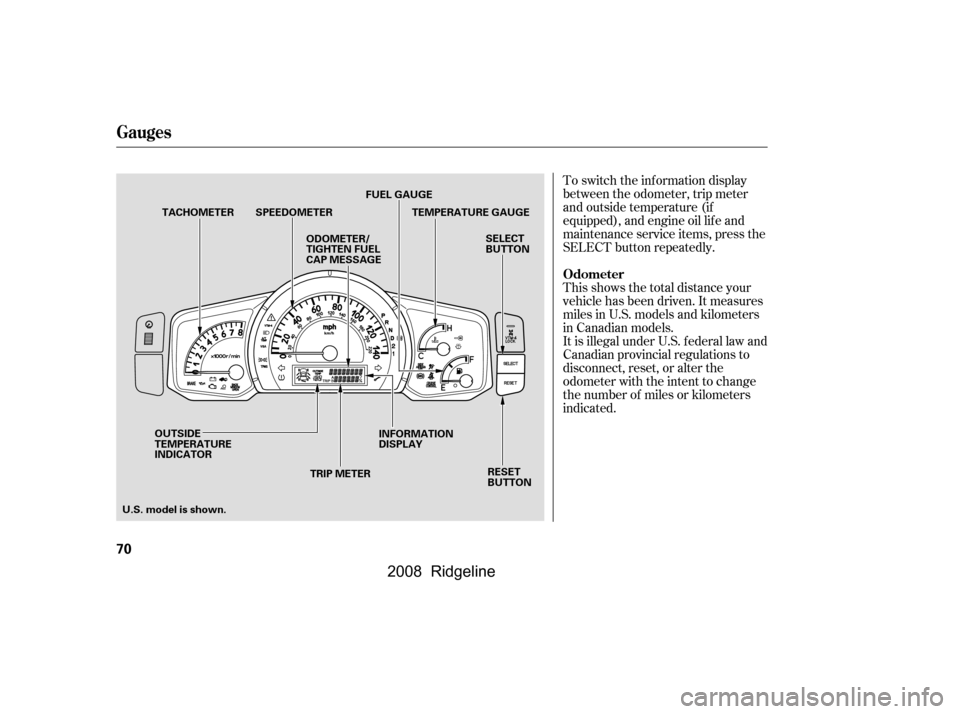

SPEEDOMETER
TACHOMETER TEMPERATURE GAUGE FUEL GAUGE
SELECT
BUTTON
RESET
BUTTON
OUTSIDE
TEMPERATURE
INDICATOR
U.S. model is shown. INFORMATION
DISPLAY
ODOMETER/
TIGHTEN FUEL
CAP MESSAGE
TRIP METER
\f—\f—y
y
(\fy\f\fy
2008 Ridgeline

This meter shows the number of
miles (U.S.) or kilometers (Canada)
driven since you last reset it.
There are two trip meters: TRIP A
and TRIP B. Switch between these
displays by pressing the SELECT
button repeatedly. Each trip meter
works independently, so you can
keep track of two dif f erent distances.To reset a trip meter, display it, and
then press and hold the RESET
button until the number resets to
‘‘0.0’’. Both trip meters will reset if
the vehicle’s battery goes dead or is
disconnected. And both continue to
track mileage, even when only one is
displayed.
When you turn the ignition switch to
the ON (II) position, the last
selection is displayed.
This shows how much f uel you have.
It may show slightly more or less
than the actual amount. The needle
returns to the bottom after you turn
of f the ignition.
Trip Meter Fuel Gauge
Gauges
Inst rument s and Cont rols
71

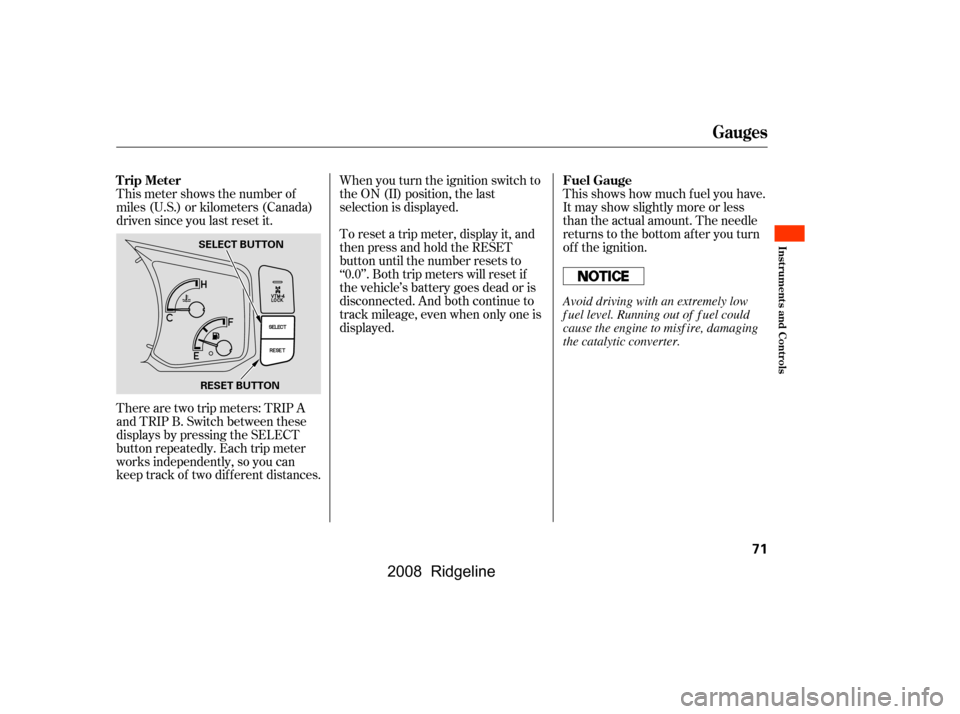

SELECT BUTTON
RESET BUTTON
Avoid driving with an extremely low
f uel level. Running out of f uel could
cause the engine to misf ire, damaging
the catalytic converter.
\f—\f—y
\f\fy
(\fy\f\fy
2008 Ridgeline

¶¶µµ
µµµ
µµµ
This indicator displays the outside
temperature in Fahrenheit (U.S.
models) or Centigrade (Canadian
models).
The temperature sensor is in the
f ront bumper. Theref ore, the
temperature reading can be af f ected
by heat ref lection f rom the road
surf ace, engine heat, and the
exhaust f rom surrounding traf f ic.
This can cause an incorrect
temperature reading when your
speed is under 19 mph (30 km/h).
The sensor delays the indicator
update until it reaches the correct
outside temperature. This may take
several minutes.
If the outside temperature is
incorrectly displayed, you can adjust
it up to 5°F in U.S. models ( 3°C
in Canadian models) warmer or cooler.
This shows the temperature of the
engine’s coolant. During normal
operation, the pointer should rise to
about the middle of the gauge. In
severe driving conditions, the pointer
may rise to the upper zone. If it
reaches the red (hot) mark, pull
safely to the side of the road. For
instructions and precautions on
checking the engine’s cooling
system, see page .
In certain weather conditions,
temperature readings near f reezing
(32°F, 0°C) could mean that ice is
f orming on the road surf ace.
When it reaches the desired value,
release the RESET button. You
should see the new outside
temperature displayed.
To adjust the outside temperature
indicator, make sure the outside
temperature indicator is shown in
thedisplay,thenpressandholdthe
RESET button f or 10 seconds (the
TRIP A or B is also reset). The
f ollowing sequence will appear f or 1
secondeach:0,1,2,3,4,5, 5, 4,3, 2, 1, 0 (U.S.) or 0, 1, 2, 3,
3, 2, 1, 0 (Canada).
NOTE: The temperature must be
stabilized bef ore doing this
procedure.
288
If equipped
Temperature Gauge Outside Temperature Indicator
Gauges
72
\f—\f—y
\f
y
(\fy\f\fy
2008 Ridgeline

The inf ormation display in the
instrument panel shows you the
engine oil lif e and maintenance
service items when the ignition
switch is in the ON (II) position. This
inf ormation helps to keep you aware
of the periodic maintenance your
vehicle needs f or continued trouble-
f ree driving. Ref er to page f or
more inf ormation.
If your f uel f ill cap is loose or
missing, a ‘‘TIGHTEN FUEL CAP’’
message appears on the information
display af ter you start the engine.
Turn the engine of f , and conf irm the
f uel f ill cap is installed. If it is, loosen
it, then retighten it until it clicks at
least once. When you restart the
engine, the message appears again.
The message goes of f af ter several
days of normal driving once you
tighten or replace the fuel fill cap. To
scroll to another display, press the
SELECT button. If the system still detects a leak in
your vehicle’s evaporative emissions
system, the malf unction indicator
lamp (MIL) comes on. If the f uel f ill
cap was not already tightened, turn
the engine of f , and check or
retighten the f uel f ill cap until it
clicks at least once. The MIL should
go off after several days of normal
driving once the cap is tightened or
replaced. If the MIL does not go of f ,
have your vehicle inspected by a
dealer. For more inf ormation, see
page .
291 239
Maintenance Minder Display
Tighten Fuel Cap Message
Gauges
Inst rument s and Cont rols
73
\f—\f—y
\f
y
(\fy\f\fy
2008 Ridgeline

Î
Î
Î Î
Î
Î
To use the horn, press the pad around the ‘‘H’’ logo.
If equipped.
1:
2:

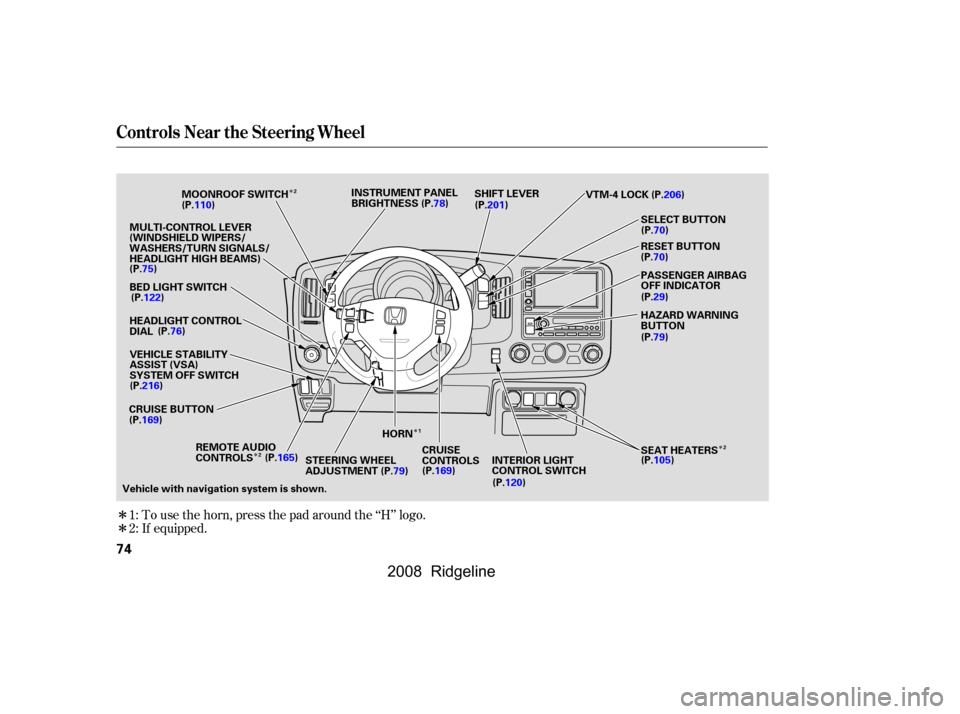

Controls Near the Steering Wheel
74
SHIFT LEVER
CRUISE BUTTON CRUISE
CONTROLS
HORN
STEERING WHEEL
ADJUSTMENT VTM-4 LOCK
Vehicle with navigation system is shown. BED LIGHT SWITCH
MULTI-CONTROL LEVER
(WINDSHIELD WIPERS/
WASHERS/TURN SIGNALS/
HEADLIGHT HIGH BEAMS)
MOONROOF SWITCH
INTERIOR LIGHT
CONTROL SWITCH
INSTRUMENT PANEL
BRIGHTNESS
HEADLIGHT CONTROL
DIAL RESET BUTTON
SELECT BUTTON
REMOTE AUDIO
CONTROLS
(P.75)
(P.76) (P.78)
(P.70)
(P.70) PASSENGER AIRBAG
OFF INDICATOR
(P.29)
HAZARD WARNING
BUTTON
(P.79)
SEAT HEATERS
VEHICLE STABILITY
ASSIST (VSA)
SYSTEM OFF SWITCH (P.110)
(P.122)
(P.120)(P.105)
(P.79) (P.201)
(P.216)
(P.169)
(P.165) (P.169) (P.206)
1
2
2 2
\f—\f—y
\fy
(\fy\f\fy
2008 Ridgeline

µ
µ
OFF
INT: Intermittent
INT TIME ring
LO: Low speed
HI: High speed
MIST
Windshield washers
Turn signal
High beams
Flashhighbeams The multi-control lever has many
f unctions, including windshield
wipers and washers, turn signals,
headlight high beams, and headlight
high beam f lashing.
To select a position, turn the rotary
switch,pushthebuttonontheendof
the lever, or push the lever up, down,
f orward, or backward.
The wipers are not activated. The wipers run at low speed.
The wipers run at high speed. The wipers run at high speed
until you release the lever.
The length of the wiper
interval is varied automatically
according to the vehicle’s speed.
Vary the delay by turning the
INT TIME ring. If you turn it to
the shortest delay, the wipers
change to low speed when the
vehicle speed exceeds 12 mph
(20 km/h). Push the
buttonontheendof the
multi-control lever. The
washers spray until you
release the button. The
wipers run at low speed, then
complete one more sweep
after you release the button.
1.
2.
3.
4.
5.
6.
7.
8.
9.
10.
CONT INUED
OFF: LO
HI
MIST :
INT : Windshield Washer:
Multi-Control L ever
Inst rument s and Cont rols
75
\f—\f—y
\fy
(\fy\f\f\fy
2008 Ridgeline

µµ
OFF
Parking and indicator lights
Headlights
Push down on the
multi-control lever to signal a lef t
turn and up to signal a right turn. To
signal a lane change, push lightly on
the lever and hold it. The lever will
return to center when you release it
or complete a turn.
To turn on the high
beams, push the multi-control lever
f orward until you hear a click. The
blue high beam indicator will come
on (see page ). Pull the lever back
to return to the low beams.
To f lash the high beams, pull the
lever back lightly, then release it.
The high beams will stay on as long
as you hold the lever back.
Your vehicle has heating wires at the
bottom of the windshield to help
heat the wiper blades and the
windshield. If the outside
temperature is near f reezing, the
heater turns on automatically when
you turn the ignition switch to the
ON (II) position. The heater turns
of f automatically when the outside
temperature is above f reezing.
This f unction helps to increase wiper
perf ormance when the wiper arms
sit in the parked position in snowy or
icy conditions.
1.
2.
3.
65 Headlight Control Dial
Turn Signal
High Beams
Automatic Heated Wiper Zone
Multi-Control L ever, Headlights
76
\f—\f—y
\fy
(\fy\f\f
y
2008 Ridgeline
