Many parents say they pref er to put
an inf ant or a small child in the f ront
passenger seat so they can watch the
child, or because the child requires
attention.
Placing a child in the f ront seat
exposes the child to hazards in a
f rontal collision, and paying close
attention to a child distracts the
driver from the important tasks of
driving, placing both of you at risk.
Your vehicle has a back seat where
children can be properly restrained.
If you ever have to carry a group of
children, and a child must ride in
front:
Place the largest child in the f ront
seat, provided the child is large
enough to wear the lap/shoulder
belt properly (see page ). If a child requires close physical
attention or f requent visual contact,
we strongly recommend that another
adult ride with the child in the back
seat. The back seat is far safer for a
child than the front.
Move the vehicle seat as far to the
rear as possible (see page ).
Have the child sit upright and well
backintheseat(seepage).
Make sure the seat belt is properly
positioned and secured (see page ). 13
17
16 51
If You Must Drive with Several
Children
If a Child Requires Close
Attention
Protecting Children General Guidelines
Driver and Passenger Saf ety
37
\f—\f—\fy
y
(\fy\f\fy
2009 Ridgeline
Page 42 of 427
µ
During a crash, the
belt could press deep into the child
and cause serious or fatal injuries.
If they do, they
could be very seriously injured in a
crash. Children who play in vehicles
can accidentally get trapped inside.
Teach your children not to play in
or around vehicles. Know how to
operate the emergency In-Bed
Trunk opener and decide if your
children should be shown how to
use this f eature (see page ).
Opening or
closing the tailgate could cause
accidental injuries.
Even very young
children learn how to unlock
vehicle doors, turn on the ignition
switch, and open the windows,
which can lead to accidental injury
or death.
If you are not wearing a
seat belt in a crash, you could be
thrown forward and crush the
child against the dashboard or a
seat-back. If you are wearing a
seat belt, the child can be torn
from your arms and be seriously
hurt or killed.
If a child wraps a loose seat belt around their neck, they
can be seriously or f atally injured.
(See pages and f or how to
activate and deactivate the
lockable retractor.)
For example, infants and small
childrenleftinavehicleonahot
day can die f rom heatstroke. A
child lef t alone with the key in the
ignition switch can accidentally set
the vehicle in motion, possibly
injuring themselves or others.
Leaving children without
adult supervision is illegal in most
states and Canadian provinces,
and can be very hazardous. This can prevent
children f rom accidentally f alling
out (see page ). 46 47
104 117
Additional Saf ety Precautions
Protecting Children General Guidelines
Never put a seat belt over yourself
and a child.
Never let two children use thesame seat belt . L ock all doors and t he In-Bed
T runk when your vehicle is not inuse.
T each your children not t o play onthe pickup bed.
K eep vehicle keys/remot etransmitters out of the reach ofchildren.
Neverholdaninfantorchildon
your lap.
Make sure any unused seat beltt hat a child can reach is buckled,the lockable retractor is activated,and the belt is f ully retracted andlocked. Do not leave children alone in a
vehicle.
Use t he childproof door locks t o
prevent children f rom opening t herear doors.
38
— — y
y
( y y
2009 Ridgeline
Page 43 of 427
CONT INUED
An inf ant must be properly
restrained in a rear-f acing, reclining
child seat until the child reaches the
seat maker’s weight or height limit
f or the seat, and the child is at least
one year old.
Only a rear-f acing child seat provides
proper support f or a baby’s head,
neck, and back.Two types of seats may be used: a
seat designed exclusively f or inf ants,
or a convertible seat used in the rear-
f acing, reclining mode.
If placed
f acing f orward, an inf ant could be
very seriously injured during a
f rontal collision. A rear-f acing child seat can be placed
in any seating position in the back
seat, but not in the f ront.
If the passenger’s front airbag
inflates, it can hit the back of the
child seat with enough f orce to kill or
seriously injure an inf ant.
When properly installed, a rear-
f acing child seat may prevent the
driver or a f ront passenger f rom
moving their seat as far back as
recommended, or f rom locking their
seat-back in the desired position.
It could also interf ere with proper
operation of the passenger’s
advanced front airbag system.
Protecting Inf ants
Child Seat T ype
Do not put a rear-f acing child seat in
a f orward-f acing position. Never put a
rear-f acing child seat in t he f ront seat .
Rear-f acing Child Seat Placement
Protecting Inf ants and Small Children
Driver and Passenger Saf ety
39
\f—\f—\fy
y
(\fy\f\fy
2009 Ridgeline
Page 44 of 427
Of the different seats available, we
recommend those that have a f ive-
point harness system as shown.
In any of these situations, we
strongly recommend that you install
the child seat directly behind the
f ront passenger’s seat, move the seat
as far forward as needed, and leave it
unoccupied. Or, you may wish to get
a smaller rear-f acing child seat.
A child who is at least one year old,
and who fits within the child seat
maker’s weight and height limits,
should be restrained in a f orward-
f acing, upright child seat.
If the vehicle seat is too
f ar f orward, or the child’s head is
thrown f orward during a collision, an
inf lating airbag can strike the child
with enough force to cause very
serious or fatal injuries.
We strongly recommend placing a
forward-facing child seat in a back
seat, not the f ront.
We also recommend that a small
child use the child seat until the child
reaches the weight or height limit
for the seat.
Protecting Inf ants and Small Children
Protecting Small Children
Child Seat T ype
Placing a f orward-f acing child seat in
the f ront seat of a vehicle equipped
with a passenger’s airbag can be
hazardous.
Child Seat Placement
40
Placing a rear-facing child seat
in the front seat can result in
serious injury or death during a
collision.
Always place a rear-facing child
seat in the back seat, not the
front.
— — y
y
( y y
2009 Ridgeline
Page 45 of 427
Since LATCH-compatible child seats
are easier to install and reduce the
possibility of improper installation,
we recommend selecting this style.
In seating positions and vehicles not
equipped with LATCH, a LATCH-
compatible child seat can be installed
using a seat belt.
Whatever type of seat you choose, to
provide proper protection, a child
seat should meet three
requirements:
Look f or FMVSS
213 or CMVSS 213 on the box.
Rear-facing for infants, forward-
f acing f or small children.
When buying a child seat, you need
to choose either a conventional child
seat, or one designed f or use with
the lower anchors and tethers for
children (LATCH) system.
Conventional child seats must be
secured to a vehicle with a seat belt,
whereas LATCH-compatible seats
are secured by attaching the seat to
hardware built into each rear seating
position in the back seat.
If it is necessary to put a f orward-
f acing child seat in the f ront, move
the vehicle seat as far to the rear as
possible, and be sure the child seat is
f irmly secured to the vehicle and the
child is properly strapped in the seat.
Even with advanced front airbags
that automatically turn the
passenger’s front airbag off (see
page ), a back seat is the saf est
place f or a small child.
31
CONT INUED
Protecting Inf ants and Small Children, Selecting a Child Seat
Selecting a Child Seat
T he child seat should meet U.S. or
Canadian Mot or Vehicle Saf et y
St andard 213.
T he child seat should be of the
proper type and size to f it the child.
1.
2.
Driver and Passenger Saf ety
41
Placing a forward-facing child
seat in the front seat can result
in serious injury or death if the
front airbag inflates.
Ifyoumustplaceaforward-
facing child seat in front, move
the vehicle seat as far back as
possible, and properly restrain
the child.
— — y
y
( y y
2009 Ridgeline
Page 46 of 427
Af ter selecting a proper child seat
and a good place to install the seat,
there are three main steps in
installing the seat:All child seats must be
secured to the vehicle with the lap
part of a lap/shoulder belt or with
the LATCH (lower anchors and
tethers for children) system. A
child whose seat is not properly
secured to the vehicle can be
endangered in a crash.
Af ter installing a child
seat, push and pull the seat
f orward and f rom side-to-side to
verify that it is secure.
A child seat secured with a seat belt
should be installed as f irmly as
possible. However, it does not need
to be ‘‘rock solid.’’ Some side-to-side movement can be expected and
should not reduce the child seat’s
ef f ectiveness.
If the child seat is not secure, try
installing it in a dif f erent seating
position, or use a dif f erent style of
child seat that can be f irmly secured.
Bef ore purchasing a conventional
child seat, or using a previously
purchased one, we recommend that
you test the seat in the specif ic
vehicle seating position or positions
where the seat will be used.
Make sure the child is properly
strappedinthechildseat
according to the child seat maker’s
instructions. A child who is not
properly secured in a child seat
can be seriously injured in a crash.
The f ollowing pages provide
guidelines on how to properly install
a child seat. A f orward-f acing child
seat is used in all examples, but the
instructions are the same f or rear-
f acing child seats.
Selecting a Child Seat, Installing a Child Seat
Installing a Child Seat
Properly secure t he child seat t o the vehicle.
Make sure t he child seat is f irmlysecured.
T he child seat should f it the
vehicle seat ing posit ion (orposit ions) where it will be used.
Secure the child in the child seat.
1.
2. 3.
3.
42
\f—\f—\fy
y
(\fy\f\fy
2009 Ridgeline
Page 47 of 427
To install a LATCH-compatible child
seat:Make sure there are no objects
near the anchors that could
prevent a secure connection
between the child seat and the
anchors. When using the tether strap on
the child seat, attach the tether
strap hook to the center tether
anchor bef ore installing the child
seat to the lower anchors f or the
LATCH system, because the
center tether anchor is positioned
behind the child seat.
If needed, move the seat belt
buckle or tongue away f rom the
lower anchors.
Your vehicle is equipped with
LATCH (lower anchors and tethers
f or children) at the rear seats.
The lower anchors are located
between the seat-back and seat
bottom, and are to be used only with
a child seat designed f or use with
LATCH.
The location of each lower anchor is
indicated by a small button above the
anchor point.
Whenever using the center tether
anchor point, make sure to push
down the head restraint to the lowest
position, route the strap over the
seat-back, then around the upper
guide bef ore attaching the tether
strap hook to the center tether
anchor (see page ).
1.
2.3.
48
CONT INUED
On the center seating position
Installing a Child Seat
Installing a Child Seat with
LATCH
Driver and Passenger Saf ety
43
BUTTON UPPERGUIDE
CENTER TETHER ANCHOR
LATCH
ANCHOR
POINTS
\f—\f—\fy
y
(\fy\f\fy
2009 Ridgeline
Page 48 of 427
Make sure the head restraint is in
the lowest position. Lif t the cover,
then route the tether strap around
the upper guide. Route the tether
strap downward properly, making
sure the strap is not twisted, then
attach the strap hook to the center
tether anchor.Place the child seat on the vehicle
seat, then attach the seat to the
lower anchors according to the
child seat maker’s instructions.
Some LATCH-compatible seats
have a rigid-type connector as
shown above.Other LATCH-compatible seats
have a f lexible-type connector as
shown above.
Whatever type you have, f ollow
the child seat maker’s instructions
f or adjusting or tightening the f it.
5.
4.
Installing a Child Seat
44
Flexible type
Rigid type
\f—\f—\fy
\fy
(\fy\f\fy
2009 Ridgeline
Page 49 of 427
Lif t the head restraint (see page), then route the tether strap
over the seat-back and through
the head restraint legs.
Lift the cover, then route the
tether strap around the upper
guide. Route the tether strap
downward properly, making sure
the strap is not twisted, then
attach the strap hook to the tether
anchor on the outside of the seat
bottom (see page ). Push and pull the child seat
f orward and f rom side-to-side to
verify that it is secure. Tighten the strap according to the
seat maker’s instructions.
6.
7.
8.
48
123
On the outer seating position
Installing a Child Seat
Driver and Passenger Saf ety
45
UPPER
GUIDE
Outer Position UPPER
GUIDE
Center Position TETHER ANCHOR
TETHER ANCHOR
— — y
y
( y y
2009 Ridgeline
Page 50 of 427
When not using the LATCH system,
all child seats must be secured to the
vehicle with the lap part of a lap/

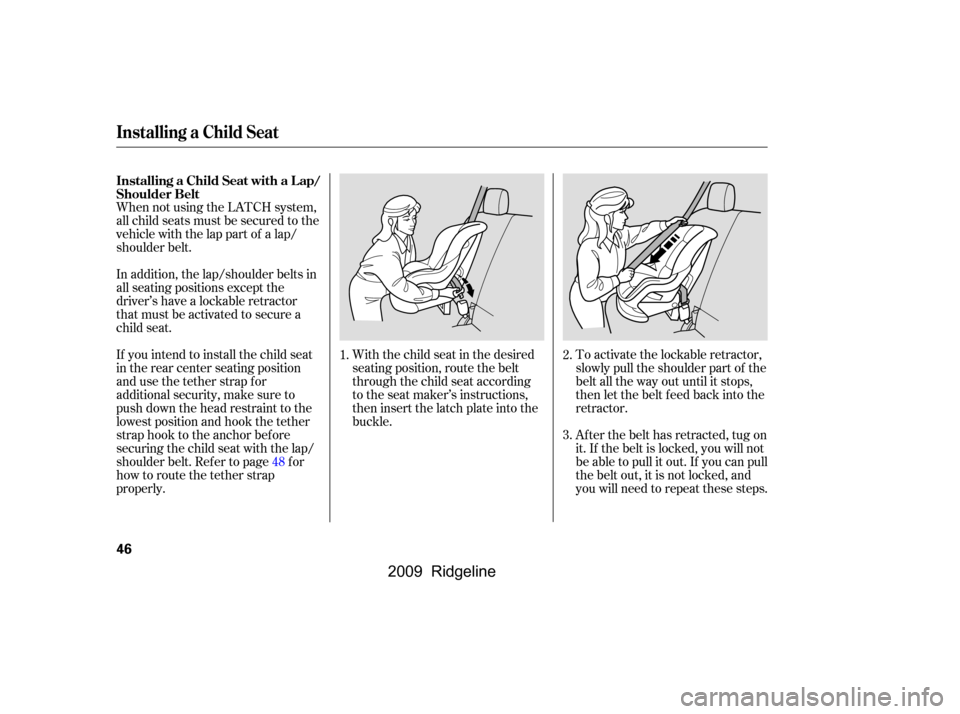

shoulder belt.With the child seat in the desired
seating position, route the belt
through the child seat according
to the seat maker’s instructions,
then insert the latch plate into the
buckle.To activate the lockable retractor,
slowly pull the shoulder part of the
belt all the way out until it stops,
then let the belt f eed back into the
retractor.
Af ter the belt has retracted, tug on
it. If the belt is locked, you will not
be able to pull it out. If you can pull
thebeltout,itisnotlocked,and
you will need to repeat these steps.
In addition, the lap/shoulder belts in
all seating positions except the
driver’s have a lockable retractor
that must be activated to secure a
child seat.
If you intend to install the child seat
in the rear center seating position
and use the tether strap for
additional security, make sure to
push down the head restraint to the
lowest position and hook the tether
strap hook to the anchor bef ore
securing the child seat with the lap/
shoulder belt. Ref er to page f or
how to route the tether strap
properly.
1.
2.
3.
48
Installing a Child Seat with a L ap/
Shoulder Belt
Installing a Child Seat
46
\f—\f—\fy
y
(\fy\f\f
y
2009 Ridgeline
