This indicator comes on with the
high beam headlights. For more
inf ormation, see page .
If this indicator comes on when the
ignition switch is turned to the ON
(II) position and the parking brake is
released, it means there is a problem
with a circuit. Have your vehicle
checked by your dealer.
If you see a ‘‘CHECK DRL
SYSTEM’’ message on the multi-
inf ormation display, there is a
problem with the daytime running
light circuit. Take your vehicle to a
dealer to have it checked. This indicator comes on when the
washer f luid level is low. Add washer
fluidwhenyouseethisindicator
(see page ).
This indicator comes on when you
set the cruise control. See page f or inf ormation on operating the
cruise control.
This indicator comes on when you
turn on the cruise control system by
pressing the CRUISE button (see
page ). You will see a ‘‘WASHER FLUID
LOW’’ message on the multi-
inf ormation display (see page ).
95
207
207 330
91
On models with navigation system
On models with navigation system
High Beam Indicator Washer L evel Indicator
Cruise Control Indicator
Cruise Main Indicator
Daytime Running L ights
Indicator
Instrument Panel Indicators
Inst rument s and Cont rols
67
\f—\f—\fy
y
(\fy\f\fy
2009 Ridgeline

This indicator comes on as a
reminder that you must ref uel soon.
When the indicator comes on, there
is about 3.3 U.S. gal (12.5
)of fuel
remaining in the tank.
When the needle reaches E, there is
a very small amount of f uel in the
tank. You will also see a ‘‘FUEL LOW’’
message on the multi-inf ormation
display.
This indicator comes on when the
security system is set. See pagef or more inf ormation on the
security system. 206
On models with navigation system
On RTS, RTL models, and CanadianEX-L modelsL ow Fuel Indicator Security System Indicator
Instrument Panel Indicators
68
LOW FUEL INDICATOR
SECURITY SYSTEM INDICATOR
\f—\f—\fy
y
(\fy\f\fy
2009 Ridgeline

This indicator monitors the
temperature of the automatic
transmission f luid. It should come on
f or a f ew seconds when you turn the
ignition switch to the ON (II)
position. If it comes on while driving,
it means the transmission f luid
temperature is too high. Pull to the
side of the road when it is saf e, shif t
to Park, and let the engine idle until
the indicator goes out.
This indicator reminds you that the
exterior lights are on. It comes on
when you turn the headlight control
dial to either the or
position.
If you turn the ignition switch to the
ACCESSORY (I) or LOCK (0)
position without turning of f the
headlight control dial, this indicator
remains on. A reminder chime will
also sound when you open the driver’s
door. You will also see an ‘‘A/T TEMP
HIGH’’ message on the multi-
inf ormation display (see page ).91
On models with navigation system
Lights On Indicator A/T Temperature
Indicator
Instrument Panel Indicators
Inst rument s and Cont rols
69
Continuing to drive with the A/T
temperature indicator on may cause
serious damage to the transmission.
\f—\f—\fy
\f\fy
(\fy\f\fy
2009 Ridgeline

This indicator normally comes on f or
a f ew seconds when you turn the
ignition switch to the ON (II)
position.
If itcomesonandstaysonatany
other time, or if it does not come on
when you turn the ignition switch to
the ON (II) position, there is a
problem with the VSA system. Take
your vehicle to a dealer to have it
checked. Without VSA, your vehicle
still has normal driving ability, but
will not have VSA traction and
stability enhancement. See pagef or more inf ormation on the
VSA system. You will also see a ‘‘CHECK VSA
SYSTEM’’ message on the multi-
inf ormation display (see page ).
This indicator normally comes on f or
a f ew seconds when you turn the
ignition switch to the ON (II)
position. If it comes on at any other
time, there is a problem in the 4WD
system. Take the vehicle to your
dealer to have it checked.
If the indicator blinks while driving,
the VTM-4 fluid temperature is too
high. Pull to the side of the road
when it is saf e, shif t to Park, and let
the engine idle until the indicator
goes out.
291 91
On models with navigation system
Instrument Panel Indicators
Vehicle Stability Assist
(VSA ) System Indicator
VTM-4 Indicator
70
Continuing to drive with the VTM-4
indicator blinking may cause serious
damage to the system.
\f—\f—\fy
\fy
(\fy\f\fy
2009 Ridgeline

This indicator comes on f or a f ew
seconds when you turn the ignition
switch to the ON (II) position. It
remindsyouthatitistimetotake
your vehicle in f or scheduled
maintenance. The maintenance main
items and sub items will be displayed
in the information display. See pagef or more inf ormation on the
maintenance minder.
This indicator goes of f when your
dealer resets it after completing the
required maintenance service.
This indicator normally comes on f or
a f ew seconds when you turn the
ignition switch to the ON (II)
position. For more inf ormation, see
page .
This indicator has three f unctions:
Itcomesonasareminderthatyou
have turned off the vehicle
stability assist (VSA) system.
It flashes when VSA is active (see
page ).
It comes on along with the VSA
system indicator if there is a
problem with the VSA system. You will also see a ‘‘CHECK VSA
SYSTEM’’ message on the multi-
inf ormation display (see page ).
1.
2.
3. 291
291 91
313
On models with navigation systemMaintenance Minder
Indicator
VSA A ctivation Indicator
Instrument Panel Indicators
Inst rument s and Cont rols
71
\f—\f—\fy

y
(\fy\f\fy
2009 Ridgeline

If it comes on while driving, it
indicates that one or more of your
vehicle’s tires are signif icantly low
on pressure.
This indicator normally comes on f or
a f ew seconds when you turn the
ignition switch to the ON (II)
position.If this happens, pull to the side of the
road when it is saf e, check which tire
has lost the pressure on the tire
pressure monitor, and determine the
cause. If it is because of a f lat tire,
replace the flat tire with the compact
spare (see page ), and have the
f lat tire repaired as soon as possible.
If two or more tires are underinf lated,
call a prof essional towing service
(see page ). Ref er to page
f or more inf ormation. This indicator normally comes on f or
a f ew seconds when you turn the
ignition switch to the ON (II)
position.
This indicator has two f unctions:
Check the tire pressure monitor
on the multi-information display
and determine the cause (see page ).
You will also see a ‘‘CHECK TIRE
PRESSURE’’ message on the
multi-inf ormation display (see
page ).
If it comes on while driving, it
indicates that one or more of your
vehicle’s tires are signif icantly low
on pressure.
1.
383
278
28291
361
On models without navigation system
On models with navigation system
Low Tire Pressure
IndicatorLow Tire Pressure/
TPMS Indicator
Instrument Panel Indicators
72
\f—\f—\fy
y
(\fy\f\fy
2009 Ridgeline

If this indicator comes on and stays
on at any other time, or if it does not
come on when you turn the ignition
switch to the ON (II) position, there
is a problem with the TPMS. With
this indicator on, the low tire
pressure indicator and the tire
pressure monitor will not come on
when a tire loses pressure. Take the
vehicle to your dealer to have the
system checked.
This indicator normally comes on f or
a f ew seconds when you turn the
ignition switch to the ON (II)
position.
If this happens, pull to the side of the
road when it is saf e, check which tire
has lost pressure on the multi-
inf ormation display, and determine
the cause. If it is because of a flat tire,
have the flat tire repaired as soon as
possible. If two or more tires are
underinf lated, call a prof essional
towing service. For more
inf ormation, see page . If this indicator begins to f lash,
there is a problem with the tire
pressure monitoring system
(TPMS). You will also see a
‘‘CHECK TPMS SYSTEM’’
message on the multi-inf ormation
display. The indicator continues to
f lash f or a while (approximately 1
minute), then stays on. If this
happens, have your dealer check
the system as soon as possible.
For more inf ormation, see page
.
2.
383 284
On models without navigation system
Tire Pressure Monitoring
System (T PMS) Indicator
Instrument Panel Indicators
Inst rument s and Cont rols
73
\f—\f—\fy
y
(\fy\f\fy
2009 Ridgeline

This indicator reminds you that the
bed lights are on. With the shif t lever
in the Park position, they come on
when you push the light switch on
the dashboard, swing open the
tailgate, or open the In-Bed Trunk.If you turn the ignition switch to the
ACCESSORY (I) or LOCK (0)
position without turning of f the bed
lights, this indicator will remain on,
andthengooff after20minutes.See
page f or more inf ormation.
Most of the time, this indicator
comes on along with other indicators
in the instrument panel such as the
seat belt reminder indicator, SRS
indicator, VSA system indicator, etc.
This indicator comes on when there
is a system message on the multi-
inf ormation display. Press the INFO
button on the dashboard (see page ) to see the message (see page
).
82
90 144On models with navigation system
Bed L ights On Indicator
Message Indicator
Instrument Panel Indicators
74
\f—\f—\fy
\fy
(\fy\f\fy
2009 Ridgeline

This indicator reminds you that the
back window is not completely
closed when you turn the ignition
switch f rom the ON (II) position to
the ACCESSORY (I) or LOCK (0)
position. With the ignition switch in
the ACCESSORY (I) position, it goes
of f af ter about 30 seconds. With the
ignition switch in the LOCK (0)
position, it goes of f af ter about 3
minutes.
If you remove the ignition key, turn
of f the lights, and open the driver’s
door without closing the back
window, you will hear f ive beeps and
see the indicator blink. If you do not
close the back window bef ore the
beeper stops, the indicator stops
blinking but remains on. It will go of f
af ter about 3 minutes. See pagef or more inf ormation.
This indicator reminds you that the
In-Bed Trunk is open. If you do not
close it, the indicator stays on for
about 3 minutes. See page f or
more inf ormation.
This indicator comes on if any door
or the tailgate is not closed tightly.
116
129Back Window Open
Indicator
In-Bed T runk Open
Indicator Door and Tailgate Open
Indicator
Instrument Panel Indicators
Inst rument s and Cont rols
75
\f—\f—\fy
y
(\fy\f\f\fy
2009 Ridgeline

Û
Ý

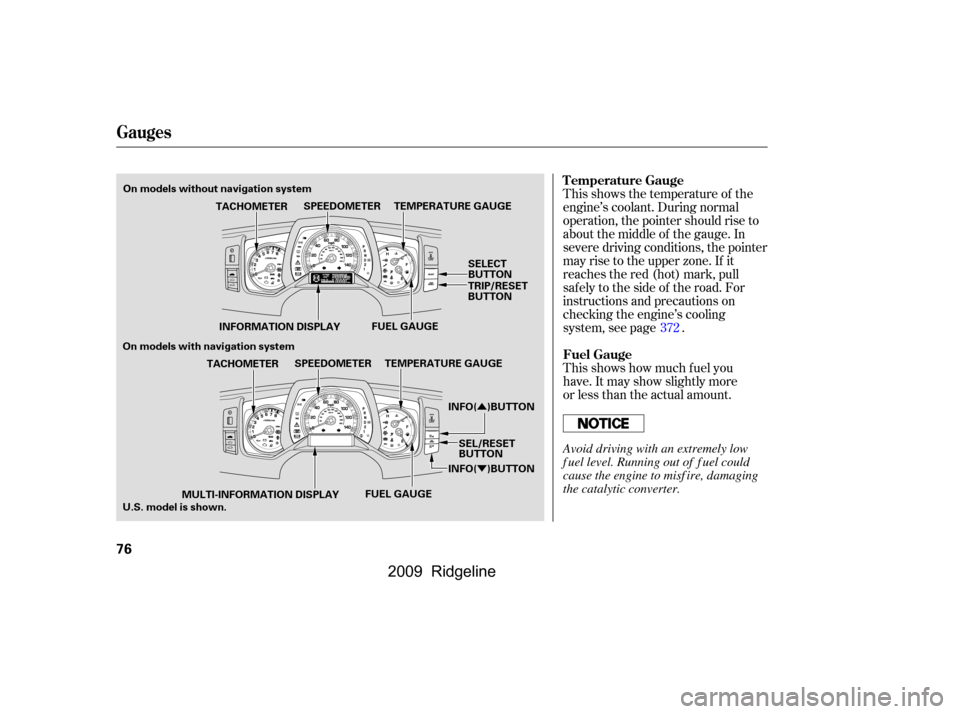

This shows the temperature of the
engine’s coolant. During normal
operation, the pointer should rise to
about the middle of the gauge. In
severe driving conditions, the pointer
may rise to the upper zone. If it
reaches the red (hot) mark, pull
safely to the side of the road. For
instructions and precautions on
checking the engine’s cooling
system, see page .
This shows how much f uel you
have. It may show slightly more
or less than the actual amount.372
Gauges
Temperature Gauge
Fuel Gauge
76
U.S. model is shown. INFORMATION DISPLAY
On models without navigation system
On models with navigation system SPEEDOMETER
TACHOMETER TEMPERATURE GAUGE
SELECT
BUTTON
TRIP/RESET
BUTTON
FUEL GAUGE
SPEEDOMETER
TACHOMETER TEMPERATURE GAUGE
SEL/RESET
BUTTON
FUEL GAUGE
MULTI-INFORMATION DISPLAY INFO( )BUTTON
INFO( )BUTTON
Avoid driving with an extremely low
f uel level. Running out of f uel could
cause the engine to misf ire, damaging
the catalytic converter.
\f—\f—\fy
y
(\fy\f\f
y
2009 Ridgeline
