Radio signals, especially on the FM
band, are def lected by large objects
such as buildings and hills. Your
radio then receives both the direct
signal f rom the station’s transmitter,
and the def lected signal. This causes
the sound to distort or flutter. This is
a main cause of poor radio reception
in city driving.Radio reception can be af f ected by
atmospheric conditions such as
thunderstorms, high humidity, and
even sunspots. You may be able to
receive a distant radio station one
day and not receive it the next day
because of a change in conditions.
Electrical interf erence f rom passing
vehicles and stationary sources can
cause temporary reception problems.This device complies with the
appropriate requirements or the
required standards. See page f or
more inf ormation.
400
A M/FM Radio Reception
166
12/08/09 16:21:25 31SJC670_173
Features

CONT INUED

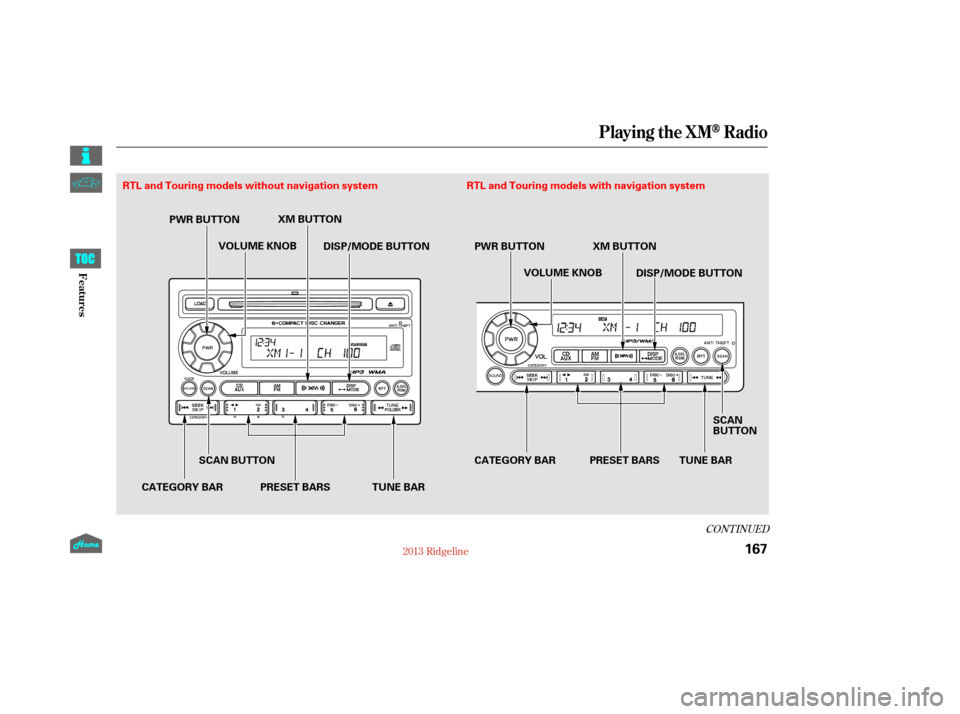

Playing the XMRadio
167
TUNE BAR
CATEGORY BAR CATEGORY BAR PRESET BARSSCAN
BUTTON
TUNE BAR
PRESET BARS XM BUTTON
XM BUTTON
VOLUME KNOB
VOLUME KNOB
SCAN BUTTON
RTL and Touring models without navigation system
RTL and Touring models with navigation system
PWR BUTTON DISP/MODE BUTTON PWR BUTTON DISP/MODE BUTTON
12/08/09 16:21:31 31SJC670_174
Features

µOn the audio display, you will see the
selected CHANNEL (number),
CATEGORY, NAME (artist name),
and TITLE (music title).
You may experience periods when
XM Radio does not transmit the
artist’s name and song title
inf ormation. If this happens, there is
nothing wrong with your system.
XM Radio receives signals f rom two
satellites to produce clear, high-
quality digital reception. It of f ers
many channels in several categories.
Along with a large selection of
dif f erent types of music, XM Radio
allows you to view channel and
category selections in the display.
The navigation system screen also
shows all XM inf ormation when the
AUDIO button is pressed.
To listen to XM radio, turn the
ignition switch to the ACCESSORY
(I) or ON (II) position. Push the
PWR button to turn on the audio system, and press the XM button.
Adjust the volume by turning the
volume knob. The last channel you
listened to will show in the display.
Each time you press and release the
DISP/MODE button, the display
changes in the f ollowing sequence:
Channel name, channel number,
category, artist name, and music title. In channel mode, you can select all
of the available channels. In category
mode, such as Jazz, Rock, Classical,
etc., you can select all of the
channels within that category.
To switch between
channel mode and category mode,
press and hold the DISP/MODE
button until the mode changes. You can also change to the XM
Radio while you are listening to an
FM station, AM station, CD, etc. by
touching the XM1 or XM2 icon on
the audio display (navigation
system screen).
Your vehicle is capable of receiving
XM
Radio anywhere in the United
States and Canada, except Hawaii,
Alaska,andPuertoRico.XMisa
registered trademark of Sirius XM
Radio
,Inc.andXMCANADAis a
registered business name of
Canadian Satellite Radio Inc.
On RTL and Touring models
Playing the XMRadio
Operating the XM Radio MODE
168
On vehicles with navigation system
12/08/09 16:21:39 31SJC670_175
Features

µµ
µ µ
Press the TUNE bar to
change channel selections. Press f or higher numbered channels
and f or lower numbered
channels. In the category mode,
Press either side of the CATEGORY
bar ( or ) to select
The scan function gives
mode, only the channels within that
category are scanned. To activate
scan, press the SCAN button or
touch the SCAN icon on the screen.
The system plays each channel in
numerical order for a few seconds,
then selects the next channel. When
you hear a channel you want
to listen to, press the button or
touch the icon again. Youcanstoreupto12
preset channels using each side of
the preset bar or preset icons on the
screen. Each side of the bar stores
one channel f rom the XM1 band and
one channel f rom the XM2 band. Pick a preset number (icon) you
want for that channel. Press and
hold the bar (icon) until you hear
a beep.
Repeat steps 2 and 3 to store the
f irst six channels.
Once a channel is stored, press and
release the proper side of the preset
bar (icon) to tune to it.
To store a channel:
Press the XM button. Either XM1
or XM2 will show in the display.
Usethetune,seek,orscan
function to tune to a desired
channel. Press the XM button again or
touch the other XM icon (XM1 or
XM2) on the audio display. Store
the next six channels using steps 2
and 3.
In category mode, only channels
within that category can be
selected. In channel mode,
all channels can be selected. 1.
2. 3.
4.
5.
TUNE
SEEK /SK IP (CA T EGORY)
SCAN Preset
Playing the XMRadio
169
12/08/09 16:21:49 31SJC670_176
Featuresthat category. you can only select channels within
another category.
you a sampling of all channels while
in the channel mode. In the category

µµ
µ µ µ
µ
XM is loading the
audio or program inf ormation. The signal is
currently too weak. Move the vehicle
to an area away from tall buildings,
and with an unobstructed view of the
southern horizon.
The channel
currently selected is no
The encryption
code is being updated. Wait until the
encryption code is f ully updated.
Channels 0 and 1 should still The selected channel
number does not exist, or is not part
of your subscription, or this channel
has no artist or title inf ormation at
this time.
There is a problem
with the XM antenna. Please consult
your dealer.
XM Radio Display Messages
‘‘L OA DING’’
‘‘NO SIGNA L ’’
‘‘OFF A IR’’
‘‘UPDA T ING’’ ‘‘----’’
‘‘A NT ENNA ’’
Playing the XMRadio
170
12/08/09 16:21:54 31SJC670_177
Featureslonger broadcasting.
work normally.

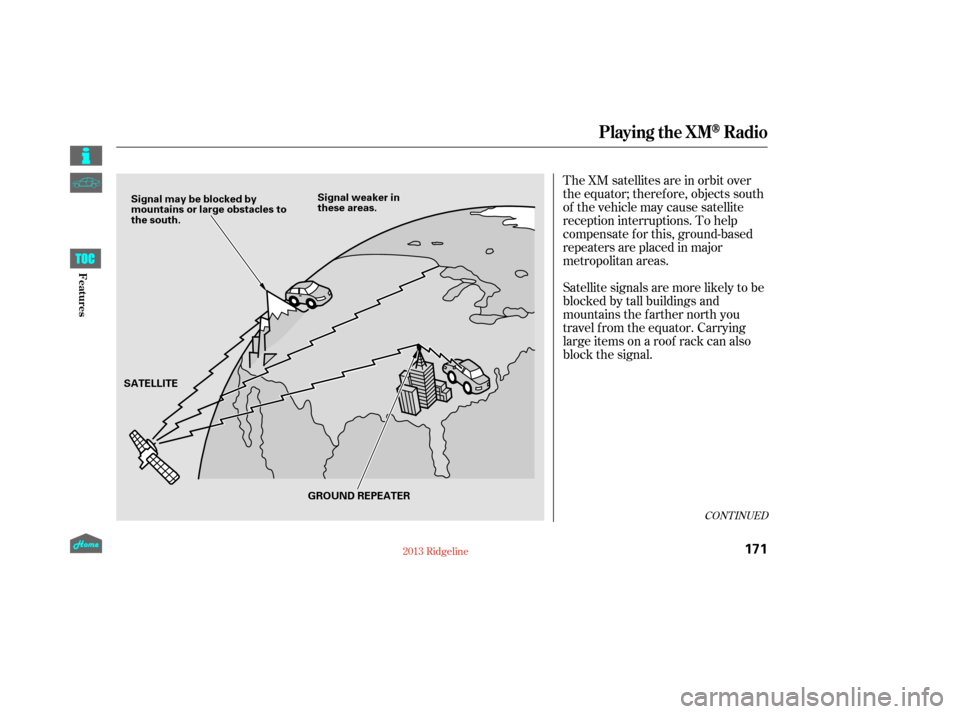

The XM satellites are in orbit over
the equator; therefore, objects south
of the vehicle may cause satellite
reception interruptions. To help
compensate f or this, ground-based
repeaters are placed in major
metropolitan areas.
Satellite signals are more likely to be
blocked by tall buildings and
mountains the f arther north you
travel f rom the equator. Carrying
large items on a roof rack can also
block the signal.
CONT INUED
Playing the XMRadio
171
Signal may be blocked by
mountains or large obstacles to
the south.Signal weaker in
these areas.
SATELLITE GROUND REPEATER
12/08/09 16:21:59 31SJC670_178
Features

Depending on where you drive, you
may experience reception problems.
Interf erence can be caused by any of
these conditions:Driving on the north side of a
large commercial truck on an
east/west road.
Driving in tunnels.
Driving on a road beside a vertical
wall, steep clif f , or hill to the south
of you.
Driving on the lower level of a
multi-tiered road.
Driving on a single lane road
alongside dense trees taller than
50 ft. (15 m) to the south of you. Driving on the north side of an
east/west mountain road.
Large items carried on a roof rack. If your XM Radio service has expired
or you purchased your vehicle f rom
a previous owner, you can listen to a
sampling of the broadcasts available
on XM Radio. With the ignition
switch in the ACCESSORY (I) or ON
(II) position, push the PWR button to
turn on the audio system and press
the XM button. A variety of music
types and styles will play.
There may be other geographic
situations that could af f ect XM Radio
reception.
This device complies with the
appropriate requirements or the
required standards. See page f or
more inf ormation.
400
Playing the XMRadio
Receiving XM Radio Service
172
12/08/09 16:22:07 31SJC670_179
Features

If you decide to purchase XM Radio
service, contact XM Radio at,orat
1-800-852-9696. In Canada, contact
XM CANADA
at , or
at 1-877-209-0079. You will need to
give them your radio I.D. number
and your credit card number. To get
your radio I.D. number, press the
TUNE bar until ‘‘0’’ appears in the
display. Your I.D. will appear in
After you’ve registered with XM
Radio, keep your audio system in the
XM radio mode while you wait f or
activation. This should take about While waiting f or activation, make
sure your vehicle remains in an open
area with good reception. Once your
audio system is activated, you’ll be
able to listen to XM Radio broadcasts.
XM Radio will continue to send an
activation signal to your vehicle f or
at least 12 hours from the activation
request. If the service has not been
activated after 36 hours, contact
XM
Radio. In Canada, contact
.
www.siriusxm.com
www.xmradio.ca
Playing the XMRadio
173
12/08/09 20:40:36 31SJC670_180
Features
the display.
30 minutes. XM CANADA

You operate the CD player with the
same controls used for the radio. SeeThis audio system can also play
CD-Rs and CD-RWs compressed in
MP3 or WMA formats. When
playing a disc in MP3, you will see
‘‘MP3’’ in the display. In WMA
format, ‘‘WMA’’ will appear in
the display.
You can select up to 999 tracks/files.
If the number of tracks/files is
1,000 or more, the system can not
access them.
When there are more than 99 folders
in a disc, the display only shows
two digits.
You can select up to 400 tracks/f iles
in a disc.
A disc can support a maximum
number of 100 f olders, and each
f older can hold 255 playable f iles.If you have a disc that is a
combination of CD-DA tracks and
MP3/WMA f iles, you can choose the
f ormat to listen by pressing and
holding CD/AUX or CD button until
you hear a beep.
If a f ile on an MP3 or WMA disc is
protected by digital rights
management (DRM), the audio unit
displays UNSUPPORTED
(UNSUPPORT on models with
navigation system), and then skips to
the next f ile.
Video CDs and DVDs do not work in
this unit.
Depending on the sof tware the f iles
were made with, it may not be
possible to play some f iles, or display
some text data.
You operate the CD changer with
the same controls used f or the radio.
For models without navigation
system, see pages through
.
For models with navigation system,
see pages through .
175
188
197
189 181
On models without navigation system
On models with navigation system
On RTS, RTL, and Touring models
On RT, DX, VP, and Sport models
Playing CDs
174
NOTE:
12/08/09 20:40:45 31SJC670_181
Features
operation inf ormation. See page f or the CD player

You operate the disc player
with the same controls used for the
radio. To select the disc player,
press the CD button. You will see
‘‘CD’’ in the display. To load or play a disc, the ignition
switch must be in the ACCESSORY
(I) or ON (II) position.
CONT INUED

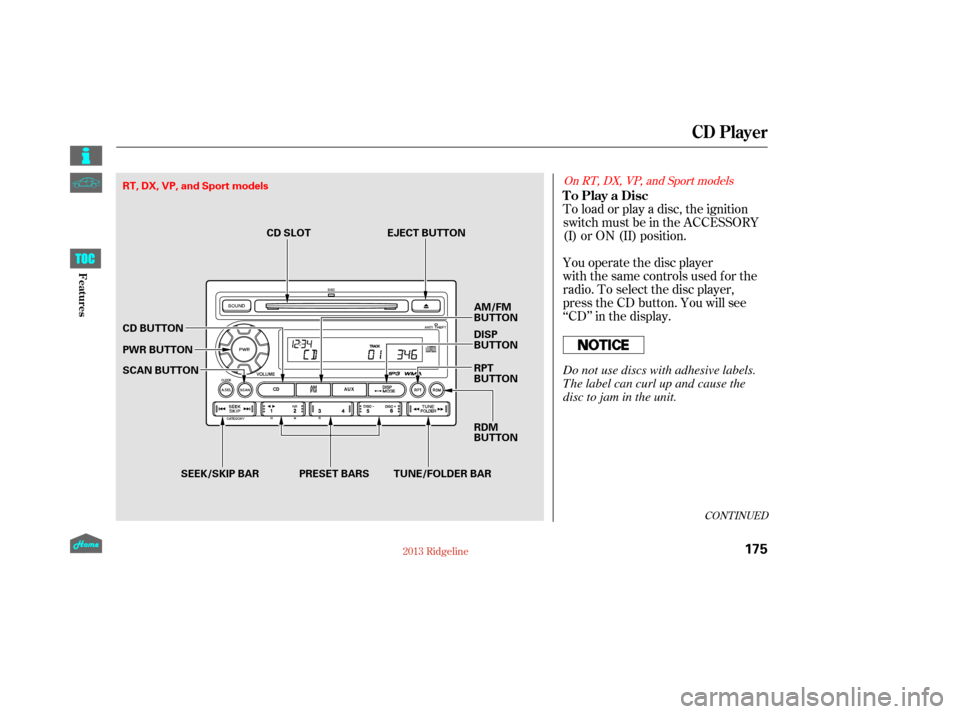

On RT, DX, VP, and Sport models
To Play a Disc
CD Player
175
CD SLOTEJECT BUTTON
TUNE/FOLDER BAR AM/FM
BUTTON
CD BUTTON
PWR BUTTON
SCAN BUTTON
SEEK/SKIP BAR PRESET BARS DISP
BUTTON
RPT
BUTTON
RDM
BUTTON
RT, DX, VP, and Sport models
Do not use discs with adhesive labels.
The label can curl up and cause the
disc to jam in the unit.
12/08/09 16:22:27 31SJC670_182
Features
