This section gives inf ormation about
the controls and displays that
contribute to the daily operation of
your vehicle. All the essential
controls are within easy reach............................
Control Locations .60
............................
Instrument Panel .61
..........
Instrument Panel Indicators . 62
.............................................
Gauges .76
..............
Multi-Inf ormation Display .82
Controls Near the Steering ...........................................
Wheel .93
........................
Multi-Control Lever .94
........................................
Headlights .95
...............
Headlight Control Dial . 95
........................................
Fog Lights .97
........
Instrument Panel Brightness . 98
.................
Hazard Warning Button . 99
..........
Steering Wheel Adjustment . 99
................................................
Keys .100
......................
Immobilizer System .101
..............................
Ignition Switch .102
....................................
Door Locks .103
............
Childproof Door Locks . 104
Auto Door Locking/ ..............................
Unlocking .104
.....................
Remote Transmitter .110
.....................
Dual-Action Tailgate .113
...............................
In-Bed Trunk
. 116
...............................................
Seats .119
..................................
Seat Heaters .126 ............................
Power Windows .128
.......................................
Moonroof .131
...............................
Parking Brake .132
...........................................
Mirrors .133
.........
Interior Convenience Items . 135
.........................
Center Console .136
.......
Console Compartments . 136
.........................
Cargo Hooks .137
.....................
Beverage Holders .137
..................................
Glove Box .138
................................
Coat Hooks .138
....................
Sunglasses Holder .138
........
Accessory Power Sockets . 139
...................................
Sun Visor .140
............................
Vanity Mirror .140
........................
AC Power Outlet .141
...............................
Interior Lights .142
.....................................
Bed Lights .144
Instruments and Controls
59
12/08/09 16:06:58 31SJC670_066

Î
Î
Î
Î ÎÎ
Î Î
On models without navigation system. On models with navigation system.
The U.S. instrument panel is shown. Dif f erences f or the Canadian models are noted in the text.
1:
2:
3:
On RTS, RTL, and Touring models.
Instrument Panel
Inst rument s and Cont rols
61

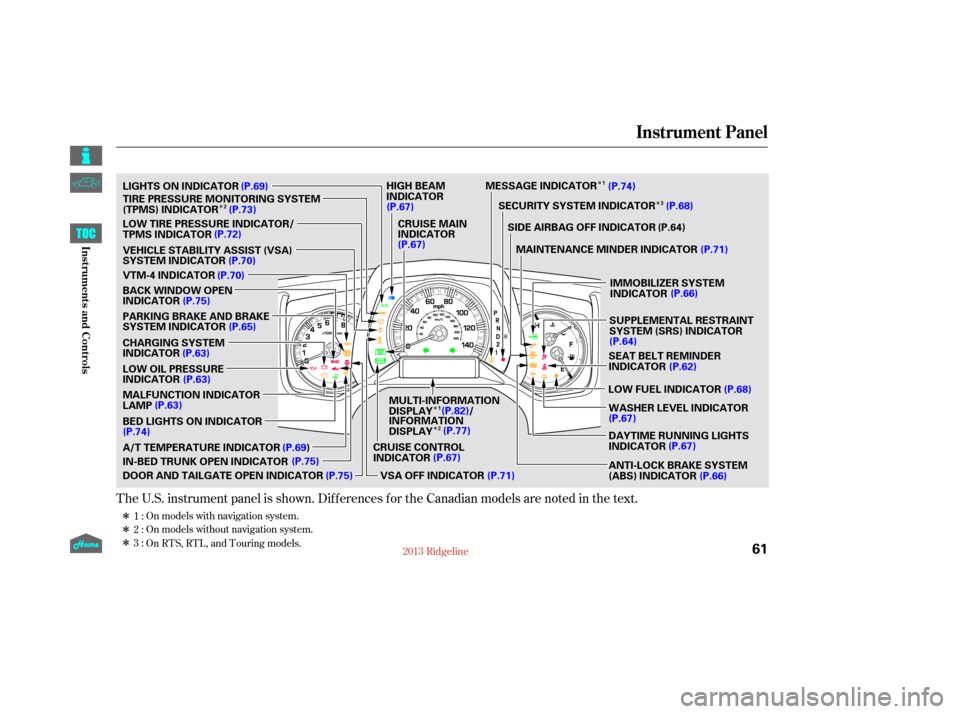

CRUISE CONTROL
INDICATOR
(P.72)
(P.70)
(P.75)
(P.65)
(P.63) (P.63)
(P.63)
(P.69)(P.75) (P.82)
/
INFORMATION
DISPLAY MULTI-INFORMATION
DISPLAY
(P.77)
(P.67) (P.62)
SIDE AIRBAG OFF INDICATOR
(P.74)
(P.67)(P.66)
SECURITY SYSTEM INDICATOR
(P.68)
HIGH BEAM
INDICATOR
(P.73)
(P.68)
ANTI-LOCK BRAKE SYSTEM
(ABS) INDICATOR DAYTIME RUNNING LIGHTS
INDICATOR WASHER LEVEL INDICATOR
(P.67) SEAT BELT REMINDER
INDICATOR
LOW FUEL INDICATOR (P.71)
(P.69)
DOOR AND TAILGATE OPEN INDICATOR IN-BED TRUNK OPEN INDICATOR A/T TEMPERATURE INDICATOR BED LIGHTS ON INDICATOR
(P.74) MALFUNCTION INDICATOR
LAMP LOW OIL PRESSURE
INDICATOR CHARGING SYSTEM
INDICATOR PARKING BRAKE AND BRAKE
SYSTEM INDICATOR BACK WINDOW OPEN
INDICATOR VTM-4 INDICATOR LOW TIRE PRESSURE INDICATOR/
TPMS INDICATOR TIRE PRESSURE MONITORING SYSTEM
(TPMS) INDICATOR LIGHTS ON INDICATOR (P.75)
VEHICLE STABILITY ASSIST (VSA)
SYSTEM INDICATOR
(P.70)
IMMOBILIZER SYSTEM
INDICATOR(P.66)
MESSAGE INDICATOR
(P.64)
CRUISE MAIN
INDICATOR
(P.67)
(P.67)
MAINTENANCE MINDER INDICATOR
VSA OFF INDICATOR (P.71) SUPPLEMENTAL RESTRAINT
SYSTEM (SRS) INDICATOR
(P.64)
2 1 3
2 1
12/08/09 16:07:15 31SJC670_068

This indicator comes on with the
high beam headlights. For more
inf ormation, see page .
If this indicator comes on when the
ignition switch is turned to the ON
(II) position and the parking brake is
released, it means there is a problem
with a circuit. Have your vehicle
checked by your dealer.
If you see a ‘‘CHECK DRL
SYSTEM’’ message on the multi-
inf ormation display, there is a
problem with the daytime running
light circuit. Take your vehicle to a
dealer to have it checked. This indicator comes on when the
washer f luid level is low. Add washer
fluidwhenyouseethisindicator
(see page ).
This indicator comes on when you
set the cruise control. See page f or inf ormation on operating the
cruise control. This indicator comes on when you
turn on the cruise control system by
pressing the CRUISE button (see
page ). You will see a ‘‘WASHER FLUID
LOW’’ message on the multi-
inf ormation display (see page ).
95
91
210 210 328
On models with navigation system
On models with navigation system
High Beam Indicator Washer L evel Indicator
Cruise Control Indicator Cruise Main Indicator
Daytime Running
Lights Indicator
Instrument Panel Indicators
67
12/08/09 16:08:04 31SJC670_074
Inst rument s and Cont rols

With the headlight control dial of f ,
the daytime running lights come on
when you turn the ignition switch to
the ON (II) position and release the
parkingbrake.Theyremainonuntil
you turn the ignition switch of f , even
if you set the parking brake.
The headlights revert to normal
operation when you turn them on
with the headlight control dial.If you see a ‘‘CHECK DRL
SYSTEM’’ message on the multi-
inf ormation display, there is a
problem with the daytime running
light circuit. Take your vehicle to a
dealer to have it checked.
You can use the f og lights only when
the headlights are on low beam.
They will go of f when you turn the

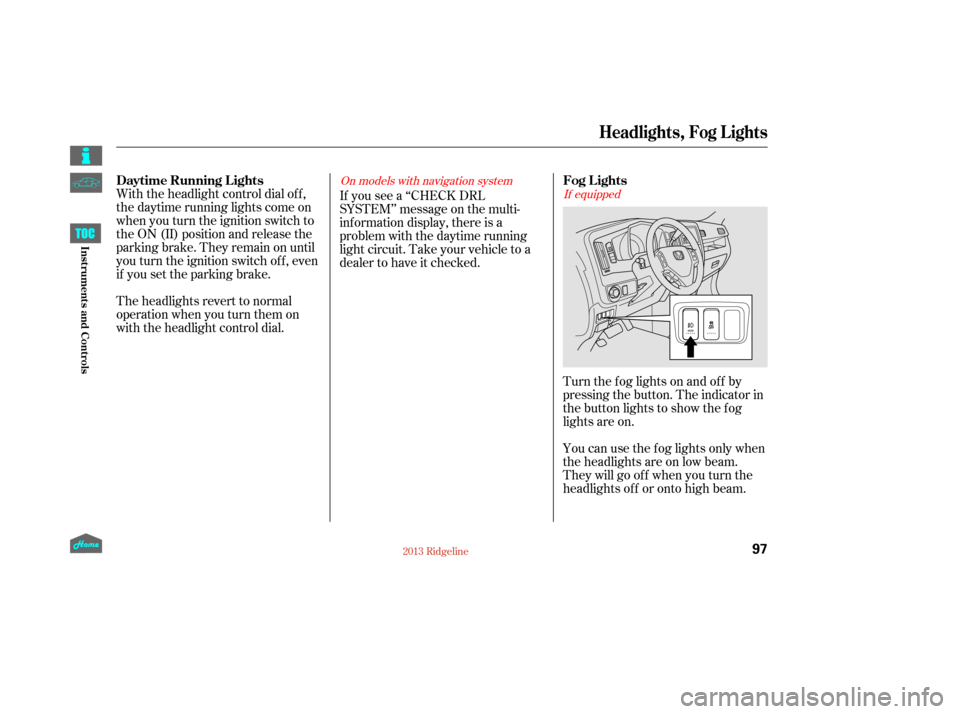

headlights of f or onto high beam. Turn the f og lights on and of f by
pressing the button. The indicator in
the button lights to show the f og
lights are on.If equipped
On models with navigation system
Daytime Running L ights
Fog L ights
Headlights, Fog Lights
97
12/08/09 16:12:02 31SJC670_104
Inst rument s and Cont rols

You will also see a ‘‘RELEASE
PARKING BRAKE’’ message on the
multi-information display (see
page).

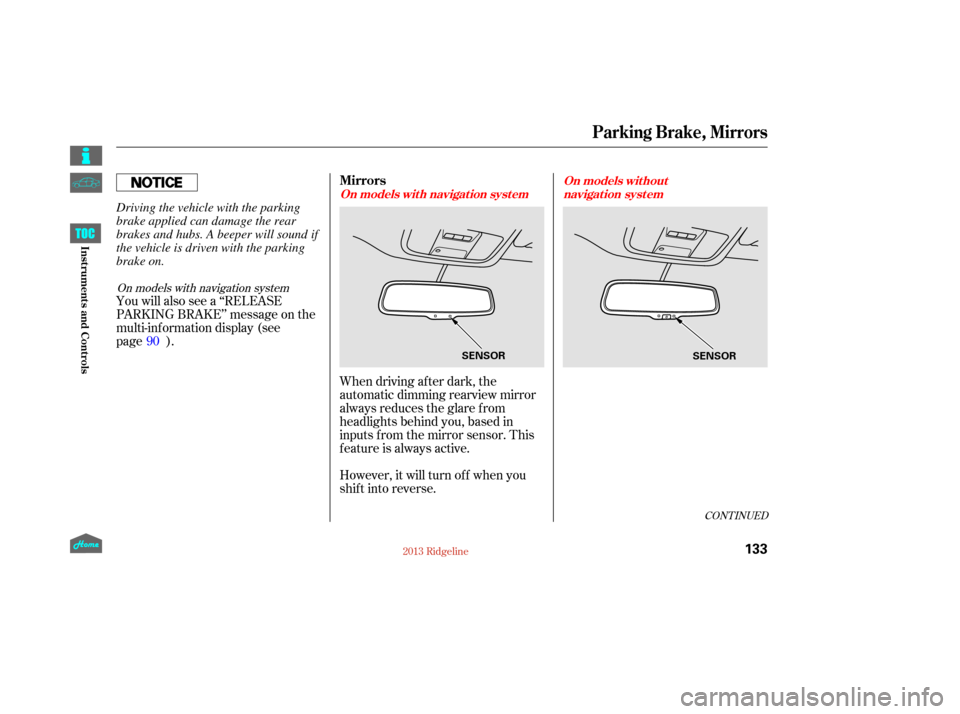

When driving af ter dark, the
automatic dimming rearview mirror
always reduces the glare f rom
headlights behind you, based in
inputs f rom the mirror sensor. This
feature is always active.
However, it will turn of f when you
shif t into reverse.
90
CONT INUED
On models with navigation system
Parking Brake, Mirrors
On models without
navigation system
On models wit h navigat ion syst emMirrors
133
SENSOR
SENSOR
Driving the vehicle with the parking
brake applied can damage the rear
brakes and hubs. A beeper will sound if
the vehicle is driven with the parking
brake on.
12/09/07 18:08:00 31SJC670_140
Inst rument s and Cont rols

You can increase the set cruising
speed in any of these ways:You can decrease the set cruising
speed in any of these ways:
Press and hold the RES/ACCEL
button. When you reach the
desired cruising speed, release the
button.
Push on the accelerator pedal.
Accelerate to the desired cruising
speed, then press the SET/
DECEL button.
Cruise control may not hold the set
speed when you are going up and
down hills. If your vehicle speed
increases going down a hill, use the
brakes to slow down. This will cancel
thecruisecontrol.Toresumetheset
speed, press the RES/ACCEL button.
The CRUISE CONTROL indicator
on the instrument panel will come
back on.
To increase the speed in very
small amounts, tap the RES/
ACCEL button. Each time you do
this, your vehicle will speed up
about 1 mph (1.6 km/h). If you need to decrease your
speed quickly, use the brakes as you
normally would.
Tap the brake pedal lightly with
your f oot. The CRUISE
CONTROL indicator on the
instrument panel will go out.
When the vehicle slows to the
desired speed, press the SET/
DECEL button. Press and hold the SET/DECEL
button. Release the button when
you reach the desired speed.
To slow down in very small
amounts, tap the SET/DECEL
button. Each time you do this,
your vehicle will slow down about
1 mph (1.6 km/h).
CONT INUED
Changing the Set Speed
Cruise Control
211
NOTE:
12/08/09 16:26:52 31SJC670_218
Features

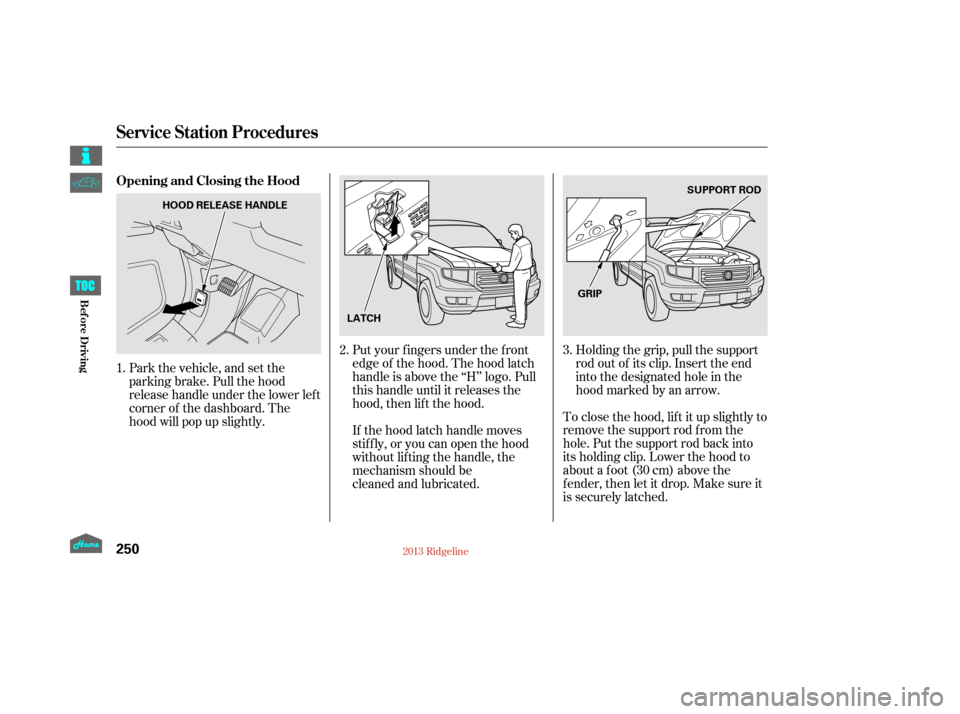

Put your f ingers under the f ront
edge of the hood. The hood latch
handle is above the ‘‘H’’ logo. Pull
this handle until it releases the
hood, then lif t the hood.To close the hood, lif t it up slightly to
remove the support rod f rom the
hole. Put the support rod back into
its holding clip. Lower the hood to
about a f oot (30 cm) above the
f ender, then let it drop. Make sure it
is securely latched.
If the hood latch handle moves
stiffly, or you can open the hood
without lifting the handle, the
mechanism should be
cleaned and lubricated.
Park the vehicle, and set the
parking brake. Pull the hood
release handle under the lower lef t
corner of the dashboard. The
hood will pop up slightly.
Holding the grip, pull the support
rod out of its clip. Insert the end
into the designated hole in the
hood marked by an arrow.
1.
2.
3.
Opening and Closing the Hood
Service Station Procedures
250
GRIP
HOOD RELEASE HANDLE
LATCH SUPPORT ROD
12/08/09 16:32:16 31SJC670_257
Bef ore Driving

Your dealer has Honda accessories
that allow you to personalize your
vehicle. These accessories have
been designed and approved f or your
vehicle, and are covered by warranty. Modif ying your vehicle, or installing
non-Honda accessories, may make
your vehicle unsaf e. Bef ore you
make any modif ications or add any
accessories,besuretoreadthe
f ollowing inf ormation.
Although non-Honda accessories
may f it on your vehicle, they may not
meet f actory specif ications, and
could adversely af f ect your vehicle’s
handling, stability, and reliability.If you install a truck cap, be sure it is
properly installed and does not
exceed your vehicle’s load limits (see
page ).When properly installed, cellular
phones, alarms, two-way radios, and
low-powered audio systems should
not interf ere with your vehicle’s
computer controlled systems, such
as your airbags, anti-lock brakes, and
tire pressure monitoring system.
Be sure electronic accessories do
not overload electrical circuits
(see page ) or interf ere with
the proper operation of your
vehicle. Make sure the accessory does not
obscure any lights, or interf ere
with proper vehicle operation or
perf ormance.
Bef ore installing any accessory:
258 376
CONT INUED
A ccessories
Your vehicle should not be used to
carry a slide-in camper.
A ccessories and Modif ications
255
Improper accessories or
modifications can affect your
vehicle’s handling, stability, and
performance, and cause a
crash in which you can be hurt
or killed.
Follow all instructions in this
owner’s manual regarding
accessories and modifications.
12/08/09 16:33:05 31SJC670_262
Bef ore Driving

Make sure the parking brake is
f ully released bef ore driving away.
Driving with the parking brake
partially set can overheat or
damage the rear brakes.
Make sure the moonroof (if
equipped) and the
windows are closed.
Turn of f the lights.
Place any packages, valuables, etc.
in the cargo area in your vehicle or
the In-Bed Trunk, or take them
with you.
Lock the doors.
Check the indicator on the driver’s
door to verify that the security
system is set.
Never park over dry leaves, tall
grass, or other f lammable
materials. The hot three way
catalytic converter could cause
these materials to catch on fire.If the vehicle is facing uphill,
turn the front wheels away
from the curb.
If the vehicle is facing downhill,
turn the front wheels toward
the curb.
On vehicles with security system
Parking
Parking T ips
285
12/08/09 16:36:43 31SJC670_292
Driving

Your vehicle is equipped with disc
brakes at all f our wheels. A power
assist helps reduce the ef f ort needed
on the brake pedal. The emergency
brake assist system increases the
stopping f orce when you depress the
brake pedal hard in an emergency
situation. The anti-lock brake system
(ABS) helps you retain steering
control when braking very hard.
Resting your f oot on the pedal keeps
the brakes applied lightly, builds up
heat, reduces their ef f ectiveness and
reduces brake pad lif e. In addition,
f uel economy can be reduced. It also
keeps your brake lights on all the
time, conf using drivers behind you.Constant application of the brakes
when going down a long hill builds
up heat and reduces their ef f ective-
ness. Use the engine to assist the
brakes by taking your f oot of f the
accelerator and downshif ting to a
lower gear.
Check the brakes after driving
through deep water. Apply the
brakes moderately to see if they f eel
normal. If not, apply them gently and
f requently until they do. Be extra
cautious and alert in your driving.
The hydraulic system that operates
the brakes has two separate circuits.
Each circuit works diagonally across
the vehicle (the lef t-f ront brake is
connected with the right-rear brake,
etc.). If one circuit should develop a
problem, you will still have braking
at two wheels.
If the brake pads need replacing, you
will hear a distinctive, metallic
screeching sound when you apply
the brake pedal. If you do not have
the brake pads replaced, they will
screech all the time. It is normal f or
the brakes to occasionally squeal or
squeak when you apply them. Braking System Design
Brake Pad Wear Indicators
Braking System
286
12/08/09 16:36:50 31SJC670_293
Driving
