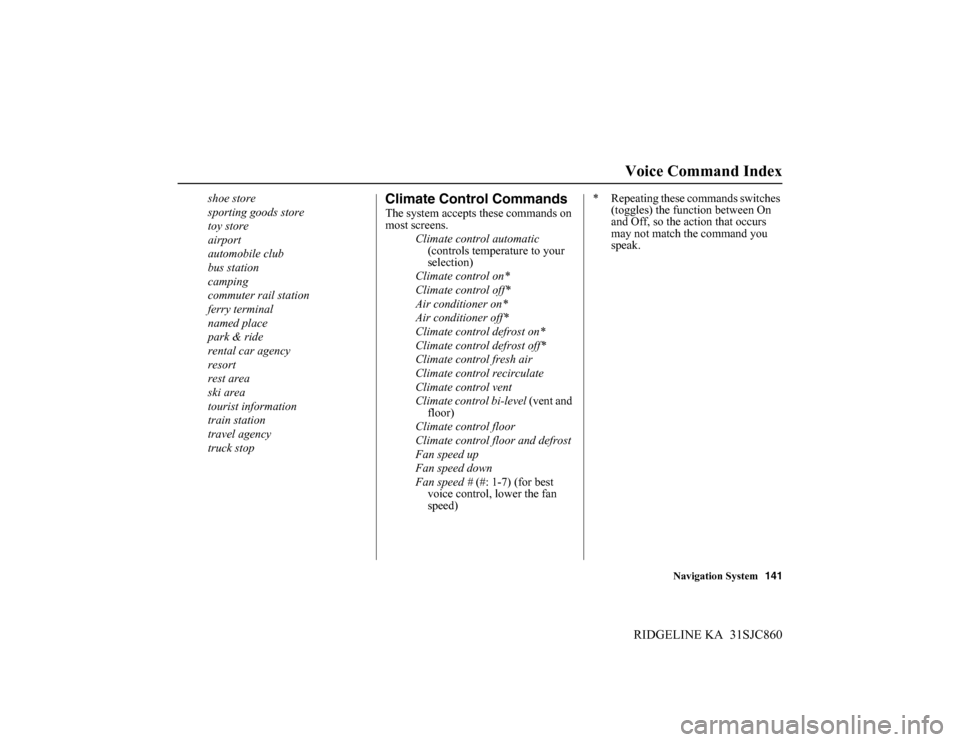

Navigation System141
RIDGELINE KA 31SJC860
Voice Command Index
shoe store
sporting goods store
toy store
airport
automobile club
bus station
camping
commuter rail station
ferry terminal
named place
park & ride
rental car agency
resort
rest area
ski area
tourist information
train station
travel agency
truck stopClimate Control Commands
The system accepts these commands on
most screens.
Climate control automatic
(controls temperature to your
selection)
Climate control on*
Climate control off*
Air conditioner on*
Air conditioner off*
Climate control defrost on*
Climate control defrost off*
Climate control fresh air
Climate control recirculate
Climate control vent
Climate control bi-level (vent and
floor)
Climate control floor
Climate control floor and defrost
Fan speed up
Fan speed down
Fan speed # (#: 1-7) (for best
voice control, lower the fan
speed)* Repeating these commands switches
(toggles) the function between On
and Off, so the action that occurs
may not match the command you
speak.

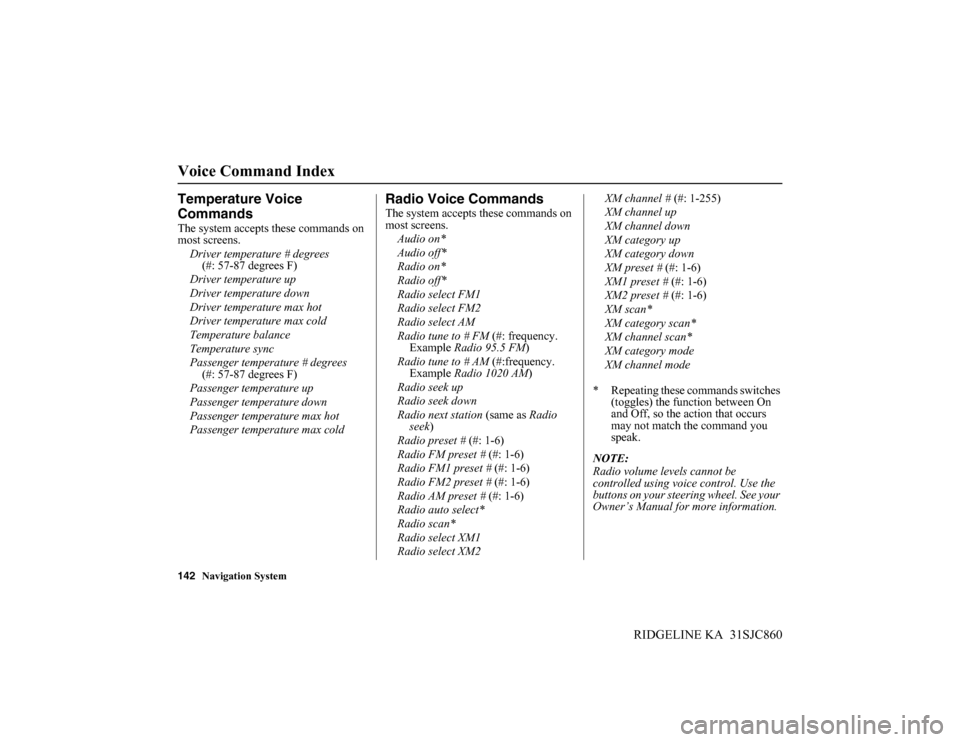

142Navigation System
RIDGELINE KA 31SJC860
Voice Command Index
Temperature Voice
Commands
The system accepts these commands on
most screens.
Driver temperature # degrees
(#: 57-87 degrees F)
Driver temperature up
Driver temperature down
Driver temperature max hot
Driver temperature max cold
Temperature balance
Temperature sync
Passenger temperature # degrees
(#: 57-87 degrees F)
Passenger temperature up
Passenger temperature down
Passenger temperature max hot
Passenger temperature max cold
Radio Voice Commands
The system accepts these commands on
most screens.
Audio on*
Audio off*
Radio on*
Radio off*
Radio select FM1
Radio select FM2
Radio select AM
Radio tune to # FM (#: frequency.
Example Radio 95.5 FM)
Radio tune to # AM (#:frequency.
Example Radio 1020 AM)
Radio seek up
Radio seek down
Radio next station (same as Radio
seek)
Radio preset # (#: 1-6)
Radio FM preset # (#: 1-6)
Radio FM1 preset # (#: 1-6)
Radio FM2 preset # (#: 1-6)
Radio AM preset # (#: 1-6)
Radio auto select*
Radio scan*
Radio select XM1
Radio select XM2XM channel # (#: 1-255)
XM channel up
XM channel down
XM category up
XM category down
XM preset # (#: 1-6)
XM1 preset # (#: 1-6)
XM2 preset # (#: 1-6)
XM scan*
XM category scan*
XM channel scan*
XM category mode
XM channel mode
* Repeating these commands switches
(toggles) the function between On
and Off, so the action that occurs
may not match the command you
speak.
NOTE:
Radio volume levels cannot be
controlled using voice control. Use the
buttons on your steering wheel. See your
Owner’s Manual for more information.

Navigation System143
RIDGELINE KA 31SJC860
Voice Command Index
CD Voice Commands
The system accepts these commands on
most screens.
CD play
CD play disc # (#: 1-6)
CD play track # (#: 1-30)
CD play disc #1 track #2
(#1: 1-6, #2: 1-30)
CD skip forward
CD skip back
CD play next disc
CD play previous disc
CD track random*
CD track repeat*
CD disc repeat*
CD track scan*
CD disc scan*
CD normal play
CD track list
CD folder random*
CD folder repeat*
CD folder scan*
CD folder list* Repeating these commands switches
(toggles) the function between On
and Off, so the action that occurs
may not match the command you
speak.
Information Screen Voice
Commands
These are additional commands not
found on the Voice Command Help
screen available when viewing the
Information screen. Follow the voice
prompts.
Setup
Cellular phonebook
Calendar
Calculator
Voice command help (the system
reads and lists all of the
commands, starting with
Navigation General Commands)
Map legend
Key to Zagat ratings
Setup Screen (first)
Commands
The system accepts these commands on
the Setup screen (first). (For the Setup
screen (second), simply say what is
written on the screen, and follow the
voice prompts.)
Brightness up
Brightness down
Brightness minimum/min.
Brightness maximum/max.
Volume up (tone indicates volume)
Volume down (tone indicates volume)
Volume minimum/min. (tone indicates
volume)
Volume maximum/max. (tone
indicates volume)
Volume off
Display clock
Display day
Display night
Display auto
Contrast adjust
Guidance prompts normal
Guidance prompts maximum/max.
Guidance prompts minimum/min.

144Navigation System
RIDGELINE KA 31SJC860
Voice Command Index
On-Screen Commands
The system accepts these commands on
any screen. There are over 100 on-
screen commands. Just say what is
written on the screen (this excludes
keyboard letters, and listed items)
Next (or “Down”)
Previous (or “Up”)
Return
OK (except at Disclaimer screen)
Delete
Done
On-Screen Commands Assist
Say or touch the desired letter. When
speaking the letters or using “spell
mode,” you can substitute the name that
represents each letter or symbol. This
improves recognition.NOTE:
• The system will only respond to the names shown in the graphic below.
• For instance, to select the letter “A,” you can touch the “A” on the screen, or say
“A,” or say “Alpha” or “Apple.”
To select the number “1,” touch the “1” on the screen, or say “one,” or say
“Number One.”
To select the symbol “- (hyphen),” touch the “-” on the screen, or say “Hyphen,”
or say “Symbol Hyphen.”
• When selecting letters using the voice control system, a confirmation box may pop
up to confirm the letter.
Alpha
AppleBravo
BoyCharlieDelta
DogEcho
EdwardFoxtrot
FrankGolf
GeorgeHotel
HenryJuliet
JohnApostrophe
Kilo
KingLima
LarryMike
MaryNovember
NancyOscarPapa
PaulQuebec
QueenRomeo
RobertSierra
SamTango
To mAmpersand
Uniform
UncleVictorWhiskey
WilliamX-rayYankee
Ye l l o wZulu
ZebraSlashIndia
Igloo

Navigation System145
RIDGELINE KA 31SJC860
Voice Command Index
Symbol Assist Definitions
NOTE:
The term “grave” used for these keys (À, È, Ì, and Ù) is pronounced like “save.”

146Navigation System
RIDGELINE KA 31SJC860
Index
A
Accessing the Address Book List
.....81
ADD TO Today’s
Destinations
...........................44, 47
Adding Destinations to the List........44
Address..............................22, 23, 82
Address Book.....................22, 45, 80
Address Book PIN..........................84
Advanced.......................................34
Alaska (Operation)........................124
Auto Daylight Saving Time.............97
Auto Service...................................34
Auto Time Zone by GPS.................98
Avoid Streets..................................67
B
Back to Current Route
.....................68
Banking..........................................34
Basic Settings.................................96
Bluetooth® HandsFreeLink®...........18
Breadcrumbs.......................19, 62, 94
Brightness......................................77
By Address.....................................23
By Address Book............................45
By Go Home...................................46
By Intersection................................27
By Map Input.................................38
By Places....................................... 32
By Previous Destinations................ 42
By Today’s Destinations................. 43
C
Calculator
...................................... 73
Calendar.................................. 17, 72
CALL...................................... 18, 47
CANCEL button............................ 11
Cancel Current Route..................... 68
Category...................... 32, 33, 45, 83
CD Voice Commands................... 143
Cellular Phonebook........................ 71
Change Method.............................. 48
Change State............................ 23, 28
Changing the DVD....................... 109
Changing the Route........................ 65
Changing the Routing Method........ 48
Changing Your Destination............. 68
City................................... 23, 28, 40
City Vicinity............................ 33, 37
Climate Control Commands.......... 141
Clock Adjustment.......................... 97
Clock Screen........................... 17, 79
Clock Settings.......................... 17, 79
Clock Type.............................. 17, 79
Color............................................. 99
Community.................................... 34
Continental USA............................ 41
Contrast......................................... 79
Convert (Unit)................................ 74
Correct Vehicle Position................. 95
Coverage Areas............................ 110
Current Location...................... 20, 63
Current Position....................... 39, 82
Current Street................................... 6
Customer Assistance.................... 107
D
Database Limitations
.................... 105
Daylight Saving Time (DST)
Selection
..................................... 98
Delete Previous Destination............ 85
Destination........................ 22, 47, 68
Destination Icon............................. 57
Destination Map............................. 50
Detailed Coverage Areas.............. 110
Detour........................................... 67
Direct Route.................................. 48
Direction List................................. 54
Display.......................................... 78
Driving to Your Destination............ 47
E
Easy Route
.................................... 48

Navigation System147
Index
RIDGELINE KA 31SJC860
Edit Avoid Area..............................91
Edit Waypoint Search Area..............93
Edit/Delete Address........................83
Editing Today’s Destinations List....43
Emergency.....................................34
Entering a Destination.....................22
Entering Address.............................81
Entering Security Code..................101
Entering the Street Number..............27
Entering Your Schedule...................72
Error Message...............................133
F
Find Place Commands
...................140
Frequently Asked Questions..........126
G
Getting Started
................................10
Global Commands........................138
Glossary.......................................135
Go Home..................................22, 46
Go Home PIN.................................85
Going Off the Route........................62
GPS Initialization..........................102
Guidance Mode.........................55, 94
Guidance Prompts...........................79
Guidance Screen.............................53
H
Hawaii (Operation)
....................... 124
Home Address............................... 84
Honda Automobile Customer
Service
..................................... 107
Hotel/Motel (Lodging)................... 34
I
Icon Bar
........................................ 60
INFO button............................ 10, 71
Information.................................... 71
Information Screen Voice
Commands
................................ 143
Intersection.............................. 22, 27
J
Joystick
......................................... 11
K
Key to Zagat Ratings
...................... 76
Keyboard Layout........................... 96
L
Landmark Icons
............................. 58
Leisure.......................................... 34
Lodging (Hotel/Motel).................... 34
M
Map Color
..................................... 99
Map Coverage.............................. 110
Map Input................................ 22, 38
Map Legend....................... 19, 52, 75
Map Matching.............................. 102
Map Orientation............................. 57
Map Scale...................................... 56
Map Screen.............................. 19, 52
MAP/GUIDE button................. 10, 53
Maximize Freeways....................... 48
MENU button.......................... 10, 22
Menu Color................................... 99
Message........................................ 73
Microphone................................... 12
Minimize Freeways........................ 48
Minimize Toll Roads...................... 48
N
Name
................................ 32, 37, 81
NAVI BACK button....................... 12
NAVI TALK button....................... 12
Navigation Display Commands..... 139
Navigation General Commands..... 138

148Navigation System
Index
RIDGELINE KA 31SJC860
O
Off-road Tracking
.....................62, 94
One-Way Traffic Icon.....................58
On-Screen Commands...................144
On-Screen Commands Assist.........144
On-Screen Keyboard.......................15
P
PC Card
........................................109
Personal Information.......................80
Phone Number....................32, 37, 82
PIN Number...................................84
Place Name..............................33, 37
Place Name by Keyword...........33, 35
Places.................................22, 32, 82
Previous Destinations..........22, 42, 82
R
Radio Voice Commands
................142
Read List..................................35, 75
Rearview Camera..........................100
Recalculation..................................86
Reporting Errors...........................107
Reroute..........................................65
Rerouting.......................................86
Restaurant................................34, 35
Routing & Guidance....................... 86
S
Save Current Location
.................... 63
Schedule........................................ 72
Screen........................................... 11
Security Code.............................. 101
Selecting the City..................... 23, 28
Selecting the State or
Province
............................... 23, 28
Selecting the Street................... 25, 30
Setup....................................... 71, 77
Setup Screen (first) Commands..... 143
Shopping....................................... 34
Showing Icons on the Map........ 58, 60
Sort by Distance to Travel........ 33, 36
State.............................................. 40
Street....................................... 25, 30
System Controls............................. 10
System Function Diagram............... 21
System Information........................ 96
System Initialization..................... 101
System Limitations....................... 103
System Setup................................. 77
System Start-up.............................. 16
T
Temperature Voice Commands
..... 142
Time Adjustment........................... 98
Title.............................................. 73
Today’s Destinations................ 22, 43
Today’s Destinations List............... 43
Travel............................................ 34
Troubleshooting........................... 133
U
Unit Conversion
............................. 74
Units (mile or km).......................... 96
Unverified Area Routing........... 87, 88
Unverified Streets............................ 7
Update DVD................................ 108
User Name..................................... 85
Using the Voice Control System...... 13
V
Vehicle
.......................................... 94
Verified Streets................................ 7
View Routes.................................. 49
Voice Command Help.................... 74
Voice Command Index................. 138
Voice Control Basics...................... 12
Voice Recognition Feedback........... 96

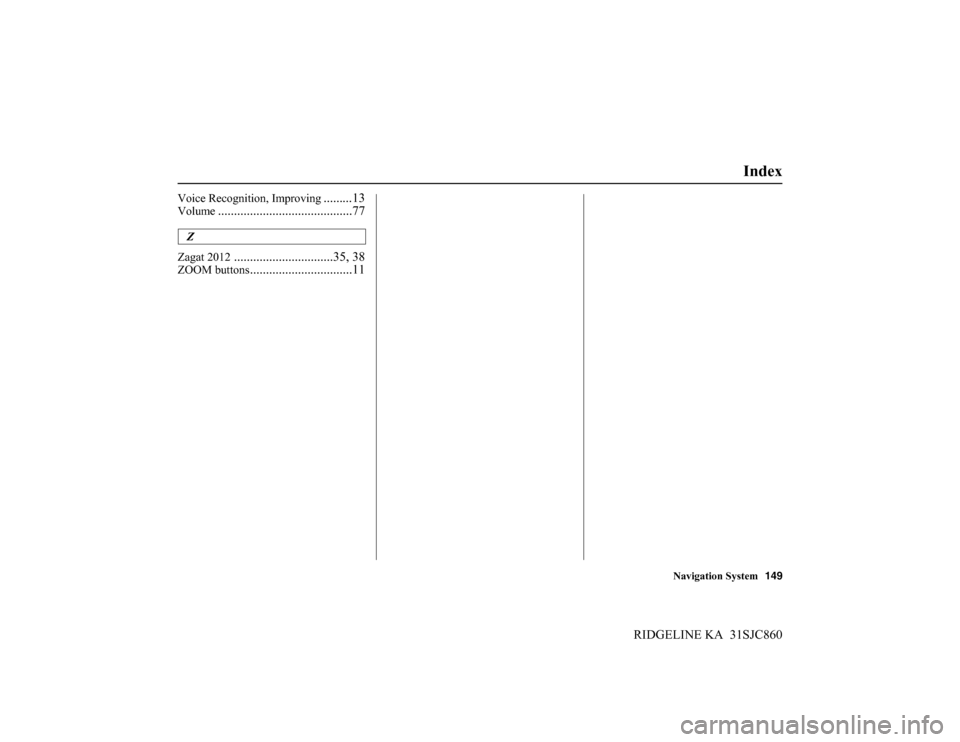

Navigation System149
Index
RIDGELINE KA 31SJC860
Voice Recognition, Improving.........13
Volume..........................................77
Z
Zagat 2012
...............................35, 38
ZOOM buttons................................11

150Navigation System
RIDGELINE KA 31SJC860
License notice
You have acquired a device (“DEVICE”)
that includes software licensed by ALPINE
ELECTRONICS, INC., from an affiliate of
Microsoft Corporation (collectively “MS”).
Those installed software products of MS
origin, as well as associated media, printed
materials, and “online” or electronic
documentation (“SOFTWARE”) are
protected by international intellectual
property laws and treaties. The
SOFTWARE is licensed, not sold. All rights
reserved.
IF YOU DO NOT AGREE TO THIS END
USER LICENSE AGREEMENT
(“EULA”), DO NOT USE THE DEVICE
OR COPY THE SOFTWARE. INSTEAD,
PROMPTLY CONTACT ALPINE
ELECTRONICS,INC., FOR
INSTRUCTIONS ON RETURN OF THE
UNUSED DEVICE(S) FOR A REFUND.
ANY USE OF THE SOFTWARE,
INCLUDING BUT NOT LIMITED TO
USE ON THE DEVICE, WILL
CONSTITUTE YOUR AGREEMENT TO
THIS EULA (OR RATIFICATION OF
ANY PREVIOUS CONSENT).GRANT OF SOFTWARE LICENSE.
This EULA grants you the following
license;
You may use the SOFTWARE only on the
DEVICE.
NOT FAULT TOLERANT. THE
SOFTWARE IS NOT FAULT
TOLERANT. ALPINE ELECTRONICS,
INC., HAS INDEPENDENTLY
DETERMINED HOW TO USE THE
SOFTWARE IN THE DEVICE, AND MS
HAS RELIED UPON ALPINE
ELECTRONICS, INC., TO CONDUCT
SUFFICIENT TESTING TO DETERMINE
THAT THE SOFTWARE IS SUITABLE
FOR SUCH USE.
NO WARRANTIES FOR THE
SOFTWARE. THE SOFTWARE is
provided “AS IS” and with all faults. THE
ENTIRE RISK AS TO SATISFACTORY
QUALITY, PERFORMANCE,
ACCURACY, AND EFFORT
(INCLUDING LACK OF NEGLIGENCE)
IS WITH YOU. ALSO, THERE IS NO
WARRANTY AGAINST
INTERFERENCE WITH YOUR
ENJOYMENT OF THE SOFTWARE OR
AGAINST INFRINGEMENT. IF YOU
HAVE RECEIVED ANY WARRANTIES
REGARDING THE DEVICE OR THE
SOFTWARE, THOSE WARRANTIES DO NOT ORIGINATE FROM, AND ARE
NOT BINDING ON, MS.
No Liability for Certain Damages. EXCEPT
AS PROHIBITED BY LAW, MS SHALL
HAVE NO LIABILITY FOR ANY
INDIRECT, SPECIAL,
CONSEQUENTIAL OR INCIDENTAL
DAMAGES ARISING FROM OR IN
CONNECTION WITH THE USE OR
PERFORMANCE OF THE SOFTWARE.
THIS LIMITATION SHALL APPLY
EVEN IF ANY REMEDY FAILS OF ITS
ESSENTIAL PURPOSE. IN NO EVENT
SHALL MS BE LIABLE FOR ANY
AMOUNT IN EXCESS OF U.S.TWO
HUNDRED FIFTY DOLLARS
(U.S.$250.00).
Limitations on Reverse Engineering,
Decompilation, and Disassembly. You may
not reverse engineer, decompile, or
disassemble the SOFTWARE, except and
only to the extent that such activity is
expressly permitted by applicable law
notwithstanding this limitation.
Additional Software/Services. The
SOFTWARE may permit ALPINE
ELECTRONICS,INC.,, MS, Microsoft
Corporation or their affiliates to provide or
make available to you SOFTWARE
updates, supplements, add-on components,
or Internet-based services components of
