key HONDA RIDGELINE 2014 1.G Navigation Manual

136Navigation System
RIDGELINE KA 31SJC860
Glossary
LCD - Liquid Crystal Display. The
navigation screen.
Map Matching - The received GPS
information allows the navigation
system to position the vehicle on the
map. Map matching has occurred if
the map screen is displaying the
current street name in the bottom-
shaded area.
Mic - Abbreviation for the microphone
used for receiving voice commands.
It is located near the map light in the
ceiling.
MW - Maneuver Window. While en
route to a destination, this window
displays information about the next
maneuver.
Navi - Abbreviation for the navigation
system.
North Pointer - The map symbol
showing the map orientation. See
page 57.Off Route - This occurs when the user
leaves mapped roads. Off-road
tracking dots (“breadcrumbs”) are
displayed if the option is enabled in
the Setup screen. The user can use
them to return to a mapped road. The
bottom of the navigation screen will
say, “Not on a digitized road.”
Outlying Areas - These are rural areas
that typically have only their main
roads mapped. All other roads are
shown in light brown for reference
only, since they have not been
verified.
PIN - Personal Identification Number.
A 4-digit number created by the
customer to protect personal
information.
POI - Point of Interest. These are the
businesses, schools, etc. found under
the Places option on the Enter
destination by screen. See page 32.Polygon - Colored areas on the map
screen denoting parks, schools, etc.
See Map Screen Legend “Map
Features” for a list of the assigned
colors. See page 52.
QWERTY - Keyboard layout
resembling the typewriter keys. The
keyboard layout can be changed to an
alphabetical layout in the Setup,
Basic Settings screen.
Reminder - Automatic “pop-up”
Calendar message. See Calendar on
page 72.
Security Code - Code needed to
activate the navigation system or
audio unit. See Entering the Security
Code on page 101.
Touch Sensor - The touch sensor on the
front of the LCD consists of a touch
sensitive resistive membrane with an
infinite number of possible touch
locations. The sensing locations are
confined to a grid of 20 vertical and
10 horizontal touch locations.

Navigation System143
RIDGELINE KA 31SJC860
Voice Command Index
CD Voice Commands
The system accepts these commands on
most screens.
CD play
CD play disc # (#: 1-6)
CD play track # (#: 1-30)
CD play disc #1 track #2
(#1: 1-6, #2: 1-30)
CD skip forward
CD skip back
CD play next disc
CD play previous disc
CD track random*
CD track repeat*
CD disc repeat*
CD track scan*
CD disc scan*
CD normal play
CD track list
CD folder random*
CD folder repeat*
CD folder scan*
CD folder list* Repeating these commands switches
(toggles) the function between On
and Off, so the action that occurs
may not match the command you
speak.
Information Screen Voice
Commands
These are additional commands not
found on the Voice Command Help
screen available when viewing the
Information screen. Follow the voice
prompts.
Setup
Cellular phonebook
Calendar
Calculator
Voice command help (the system
reads and lists all of the
commands, starting with
Navigation General Commands)
Map legend
Key to Zagat ratings
Setup Screen (first)
Commands
The system accepts these commands on
the Setup screen (first). (For the Setup
screen (second), simply say what is
written on the screen, and follow the
voice prompts.)
Brightness up
Brightness down
Brightness minimum/min.
Brightness maximum/max.
Volume up (tone indicates volume)
Volume down (tone indicates volume)
Volume minimum/min. (tone indicates
volume)
Volume maximum/max. (tone
indicates volume)
Volume off
Display clock
Display day
Display night
Display auto
Contrast adjust
Guidance prompts normal
Guidance prompts maximum/max.
Guidance prompts minimum/min.

144Navigation System
RIDGELINE KA 31SJC860
Voice Command Index
On-Screen Commands
The system accepts these commands on
any screen. There are over 100 on-
screen commands. Just say what is
written on the screen (this excludes
keyboard letters, and listed items)
Next (or “Down”)
Previous (or “Up”)
Return
OK (except at Disclaimer screen)
Delete
Done
On-Screen Commands Assist
Say or touch the desired letter. When
speaking the letters or using “spell
mode,” you can substitute the name that
represents each letter or symbol. This
improves recognition.NOTE:
• The system will only respond to the names shown in the graphic below.
• For instance, to select the letter “A,” you can touch the “A” on the screen, or say
“A,” or say “Alpha” or “Apple.”
To select the number “1,” touch the “1” on the screen, or say “one,” or say
“Number One.”
To select the symbol “- (hyphen),” touch the “-” on the screen, or say “Hyphen,”
or say “Symbol Hyphen.”
• When selecting letters using the voice control system, a confirmation box may pop
up to confirm the letter.
Alpha
AppleBravo
BoyCharlieDelta
DogEcho
EdwardFoxtrot
FrankGolf
GeorgeHotel
HenryJuliet
JohnApostrophe
Kilo
KingLima
LarryMike
MaryNovember
NancyOscarPapa
PaulQuebec
QueenRomeo
RobertSierra
SamTango
To mAmpersand
Uniform
UncleVictorWhiskey
WilliamX-rayYankee
Ye l l o wZulu
ZebraSlashIndia
Igloo

Navigation System145
RIDGELINE KA 31SJC860
Voice Command Index

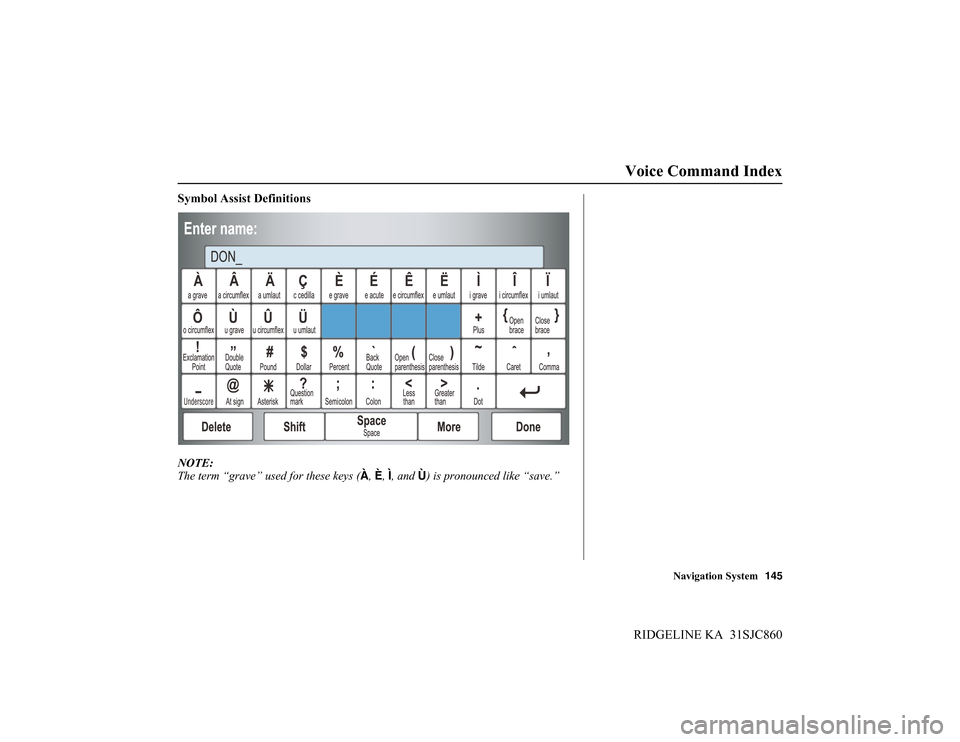

Symbol Assist Definitions
NOTE:
The term “grave” used for these keys (À, È, Ì, and Ù) is pronounced like “save.”

Navigation System147
Index
RIDGELINE KA 31SJC860
Edit Avoid Area..............................91
Edit Waypoint Search Area..............93
Edit/Delete Address........................83
Editing Today’s Destinations List....43
Emergency.....................................34
Entering a Destination.....................22
Entering Address.............................81
Entering Security Code..................101
Entering the Street Number..............27
Entering Your Schedule...................72
Error Message...............................133
F
Find Place Commands
...................140
Frequently Asked Questions..........126
G
Getting Started
................................10
Global Commands........................138
Glossary.......................................135
Go Home..................................22, 46
Go Home PIN.................................85
Going Off the Route........................62
GPS Initialization..........................102
Guidance Mode.........................55, 94
Guidance Prompts...........................79
Guidance Screen.............................53
H
Hawaii (Operation)
....................... 124
Home Address............................... 84
Honda Automobile Customer
Service
..................................... 107
Hotel/Motel (Lodging)................... 34
I
Icon Bar
........................................ 60
INFO button............................ 10, 71
Information.................................... 71
Information Screen Voice
Commands
................................ 143
Intersection.............................. 22, 27
J
Joystick
......................................... 11
K
Key to Zagat Ratings
...................... 76
Keyboard Layout........................... 96
L
Landmark Icons
............................. 58
Leisure.......................................... 34
Lodging (Hotel/Motel).................... 34
M
Map Color
..................................... 99
Map Coverage.............................. 110
Map Input................................ 22, 38
Map Legend....................... 19, 52, 75
Map Matching.............................. 102
Map Orientation............................. 57
Map Scale...................................... 56
Map Screen.............................. 19, 52
MAP/GUIDE button................. 10, 53
Maximize Freeways....................... 48
MENU button.......................... 10, 22
Menu Color................................... 99
Message........................................ 73
Microphone................................... 12
Minimize Freeways........................ 48
Minimize Toll Roads...................... 48
N
Name
................................ 32, 37, 81
NAVI BACK button....................... 12
NAVI TALK button....................... 12
Navigation Display Commands..... 139
Navigation General Commands..... 138

148Navigation System
Index
RIDGELINE KA 31SJC860
O
Off-road Tracking
.....................62, 94
One-Way Traffic Icon.....................58
On-Screen Commands...................144
On-Screen Commands Assist.........144
On-Screen Keyboard.......................15
P
PC Card
........................................109
Personal Information.......................80
Phone Number....................32, 37, 82
PIN Number...................................84
Place Name..............................33, 37
Place Name by Keyword...........33, 35
Places.................................22, 32, 82
Previous Destinations..........22, 42, 82
R
Radio Voice Commands
................142
Read List..................................35, 75
Rearview Camera..........................100
Recalculation..................................86
Reporting Errors...........................107
Reroute..........................................65
Rerouting.......................................86
Restaurant................................34, 35
Routing & Guidance....................... 86
S
Save Current Location
.................... 63
Schedule........................................ 72
Screen........................................... 11
Security Code.............................. 101
Selecting the City..................... 23, 28
Selecting the State or
Province
............................... 23, 28
Selecting the Street................... 25, 30
Setup....................................... 71, 77
Setup Screen (first) Commands..... 143
Shopping....................................... 34
Showing Icons on the Map........ 58, 60
Sort by Distance to Travel........ 33, 36
State.............................................. 40
Street....................................... 25, 30
System Controls............................. 10
System Function Diagram............... 21
System Information........................ 96
System Initialization..................... 101
System Limitations....................... 103
System Setup................................. 77
System Start-up.............................. 16
T
Temperature Voice Commands
..... 142
Time Adjustment........................... 98
Title.............................................. 73
Today’s Destinations................ 22, 43
Today’s Destinations List............... 43
Travel............................................ 34
Troubleshooting........................... 133
U
Unit Conversion
............................. 74
Units (mile or km).......................... 96
Unverified Area Routing........... 87, 88
Unverified Streets............................ 7
Update DVD................................ 108
User Name..................................... 85
Using the Voice Control System...... 13
V
Vehicle
.......................................... 94
Verified Streets................................ 7
View Routes.................................. 49
Voice Command Help.................... 74
Voice Command Index................. 138
Voice Control Basics...................... 12
Voice Recognition Feedback........... 96
