sensor HONDA RIDGELINE 2014 1.G Owner's Manual

For the best picture, always keep the
rearview camera clean, and do not
cover the camera lens. To avoid
scratching the lens when you clean it,
use a moist, sof t cloth.
Since the rearview camera display
area is limited, you should always
back up slowly and caref ully, and
look behind you f or obstacles.The camera display brightness is
adjusted automatically by sensors. If
you use the camera display
continuously at high temperatures,
the image will gradually dim.
The rearview mirror will be hot
when you use the camera display f or
an extended period of time.
Rearview Mirror with Rearview Camera Display
Rearview Camera Guide L ines
241

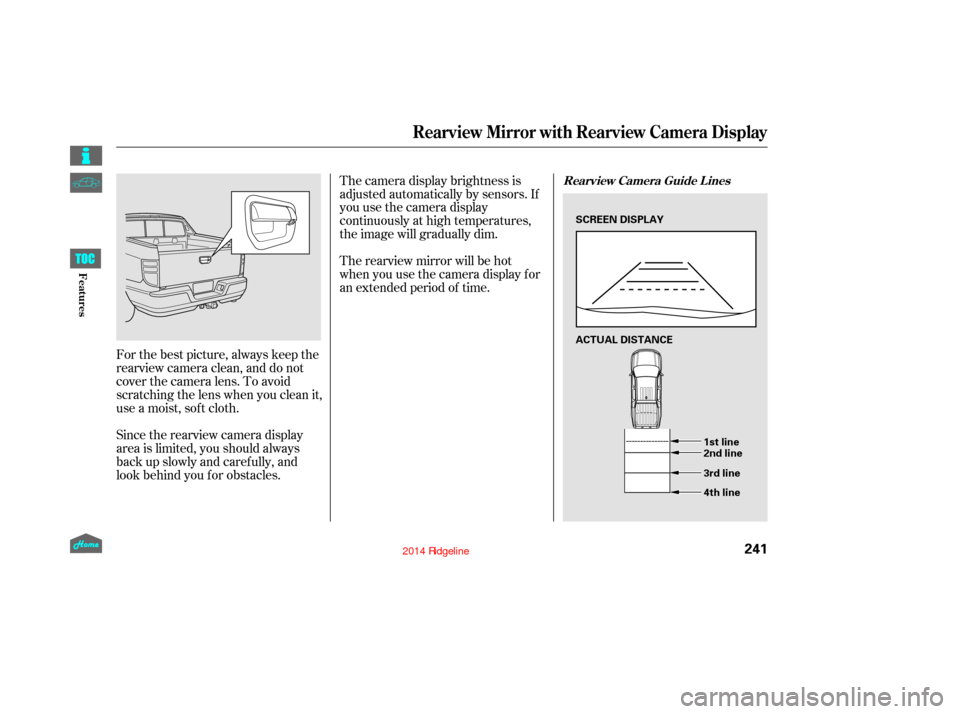

SCREEN DISPLAY
4th line 3rd line 2nd line 1st line
ACTUAL DISTANCE
12/09/07 16:43:24 31SJC670_248
Features

Store or secure all items that could
be thrown around and hurt
someone during a crash.Distribute cargo evenly on the
f loor in the In-Bed Trunk, placing
the heaviest items on the bottom
and as far forward as possible. Tie
down items that could be thrown
during a crash or sudden stop.
Make sure the In-Bed Trunk lid is
closed securely bef ore driving.
Be sure the total weight of the
items in the In-Bed Trunk does not
exceed 300 lbs (136 kg).
Be sure items placed on the f loor
behind the f ront seats cannot roll
underneath and interf ere with the
proper operation of the seats, the
sensors under the seats, or the
driver’s ability to operate the
pedals.
Keep the glove box closed while
driving. If it is open, a passenger
could injure their knees during a
crash or sudden stop. If youfoldtherearseatsup,tie
down items that could be thrown
about the vehicle during a crash or
sudden stop. Also, keep all cargo
below the bottom of the windows.
If it is higher, it could interf ere
with the proper operation of the
side curtain airbags.
Distribute cargo evenly on the
floor of the cargo area with the
rear seats f olded up, placing the
heaviest items on the bottom and
as far forward as possible. Tie
down items that could be thrown
about the vehicle during a crash or
sudden stop.
If you carry any items on a roof
rack,besurethetotalweightof
the rack and the items does not
exceed 110 lbs (50 kg).
Carrying Items in the Passenger
Compartment
Carrying Cargo in the In-Bed
T runk or on a Roof Rack
Carrying Cargo
260
12/08/09 16:33:51 31SJC670_267
Bef ore Driving

When the low tire pressure indicator
is on, one or more of your tires is
signif icantly underinf lated. You
should stop and check your tires as
soon as possible, and inf late them to
the proper pressure as indicated on
the vehicle’s tire inf ormation placard.
If you think you can saf ely drive a
short distance to a service station,
proceed slowly, and inf late the tire to
the recommended pressure shown
on the driver’s doorjamb.
If the tire is f lat, or if the tire
pressure is too low to continue
driving, replace the tire with the
compact spare tire (see page ).
If you cannot make the low tire
pressure indicator go out af ter
inf lating the tires to the specif ied
values, have your dealer check the
system as soon as possible.Driving on a signif icantly under
inf lated tire causes the tire to
overheat and can lead to tire failure.
Underinf lation also reduces f uel
efficiency and tire tread life, and may
af f ect the vehicle’s handling and
stopping ability.
Becausetirepressurevariesby
temperature and other conditions,
the low tire pressure indicator may
come on unexpectedly.
Each tire has its own pressure
sensor (not including the spare tire).
If the air pressure of a tire becomes
signif icantly low, the sensor in that
tire immediately sends a signal that
causes the low tire pressure
indicator and the appropriate tire on
thetirepressuremonitortocomeon. Your vehicle is equipped with a tire
pressure monitoring system (TPMS)
that turns on every time you start the
engine and monitors the pressure in
your tires while driving.
358
On models without navigation system
Tire Pressure Monitoring System (TPMS)
Low Tire Pressure
Indicator
276
12/08/09 16:35:42 31SJC670_283
Driving

If you have a flat tire, the low tire
pressure indicator will come on.
Replace the indicated flat tire with
the compact spare tire (see
page).
Each wheel (except the compact
sparetirewheel)isequippedwitha
tire pressure sensor. You must use
TPMS specif ic wheels. It is
recommended that you always have
your tires serviced by your dealer or
qualif ied technician.
After you replace the flat tire with
thecompactsparetire,thelowtire
pressure indicator stays on. This is
normal; the system is not monitoring
the spare tire pressure. Manually
check the spare tire pressure to be
sure it is correct. Af ter several miles
(kilometers) driving with the
compact spare tire, the TPMS
indicator comes on and the low tire
pressure indicator goes of f . The low tire pressure indicator or
the TPMS indicator will go off, after
several miles (kilometers) driving,
when you replace the spare tire with
the specif ied regular tire equipped
with the tire pressure monitor sensor.
Never use a puncture-repairing agent
in a f lat tire. If used, you will have to
replace the tire pressure sensor.
Havetheflattirerepairedbyyour
dealer as soon as possible.
This device complies with the
appropriate requirements or the
required standards. See page f or
more inf ormation.
358 400
Tire Pressure Monitoring System (TPMS)
Changing a T ire with T PMS
278
12/08/09 16:35:56 31SJC670_285
Driving

CONT INUED
If you think you can safely drive a
short distance to a service station,
proceed slowly to the station, then
inflate the tire to the
recommended pressure.
If the tire is f lat, or if the tire
pressure is too low to continue
driving, replace the tire with the
compact spare tire (see page ).
Driving on a signif icantly under-
inf lated tire causes the tire to
overheat and can lead to tire failure.
Under-inf lation also reduces f uel
efficiency and tire tread life, and may
af f ect the vehicle’s handling and
stopping ability.
Becausetirepressurevariesby
temperature and other conditions,
the low tire pressure/TPMS
indicator may come on unexpectedly.
When the low tire pressure/TPMS
indicator is on, one or more of your
tires is significantly underinflated.
You should stop and check your
tires as soon as possible, and inflate
them to the proper pressure
as indicated on the vehicle’s tire
information placard.
It is possible that the
pressures shown on the multi-
information display and the
pressures you manually
measure are slightly different.
If the dif f erence is signif icant or you
cannot make the low tire pressure/
TPMS indicator and message on the
multi-inf ormation display go out af ter
inf lating the tires to the specif ied
values, have your dealer check the
system as soon as possible.
Each tire has its own pressure
sensor. If the air pressure of a tire
becomes significantly low, the
sensor in that tire immediately
sends a signal that causes the low
tire pressure/TPMS indicator
in the instrument panel to come on.
If this happens, you will see
which tire is losing pressure on the
multi- information display
along with a ‘‘CHECK
TIRE PRESSURE’’ message. Your vehicle is equipped with a tire
pressure monitoring system (TPMS)
that turns on every time you start the
engine and monitors the pressure in
your tires while driving.
358On models with navigation systemLow Tire Pressure/
TPMS Indicator
Tire Pressure Monitoring System (TPMS)
279
12/08/09 16:36:04 31SJC670_286
Driving

CONT INUED
To see the inf lation pressures of all
f our tires, press the SEL/RESET
button. The display changes as
shown above.Each tire pressure is shown in
PSI (U.S. models) or in kPa
(Canadian models).
Each tire has its own pressure
sensor. If the air pressure of a tire
becomes significantly low, the
sensor in that tire immediately
sends a signal that causes the low
tire pressure/TPMS indicator
in the instrument panel to come on.
If this happens, you will see
which tire is losing pressure on the
multi- information display
along with a ‘‘CHECK
TIRE PRESSURE’’ message.
Tire Pressure Monitoring System (TPMS)
281
U.S. models
Canadian models
12/08/09 16:36:18 31SJC670_288
Driving

If the low tire pressure/TPMS
indicator comes on, or the multi-
inf ormation display shows a
‘‘CHECK TPMS SYSTEM’’ message,
the VSA system automatically turns
on even when the VSA system is
turned of f by pressing the VSA OFF
switch (see page ). If this
happens, you cannot turn the VSA
system of f by pressing the VSA OFF
switch again.
When you restart the vehicle with
thecompactsparetire,theTPMS
system message will also be
displayed on the multi-inf ormation
display af ter several miles
(kilometers) driving.This indicator and the warning
message on the multi-information
display will go of f , af ter several miles
(kilometers) driving, when the spare
tire is replaced with the specified
regular tire equipped with the tire
pressure monitor sensor.
If you have a f lat tire, the low tire
pressure/TPMS and tire monitor
indicators will come on. Replace the
indicated f lat tire with the compact
sparetire(seepage ).
After the flat tire is replaced
with the spare tire, the low tire
pressure/ TPMS indicator
stays on while driving. After
several miles (kilometers) driving,
this indicator begins to flash,
then stays on again.
You will also see a ‘‘CHECK TPMS
SYSTEM’’ message on the multi-
information display. This is normal;
the system cannot monitor the
spare tire pressure. Manually check
the spare tire pressure to be sure it
is correct. Each wheel (except the compact
sparetirewheel)isequippedwitha
tire pressure sensor. You must use
TPMS specif ic wheels. It is
recommended that you always have
your tires serviced by your dealer or
qualif ied technician.
Never use a puncture-repairing agent
in a f lat tire. If used, you will have to
replace the tire pressure sensor.
Havetheflattirerepairedbyyour
dealer as soon as possible.
290
358
CONT INUED
Tire Pressure Monitoring System (TPMS)
Changing a T ire with T PMS
283
12/08/09 16:36:31 31SJC670_290
Driving

The floor mats that came
with your vehicle hook over the
floor mat anchors. This keeps
the floor mats from sliding
forward, possibly interfering
with the pedals, or backwards,
making the front passenger’s
weight sensors ineffective.
If you remove a floor mat, make sure
to re-anchor it when you put it back
in your vehicle.A non-Honda f loor mat may not f it
your vehicle properly. This could
prevent the proper operation of the
f olding rear seats and the passenger’s
seat weight sensors. We recommend
using genuine Honda f loor mats. Do
not put additional f loor mats on top
of the anchored mats.
This filter removes the dust and
pollen that is brought
in from the outside through the
heating and cooling system/
climate control system.
Have your dealer replace the filter
when this service is indicated by a
maintenance message on the
information display or multi-
information display (depending on
the models). It should be replaced
every 15,000 miles (24,000 km) if
you drive primarily in urban areas
that have high concentrations of
soot in the air, or if the flow
from the heating and cooling
system/climate control system
becomes less than usual.
Floor Mats
Dust and Pollen Filter
Floor Mats, Dust and Pollen Filter
342
12/08/09 16:44:17 31SJC670_349
Maint enance

Never use a puncture-repairing agent
in a f lat tire. If used, you will have to
replace the tire pressure sensor.
Havetheflattirerepairedbyyour
dealer as soon as possible.
The following chart shows the
recommended cold tire pressures
for most normal and high-speed
driving conditions.Your tires have wear indicators
molded into the tread. When the
tread wears down, you will see a 1/2
inch (12.7 mm) wide band across the
tread. This shows there is less than
1/16 inch (1.6 mm) of tread lef t on
the tire.
A tire this worn gives very little
traction on wet roads. You should
replace the tire if you can see three
or more tread wear indicators.
Thecompactsparetirepressureis:
Excessive tread wear. Cuts, splits, or cracks in the side
of the tire. Replace the tire if you
can see f abric or cord. Bumps or bulges in the tread or
side of the tire. Replace the tire if
youfindeitherof theseconditions.
Every time you check inf lation, you
should also examine the tires f or
damage, f oreign objects, and wear.
Youshouldlookfor: For additional inf ormation about
your tires, see page . For convenience, the recommended
tire sizes and cold tire pressures are
on a label on the driver’s doorjamb.
390
Tire Size Cold Tire Pressure
Tire Size Cold Tire PressureFront/Rear:
Front/Rear:
RTL, Touring, and Sport models
RT,RTS,DX,andVPmodels
Recommended Tire Pressures
Tire Inspection
Tires
347
INDICATOR LOCATION MARKS
TREAD WEAR INDICATORS60 psi (420 kPa , 4.2 kgf/cm)
P245/65R17 105T 32 psi (220 kPa , 2.2 kgf/cm
)
P245/60R18 104T 32 psi (220 kPa , 2.2 kgf/cm
)
12/08/09 16:45:08 31SJC670_354
Maint enance

The exhaust emissions controls
include four systems: PGM-FI,
ignition timing control, exhaust gas
recirculation, and three way
catalytic converter. These four
systems work together to control
the engine’s combustion and
minimize the amount of HC, CO,
and NOx that come out the tailpipe.
The exhaust emissions control
systems are separate from the
crankcase and evaporative
emissions control systems.
The PGM-FI system uses
sequential multiport fuel injection.
It has three subsystems: air intake,
engine control, and fuel control.
The powertrain control module
(PCM) uses various sensors to
determine how much air is going
into the engine. It then controls
how much fuel to inject under
all operating conditions.This system constantly adjusts the
ignition timing, reducing the amount
of HC, CO, and NOx produced.
The exhaust gas recirculation
(EGR) system takes some of the
exhaust gas and routes it back
into the intake manifold. Adding
exhaust gas to the air/fuel mixture
reduces the amount of NOx
produced when the fuel is burned.
The three way catalytic converter is
in the exhaust system. Through
chemical reactions, it converts HC,
CO, and NOx in the engine’s exhaust
to carbon dioxide (CO ), nitrogen
(N ), and water vapor.
The emissions control systems are
covered by warranties separate
from the rest of your vehicle.
Read your warranty manual for
more information. The emissions control systems are
designed and certif ied to work to-
gether in reducing emissions to
levels that comply with the Clean Air
Act. To make sure the emissions
remain low, you should use only new
Honda replacement parts or their
equivalent f or repairs. Using lower
qualitypartsmayincreasethe
emissions f rom your vehicle.
2
2
Exhaust Emissions Controls Replacement Parts
PGM-FI SystemIgnit ion T iming Cont rol Syst em
Exhaust Gas Recirculat ion (EGR)Syst em
Three Way Catalytic Converter
Emissions Cont rols
396
12/08/09 16:51:26 31SJC670_403
Technical Inf ormation
