uuChild Safety uSafety of Infants and Small Children
60
Safe Driving
7. Put the outer head restraint to it’s upper-
most position (or remove it), then route
the tether strap over the seat-back and
through the head restraint legs.
8. Lift the upper guide co ver, then route the
tether strap around the upper guide.
9. Route the tether strap downward
properly, then attach the strap hook to the
tether anchor under the seat. See the
label.
u Making sure the strap is not twisted.
10. Tighten the tether strap as instructed by
the child seat manufacturer.
11. Make sure the child seat is firmly secured
by rocking it forward and back and side to
side; little movement should be felt.
12. Make sure any unused seat belt that a
child can reach is buckled, the lockable
retractor is activated, and the belt is fully
retracted and locked.
2Protecting Child Passengers P. 53
Upper Guide
Outer Tether Anchorage PointsOuter positionsOuter positions
1 Installing a LATCH-Compatible Child Seat
For your child’s safety, when using a child seat
installed using the LATCH system, make sure that the
child seat is properly secured to the vehicle. A child
seat that is not properly secured will not adequately
protect a child in a crash and may cause injury to the
child or other vehicle occupants.
Upper Guide
Outer Tether Anchorage PointsOuter positionsAll positions

Continued61
uuChild Safety uSafety of Infants and Small Children

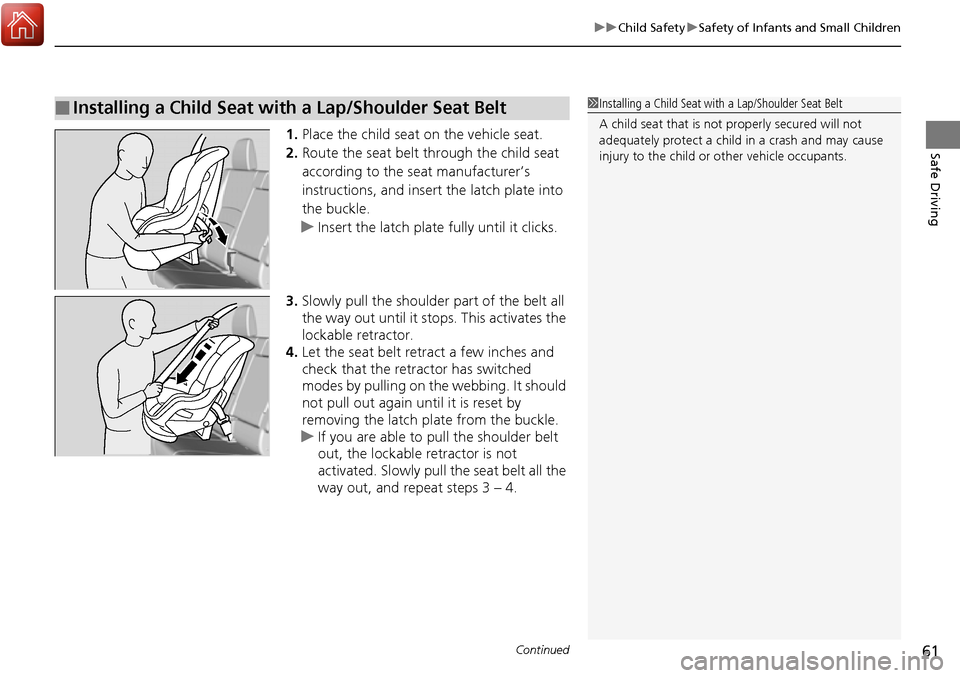

Safe Driving1. Place the child seat on the vehicle seat.
2. Route the seat belt through the child seat
according to the seat manufacturer’s
instructions, and insert the latch plate into
the buckle.
u Insert the latch plate fully until it clicks.
3. Slowly pull the shoulder part of the belt all
the way out until it stops. This activates the
lockable retractor.
4. Let the seat belt retract a few inches and
check that the retractor has switched
modes by pulling on the webbing. It should
not pull out again until it is reset by
removing the latch pl ate from the buckle.
u If you are able to pull the shoulder belt
out, the lockable retractor is not
activated. Slowly pull the seat belt all the
way out, and repeat steps 3 – 4.
■Installing a Child Seat with a Lap/Shoulder Seat Belt1 Installing a Child Seat with a Lap/Shoulder Seat Belt
A child seat that is not properly secured will not
adequately protect a child in a crash and may cause
injury to the child or other vehicle occupants.

uuChild Safety uSafety of Infants and Small Children
62
Safe Driving
5. Grab the shoulder part of the seat belt near
the buckle, and pull up to remove any slack
from the lap part of the belt.
u When doing this, place your weight on
the child seat and push it into the vehicle
seat.
6. Make sure the child seat is firmly secured by
rocking it forward and back and side to
side; little movement should be felt.
7. Make sure any unused se at belt that a child
can reach is buckled, the lockable retractor
is activated, and the be lt is fully retracted
and locked.
2 Protecting Child Passengers P. 53
1Installing a Child Seat with a Lap/Shoulder Seat Belt
To deactivate a lockable retractor, release the buckle
and allow the seat belt to wind up all the way.

Continued63
uuChild Safety uSafety of Infants and Small Children
Safe DrivingA tether anchorage poin t is provided at each
outside of the seat bottom and between the
lower anchors of the rear center seat. If you
have a child restraint system that comes with
a tether but can be installed with a seat belt,
the tether may be used for additional security.
■Adding Security with a Tether
Covers
Outer Tether
Anchorage PointsUpper Guides
Center Tether Anchorage Point
1 Adding Security with a Tether
Since a tether can provide additional security to the
lap/shoulder seat belt in stallation, we recommend
using a tether whenever one is available.
Always use a tether for forward facing child seats
when using the seat be lt or lower anchors.

64
uuChild Safety uSafety of Infants and Small Children
Safe Driving
■Using an outer anchor
1. Put the outer head restraint to it’s upper-
most position, then route the tether strap
between the head restraint legs.
2. Lift the cover, then hook the tether strap
through the upper guide as shown.
3. Route the tether strap downward properly,
making sure the strap is not twisted.
4. Attach the tether strap hook to the outer
tether anchor on the outside of the seat
bottom.
5. Tighten the tether strap as instructed by the
child seat manufacturer.
Outer Tether Anchorage Points Upper Guide

65
uuChild Safety uSafety of Infants and Small Children
Safe Driving
■Using the center anchor
1. Lower the head restraint to its lowest
position.
2. Route the tether strap over the seat-back,
lift the cover, then hook the tether strap
through the upper guide as shown.
3. Route the tether strap downward properly
along the seat-back, making sure the strap
is not twisted.
4. Attach the tether strap hook to the center
tether anchor between the lower anchors
for the LATCH-compatible child seat.
5. Tighten the tether strap as instructed by the
child seat manufacturer.1 Using the center anchor
Make sure to attach the tether strap hook to the
anchor before installing th e child seat, because the
tether anchor is positione d behind the child seat.Upper Guide
Center Tether Anchorage Point

66
uuChild Safety uSafety of Larger Children
Safe Driving

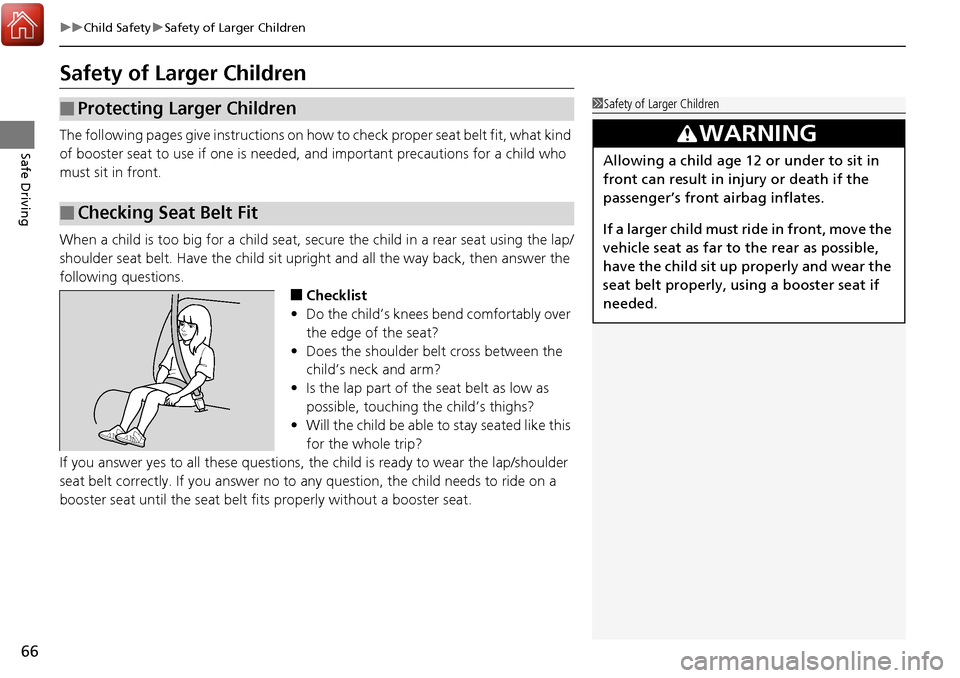

Safety of Larger Children
The following pages give instructions on how to check proper seat belt fit, what kind
of booster seat to use if one is needed , and important precautions for a child who
must sit in front.
When a child is too big for a child seat, secure the child in a rear seat using the lap/
shoulder seat belt. Have the child sit upright and all the way back, then answer the
following questions.
■Checklist
• Do the child’s knees bend comfortably over
the edge of the seat?
• Does the shoulder belt cross between the
child’s neck and arm?
• Is the lap part of the seat belt as low as
possible, touching the child’s thighs?
• Will the child be able to stay seated like this
for the whole trip?
If you answer yes to all these questions, the child is ready to wear the lap/shoulder
seat belt correctly. If you answer no to any question, the child needs to ride on a
booster seat until the seat belt fits properly without a booster seat.
■Protecting Larger Children
■Checking Seat Belt Fit
1 Safety of Larger Children
3WARNING
Allowing a child age 12 or under to sit in
front can result in injury or death if the
passenger’s front airbag inflates.
If a larger child must ri de in front, move the
vehicle seat as far to the rear as possible,
have the child sit up properly and wear the
seat belt properly, us ing a booster seat if
needed.

67
uuChild Safety uSafety of Larger Children

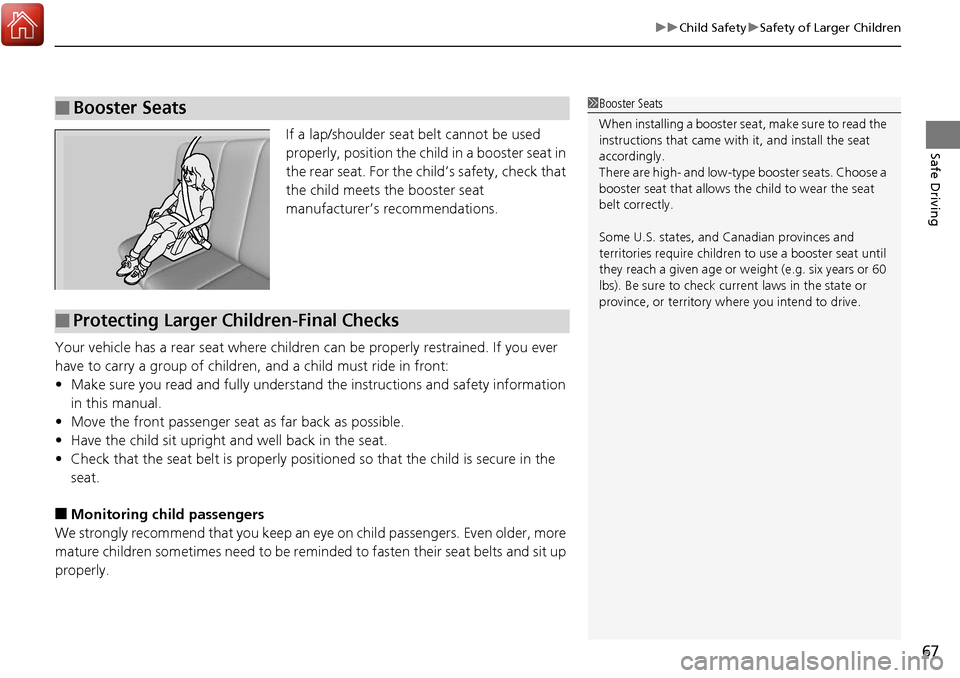

Safe DrivingIf a lap/shoulder seat belt cannot be used
properly, position the child in a booster seat in
the rear seat. For the child’s safety, check that
the child meets the booster seat
manufacturer’s recommendations.
Your vehicle has a rear seat where children can be properly restrained. If you ever
have to carry a group of children, and a child must ride in front:
• Make sure you read and fully understand the instructions and safety information
in this manual.
• Move the front passenger seat as far back as possible.
• Have the child sit upright and well back in the seat.
• Check that the seat belt is properly positi oned so that the child is secure in the
seat.
■Monitoring child passengers
We strongly recommend that you keep an ey e on child passengers. Even older, more
mature children sometimes need to be remind ed to fasten their seat belts and sit up
properly.
■Booster Seats1 Booster Seats
When installing a booster seat, make sure to read the
instructions that came with it, and install the seat
accordingly.
There are high- and low-type booster seats. Choose a
booster seat that allows the child to wear the seat
belt correctly.
Some U.S. states, and Canadian provinces and
territories require children to use a booster seat until
they reach a given age or we ight (e.g. six years or 60
lbs). Be sure to check current laws in the state or
province, or territory where you intend to drive.
■Protecting Larger Children-Final Checks

68
Safe Driving

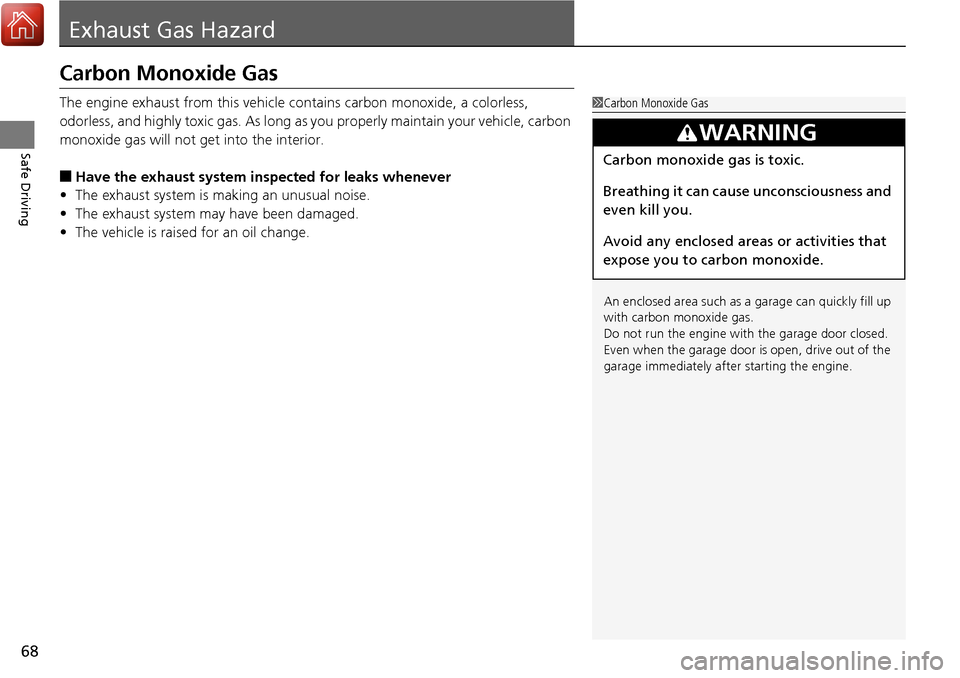

Exhaust Gas Hazard
Carbon Monoxide Gas
The engine exhaust from this vehicle contains carbon monoxide, a colorless,
odorless, and highly toxic gas. As long as you properly maintain your vehicle, carbon
monoxide gas will not get into the interior.
■Have the exhaust system in spected for leaks whenever
• The exhaust system is m aking an unusual noise.
• The exhaust system may have been damaged.
• The vehicle is raised for an oil change.
1Carbon Monoxide Gas
An enclosed area such as a garage can quickly fill up
with carbon monoxide gas.
Do not run the engine with the garage door closed.
Even when the garage door is open, drive out of the
garage immediately afte r starting the engine.
3WARNING
Carbon monoxide gas is toxic.
Breathing it can cause unconsciousness and
even kill you.
Avoid any enclosed areas or activities that
expose you to carbon monoxide.

69Continued
Safe Driving
Safety Labels
Label Locations
These labels are in the locations shown. They warn you of potenti al hazards that can cause serious injury or death. Read these labels
carefully.
If a label comes off or becomes hard to read (except for the U. S. dashboard label which may be removed by the owner), contact a dealer
for a replacement.
Sun Visor
U.S. models Canadian models
Radiator Cap U.S. models
U.S. models only
Dashboard
Canadian models
Air Conditioner System
Sun Visor
U.S. models only
