key HONDA RIDGELINE 2021 (in English) Owner's Guide

364
Driving
Before Driving
Driving Preparation
Check the following items before you start driving.
• Make sure there are no obstructions on the windows, door mirrors, exterior
lights, or other parts of the vehicle.
u Remove any frost, snow, or ice.
u Remove any snow on the roof, as this can slip down and obstruct your field of
vision while driving. If frozen solid , remove ice once it has softened.
u When removing ice from around the wheels, be sure not to damage the wheel
or wheel components.
• Make sure the hood is securely closed.
u If the hood opens while driving, your front view will be blocked.
• Make sure the tires are in good condition.
u Check air pressures, and check for damage and excessive wear.
2Checking and Maintaining Tires P. 516
•Make sure the tailgate is fully closed when it is not being used as an extended
pickup bed.
• Make sure the trunk is secu rely closed and locked.
• Make sure there are no people or ob jects behind or around the vehicle.
u There are blind spots from the inside.
■Exterior Checks1Exterior Checks
NOTICE
When doors are frozen s hut, use warm water around
the door edges to melt any ice. Do not try to force
them open, as this can damage the rubber trim
around the doors. When done, wipe dry to avoid
further freezing.
Do not pour warm water into the key cylinder.
You will be unable to insert the key if the water
freezes in the hole.
Heat from the engine and exhaust can ignite
flammable material s left under the hood, causing a
fire. If you’ve parked y our vehicle for an extended
period, inspect and remove any debris that may have
collected, such as dried grass and leaves that have
fallen or have been carried in for use as a nest by a
small animal. Also check under the hood for leftover
flammable materials after you or someone else has
performed maintenance on your vehicle.

uuWhen Driving uStarting the Engine
388
Driving
■To start the engine
When started remotely, the engine automati cally shuts off after 10 minutes of idling
and/or the brake pedal and ENGINE START/STOP button have not been pressed
simultaneously.
To extend the run time for another 10 minutes during the first run, press the
button, then press and hold the button. u Some exterior lights flash six times if a 10-minute extension request was
transmitted successfully.1Remote Engine Start
The engine may not start by the remote engine start
if:
•You have disabled a remo te engine start setting
using the audio/information screen.
•You do not press and hold the button
within 5 seconds after the button is pressed.
•The power mode is not in VEHICLE OFF.•The transmission is in a position other than ( P.
•The hood is open, or any door or the trunk is
unlocked.
•You have already used the remote twice to start
the engine.
•Another registered smart entry remote is in the
vehicle.
•There is any antenna failure.
•The door is unlocked with the built-in key.•The engine oil pressure is low.
•The engine coolant temper ature is extremely high.
•The security system alarm is not set.
Press the button, then press and hold
the button.
Some exterior lights flash once.
LED: Blinks when any button is pressed. Go within the range,
and try again.
Some exterior lights flash six
times if the engine starts
successfully. Exterior lights will not flash if
the engine does not start.

Continued389
uuWhen Driving uStarting the Engine
Driving
■To stop the engine1Remote Engine Start
The engine may stop whil e it is running if:
•You do not start the vehicl e within 10 minutes of
starting the engine with the smart entry remote.
•The engine is stopped by using the smart entry
remote.
•There is any antenna failure.
•The security system alarm is not set.•The door is unlocked with the built-in key.
•The hood is open, or any door, or the trunk is
unlocked.
•The transmission is in a position other than ( P.
•The engine coolant temper ature is extremely high.
•The battery is low.•The engine oil pressure is low.
•The Malfunction Indicator Lamp comes on if there
is a problem with the emissions control systems.
Press and hold the
button for one second.
Go within the range, and try again.
The exterior lights will not flash when the remote is out of
the smart entry system range.
The engine will not stop.
The exterior lights flash once if the engine stops
successfully.

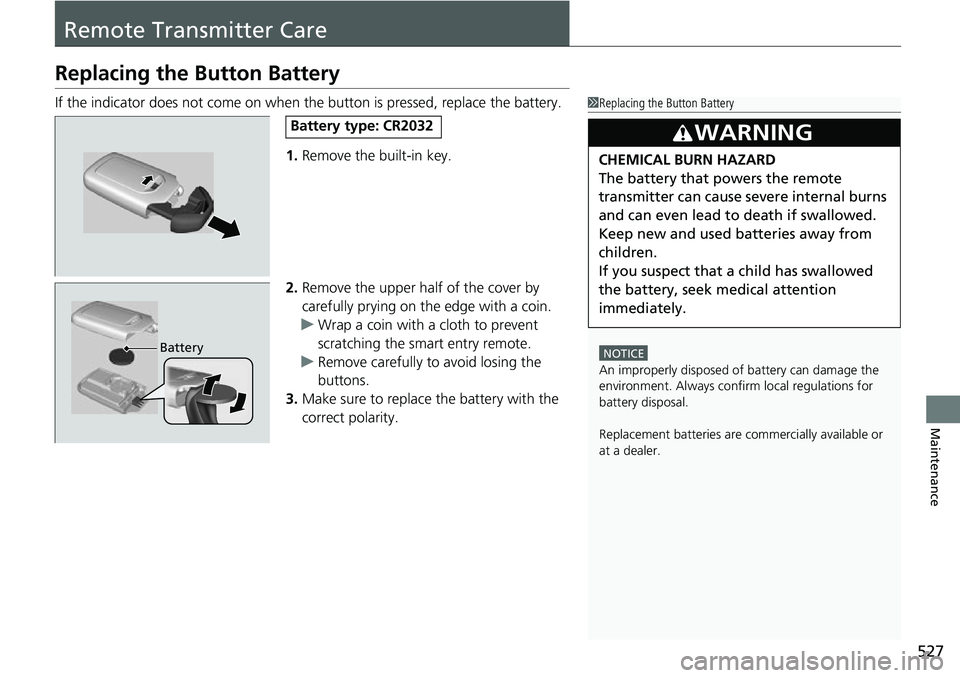

527
Maintenance
Remote Transmitter Care
Replacing the Button Battery
If the indicator does not come on when the button is pressed, replace the battery.
1. Remove the built-in key.
2. Remove the upper half of the cover by
carefully prying on the edge with a coin.
u Wrap a coin with a cloth to prevent
scratching the smart entry remote.
u Remove carefully to avoid losing the
buttons.
3. Make sure to replace the battery with the
correct polarity.1Replacing the Button Battery
NOTICE
An improperly disposed of battery can damage the
environment. Always conf irm local regulations for
battery disposal.
Replacement batteries are commercially available or
at a dealer.
3WARNING
CHEMICAL BURN HAZARD
The battery that powers the remote
transmitter can cause severe internal burns
and can even lead to death if swallowed.
Keep new and used batteries away from
children.
If you suspect that a child has swallowed
the battery, seek medical attention
immediately.
Battery type: CR2032
Battery

565
uuFuses uFuse Locations
Continued
Handling the Unexpected
Located under the dashboard.
Fuse locations are shown on the label on
the side panel.
Locate the fuse in question by the fuse
number and label number.
■Interior Fuse Box Type A
Fuse Box
Fuse Label
■Circuit protected and fuse rating
Circuit ProtectedAmps
1DR P/W20 A
2DOOR LOCK20 A
3SMART7.5 A
4AS P/W20 A
5FR ACC SOCKET20 A
6FUEL PUMP20 A
7ACG15 A
8FRONT WIPER7.5 A
9ABS/VSA7.5 A
10SRS10 A
11REAR LEFT P/W20 A
12BACK P/W(20 A)
13REAR RIGHT P/W20 A
14S/R FUEL LID20 A
15DR P/SEAT (REC)(20 A)
16CARGO LT7.5 A
17FR SEAT HEATER(20 A)
18INTR LT7.5 A
19DR REAR DOOR UNLOCK10 A
20AS SIDE DOOR UNLOCK10 A
21DRL7.5 A
22KEY LOCK7.5 A
23A/C7.5 A
24IG1a FEED BACK7.5 A
25INST PANEL LIGHTS7.5 A
26LUMBAR SUPPORT(7.5 A)
27PARKING LIGHTS7.5 A
28OPTION10 A
29BACK LT7.5 A
30−−
31ST MOTOR7.5 A
32SRS7.5 A
33AS SIDE DOOR LOCK10 A
34DR DOOR LOCK10 A
35DR DOOR UNLOCK10 A
36DR P/SEAT (SLIDE)(20 A)
37RIGHT H/L HI10 A
38LEFT H/L HI10 A
39IG1b FEED BACK7.5 A
40ACC7.5 A
41DR REAR DOOR LOCK10 A
42−−
Circuit ProtectedAmps

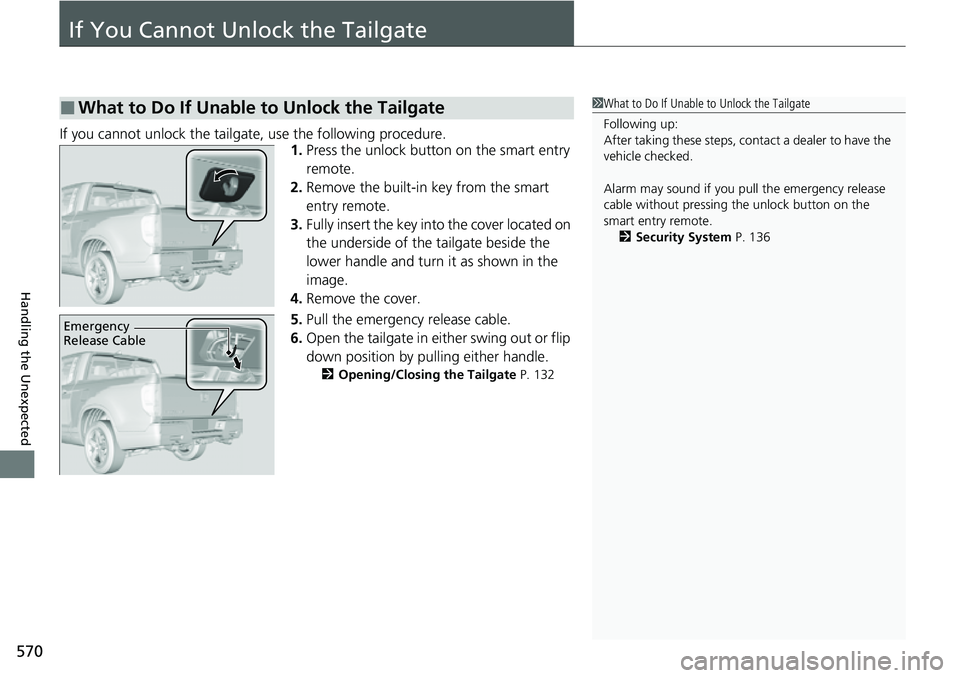

570
Handling the Unexpected
If You Cannot Unlock the Tailgate
If you cannot unlock the tailgate, use the following procedure.1.Press the unlock button on the smart entry
remote.
2. Remove the built-in key from the smart
entry remote.
3. Fully insert the key into the cover located on
the underside of the tailgate beside the
lower handle and turn it as shown in the
image.
4. Remove the cover.
5. Pull the emergency release cable.
6. Open the tailgate in either swing out or flip
down position by pulling either handle.
2 Opening/Closing the Tailgate P. 132
■What to Do If Unable to Unlock the Tailgate1What to Do If Unable to Unlock the Tailgate
Following up:
After taking these steps, cont act a dealer to have the
vehicle checked.
Alarm may sound if you pull the emergency release
cable without pressing the unlock button on the
smart entry remote. 2 Security System P. 136
Emergency
Release Cable

589
Index
Creeping (Automatic Transmission)........ 394
Cross Traffic Monitor ............................... 477
Cup Holders .............................................. 179
Customer Service Information ................ 585
Customized Features ............................... 298
D
Daytime Running Lights .......................... 153
Dead Battery ............................................ 552
Defaulting All the Settings ...................... 322
Defogger/Heated Door Mirror ................ 159
Defrosting the Windshield and
Windows ................................................. 196
Devices that Emit Radio Waves ............... 577
Dimming
Headlights .............................................. 149
Rearview Mirror ...................................... 164
Dipstick (Engine Oil) ................................ 500
Directional Signals (Turn Signal) ............. 148
Display Button .......................................... 212
Door Mirrors ............................................. 165
Doors ........................................................ 117
Auto Door Locking.................................. 130
Auto Door Unlocking .............................. 130
Door Open Message ........................... 36, 96
Key ......................................................... 117
Locking/Unlocking the Doors from the Inside................................ 16, 127
Locking/Unlocking the Doors
from the Outside................................... 120 Lockout Prevention System ...................... 126
DOT Tire Quality Grading ........................ 519
Driving ....................................................... 363
Adaptive Cruise Control (ACC) ................ 438
Automatic Transmission ........................... 394
Braking .................................................... 468
Off-Highway Driving Guidelines ............... 383
Shifting ................................................... 395
Starting the Engine .................................. 385
Driving Guidelines for Your Utility Vehicle ..................................................... 392
Driving Position Memory System ............. 161
Dust and Pollen Filter ............................... 528
E
Eco Assist® System ...................................... 12
ECON Button ............................................. 403
ECON Mode Indicator ................................ 92
Electric Power Steering (EPS) System Indicator ............................................ 85, 559
Electronic Stability Control (ESC) ............. 412
Emergency ................................................ 568
Emergency Trunk Opener ........................ 135
Emissions Testing (Readiness Codes) ....... 579
Engine Coolant ................................................... 504
If the Battery Is Dead ............................... 552
Oil ........................................................... 499
Remote Engine Start ................................ 387
Starting ................................................... 385 Engine Compartment Cover
.................... 498
Engine Coolant ......................................... 504
Adding to the Radiator ............................ 505
Adding to the Reserve Tank..................... 504
Overheating ............................................ 555
Temperature Gauge ................................ 110
Engine Oil ................................................. 499
Adding .................................................... 501
Checking................................................. 500
Displaying Oil Life .................................... 491
Low Oil Pressure Indicator ................. 79, 557
Recommended Engine Oil ....................... 499
ENGINE START/STOP Button .................... 145
EPS (Electric Power Steering) System
Indicator............................................ 85, 559
Exhaust Gas Hazard (Carbon Monoxide) .................................. 74
Exterior Care (Cleaning) ........................... 531
Exterior Mirrors ........................................ 165
F
Features.................................................... 203
Filters
Dust and Pollen ....................................... 528
Oil ........................................................... 502
Flat Tire ..................................................... 539
Floor Mats ................................................. 530
Fluids Automatic Transmission .......................... 506
Brake ...................................................... 507

591
Index
Illumination Control................................ 160
Button .................................................... 160
Immobilizer System .................................. 136
Indicator ................................................... 86
In-Bed Box ................................................ 191
Indicators .................................................... 78
Adaptive Cruise Control (ACC).................. 91
All-wheel drive (AWD)............................... 88
Anti-lock Brake System (ABS) .................... 82
Auto High-Beam ....................................... 86
Auto Idle Stop........................................... 89
Auto Idle Stop System ............................... 89
Bed Lights On ........................................... 95
Blind spot information System........... 92, 421
Brake System (Amber) ............................... 78
Charging System............................... 79, 557
Collision Mitigati on Braking System
TM
(CMBSTM) .......................................... 93, 94
ECON Mode ............................................. 92
Electric Power Steering (EPS) System ............................................ 85, 559
Fog Lights ................................................. 86
High Beam ................................................ 85
Immobilizer System ................................... 86
Intelligent Traction Management .............. 95
Lane Keeping Assist System (LKAS) ....................................... 91, 92, 453
Lights On .................................................. 86
Low Fuel ................................................... 82
Low Oil Pressure ............................... 79, 557
Low Tire Pressure/TPMS .................... 85, 560 M (sequential mode)/Se
quential Mode Gear
Selection.................................................. 80
Malfunction Indicator Lamp ............... 79, 558
Parking Brake and Brake System (Red)................................................ 78, 559
Road Departure Mitigation ........................ 90
Seat Belt Reminder .............................. 38, 81
Security System Alarm ............................... 87
Shift Position ............................................. 80
Smart Entry System .................................... 88
Supplemental Restraint System ............ 55, 82
System Message ........................................ 87
Transmission System .................... 80, 81, 561
Turn Signal and Haza rd Warning ............... 85
Vehicle Stability Assist
TM (VSA ®) OFF ......... 413
Vehicle Stability AssistTM (VSA ®)
System............................................. 83, 412
Information ............................................... 573
Information Button .................................. 111
Instant Fuel Economy ............................... 114
Instrument Panel ........................................ 77
Brightness Control ................................... 160
Intelligent Traction Management System ..................................................... 404
Indicator .................................................... 95
Intelligent Variable Torque Management (i- VTM4
TM) AWD System ............................ 415
Interior Lights ........................................... 175
Interior Rearview Mirror .......................... 164
iPhone ....................................................... 282
iPod ................................................... 247, 282
J
Jack (Wheel Nut Wrench) ........................ 543
Jump Starting ........................................... 552
K
Key............................................................ 117
Lockout Prevention.................................. 126
Number Tag ............................................ 118
Rear Door Won’t Open............................ 129
Remote Transmitter ................................. 125
Key Number Tag ....................................... 118
Keyless Lockout Prevention ..................... 126
Kickdown (Automatic Transmission) ....... 394
L
Lane Keeping Assist System (LKAS)......... 451
Indicator.............................................. 91, 92
LATCH (Child Seats) .............................. 64, 69
Lights ................................................. 149, 508
Auto High Beam...................................... 154
Automatic ............................................... 150
Bed ......................................................... 193
Bulb Replacement ................................... 508
Daytime Running Lights........................... 153
Fog Lights ............................................... 152
High Beam Indicator .................................. 85
Interior .................................................... 175
Light Switches ......................................... 149
Lights On Indicator .................................... 86

592
Index
Turn Signals ............................................. 148
Load Limits ................................................ 367
Locking/Unlocking .................................... 117
Auto Door Locking/Unlocking .................. 130
Childproof Door Locks ............................. 129
From Inside .............................................. 127
From Outside ........................................... 120
Key .......................................................... 117
Using a Key ............................................. 126
Lockout Prevention System ...................... 126
Low Battery Charge .................................. 557
Low Fuel Indicator ...................................... 82
Low Oil Pressure Indicator ................. 79, 557
Low Tire Pressure Indicator ........................ 85
Lower Anchors ............................................ 64
Lubricant Specifications Chart ................. 575
Luggage (Maximum Load Limit) .............. 367
Lumbar Support ........................................ 166
M
M (sequential mode) Indicator/Sequential
Mode Gear Selection Indicator ................ 80
Maintenance ............................................. 487
Battery..................................................... 525
Brake Fluid............................................... 507
Cleaning .................................................. 529
Climate Control System ........................... 528
Coolant ................................................... 504
Maintenance Minder
TM............................ 491
Oil ........................................................... 500 Precautions ............................................. 488
Radiator .................................................. 505
Remote Transmitter ................................. 527
Replacing Light Bulbs .............................. 508
Safety...................................................... 489
Service Items ........................................... 494
Tires ........................................................ 516
Transmission Fluid ................................... 506
Under the Hood ...................................... 496
Wiper Blades ........................................... 514
Malfunction Indicator Lamp .............. 79, 558
Map Lights ................................................ 176
Maximum Load Limit ............................... 367
Meters, Gauges ......................................... 110
Mirrors ...................................................... 164
Adjusting ................................................ 164
Door ....................................................... 165
Exterior ................................................... 165
Interior Rearview ..................................... 164
Modifications (and Accessories) .............. 535
Moonroof ................................................. 143
MP3 ........................................................... 256
MP3/WMA/AAC ........................................ 256
Multi-Information Display ....................... 111
Multi-View Rear Camera .......................... 481
N
Numbers (Identification).......................... 576
O
Odometer................................................. 112
Off-Highway Driving Guidelines ............. 383
Oil (Engine) .............................................. 499
Adding ................................................... 501
Checking ................................................ 500
Displaying Oil Life ................................... 491
Low Oil Pressure Indicator ................. 79, 557
Recommended Engine Oil ....................... 499
Viscosity.................................................. 499
Open Source Licenses .............................. 297
Opening/Closing Hood ...................................................... 497
Moonroof ............................................... 143
Power Windows...................................... 139
Tailgate................................................... 132
Trunk ...................................................... 133
Outside Temperature Display ................. 113
Overheating ............................................. 555
P
Paddle Shifters (Sequential Mode) ... 22, 402
Pandora® ................................................. 254
Panic Mode ............................................... 138
Parking ..................................................... 472
Parking Brake ........................................... 468
Parking Brake and Brake System Indicator ........................................... 78, 559
Parking Sensor System ............................. 473
Passenger Airbag Off Indicator ................. 56
