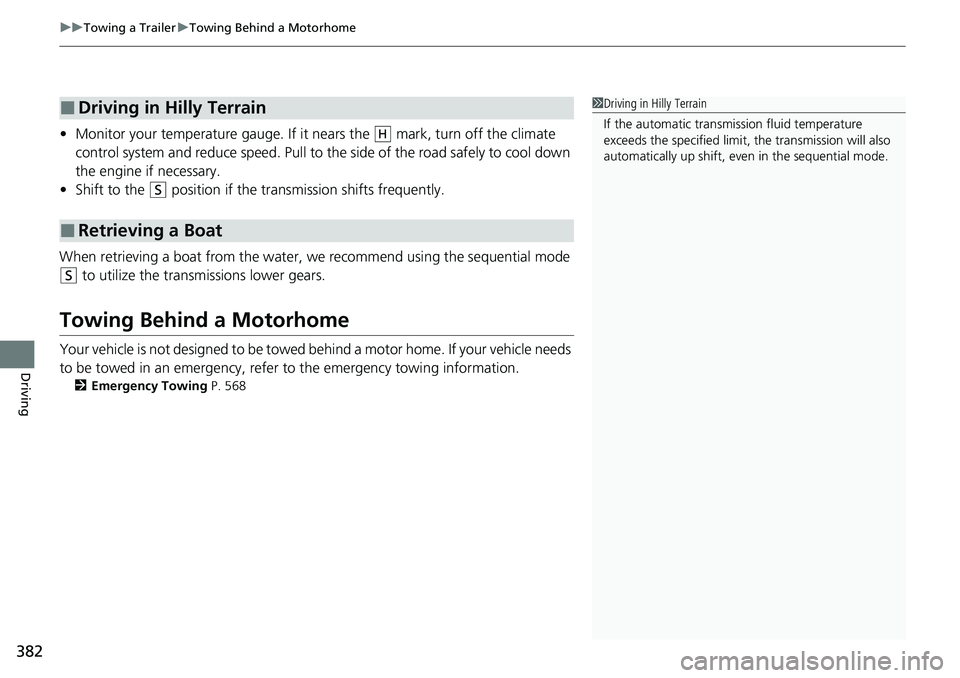

uuTowing a Trailer uTowing Behind a Motorhome
382
Driving
• Monitor your temperature gauge. If it nears the mark, turn off the climate
control system and reduce speed. Pull to the side of the road safely to cool down
the engine if necessary.
• Shift to the
(S position if the transmission shifts frequently.
When retrieving a boat from the water, we recommend using the sequential mode
(S to utilize the transmissions lower gears.
Towing Behind a Motorhome
Your vehicle is not designed to be towed behind a motor home. If your vehicle needs
to be towed in an emergency, refe r to the emergency towing information.
2Emergency Towing P. 568
■Driving in Hilly Terrain
■Retrieving a Boat
1Driving in Hilly Terrain
If the automatic transmission fluid temperature
exceeds the specified limit, the transmission will also
automatically up shift, even in the sequential mode.
H

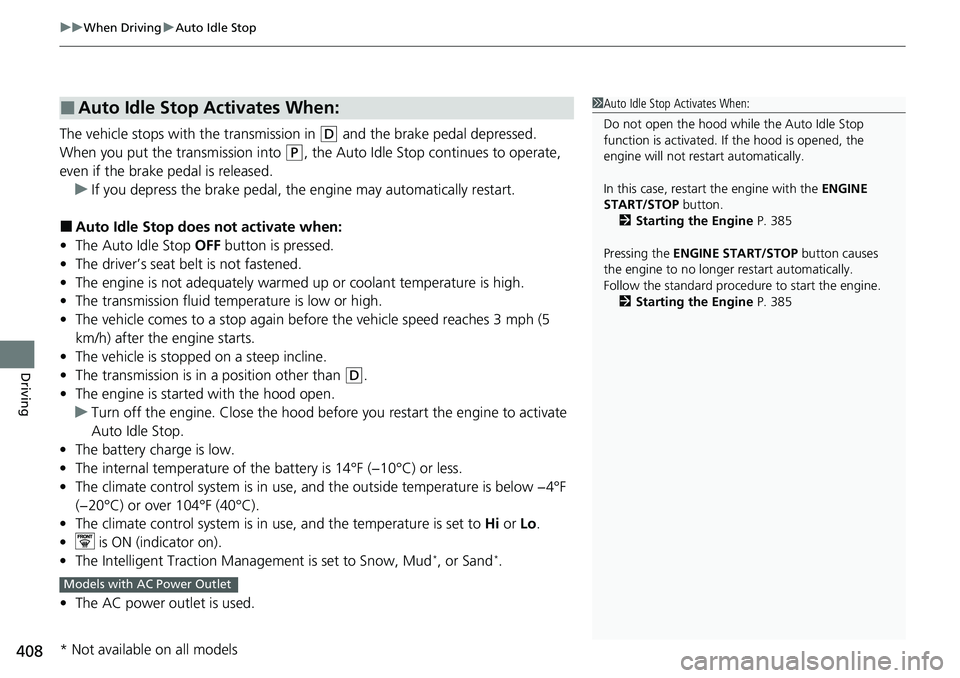

uuWhen Driving uAuto Idle Stop
408
Driving
The vehicle stops with the transmission in (D and the brake pedal depressed.
When you put the transmission into
(P, the Auto Idle Stop continues to operate,
even if the brake pedal is released. u If you depress the brake pedal, the engine may automatically restart.
■Auto Idle Stop does not activate when:
• The Auto Idle Stop OFF button is pressed.
• The driver’s seat belt is not fastened.
• The engine is not adequately warmed up or coolant temperature is high.
• The transmission fluid temperature is low or high.
• The vehicle comes to a stop again befo re the vehicle speed reaches 3 mph (5
km/h) after the engine starts.
• The vehicle is stopped on a steep incline.
• The transmission is in a position other than
(D.
• The engine is started with the hood open.
u Turn off the engine. Close the hood before you restart the engine to activate
Auto Idle Stop.
• The battery charge is low.
• The internal temperature of the battery is 14°F (−10°C) or less.
• The climate control system is in use, an d the outside temperature is below −4°F
(−20°C) or over 104°F (40°C).
• The climate control system is in us e, and the temperature is set to Hi or Lo.
• is ON (indicator on).
• The Intelligent Traction Management is set to Snow, Mud
*, or Sand*.
• The AC power outlet is used.
■Auto Idle Stop Activates When:1Auto Idle Stop Activates When:
Do not open the hood while the Auto Idle Stop
function is activated. If the hood is opened, the
engine will not re start automatically.
In this case, restart the engine with the ENGINE
START/STOP button.
2 Starting the Engine P. 385
Pressing the ENGINE START/STOP button causes
the engine to no longer restart automatically.
Follow the standard proce dure to start the engine.
2 Starting the Engine P. 385
Models with AC Power Outlet
* Not available on all models

506

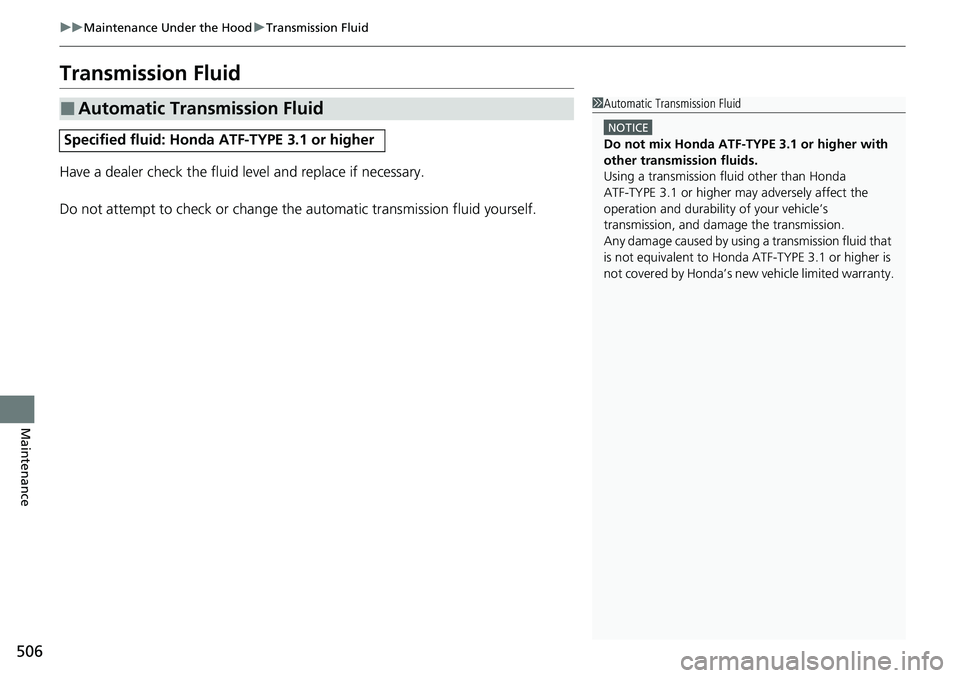

uuMaintenance Under the Hood uTransmission Fluid
Maintenance
Transmission Fluid
Have a dealer check the fluid level and replace if necessary.
Do not attempt to check or change th e automatic transmission fluid yourself.
■Automatic Transmission Fluid
Specified fluid: Honda ATF-TYPE 3.1 or higher
1Automatic Transmission Fluid
NOTICE
Do not mix Honda ATF-TYPE 3.1 or higher with
other transmission fluids.
Using a transmission fl uid other than Honda
ATF-TYPE 3.1 or higher may adversely affect the
operation and durability of your vehicle’s
transmission, and da mage the transmission.
Any damage caused by using a transmission fluid that
is not equivalent to Honda ATF-TYPE 3.1 or higher is
not covered by Honda’s new vehicle limited warranty.

Index
587
Index
Index
A
ABS (Anti-lock Brake System).................. 470
AC Power Outlet ...................................... 191
Accessories and Modifications ................ 535
Accessory Power Sockets ......................... 182
Adaptive Cruise Control (ACC) ................ 438
Indicator ................................................... 91
Additives
Coolant .................................................. 504
Engine Oil ............................................... 499
Washer ................................................... 507
Adjusting Armrest .................................................. 174
Front Seats.............................................. 166
Head Restraints ............................... 171, 172
Mirrors.................................................... 164
Rear Seats ............................................... 169
Steering Wheel ....................................... 163
Temperature ........................................... 113
Agile Handling Assist ............................... 414
Air Conditioning System (Climate Control System) .................................................... 195
Changing the Mode................................ 195
Defrosting the Windshield and Windows .............................................. 196
Dust and Pollen Filter .............................. 528
Recirculation/Fresh Air Mode................... 196
Sensor .................................................... 201
Synchronized Mode ................................ 198
Using Automatic Climate Control............ 195
Air Pressure ...................................... 517, 575 Airbags
........................................................ 44
Advanced Airbags ..................................... 50
After a Collision ......................................... 47
Airbag Care ............................................... 58
Event Data Recorder .................................... 0
Front Airbags (SRS) .................................... 47
Indicator .............................................. 55, 82
Passenger Airbag Off Indicator .................. 56
Sensors ...................................................... 44
Side Airbags .............................................. 52
Side Curtain Airbags .................................. 54
All-wheel drive (AWD) Indicator ............... 88
AM/FM Radio ............................................ 236
Android Auto ............................................ 273
Anti-lock Brake System (ABS) .................. 470
Indicator .................................................... 82
Apple CarPlay ........................................... 269
Armrest ..................................................... 174
Audio Remote Controls ............................ 209
Audio System ............................................ 204
Adjusting the Sound ................................ 229
Audio/Information Screen ........................ 212
Auxiliary Input Jack .................................. 207
Changing the Home Screen Icon Layout ................................................... 216
Closing Apps ........................................... 226
Display Setup ........................................... 230
Error Messages ........................................ 278
General Information ................................ 281
Home Screen ........................................... 219
Limitations for Manua l Operation ............ 231 MP3/WMA/AAC ...................................... 256
Reactivating ............................................ 208
Remote Controls ..................................... 209
Security Code .......................................... 208
Selecting an Audio Source ....................... 231
Status Area ............................................. 225
Theft Protection ...................................... 208
Truck Bed Audio...................................... 277
USB Flash Drives .............................. 256, 282
USB Port.................................................. 205
Wallpaper Setup...................................... 217
Audio/Information Screen ....................... 212
Authorized Manuals ................................ 584
Auto Door Locking/Unlocking ................. 130
Customize ....................................... 314, 315
Auto High-Beam ....................................... 154
Indicator.................................................... 86
Auto Idle Stop .......................................... 406
OFF Button .............................................. 407
Auto Idle Stop Indicator (Green) ............... 89
Auto Idle Stop System Indicator (Amber) ..................................................... 89
Automatic Intermittent Wipers ............... 158
Automatic Lighting .................................. 150
Automatic Transmission ........................... 394
Creeping ................................................. 394
Fluid ........................................................ 506
Kickdown .............................. ..................

394
Operating the Shift Button ...................... 397
Shifting ................................................... 395
Auxiliary Input Jack .................................. 207

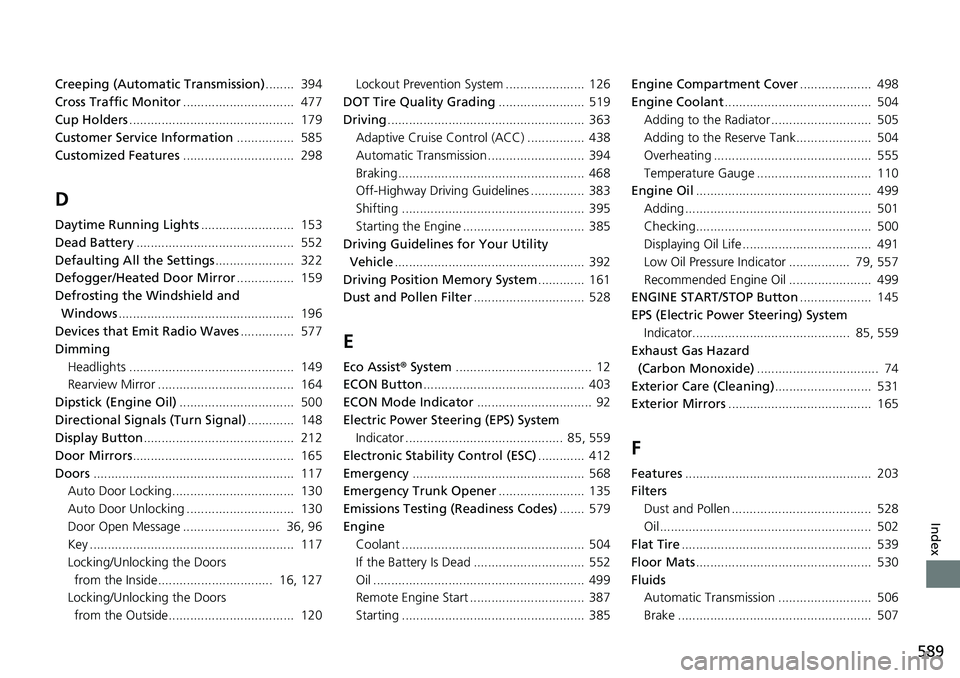

589
Index
Creeping (Automatic Transmission)........ 394
Cross Traffic Monitor ............................... 477
Cup Holders .............................................. 179
Customer Service Information ................ 585
Customized Features ............................... 298
D
Daytime Running Lights .......................... 153
Dead Battery ............................................ 552
Defaulting All the Settings ...................... 322
Defogger/Heated Door Mirror ................ 159
Defrosting the Windshield and
Windows ................................................. 196
Devices that Emit Radio Waves ............... 577
Dimming
Headlights .............................................. 149
Rearview Mirror ...................................... 164
Dipstick (Engine Oil) ................................ 500
Directional Signals (Turn Signal) ............. 148
Display Button .......................................... 212
Door Mirrors ............................................. 165
Doors ........................................................ 117
Auto Door Locking.................................. 130
Auto Door Unlocking .............................. 130
Door Open Message ........................... 36, 96
Key ......................................................... 117
Locking/Unlocking the Doors from the Inside................................ 16, 127
Locking/Unlocking the Doors
from the Outside................................... 120 Lockout Prevention System ...................... 126
DOT Tire Quality Grading ........................ 519
Driving ....................................................... 363
Adaptive Cruise Control (ACC) ................ 438
Automatic Transmission ........................... 394
Braking .................................................... 468
Off-Highway Driving Guidelines ............... 383
Shifting ................................................... 395
Starting the Engine .................................. 385
Driving Guidelines for Your Utility Vehicle ..................................................... 392
Driving Position Memory System ............. 161
Dust and Pollen Filter ............................... 528
E
Eco Assist® System ...................................... 12
ECON Button ............................................. 403
ECON Mode Indicator ................................ 92
Electric Power Steering (EPS) System Indicator ............................................ 85, 559
Electronic Stability Control (ESC) ............. 412
Emergency ................................................ 568
Emergency Trunk Opener ........................ 135
Emissions Testing (Readiness Codes) ....... 579
Engine Coolant ................................................... 504
If the Battery Is Dead ............................... 552
Oil ........................................................... 499
Remote Engine Start ................................ 387
Starting ................................................... 385 Engine Compartment Cover
.................... 498
Engine Coolant ......................................... 504
Adding to the Radiator ............................ 505
Adding to the Reserve Tank..................... 504
Overheating ............................................ 555
Temperature Gauge ................................ 110
Engine Oil ................................................. 499
Adding .................................................... 501
Checking................................................. 500
Displaying Oil Life .................................... 491
Low Oil Pressure Indicator ................. 79, 557
Recommended Engine Oil ....................... 499
ENGINE START/STOP Button .................... 145
EPS (Electric Power Steering) System
Indicator............................................ 85, 559
Exhaust Gas Hazard (Carbon Monoxide) .................................. 74
Exterior Care (Cleaning) ........................... 531
Exterior Mirrors ........................................ 165
F
Features.................................................... 203
Filters
Dust and Pollen ....................................... 528
Oil ........................................................... 502
Flat Tire ..................................................... 539
Floor Mats ................................................. 530
Fluids Automatic Transmission .......................... 506
Brake ...................................................... 507

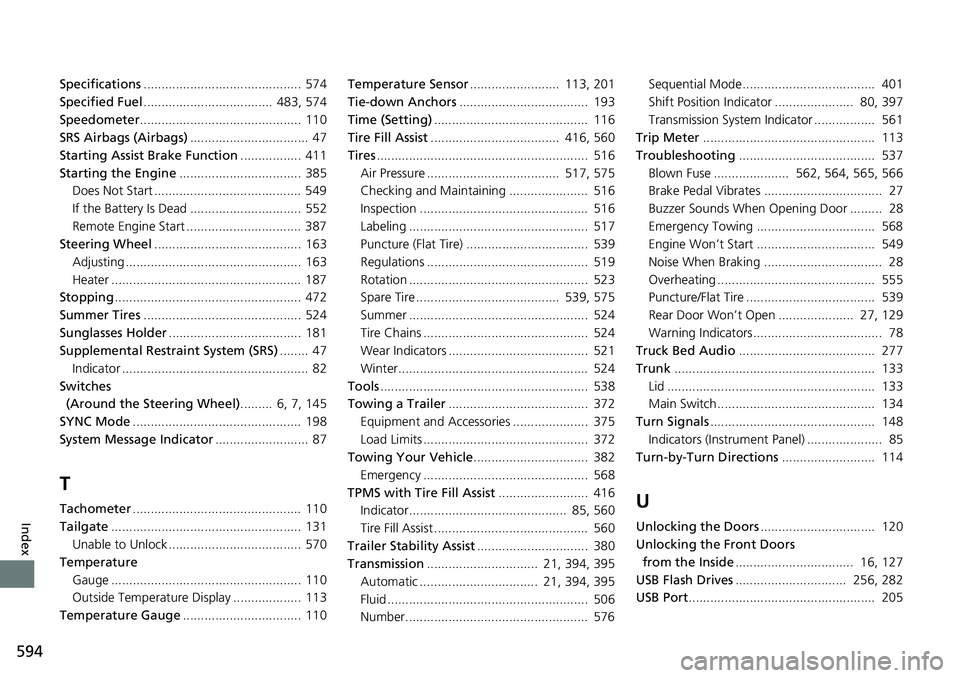

594
Index
Specifications............................................ 574
Specified Fuel .................................... 483, 574
Speedometer ............................................. 110
SRS Airbags (Airbags) ................................. 47
Starting Assist Brake Function ................. 411
Starting the Engine .................................. 385
Does Not Start ......................................... 549
If the Battery Is Dead ............................... 552
Remote Engine Start ................................ 387
Steering Wheel ......................................... 163
Adjusting ................................................. 163
Heater ..................................................... 187
Stopping .................................................... 472
Summer Tires ............................................ 524
Sunglasses Holder ..................................... 181
Supplemental Restraint System (SRS) ........ 47
Indicator .................................................... 82
Switches (Around the Steering Wheel) ......... 6, 7, 145
SYNC Mode ............................................... 198
System Message Indicator .......................... 87
T
Tachometer............................................... 110
Tailgate ..................................................... 131
Unable to Unlock ..................................... 570
Temperature Gauge ..................................................... 110
Outside Temperature Display ................... 113
Temperature Gauge ................................. 110 Temperature Sensor
......................... 113, 201
Tie-down Anchors .................................... 193
Time (Setting) ........................................... 116
Tire Fill Assist .................................... 416, 560
Tires ........................................................... 516
Air Pressure ..................................... 517, 575
Checking and Maintaining ...................... 516
Inspection ............................................... 516
Labeling .................................................. 517
Puncture (Flat Tire) .................................. 539
Regulations ............................................. 519
Rotation .................................................. 523
Spare Tire ........................................ 539, 575
Summer .................................................. 524
Tire Chains .............................................. 524
Wear Indicators ....................................... 521
Winter..................................................... 524
Tools .......................................................... 538
Towing a Trailer ....................................... 372
Equipment and Accessories ..................... 375
Load Limits .............................................. 372
Towing Your Vehicle ................................ 382
Emergency .............................................. 568
TPMS with Tire Fill Assist ......................... 416
Indicator............................................ 85, 560
Tire Fill Assist ........................................... 560
Trailer Stability Assist ............................... 380
Transmission ............................... 21, 394, 395
Automatic ................................. 21, 394, 395
Fluid ........................................................ 506
Number................................................... 576 Sequential Mode..................................... 401
Shift Position Indicator ...................... 80, 397
Transmission System Indicator ................. 561
Trip Meter ................................................ 113
Troubleshooting ...................................... 537
Blown Fuse ..................... 562, 564, 565, 566
Brake Pedal Vibrates ................................. 27
Buzzer Sounds When Opening Door ......... 28
Emergency Towing ................................. 568
Engine Won’t Start ................................. 549
Noise When Braking ................................. 28
Overheating ............................................ 555
Puncture/Flat Tire .................................... 539
Rear Door Won’t Open ..................... 27, 129
Warning Indicators.................................... 78
Truck Bed Audio ...................................... 277
Trunk ........................................................ 133
Lid .......................................................... 133
Main Switch............................................ 134
Turn Signals .............................................. 148
Indicators (Instru ment Panel) ..................... 85
Turn-by-Turn Directions .......................... 114U
Unlocking the Doors................................ 120
Unlocking the Front Doors
from the Inside ................................. 16, 127
USB Flash Drives ............................... 256, 282
USB Port .................................................... 205
