radiator HONDA RIDGELINE 2022 Owners Manual

75Continued
Safe Driving
Safety Labels
Label Locations
These labels are in the locations shown. They warn you of potential hazards that can cause serious injury or death. Read these labels
carefully.
If a label comes off or becomes hard to read (except for the U. S. dashboard label which may be removed by the owner), contact a dealer
for a replacement.
Sun Visor
U.S. models Canadian models
Radiator Cap U.S. models
U.S. models only
Dashboard
Canadian models
Air Conditioner System
Sun Visor
U.S. models only

496
Maintenance

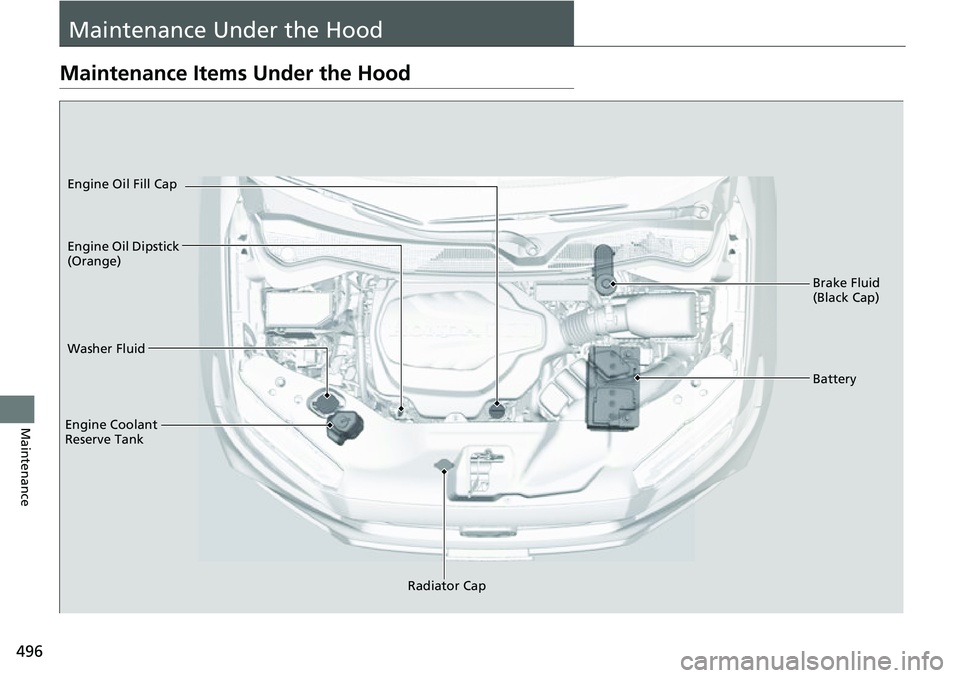

Maintenance Under the Hood
Maintenance Items Under the Hood
Brake Fluid
(Black Cap)
Washer Fluid
Radiator Cap
Engine Coolant
Reserve Tank Engine Oil Dipstick
(Orange) Engine Oil Fill Cap
Battery

504
uuMaintenance Under the Hood uEngine Coolant
Maintenance
Engine Coolant
This coolant is premixed with 50% antifreeze and 50% water. Do not add any
straight antifreeze or water.
We recommend you check the engine coolant level every time you refuel. Check the
reserve tank first. If it is completely empty, also check the coolant level in the
radiator. Add the engine coolant accordingly.
1. Make sure the engine and radiator are cool.
2. Remove the engine compartment cover.
2 Engine Compartment Cover P. 498
3.Check the amount of coolant in the reserve
tank.
u If the coolant level is below the MIN
mark, add the specified coolant until it
reaches the MAX mark.
4. Inspect the cooling system for leaks.
Specified coolant: Honda Long Life Antifreeze/Coolant Type 2
■Reserve Tank
1Engine Coolant
NOTICE
Genuine Honda engine coolan t is a 50/50 mixture of
antifreeze and water that can withstand freezing at
temperatures as low as a bout -31°F (-35°C). If your
vehicle is consistently subjected to temperatures
below this, the concentration of antifreeze in the
coolant should be increased. Consult a dealer for
details.
If Honda antifreeze /coolant is not available, you may
use another major brand of non-silicate coolant as a
temporary replacement. Check that it is a high quality
coolant recommended for aluminum engines.
Continued use of any non-Honda coolant can result
in corrosion, causing the cooling system to
malfunction or fail. Have the cooling system flushed
and refilled with Honda antifreeze/coolant as soon as
possible.
Do not add rust inhibitors or other additives to your
vehicle’s cooling system. Th ey may not be compatible
with the coolant or with the engine components.
3WARNING
Removing the radiator cap while the
engine is hot can cause the coolant to spray
out, seriously scalding you.
Always let the engine and radiator cool
down before removing the radiator cap.
MAw
MIm
Reserve Tank

505
uuMaintenance Under the Hood uEngine Coolant
Maintenance
1. Make sure the engine and radiator are
cool.
2. Remove the engine compartment cover.
2 Engine Compartment Cover P. 498
3.Turn the radiator cap 1/8 turn counter-
clockwise and relieve any pressure in the
cooling system.
4. Push down and turn the radiator cap
counter-clockwise to remove it.
5. The coolant level should be up to the base
of the filler neck. Add coolant if it is low.
6. Put the radiator cap back on, and tighten it
fully.
■Radiator1Radiator
NOTICE
Pour the fluid slowly and ca refully so you do not spill
any. Clean up any spills immediately; they can
damage components in the engine compartment.Radiator
Cap

uuOverheating uHow to Handle Overheating
556
Handling the Unexpected
■Next thing to do
1.Check that the cooling fan is operating and
stop the engine once the temperature
gauge needle goes down.
u If the cooling fan is not operating,
immediately stop the engine.
2. Once the engine has cooled down, inspect
the coolant level an d check the cooling
system components for leaks.
u If the coolant level in the reserve tank is
low, remove the engine compartment
cover then add coolant until it reaches
the MAX mark.
2Engine Compartment Cover P. 498
uIf there is no coolan t in the reserve tank,
check that the radiator is cool. Cover the
radiator cap with a heavy cloth and open
the cap. If necessary, add coolant up to
the base of the filler neck, and put the
cap back on.
■Last thing to do
Once the engine has cooled sufficiently, re start it and check the temperature gauge.
If the temperature gauge needle has gone do wn, resume driving. If it has not gone
down, contact a dealer for repairs.
1 How to Handle Overheating
If the coolant is leaking, contact a dealer for repairs.
Use water as an emergency/temporary measure only.
Have a dealer flush the system with proper antifreeze
as soon as possible.
3WARNING
Removing the radiator cap while the
engine is hot can cause the coolant to spray
out, seriously scalding you.
Always let the engine and radiator cool
down before removing the radiator cap.
Reserve Tank
MAX
MIN

588
Index
Average Fuel Economy............................. 113
B
Battery....................................................... 525
Charging System Indicator ................. 79, 557
If the Battery Is Dead ............................... 552
Maintenance (Checking the Battery) ........ 525
Bed Lights .................................................. 193
Indicator .................................................... 95
Belts (Seat) .................................................. 37
Beverage Holders ...................................... 179
Blind spot information System ................ 420
Indicator .................................................... 92
Bluetooth ® Audio ..................................... 259
Bluetooth ® HandsFreeLink ®................... 329
Booster Seats (For Children) ....................... 73
Brake System ............................................. 468
Anti-lock Brake System (ABS) ................... 470
Brake Assist System ................................. 471
Brake System Indicator............................... 78
Fluid ........................................................ 507
Foot Brake ............................................... 469
Indicator ............................................ 78, 559
Parking Brake .......................................... 468
Brake System Indicator (Amber) ................ 78
Brake System Indicator (Red) ............. 78, 559
Brightness Control (Instrument Panel) .... 160
Bulb Replacement ..................................... 508
Brake/Taillight and Rear Side Marker
Light ...................................................... 512 Daytime Running Light
and Parking
Light...................................................... 510
Front Side Marker Light ........................... 510
Front Turn Signal/Parking Light ................ 511
Headlights ............................................... 508
High-Mount Brake Light .......................... 513
Rear License Plate Light ........................... 513
Rear Turn Signal and Back-Up Light ......... 512
Side Turn Signal/Emergency Indicator Light...................................................... 511
Bulb Specifications ................................... 574
C
Car Wash Mode........................................ 399
Carbon Monoxide Gas ............................... 74
Cargo Hooks ............................................. 194
Carrying Cargo ......................... 365, 367, 370
Certification Label .................................... 576
Changing Bulbs ........................................ 508
Charging System Indicator ................. 79, 557
Child Safety ................................................. 59
Childproof Door Locks............................. 129
Emergency Trunk Opener ........................ 135
Child Seat .................................................... 59
Booster Seats ............................................ 73
Child Seat for Infants................................. 61
Child Seat for Small Children ..................... 62
Installing a Child Seat with a Lap/Shoulder Seat Belt ......................................................... 67 Installing a LATCH-Compatible Child
Seat ........................................................ 64
Larger Children ......................................... 72
Rear-facing Child Seat............................... 61
Selecting a Child Seat ............................... 63
Using a Tether .......................................... 69
Childproof Door Locks ............................. 129
Cleaning the Exterior ............................... 531
Cleaning the Interior ............................... 529
Climate Control System ........................... 195
Changing the Mode................................ 195
Defrosting the Windshield and Windows .............................................. 196
Dust and Pollen Filter .............................. 528
Recirculation and Fresh Air Mode ............ 196
Sensors ................................................... 201
Synchronized Mode ................................ 198
Using Automatic Climate Control............ 195
Clock ......................................................... 116
Coat Hook ................................................ 180
Collision Mitigation Braking System
TM
(CMBSTM) ................................................. 426
Indicator ............................................. 93, 94
Compact Spare Tire .......................... 539, 575
Console Compartment ............................. 178
Controls .................................................... 115
Conversation Mirror ................................ 181
Coolant (Engine) ...................................... 504
Adding to the Radiator ........................... 505
Adding to the Reserve Tank .................... 504
Overheating ............................................ 555

589
Index
Creeping (Automatic Transmission)........ 394
Cross Traffic Monitor ............................... 477
Cup Holders .............................................. 179
Customer Service Information ................ 585
Customized Features ............................... 298
D
Daytime Running Lights .......................... 153
Dead Battery ............................................ 552
Defaulting All the Settings ...................... 322
Defogger/Heated Door Mirror ................ 159
Defrosting the Windshield and
Windows ................................................. 196
Devices that Emit Radio Waves ............... 577
Dimming
Headlights .............................................. 149
Rearview Mirror ...................................... 164
Dipstick (Engine Oil) ................................ 500
Directional Signals (Turn Signal) ............. 148
Display Button .......................................... 212
Door Mirrors ............................................. 165
Doors ........................................................ 117
Auto Door Locking.................................. 130
Auto Door Unlocking .............................. 130
Door Open Message ........................... 36, 96
Key ......................................................... 117
Locking/Unlocking the Doors from the Inside................................ 16, 127
Locking/Unlocking the Doors
from the Outside................................... 120 Lockout Prevention System ...................... 126
DOT Tire Quality Grading ........................ 519
Driving ....................................................... 363
Adaptive Cruise Control (ACC) ................ 438
Automatic Transmission ........................... 394
Braking .................................................... 468
Off-Highway Driving Guidelines ............... 383
Shifting ................................................... 395
Starting the Engine .................................. 385
Driving Guidelines for Your Utility Vehicle ..................................................... 392
Driving Position Memory System ............. 161
Dust and Pollen Filter ............................... 528
E
Eco Assist® System ...................................... 12
ECON Button ............................................. 403
ECON Mode Indicator ................................ 92
Electric Power Steering (EPS) System Indicator ............................................ 85, 559
Electronic Stability Control (ESC) ............. 412
Emergency ................................................ 568
Emergency Trunk Opener ........................ 135
Emissions Testing (Readiness Codes) ....... 579
Engine Coolant ................................................... 504
If the Battery Is Dead ............................... 552
Oil ........................................................... 499
Remote Engine Start ................................ 387
Starting ................................................... 385 Engine Compartment Cover
.................... 498
Engine Coolant ......................................... 504
Adding to the Radiator ............................ 505
Adding to the Reserve Tank..................... 504
Overheating ............................................ 555
Temperature Gauge ................................ 110
Engine Oil ................................................. 499
Adding .................................................... 501
Checking................................................. 500
Displaying Oil Life .................................... 491
Low Oil Pressure Indicator ................. 79, 557
Recommended Engine Oil ....................... 499
ENGINE START/STOP Button .................... 145
EPS (Electric Power Steering) System
Indicator............................................ 85, 559
Exhaust Gas Hazard (Carbon Monoxide) .................................. 74
Exterior Care (Cleaning) ........................... 531
Exterior Mirrors ........................................ 165
F
Features.................................................... 203
Filters
Dust and Pollen ....................................... 528
Oil ........................................................... 502
Flat Tire ..................................................... 539
Floor Mats ................................................. 530
Fluids Automatic Transmission .......................... 506
Brake ...................................................... 507

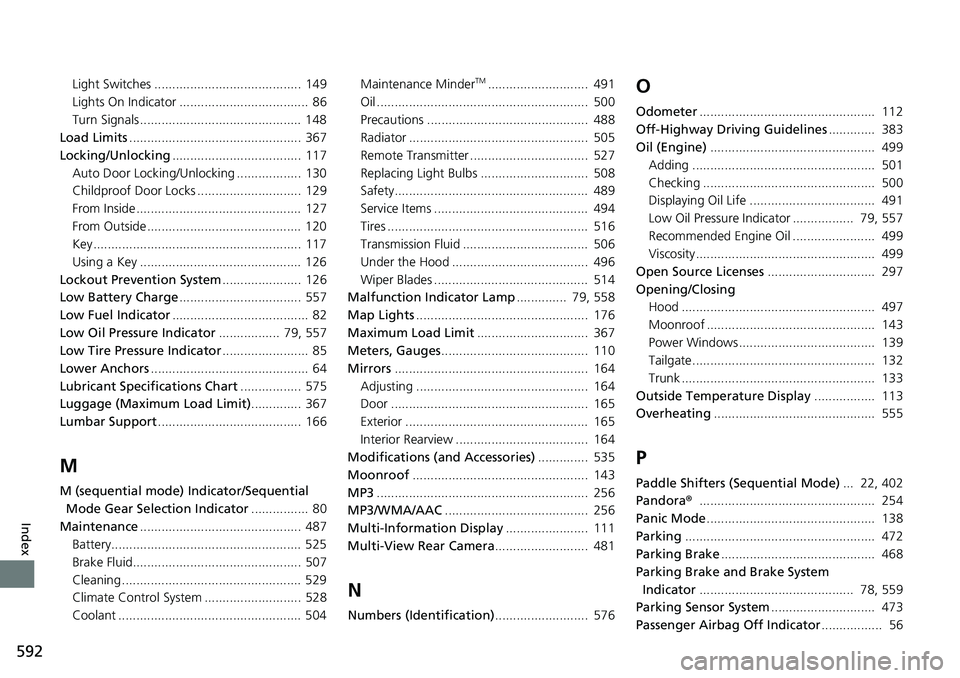

592
Index
Light Switches ......................................... 149
Lights On Indicator .................................... 86
Turn Signals ............................................. 148
Load Limits ................................................ 367
Locking/Unlocking .................................... 117
Auto Door Locking/Unlocking .................. 130
Childproof Door Locks ............................. 129
From Inside .............................................. 127
From Outside ........................................... 120
Key .......................................................... 117
Using a Key ............................................. 126
Lockout Prevention System ...................... 126
Low Battery Charge .................................. 557
Low Fuel Indicator ...................................... 82
Low Oil Pressure Indicator ................. 79, 557
Low Tire Pressure Indicator ........................ 85
Lower Anchors ............................................ 64
Lubricant Specifications Chart ................. 575
Luggage (Maximum Load Limit) .............. 367
Lumbar Support ........................................ 166
M
M (sequential mode) Indicator/Sequential
Mode Gear Selection Indicator ................ 80
Maintenance ............................................. 487
Battery..................................................... 525
Brake Fluid............................................... 507
Cleaning .................................................. 529
Climate Control System ........................... 528
Coolant ................................................... 504 Maintenance Minder
TM............................ 491
Oil ........................................................... 500
Precautions ............................................. 488
Radiator .................................................. 505
Remote Transmitter ................................. 527
Replacing Light Bulbs .............................. 508
Safety...................................................... 489
Service Items ........................................... 494
Tires ........................................................ 516
Transmission Fluid ................................... 506
Under the Hood ...................................... 496
Wiper Blades ........................................... 514
Malfunction Indicator Lamp .............. 79, 558
Map Lights ................................................ 176
Maximum Load Limit ............................... 367
Meters, Gauges ......................................... 110
Mirrors ...................................................... 164
Adjusting ................................................ 164
Door ....................................................... 165
Exterior ................................................... 165
Interior Rearview ..................................... 164
Modifications (and Accessories) .............. 535
Moonroof ................................................. 143
MP3 ........................................................... 256
MP3/WMA/AAC ........................................ 256
Multi-Information Display ....................... 111
Multi-View Rear Camera .......................... 481
N
Numbers (Identification).......................... 576
O
Odometer................................................. 112
Off-Highway Driving Guidelines ............. 383
Oil (Engine) .............................................. 499
Adding ................................................... 501
Checking ................................................ 500
Displaying Oil Life ................................... 491
Low Oil Pressure Indicator ................. 79, 557
Recommended Engine Oil ....................... 499
Viscosity.................................................. 499
Open Source Licenses .............................. 297
Opening/Closing Hood ...................................................... 497
Moonroof ............................................... 143
Power Windows...................................... 139
Tailgate................................................... 132
Trunk ...................................................... 133
Outside Temperature Display ................. 113
Overheating ............................................. 555
P
Paddle Shifters (Sequential Mode) ... 22, 402
Pandora® ................................................. 254
Panic Mode ............................................... 138
Parking ..................................................... 472
Parking Brake ........................................... 468
Parking Brake and Brake System Indicator ........................................... 78, 559
Parking Sensor System ............................. 473
Passenger Airbag Off Indicator ................. 56

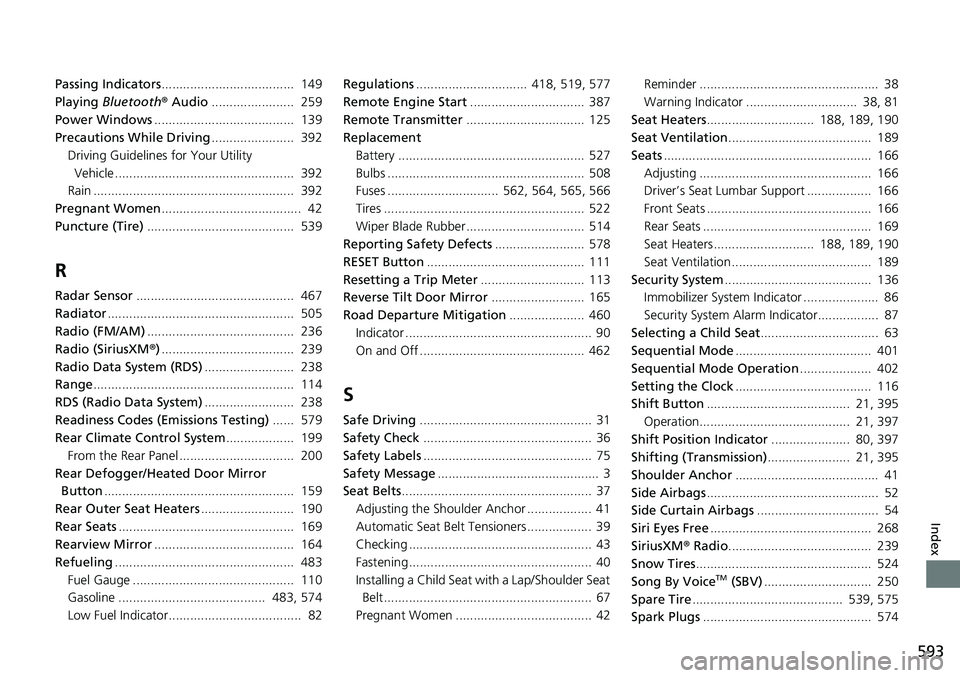

593
Index
Passing Indicators..................................... 149
Playing Bluetooth ® Audio ....................... 259
Power Windows ....................................... 139
Precautions While Driving ....................... 392
Driving Guidelines for Your Utility
Vehicle .................................................. 392
Rain ........................................................ 392
Pregnant Women ....................................... 42
Puncture (Tire) ......................................... 539
R
Radar Sensor............................................ 467
Radiator .................................................... 505
Radio (FM/AM) ......................................... 236
Radio (SiriusXM ®)..................................... 239
Radio Data System (RDS) ......................... 238
Range ........................................................ 114
RDS (Radio Data System) ......................... 238
Readiness Codes (Emissions Testing) ...... 579
Rear Climate Control System ................... 199
From the Rear Panel ................................ 200
Rear Defogger/Heated Door Mirror Button ..................................................... 159
Rear Outer Seat Heaters .......................... 190
Rear Seats ................................................. 169
Rearview Mirror ....................................... 164
Refueling .................................................. 483
Fuel Gauge ............................................. 110
Gasoline ......................................... 483, 574
Low Fuel Indicator..................................... 82 Regulations
............................... 418, 519, 577
Remote Engine Start ................................ 387
Remote Transmitter ................................. 125
Replacement Battery .................................................... 527
Bulbs ....................................................... 508
Fuses ............................... 562, 564, 565, 566
Tires ........................................................ 522
Wiper Blade Rubber ................................. 514
Reporting Safety Defects ......................... 578
RESET Button ............................................ 111
Resetting a Trip Meter ............................. 113
Reverse Tilt Door Mirror .......................... 165
Road Departure Mitigation ..................... 460
Indicator .................................................... 90
On and Off .............................................. 462
S
Safe Driving ................................................ 31
Safety Check ............................................... 36
Safety Labels ............................................... 75
Safety Message ............................................. 3
Seat Belts ..................................................... 37
Adjusting the Shoulder Anchor .................. 41
Automatic Seat Belt Tensioners .................. 39
Checking ................................................... 43
Fastening ................................................... 40
Installing a Child Seat with a Lap/Shoulder Seat Belt.......................................................... 67
Pregnant Women ...................................... 42 Reminder .................................................. 38
Warning Indicator ............................... 38, 81
Seat Heaters .............................. 188, 189, 190
Seat Ventilation ........................................ 189
Seats .......................................................... 166
Adjusting ................................................ 166
Driver’s Seat Lumbar Support .................. 166
Front Seats .............................................. 166
Rear Seats ............................................... 169
Seat Heaters ............................ 188, 189, 190
Seat Ventilation ....................................... 189
Security System ......................................... 136
Immobilizer System Indicator ..................... 86
Security System Alarm Indicator................. 87
Selecting a Child Seat ................................. 63
Sequential Mode ...................................... 401
Sequential Mode Operation .................... 402
Setting the Clock ...................................... 116
Shift Button ........................................ 21, 395
Operation.......................................... 21, 397
Shift Position Indicator ...................... 80, 397
Shifting (Transmission) ....................... 21, 395
Shoulder Anchor ........................................ 41
Side Airbags ................................................ 52
Side Curtain Airbags .................................. 54
Siri Eyes Free ............................................. 268
SiriusXM ® Radio ........................................ 239
Snow Tires ................................................. 524
Song By Voice
TM (SBV) .............................. 250
Spare Tire .......................................... 539, 575
Spark Plugs ............................................... 574
