run flat HONDA RIDGELINE 2022 Owners Manual

26
Quick Reference Guide
Handling the Unexpected (P537)
Flat Tire (P539)
●Park in a safe location and replace the
flat tire with the compact spare tire
located in the trunk.
Indicators Come On (P557)
●Identify the indicator and consult the
owner’s manual.
Engine Won’t Start (P549)
●If the battery is dead, jump start using a
booster battery.
Blown Fuse (P562)
●Check for a blown fuse if an electrical
device does not operate.
Overheating (P555)
●Park in a safe location. If you do not see
steam under the hood, open the hood,
and let the engine cool down.
Emergency Towing (P568)
●Call a professional towing service if you
need to tow your vehicle.

uuIf a Tire Goes Flat uChanging a Flat Tire
540
Handling the Unexpected

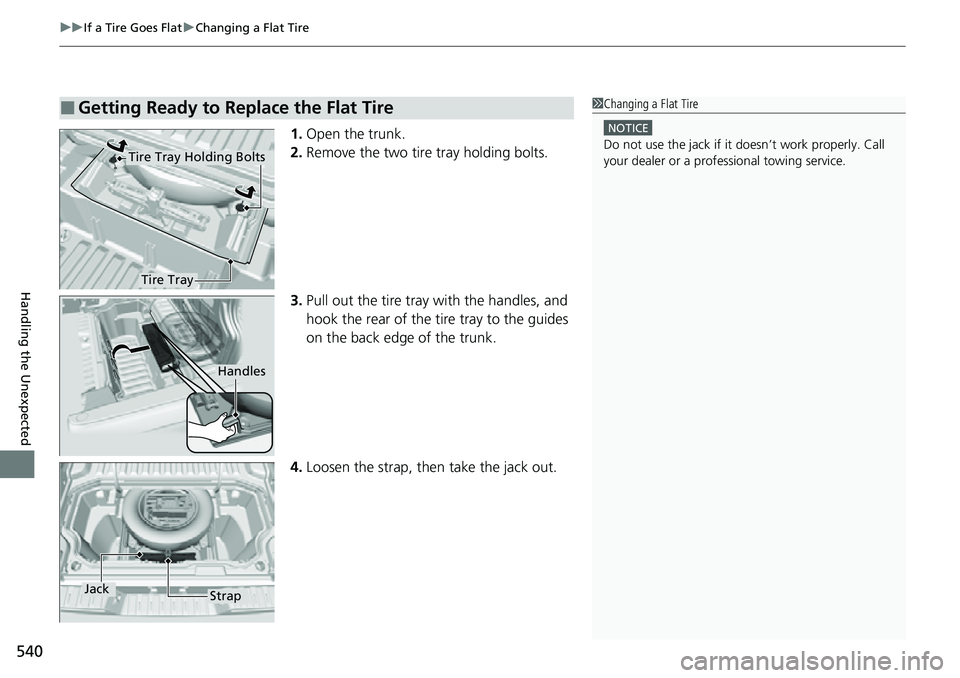

1. Open the trunk.
2. Remove the two tire tray holding bolts.
3. Pull out the tire tray with the handles, and
hook the rear of the ti re tray to the guides
on the back edge of the trunk.
4. Loosen the strap, then take the jack out.
■Getting Ready to Replace the Flat Tire1Changing a Flat Tire
NOTICE
Do not use the jack if it doesn’t work properly. Call
your dealer or a prof essional towing service.
Tire Tray
Tire Tray Holding Bolts
Handles
StrapJack

Continued543
uuIf a Tire Goes Flat uChanging a Flat Tire
Handling the Unexpected
1. Place the jack under the jacking point
closest to the tire to be changed.
2. Turn the end bracket cl ockwise as shown in
the image until the top of the jack contacts
the jacking point.
u Make sure that the jacking point tab is
resting in the jack notch.
3. Raise the vehicle, using the jack handle bar
and the jack handle, until the tire is off the
ground.
■How to Set Up the Jack1How to Set Up the Jack
Do not use the jack with people or luggage in the
vehicle.
Use the jack provided in your vehicle.
Other jacks may not support the weight (“load”) or
may not fit the jacking point.
The following instructions must be followed to use
the jack safely:
•Do not use while the engine is running.
•Use only where the ground is firm and level.
•Use only at the jacking points.•Do not get in the vehicl e while using the jack.
•Do not put anything on top of or underneath the
jack.
3WARNING
The vehicle can easily roll off the jack,
seriously injuring anyone underneath.
Follow the directions for changing a tire
exactly, and never get under the vehicle
when it is supported only by the jack.
Jacking Points
Jack Handle Bar
Wheel Nut Wrench as Jack Handle

546
uuIf a Tire Goes Flat uChanging a Flat Tire
Handling the Unexpected

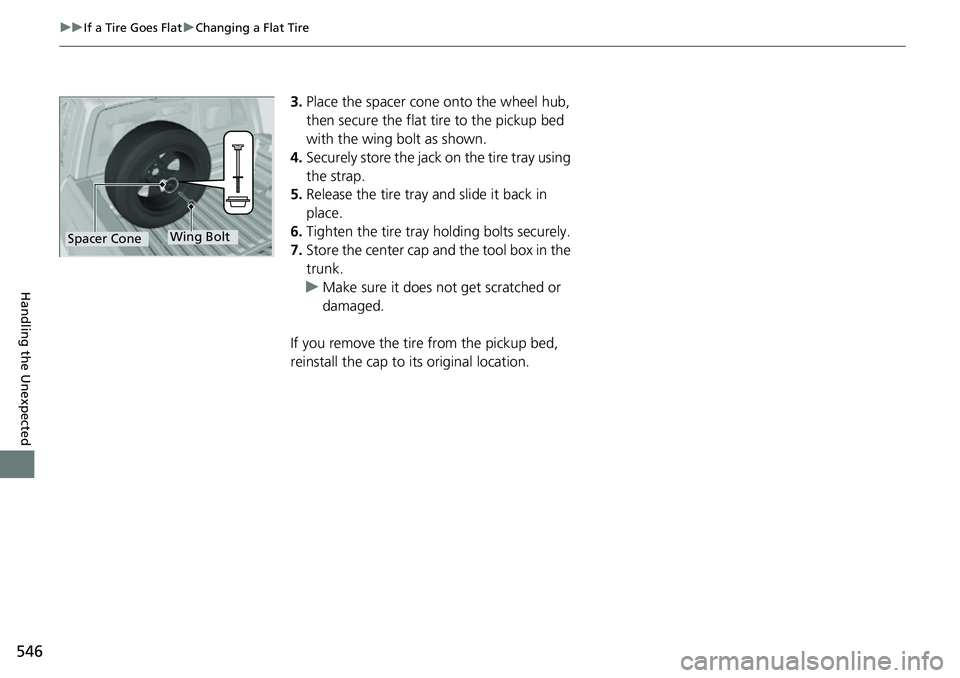

3. Place the spacer cone onto the wheel hub,
then secure the flat tire to the pickup bed
with the wing bolt as shown.
4. Securely store the jack on the tire tray using
the strap.
5. Release the tire tray and slide it back in
place.
6. Tighten the tire tray holding bolts securely.
7. Store the center cap and the tool box in the
trunk.
u Make sure it does not get scratched or
damaged.
If you remove the tire from the pickup bed,
reinstall the cap to its original location.
Wing BoltSpacer Cone

571Continued
Handling the Unexpected

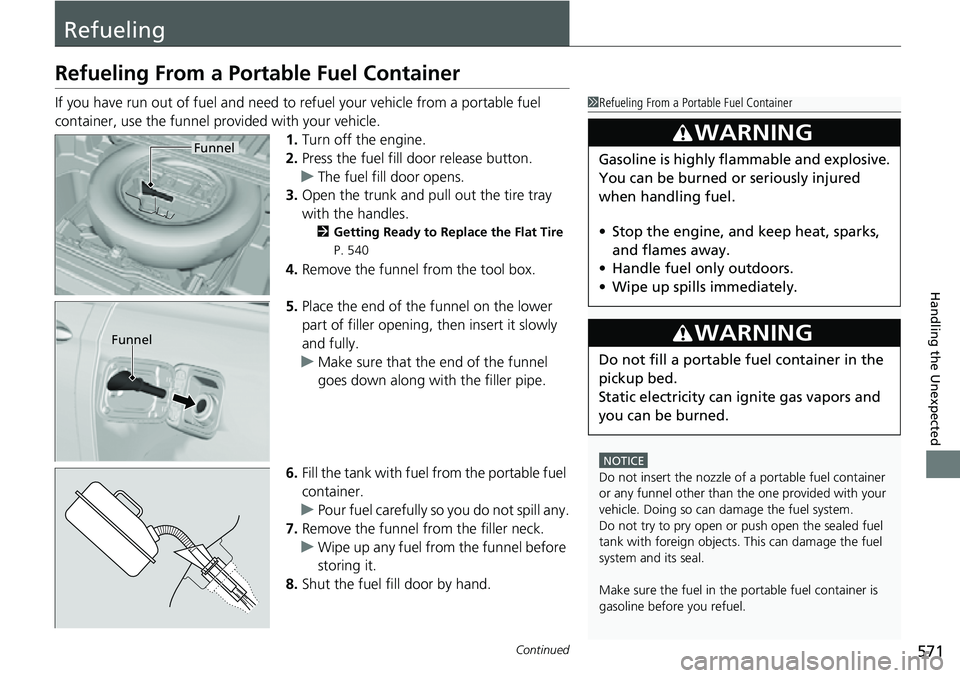

Refueling
Refueling From a Portable Fuel Container
If you have run out of fuel and need to refuel your vehicle from a portable fuel
container, use the funnel provided with your vehicle.
1.Turn off the engine.
2. Press the fuel fill door release button.
u The fuel fill door opens.
3. Open the trunk and pull out the tire tray
with the handles.
2 Getting Ready to Replace the Flat Tire
P. 540
4. Remove the funnel from the tool box.
5. Place the end of the funnel on the lower
part of filler opening, then insert it slowly
and fully.
u Make sure that the end of the funnel
goes down along with the filler pipe.
6. Fill the tank with fuel from the portable fuel
container.
u Pour fuel carefully so you do not spill any.
7. Remove the funnel from the filler neck.
u Wipe up any fuel from the funnel before
storing it.
8. Shut the fuel fill door by hand.
1Refueling From a Portable Fuel Container
NOTICE
Do not insert the nozzle of a portable fuel container
or any funnel other than the one provided with your
vehicle. Doing so can damage the fuel systemM
Do not try to pry open or push open the sealed fuel
tank with foreign objects. This can damage the fuel
system and its seal.
Make sure the fuel in the portable fuel container is
gasoline before you refuelM
3WARNING
Gasoline is highly flammable and explosive.
You can be burned or seriously injured
when handling fuel.
• Stop the engine, and keep heat, sparks,
and flames away.
• Handle fuel only outdoors.
• Wipe up spills immediately.
3WARNING
Do not fill a portable fuel container in the
pickup bed.
Static electricity can ignite gas vapors and
you can be burned.
Funnel
Funnel

589
Index
Creeping (Automatic Transmission)........ 394
Cross Traffic Monitor ............................... 477
Cup Holders .............................................. 179
Customer Service Information ................ 585
Customized Features ............................... 298
D
Daytime Running Lights .......................... 153
Dead Battery ............................................ 552
Defaulting All the Settings ...................... 322
Defogger/Heated Door Mirror ................ 159
Defrosting the Windshield and
Windows ................................................. 196
Devices that Emit Radio Waves ............... 577
Dimming
Headlights .............................................. 149
Rearview Mirror ...................................... 164
Dipstick (Engine Oil) ................................ 500
Directional Signals (Turn Signal) ............. 148
Display Button .......................................... 212
Door Mirrors ............................................. 165
Doors ........................................................ 117
Auto Door Locking.................................. 130
Auto Door Unlocking .............................. 130
Door Open Message ........................... 36, 96
Key ......................................................... 117
Locking/Unlocking the Doors from the Inside................................ 16, 127
Locking/Unlocking the Doors
from the Outside................................... 120 Lockout Prevention System ...................... 126
DOT Tire Quality Grading ........................ 519
Driving ....................................................... 363
Adaptive Cruise Control (ACC) ................ 438
Automatic Transmission ........................... 394
Braking .................................................... 468
Off-Highway Driving Guidelines ............... 383
Shifting ................................................... 395
Starting the Engine .................................. 385
Driving Guidelines for Your Utility Vehicle ..................................................... 392
Driving Position Memory System ............. 161
Dust and Pollen Filter ............................... 528
E
Eco Assist® System ...................................... 12
ECON Button ............................................. 403
ECON Mode Indicator ................................ 92
Electric Power Steering (EPS) System Indicator ............................................ 85, 559
Electronic Stability Control (ESC) ............. 412
Emergency ................................................ 568
Emergency Trunk Opener ........................ 135
Emissions Testing (Readiness Codes) ....... 579
Engine Coolant ................................................... 504
If the Battery Is Dead ............................... 552
Oil ........................................................... 499
Remote Engine Start ................................ 387
Starting ................................................... 385 Engine Compartment Cover
.................... 498
Engine Coolant ......................................... 504
Adding to the Radiator ............................ 505
Adding to the Reserve Tank..................... 504
Overheating ............................................ 555
Temperature Gauge ................................ 110
Engine Oil ................................................. 499
Adding .................................................... 501
Checking................................................. 500
Displaying Oil Life .................................... 491
Low Oil Pressure Indicator ................. 79, 557
Recommended Engine Oil ....................... 499
ENGINE START/STOP Button .................... 145
EPS (Electric Power Steering) System
Indicator............................................ 85, 559
Exhaust Gas Hazard (Carbon Monoxide) .................................. 74
Exterior Care (Cleaning) ........................... 531
Exterior Mirrors ........................................ 165
F
Features.................................................... 203
Filters
Dust and Pollen ....................................... 528
Oil ........................................................... 502
Flat Tire ..................................................... 539
Floor Mats ................................................. 530
Fluids Automatic Transmission .......................... 506
Brake ...................................................... 507

594
Index
Specifications............................................ 574
Specified Fuel .................................... 483, 574
Speedometer ............................................. 110
SRS Airbags (Airbags) ................................. 47
Starting Assist Brake Function ................. 411
Starting the Engine .................................. 385
Does Not Start ......................................... 549
If the Battery Is Dead ............................... 552
Remote Engine Start ................................ 387
Steering Wheel ......................................... 163
Adjusting ................................................. 163
Heater ..................................................... 187
Stopping .................................................... 472
Summer Tires ............................................ 524
Sunglasses Holder ..................................... 181
Supplemental Restraint System (SRS) ........ 47
Indicator .................................................... 82
Switches (Around the Steering Wheel) ......... 6, 7, 145
SYNC Mode ............................................... 198
System Message Indicator .......................... 87
T
Tachometer............................................... 110
Tailgate ..................................................... 131
Unable to Unlock ..................................... 570
Temperature Gauge ..................................................... 110
Outside Temperature Display ................... 113
Temperature Gauge ................................. 110 Temperature Sensor
......................... 113, 201
Tie-down Anchors .................................... 193
Time (Setting) ........................................... 116
Tire Fill Assist .................................... 416, 560
Tires ........................................................... 516
Air Pressure ..................................... 517, 575
Checking and Maintaining ...................... 516
Inspection ............................................... 516
Labeling .................................................. 517
Puncture (Flat Tire) .................................. 539
Regulations ............................................. 519
Rotation .................................................. 523
Spare Tire ........................................ 539, 575
Summer .................................................. 524
Tire Chains .............................................. 524
Wear Indicators ....................................... 521
Winter..................................................... 524
Tools .......................................................... 538
Towing a Trailer ....................................... 372
Equipment and Accessories ..................... 375
Load Limits .............................................. 372
Towing Your Vehicle ................................ 382
Emergency .............................................. 568
TPMS with Tire Fill Assist ......................... 416
Indicator............................................ 85, 560
Tire Fill Assist ........................................... 560
Trailer Stability Assist ............................... 380
Transmission ............................... 21, 394, 395
Automatic ................................. 21, 394, 395
Fluid ........................................................ 506
Number................................................... 576 Sequential Mode..................................... 401
Shift Position Indicator ...................... 80, 397
Transmission System Indicator ................. 561
Trip Meter ................................................ 113
Troubleshooting ...................................... 537
Blown Fuse ..................... 562, 564, 565, 566
Brake Pedal Vibrates ................................. 27
Buzzer Sounds When Opening Door ......... 28
Emergency Towing ................................. 568
Engine Won’t Start ................................. 549
Noise When Braking ................................. 28
Overheating ............................................ 555
Puncture/Flat Tire .................................... 539
Rear Door Won’t Open ..................... 27, 129
Warning Indicators.................................... 78
Truck Bed Audio ...................................... 277
Trunk ........................................................ 133
Lid .......................................................... 133
Main Switch............................................ 134
Turn Signals .............................................. 148
Indicators (Instru ment Panel) ..................... 85
Turn-by-Turn Directions .......................... 114U
Unlocking the Doors................................ 120
Unlocking the Front Doors
from the Inside ................................. 16, 127
USB Flash Drives ............................... 256, 282
USB Port .................................................... 205
