Continued69
uuChild Safety uSafety of Infants and Small Children

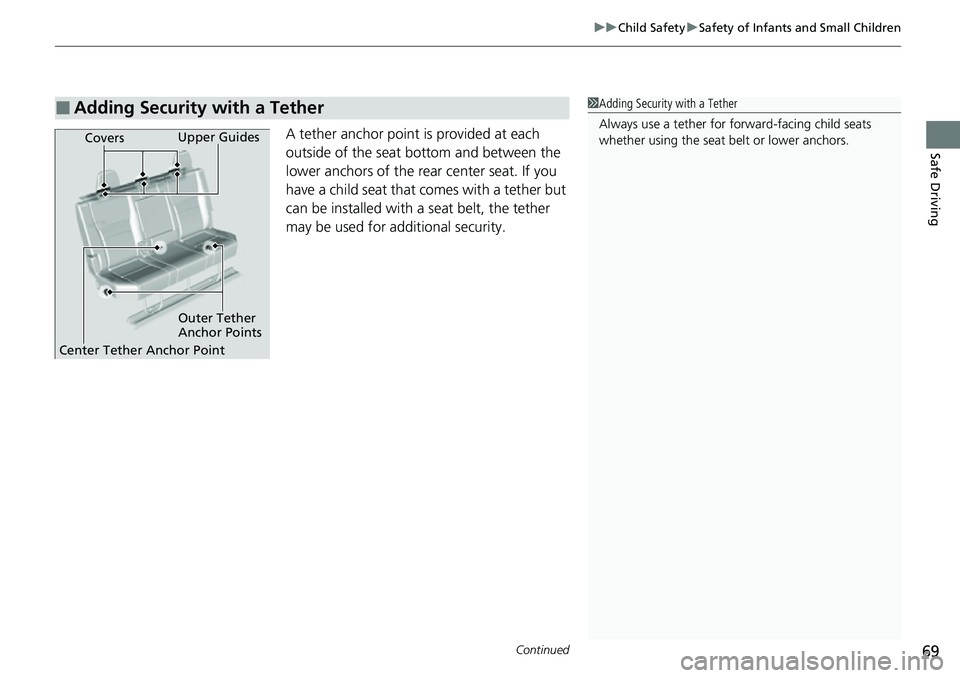

Safe DrivingA tether anchor point is provided at each
outside of the seat bottom and between the
lower anchors of the rear center seat. If you
have a child seat that comes with a tether but
can be installed with a seat belt, the tether
may be used for additional security.
■Adding Security with a Tether
Covers
Outer Tether
Anchor Points
Upper Guides
Center Tether Anchor Point
1 Adding Security with a Tether
Always use a tether for forward-facing child seats
whether using the seat belt or lower anchors.

70
uuChild Safety uSafety of Infants and Small Children
Safe Driving

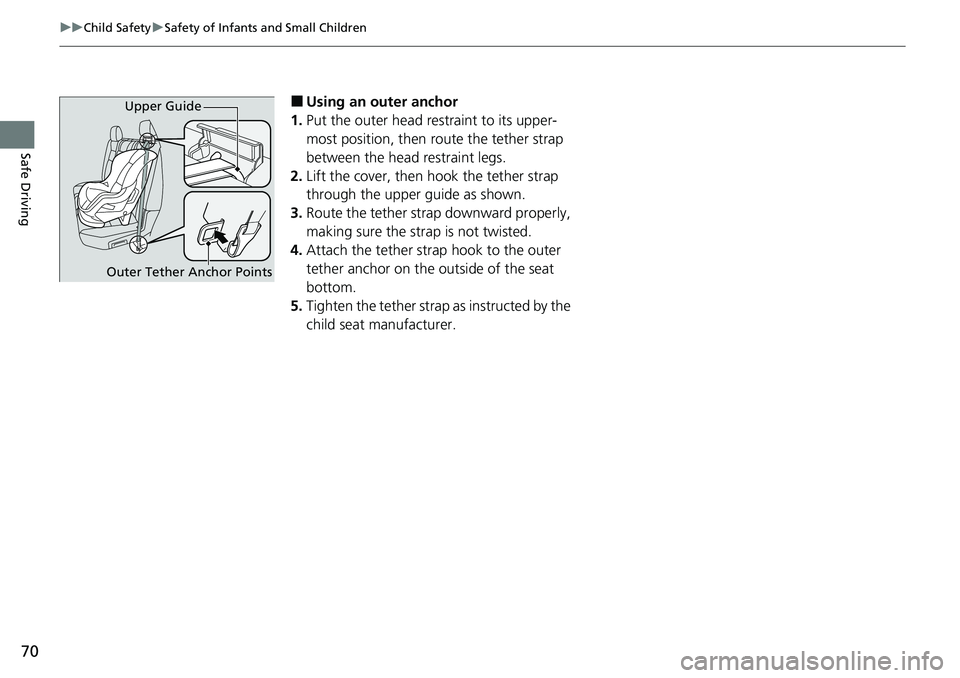

■Using an outer anchor
1. Put the outer head restraint to its upper-
most position, then route the tether strap
between the head restraint legs.
2. Lift the cover, then hook the tether strap
through the upper guide as shown.
3. Route the tether strap downward properly,
making sure the strap is not twisted.
4. Attach the tether strap hook to the outer
tether anchor on the outside of the seat
bottom.
5. Tighten the tether strap as instructed by the
child seat manufacturer.
Outer Tether Anchor Points Upper Guide

71
uuChild Safety uSafety of Infants and Small Children
Safe Driving

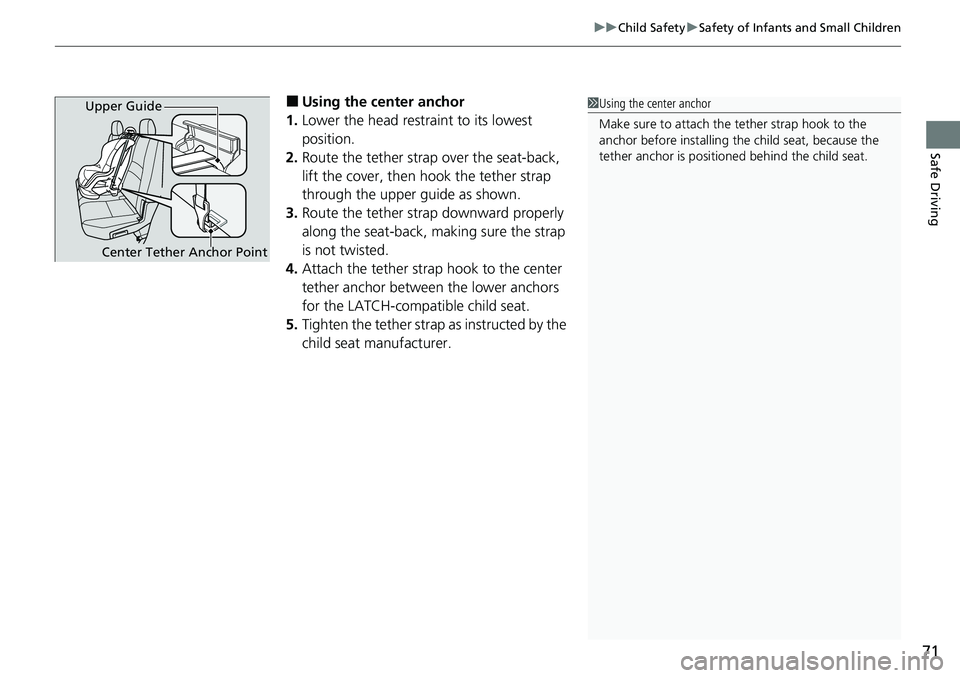

■Using the center anchor
1. Lower the head restraint to its lowest
position.
2. Route the tether strap over the seat-back,
lift the cover, then hook the tether strap
through the upper guide as shown.
3. Route the tether strap downward properly
along the seat-back, making sure the strap
is not twisted.
4. Attach the tether strap hook to the center
tether anchor between the lower anchors
for the LATCH-compatible child seat.
5. Tighten the tether strap as instructed by the
child seat manufacturer.1Using the center anchor
Make sure to attach the tether strap hook to the
anchor before installing th e child seat, because the
tether anchor is positione d behind the child seat.Upper Guide
Center Tether Anchor Point

72
uuChild Safety uSafety of Larger Children
Safe Driving

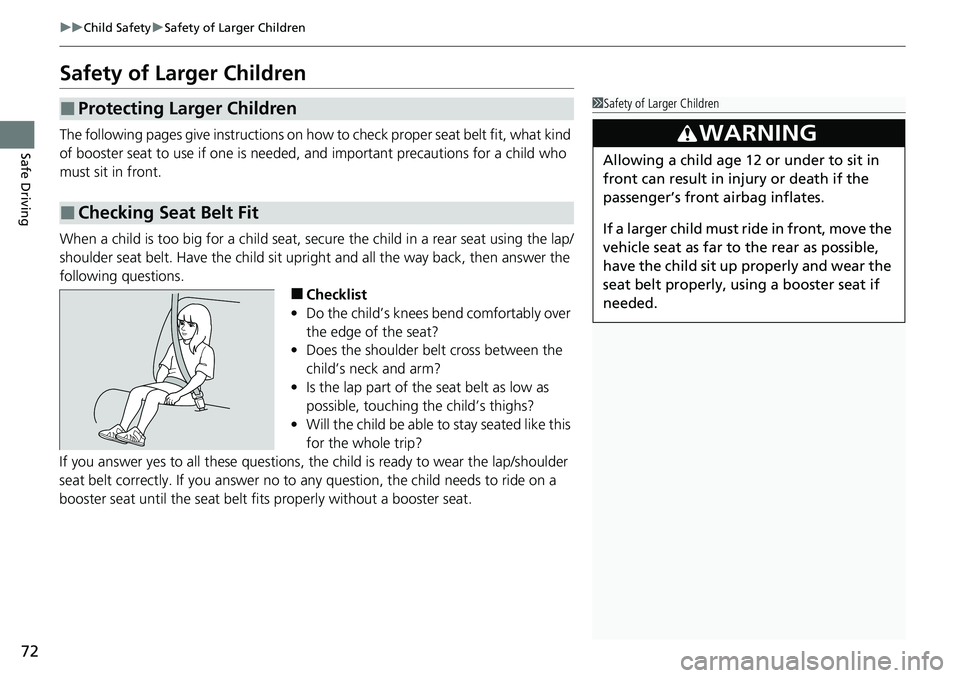

Safety of Larger Children
The following pages give instructions on how to check proper seat belt fit, what kind
of booster seat to use if one is needed, and important precautions for a child who
must sit in front.
When a child is too big for a child seat, secure the child in a rear seat using the lap/
shoulder seat belt. Have the child sit upright and all the way back, then answer the
following questions.
■Checklist
• Do the child’s knees bend comfortably over
the edge of the seat?
• Does the shoulder belt cross between the
child’s neck and arm?
• Is the lap part of the seat belt as low as
possible, touching the child’s thighs?
• Will the child be able to stay seated like this
for the whole trip?
If you answer yes to all thes e questions, the child is read y to wear the lap/shoulder
seat belt correctly. If you answer no to any question, the child needs to ride on a
booster seat until the seat belt fits properly without a booster seat.
■Protecting Larger Children
■Checking Seat Belt Fit
1 Safety of Larger Children
3WARNING
Allowing a child age 12 or under to sit in
front can result in injury or death if the
passenger’s front airbag inflates.
If a larger child must ride in front, move the
vehicle seat as far to the rear as possible,
have the child sit up properly and wear the
seat belt properly, using a booster seat if
needed.

73
uuChild Safety uSafety of Larger Children

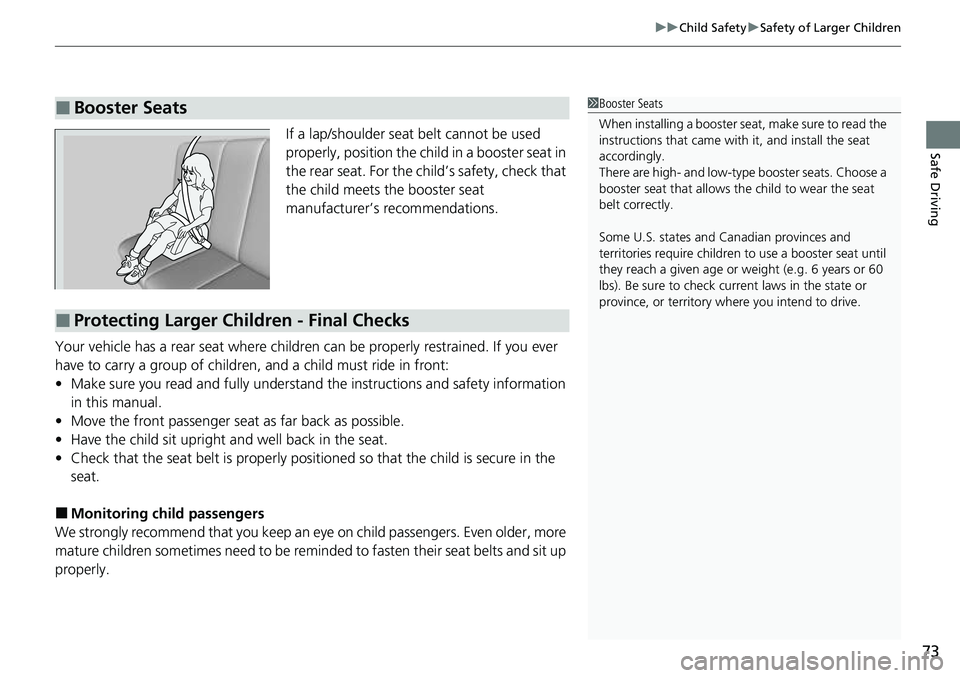

Safe DrivingIf a lap/shoulder seat belt cannot be used
properly, position the child in a booster seat in
the rear seat. For the child’s safety, check that
the child meets the booster seat
manufacturer’s recommendations.
Your vehicle has a rear seat where children can be properly restrained. If you ever
have to carry a group of children, and a child must ride in front:
• Make sure you read and fully understand the instructions and safety information
in this manual.
• Move the front passenger seat as far back as possible.
• Have the child sit upright and well back in the seat.
• Check that the seat belt is properly positi oned so that the child is secure in the
seat.
■Monitoring child passengers
We strongly recommend that you keep an eye on child passengers. Even older, more
mature children sometimes need to be remi nded to fasten their seat belts and sit up
properly.
■Booster Seats1 Booster Seats
When installing a booster seat , make sure to read the
instructions that came with it, and install the seat
accordingly.
There are high- and low-type booster seats. Choose a
booster seat that allows the child to wear the seat
belt correctly.
Some U.S. states and Canadian provinces and
territories require children to use a booster seat until
they reach a given age or weight (e.g. 6 years or 60
lbs). Be sure to check current laws in the state or
province, or territory where you intend to drive.
■Protecting Larger Children - Final Checks

74
Safe Driving

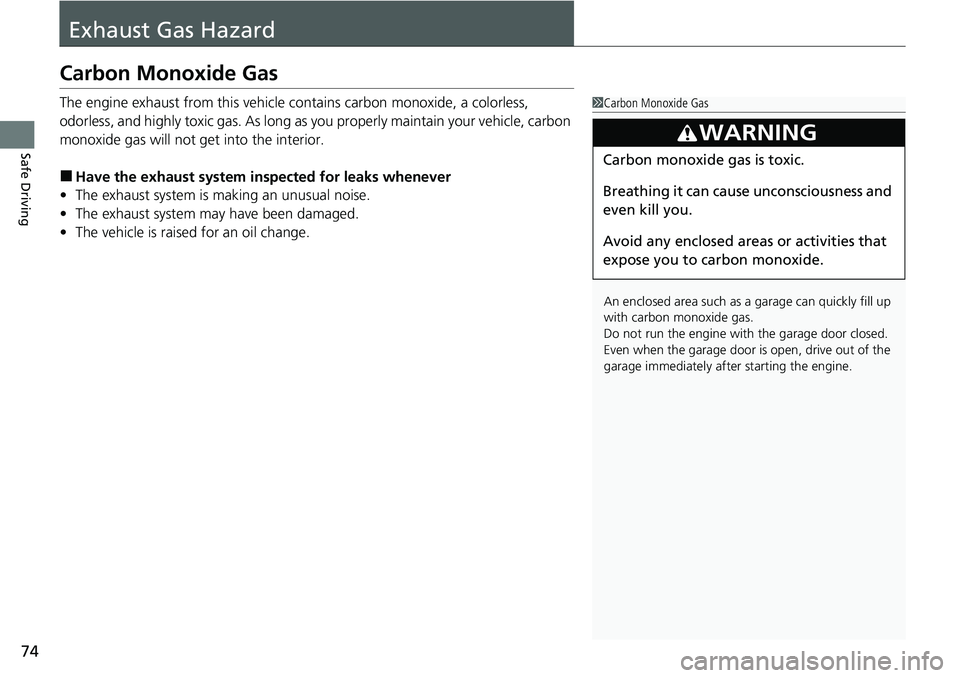

Exhaust Gas Hazard
Carbon Monoxide Gas
The engine exhaust from this vehicle contains carbon monoxide, a colorless,
odorless, and highly toxic gas. As long as you properly maintain your vehicle, carbon
monoxide gas will not get into the interior.
■Have the exhaust system in spected for leaks whenever
• The exhaust system is m aking an unusual noise.
• The exhaust system may have been damaged.
• The vehicle is raised for an oil change.
1Carbon Monoxide Gas
An enclosed area such as a garage can quickly fill up
with carbon monoxide gas.
Do not run the engine with the garage door closed.
Even when the garage door is open, drive out of the
garage immediat ely after starting the engine.
3WARNING
Carbon monoxide gas is toxic.
Breathing it can cause unconsciousness and
even kill you.
Avoid any enclosed areas or activities that
expose you to carbon monoxide.

75Continued
Safe Driving

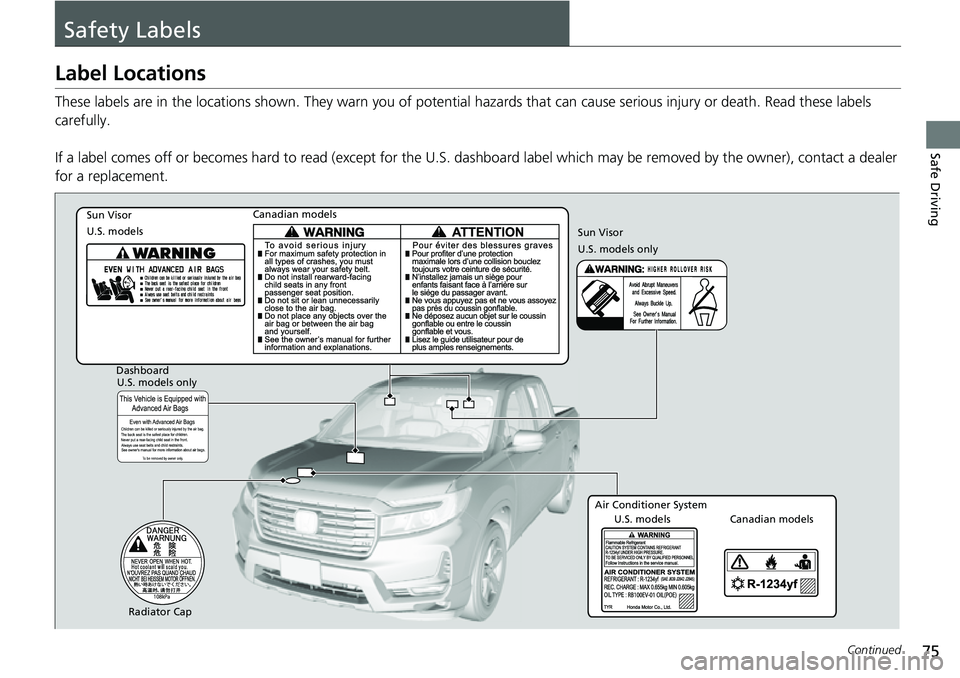

Safety Labels
Label Locations
These labels are in the locations shown. They warn you of potential hazards that can cause serious injury or death. Read these labels
carefully.
If a label comes off or becomes hard to read (except for the U. S. dashboard label which may be removed by the owner), contact a dealer
for a replacement.
Sun Visor
U.S. models Canadian models
Radiator Cap U.S. models
U.S. models only
Dashboard
Canadian models
Air Conditioner System
Sun Visor
U.S. models only

76

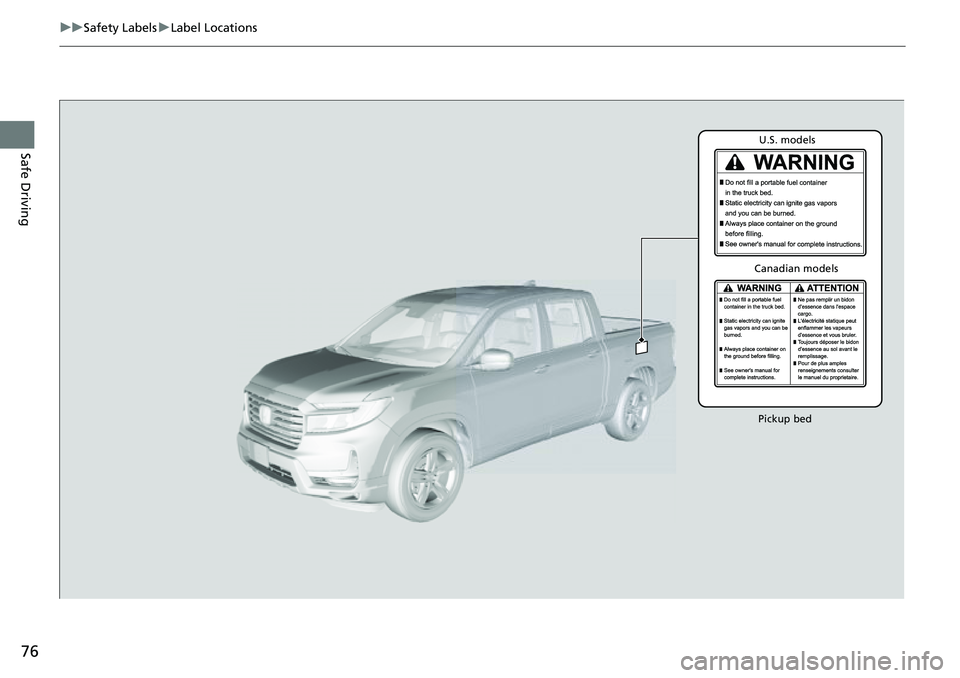

uuSafety Labels uLabel Locations
Safe Driving
Pickup bedU.S. models
Canadian models

77
Instrument Panel
This chapter describes the buttons, indicators, and gauges that are used while driving.
Indicators............................................ 78
Multi-Information Display Warning and Information Messages ...................... 96
Gauges and Multi-Information Display Gauges ............................................ 110
Multi-Information Display ................ 111

78

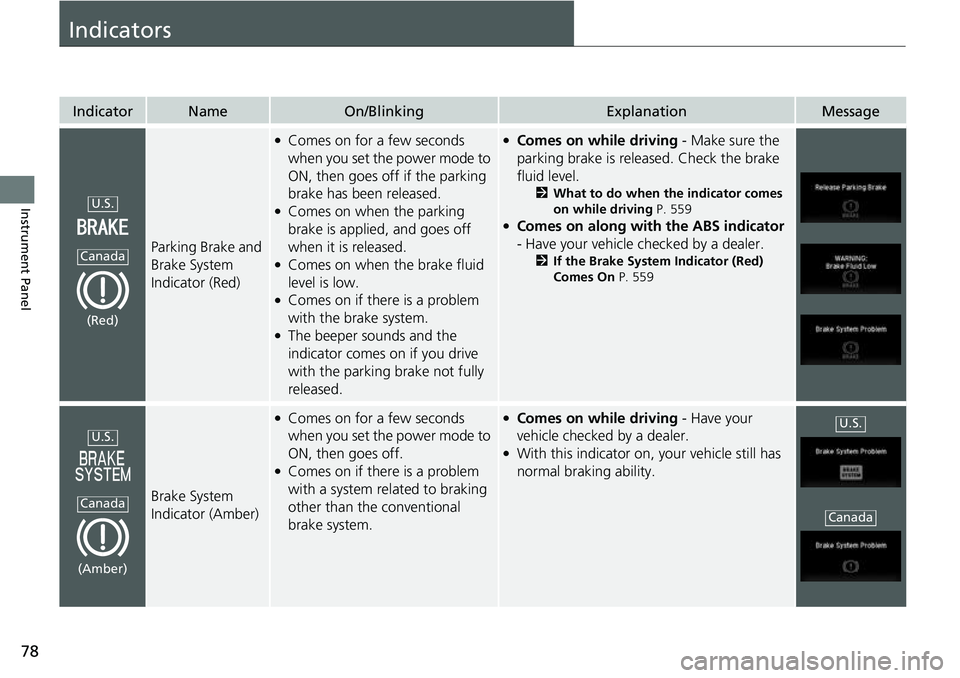

Instrument Panel
Indicators
IndicatorNameOn/BlinkingExplanationMessage
Parking Brake and
Brake System
Indicator (Red)
●Comes on for a few seconds
when you set the power mode to
ON, then goes off if the parking
brake has been released.
●Comes on when the parking
brake is applied, and goes off
when it is released.
●Comes on when the brake fluid
level is low.
●Comes on if there is a problem
with the brake system.
●The beeper sounds and the
indicator comes on if you drive
with the parking brake not fully
released.
●Comes on while driving - Make sure the
parking brake is released. Check the brake
fluid level.
2 What to do when the indicator comes
on while driving P. 559
●Comes on along with the ABS indicator
- Have your vehicle checked by a dealer.
2 If the Brake System Indicator (Red)
Comes On P. 559
Brake System
Indicator (Amber)
●Comes on for a few seconds
when you set the power mode to
ON, then goes off.
●Comes on if there is a problem
with a system related to braking
other than the conventional
brake system.
●Comes on while driving - Have your
vehicle checked by a dealer.
●With this indicator on, your vehicle still has
normal braking ability.
U.S.
Canada
(Red)
U.S.
Canada
(Amber)
U.S.
Canada
