The interior light has a three-
position switch. In the OFF position,
the light does not come on. In the
center position, the interior light
comes on when you open either door.
In the ON position, the interior light
stays on continuously.If the three-position switch is in the
center position, the interior light will
come on when you remove the key
from the ignition switch.
In addition, when the three position
switch is in the center position with
both doors closed, the two bulbs in
the interior light can be turned on
separately by the pushbutton
switches next to them. Push the
switch to turn the light on or off.
Interior Lights
Inst rument s and Cont rols68

Interior Convenience Items
Inst rument s and Cont rols69
BEVERAGE HOLDER
CONSOLE COMPARTMENT
ACCESSORY POWER SOCKET
AUDIO PANEL

Open the beverage holder by
pushing on the tab. The lid will slide
open.
Be caref ul when you are using the
beverage holder. A spilled liquid that
is very hot can scald you or your
passenger. Spilled liquids can also
damage the upholstery, carpeting,
and electrical components in the
interior.This socket is intended to supply
power f or 12 volt DC accessories
that are rated 120 watts or less (10
amps).
The area between the seat has two
compartments. Open the lower
compartment by squeezing the
handle. Close it with a f irm push.
You can lock or unlock the lower
compartment with the master key.
Interior Convenience Items
Inst rument s and Cont rols
Beverage Holder
Accessory Power Socket Console Compartments
70

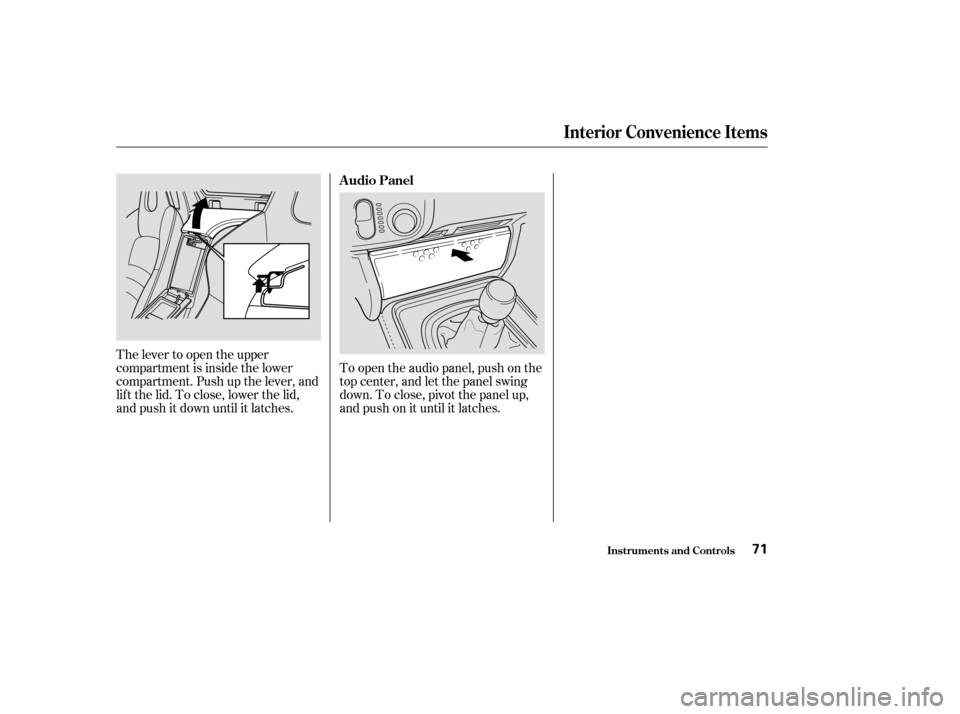

The lever to open the upper
compartment is inside the lower
compartment. Push up the lever, and
lif t the lid. To close, lower the lid,
and push it down until it latches.To open the audio panel, push on the
top center, and let the panel swing
down.Toclose,pivotthepanelup,
and push on it until it latches.
Interior Convenience Items
Inst rument s and Cont rols
Audio Panel
71

72

The heating and air conditioning
systems in your Honda provide a
comf ortable driving environment in
all weather conditions.
The standard audio system has
many f eatures. This section de-
scribes those f eatures and how to
use them. (If you selected an
optional audio system, ref er to the
operating instructions that came
with it.)...............
Vents, Heating, and A/C . 74
...............................
Airflow Buttons .75
............................
Playing the Radio .78
..............................
Radio Reception .81
....................................
Playing a CD .83
.....................................
CD Changer .84
......................
Protecting Your CDs .85
...........
CD Player Error Messages . 86
.......
CD Changer Error Messages . 87
...
Playing the XM
Satellite Radio . 88
..................
Remote Audio Controls . 93
...................
Radio Thef t Protection . 94
.................................
Cruise Control .95
Comf ort and Convenience Features
Comf ort and Convenience Feat ures73

Vents, Heating, and A/C
Comf ort and Convenience Feat ures74

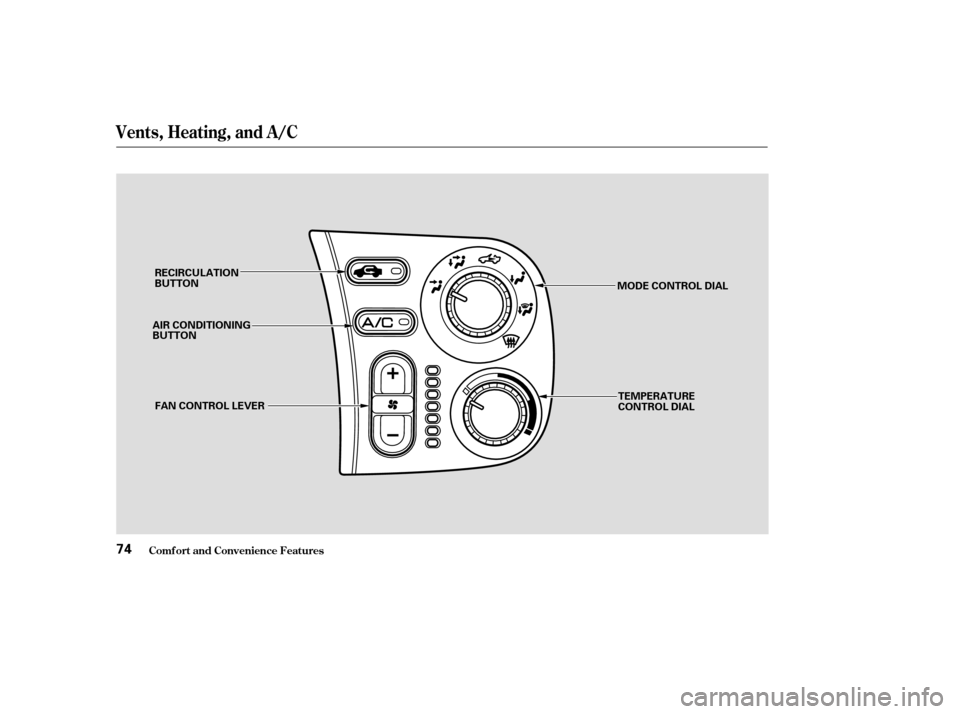

RECIRCULATION
BUTTON
AIR CONDITIONING
BUTTON
FAN CONTROL LEVER MODE CONTROL DIAL
TEMPERATURE
CONTROL DIAL

Push this lever up and down to
increase and decrease the f an speed.
The indicators next to the lever show
you the speed selected.
Turning this dial clockwise increases
the temperature of the airflow.
This button turns the air
conditioning on and of f . The
indicator in the button comes on
when the A/C is on.
This button controls the source of
the air going into the system. When
the indicator in this button is on, air
f rom the vehicle’s interior is sent
through the system again
(Recirculation mode). When the
indicator is of f , air is brought in f rom
outside the vehicle (Fresh Air mode).The outside air intakes f or the
heating and cooling system are at
the base of the windshield. Keep this
area clear of leaves and other debris.
ThesystemshouldbeleftinFresh
Air mode under almost all conditions.
Keeping the system in Recirculation
mode, particularly with the A/C of f ,
can cause the windows to fog up.
Switch to Recirculation mode when
driving through dusty or smoky
conditions, then return to Fresh Air
mode.
This button turns the rear window
def ogger of f and on (see page ).
Use the mode control dial to select
the vents the air flows from. Some
air will f low f rom the dashboard
vents in all modes. Air flows from the vents on
both sides of the instrument panel,
andfromthedashboardventinfront
of the passenger.
Airf low is divided between
the vents in the dashboard and the
f loor vents.
Air flows from the center
vents in the dashboard above the
audio system, the vents on both
sides of the instrument panel, and
f rom the f loor vents. Select this
position when you drive with the
convertible top f olded.
Air f lows f rom the f loor
vents and the vents on both sides of
the instrument panel.
Airf low is divided between
the f loor vents and the def roster
vents at the base of the windshield,
and the vents on both sides of the
instrument panel.
50
Comf ort and Convenience Feat ures
Fan Control L ever
T emperature Control Dial
Air Conditioning (A/C) Button
Recirculation Button
Rear Window Def ogger Button
Mode Control Dial
Airf low Buttons
75

The f low-through ventilation system
draws in outside air, circulates it
through the interior, then exhausts it
through vents behind the seat-backs.Turn the temperature control dial
all the way to the lef t.
Make sure the A/C is of f .
Select and Fresh Air mode.
Set the f an to the desired speed.
The heater uses engine coolant to
warm the air. If the engine is cold, it
will be several minutes bef ore you
f eel warm air coming f rom the
system. Select and Fresh Air mode.
Set the f an to the desired speed.
Adjust the warmth of the air with
the temperature control dial. Air conditioning places an extra load
on the engine. Watch the engine
coolant temperature gauge (see page
). If it moves near the red zone,
turn of f the A/C until the gauge
reads normally.
Turn on the A/C by pressing the
button. The indicator in the button
comesonwhenafanspeedis
selected.
Make sure the temperature
control dial is all the way to the left.
Select .
If the outside air is humid, select
Recirculation mode. If the outside
air is dry, select Fresh Air mode.
Set the f an to the desired speed. you can
cool it down more rapidly by partially
opening the windows, turning on the
A/C, and setting the fan to
maximum speed in Fresh Air mode.
Air f lows f rom the def roster
vents at the base of the windshield
and the vents on both sides of the
instrument panel.
When you select , the system
automatically switches to Fresh Air
mode and turns on the A/C. 1.
2.
3.
4.
1.
2.
3.1.
2.
3.
4.
5.45
If the interior is very warm,
Ventilation
Using the Heater
Using the A /C
Comf ort and Convenience Feat ures
Vents, Heating, and A/C
76

To remove f og f rom the inside of the
windows:
When you switch to another mode
f rom , the A/C stays on.
Press the A/C button to turn it of f .Select . The system
automatically switches to Fresh
Air mode and turns on the A/C.
Select .
Set the f an and temperature
controls to the maximum level.
Air conditioning, as it cools, removes
moisture from the air. When used in
combination with the heater, it
makes the interior warm and dry.
Switch the f an on.
Turn on the air conditioning.
Select and Fresh Air mode.
Adjust the temperature control
dial to your pref erence.
This setting is suitable f or all driving
conditions whenever the outside
temperature is above 32°F (0°C). Set the f an to the desired speed.
Select . When you select
, the system automatically
switches to Fresh Air mode and
turns on the A/C.
Adjust the temperature control
dial so the airflow feels warm.
Select to help clear the
rear window. To clear the windows f aster, you can
close the dashboard corner vents
and the vents on both sides of the
instrument panel by rotating the
wheel below the vent. This will send
more warm air to the windshield
def roster vents. Once the windshield
is clear, select the Fresh Air mode to
avoid f ogging the windows.
For your saf ety, make sure you have
a clear view through all the windows
bef ore driving.
1.
2.
3.
4.
1.
2.
3.
4.1.
2.
3.
Vents, Heating, and A/C
Comf ort and Convenience Feat ures
T o Def og and Def rost
T o Remove Exterior Frost or Ice
From the Windows
To Dehumidif y the Interior
77
