HONDA S2000 2007 2.G Owners Manual

Playing a CD
98

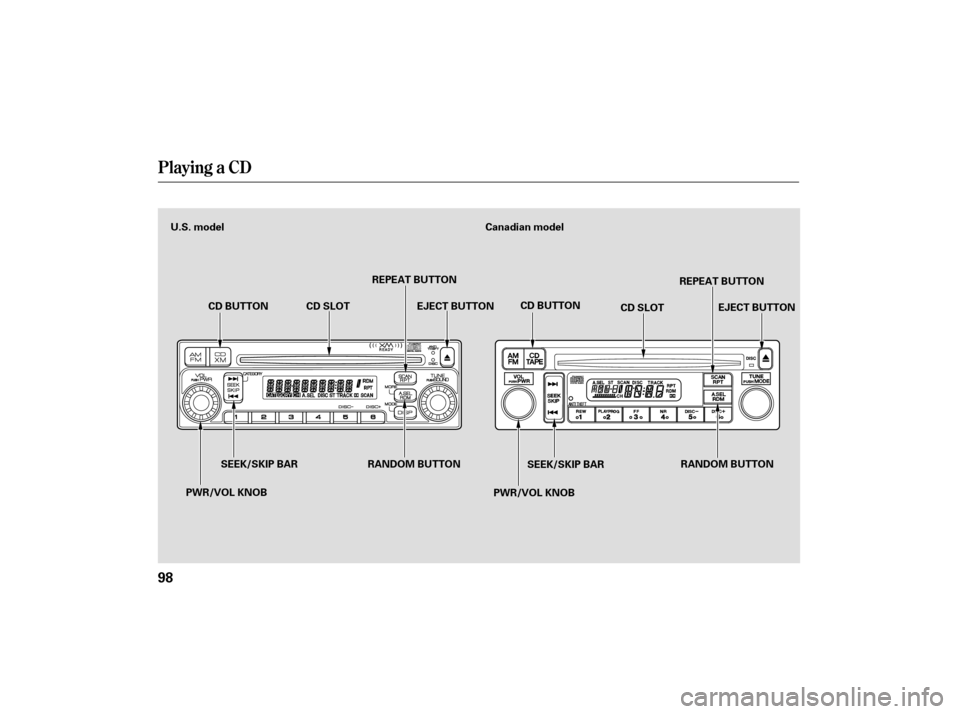

Canadian model
U.S. model
SEEK/SKIP BAR
CD BUTTON
REPEAT BUTTON
CD SLOT EJECT BUTTON
RANDOM BUTTON CD BUTTON
REPEAT BUTTON
CD SLOT
RANDOM BUTTONEJECT BUTTON
SEEK/SKIP BAR
PWR/VOL KNOB PWR/VOL KNOB

µµ
To load or play CDs, the ignition
switch must be in the ACCESSORY
(I) or the ON(II) position.
Each time you press and
release the side of the skip bar,
the player skips forward to the
beginning of the next track. Press
and release the side of the bar
to skip backward to the beginning of
the current track. Press it again to
skip to the beginning of the previous
track.
To play the radio when a CD is
playing, press the AM/FM button.
Press the CD button again to switch
back to the CD player.
If you turn the system of f while a CD
is playing, either with the PWR/VOL
knob or by turning off the ignition
switch, the disc will stay in the drive.
When you turn the system back on,
the CD will begin playing where it
left off.
You operate the CD player with the
same controls used f or the radio. To
select the CD player, press the CD
button. The number of the track
playing is shown in the display. The
system will continuously play a CD
until you change modes.
Insert a CD about half way into the
CD slot. The drive will pull the CD in
the rest of the way and begin to play
it. When the system reaches the end
of the disc, it will return to the
beginning and play the disc again.
To move rapidly within a track, press
and hold or .
To move rapidly within a
track, press and hold the SEEK/
SKIP bar. Press and hold to
move forward. Press and hold to move backward. Release the
bar when the system reaches the
point you want.
CONT INUED
To Play a CD SK IP To Change or Select Tracks
SEEK
Playing a CD
Features
99
Do not use discs with adhesive labels.
The label can curl up and cause the
disc to jam in the unit.

µµ
µ´
To continuously replay
a track, press and release the RPT
button. You will see RPT in the
display. Press it again to turn it of f .
This f eature plays the
tracks in random order. To activate
random play, press and release the
RDM button. You will see RDM in
the display. Press it again to return
to normal play.
Press the eject button ( ) to
remove the CD. If you eject the CD,
but do not remove it f rom the slot,
the system will automatically reload
the CD af ter 15 seconds and put it in
pause mode. To begin playing, press
the CD button.
Press the AM/FM button to switch
to the radio while a CD is playing. If you turn the system of f while a CD
is playing, either with the PWR/VOL
knob or by turning off the ignition
switch, the disc will stay in the drive.
When you turn the system back on,
the CD will begin playing where it
left off.
An optional six disc CD changer is
available for your vehicle. This CD
changer uses the same controls used
f or the in-dash CD player.
Load the desired CDs into the
magazine, and load the magazine
into the changer according to the
instructions that came with the unit.
To select the CD changer, press the
CD button. The CD and track
numbers will be displayed. To select
a dif f erent CD, use the preset 5
(DISC ) or preset 6 (DISC )
button. If you select an empty slot in
the magazine, the changer will, af ter
f inding that slot empty, try to load
the CD in the next slot.
REPEAT
RANDOM
To Stop Playing a CD
Operating the Optional CD
Changer
Playing a CD, CD Changer
100

When using CD-R discs, use only
high quality CDs labeled f or audio
use.
When recording a CD-R, the
recording must be closed f or it to
be used by the system.
CD-RW discs will not work in this
unit.
Play only standard round CDs.
Odd-shaped CDs may jam in the
driveorcauseotherproblems.
Handle your CDs properly to
prevent damage and skipping.When a CD is not being played, store
it in its case to protect it f rom dust
and other contamination. To prevent
warpage, keep CDs out of direct
sunlight and extreme heat.
To clean a CD, use a clean sof t cloth.
Wipe across the CD f rom the center
to the outside edge.
AnewCDmayberoughonthe
inner and outer edges. The small
plastic pieces causing this roughness
can f lake of f and f all on the re-
cording surf ace of the CD, causing
skipping or other problems. Remove
these pieces by rubbing the inner
and outer edges with the side of a
pencil or pen.
Never try to insert f oreign objects in
the CD player or the magazine.
Handle a CD by its edges; never
touch either surf ace. Do not place
stabilizer rings or labels on the CD.
These, along with contamination
f rom f ingerprints, liquids, and f elt-tip
pens, can cause the CD to not play
properly or possibly jam in the drive.
Protecting Your CDs
General Inf ormat ion
Prot ect ing CDs
Protecting Your CDs
Features
101

Î
Î
Î Î
Î Î
Î
Î
Thechartontherightexplainsthe
error messages you may see in the
display while playing a disc.
If you see an error message in the
display while playing a disc, press
the eject button. After ejecting the
disc, check it for damage or
deformation. If there is no damage,
insert the disc again.
Theaudiosystemwilltrytoplaythe
disc. If there is still a problem, the
error message will reappear. Press
the eject button, and pull out the disc.
Insert a dif f erent disc. If the new
disc plays, there is a problem with
the f irst disc. If the error message
cycle repeats and you cannot clear it,
take your vehicle to a dealer. Error
Message Cause
Solution
FOCUS Error
Mechanical Error
High temperature Press the EJECT button, and pull out the CD.
Check if the CD is inserted correctly in the CD
player.
Make sure the CD is not scratched or damaged.
Press the EJECT button, and pull out the CD.
Check the CD for damage or deformation.
If the CD cannot be pulled out or the error
message does not disappear after the CD is
ejected, see your dealer.
Do not try to force the disc out of the player.
Will disappear when the temperature returns to
normal.
1:U.S.model
2 : Canadian model
2 1
2 1
1
2
CD Player Error Messages
CD Player Error Messages
102

Î
Î
ÎÎ Î
Î
Î
Î
Î Î
Cause
Error
Message Solution
Thechartontherightexplainsthe
error messages you may see in the
display while playing a disc.
If you see an error message in the
display while playing a disc, press
the eject button. After ejecting the
disc, check it for damage or
deformation. If there is no damage,
insert the disc again.
Theaudiosystemwilltrytoplaythe
disc. If there is still a problem, the
error message will reappear. Press
the eject button, and pull out the disc.
Insert a dif f erent disc. If the new
disc plays, there is a problem with
the f irst disc. If the error message
cycle repeats and you cannot clear it,
take your vehicle to a dealer.
FOCUS Error
No CD in the CD
magazine
Mechanical Error
High temperature
No CD magazine in the
CD changer Press the magazine eject button, pull out the
magazine, and check for an error message.
Insertthemagazineagain.Iftheerrormessage
does not disappear or the magazine cannot be
pulled out, see your dealer.
Insert CD.
Press the magazine eject button, and pull it out.
Check f or an error message, and insert the
magazine again. If the error message does not
disappear or the magazine cannot be pulled out,
see your dealer.
Will disappear when the temperature returns to
normal.
Insert CD magazine.
1:U.S.model
2 : Canadian model
2
2 1
2
1
1
1 2
CD Changer Error Messages
Features
103

´
µ

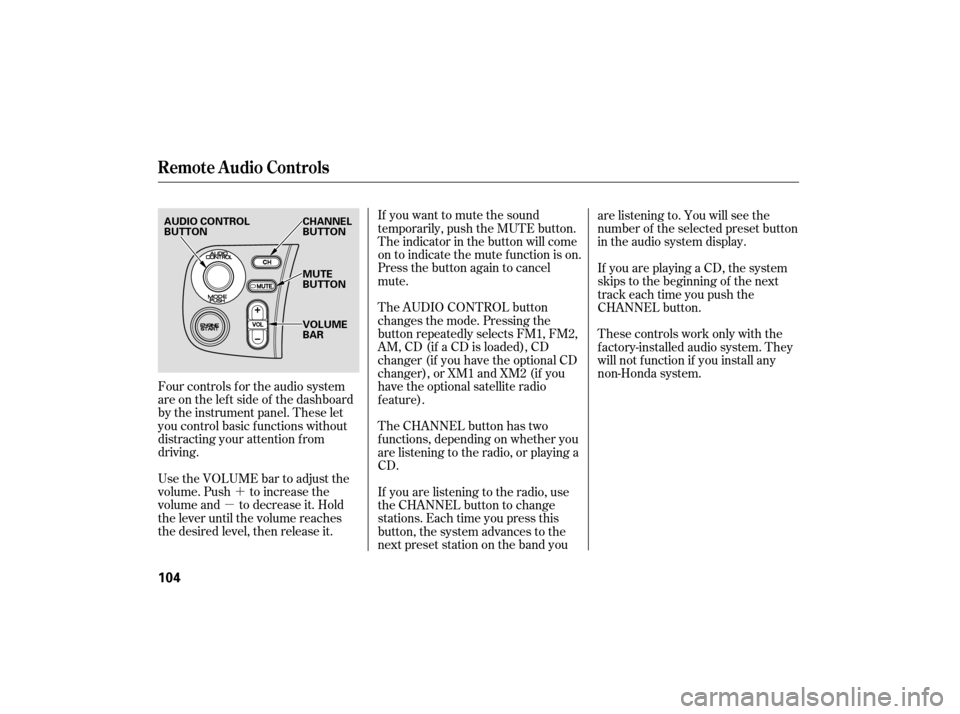

Four controls f or the audio system
areontheleftsideof thedashboard
by the instrument panel. These let
you control basic f unctions without
distracting your attention f rom
driving.
Use the VOLUME bar to adjust the
volume. Push to increase the
volume and to decrease it. Hold
the lever until the volume reaches
the desired level, then release it. If you want to mute the sound
temporarily, push the MUTE button.
The indicator in the button will come
on to indicate the mute f unction is on.
Press the button again to cancel
mute.
The AUDIO CONTROL button
changes the mode. Pressing the
button repeatedly selects FM1, FM2,
AM,CD(if aCDisloaded),CD
changer (if you have the optional CD
changer), or XM1 and XM2 (if you
have the optional satellite radio
f eature).
The CHANNEL button has two
f unctions, depending on whether you
are listening to the radio, or playing a
CD.
If you are listening to the radio, use
the CHANNEL button to change
stations. Each time you press this
button, the system advances to the
next preset station on the band youare listening to. You will see the
number of the selected preset button
in the audio system display.
If youareplayingaCD,thesystem
skips to the beginning of the next
track each time you push the
CHANNEL button.
These controls work only with the
f actory-installed audio system. They
will not f unction if you install any
non-Honda system.
Remote Audio Controls
104
AUDIO CONTROL
BUTTON
CHANNEL
BUTTON
MUTE
BUTTON
VOLUME
BAR

Your vehicle’s audio system will
disable itself if it is disconnected
f rom electrical power f or any reason.
To make it work again, you must
enter a specif ic f ive-digit code in the
preset buttons. Because there are
hundreds of number combinations
possible f rom f ive digits, making the
system work without knowing the
exact code is nearly impossible.You will have to store your favorite
stations in the preset buttons after
the system begins working. Your
original settings were lost when the
power was disconnected.
If you lose the card, you must obtain
the code number f rom a dealer. To
do this, you will need the system’s
serial number. Youshouldhavereceivedacardthat
lists your audio system’s code and
serial numbers. It is best to store this
card in a saf e place at home. In
addition, you should write the audio
system’s serial number in this owner’s
manual. If your vehicle’s battery is
disconnected or goes dead, or the
radio f use is removed, the audio
system will disable itself . If this
happens, you will see ‘‘CODE’’ (U.S.
model) or ‘‘Code’’ (Canadian model)
inthefrequencydisplaythenext
timeyouturnonthesystem.Usethe
preset buttons to enter the five-digit
code. The code is on the radio code
card included in your owner’s
manual kit. When it is entered
correctly, the radio will start playing.
If you make a mistake entering the
code, do not start over; complete the
f ive-digit sequence, then enter the
correct code. You have 10 tries to
enter the correct code. If you are
unsuccessf ul in 10 attempts, you
must then leave the system on for 1
hour bef ore trying again.
Radio T hef t Protection
Features
105

Cruise control allows you to maintain
asetspeedabove25mph(40km/h)
without keeping your f oot on the
accelerator pedal. It should be used
f or cruising on straight, open
highways. It is not recommended f or
city driving, winding roads, slippery
roads, heavy rain, or bad weather.Press and release the SET/decel
buttononthesteeringwheel.The
indicator on the instrument panel
comes on to show the system is
now activated.
Accelerate to the desired cruising
speedabove25mph(40km/h). Push in the CRUISE button. The
indicator over the button comes on.
1.
2. 3.
Cruise Control
Using the Cruise Control
106
CANCEL BUTTON
SET/decel
RESUME/accel
CRUISE BUTTON
Improper use of the cruise
control can lead to a crash.
Use the cruise control only
when traveling on open
highways in good weather.

You can increase the set cruising
speed in any of these ways:Press and hold the RESUME/
accel button. When you reach the
desired cruising speed, release the
button.
Push on the accelerator pedal.
Accelerate to the desired cruising
speed, and press the SET/decel
button. You can decrease the set cruising
speed in any of these ways:
Press and hold the SET/decel
button. Release the button when
you reach the desired speed.
To slow down in very small
amounts, tap the SET/decel
button. Each time you do this,
your vehicle will slow down about
1 mph (1.6 km/h).
Tap the brake or clutch pedal
lightly with your f oot. The
CRUISE CONTROL indicator on
the instrument panel goes out.
When the vehicle slows to the
desired speed, press the SET/
decel button.
Cruise control may not hold the
set speed when you are going up
and down hills. If your speed
increases going down a hill, use
the brakes to slow down. This will
cancelthecruisecontrol.To
resume the set speed, press the
RESUME/accel button. The
indicator on the instrument panel
will come back on.
To increase the speed in very
small amounts, tap the RESUME/
accel button. Each time you do
this, your vehicle speeds up about
1 mph (1.6 km/h).
CONT INUED
Changing the Set Speed
Cruise Control
Features
107
