Saf ely pull of f the road, and shut
of f the engine. Turn on the hazard
warning indicators.
Let the vehicle sit f or a minute.
Open the hood, and check the oil
level (see page ). An engine
very low on oil can lose pressure
during cornering and other driving
maneuvers.
If necessary, add oil to bring the
level back to the full mark on the
dipstick (see page ).
Start the engine, and watch the oil
pressure indicator. If it does not go
out within 10 seconds, turn of f the
engine. There is a mechanical
problem that needs to be repaired
bef ore you can continue driving
(see on page).
This indicator should never come on
when the engine is running. If it
starts flashing or stays on, the oil
pressure has dropped very low or
lost pressure. Serious engine
damage is possible, and you should
take immediate action.
If the charging system indicator
comes on brightly when the engine
is running, the battery is not being
charged.
Go to a service station or garage
where you can get technical
assistance.
Immediately turn of f all electrical
accessories. Try not to use other
electrically operated controls such as
the power windows. Keep the engine
running; starting the engine will
discharge the battery rapidly.
1.
2.
3.
4.
170
131
228
L ow Oil Pressure Indicator, Charging System Indicator
Emergency T owing
L ow Oil Pressure
Indicator
Charging System
Indicator
218
Running the engine with low oil
pressure can cause serious mechanical
damage almost immediately. Turn of f
the engine as soon as you can saf ely get
the vehicle stopped.
\f—\f—y

y
(\fy\fy
2008 S2000

If the indicator comes on repeatedly,
even though it may go of f as you
continue driving, have your vehicle
checked by a dealer as soon as
possible.
If this indicator comes on
while driving, it means one
of the engine’s emissions control
systems may have a problem. Even
though you may f eel no dif f erence in
your vehicle’s perf ormance, it can
reduce your f uel economy and cause
increased emissions. Continued
operation may cause serious damage.
Your vehicle has certain ‘‘readiness
codes’’ that are part of the on-board
diagnostics f or the emissions
systems. In some states, part of the
emissions testing is to make sure
these codes are set. If they are not
set, the test cannot be completed.
If you have recently ref ueled your
vehicle, the indicator coming on
could be due to a loose or missing
f uel f ill cap. You will also see a
‘‘CHECK FUEL CAP’’ message on
the inf ormation display. Tighten the
cap until it clicks at least once.
Tightening the cap will not turn the
indicator of f immediately; it can take
several days of normal driving. If your vehicle’s battery has been
disconnected or gone dead, these
codes are erased. It can take several
days of driving under various
conditions to set the codes again.
To check if they are set, turn the
ignition switch to the ON (II)
position, without starting the engine.
The malf unction indicator lamp will
come on f or 20 seconds. If it then
goes of f , the readiness codes are set.
If it blinks f ive times, the readiness
codes are not set. If possible, do not
take your vehicle f or an emissions
test until the readiness codes are set.
Refer to for
more information (see page ).
245
Malf unction Indicator L amp
Readiness Codes
Emissions T estingT aking Care of t he Unexpect ed
219
If you keep driving with the
malf unction indicator lamp on, you can
damage your vehicle’s emissions
controls and engine. Those repairs may
not be covered by your vehicle’s
warranties.
\f—\f—y
y
(\fy\fy
2008 S2000

If the brake system indicator comes
on while driving, the brake f luid level
is probably low. Press lightly on the
brake pedal to see if it f eels normal.
If it does, check the brake f luid level
thenexttimeyoustopataservice
station (see page ).
If the f luid level is low, take your
vehicle to a dealer, and have the
brake system inspected f or leaks or
worn brake pads.However, if the brake pedal does not
f eel normal, you should take
immediate action. A problem in one
part of the system’s dual circuit
design will still give you braking at
two wheels. You will f eel the brake
pedal go down much f arther bef ore
the vehicle begins to slow down, and
you will have to press harder on the
pedal.
Slow down by shif ting to a lower
gear, and pull to the side of the road
when it is saf e. Because of the long
distance needed to stop, it is
hazardous to drive the vehicle. You
should have it towed and repaired as
soon as possible (see
on page ).
If you must drive the vehicle a short
distance in this condition, drive
slowly and caref ully.
The brake system
indicator normally
comes on when
you turn the ignition switch to the
ON (II) position, and as a reminder
to check the parking brake. It will
stay on if you do not f ully release the
parking brake.
178 228Emergency
Towing
Brake System Indicator
220
Canada
U.S.
\f—\f—y
y
(\fy\fy
2008 S2000

Locate the electrical connector f or
the convertible top motor.
It is under the lower corner of the
dashboard on the passenger’s side.
Disconnect the connector by
pushing the tab and pulling the
connector down.Holding each corner of the
convertible top, raise the top and
push it forward as far as it will go.
Follow steps 4 through 6 of the
closing procedure on page .
Try closing the convertible top. If
the new f use blows immediately or
the convertible top still does not
operate, you can close it manually.
Check the f use f or the convertible
top motor (see page ). If the
f use is blown, replace it with one
of thesameorlowerrating.
If the electric motor will not close
the convertible top, do the f ollowing.
3.
1.
2.
4.
5.76
222
Except CR models
Closing the Convertible Top
T aking Care of t he Unexpect ed
221
CONNECTOR
\f—\f—y
y
(\fy\fy
2008 S2000

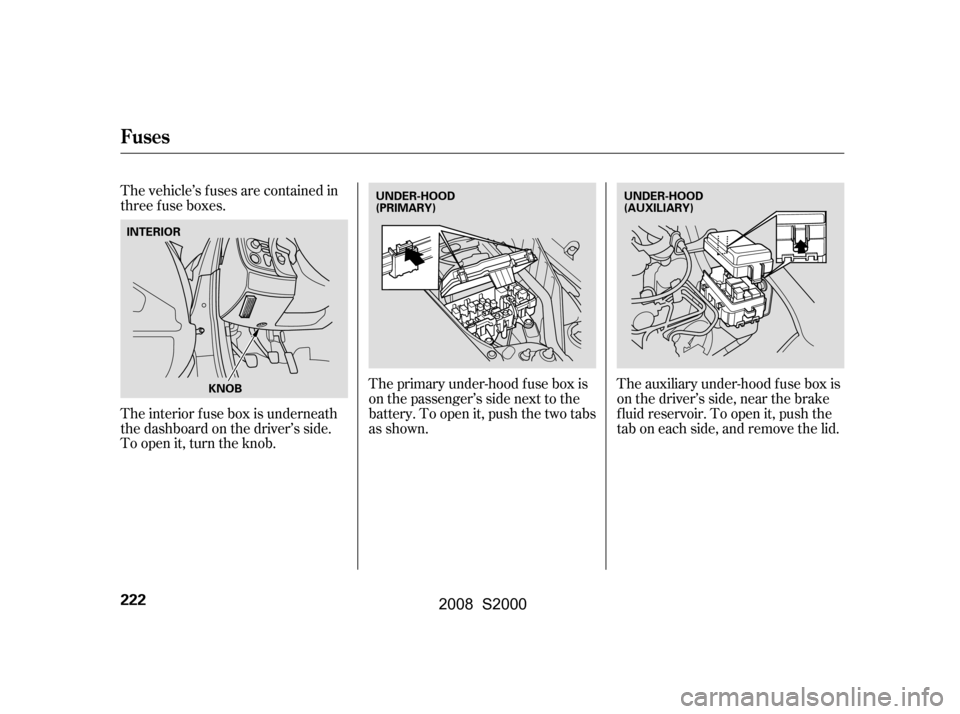

The vehicle’s f uses are contained in
threefuseboxes.The primary under-hood f use box is
onthepassenger’ssidenexttothe
battery. To open it, push the two tabs
as shown.The auxiliary under-hood f use box is
on the driver’s side, near the brake
f luid reservoir. To open it, push the
taboneachside,andremovethelid.
The interior f use box is underneath
the dashboard on the driver’s side.
To open it, turn the knob.
Fuses
222
INTERIOR UNDER-HOOD
(PRIMARY)
UNDER-HOOD
(AUXILIARY)
KNOB
\f—\f—y
y
(\fy\fy
2008 S2000

CONT INUED
If something electrical in your
vehicle stops working, check f or a
blown f use f irst. Determine f rom the
chart on pages and , or the
diagram on the f use box lid, which
f use or f uses control that device.
Check those f uses f irst, but check all
the f uses bef ore deciding that a
blown f use is the cause. Replace any
blown f uses, and check if the device
works.Turn the ignition switch to the
LOCK (0) position. Make sure the
headlights and all other
accessories are of f .
Remove the cover f rom the f use
box. Check each of the large f uses in
the primary under-hood f use box
by looking through the top at the
wire inside. Removing these f uses
requires a Phillips-head
screwdriver.
Check the smaller f uses in the
under-hood f use boxes and all the
fuses in the interior fuse box by
pulling out each one with the f use
puller provided in the interior f use
box.
1.
2. 3. 4.
226227
Fuses
Checking and Replacing Fuses
T aking Care of t he Unexpect ed
223
BLOWN
FUSE PULLER
\f—\f—y
y
(\fy\fy
2008 S2000

If you cannot drive the vehicle
without f ixing the problem, and you
do not have a spare fuse, take a fuse
of the same rating or a lower rating
f rom one of the other circuits. Make
sureyoucandowithoutthatcircuit
temporarily (such as the accessory
power socket or radio).
If you replace the blown f use with a
spare f use that has a lower rating, it
might blow out again. This does not
indicate anything wrong. Replace the
f use with one of the correct rating as
soon as you can.If the replacement fuse of the
same rating blows in a short time,
there is probably a serious
electrical problem with your
vehicle. Leave the blown fuse in
that circuit, and have your vehicle
checked by a qualif ied technician.
Look f or a blown wire inside the
f use. If it is blown, replace it with
oneof thesparefusesof thesame
rating or lower. 6.
5.
Fuses
224
BLOWN
Replacing a f use with one that has a
higher rating greatly increases the
chances of damaging the electrical
system. If you do not have a
replacement f use with the proper rating
f or the circuit, install one with a lower
rating.
\f—\f—y
\fy
(\fy\fy
2008 S2000

If the radio f use is removed, the
audio system will disable itself . The
nexttimeyouturnontheradioyou
will see ‘‘CODE’’ (U.S. model) or
‘‘Code’’ (Canadian model) in the
f requency display. Use the preset
buttons to enter the five-digit code
(see page ).
If thefusefortheinstrumentpanel
is removed, the clock setting in the
instrument panel will be canceled. To
reset the time, see page .123
56
Fuses
T aking Care of t he Unexpect ed
225
\f—\f—y
\fy
(\fy\f\fy
2008 S2000

µÎ
Î
No.
No. Amps. Circuits Protected Amps. Circuits Protected
14
15
16
17
18
19
20
21
22
23
24
25
26
27
1
2
3
4
5
6
7
8
9
10
11
12
13 7.5 A
15 A
7.5 A
7.5 A 10 A
20 A
7.5 A 15 A
7.5 A
7.5 A 15 A
10 A Windshield Wiper,
Auto Stop Signal
Washer Motor
IGP (DBW)
IGP (LAF)
Accessory Socket
Windshield Wiper
Turn Signal Light
ACG
Meter, Backup Lights
Not used
Engine Start
Fuel Pump, SRS
SRS 10 A
15 A
7.5 A
7.5 A 10 A
15 A
7.5 A
7.5 A
7.5 A 20 A
20 A
15 A
15 A
15 A Daytime Running Lights
Keyless Entry
Back-up
Interior Light
Small Lights
Radio
TPMS
Heater Control,
Cooling Fan Relay
Power Mirrors
Right Power Window
Lef t Power Window
IG Coil
LAF
DBW
: if equipped
Fuse Locations
226
I
IN
NT
TE
ER
RI
IO
OR
RF
FU
US
SE
EB
BO
OX
X
\f—\f—y

y
(\fy\f
y
2008 S2000

µ
µ
µ
µ
µ
µ
µµ
µ
Î
Î
Î
Î Î
Î
Î
No. No.
Amps. Circuits Protected
No. Amps. Amps. Circuits Protected
Circuits Protected
1
2
3
4
5
6
7
8
9
10
11
12
13 14
15
16
17
18
19
20
21
22
23
24
25
20 A
70 A Rear Window Defogger
Not used
EPS
Not used
1
2
3
4 40 A
20 A
20 A
30 A
20 A
40 A
20 A
20 A
20 A
15 A
10 A
30 A
15 A
20 A
30 A
30 A
100 A 40 A Magnetic Clutch Relay
Right Headlight
ACG S
Hazard Warning Lights
Cooling Fan
Not used
Stop
Left Headlight
VSA F/S
VSA Motor
Battery
IG1 Main
Lighting 1 Relay
Lighting 2 Relay
Horn Relay
Power Window Motor
RightSoftTopMotor
Accessory Socket
Backup ACC
Left Soft Top Motor
Heater Motor
Condenser Fan
DBW
Condenser Fan Relay
Cooling Fan Relay
1: ExceptCRmodels
2 : if equipped2
1
1
2 2
Fuse Locations
T aking Care of t he Unexpect ed
227
AUXILIARY FUSE BOX
UNDER-HOOD FUSE BOXES:
PRIMARY FUSE BOX
\f—\f—y

y
(\fy\fy
2008 S2000
