Never put a rear-facing child restraint in the right front
passenger’s seat unless the airbag is off. Here is why:
{CAUTION:
A child in a rear-facing child restraint can be
seriously injured or killed if the right front
passenger’s airbag in ates. This is because the
back of the rear-facing child restraint would be
very close to the in ating airbag. Be sure to turn
off the airbag before using a rear-facing child
restraint in the right front seat position.
Even though the airbag off switch is designed to
turn off the passenger’s airbag, no system is fail
safe, and no one can guarantee that an airbag
will not deploy under some unusual
circumstance, even though it is turned off.
General Motors recommends that rear-facing
child restraints be secured in the rear seat, even
if the airbag is off.
If you secure a forward-facing child restraint in
the right front seat, always move the front
passenger seat as far back as it will go. It is
better to secure the child restraint in a rear seat.
{CAUTION:
If the airbag readiness light ever comes on
when you have turned off the air bag, it means
that something may be wrong with the airbag
system. The right front passenger’s airbag
could in ate even though the switch is off. If
this ever happens, do not let anyone whom the
national government has identi ed as a
member of a passenger airbag risk group sit in
the right front passenger’s position
(for example, do not secure a rear-facing child
restraint in the right front passenger’s seat)
until you have your vehicle serviced. See
“airbag Off Switch” for more on this, including
important safety information.
You will be using a lap-shoulder belt to secure the child
restraint in this position. Be sure to follow the
instructions that came with the child restraint. Secure
the child in the child restraint when and as the
instructions say.
1-55
Page 62 of 468

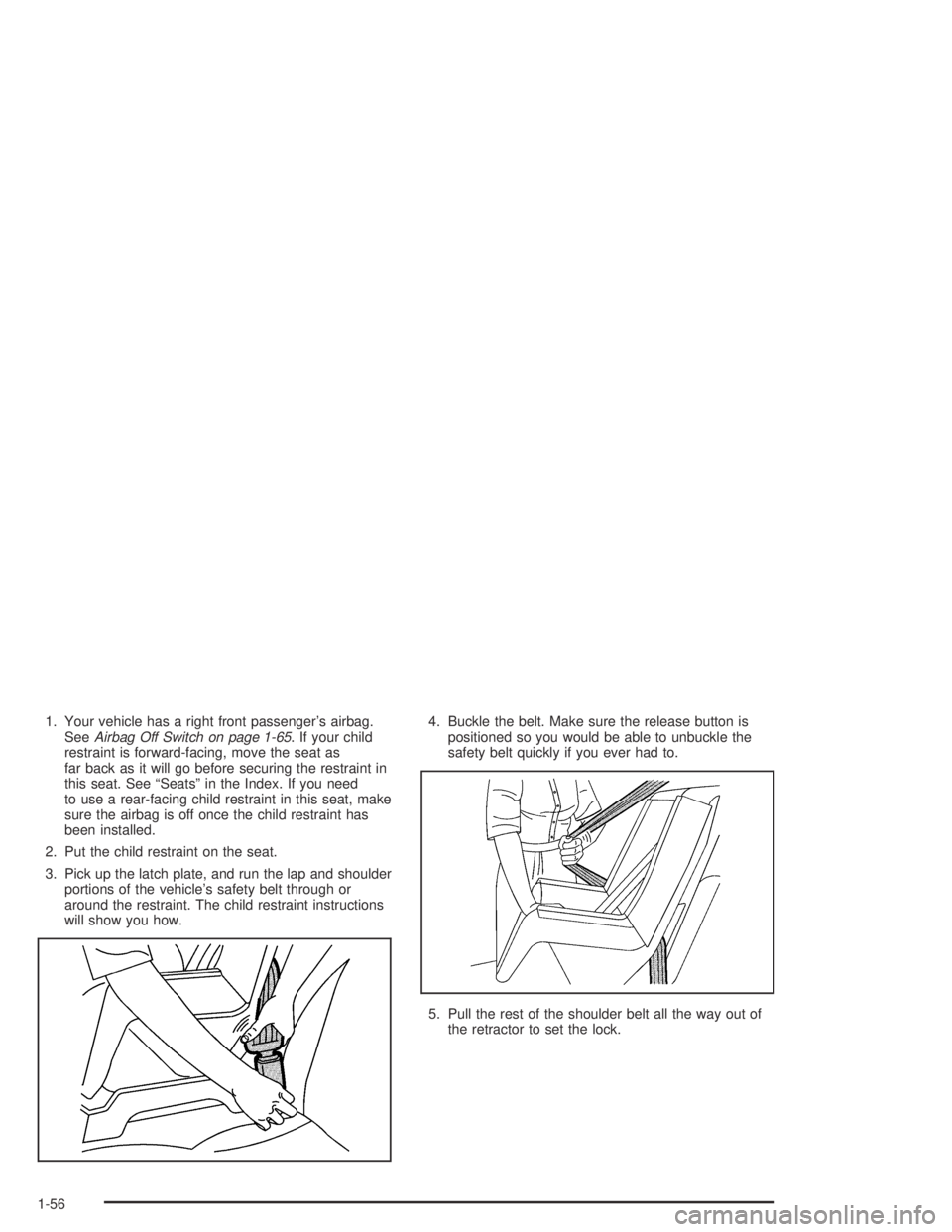

1. Your vehicle has a right front passenger’s airbag.
SeeAirbag Off Switch on page 1-65. If your child
restraint is forward-facing, move the seat as
far back as it will go before securing the restraint in
this seat. See “Seats” in the Index. If you need
to use a rear-facing child restraint in this seat, make
sure the airbag is off once the child restraint has
been installed.
2. Put the child restraint on the seat.
3. Pick up the latch plate, and run the lap and shoulder
portions of the vehicle’s safety belt through or
around the restraint. The child restraint instructions
will show you how.4. Buckle the belt. Make sure the release button is
positioned so you would be able to unbuckle the
safety belt quickly if you ever had to.
5. Pull the rest of the shoulder belt all the way out of
the retractor to set the lock.
1-56
Page 63 of 468

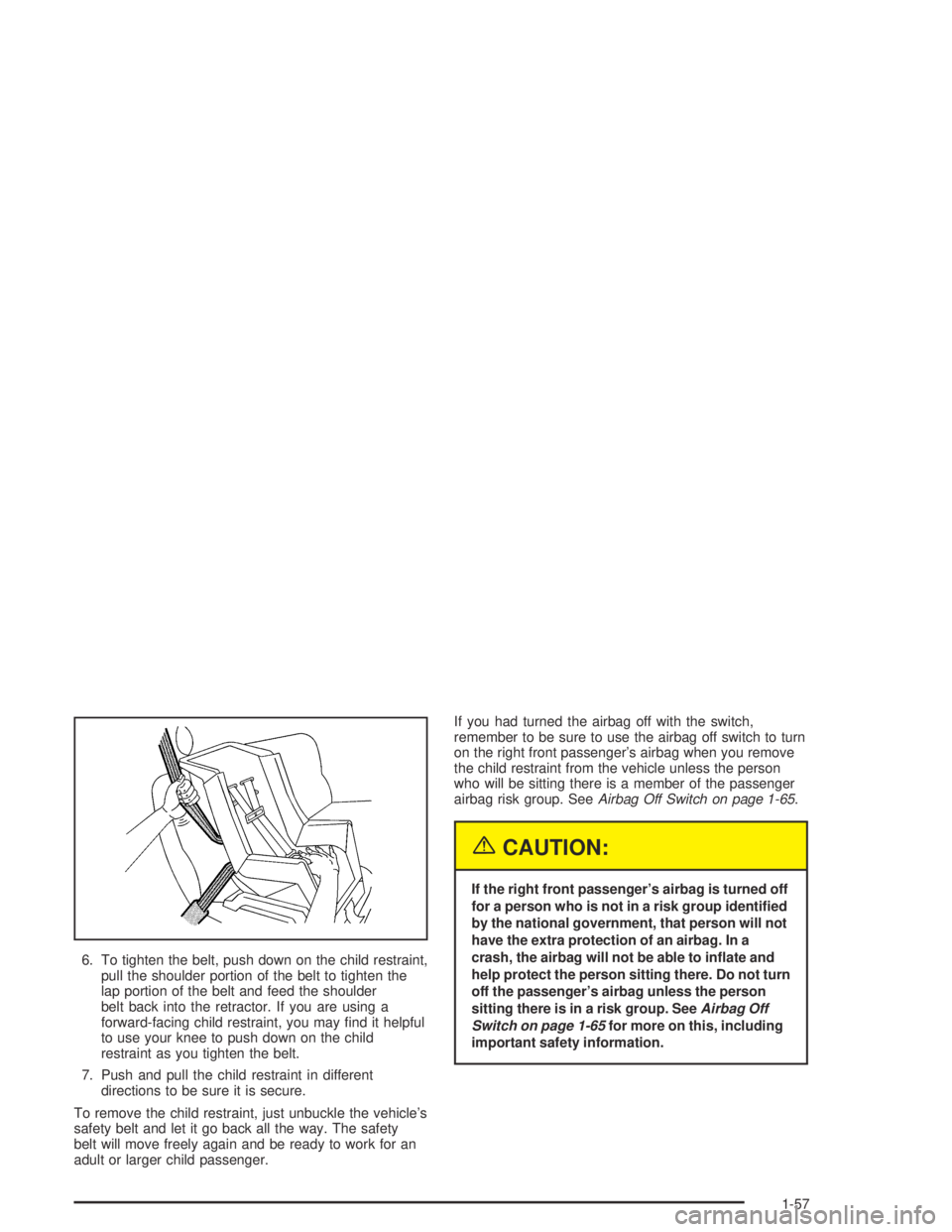

6. To tighten the belt, push down on the child restraint,
pull the shoulder portion of the belt to tighten the
lap portion of the belt and feed the shoulder
belt back into the retractor. If you are using a
forward-facing child restraint, you may nd it helpful
to use your knee to push down on the child
restraint as you tighten the belt.
7. Push and pull the child restraint in different
directions to be sure it is secure.
To remove the child restraint, just unbuckle the vehicle’s
safety belt and let it go back all the way. The safety
belt will move freely again and be ready to work for an
adult or larger child passenger.If you had turned the airbag off with the switch,
remember to be sure to use the airbag off switch to turn
on the right front passenger’s airbag when you remove
the child restraint from the vehicle unless the person
who will be sitting there is a member of the passenger
airbag risk group. SeeAirbag Off Switch on page 1-65.
{CAUTION:
If the right front passenger’s airbag is turned off
for a person who is not in a risk group identi ed
by the national government, that person will not
have the extra protection of an airbag. In a
crash, the airbag will not be able to in ate and
help protect the person sitting there. Do not turn
off the passenger’s airbag unless the person
sitting there is in a risk group. SeeAirbag Off
Switch on page 1-65for more on this, including
important safety information.
1-57
Page 64 of 468

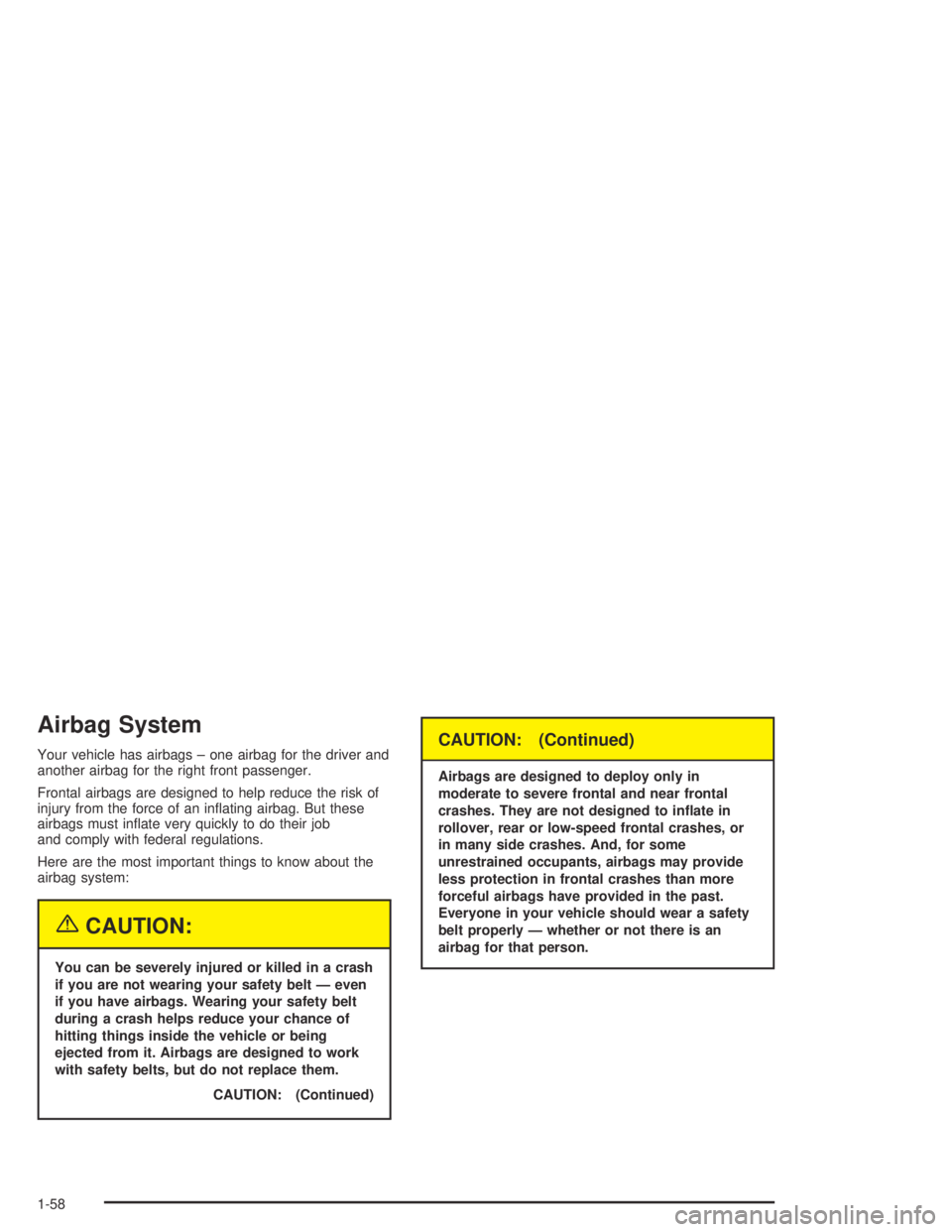

Airbag System
Your vehicle has airbags – one airbag for the driver and
another airbag for the right front passenger.
Frontal airbags are designed to help reduce the risk of
injury from the force of an in ating airbag. But these
airbags must in ate very quickly to do their job
and comply with federal regulations.
Here are the most important things to know about the
airbag system:
{CAUTION:
You can be severely injured or killed in a crash
if you are not wearing your safety belt — even
if you have airbags. Wearing your safety belt
during a crash helps reduce your chance of
hitting things inside the vehicle or being
ejected from it. Airbags are designed to work
with safety belts, but do not replace them.
CAUTION: (Continued)
CAUTION: (Continued)
Airbags are designed to deploy only in
moderate to severe frontal and near frontal
crashes. They are not designed to in ate in
rollover, rear or low-speed frontal crashes, or
in many side crashes. And, for some
unrestrained occupants, airbags may provide
less protection in frontal crashes than more
forceful airbags have provided in the past.
Everyone in your vehicle should wear a safety
belt properly — whether or not there is an
airbag for that person.
1-58
Page 65 of 468

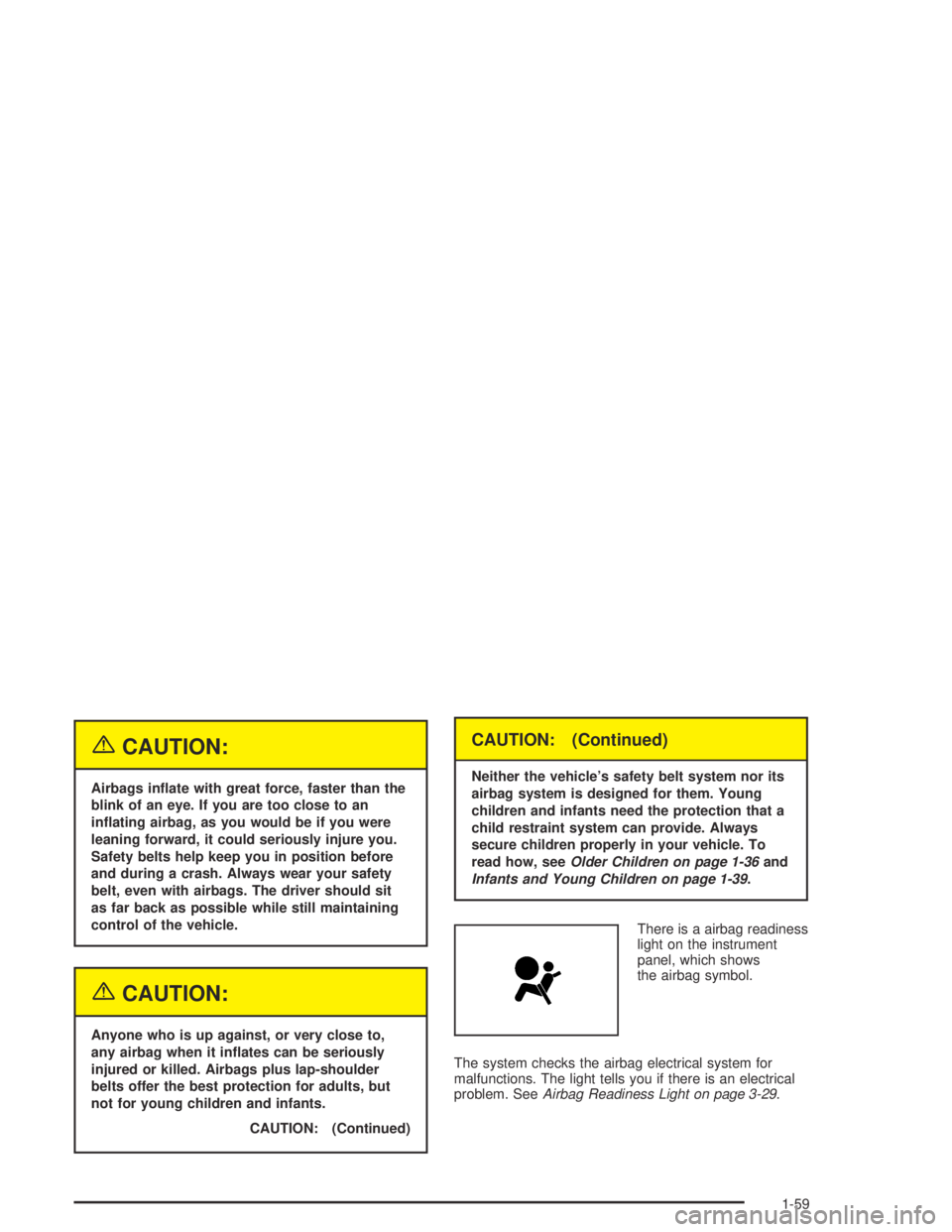

{CAUTION:
Airbags in ate with great force, faster than the
blink of an eye. If you are too close to an
in ating airbag, as you would be if you were
leaning forward, it could seriously injure you.
Safety belts help keep you in position before
and during a crash. Always wear your safety
belt, even with airbags. The driver should sit
as far back as possible while still maintaining
control of the vehicle.
{CAUTION:
Anyone who is up against, or very close to,
any airbag when it in ates can be seriously
injured or killed. Airbags plus lap-shoulder
belts offer the best protection for adults, but
not for young children and infants.
CAUTION: (Continued)
CAUTION: (Continued)
Neither the vehicle’s safety belt system nor its
airbag system is designed for them. Young
children and infants need the protection that a
child restraint system can provide. Always
secure children properly in your vehicle. To
read how, seeOlder Children on page 1-36and
Infants and Young Children on page 1-39.
There is a airbag readiness
light on the instrument
panel, which shows
the airbag symbol.
The system checks the airbag electrical system for
malfunctions. The light tells you if there is an electrical
problem. SeeAirbag Readiness Light on page 3-29.
1-59
Page 66 of 468
Where Are the Airbags?
The driver’s airbag is in the middle of the steering wheel.The right front passenger’s airbag is in the instrument
panel on the passenger’s side.
1-60
Page 67 of 468
{CAUTION:
If something is between an occupant and an
airbag, the bag might not in ate properly or it
might force the object into that person causing
severe injury or even death. The path of an
in ating airbag must be kept clear. Do not put
anything between an occupant and an airbag,
and do not attach or put anything on the
steering wheel hub or on or near any other
airbag covering.
When Should an Airbag In ate?
The driver’s and right front passenger’s frontal airbags
are designed to in ate in moderate to severe frontal
or near-frontal crashes. But they are designed to in ate
only if the impact exceeds a predetermined deployment
threshold. Deployment thresholds take into account
a variety of desired deployment and non-deployment
events and are used to predict how severe a crash
is likely to be in time for the airbags to in ate and help
restrain the occupants. Whether your frontal airbags
will or should deploy is not based on how fast your
vehicle is traveling. It depends largely on what you hit,
the direction of the impact and how quickly your
vehicle slows down.
If the front of your vehicle goes straight into a wall that
does not move or deform, the threshold level is about
9 to 17 mph (14 to 27 km/h).(The threshold level can
vary, however, with speci c vehicle design, so that it can
be somewhat above or below this range.)
1-61
Page 68 of 468

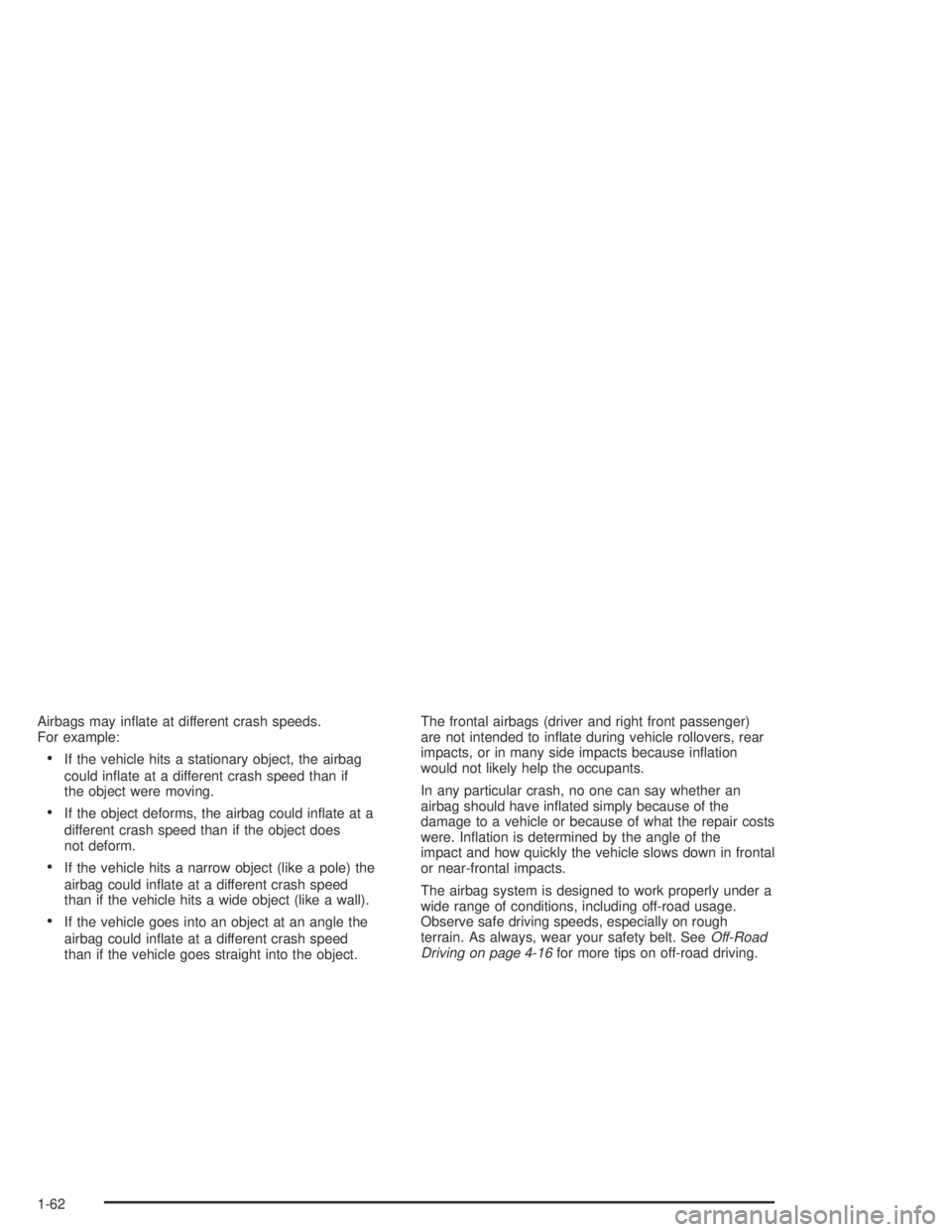

Airbags may in ate at different crash speeds.
For example:
If the vehicle hits a stationary object, the airbag
could in ate at a different crash speed than if
the object were moving.
If the object deforms, the airbag could in ate at a
different crash speed than if the object does
not deform.
If the vehicle hits a narrow object (like a pole) the
airbag could in ate at a different crash speed
than if the vehicle hits a wide object (like a wall).
If the vehicle goes into an object at an angle the
airbag could in ate at a different crash speed
than if the vehicle goes straight into the object.The frontal airbags (driver and right front passenger)
are not intended to in ate during vehicle rollovers, rear
impacts, or in many side impacts because in ation
would not likely help the occupants.
In any particular crash, no one can say whether an
airbag should have in ated simply because of the
damage to a vehicle or because of what the repair costs
were. In ation is determined by the angle of the
impact and how quickly the vehicle slows down in frontal
or near-frontal impacts.
The airbag system is designed to work properly under a
wide range of conditions, including off-road usage.
Observe safe driving speeds, especially on rough
terrain. As always, wear your safety belt. SeeOff-Road
Driving on page 4-16for more tips on off-road driving.
1-62
Page 69 of 468
What Makes an Airbag In ate?
In an impact of sufficient severity, the airbag sensing
system detects that the vehicle is in a crash. The
sensing system triggers a release of gas from the
in ator, which in ates the airbag. The in ator, airbag,
and related hardware are all part of the airbag modules
inside the steering wheel and in the instrument panel
in front of the right front passenger.
How Does an Airbag Restrain?
In moderate to severe frontal or near-frontal collisions,
even belted occupants can contact the steering wheel or
the instrument panel. Airbags supplement the protection
provided by safety belts. Airbags distribute the force of
the impact more evenly over the occupant’s upper body,
stopping the occupant more gradually. But airbags would
not help you in many types of collisions, including
rollovers, rear impacts and many side impacts, primarily
because an occupant’s motion is not toward those
airbags. Airbags should never be regarded as anything
more than a supplement to safety belts, and then only in
moderate to severe frontal or near-frontal collisions.
1-63
Page 70 of 468
What Will You See After an Airbag
In ates?
After an airbag in ates, it quickly de ates, so quickly that
some people may not even realize the airbag in ated.
Some components of the airbag module – the steering
wheel hub for the driver’s airbag, or the instrument panel
for the right front passenger’s bag – will be hot for a short
time. The parts of the bag that come into contact with you
may be warm, but not too hot to touch. There will be
some smoke and dust coming from the vents in the
de ated airbags. Airbag in ation does not prevent the
driver from seeing or being able to steer the vehicle, nor
does it stop people from leaving the vehicle.
{CAUTION:
When an airbag in ates, there is dust in the
air. This dust could cause breathing problems
for people with a history of asthma or other
breathing trouble. To avoid this, everyone in
the vehicle should get out as soon as it is safe
to do so.
CAUTION: (Continued)
CAUTION: (Continued)
If you have breathing problems but can not get
out of the vehicle after an airbag in ates, then
get fresh air by opening a window or a door. If
you experience breathing problems following
an airbag deployment, you should seek
medical attention.
Your vehicle has a feature that will automatically unlock
the doors and turn the interior lamps on when the
airbags in ate (if battery power is available). You can
lock the doors again and turn the interior lamps off
by using the door lock and interior lamp controls.
1-64
