{CAUTION:
Using a match near a battery can cause battery
gas to explode. People have been hurt doing
this, and some have been blinded. Use a
ashlight if you need more light.
Be sure the battery has enough water. You do
not need to add water to the battery installed
in your new vehicle. But if a battery has ller
caps, be sure the right amount of uid is there.
If it is low, add water to take care of that rst.
If you do not, explosive gas could be present.
Battery uid contains acid that can burn you.
Do not get it on you. If you accidentally get it
in your eyes or on your skin, ush the place
with water and get medical help immediately.5. Check that the jumper cables do not have loose or
missing insulation. If they do, you could get a
shock. The vehicles could be damaged too.
Before you connect the cables, here are some
basic things you should know. Positive (+) will go to
positive (+) or to a remote positive terminal (+) if
the vehicle has one. Negative (−) will go to a heavy,
unpainted metal engine part or to a remote
negative (−) terminal, if the vehicle has one.
Do not connect positive (+) to negative (−)oryou
will get a short that would damage the battery
and maybe other parts too.
{CAUTION:
Fans or other moving engine parts can injure
you badly. Keep your hands away from moving
parts once the engine is running.
6. Connect the red positive (+) cable to the positive (+)
terminal of the dead battery. Use a remote
positive (+) terminal if the vehicle has one.
5-41

7. Do not let the other end touch metal. Connect it to
the positive (+) terminal of the good battery. Use a
remote positive (+) terminal if the vehicle has one.
8. Now connect the black negative (−) cable to the
negative (−) terminal of the good battery. Use a
remote negative (−) terminal if the vehicle has one.
Do not let the other end touch anything until the
next step. The other end of the negative (−) cable
does not go to the dead battery. It goes to a
heavy, unpainted metal engine part or to a remote
negative (−) terminal on the vehicle with the
dead battery.
9. Connect the other end of the negative (−) cable at
least 18 inches (45 cm) away from the dead battery,
but not near engine parts that move. The electrical
connection is just as good there, and the chance
of sparks getting back to the battery is much less.
Use a remote negative (−) terminal if the vehicle has
one. Your vehicle’s remote negative (−) terminal
is marked GND.
10. Now start the vehicle with the good battery and run
the engine for awhile.
11. Try to start the vehicle that had the dead battery.
If it will not start after a few tries, it probably
needs service.Notice:If the jumper cables are connected or
removed in the wrong order, electrical shorting may
occur and damage the vehicle. The repairs would
not be covered by your warranty. Always connect
and remove the jumper cables in the correct
order, making sure that the cables do not touch
each other or other metal.
A. Heavy, Unpainted Metal Engine Part or Remote
Negative (−) Terminal
B. Good Battery or Remote Positive (+) and
Negative (−) Terminals
C. Dead Battery or Remote Positive (+) TerminalJumper Cable Removal
5-42

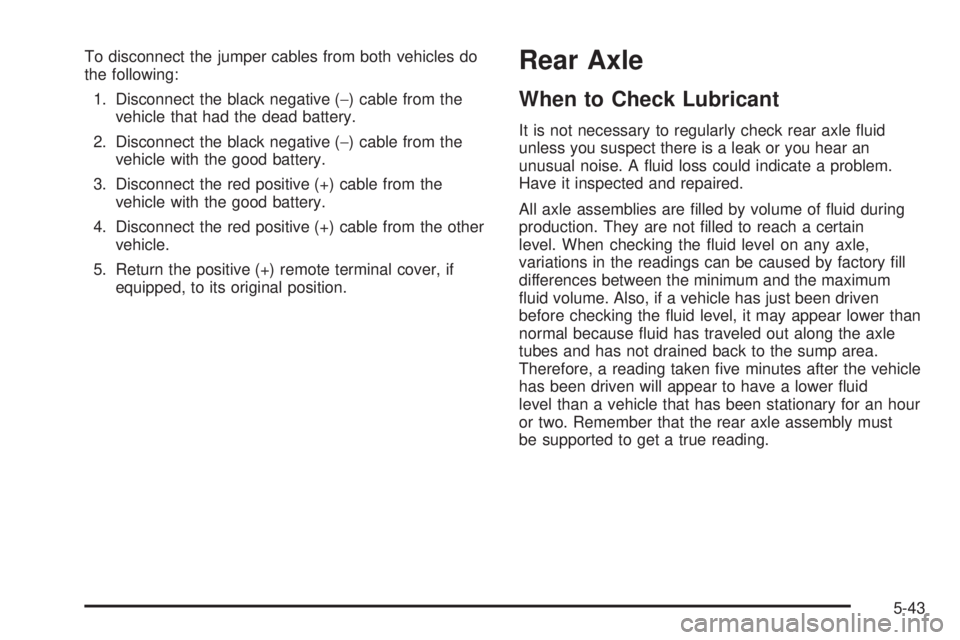

To disconnect the jumper cables from both vehicles do
the following:
1. Disconnect the black negative (−) cable from the
vehicle that had the dead battery.
2. Disconnect the black negative (−) cable from the
vehicle with the good battery.
3. Disconnect the red positive (+) cable from the
vehicle with the good battery.
4. Disconnect the red positive (+) cable from the other
vehicle.
5. Return the positive (+) remote terminal cover, if
equipped, to its original position.Rear Axle
When to Check Lubricant
It is not necessary to regularly check rear axle uid
unless you suspect there is a leak or you hear an
unusual noise. A uid loss could indicate a problem.
Have it inspected and repaired.
All axle assemblies are lled by volume of uid during
production. They are not lled to reach a certain
level. When checking the uid level on any axle,
variations in the readings can be caused by factory ll
differences between the minimum and the maximum
uid volume. Also, if a vehicle has just been driven
before checking the uid level, it may appear lower than
normal because uid has traveled out along the axle
tubes and has not drained back to the sump area.
Therefore, a reading taken ve minutes after the vehicle
has been driven will appear to have a lower uid
level than a vehicle that has been stationary for an hour
or two. Remember that the rear axle assembly must
be supported to get a true reading.
5-43

How to Check Lubricant
To get an accurate reading, the vehicle should be on a
level surface.
When the differential is cold, the proper level is from
5/8 inch to 1-5/8 inch (15 mm to 40 mm) below the
bottom of the ller plug hole, located on the rear axle.
Add only enough uid to reach the proper level.
What to Use
Refer to the Maintenance Schedule to determine what
kind of lubricant to use. SeeRecommended Fluids
and Lubricants on page 6-12.
Four-Wheel Drive
Transfer Case
It is not necessary to regularly check transfer case uid
unless you suspect there is a leak or you hear an
unusual noise. A uid loss could indicate a problem.
Have it inspected and repaired.
Refer to the Maintenance Schedule to determine how
often to change the lubricant. SeeScheduled
Maintenance on page 6-4.
5-44

How to Check Lubricant
A. Filler Plug
B. Drain Plug
1. Remove the ller plug (A). The uid level should be
just below the bottom of the ller plug hole located
on the transfer case. To get an accurate reading,
the vehicle should be on a level surface.2. Add uid if necessary.
Refer to the Maintenance Schedule to determine
what kind of lubricant to use. SeeRecommended
Fluids and Lubricants on page 6-12.
3. Reinstall the ller plug. Use care not to overtighten
the ller plug.
Front Axle
When to Check and Change Lubricant
It is not necessary to regularly check front axle uid
unless you suspect there is a leak or you hear an
unusual noise. A uid loss could indicate a problem.
Have it inspected and repaired.
5-45

How to Check Lubricant
To get an accurate reading, the vehicle should be on a
level surface.
When the differential is cold, the proper level is from
about 1/4 inch (6 mm) to about 3/8 inch (10 mm) below
the ller plug hole.
What to Use
Refer to the Maintenance Schedule to determine what
kind of lubricant to use. SeeRecommended Fluids
and Lubricants on page 6-12.
Bulb Replacement
For the proper type of replacement bulbs, see
Replacement Bulbs on page 5-51.
For any bulb changing procedure not listed in this
section, contact your dealer.
Halogen Bulbs
{CAUTION:
Halogen bulbs have pressurized gas inside
and can burst if you drop or scratch the bulb.
You or others could be injured. Be sure to read
and follow the instructions on the bulb
package.
5-46

Headlamps
To replace a headlamp bulb, do the following:
1. Open the hood. SeeHood Release on page 5-11
for more information.
2. Locate the affected headlamp on the inner front
portion of the hood.
3. Turn the bulb/
socket retainer
counterclockwise to
unlock the bulb/socket.
You may prefer to
unplug the electrical
connector before
removing the
bulb/socket. If so,
complete Step 5 before
doing this step.
4. Pull the bulb/socket straight out from the
headlamp housing.5. Unplug the electrical
connector.
6. Push the new bulb socket into the headlamp
assembly making sure to align the splines on
the bulb socket with the splines in the headlamp
housing. Use care not to touch the bulb with
your ngers or hands.
7. Turn the bulb socket retainer clockwise to lock it
into place.
8. Plug in the electrical connector.
5-47

Front Turn Signal and
Parking Lamps
To replace a front turn signal or parking lamp bulb, do
the following:
1. Open the hood. SeeHood Release on page 5-11
for more information.
2. Locate the bulb you need to change.
3. Turn the bulb socket
counterclockwise and
remove it from the
lamp housing.
4. Pull the bulb from the bulb socket.
5. Install the new bulb into the bulb socket.
6. Reinstall the bulb socket into the lamp housing and
turn it clockwise until it locks.
Daytime Running Lamps (DRL)
To replace a daytime running lamp bulb, do
the following:
1. Locate the lamp
assembly behind the
front bumper. It is
easiest to come in from
the side of the
vehicle through the
wheel opening.
2. Turn the bulb socket counterclockwise and remove
it from the lamp housing.
3. Remove the bulb from the bulb socket.
4. Install the new bulb into the bulb socket.
5. Reinstall the bulb socket into the lamp housing and
turn it clockwise until it locks.
5-48

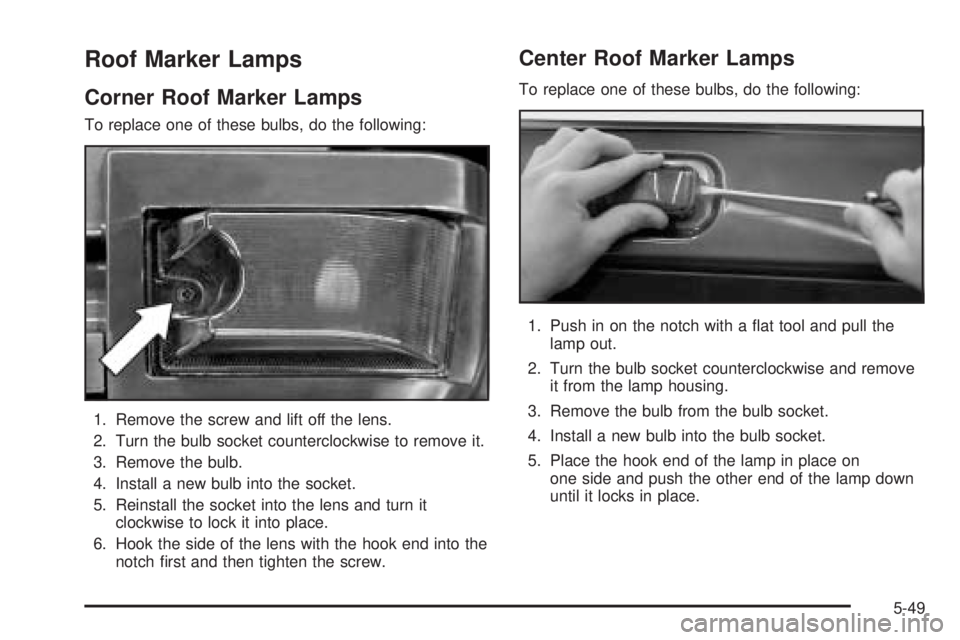

Roof Marker Lamps
Corner Roof Marker Lamps
To replace one of these bulbs, do the following:
1. Remove the screw and lift off the lens.
2. Turn the bulb socket counterclockwise to remove it.
3. Remove the bulb.
4. Install a new bulb into the socket.
5. Reinstall the socket into the lens and turn it
clockwise to lock it into place.
6. Hook the side of the lens with the hook end into the
notch rst and then tighten the screw.
Center Roof Marker Lamps
To replace one of these bulbs, do the following:
1. Push in on the notch with a at tool and pull the
lamp out.
2. Turn the bulb socket counterclockwise and remove
it from the lamp housing.
3. Remove the bulb from the bulb socket.
4. Install a new bulb into the bulb socket.
5. Place the hook end of the lamp in place on
one side and push the other end of the lamp down
until it locks in place.
5-49

Taillamps, Turn Signal, Stoplamps
and Back-up Lamps
A. Stoplamp/Taillamp
B. Turn Signal Lamp
C. Back-Up Lamp
To replace one of these bulbs, do the following:
1. Open the liftgate or tailgate. SeeLiftgate (SUV) on
page 2-11orTailgate/Spare Tire Carrier on
page 2-14for more information.
2. If your vehicle is equipped with a taillamp guard,
you will need to remove it in order to access the
taillamp. To do this, remove the four screws
retaining the taillamp guard making sure not to
remove the plastic retainers.3. Remove the two
screws from the rear
lamp assembly
and remove the rear
lamp assembly.
4. Turn the bulb socket counterclockwise to remove it
from the taillamp housing.
5. Pull the bulb straight out from the socket.
6. Press a new bulb into the socket, insert it into the
taillamp housing and turn the socket
counterclockwise until it is locked in place.
7. Reinstall the rear lamp assembly and tighten
the screws.
8. Reinstall the taillamp guard by lining up the guard
with the holes in vehicle. Then install and tighten
the four screws.
