HUMMER H2 2006 Repair Manual
Manufacturer: HUMMER, Model Year: 2006, Model line: H2, Model: HUMMER H2 2006Pages: 502, PDF Size: 3.35 MB
Page 61 of 502

Never put a rear-facing child restraint in the right front
passenger’s seat unless the airbag is off. Here is why:
{CAUTION:
A child in a rear-facing child restraint can be
seriously injured or killed if the right front
passenger’s airbag in ates. This is because the
back of the rear-facing child restraint would be
very close to the in ating airbag. Be sure to turn
off the airbag before using a rear-facing child
restraint in the right front seat position.
Even though the airbag off switch is designed to
turn off the passenger’s airbag, no system is fail
safe, and no one can guarantee that an airbag
will not deploy under some unusual
circumstance, even though it is turned off.
General Motors recommends that rear-facing
child restraints be secured in the rear seat, even
if the airbag is off.
If you secure a forward-facing child restraint in
the right front seat, always move the front
passenger seat as far back as it will go. It is
better to secure the child restraint in a rear seat.
{CAUTION:
If the airbag readiness light ever comes on
when you have turned off the airbag, it means
that something may be wrong with the airbag
system. The right front passenger’s airbag
could in ate even though the switch is off. If
this ever happens, do not let anyone whom the
national government has identi ed as a
member of a passenger airbag risk group sit in
the right front passenger’s position (for
example, do not secure a rear-facing child
restraint in the right front passenger’s seat)
until you have your vehicle serviced. See
Airbag Off Switch on page 1-65andAirbag
Readiness Light on page 3-32for more on this,
including important safety information.
1-55
Page 62 of 502

You will be using a lap-shoulder belt to secure the child
restraint in this position. Be sure to follow the
instructions that came with the child restraint. Secure
the child in the child restraint when and as the
instructions say.
1. Your vehicle has a right front passenger’s airbag.
SeeAirbag Off Switch on page 1-65. If your child
restraint is forward-facing, move the seat as
far back as it will go before securing the restraint in
this seat. SeePower Seats on page 1-2.Ifyou
need to use a rear-facing child restraint in this seat,
make sure the airbag is off once the child restraint
has been installed.
2. Put the child restraint on the seat.
3. Pick up the latch plate, and run the lap and shoulder
portions of the vehicle’s safety belt through or
around the restraint. The child restraint instructions
will show you how.4. Buckle the belt. Make sure the release button is
positioned so you would be able to unbuckle the
safety belt quickly if you ever had to.
1-56
Page 63 of 502

5. Pull the rest of the shoulder belt all the way out of
the retractor to set the lock.6. To tighten the belt, push down on the child restraint,
pull the shoulder portion of the belt to tighten the
lap portion of the belt and feed the shoulder
belt back into the retractor. If you are using a
forward-facing child restraint, you may nd it helpful
to use your knee to push down on the child
restraint as you tighten the belt.
7. Push and pull the child restraint in different
directions to be sure it is secure.
1-57
Page 64 of 502

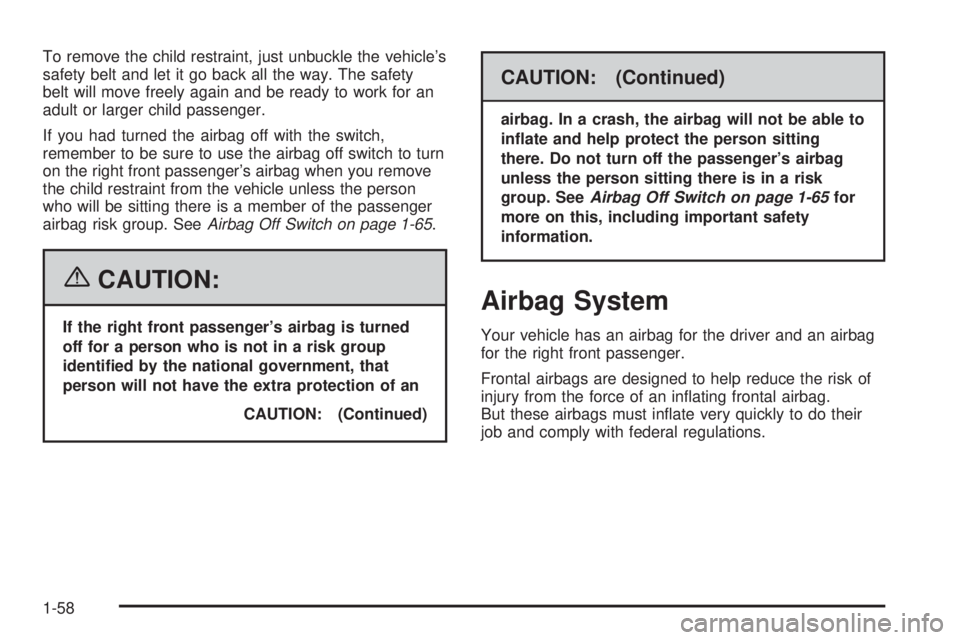

To remove the child restraint, just unbuckle the vehicle’s
safety belt and let it go back all the way. The safety
belt will move freely again and be ready to work for an
adult or larger child passenger.
If you had turned the airbag off with the switch,
remember to be sure to use the airbag off switch to turn
on the right front passenger’s airbag when you remove
the child restraint from the vehicle unless the person
who will be sitting there is a member of the passenger
airbag risk group. SeeAirbag Off Switch on page 1-65.
{CAUTION:
If the right front passenger’s airbag is turned
off for a person who is not in a risk group
identi ed by the national government, that
person will not have the extra protection of an
CAUTION: (Continued)
CAUTION: (Continued)
airbag. In a crash, the airbag will not be able to
in ate and help protect the person sitting
there. Do not turn off the passenger’s airbag
unless the person sitting there is in a risk
group. SeeAirbag Off Switch on page 1-65for
more on this, including important safety
information.
Airbag System
Your vehicle has an airbag for the driver and an airbag
for the right front passenger.
Frontal airbags are designed to help reduce the risk of
injury from the force of an in ating frontal airbag.
But these airbags must in ate very quickly to do their
job and comply with federal regulations.
1-58
Page 65 of 502

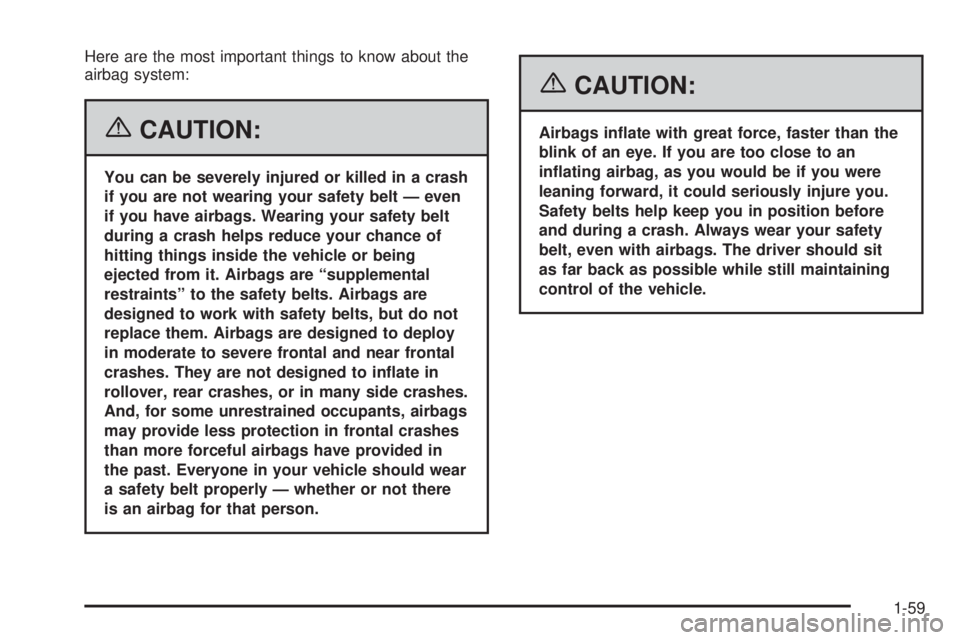

Here are the most important things to know about the
airbag system:
{CAUTION:
You can be severely injured or killed in a crash
if you are not wearing your safety belt — even
if you have airbags. Wearing your safety belt
during a crash helps reduce your chance of
hitting things inside the vehicle or being
ejected from it. Airbags are “supplemental
restraints” to the safety belts. Airbags are
designed to work with safety belts, but do not
replace them. Airbags are designed to deploy
in moderate to severe frontal and near frontal
crashes. They are not designed to in ate in
rollover, rear crashes, or in many side crashes.
And, for some unrestrained occupants, airbags
may provide less protection in frontal crashes
than more forceful airbags have provided in
the past. Everyone in your vehicle should wear
a safety belt properly — whether or not there
is an airbag for that person.
{CAUTION:
Airbags in ate with great force, faster than the
blink of an eye. If you are too close to an
in ating airbag, as you would be if you were
leaning forward, it could seriously injure you.
Safety belts help keep you in position before
and during a crash. Always wear your safety
belt, even with airbags. The driver should sit
as far back as possible while still maintaining
control of the vehicle.
1-59
