Your child restraint may have a single tether (A) or a
dual tether (C). Either will have a single attachment (B)
to secure the top tether to the anchor.
Some top tether-equipped child restraints are designed
for use with or without the top tether being attached.
Others require the top tether always to be attached. In
Canada, the law requires that forward-facing child
restraints have a top tether, and that the tether be
attached. In the United States, some child restraints also
have a top tether. Be sure to read and follow the
instructions for your child restraint.
If the child restraint does not have a top tether, one can
be obtained, in kit form, for many child restraints. Ask
the child restraint manufacturer whether or not a kit
is available.Lower Anchor and Top Tether Anchor
Locations
i(Top Tether Anchor):
Seating positions with top
tether anchors.
j(Lower Anchor):
Seating positions with
two lower anchors.
i(Top Tether Anchor):
Seating positions with top
tether anchors.
j(Lower Anchor):
Seating positions with
two lower anchors. Second Row
Seats — SUV
Second Row
Seats — SUT
1-45
Page 52 of 502

i(Top Tether Anchor):
Seating positions with top
tether anchors.
For SUV models, there are exposed metal anchors
for the second row center and passenger side
seating positions.
For SUT models, there are exposed metal anchor for
the second row center seating position.
For SUV models, the top tether anchors are located at
the bottom rear of the seat cushion for each position
in the second row. Be sure to use the anchor located
nearest to the seating position where the child restraint
will be placed.For SUT models, the top tether anchor is located at the
bottom rear of the seat cushion for the center position
in the second row. You may need to fold the seatback of
the passenger side seat forward in order to access
this anchor. Third Row Seats — SUV
Second Row Seats — SUV
1-46
Page 53 of 502

For SUV models with third row seating, the top tether
anchor is located at the bottom rear of the seat cushion
for the seating position in the third row.Do not secure a child restraint in the right front
passenger’s position, or in the second row outboard
positions of a SUT model, if a national or local law
requires that the top tether be attached, or if the
instructions that come with the child restraint say that
the top tether must be attached. There is no place
to attach the top tether in this position.
Accident statistics show that children are safer if they
are restrained in the rear rather than the front seat. See
Where to Put the Restraint on page 1-42for additional
information. Second Row Seats — SUT
Third Row Seat — SUV
1-47
Page 54 of 502

Securing a Child Restraint Designed for
the LATCH System
{CAUTION:
If a LATCH-type child restraint is not attached to
anchors, the restraint will not be able to protect
the child correctly. In a crash, the child could be
seriously injured or killed. Make sure that a
LATCH-type child restraint is properly installed
using the anchors, or use the vehicle’s safety
belts to secure the restraint, following the
instructions that came with that restraint, and
also the instructions in this manual.
{CAUTION:
Each top tether anchor and lower anchor in the
vehicle is designed to hold only one child
restraint. Attaching more than one child
restraint to a single anchor could cause the
anchor or attachment to come loose or even
break during a crash. A child or others could
be injured if this happens. To help prevent
injury to people and damage to your vehicle,
attach only one child restraint per anchor.
1-48
Page 55 of 502

Second Row Center Position — SUT
1. If the child restraint manufacturer recommends that
the top tether be attached, attach the top tether to
the top tether anchor, if equipped. Refer to the
child restraint instructions and the following steps:
1.1. To access the top tether anchor, raise
the passenger side seat cushion by pulling
up on the strap loop at the rear of the
seat cushion and fold the seat cushion
forward. Then fold the seatback forward. See
60/40 Split Bench Seat on page 1-6for
additional information.
1.2. Place the child restraint in the center seating
position.
1.3. Find the top tether anchor at the rear base of
the center seat.
1.4. Route and attach the top tether according to
your child restraint instructions and the
following instructions:
If your child restraint has a
single tether, route the
tether over the seatback.If your child restraint has a
dual tether, route the
tether over the seatback.
2. Attach the lower attachments to the lower anchors.
If the child restraint does not have lower
attachments or the desired seating position does
not have lower anchors, secure the child restraint
with the top tether and the safety belts. Refer
to your child restraint manufacturer instructions and
the instructions in this manual.
2.1. Find the lower anchors for the desired
seating position.
2.2. Attach and tighten the lower attachments on
the child restraint to the lower anchors.
1-49
Page 56 of 502

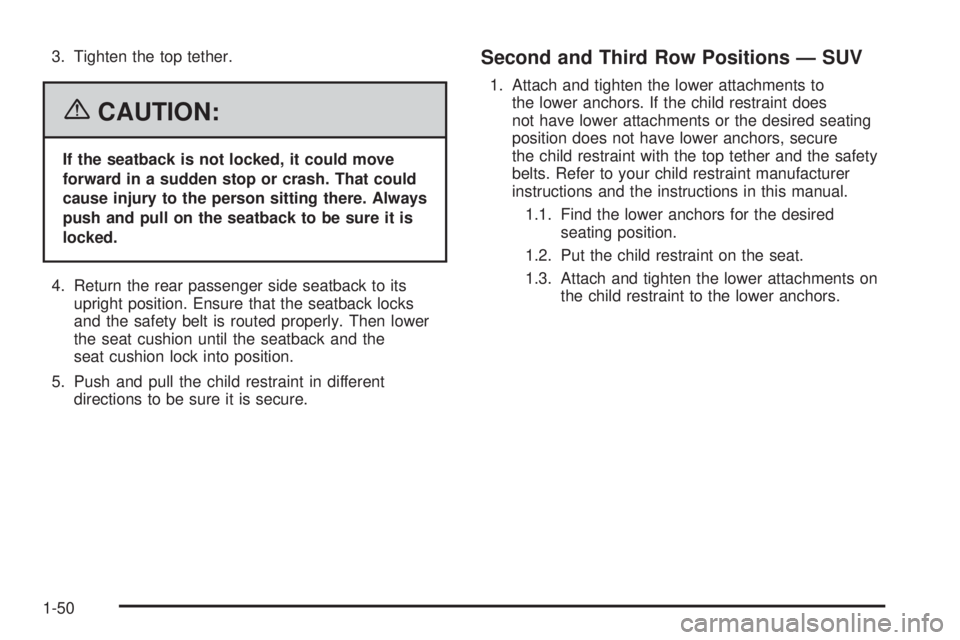

3. Tighten the top tether.
{CAUTION:
If the seatback is not locked, it could move
forward in a sudden stop or crash. That could
cause injury to the person sitting there. Always
push and pull on the seatback to be sure it is
locked.
4. Return the rear passenger side seatback to its
upright position. Ensure that the seatback locks
and the safety belt is routed properly. Then lower
the seat cushion until the seatback and the
seat cushion lock into position.
5. Push and pull the child restraint in different
directions to be sure it is secure.
Second and Third Row Positions — SUV
1. Attach and tighten the lower attachments to
the lower anchors. If the child restraint does
not have lower attachments or the desired seating
position does not have lower anchors, secure
the child restraint with the top tether and the safety
belts. Refer to your child restraint manufacturer
instructions and the instructions in this manual.
1.1. Find the lower anchors for the desired
seating position.
1.2. Put the child restraint on the seat.
1.3. Attach and tighten the lower attachments on
the child restraint to the lower anchors.
1-50
Page 57 of 502

2. If the child restraint manufacturer recommends that
the top tether be attached, attach and tighten the
top tether to the top tether anchor, if equipped.
Refer to the child restraint instructions and
the following steps:
2.1. Find the top tether anchor.
2.2. Route, attach, and tighten the top tether
according to your child restraint instructions
and the following instructions:
If the position you are
using does not have a
head restraint and you are
using a single tether,
route the tether over
the seatback.
If the position you are
using does not have a
head restraint and you are
using a dual tether,
route the tether over
the seatback.If the position you are using
has an adjustable head
restraint and you are using
a single tether, route the
tether under the head
restraint and in between the
head restraint posts.
If the position you are using
has an adjustable head
restraint and you are using
a dual tether, route the
tether under the head
restraint and in between the
head restraint posts.
3. Push and pull the child restraint in different
directions to be sure it is secure.
1-51
Page 58 of 502

Securing a Child Restraint in a Rear
Seat Position
If your child restraint is equipped with the LATCH
system, seeLower Anchors and Tethers for Children
(LATCH) on page 1-43.
If your vehicle is an SUT, there are no top tether
anchors in the 2nd row outside seating positions. Do not
secure a child seat in these positions if a national or
local law requires that the top tether be anchored, or if
the instructions that come with the child restraint
say that the top tether must be anchored. See Lower
Anchorages and Top Tethers for Children (LATCH
System) if the child restraint has a top tether.
If your child restraint does not have the LATCH system,
you will be using the lap-shoulder belt to secure the
child restraint in this position. Be sure to follow the
instructions that came with the child restraint. Secure
the child in the child restraint when and as the
instructions say.
1. Put the child restraint on the seat.
2. Pick up the latch plate, and run the lap and shoulder
portions of the vehicle’s safety belt through or
around the restraint. The child restraint instructions
will show you how.3. Buckle the belt. Make sure the release button is
positioned so you would be able to unbuckle the
safety belt quickly if you ever had to.
1-52
Page 59 of 502

4. Pull the rest of the shoulder belt all the way out of
the retractor to set the lock.5. To tighten the belt, push down on the child restraint,
pull the shoulder portion of the belt to tighten the
lap portion of the belt and feed the shoulder
belt back into the retractor. If you are using a
forward-facing child restraint, you may nd it helpful
to use your knee to push down on the child
restraint as you tighten the belt.
1-53
Page 60 of 502

6. If your child restraint manufacturer recommends
using a top tether, and the position you are using
has a top tether anchor, attach and tighten the
top tether to the top tether anchor. Refer to
the instructions that came with the child restraint
and seeLower Anchors and Tethers for Children
(LATCH) on page 1-43.
7. Push and pull the child restraint in different
directions to be sure it is secure.
To remove the child restraint, if the top tether is attached
to the top tether anchor, disconnect it. Unbuckle the
vehicle’s safety belt and let it go back all the way. The
safety belt will move freely again and be ready to
work for an adult or larger child passenger.
Securing a Child Restraint in the
Right Front Seat Position
If your child restraint is equipped with the LATCH
system, seeLower Anchors and Tethers for Children
(LATCH) on page 1-43.
There is no top tether anchor in the right front
passenger’s position. Do not secure a child seat in this
position if a national or local law requires that the
top tether be anchored, or if the instructions that come
with the child restraint say that the top tether must
be anchored. SeeLower Anchors and Tethers
for Children (LATCH) on page 1-43if the child
restraint has a top tether.Your vehicle has a right front passenger’s airbag. There
is a switch on the instrument panel that you can use
to turn off the right front passenger’s airbag. SeeAirbag
Off Switch on page 1-65for more on this, including
important safety information.
A rear seat is a safer place to secure a forward-facing
child restraint.United StatesCanada
