Full-Time Four-Wheel Drive
Full-Time Four-Wheel Drive sends your engine’s
driving power to all four wheels for extra traction.
To get the most out of Full-Time Four-Wheel
Drive, you must be familiar with its operation.
Transfer Case Buttons
The transfer case buttons are located to the
right of the instrument panel cluster. Use these
switches to shift into and out of the different
Full-Time Four-Wheel Drive modes.You can choose between four modes:
4
m(Four-Wheel High):This setting is used for
driving in most street and highway situations.
You can also use this setting for light or variable
off-road conditions.
N (NEUTRAL):Shift the vehicle’s transfer case
to NEUTRAL only when towing your vehicle.
SeeRecreational Vehicle Towing on page 295
orTowing Your Vehicle on page 294for more
information.
Notice:Driving on pavement in Four-Wheel
High Lock or Four Wheel Low Lock for
extended periods may cause premature wear
on your vehicle’s powertrain and tires. Do not
drive in Four-Wheel High Lock or Four-Wheel
Low Lock on pavement for extended periods.
4
mQ(Four-Wheel-High Lock):Use this
mode when you need extra traction in most
off-road situations such as sand, mud, snow or
level, rocky trails.
111

Notice:Operating your vehicle in
Four-Wheel-Low Lock above 30 mph (48 km/h)
for any extended period of time could cause
damage to the transfer case. Do not operate
your vehicle in Four-Wheel-Low Lock above
30 mph (48 km/h) for extended periods.
4
nQ(Four-Wheel-Low Lock):This mode
delivers extra torque to all four wheels and is used
for extreme off-road conditions. You might
choose 4-Wheel-Low Lock if you are driving in
off-road situations, such as, deep sand, mud, or
snow and climbing or descending steep hills.
If the vehicle has a locking rear axle, when in this
mode you can also choose to lock the rear
axle for additional traction in extreme off-road
situations. SeeLocking Rear Axle on page 243.
Indicator lights in the buttons show which
mode you are in. The indicator lights will come on
briey when you turn on the ignition the mode
the vehicle is in will stay on. If the lights do
not come on, you should take your vehicle to
your dealer for service. An indicator light
will ash while shifting the transfer case.It will remain lit when the shift is complete.
If for some reason the transfer case cannot
make a requested shift, it will return to the
last chosen setting.
If the SERV 4WD message on the Driver
Information Center (DIC) stays on, you should
take your vehicle to your dealer for service. See
Service 4WD message underDIC Warnings
and Messages on page 196.
Shifting between Four-Wheel High and
Four-Wheel-High Lock
With the vehicle traveling less than 45 mph
(72 km/h), press and release the Four-Wheel High
or Four-Wheel-High Lock button. The indicator
light will ash while shifting. It will remain lit when
the shift is complete.
It may be necessary to drive backwards while
turning for a distance of 25 feet (7.5 m) to get the
lock feature to disengage.
112

Shifting into Four-Wheel Low Lock
Notice:Shifting the transmission into gear
before the indicator light stops ashing could
cause damage to the transfer case. Always
wait until the indicator light stops ashing
before putting the transmission back in gear.
To shift into Four-Wheel-Low Lock, the ignition
must be in ON and the vehicle must be stopped or
moving less than 3 mph (5 km/h) with the
transmission in NEUTRAL (N). The preferred
method for shifting into Four-Wheel Low is to have
your vehicle moving 1 to 2 mph (1.6 to 3.2 km/h).
Press and release the Four-Wheel-Low Lock
button. If your vehicle has a manual transmission,
the clutch pedal must be pressed to the oor while
you press the Four-Wheel-Low Lock button, or the
shift will not be completed. You must wait for the
Four-Wheel-Low Lock indicator light to stop
ashing and remain lit before shifting your
transmission in gear.
It is normal for your vehicle to have engagement
noise and bump when shifting between
Four-Wheel Low and Four-Wheel High ranges or
from NEUTRAL with the engine running.If the Four-Wheel-Low Lock button is pressed
when your vehicle is in gear and/or moving
too fast, the Four-Wheel-Low Lock indicator light
will ash for 15 seconds and not complete the shift
unless your vehicle is moving less than 3 mph
(5 km/h) and the transmission is in NEUTRAL (N).
After 15 seconds the transfer case will return to
the last chosen setting.
Shifting Out of Four-Wheel-Low Lock
Notice:Shifting the transmission into gear
before the indicator light stops ashing could
cause damage to the transfer case. Always
wait until the indicator light stops ashing
before putting the transmission back in gear.
To shift out of Four-Wheel-Low Lock, your
vehicle must be stopped or moving less
than 3 mph (5 km/h) with the transmission
in NEUTRAL (N) and the ignition in ON.
The preferred method for shifting out of
Four-Wheel-Low Lock is to have your
vehicle moving 1 to 2 mph (1.6 to 3.2 km/h).
113

Press and release the Four-Wheel High or
Four-Wheel-High Lock button. If your vehicle has
a manual transmission, the clutch pedal must
be pressed to the oor while you press the
Four-Wheel High or Four-Wheel-High Lock
button, or the shift will not be completed.
You must wait for the Four-Wheel High or
Four-Wheel-High Lock indicator light to stop
ashing and remain lit before shifting your
transmission into gear.
It is normal for your vehicle to have engagement
noise and bump when shifting between
Four-Wheel Low and Four-Wheel High ranges
or from NEUTRAL with the engine running.
If the Four-Wheel High or Four-Wheel-High Lock
button is pressed when your vehicle is in gear
and/or moving too fast, the Four-Wheel High
or Four-Wheel-High Lock indicator light will ash
for 15 seconds but will not complete the shift
unless your vehicle is moving less than 3 mph
(5 km/h) and the transmission is in NEUTRAL (N).Shifting Into NEUTRAL
To shift the transfer case to NEUTRAL, do the
following:
1. Set the parking brake.
2. Start the vehicle by turning the ignition to
START.
3. Put the transmission in NEUTRAL (N).
If your vehicle has a manual transmission,
press and hold the clutch pedal down
while you perform Steps 5 through 9.
4. Shift the transfer case to Four-Wheel High.
{CAUTION:
Shifting an all-wheel-drive vehicle’s
transfer case into NEUTRAL can cause
your vehicle to roll even if the automatic
transmission is in PARK (P) or the manual
transmission is in any gear. You or others
could be injured. Make sure the parking
brake is rmly set before you shift the
transfer case to NEUTRAL.
114

5. Simultaneously press and hold the Four-Wheel
High and Four-Wheel-Low Lock buttons for
10 seconds. The NEUTRAL light will come on
when the transfer case shift to NEUTRAL is
complete.
6. Press and hold the regular brake pedal and
Shift the transmission to REVERSE (R) for
one second, then shift the transmission for
one second to DRIVE (D) for an automatic
transmission, or FIRST (1) for vehicles have
a manual transmission and then let out the
clutch. This is to ensure the transfer case is
in NEUTRAL. If not, repeat this procedure
starting at Step 3.
7. Turn the engine off, by turning the key to ACC.
8. Place the transmission shift lever in PARK (P)
for an automatic transmission, or FIRST (1)
for vehicles that have a manual transmission.
9. Turn the ignition to LOCK.Shifting Out of NEUTRAL
To shift out of NEUTRAL:
1. Set the parking brake and apply the regular
brake pedal.
2. Shift the transmission to NEUTRAL (N) for an
automatic transmission, or press the clutch
pedal for vehicles that have a manual
transmission. Then turn the ignition to ON
with the engine off.
3. Press the button for the desired transfer
case shift position (Four-Wheel High,
Four-Wheel-High Lock or
Four-Wheel-Low Lock).
After the transfer case has shifted out of
NEUTRAL the light will go out.
4. Release the parking brake.
Notice:Shifting the transmission into gear
before the indicator light stops ashing could
cause damage to the transfer case. Always
wait until the indicator light stops ashing
before putting the transmission back in gear.
5. You may start the engine and shift the
transmission to the desired position.
115

Parking Brake
The parking brake pedal
is located to the left of
the regular brake pedal,
near the driver’s door.
To set the parking brake, hold the regular brake
pedal down with your right foot. Push the
parking brake pedal down to its fully-applied
position with your left foot.
A chime will activate and the brake warning light,
located on the instrument panel, will ash
when the parking brake is applied and the vehicle
is moving at least 3 mph (5 km/h) for at least
three seconds. The chime will deactivate and the
light will turn off when the parking brake is set
and the vehicle is moving below 3 mph (5 km/h).
SeeBrake System Warning Light on page 182.To release the parking brake, hold the regular
brake pedal down. Pull the bottom edge of
the lever, located above the parking brake pedal,
with the parking brake symbol, directly rearward
to release the parking brake.
If the ignition is on when the parking brake is
released, the brake system warning light will go off.
Notice:Driving with the parking brake on can
overheat the brake system and cause premature
wear or damage to brake system parts. Verify
that the parking brake is fully released and the
brake warning light is off before driving.
If you are towing a trailer and are parking on any
hill, seeTowing a Trailer on page 297.
116

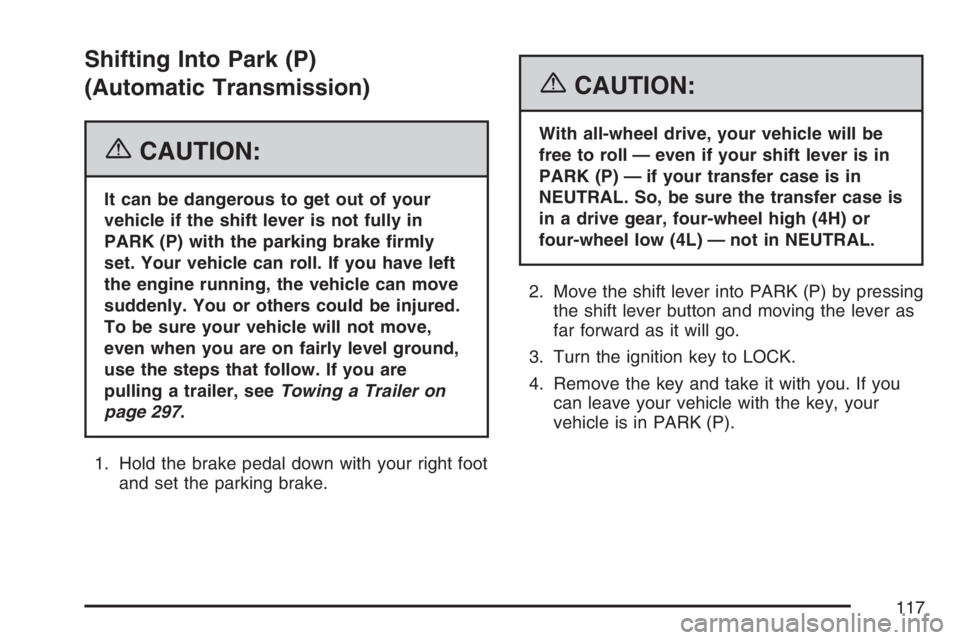

Shifting Into Park (P)
(Automatic Transmission)
{CAUTION:
It can be dangerous to get out of your
vehicle if the shift lever is not fully in
PARK (P) with the parking brake rmly
set. Your vehicle can roll. If you have left
the engine running, the vehicle can move
suddenly. You or others could be injured.
To be sure your vehicle will not move,
even when you are on fairly level ground,
use the steps that follow. If you are
pulling a trailer, seeTowing a Trailer on
page 297.
1. Hold the brake pedal down with your right foot
and set the parking brake.
{CAUTION:
With all-wheel drive, your vehicle will be
free to roll — even if your shift lever is in
PARK (P) — if your transfer case is in
NEUTRAL. So, be sure the transfer case is
in a drive gear, four-wheel high (4H) or
four-wheel low (4L) — not in NEUTRAL.
2. Move the shift lever into PARK (P) by pressing
the shift lever button and moving the lever as
far forward as it will go.
3. Turn the ignition key to LOCK.
4. Remove the key and take it with you. If you
can leave your vehicle with the key, your
vehicle is in PARK (P).
117

Leaving Your Vehicle With the Engine
Running (Automatic Transmission)
{CAUTION:
It can be dangerous to leave your vehicle
with the engine running. Your vehicle
could move suddenly if the shift lever is
not fully in PARK (P) with the parking
brake rmly set. And, if you leave the
vehicle with the engine running, it could
overheat and even catch re. You or
others could be injured. Do not leave your
vehicle with the engine running.
If you have to leave your vehicle with the engine
running, be sure your vehicle is in PARK (P)
and your parking brake is rmly set before you
leave it. After you have moved the shift lever into
PARK (P), hold the regular brake pedal down.
Then, see if you can move the shift lever
away from PARK (P) without rst pressing the shift
lever button. If you can, it means that the shift
lever was not fully locked into PARK (P).
Torque Lock (Automatic Transmission)
If you are parking on a hill and you do not shift
your transmission into PARK (P) properly,
the weight of the vehicle may put too much force
on the parking pawl in the transmission. You
may nd it difficult to pull the shift lever out
of PARK (P). This is called “torque lock.” To
prevent torque lock, set the parking brake and then
shift into PARK (P) properly before you leave
the driver’s seat. To nd out how, seeShifting Into
Park (P) (Automatic Transmission) on page 117.
When you are ready to drive, move the shift
lever out of PARK (P) before you release the
parking brake.
If torque lock does occur, you may need to have
another vehicle push yours a little uphill to
take some of the pressure from the parking pawl
in the transmission, so you can pull the shift
lever out of PARK (P).
118

Shifting Out of Park (P)
(Automatic Transmission)
Your vehicle has an automatic transmission shift
lock control system. You have to apply your
regular brake before you can shift from PARK (P)
when the ignition is in ON. SeeAutomatic
Transmission Operation on page 106.
If you cannot shift out of PARK (P), ease pressure
on the shift lever and push the shift lever all the way
into PARK (P) as you maintain brake application.
Then move the shift lever into the gear you wish.
Press the shift lever button before moving the
shift lever.
Parking Your Vehicle
(Manual Transmission)
Your vehicle has a manual transmission. Before
you get out of your vehicle, move the shift
lever into REVERSE (R), and rmly apply the
parking brake. Once the shift lever has been
placed into REVERSE (R) with the clutch pedal
pressed in, turn the ignition key to LOCK, remove
the key and release the clutch.
If you are parking on a hill, or if your vehicle is
pulling a trailer, seeTowing a Trailer on page 297.
Parking Over Things That Burn
{CAUTION:
Things that can burn could touch hot
exhaust parts under your vehicle and
ignite. Do not park over papers, leaves,
dry grass, or other things that can burn.
119

Engine Exhaust
{CAUTION:
Engine exhaust can kill. It contains the
gas carbon monoxide (CO), which you
cannot see or smell. It can cause
unconsciousness and death.
You might have exhaust coming in if:
Your exhaust system sounds strange
or different.
Your vehicle gets rusty underneath.
Your vehicle was damaged in a
collision.
CAUTION: (Continued)
CAUTION: (Continued)

Your vehicle was damaged when
driving over high points on the road
or over road debris.
Repairs were not done correctly.
Your vehicle or exhaust system has
been modied improperly.
If you ever suspect exhaust is coming into
your vehicle:
Drive it only with all the windows
down to blow out any CO; and
Have your vehicle xed immediately.
120
