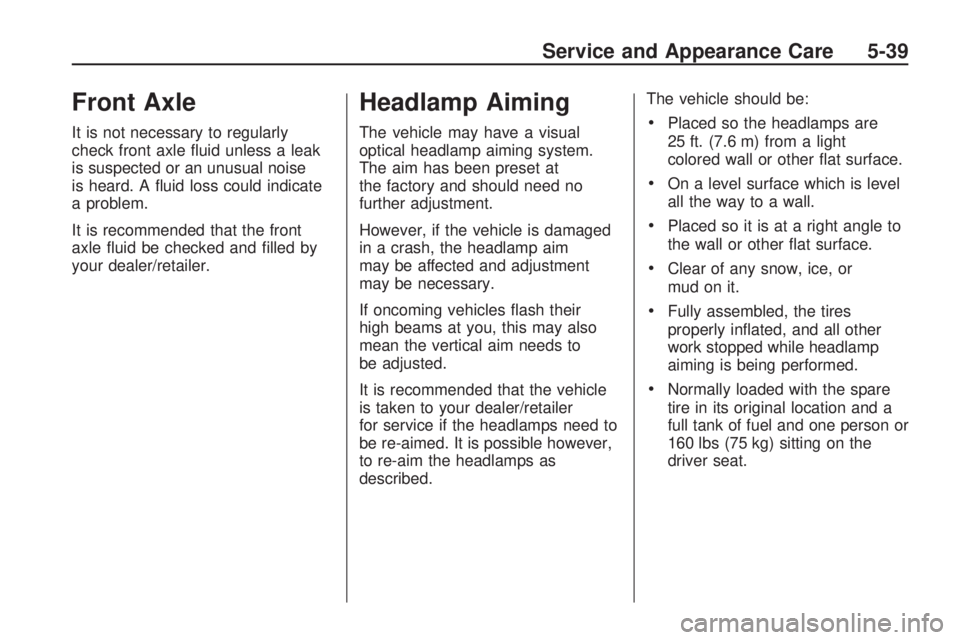

Front Axle
It is not necessary to regularly
check front axle uid unless a leak
is suspected or an unusual noise
is heard. A uid loss could indicate
a problem.
It is recommended that the front
axle uid be checked and lled by
your dealer/retailer.
Headlamp Aiming
The vehicle may have a visual
optical headlamp aiming system.
The aim has been preset at
the factory and should need no
further adjustment.
However, if the vehicle is damaged
in a crash, the headlamp aim
may be affected and adjustment
may be necessary.
If oncoming vehicles ash their
high beams at you, this may also
mean the vertical aim needs to
be adjusted.
It is recommended that the vehicle
is taken to your dealer/retailer
for service if the headlamps need to
be re-aimed. It is possible however,
to re-aim the headlamps as
described.The vehicle should be:Placed so the headlamps are
25 ft. (7.6 m) from a light
colored wall or other at surface.
On a level surface which is level
all the way to a wall.
Placed so it is at a right angle to
the wall or other at surface.
Clear of any snow, ice, or
mudonit.
Fully assembled, the tires
properly inated, and all other
work stopped while headlamp
aiming is being performed.
Normally loaded with the spare
tire in its original location and a
full tank of fuel and one person or
160 lbs (75 kg) sitting on the
driver seat.
Service and Appearance Care 5-39

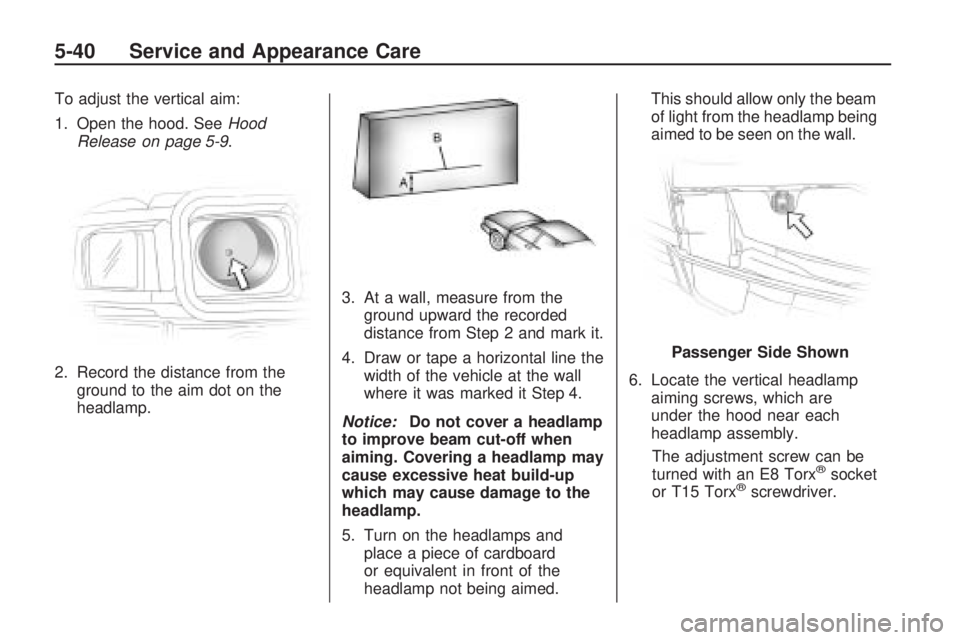

To adjust the vertical aim:
1. Open the hood. SeeHood
Release on page 5-9.
2. Record the distance from the
ground to the aim dot on the
headlamp.3. At a wall, measure from the
ground upward the recorded
distance from Step 2 and mark it.
4. Draw or tape a horizontal line the
width of the vehicle at the wall
where it was marked it Step 4.
Notice:Do not cover a headlamp
to improve beam cut-off when
aiming. Covering a headlamp may
cause excessive heat build-up
which may cause damage to the
headlamp.
5. Turn on the headlamps and
place a piece of cardboard
or equivalent in front of the
headlamp not being aimed.This should allow only the beam
of light from the headlamp being
aimed to be seen on the wall.
6. Locate the vertical headlamp
aiming screws, which are
under the hood near each
headlamp assembly.
The adjustment screw can be
turned with an E8 Torx
®socket
or T15 Torx®screwdriver.
Passenger Side Shown
5-40 Service and Appearance Care

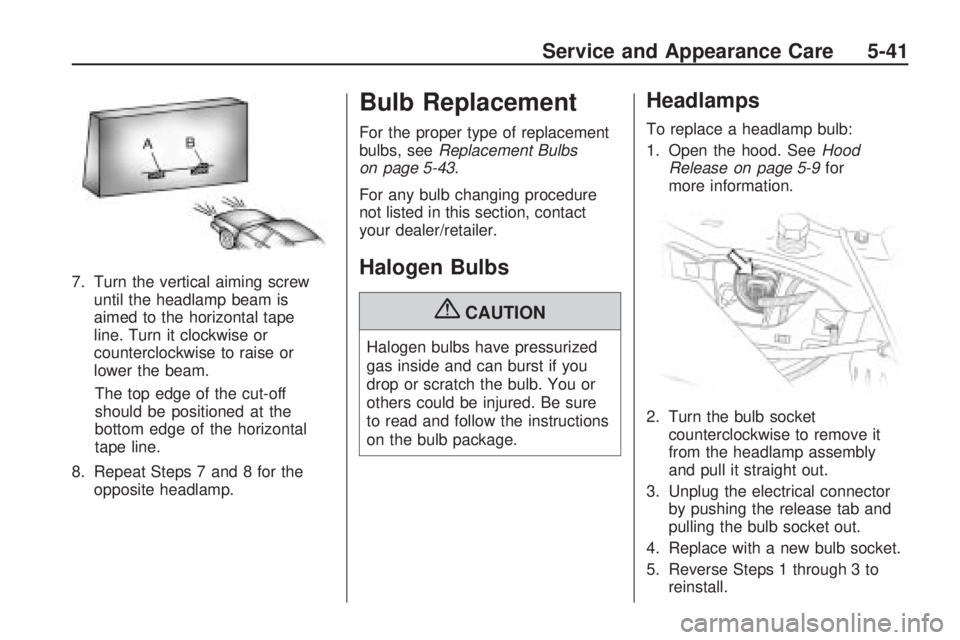

7. Turn the vertical aiming screw
until the headlamp beam is
aimed to the horizontal tape
line. Turn it clockwise or
counterclockwise to raise or
lower the beam.
The top edge of the cut-off
should be positioned at the
bottom edge of the horizontal
tape line.
8. Repeat Steps 7 and 8 for the
opposite headlamp.
Bulb Replacement
For the proper type of replacement
bulbs, seeReplacement Bulbs
on page 5-43.
For any bulb changing procedure
not listed in this section, contact
your dealer/retailer.
Halogen Bulbs
{CAUTION
Halogen bulbs have pressurized
gas inside and can burst if you
drop or scratch the bulb. You or
others could be injured. Be sure
to read and follow the instructions
on the bulb package.
Headlamps
To replace a headlamp bulb:
1. Open the hood. SeeHood
Release on page 5-9for
more information.
2. Turn the bulb socket
counterclockwise to remove it
from the headlamp assembly
and pull it straight out.
3. Unplug the electrical connector
by pushing the release tab and
pulling the bulb socket out.
4. Replace with a new bulb socket.
5. Reverse Steps 1 through 3 to
reinstall.
Service and Appearance Care 5-41

To replace one of these bulbs in the
taillamp assembly:
1. Open the tailgate. SeeTailgate
on page 2-7.
2. Remove the two screws from the
taillamp assembly.
3. Pull the taillamp assembly away
from the vehicle.
4. Turn the bulb socket
counterclockwise to remove it
from the taillamp assembly.
5. Pull the old bulb to release it
from the socket.6. Turn the bulb socket clockwise to
reinstall in the taillamp assembly.
7. Reinstall the taillamp assembly
making sure to line up the pins
with the vehicle.
8. Reinstall the two screws.
License Plate Lamp
To replace one of these bulbs:
1. Remove the two screws holding
the license plate lamp.
2. Pull the license plate lamp away
from the fascia.
3. Turn the bulb socket
counterclockwise and pull the
bulb straight out of the license
plate lamp assembly.4. Install the new bulb into the
socket.
5. Reverse Steps 1 through 4 to
reinstall.
Replacement Bulbs
Exterior LampBulb
Number
Back-up Lamp (H3T) W16W
Back-up (H3),
Stoplamp,
Taillamp and Turn
Signal Lamp3157K
License Plate Lamp 194
Low-Beam and
High-Beam
HeadlampH13
For replacement bulbs not listed
here, contact your dealer/retailer.
Service and Appearance Care 5-43

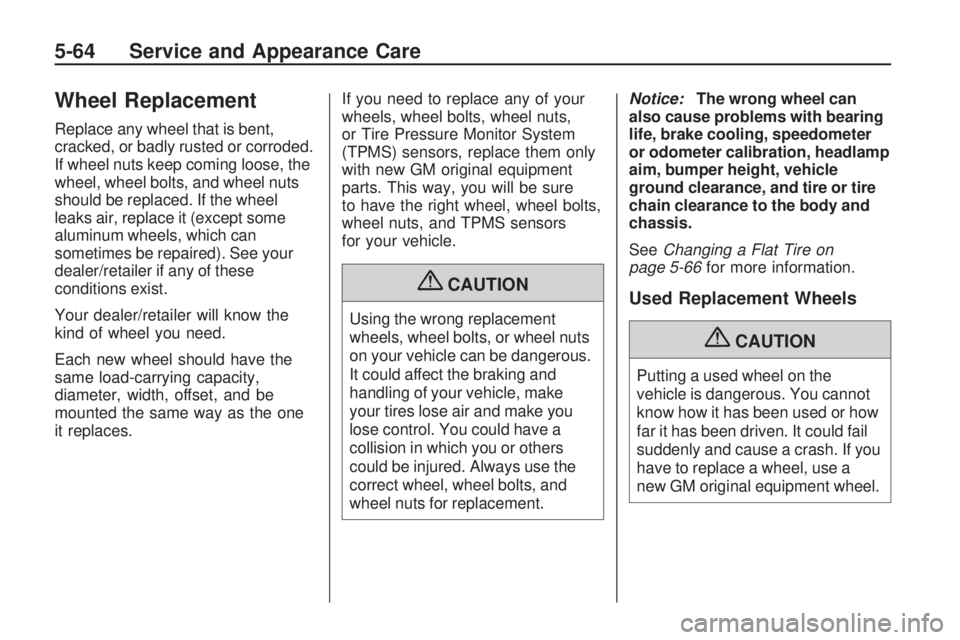

Wheel Replacement
Replace any wheel that is bent,
cracked, or badly rusted or corroded.
If wheel nuts keep coming loose, the
wheel, wheel bolts, and wheel nuts
should be replaced. If the wheel
leaks air, replace it (except some
aluminum wheels, which can
sometimes be repaired). See your
dealer/retailer if any of these
conditions exist.
Your dealer/retailer will know the
kind of wheel you need.
Each new wheel should have the
same load-carrying capacity,
diameter, width, offset, and be
mounted the same way as the one
it replaces.If you need to replace any of your
wheels, wheel bolts, wheel nuts,
or Tire Pressure Monitor System
(TPMS) sensors, replace them only
with new GM original equipment
parts. This way, you will be sure
to have the right wheel, wheel bolts,
wheel nuts, and TPMS sensors
for your vehicle.
{CAUTION
Using the wrong replacement
wheels, wheel bolts, or wheel nuts
on your vehicle can be dangerous.
It could affect the braking and
handling of your vehicle, make
your tires lose air and make you
lose control. You could have a
collision in which you or others
could be injured. Always use the
correct wheel, wheel bolts, and
wheel nuts for replacement.Notice:The wrong wheel can
also cause problems with bearing
life, brake cooling, speedometer
or odometer calibration, headlamp
aim, bumper height, vehicle
ground clearance, and tire or tire
chain clearance to the body and
chassis.
SeeChanging a Flat Tire on
page 5-66for more information.
Used Replacement Wheels
{CAUTION
Putting a used wheel on the
vehicle is dangerous. You cannot
know how it has been used or how
far it has been driven. It could fail
suddenly and cause a crash. If you
have to replace a wheel, use a
new GM original equipment wheel.
5-64 Service and Appearance Care

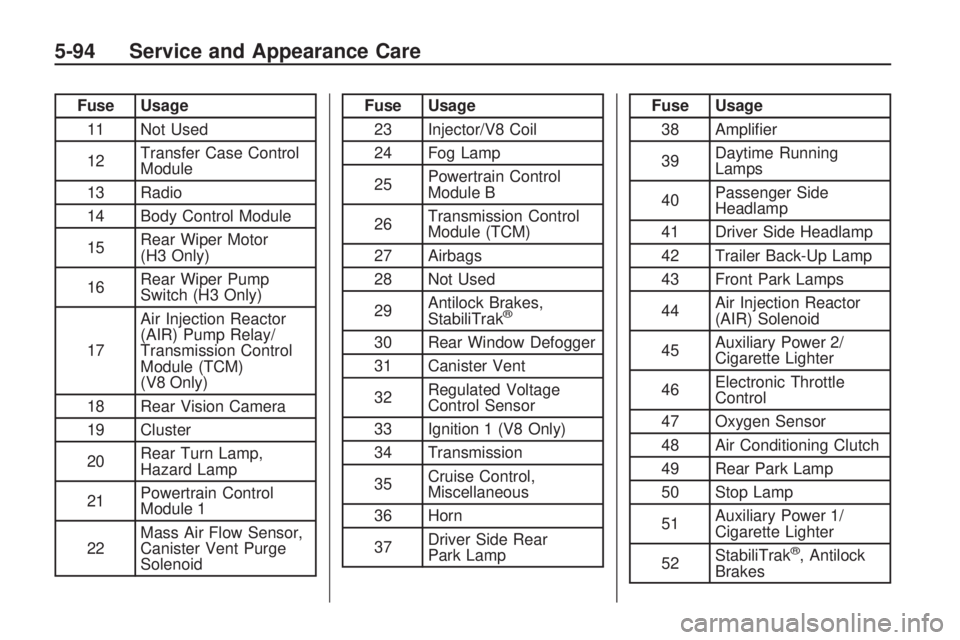

Fuse Usage
11 Not Used
12Transfer Case Control
Module
13 Radio
14 Body Control Module
15Rear Wiper Motor
(H3 Only)
16Rear Wiper Pump
Switch (H3 Only)
17Air Injection Reactor
(AIR) Pump Relay/
Transmission Control
Module (TCM)
(V8 Only)
18 Rear Vision Camera
19 Cluster
20Rear Turn Lamp,
Hazard Lamp
21Powertrain Control
Module 1
22Mass Air Flow Sensor,
Canister Vent Purge
SolenoidFuse Usage
23 Injector/V8 Coil
24 Fog Lamp
25Powertrain Control
Module B
26Transmission Control
Module (TCM)
27 Airbags
28 Not Used
29Antilock Brakes,
StabiliTrak
®
30 Rear Window Defogger
31 Canister Vent
32Regulated Voltage
Control Sensor
33 Ignition 1 (V8 Only)
34 Transmission
35Cruise Control,
Miscellaneous
36 Horn
37Driver Side Rear
Park Lamp
Fuse Usage
38 Amplier
39Daytime Running
Lamps
40Passenger Side
Headlamp
41 Driver Side Headlamp
42 Trailer Back-Up Lamp
43 Front Park Lamps
44Air Injection Reactor
(AIR) Solenoid
45Auxiliary Power 2/
Cigarette Lighter
46Electronic Throttle
Control
47 Oxygen Sensor
48 Air Conditioning Clutch
49 Rear Park Lamp
50 Stop Lamp
51Auxiliary Power 1/
Cigarette Lighter
52StabiliTrak
®, Antilock
Brakes
5-94 Service and Appearance Care

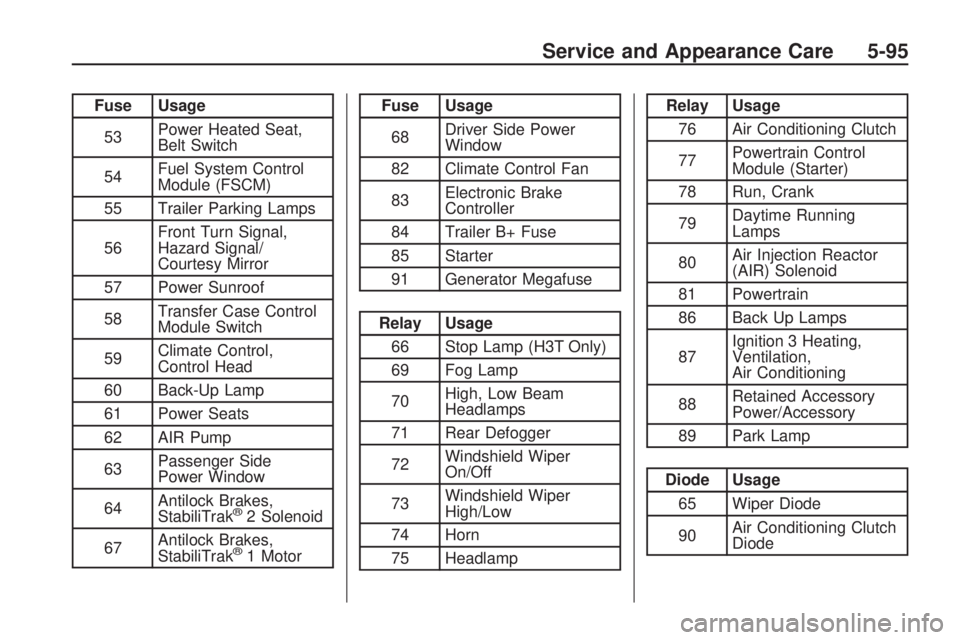

Fuse Usage
53Power Heated Seat,
Belt Switch
54Fuel System Control
Module (FSCM)
55 Trailer Parking Lamps
56Front Turn Signal,
Hazard Signal/
Courtesy Mirror
57 Power Sunroof
58Transfer Case Control
Module Switch
59Climate Control,
Control Head
60 Back-Up Lamp
61 Power Seats
62 AIR Pump
63Passenger Side
Power Window
64Antilock Brakes,
StabiliTrak
®2 Solenoid
67Antilock Brakes,
StabiliTrak
®1 Motor
Fuse Usage
68Driver Side Power
Window
82 Climate Control Fan
83Electronic Brake
Controller
84 Trailer B+ Fuse
85 Starter
91 Generator Megafuse
Relay Usage
66 Stop Lamp (H3T Only)
69 Fog Lamp
70High, Low Beam
Headlamps
71 Rear Defogger
72Windshield Wiper
On/Off
73Windshield Wiper
High/Low
74 Horn
75 Headlamp
Relay Usage
76 Air Conditioning Clutch
77Powertrain Control
Module (Starter)
78 Run, Crank
79Daytime Running
Lamps
80Air Injection Reactor
(AIR) Solenoid
81 Powertrain
86 Back Up Lamps
87Ignition 3 Heating,
Ventilation,
Air Conditioning
88Retained Accessory
Power/Accessory
89 Park Lamp
Diode Usage
65 Wiper Diode
90Air Conditioning Clutch
Diode
Service and Appearance Care 5-95

Audio System(s)..................3-42
Automatic Headlamp
System...........................3-14
Automatic Transmission
Fluid...............................5-18
Operation........................2-19
B
Battery...............................5-33
Electric Power
Management.................3-17
Run-Down Protection.........3-17
Bench Seat,
Split (60/40)................1-7, 1-9
Bluetooth
®..........................3-52
Brake
Emergencies...................... 4-6
Brake Fluid.........................5-30
Brakes...............................5-30
System Warning Light.......3-27
Braking................................ 4-3
Braking in Emergencies.......... 4-6
Break-In, New Vehicle..........2-15
Bulb Replacement................5-41
Halogen Bulbs..................5-41
Headlamp Aiming..............5-39
Headlamps......................5-41Bulb Replacement (cont.)
License Plate Lamps.........5-43
Replacement Bulbs...........5-43
Taillamps, Turn Signal,
Stoplamps and Back-up
Lamps .........................5-42
Buying New Tires.................5-59
C
Calibration..........................2-34
California Fuel....................... 5-5
California Perchlorate
Materials Requirements....... 5-4
California Proposition
65 Warning........................ 5-4
Canadian Owners..................... ii
Capacities and
Specications...................5-96
Carbon Monoxide....2-7, 2-9, 2-31
Care of
Safety Belts.....................5-85
Cargo Cover.......................2-49
Cargo Management System . . . 2-49
Cargo Tie Downs.................2-49
Center Console
Storage Area....................2-47
Chains, Tire........................5-65
Charging System Light..........3-27Check
Engine Lamp...................3-30
Checking Things Under
the Hood ........................... 5-9
Chemical Paint Spotting........5-90
Child Restraints
Child Restraint Systems.....1-31
Infants and Young
Children.......................1-28
Lower Anchors and Tethers
for Children..................1-34
Older Children..................1-25
Securing a Child Restraint
in a Rear Outside Seat
Position.......................1-41
Securing a Child Restraint
in the Center Rear Seat
Position.......................1-43
Securing a Child Restraint
in the Right Front Seat
Position.......................1-43
Where to Put the
Restraint......................1-32
Cigarette Lighter..................3-18
Cleaning
Aluminum or
Chrome-Plated Wheels . . . 5-88
Exterior Lamps/Lenses......5-86
Fabric/Carpet...................5-84
i-2 INDEX

Fuel (cont.)
Filling a Portable Fuel
Container....................... 5-8
Filling the Tank.................. 5-7
Fuels in Foreign Countries . . . 5-7
Gage ..............................3-33
Gasoline Octane................ 5-5
Gasoline Specications........ 5-5
Fuses
Engine Compartment
Fuse Block...................5-92
Fuses and Circuit
Breakers......................5-91
Windshield Wiper..............5-91
G
Gage
Engine Coolant
Temperature.................3-29
Fuel................................3-33
Speedometer...................3-24
Tachometer......................3-24
Garage Door Opener............2-42Gasoline
Octane............................. 5-5
Specications..................... 5-5
Glove Box...........................2-47
GM Mobility Reimbursement
Program............................ 7-5
H
Hazard Warning Flashers........ 3-5
Head Restraints..................... 1-2
Headlamp
Aiming ............................5-39
Headlamps..........................5-41
Bulb Replacement.............5-41
Daytime Running Lamp.....3-13
Exterior Lamps.................3-11
Flash-to-Pass..................... 3-7
Halogen Bulbs..................5-41
High/Low Beam Changer..... 3-7
On Reminder...................3-13
Heated Seats........................ 1-4
Heater................................3-19
Engine Coolant.................2-19
Highbeam On Light..............3-33Highway Hypnosis................4-30
Hill and Mountain Roads.......4-30
Hood
Checking Things Under....... 5-9
Release............................ 5-9
Horn .................................... 3-5
How to Wear Safety Belts
Properly..........................1-14
Hydraulic Clutch...................5-21
I
Ignition Positions..................2-16
Infants and Young Children,
Restraints........................1-28
Ination - Tire Pressure.........5-51
Instrument Panel
Brightness.......................3-15
Cluster............................3-23
Overview........................... 3-4
INDEX i-5
