HUMMER H3 2009 Owners Manual

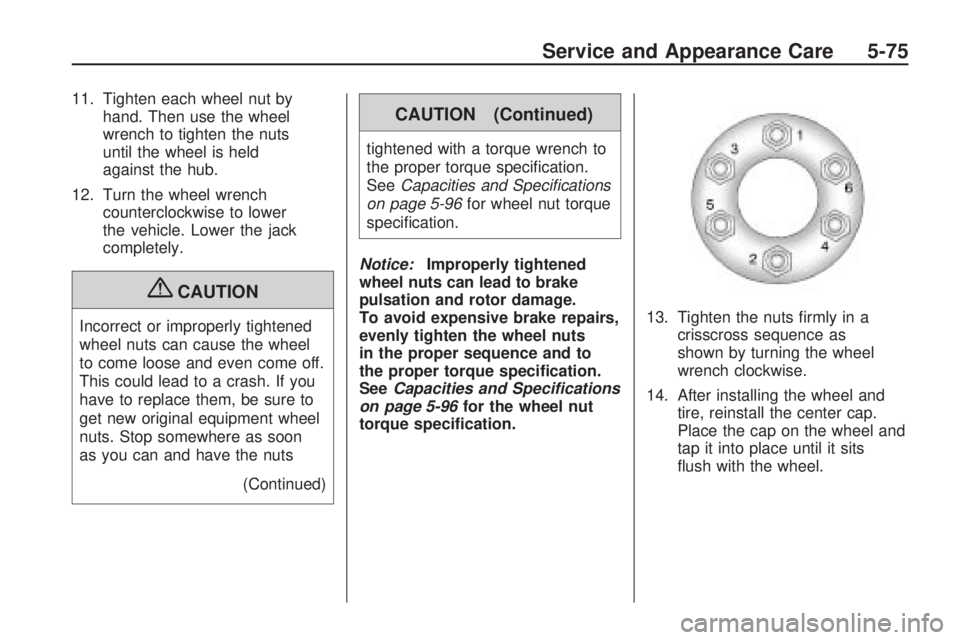

11. Tighten each wheel nut by
hand. Then use the wheel
wrench to tighten the nuts
until the wheel is held
against the hub.
12. Turn the wheel wrench
counterclockwise to lower
the vehicle. Lower the jack
completely.
{CAUTION
Incorrect or improperly tightened
wheel nuts can cause the wheel
to come loose and even come off.
This could lead to a crash. If you
have to replace them, be sure to
get new original equipment wheel
nuts. Stop somewhere as soon
as you can and have the nuts
(Continued)
CAUTION (Continued)
tightened with a torque wrench to
the proper torque specication.
SeeCapacities and Specifications
on page 5-96for wheel nut torque
specication.
Notice:Improperly tightened
wheel nuts can lead to brake
pulsation and rotor damage.
To avoid expensive brake repairs,
evenly tighten the wheel nuts
in the proper sequence and to
the proper torque specication.
SeeCapacities and Specifications
on page 5-96for the wheel nut
torque specication.13. Tighten the nuts rmly in a
crisscross sequence as
shown by turning the wheel
wrench clockwise.
14. After installing the wheel and
tire, reinstall the center cap.
Place the cap on the wheel and
tap it into place until it sits
ush with the wheel.
Service and Appearance Care 5-75

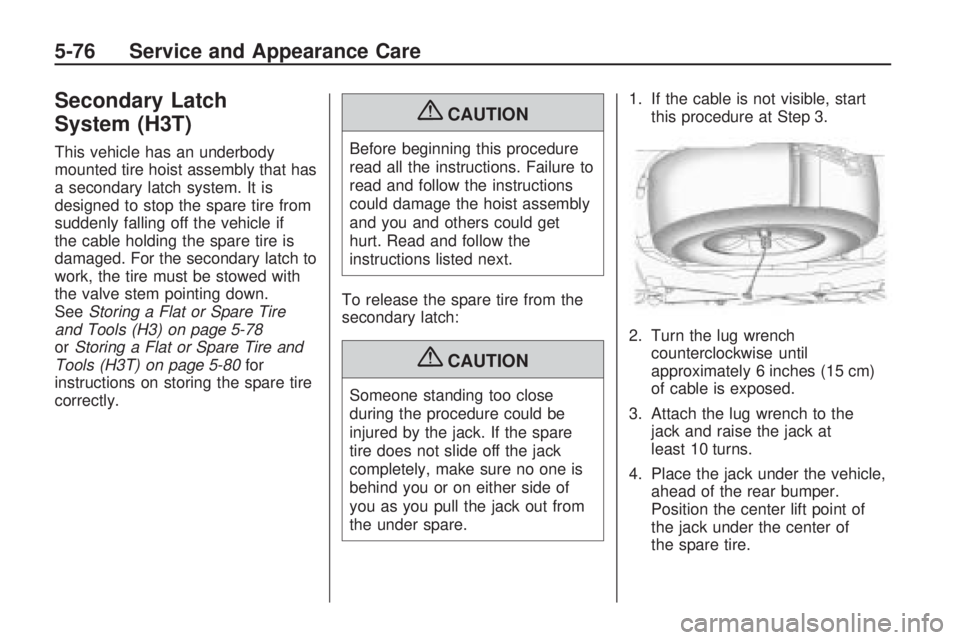

Secondary Latch
System (H3T)
This vehicle has an underbody
mounted tire hoist assembly that has
a secondary latch system. It is
designed to stop the spare tire from
suddenly falling off the vehicle if
the cable holding the spare tire is
damaged. For the secondary latch to
work, the tire must be stowed with
the valve stem pointing down.
SeeStoring a Flat or Spare Tire
and Tools (H3) on page 5-78
orStoring a Flat or Spare Tire and
Tools (H3T) on page 5-80for
instructions on storing the spare tire
correctly.
{CAUTION
Before beginning this procedure
read all the instructions. Failure to
read and follow the instructions
could damage the hoist assembly
and you and others could get
hurt. Read and follow the
instructions listed next.
To release the spare tire from the
secondary latch:
{CAUTION
Someone standing too close
during the procedure could be
injured by the jack. If the spare
tire does not slide off the jack
completely, make sure no one is
behind you or on either side of
you as you pull the jack out from
the under spare.1. If the cable is not visible, start
this procedure at Step 3.
2. Turn the lug wrench
counterclockwise until
approximately 6 inches (15 cm)
of cable is exposed.
3. Attach the lug wrench to the
jack and raise the jack at
least 10 turns.
4. Place the jack under the vehicle,
ahead of the rear bumper.
Position the center lift point of
the jack under the center of
the spare tire.
5-76 Service and Appearance Care

5. Turn the lug wrench clockwise to
raise the jack until it lifts the
secondary latch spring.
6. Keep raising the jack until the
spare tire stops moving upward
and is held rmly in place.
This lets you know that the
secondary latch has released
and the spare tire is balancing on
the jack.
7. Lower the jack by turning the
lug wrench counterclockwise.
Keep lowering the jack until the
spare tire slides off the jack.8. Disconnect the lug wrench from
the jack and carefully remove
the jack. Use one hand to push
against the spare tire while
rmly pulling the jack out from
under the spare tire with the
other hand.9. Tilt the retainer and slip it
through the wheel opening when
the spare tire has been
completely lowered.
10. Turn the lug wrench clockwise
to raise the cable back up if the
cable is hanging.
Have the hoist shaft assembly
inspected as soon as you can.
You will not be able to store a spare
tire using the hoist assembly until
it has been repaired or replaced.
Service and Appearance Care 5-77

Storing a Flat or Spare
Tire and Tools (H3)
{CAUTION
Storing a jack, a tire, or other
equipment in the passenger
compartment of the vehicle could
cause injury. In a sudden stop or
collision, loose equipment could
strike someone. Store all these in
the proper place.To store the at or spare tire on the
spare tire mount:
1. Slide the at or spare tire onto
the swing-gate.
You may need assistance
to do this.
2. Reinstall the nuts to retain the
at or spare tire.
3. Tighten the nuts by hand.
{CAUTION
Incorrect or improperly tightened
wheel nuts can cause the wheel
to come loose and even come off.
This could lead to a crash. If you
have to replace them, be sure to
get new original equipment wheel
nuts. Stop somewhere as soon as
you can and have the nuts
tightened with a torque wrench to
the proper torque specication.
SeeCapacities and Specifications
on page 5-96for wheel nut torque
specication.
5-78 Service and Appearance Care

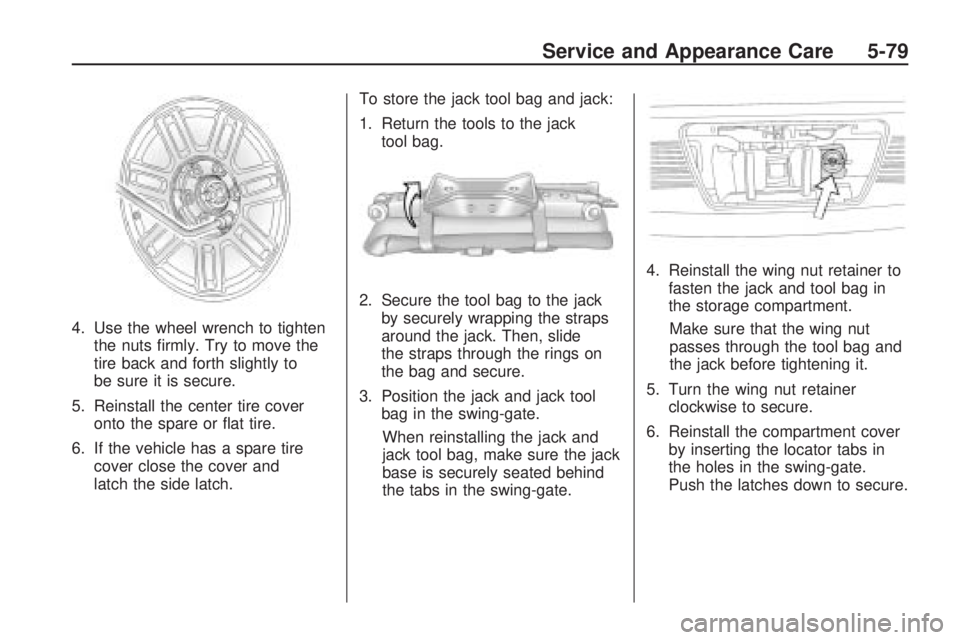

4. Use the wheel wrench to tighten
the nuts rmly. Try to move the
tire back and forth slightly to
be sure it is secure.
5. Reinstall the center tire cover
onto the spare or at tire.
6. If the vehicle has a spare tire
cover close the cover and
latch the side latch.To store the jack tool bag and jack:
1. Return the tools to the jack
tool bag.
2. Secure the tool bag to the jack
by securely wrapping the straps
around the jack. Then, slide
the straps through the rings on
the bag and secure.
3. Position the jack and jack tool
bag in the swing-gate.
When reinstalling the jack and
jack tool bag, make sure the jack
base is securely seated behind
the tabs in the swing-gate.4. Reinstall the wing nut retainer to
fasten the jack and tool bag in
the storage compartment.
Make sure that the wing nut
passes through the tool bag and
the jack before tightening it.
5. Turn the wing nut retainer
clockwise to secure.
6. Reinstall the compartment cover
by inserting the locator tabs in
the holes in the swing-gate.
Push the latches down to secure.
Service and Appearance Care 5-79

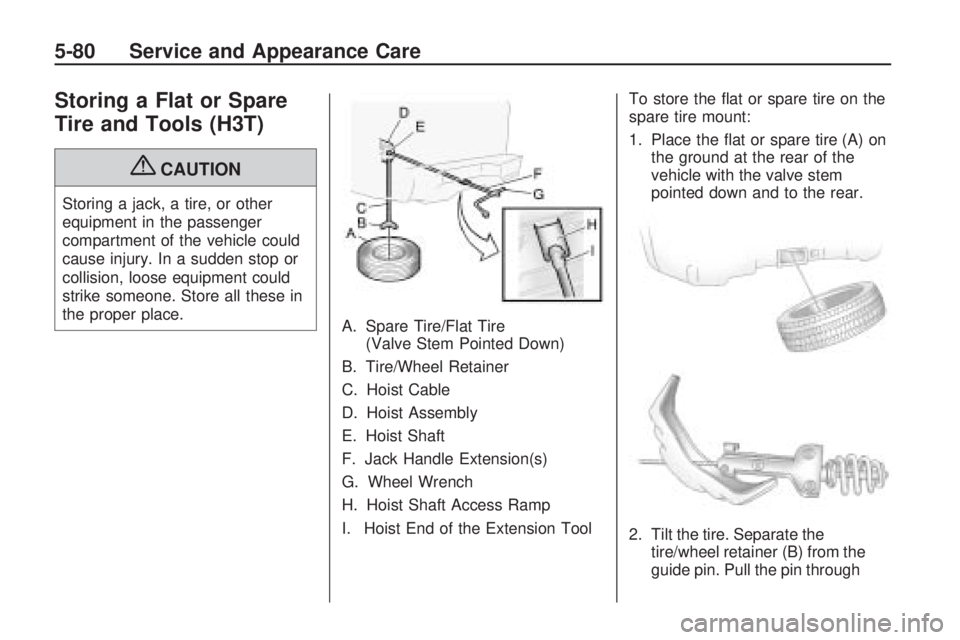

Storing a Flat or Spare
Tire and Tools (H3T)
{CAUTION
Storing a jack, a tire, or other
equipment in the passenger
compartment of the vehicle could
cause injury. In a sudden stop or
collision, loose equipment could
strike someone. Store all these in
the proper place.
A. Spare Tire/Flat Tire
(Valve Stem Pointed Down)
B. Tire/Wheel Retainer
C. Hoist Cable
D. Hoist Assembly
E. Hoist Shaft
F. Jack Handle Extension(s)
G. Wheel Wrench
H. Hoist Shaft Access Ramp
I. Hoist End of the Extension ToolTo store the at or spare tire on the
spare tire mount:
1. Place the at or spare tire (A) on
the ground at the rear of the
vehicle with the valve stem
pointed down and to the rear.
2. Tilt the tire. Separate the
tire/wheel retainer (B) from the
guide pin. Pull the pin through
5-80 Service and Appearance Care

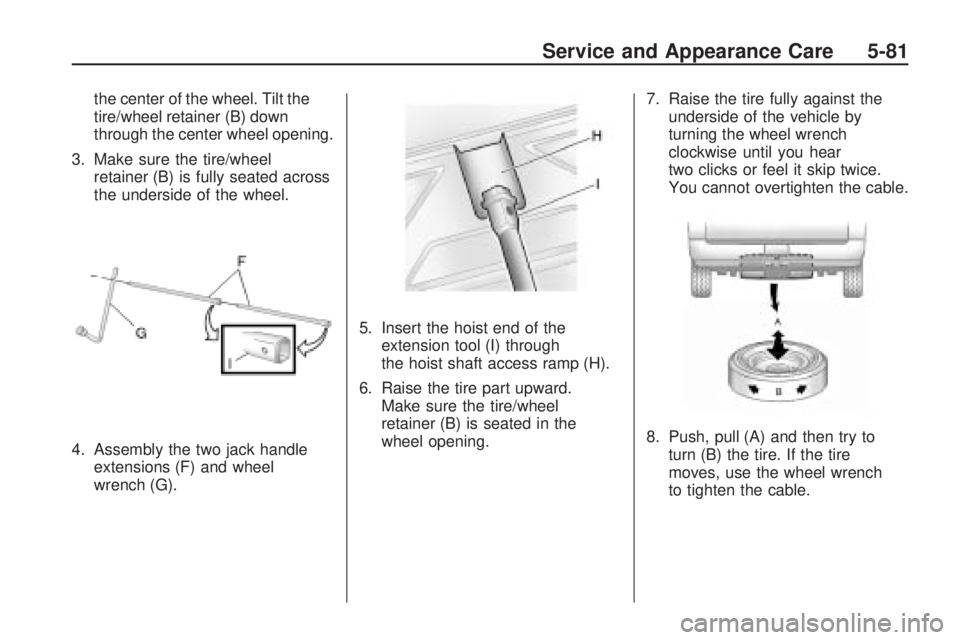

the center of the wheel. Tilt the
tire/wheel retainer (B) down
through the center wheel opening.
3. Make sure the tire/wheel
retainer (B) is fully seated across
the underside of the wheel.
4. Assembly the two jack handle
extensions (F) and wheel
wrench (G).5. Insert the hoist end of the
extension tool (I) through
the hoist shaft access ramp (H).
6. Raise the tire part upward.
Make sure the tire/wheel
retainer (B) is seated in the
wheel opening.7. Raise the tire fully against the
underside of the vehicle by
turning the wheel wrench
clockwise until you hear
two clicks or feel it skip twice.
You cannot overtighten the cable.
8. Push, pull (A) and then try to
turn (B) the tire. If the tire
moves, use the wheel wrench
to tighten the cable.
Service and Appearance Care 5-81

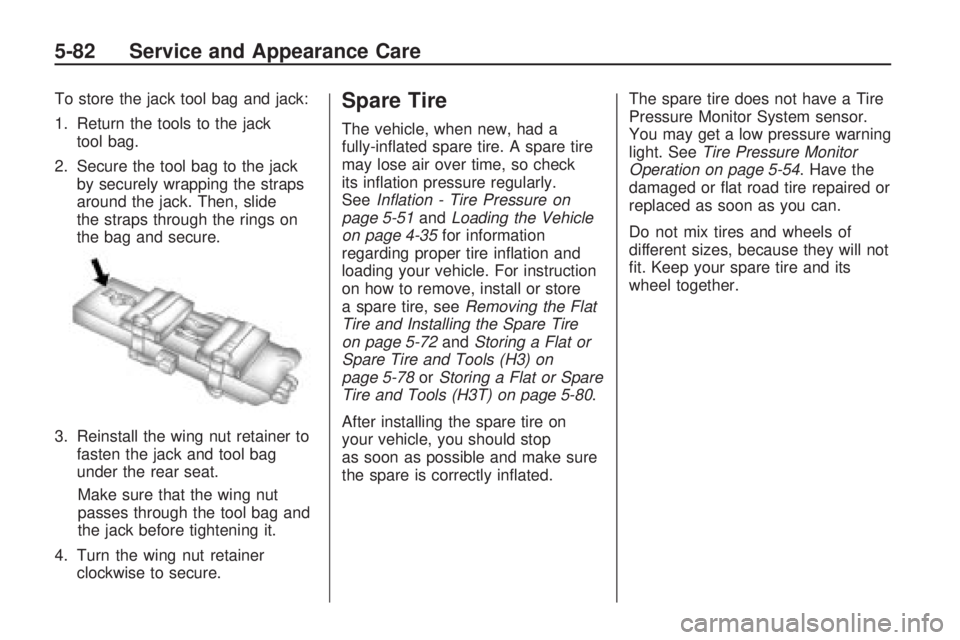

To store the jack tool bag and jack:
1. Return the tools to the jack
tool bag.
2. Secure the tool bag to the jack
by securely wrapping the straps
around the jack. Then, slide
the straps through the rings on
the bag and secure.
3. Reinstall the wing nut retainer to
fasten the jack and tool bag
under the rear seat.
Make sure that the wing nut
passes through the tool bag and
the jack before tightening it.
4. Turn the wing nut retainer
clockwise to secure.Spare Tire
The vehicle, when new, had a
fully-inated spare tire. A spare tire
may lose air over time, so check
its ination pressure regularly.
SeeInflation - Tire Pressure on
page 5-51andLoading the Vehicle
on page 4-35for information
regarding proper tire ination and
loading your vehicle. For instruction
on how to remove, install or store
a spare tire, seeRemoving the Flat
Tire and Installing the Spare Tire
on page 5-72andStoring a Flat or
Spare Tire and Tools (H3) on
page 5-78orStoring a Flat or Spare
Tire and Tools (H3T) on page 5-80.
After installing the spare tire on
your vehicle, you should stop
as soon as possible and make sure
the spare is correctly inated.The spare tire does not have a Tire
Pressure Monitor System sensor.
You may get a low pressure warning
light. SeeTire Pressure Monitor
Operation on page 5-54. Have the
damaged or at road tire repaired or
replaced as soon as you can.
Do not mix tires and wheels of
different sizes, because they will not
t. Keep your spare tire and its
wheel together.
5-82 Service and Appearance Care

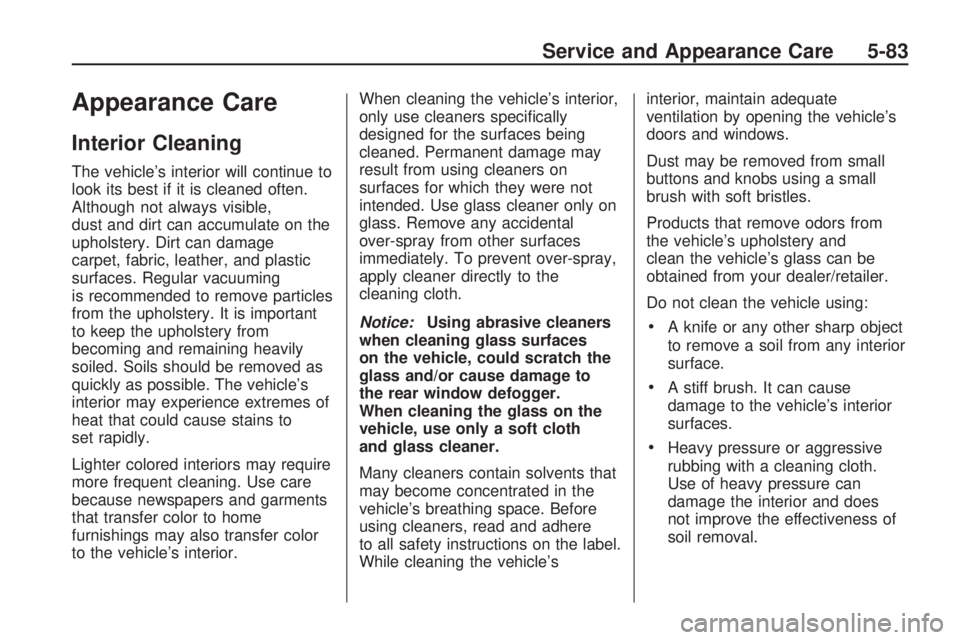

Appearance Care
Interior Cleaning
The vehicle’s interior will continue to
look its best if it is cleaned often.
Although not always visible,
dust and dirt can accumulate on the
upholstery. Dirt can damage
carpet, fabric, leather, and plastic
surfaces. Regular vacuuming
is recommended to remove particles
from the upholstery. It is important
to keep the upholstery from
becoming and remaining heavily
soiled. Soils should be removed as
quickly as possible. The vehicle’s
interior may experience extremes of
heat that could cause stains to
set rapidly.
Lighter colored interiors may require
more frequent cleaning. Use care
because newspapers and garments
that transfer color to home
furnishings may also transfer color
to the vehicle’s interior.When cleaning the vehicle’s interior,
only use cleaners specically
designed for the surfaces being
cleaned. Permanent damage may
result from using cleaners on
surfaces for which they were not
intended. Use glass cleaner only on
glass. Remove any accidental
over-spray from other surfaces
immediately. To prevent over-spray,
apply cleaner directly to the
cleaning cloth.
Notice:Using abrasive cleaners
when cleaning glass surfaces
on the vehicle, could scratch the
glass and/or cause damage to
the rear window defogger.
When cleaning the glass on the
vehicle, use only a soft cloth
and glass cleaner.
Many cleaners contain solvents that
may become concentrated in the
vehicle’s breathing space. Before
using cleaners, read and adhere
to all safety instructions on the label.
While cleaning the vehicle’sinterior, maintain adequate
ventilation by opening the vehicle’s
doors and windows.
Dust may be removed from small
buttons and knobs using a small
brush with soft bristles.
Products that remove odors from
the vehicle’s upholstery and
clean the vehicle’s glass can be
obtained from your dealer/retailer.
Do not clean the vehicle using:
A knife or any other sharp object
to remove a soil from any interior
surface.
A stiff brush. It can cause
damage to the vehicle’s interior
surfaces.
Heavy pressure or aggressive
rubbing with a cleaning cloth.
Use of heavy pressure can
damage the interior and does
not improve the effectiveness of
soil removal.
Service and Appearance Care 5-83

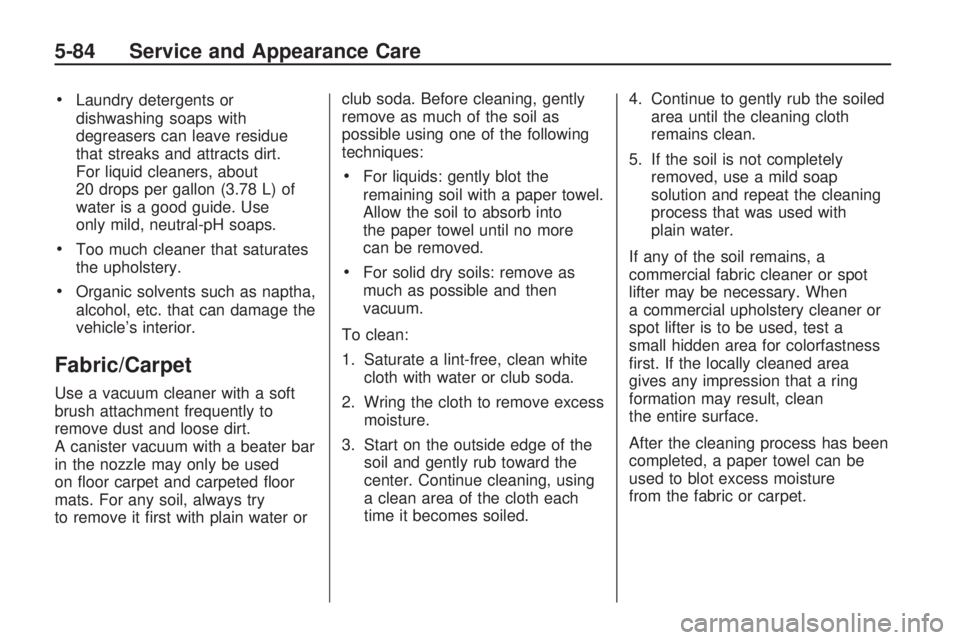

Laundry detergents or
dishwashing soaps with
degreasers can leave residue
that streaks and attracts dirt.
For liquid cleaners, about
20 drops per gallon (3.78 L) of
water is a good guide. Use
only mild, neutral-pH soaps.
Too much cleaner that saturates
the upholstery.
Organic solvents such as naptha,
alcohol, etc. that can damage the
vehicle’s interior.
Fabric/Carpet
Use a vacuum cleaner with a soft
brush attachment frequently to
remove dust and loose dirt.
A canister vacuum with a beater bar
in the nozzle may only be used
on oor carpet and carpeted oor
mats. For any soil, always try
to remove it rst with plain water orclub soda. Before cleaning, gently
remove as much of the soil as
possible using one of the following
techniques:
For liquids: gently blot the
remaining soil with a paper towel.
Allow the soil to absorb into
the paper towel until no more
can be removed.
For solid dry soils: remove as
much as possible and then
vacuum.
To clean:
1. Saturate a lint-free, clean white
cloth with water or club soda.
2. Wring the cloth to remove excess
moisture.
3. Start on the outside edge of the
soil and gently rub toward the
center. Continue cleaning, using
a clean area of the cloth each
time it becomes soiled.4. Continue to gently rub the soiled
area until the cleaning cloth
remains clean.
5. If the soil is not completely
removed, use a mild soap
solution and repeat the cleaning
process that was used with
plain water.
If any of the soil remains, a
commercial fabric cleaner or spot
lifter may be necessary. When
a commercial upholstery cleaner or
spot lifter is to be used, test a
small hidden area for colorfastness
rst. If the locally cleaned area
gives any impression that a ring
formation may result, clean
the entire surface.
After the cleaning process has been
completed, a paper towel can be
used to blot excess moisture
from the fabric or carpet.
5-84 Service and Appearance Care
