HUMMER H3 2009 Owners Manual

Fuse Usage
53Power Heated Seat,
Belt Switch
54Fuel System Control
Module (FSCM)
55 Trailer Parking Lamps
56Front Turn Signal,
Hazard Signal/
Courtesy Mirror
57 Power Sunroof
58Transfer Case Control
Module Switch
59Climate Control,
Control Head
60 Back-Up Lamp
61 Power Seats
62 AIR Pump
63Passenger Side
Power Window
64Antilock Brakes,
StabiliTrak
®2 Solenoid
67Antilock Brakes,
StabiliTrak
®1 Motor
Fuse Usage
68Driver Side Power
Window
82 Climate Control Fan
83Electronic Brake
Controller
84 Trailer B+ Fuse
85 Starter
91 Generator Megafuse
Relay Usage
66 Stop Lamp (H3T Only)
69 Fog Lamp
70High, Low Beam
Headlamps
71 Rear Defogger
72Windshield Wiper
On/Off
73Windshield Wiper
High/Low
74 Horn
75 Headlamp
Relay Usage
76 Air Conditioning Clutch
77Powertrain Control
Module (Starter)
78 Run, Crank
79Daytime Running
Lamps
80Air Injection Reactor
(AIR) Solenoid
81 Powertrain
86 Back Up Lamps
87Ignition 3 Heating,
Ventilation,
Air Conditioning
88Retained Accessory
Power/Accessory
89 Park Lamp
Diode Usage
65 Wiper Diode
90Air Conditioning Clutch
Diode
Service and Appearance Care 5-95

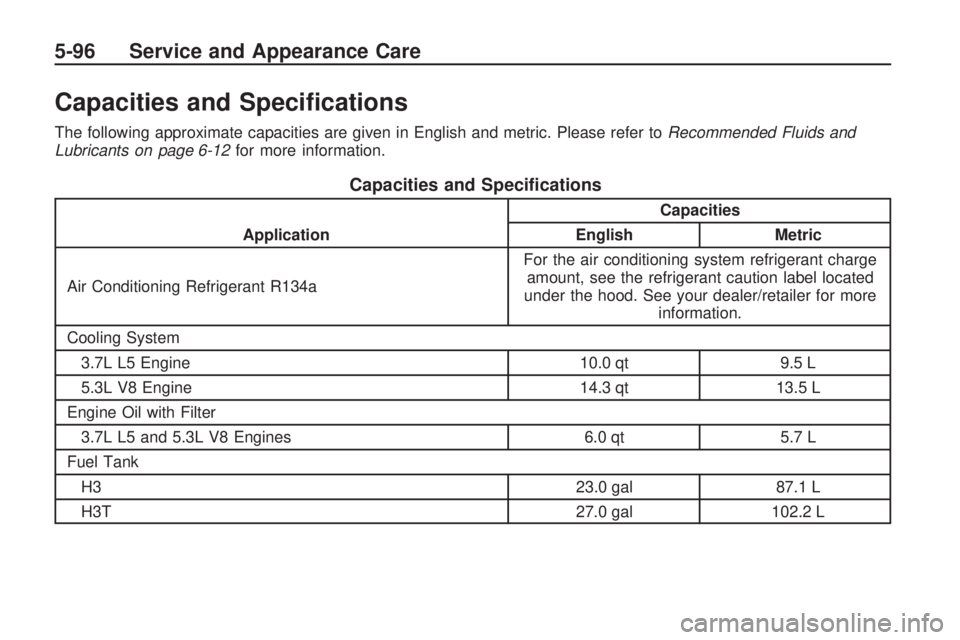

Capacities and Specications
The following approximate capacities are given in English and metric. Please refer toRecommended Fluids and
Lubricants on page 6-12 for more information.
Capacities and Specications
Application Capacities
English Metric
Air Conditioning Refrigerant R134a For the air conditioning system refrigerant charge
amount, see the refrigerant caution label located
under the hood. See your dealer/retailer for more information.
Cooling System 3.7L L5 Engine 10.0 qt9.5 L
5.3L V8 Engine 14.3 qt13.5 L
Engine Oil with Filter 3.7L L5 and 5.3L V8 Engines 6.0 qt5.7 L
Fuel Tank H3 23.0 gal87.1 L
H3T 27.0 gal102.2 L
5-96 Service and Appearance Care

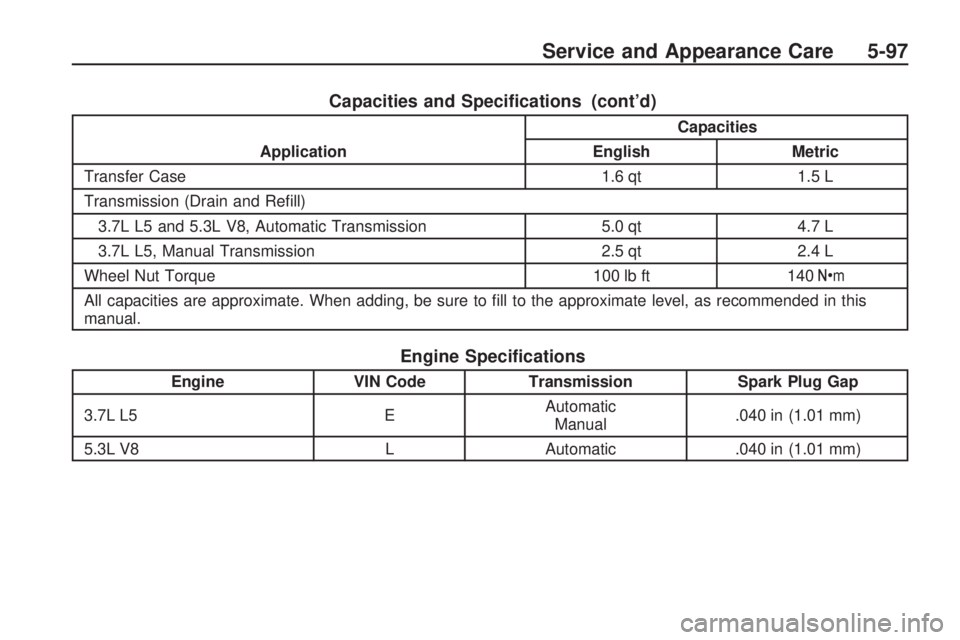

Capacities and Specications (cont’d)
ApplicationCapacities
English Metric
Transfer Case 1.6 qt1.5 L
Transmission (Drain and Rell) 3.7L L5 and 5.3L V8, Automatic Transmission 5.0 qt4.7 L
3.7L L5, Manual Transmission 2.5 qt2.4 L
Wheel Nut Torque 100 lb ft140Y
All capacities are approximate. When adding, be sure to ll to the approximate level, as recommended in this
manual.
Engine Specications
Engine VIN CodeTransmission Spark Plug Gap
3.7L L5 EAutomatic
Manual .040 in (1.01 mm)
5.3L V8 LAutomatic .040 in (1.01 mm)
Service and Appearance Care 5-97

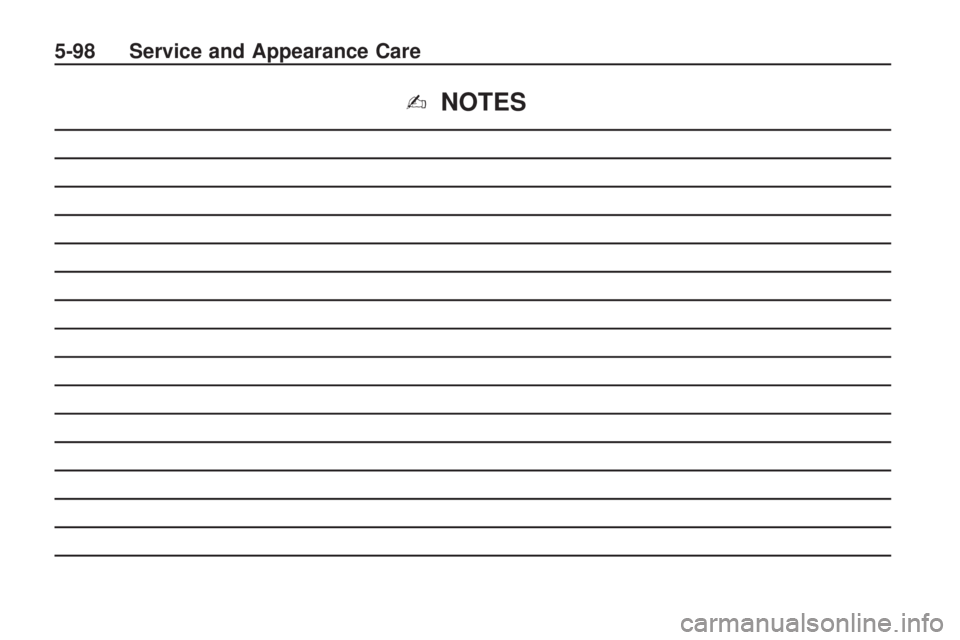

✍NOTES
5-98 Service and Appearance Care

Maintenance
Schedule
Maintenance Schedule
Introduction.........................6-1
Maintenance
Requirements....................6-2
Your Vehicle and the
Environment......................6-2
Using the Maintenance
Schedule...........................6-2
Scheduled Maintenance......6-4
Additional Required
Services............................6-6
Maintenance Footnotes.......6-7
Owner Checks and
Services............................6-9
At Each Fuel Fill................6-9
At Least Once a Month......6-9
At Least Once a Year.......6-10
Recommended Fluids and
Lubricants.......................6-12
Maintenance
Replacement Parts..........6-14
Engine Drive Belt Routing. . .6-15
Maintenance Record.........6-16
Maintenance
Schedule
Introduction
Important: Keep engine oil at
the proper level and change as
recommended.
Have you purchased the
GM Protection Plan? The Plan
supplements the vehicle warranties.
See the Warranty and Owner
Assistance booklet or your
dealer/retailer for details.
Maintenance Schedule 6-1

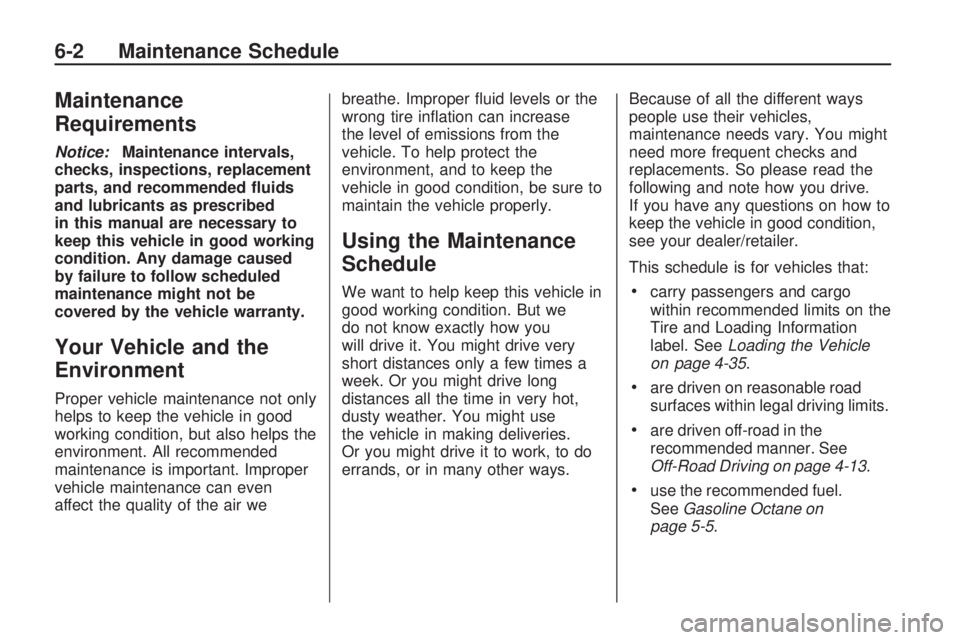

Maintenance
Requirements
Notice:Maintenance intervals,
checks, inspections, replacement
parts, and recommended uids
and lubricants as prescribed
in this manual are necessary to
keep this vehicle in good working
condition. Any damage caused
by failure to follow scheduled
maintenance might not be
covered by the vehicle warranty.
Your Vehicle and the
Environment
Proper vehicle maintenance not only
helps to keep the vehicle in good
working condition, but also helps the
environment. All recommended
maintenance is important. Improper
vehicle maintenance can even
affect the quality of the air webreathe. Improper uid levels or the
wrong tire ination can increase
the level of emissions from the
vehicle. To help protect the
environment, and to keep the
vehicle in good condition, be sure to
maintain the vehicle properly.
Using the Maintenance
Schedule
We want to help keep this vehicle in
good working condition. But we
do not know exactly how you
will drive it. You might drive very
short distances only a few times a
week. Or you might drive long
distances all the time in very hot,
dusty weather. You might use
the vehicle in making deliveries.
Or you might drive it to work, to do
errands, or in many other ways.Because of all the different ways
people use their vehicles,
maintenance needs vary. You might
need more frequent checks and
replacements. So please read the
following and note how you drive.
If you have any questions on how to
keep the vehicle in good condition,
see your dealer/retailer.
This schedule is for vehicles that:carry passengers and cargo
within recommended limits on the
Tire and Loading Information
label. SeeLoading the Vehicle
on page 4-35.
are driven on reasonable road
surfaces within legal driving limits.
are driven off-road in the
recommended manner. See
Off-Road Driving on page 4-13.
use the recommended fuel.
SeeGasoline Octane on
page 5-5.
6-2 Maintenance Schedule

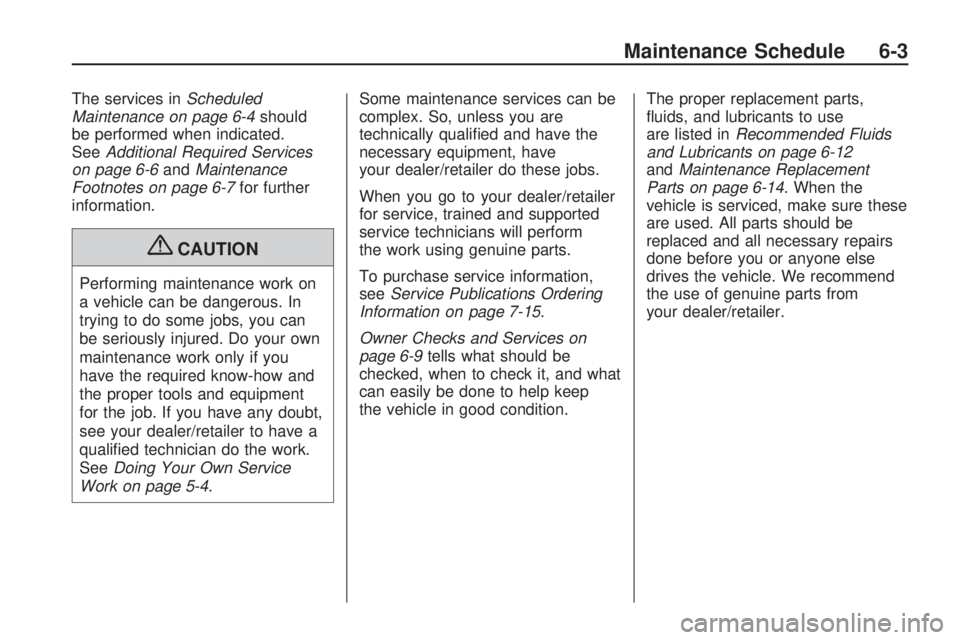

The services inScheduled
Maintenance on page 6-4should
be performed when indicated.
SeeAdditional Required Services
on page 6-6andMaintenance
Footnotes on page 6-7for further
information.
{CAUTION
Performing maintenance work on
a vehicle can be dangerous. In
trying to do some jobs, you can
be seriously injured. Do your own
maintenance work only if you
have the required know-how and
the proper tools and equipment
for the job. If you have any doubt,
see your dealer/retailer to have a
qualied technician do the work.
SeeDoing Your Own Service
Work on page 5-4.Some maintenance services can be
complex. So, unless you are
technically qualied and have the
necessary equipment, have
your dealer/retailer do these jobs.
When you go to your dealer/retailer
for service, trained and supported
service technicians will perform
the work using genuine parts.
To purchase service information,
seeService Publications Ordering
Information on page 7-15.
Owner Checks and Services on
page 6-9tells what should be
checked, when to check it, and what
can easily be done to help keep
the vehicle in good condition.The proper replacement parts,
uids, and lubricants to use
are listed inRecommended Fluids
and Lubricants on page 6-12
andMaintenance Replacement
Parts on page 6-14. When the
vehicle is serviced, make sure these
are used. All parts should be
replaced and all necessary repairs
done before you or anyone else
drives the vehicle. We recommend
the use of genuine parts from
your dealer/retailer.
Maintenance Schedule 6-3

Scheduled Maintenance
When the CHANGE OIL message
displays in the Driver Information
Center (DIC), service is required for
the vehicle. SeeDIC Warnings
and Messages on page 3-37. Have
the vehicle serviced as soon as
possible within the next 600 miles
(1 000 km). It is possible that, if
driving under the best conditions,
the engine oil life system may
not indicate that vehicle service is
necessary for over a year. However,
the engine oil and lter must be
changed at least once a year and
at this time the system must be
reset. Your dealer/retailer has
trained service technicians who will
perform this work using genuine
parts and reset the system.If the engine oil life system is ever
reset accidentally, service the
vehicle within 3,000 miles
(5 000 km) since the last service.
Remember to reset the oil life
system whenever the oil is changed.
SeeEngine Oil Life System on
page 5-15for information on
the Engine Oil Life System and
resetting the system.
When the CHANGE OIL message
appears, certain services, checks,
and inspections are required.
Required services are described in
the following for “MaintenanceI”
and “MaintenanceII.” Generally, it is
recommended that the rst service
be MaintenanceI, the second
service be MaintenanceII, and then
alternate MaintenanceIand
MaintenanceIIthereafter. However,
in some cases, MaintenanceII
may be required more often.MaintenanceI—Use
MaintenanceIif the CHANGE
OIL message displays within
10 months since the vehicle was
purchased or MaintenanceII
was performed.
MaintenanceII—Use
MaintenanceIIif the previous
service performed was
MaintenanceI. Always use
MaintenanceIIwhenever the
message displays 10 months or
more since the last service or if the
message has not come on at all
for one year.
6-4 Maintenance Schedule

Scheduled Maintenance
ServiceMaintenanceIMaintenance II
Change engine oil and lter. See Engine Oil on page 5-13. Reset oil life system.
See Engine Oil Life System on page 5-15 .An Emission Control Service. ••
Lubricate chassis components. See footnote #. ••
Visually check for any leaks or damage. See footnote (j). ••
Inspect engine air cleaner lter. If necessary, replace lter. See Engine Air
Cleaner/Filter on page 5-17 . •
Rotate tires and check ination pressures and wear. See Tire Inspection and
Rotation on page 5-57 and “Tire Wear Inspection” in At Least Once a Month
on page 6-9. ••
Inspect brake system. See footnote (a). ••
Check engine coolant and windshield washer uid levels and add uid as
needed. ••
Perform any needed additional services. See “Additional Required Services”
in this section. ••
Inspect suspension and steering components. See footnote (b). •
Inspect engine cooling system. See footnote (c). •
Inspect wiper blades. See footnote (d). •
Inspect restraint system components. See footnote (e). •
Lubricate body components. See footnote (f). •
Check transmission uid level and add uid as needed. •
Maintenance Schedule 6-5

Additional Required Services
The following services should be performed at the rst maintenance service (Ior II) after the indicated miles
(kilometers) shown for each item.
Additional Required Services
Service and Miles (Kilometers) 25,000
(40 000) 50,000
(80 000) 75,000
(120 000) 100,000
(160 000) 125,000
(200 000) 150,000
(240 000)
Inspect fuel system for damage or leaks. • •••••
Inspect exhaust system for loose or
damaged components. • •••••
Replace engine air cleaner lter.
See Engine Air Cleaner/Filter on
page 5-17. •••
Change automatic transmission uid
and lter (severe service).
See footnote (h). •••
Change automatic transmission uid
and lter (normal service). •
Change transfer case uid.
See footnote (g). •••
Replace spark plugs and inspect spark
plug wires. An Emission Control
Service. •
6-6 Maintenance Schedule
