Hyundai Accent 2004 Owner's Manual

6DO-IT-YOURSELF MAINTENANCE

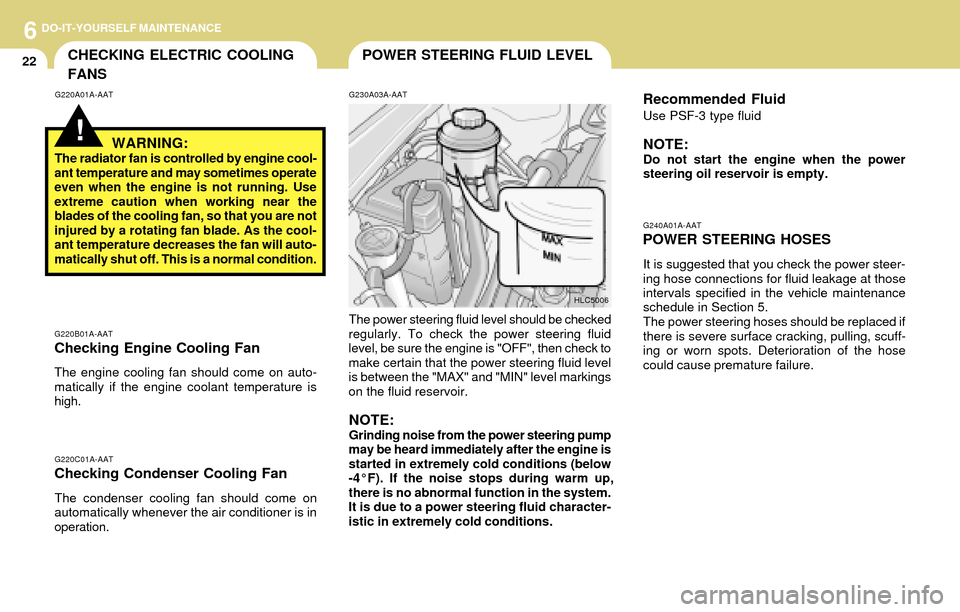

22POWER STEERING FLUID LEVELCHECKING ELECTRIC COOLING
FANS
G240A01A-AAT
POWER STEERING HOSES
It is suggested that you check the power steer-
ing hose connections for fluid leakage at those
intervals specified in the vehicle maintenance
schedule in Section 5.
The power steering hoses should be replaced if
there is severe surface cracking, pulling, scuff-
ing or worn spots. Deterioration of the hose
could cause premature failure.
Recommended FluidUse PSF-3 type fluid
NOTE:Do not start the engine when the power
steering oil reservoir is empty.
!
G220A01A-AAT G230A03A-AAT
G220B01A-AAT
Checking Engine Cooling Fan
The engine cooling fan should come on auto-
matically if the engine coolant temperature is
high.
WARNING:The radiator fan is controlled by engine cool-
ant temperature and may sometimes operate
even when the engine is not running. Use
extreme caution when working near the
blades of the cooling fan, so that you are not
injured by a rotating fan blade. As the cool-
ant temperature decreases the fan will auto-
matically shut off. This is a normal condition.
G220C01A-AAT
Checking Condenser Cooling Fan
The condenser cooling fan should come on
automatically whenever the air conditioner is in
operation.
HLC5006
The power steering fluid level should be checked
regularly. To check the power steering fluid
level, be sure the engine is "OFF", then check to
make certain that the power steering fluid level
is between the "MAX" and "MIN" level markings
on the fluid reservoir.
NOTE:Grinding noise from the power steering pump
may be heard immediately after the engine is
started in extremely cold conditions (below
-4°F). If the noise stops during warm up,
there is no abnormal function in the system.
It is due to a power steering fluid character-
istic in extremely cold conditions.

6DO-IT-YOURSELF MAINTENANCE

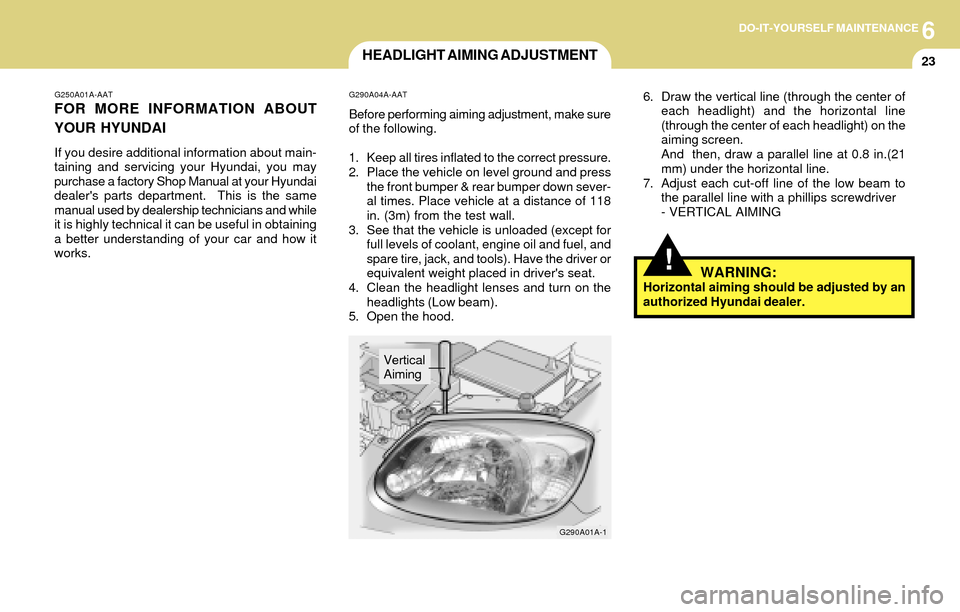

23HEADLIGHT AIMING ADJUSTMENT
G250A01A-AAT
FOR MORE INFORMATION ABOUT
YOUR HYUNDAI
If you desire additional information about main-
taining and servicing your Hyundai, you may
purchase a factory Shop Manual at your Hyundai
dealer's parts department. This is the same
manual used by dealership technicians and while
it is highly technical it can be useful in obtaining
a better understanding of your car and how it
works.
G290A04A-AAT
Before performing aiming adjustment, make sure
of the following.
1. Keep all tires inflated to the correct pressure.
2. Place the vehicle on level ground and press
the front bumper & rear bumper down sever-
al times. Place vehicle at a distance of 118
in. (3m) from the test wall.
3. See that the vehicle is unloaded (except for
full levels of coolant, engine oil and fuel, and
spare tire, jack, and tools). Have the driver or
equivalent weight placed in driver's seat.
4. Clean the headlight lenses and turn on the
headlights (Low beam).
5. Open the hood.
G290A01A-1
Vertical
Aiming
!
6. Draw the vertical line (through the center of
each headlight) and the horizontal line
(through the center of each headlight) on the
aiming screen.
And then, draw a parallel line at 0.8 in.(21
mm) under the horizontal line.
7. Adjust each cut-off line of the low beam to
the parallel line with a phillips screwdriver
- VERTICAL AIMING
WARNING:Horizontal aiming should be adjusted by an
authorized Hyundai dealer.

6DO-IT-YOURSELF MAINTENANCE
24REPLACEMENT OF LIGHT BULBS
SPECIFICATIONS:
"H";
Horizontal center line of headlights from
ground : 25.8 in. (656 mm)
"W";
Distance between each headlight center :
42.4 in. (1,078 mm)
"L";
Distance between the headlights and the
wall that the lights are tested against:
118 in. (3,000 mm).
!
G260A02A-AAT
Before attempting to replace a light bulb, be sure
the switch is turned to the "OFF" position.
The next paragraph shows how to reach the
light bulbs so they may be changed. Be sure to
replace the burned-out bulb with one of the
same number and wattage rating.
See page 6-31 for the wattage descriptions
CAUTION:Keep the lamps out of contact with petro-
leum products, such as oil, gasoline, etc.
G290B02A-AAT

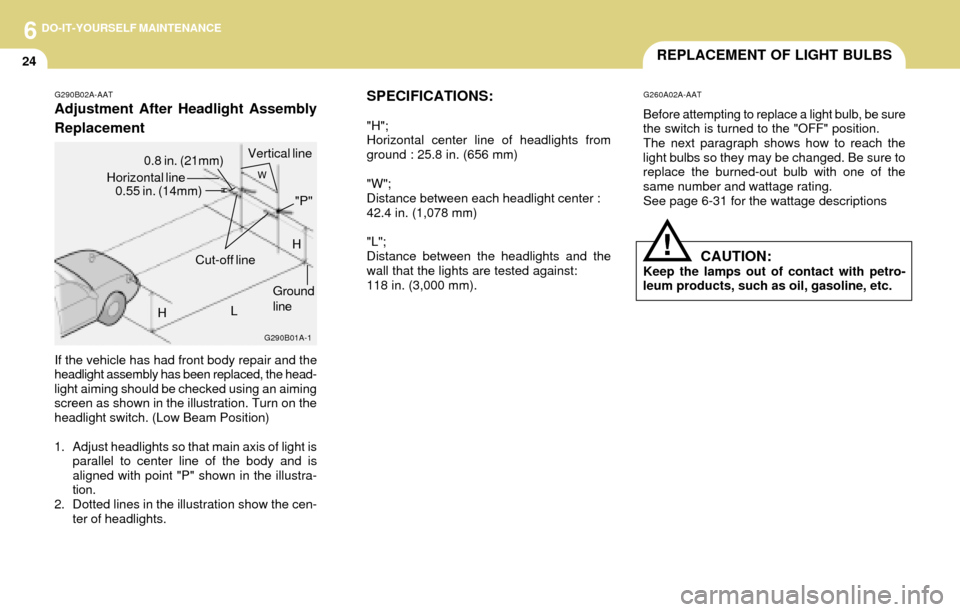

Adjustment After Headlight Assembly
Replacement
If the vehicle has had front body repair and the
headlight assembly has been replaced, the head-
light aiming should be checked using an aiming
screen as shown in the illustration. Turn on the
headlight switch. (Low Beam Position)
1. Adjust headlights so that main axis of light is
parallel to center line of the body and is
aligned with point "P" shown in the illustra-
tion.
2. Dotted lines in the illustration show the cen-
ter of headlights.
G290B01A-1
HGround
line Horizontal line
0.55 in. (14mm)0.8 in. (21mm)Vertical line
L
W
H
Cut-off line"P"

6DO-IT-YOURSELF MAINTENANCE
25
HLC5033 G270A03A-AAT

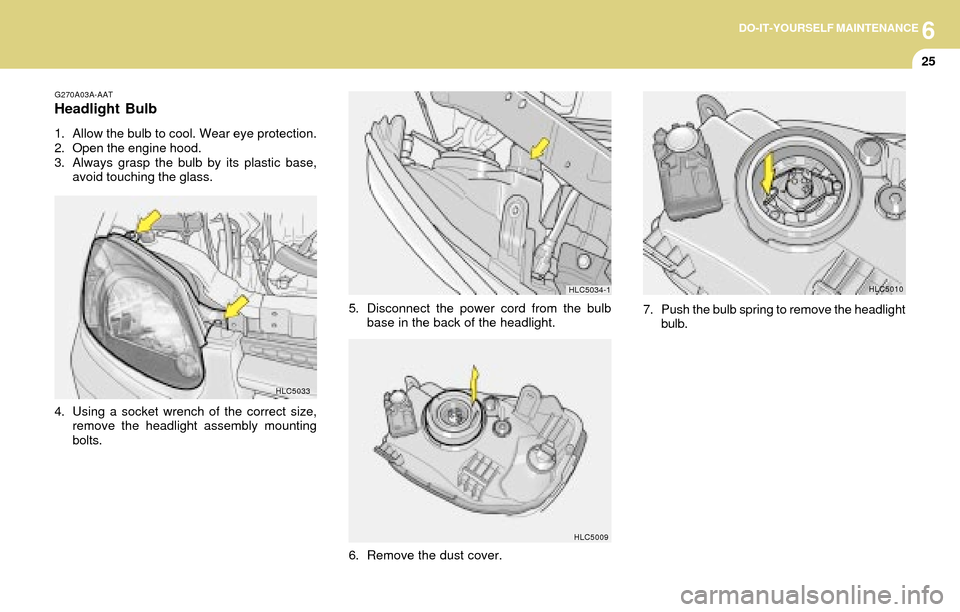

Headlight Bulb
1. Allow the bulb to cool. Wear eye protection.
2. Open the engine hood.
3. Always grasp the bulb by its plastic base,
avoid touching the glass.
4. Using a socket wrench of the correct size,
remove the headlight assembly mounting
bolts.
6. Remove the dust cover.
HLC5009
5. Disconnect the power cord from the bulb
base in the back of the headlight.
HLC5034-1
7. Push the bulb spring to remove the headlight
bulb.
HLC5010

6DO-IT-YOURSELF MAINTENANCE
26

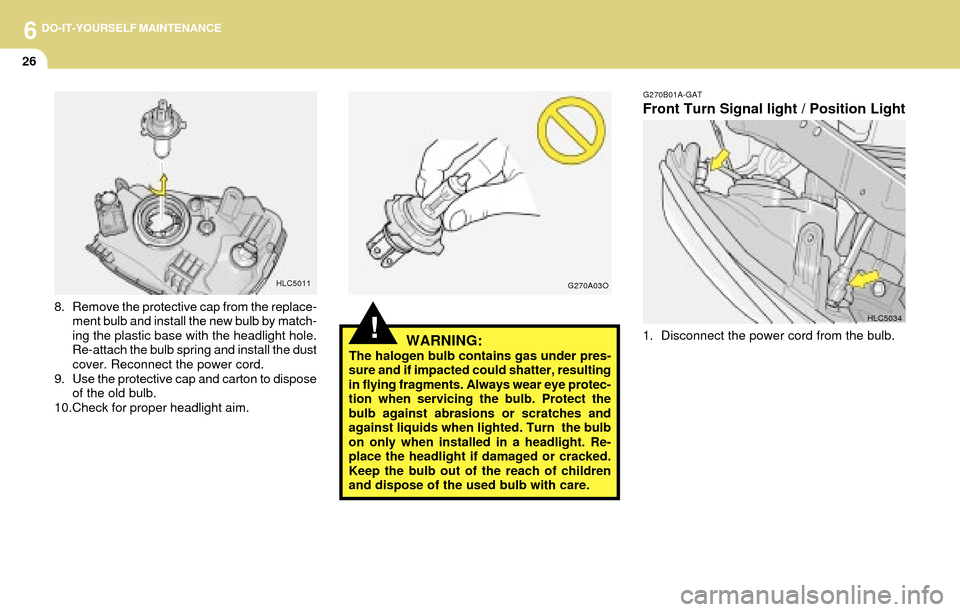

!WARNING:The halogen bulb contains gas under pres-
sure and if impacted could shatter, resulting
in flying fragments. Always wear eye protec-
tion when servicing the bulb. Protect the
bulb against abrasions or scratches and
against liquids when lighted. Turn the bulb
on only when installed in a headlight. Re-
place the headlight if damaged or cracked.
Keep the bulb out of the reach of children
and dispose of the used bulb with care.
G270B01A-GAT
Front Turn Signal light / Position Light
1. Disconnect the power cord from the bulb.
HLC50348. Remove the protective cap from the replace-
ment bulb and install the new bulb by match-
ing the plastic base with the headlight hole.
Re-attach the bulb spring and install the dust
cover. Reconnect the power cord.
9. Use the protective cap and carton to dispose
of the old bulb.
10.Check for proper headlight aim.
G270A03OHLC5011

6DO-IT-YOURSELF MAINTENANCE
27
HLC5012
(1) (2)

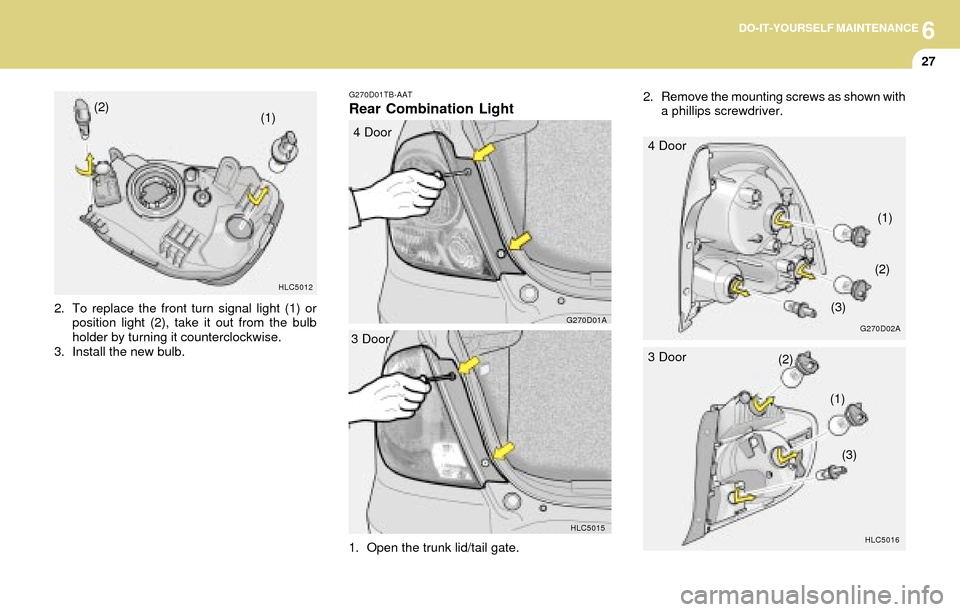

2. To replace the front turn signal light (1) or
position light (2), take it out from the bulb
holder by turning it counterclockwise.
3. Install the new bulb.
G270D01TB-AAT
Rear Combination Light
HLC5015
3 Door
G270D01A
4 Door
1. Open the trunk lid/tail gate.
(2)
(1)
(3)
HLC5016
3 Door
G270D02A
4 Door
(1)
(2)
(3) 2. Remove the mounting screws as shown with
a phillips screwdriver.

6DO-IT-YOURSELF MAINTENANCE
28
3. Replace with a new bulb.
HTB283
2. Disconnect the power cord.
HTB284

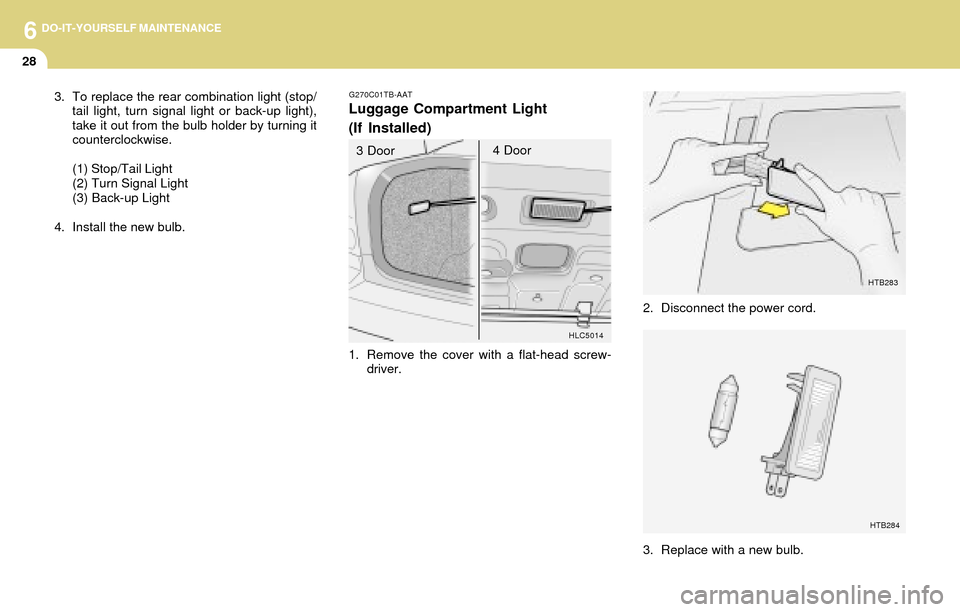

3. To replace the rear combination light (stop/
tail light, turn signal light or back-up light),
take it out from the bulb holder by turning it
counterclockwise.
(1) Stop/Tail Light
(2) Turn Signal Light
(3) Back-up Light
4. Install the new bulb.G270C01TB-AAT
Luggage Compartment Light
(If Installed)
HLC5014
1. Remove the cover with a flat-head screw-
driver. 3 Door4 Door

6DO-IT-YOURSELF MAINTENANCE
29
G270G01A-AAT

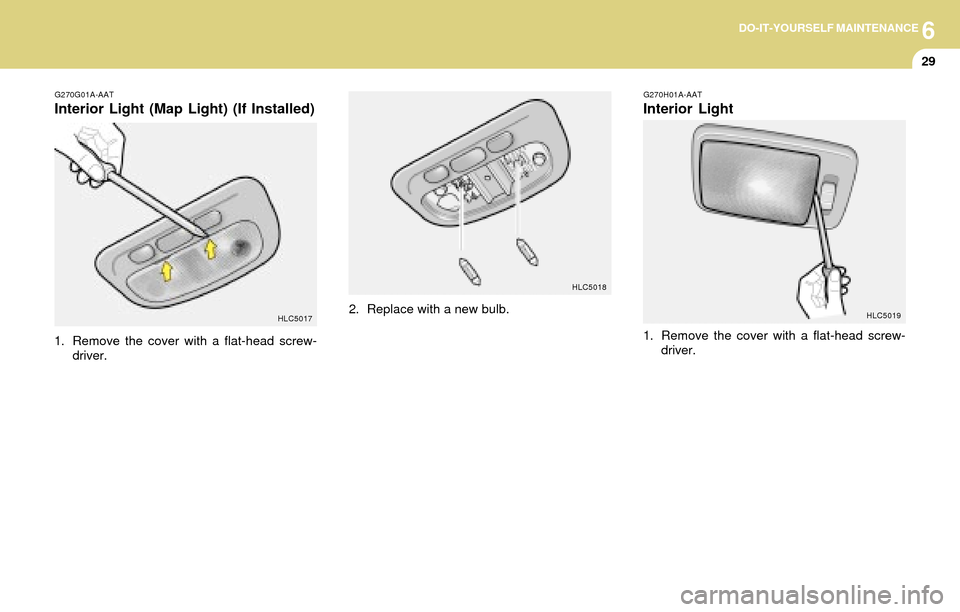

Interior Light (Map Light) (If Installed)
1. Remove the cover with a flat-head screw-
driver.
HLC5017HLC50182. Replace with a new bulb.
G270H01A-AAT
Interior Light
1. Remove the cover with a flat-head screw-
driver.
HLC5019

6DO-IT-YOURSELF MAINTENANCE
30

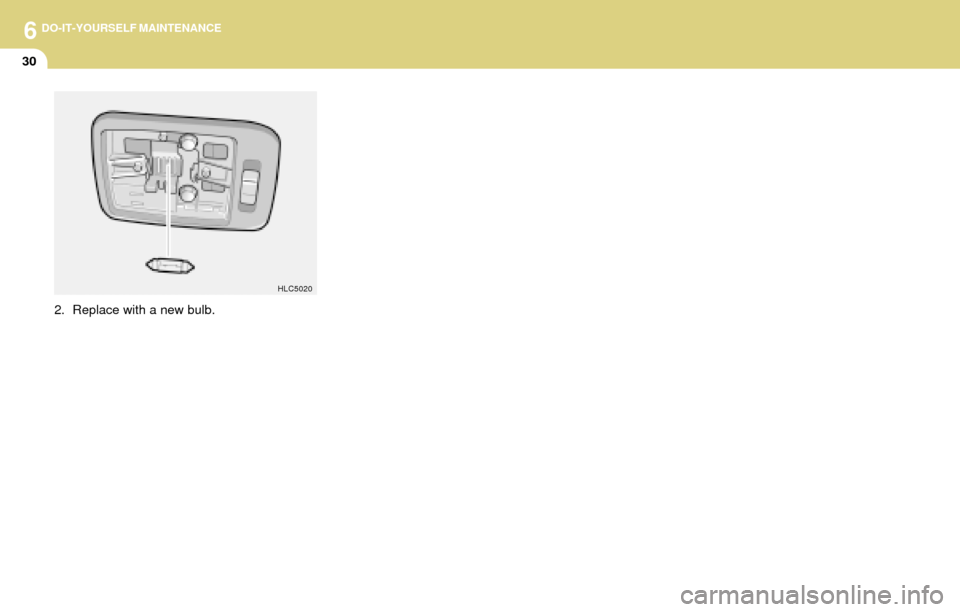

2. Replace with a new bulb.
HLC5020

6DO-IT-YOURSELF MAINTENANCE

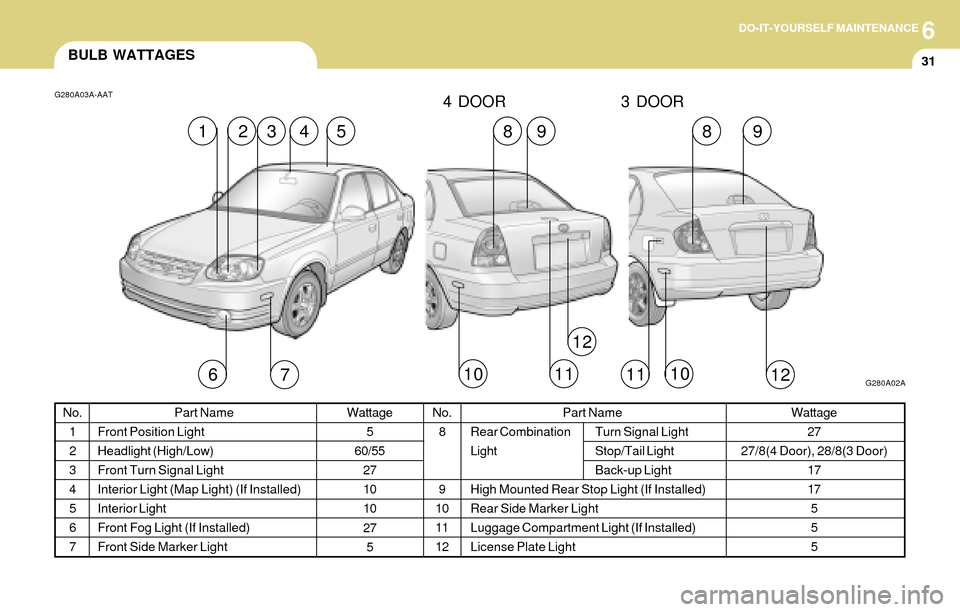

31BULB WATTAGES
Part Name
Front Position Light
Headlight (High/Low)
Front Turn Signal Light
Interior Light (Map Light) (If Installed)
Interior Light
Front Fog Light (If Installed)
Front Side Marker LightNo.
8
9
10
11
12
G280A03A-AAT
G280A02A
52
Wattage
5
60/55
27
10
10
27
5No.
1
2
3
4
5
6
7Wattage
27
27/8(4 Door), 28/8(3 Door)
17
17
5
5
5 Part Name
Rear Combination Turn Signal Light
Light Stop/Tail Light
Back-up Light
High Mounted Rear Stop Light (If Installed)
Rear Side Marker Light
Luggage Compartment Light (If Installed)
License Plate Light
76121011
1349898
1011
12
4 DOOR 3 DOOR
