8CONSUMER INFORMATION & REPORTING SAFETY DEFECTS
5
I070A01A-AAT

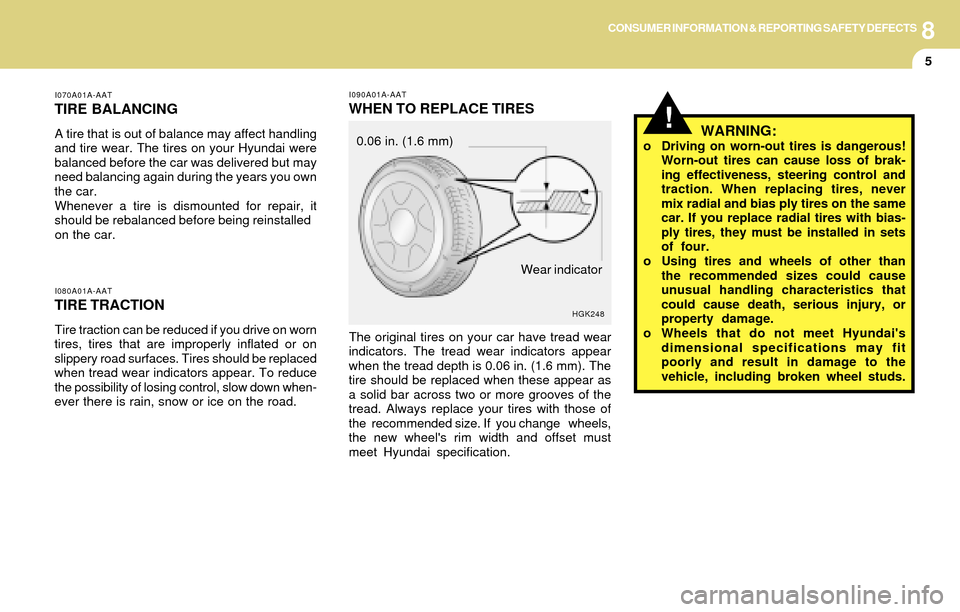

TIRE BALANCING
A tire that is out of balance may affect handling
and tire wear. The tires on your Hyundai were
balanced before the car was delivered but may
need balancing again during the years you own
the car.
Whenever a tire is dismounted for repair, it
should be rebalanced before being reinstalled
on the car.
I080A01A-AATTIRE TRACTION
Tire traction can be reduced if you drive on worn
tires, tires that are improperly inflated or on
slippery road surfaces. Tires should be replaced
when tread wear indicators appear. To reduce
the possibility of losing control, slow down when-
ever there is rain, snow or ice on the road.
I090A01A-AAT
WHEN TO REPLACE TIRES
Wear indicator 0.06 in. (1.6 mm)
HGK248
The original tires on your car have tread wear
indicators. The tread wear indicators appear
when the tread depth is 0.06 in. (1.6 mm). The
tire should be replaced when these appear as
a solid bar across two or more grooves of the
tread. Always replace your tires with those of
the recommended size. If you change wheels,
the new wheel's rim width and offset must
meet Hyundai specification.
!WARNING:o Driving on worn-out tires is dangerous!
Worn-out tires can cause loss of brak-
ing effectiveness, steering control and
traction. When replacing tires, never
mix radial and bias ply tires on the same
car. If you replace radial tires with bias-
ply tires, they must be installed in sets
of four.
o Using tires and wheels of other than
the recommended sizes could cause
unusual handling characteristics that
could cause death, serious injury, or
property damage.
o Wheels that do not meet Hyundai's
dimensional specifications may fit
poorly and result in damage to the
vehicle, including broken wheel studs.

8CONSUMER INFORMATION & REPORTING SAFETY DEFECTS
6WARRANTIES FOR YOUR HYUNDAI
VEHICLE
I100A02E-AAT

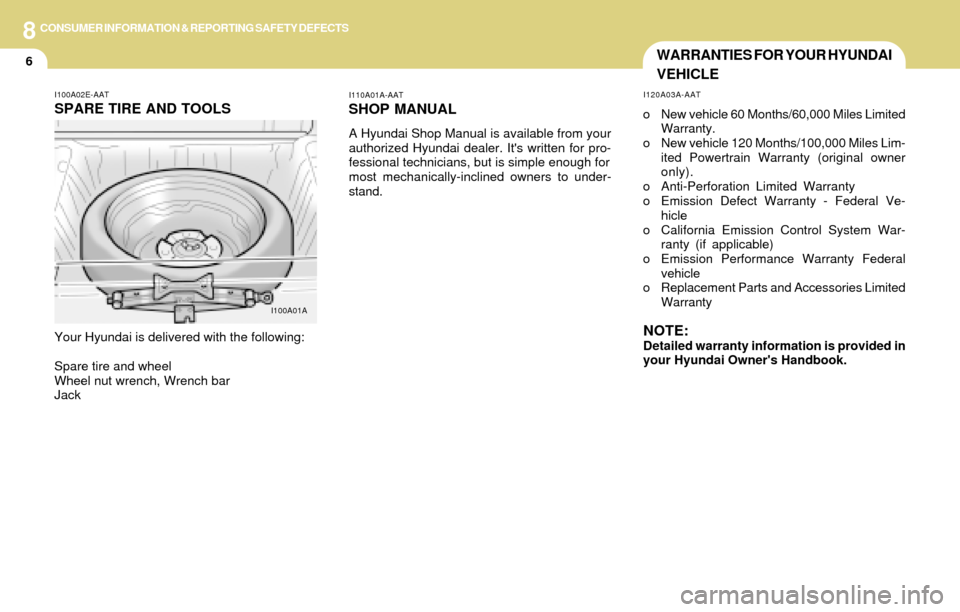

SPARE TIRE AND TOOLS
Your Hyundai is delivered with the following:
Spare tire and wheel
Wheel nut wrench, Wrench bar
Jack
I100A01AI110A01A-AAT
SHOP MANUAL
A Hyundai Shop Manual is available from your
authorized Hyundai dealer. It's written for pro-
fessional technicians, but is simple enough for
most mechanically-inclined owners to under-
stand.
I120A03A-AAT
o New vehicle 60 Months/60,000 Miles Limited
Warranty.
o New vehicle 120 Months/100,000 Miles Lim-
ited Powertrain Warranty (original owner
only).
o Anti-Perforation Limited Warranty
o Emission Defect Warranty - Federal Ve-
hicle
o California Emission Control System War-
ranty (if applicable)
o Emission Performance Warranty Federal
vehicle
o Replacement Parts and Accessories Limited
Warranty
NOTE:Detailed warranty information is provided in
your Hyundai Owner's Handbook.

8CONSUMER INFORMATION & REPORTING SAFETY DEFECTS

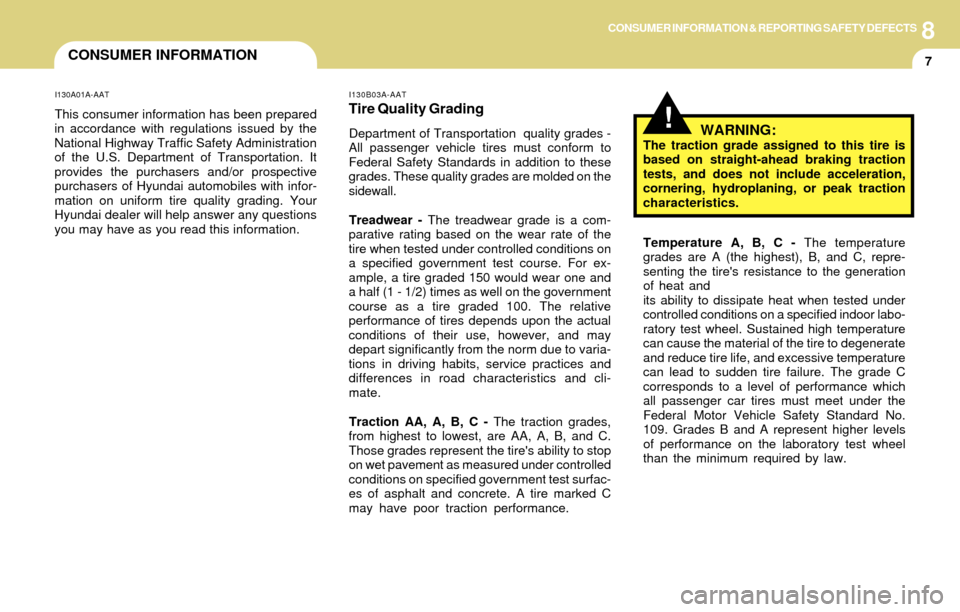

7CONSUMER INFORMATION
!
I130A01A-AAT
This consumer information has been prepared
in accordance with regulations issued by the
National Highway Traffic Safety Administration
of the U.S. Department of Transportation. It
provides the purchasers and/or prospective
purchasers of Hyundai automobiles with infor-
mation on uniform tire quality grading. Your
Hyundai dealer will help answer any questions
you may have as you read this information.
I130B03A-AAT
Tire Quality Grading
Department of Transportation quality grades -
All passenger vehicle tires must conform to
Federal Safety Standards in addition to these
grades. These quality grades are molded on the
sidewall.
Treadwear - The treadwear grade is a com-
parative rating based on the wear rate of the
tire when tested under controlled conditions on
a specified government test course. For ex-
ample, a tire graded 150 would wear one and
a half (1 - 1/2) times as well on the government
course as a tire graded 100. The relative
performance of tires depends upon the actual
conditions of their use, however, and may
depart significantly from the norm due to varia-
tions in driving habits, service practices and
differences in road characteristics and cli-
mate.
Traction AA, A, B, C - The traction grades,
from highest to lowest, are AA, A, B, and C.
Those grades represent the tire's ability to stop
on wet pavement as measured under controlled
conditions on specified government test surfac-
es of asphalt and concrete. A tire marked C
may have poor traction performance.WARNING:The traction grade assigned to this tire is
based on straight-ahead braking traction
tests, and does not include acceleration,
cornering, hydroplaning, or peak traction
characteristics.
Temperature A, B, C - The temperature
grades are A (the highest), B, and C, repre-
senting the tire's resistance to the generation
of heat and
its ability to dissipate heat when tested under
controlled conditions on a specified indoor labo-
ratory test wheel. Sustained high temperature
can cause the material of the tire to degenerate
and reduce tire life, and excessive temperature
can lead to sudden tire failure. The grade C
corresponds to a level of performance which
all passenger car tires must meet under the
Federal Motor Vehicle Safety Standard No.
109. Grades B and A represent higher levels
of performance on the laboratory test wheel
than the minimum required by law.

8CONSUMER INFORMATION & REPORTING SAFETY DEFECTS
8

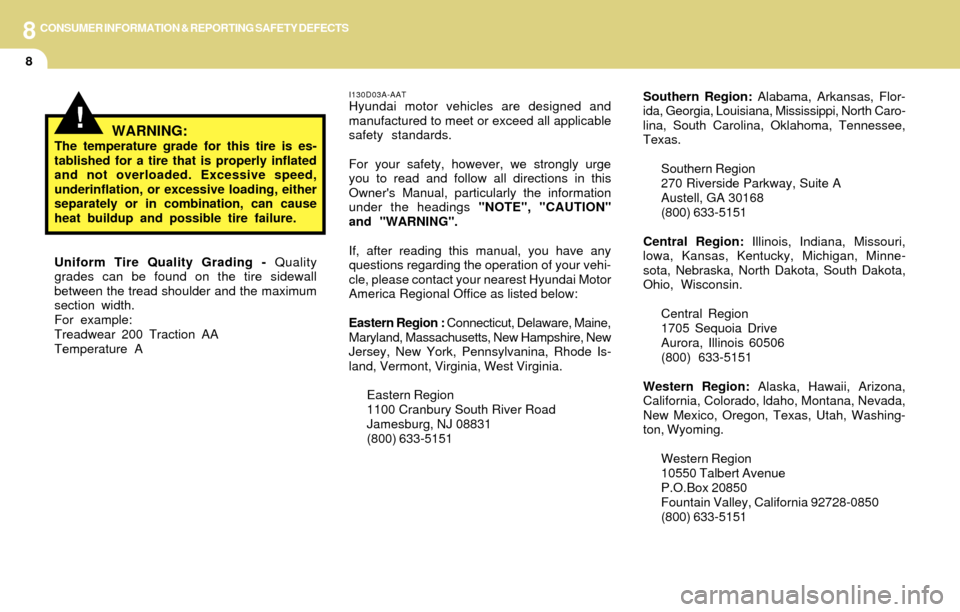

I130D03A-AATHyundai motor vehicles are designed and
manufactured to meet or exceed all applicable
safety standards.
For your safety, however, we strongly urge
you to read and follow all directions in this
Owner's Manual, particularly the information
under the headings "NOTE", "CAUTION"
and "WARNING".
If, after reading this manual, you have any
questions regarding the operation of your vehi-
cle, please contact your nearest Hyundai Motor
America Regional Office as listed below:
Eastern Region : Connecticut, Delaware, Maine,
Maryland, Massachusetts, New Hampshire, New
Jersey, New York, Pennsylvanina, Rhode Is-
land, Vermont, Virginia, West Virginia.
Eastern Region
1100 Cranbury South River Road
Jamesburg, NJ 08831
(800) 633-5151Southern Region: Alabama, Arkansas, Flor-
ida, Georgia, Louisiana, Mississippi, North Caro-
lina, South Carolina, Oklahoma, Tennessee,
Texas.
Southern Region
270 Riverside Parkway, Suite A
Austell, GA 30168
(800) 633-5151
Central Region: Illinois, Indiana, Missouri,
lowa, Kansas, Kentucky, Michigan, Minne-
sota, Nebraska, North Dakota, South Dakota,
Ohio, Wisconsin.
Central Region
1705 Sequoia Drive
Aurora, Illinois 60506
(800) 633-5151
Western Region: Alaska, Hawaii, Arizona,
California, Colorado, ldaho, Montana, Nevada,
New Mexico, Oregon, Texas, Utah, Washing-
ton, Wyoming.
Western Region
10550 Talbert Avenue
P.O.Box 20850
Fountain Valley, California 92728-0850
(800) 633-5151
!WARNING:The temperature grade for this tire is es-
tablished for a tire that is properly inflated
and not overloaded. Excessive speed,
underinflation, or excessive loading, either
separately or in combination, can cause
heat buildup and possible tire failure.
Uniform Tire Quality Grading - Quality
grades can be found on the tire sidewall
between the tread shoulder and the maximum
section width.
For example:
Treadwear 200 Traction AA
Temperature A

8CONSUMER INFORMATION & REPORTING SAFETY DEFECTS
9

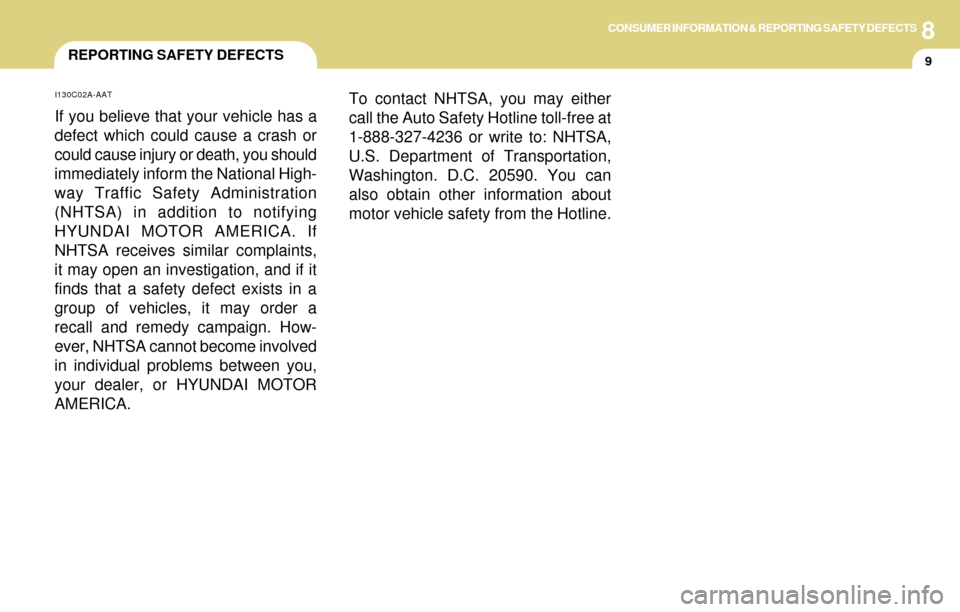

I130C02A-AAT
If you believe that your vehicle has a
defect which could cause a crash or
could cause injury or death, you should
immediately inform the National High-
way Traffic Safety Administration
(NHTSA) in addition to notifying
HYUNDAI MOTOR AMERICA. If
NHTSA receives similar complaints,
it may open an investigation, and if it
finds that a safety defect exists in a
group of vehicles, it may order a
recall and remedy campaign. How-
ever, NHTSA cannot become involved
in individual problems between you,
your dealer, or HYUNDAI MOTOR
AMERICA.To contact NHTSA, you may either
call the Auto Safety Hotline toll-free at
1-888-327-4236 or write to: NHTSA,
U.S. Department of Transportation,
Washington. D.C. 20590. You can
also obtain other information about
motor vehicle safety from the Hotline.
REPORTING SAFETY DEFECTS

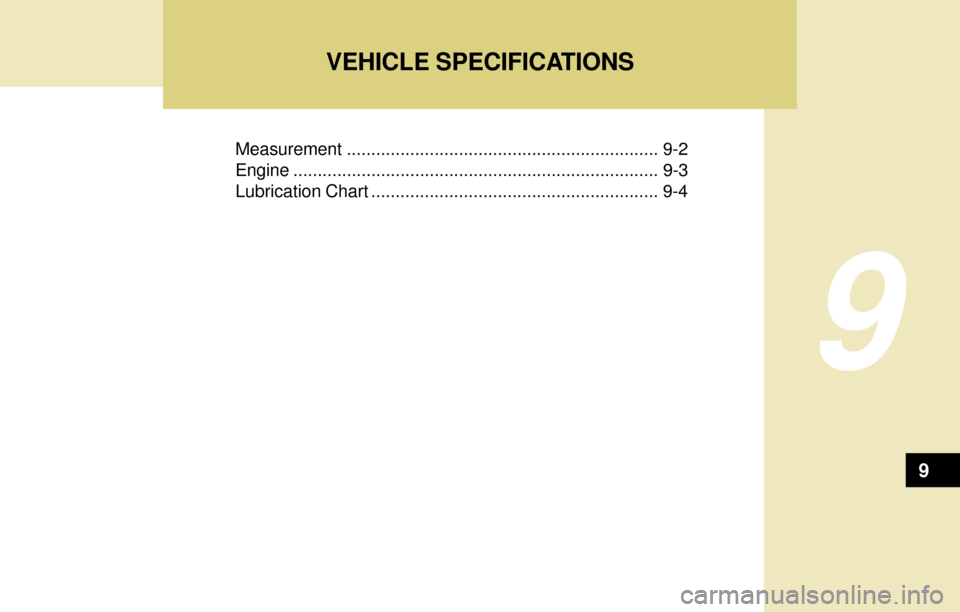

Measurement................................................................ 9-2
Engine...........................................................................9-3
Lubrication Chart ........................................................... 9-4
VEHICLE SPECIFICATIONS
9
9

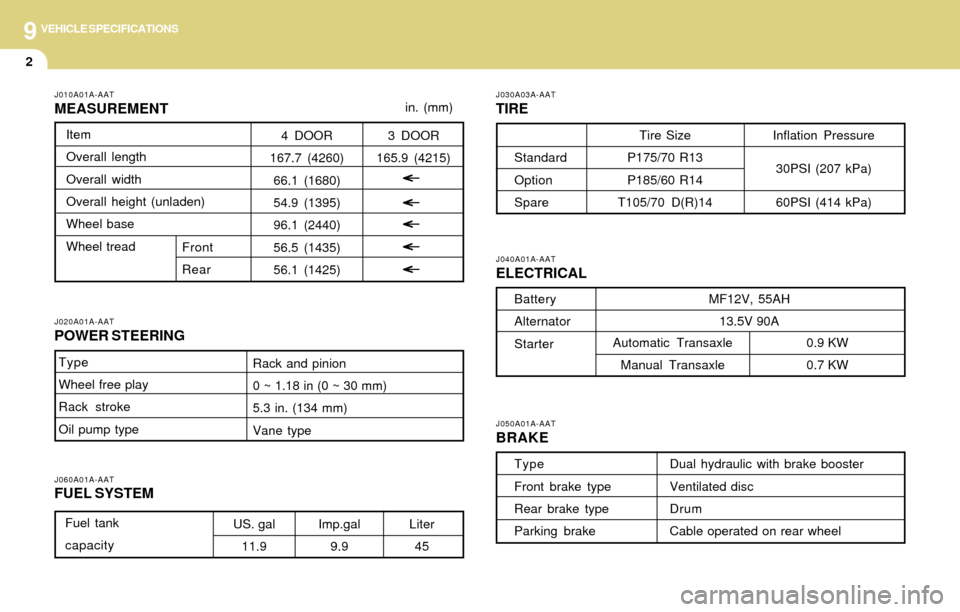

9VEHICLE SPECIFICATIONS
2
Tire Size
P175/70 R13
P185/60 R14
T105/70 D(R)14 in. (mm)
Liter
45Automatic Transaxle
Manual Transaxle
MF12V, 55AH
13.5V 90A
Dual hydraulic with brake booster
Ventilated disc
Drum
Cable operated on rear wheel
Standard
Option
Spare
US. gal
11.9 Fuel tank
capacityImp.gal
9.9Battery
Alternator
Starter0.9 KW
0.7 KW
Type
Front brake type
Rear brake type
Parking brake
Inflation Pressure
30PSI (207 kPa)
60PSI (414 kPa)
J010A01A-AAT
MEASUREMENT
J020A01A-AATPOWER STEERING
J060A01A-AATFUEL SYSTEM
J040A01A-AATELECTRICAL
J050A01A-AAT
BRAKE
J030A03A-AAT
TIRE
4 DOOR
167.7 (4260)
66.1 (1680)
54.9 (1395)
96.1 (2440)
56.5 (1435)
56.1 (1425) Item
Overall length
Overall width
Overall height (unladen)
Wheel base
Wheel tread
Front
Rear
3 DOOR
165.9 (4215)
Type
Wheel free play
Rack stroke
Oil pump typeRack and pinion
0 ~ 1.18 in (0 ~ 30 mm)
5.3 in. (134 mm)
Vane type

9VEHICLE SPECIFICATIONS

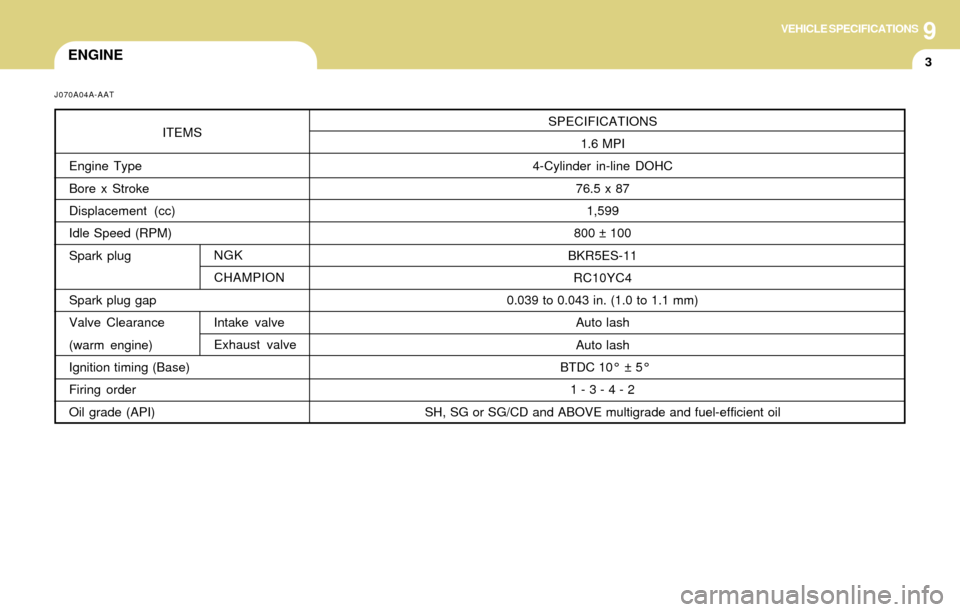

3ENGINE
SPECIFICATIONS
1.6 MPI
4-Cylinder in-line DOHC
76.5 x 87
1,599
800 ± 100
BKR5ES-11
RC10YC4
0.039 to 0.043 in. (1.0 to 1.1 mm)
Auto lash
Auto lash
BTDC 10° ± 5°
1 - 3 - 4 - 2
SH, SG or SG/CD and ABOVE multigrade and fuel-efficient oil
J070A04A-AAT
ITEMS
Engine Type
Bore x Stroke
Displacement (cc)
Idle Speed (RPM)
Spark plug
Spark plug gap
Valve Clearance
(warm engine)
Ignition timing (Base)
Firing order
Oil grade (API)
NGK
CHAMPION
Intake valve
Exhaust valve

9VEHICLE SPECIFICATIONS
4LUBRICATION CHART
Item
Engine oil
TransaxleManual
Auto
Power steering
Brake fluid
Coolant
Manual
Transaxle
Automatic
Transaxle
J080A11A-AAT
Q'ty (US.QTS)(Imp.qts, liter)
Drain and refill
Without oil filter : 3.16 (2.3, 3.0)
With oil filter : 3.49 (2.9, 3.3)
2.27 (1.9, 2.15)
6.45 (5.4, 6.1)
0.95 (0.79, 0.9)
As required
6.2 (5.2, 5.88)
5.8 (4.8, 5.48)Oil & Grease Standard
API SH, Hot Climate : SAE 20W-40, 20W-50 (ABOVE 32°F OR 0°C)
SG or Normal Climate : SAE 10W-30 ,10W-40, 10W-50 (ABOVE -10°F OR -23°C)
SG/CDCold Climate : SAE 5W-30, 5W-40 (BELOW 100°F OR 38°C)
HYUNDAI GENUINE PARTS MTF 75W/90 (API GL-4)
HYUNDAI GENUINE ATF, DIAMOND ATF SP-III or SK ATF SP-III
PSF-3
DOT 3, DOT 4 or Equivalent
Ethylene glycol base for aluminum radiator

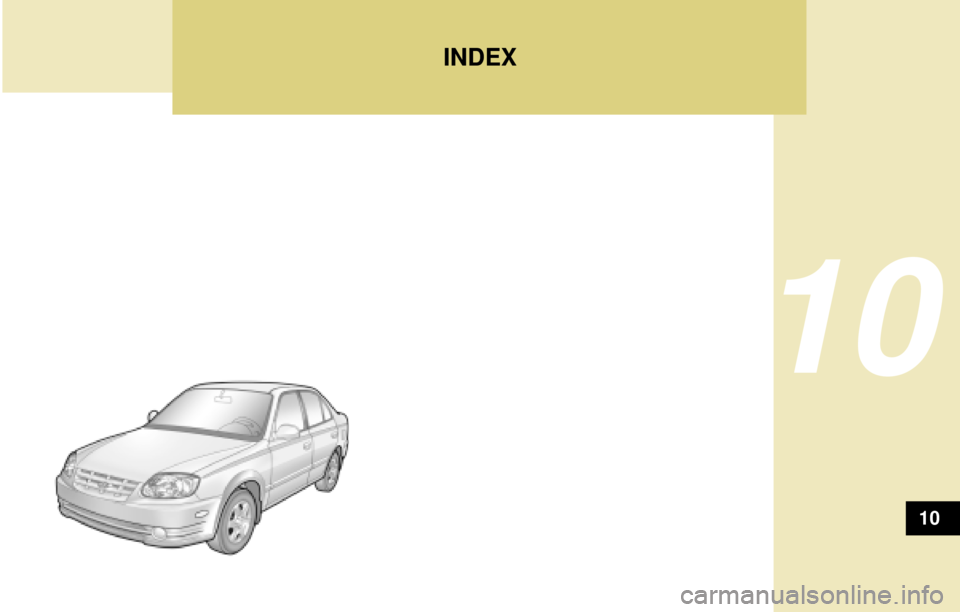

INDEX
