WHAT TO DO IN AN EMERGENCY
IF THE ENGINE OVERHEATS
!
!WARNING:While the engine is running, keep hands,
long hair and clothing away from moving
parts such as the fan and drive belts to
prevent injury.
D030A02A-AAT
If your temperature gauge indicates overheat-
ing, you experience a loss of power, or hear loud
pinging or knocking, the engine is probably too
hot. If this happens, you should:
1. Pull off the road and stop as soon as it is safe
to do so.
2. Place the gear selector lever in "P" (auto-
matic), or neutral (manual transaxle) and set
the parking brake. If the air conditioner is on,
turn it off.
3. If coolant is running out under the car or
steam is coming out from the hood, stop the
engine. Do not open the hood until the cool-
ant has stopped running or the steaming has
stopped. If there is no visible loss of coolant
and no steam, leave the engine running and
check to be sure the engine cooling fan is
operating. If the fan is not running, turn the
engine off.
4. Check to see if the water pump drive belt is
missing. If it is not missing, check to see that
it is tight. If the drive belt seems to be
satisfactory, check for coolant leaking from
the radiator, hoses or under the car. (If the air
conditioner had been in use, it is normal for
cold water to be draining from it when you
stop).5. If the water pump drive belt is broken or
coolant is leaking out, stop the engine im-
mediately and call the nearest Hyundai deal-
er for assistance.
WARNING:Do not remove the radiator cap when the
engine is hot. This may allow coolant to be
blown out of the opening and cause serious
burns.
6. If you cannot find the cause of the overheat-
ing, wait until the engine temperature has
returned to normal. Then, if coolant has been
lost, carefully add water to the reservoir
(Page 6-7) to bring the fluid level in the
reservoir up to the halfway mark.
7. Proceed with caution, keeping alert for fur-
ther signs of overheating. If overheating hap-
pens again, call a Hyundai dealer for assis-
tance. Then attach the other end of that cable to a
solid metal part of the engine away from the
battery. Do not connect the cable to any
moving part.
4. Start the engine in the car with the booster
battery and let it run for a few minutes. This
will help to assure that the booster battery is
fully charged. During the jumping operation,
run the engine in this vehicle at about 2000
rpm.
5. Start the engine in the car with the dis-
charged battery using the normal starting
procedure. After the engine starts, leave the
jumper cables connected and let the engine
run at fast idle or about 2000 rpm for several
minutes.
6. Carefully remove the jumper cables in the
reverse order of attachment.
If you do not know why your battery became
discharged (because the lights were left on,
etc.), have the charging system checked by
your Hyundai dealer.

6DO-IT-YOURSELF MAINTENANCE
3GENERAL CHECKS
G020C01A-AAT
Vehicle Interior
The following should be checked each time
when the vehicle is driven:
o Light operation
o Windshield wiper operation
o Horn operation
o Defroster, heater system operation (and air
conditioning, if installed)
o Steering operation and condition
o Mirror condition and operation
o Turn signal operation
o Accelerator pedal operation
o Brake operation, including parking brake
o Manual transaxle operation, including clutch
operation
o Automatic transaxle operation, including
"Park" mechanism operation
o Seat control condition and operation
o Seat belt condition and operation
o Sun visor operation
If you notice anything that does not operate
correctly or appear to be functioning correctly,
inspect it carefully and seek assistance from
your Hyundai dealer if service is needed.
G020A01A-AATEngine Compartment
The following should be checked regularly:
o Engine oil level and condition
o Transaxle fluid level and condition
o Brake fluid level
o Clutch fluid level
o Engine coolant level
o Windshield washer fluid level
o Accessory drive belt condition
o Engine coolant hose condition
o Fluid leaks (on or below components)
o Power steering fluid level and condition
o Battery Condition
o Air filter conditionG020B01A-AAT
Vehicle Exterior
The following should be checked monthly:
o Overall appearance and condition
o Wheel condition and wheel nut tightness
o Exhaust system condition
o Light condition and operation
o Windshield glass condition
o Wiper blade condition
o Paint condition and body corrosion
o Fluid leaks
o Door and hood lock condition
o Tire pressure and condition
(including spare tire)

6DO-IT-YOURSELF MAINTENANCE

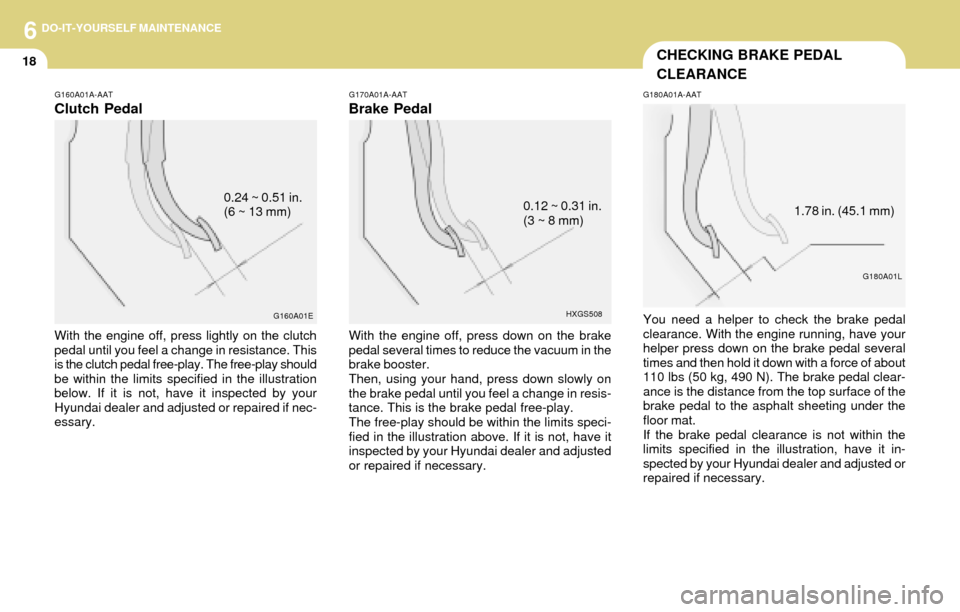

18CHECKING BRAKE PEDAL
CLEARANCE
G170A01A-AAT
Brake Pedal
With the engine off, press down on the brake
pedal several times to reduce the vacuum in the
brake booster.
Then, using your hand, press down slowly on
the brake pedal until you feel a change in resis-
tance. This is the brake pedal free-play.
The free-play should be within the limits speci-
fied in the illustration above. If it is not, have it
inspected by your Hyundai dealer and adjusted
or repaired if necessary.
HXGS508
0.12 ~ 0.31 in.
(3 ~ 8 mm)
G180A01A-AAT
You need a helper to check the brake pedal
clearance. With the engine running, have your
helper press down on the brake pedal several
times and then hold it down with a force of about
110 lbs (50 kg, 490 N). The brake pedal clear-
ance is the distance from the top surface of the
brake pedal to the asphalt sheeting under the
floor mat.
If the brake pedal clearance is not within the
limits specified in the illustration, have it in-
spected by your Hyundai dealer and adjusted or
repaired if necessary.
G180A01L
1.78 in. (45.1 mm)
G160A01A-AAT
Clutch Pedal
With the engine off, press lightly on the clutch
pedal until you feel a change in resistance. This
is the clutch pedal free-play. The free-play should
be within the limits specified in the illustration
below. If it is not, have it inspected by your
Hyundai dealer and adjusted or repaired if nec-
essary.
G160A01E
0.24 ~ 0.51 in.
(6 ~ 13 mm)

10INDEX
3
D
Defrosting/Defogging.........................................................................1-71
Door
Central door lock........................................................................... 1-6
Door locks ...................................................................................... 1-4
Locking, unlocking front door with a key ....................................... 1-4
Drink Holder......................................................................................1-52
Drive Belts........................................................................................6-19
Driving
Economical driving.......................................................................2-12
Smooth cornering .........................................................................2-13
Winter driving...............................................................................2-13
Dual-Stage Supplemental Restraint (AIRBAG) System...................1-29
E
Emission Control Systems.................................................................. 7-1
Engine
Before starting the engine .............................................................. 2-3
Compartment (For 1.6 DOHC) ...................................................... 6-2
Coolant........................................................................................... 6-6
Coolant temperature gauge .........................................................1-41
If the engine overheats .................................................................. 3-4
Number.......................................................................................... 8-2
Oil .................................................................................................. 6-4
Starting........................................................................................... 2-4
Engine Exhaust Can Be Dangerous................................................... 2-2F
Fan Speed Control (Blower Control)................................................1-65
Fog Light
Front.............................................................................................1-50
Front Seats
Adjustable front seats..................................................................1-10
Adjustable headrests ...................................................................1-11
Adjusting seatback angle .............................................................1-10
Adjusting seatback forward and rearward...................................1-10
Lumbar support control ................................................................1-12
Seat cushion height adjustment...................................................1-12
Seat pocket ..................................................................................1-54
Fuel
Capacity......................................................................................... 9-2
Gauge..........................................................................................1-41
Recommendations......................................................................... 1-2
Fuel Filler Lid
Remote release ............................................................................1-59
Fuses ................................................................................................6-19
G
General Checks.................................................................................. 6-3
Glove box ..........................................................................................1-54
H
Hazard Warning System ...................................................................1-49
Headlight Bulb ...................................................................................6-25

10INDEX
5
Spark Plugs........................................................................................ 6-8
Speedometer.....................................................................................1-42
Starting Procedures ............................................................................ 2-5
Steering Wheel
Free-play......................................................................................6-17
Stereo Sound System .......................................................................1-73
Sun Visor..........................................................................................1-62
T
Tachometer.......................................................................................1-42
Tailgate..............................................................................................1-61
Theft-Alarm System............................................................................ 1-6
Tires
Balancing....................................................................................... 8-5
Chains............................................................................................ 8-4
Changing a flat tire ........................................................................ 3-6
If you have a flat tire ...................................................................... 3-6
Information..................................................................................... 8-2
Pressure (see glove box) .............................................................. 8-3
Replacement.................................................................................. 8-5
Rotation.......................................................................................... 8-4
Snow tires...................................................................................... 8-3
Spare tire ....................................................................................... 3-5
Traction.......................................................................................... 8-5
Towing
Emergency...................................................................................3-12
If your car must be towed ...........................................................3-11
Trailer towing ...............................................................................2-16Transaxle
Automatic....................................................................................... 2-7
Automatic transaxle fluid checking..............................................6-12
Manual........................................................................................... 2-5
Manual transaxle oil checking.....................................................6-11
Trip Computer ...................................................................................1-43
Trunk
Emergency latch release .............................................................1-60
Remote release ............................................................................1-60
V
Vehicle Identification Number (VIN) .................................................... 8-2
Vehicle Specifications
Engine............................................................................................ 9-3
Lubrication Chart ............................................................................ 9-4
Measurement................................................................................. 9-2
W
Warning and Indicatior Lights ...........................................................1-38
Windows
Manual........................................................................................... 1-8
Power............................................................................................. 1-9
Windshield Wiper and Washer .........................................................1-47
Adjustable intermittent wiper operation ........................................1-48
Windshield Wiper Blades.............................................................6-10

Seoul KoreaPrinting: MAR. 04, 2004
Publication No.: A25O-EU43G
Printed in Korea

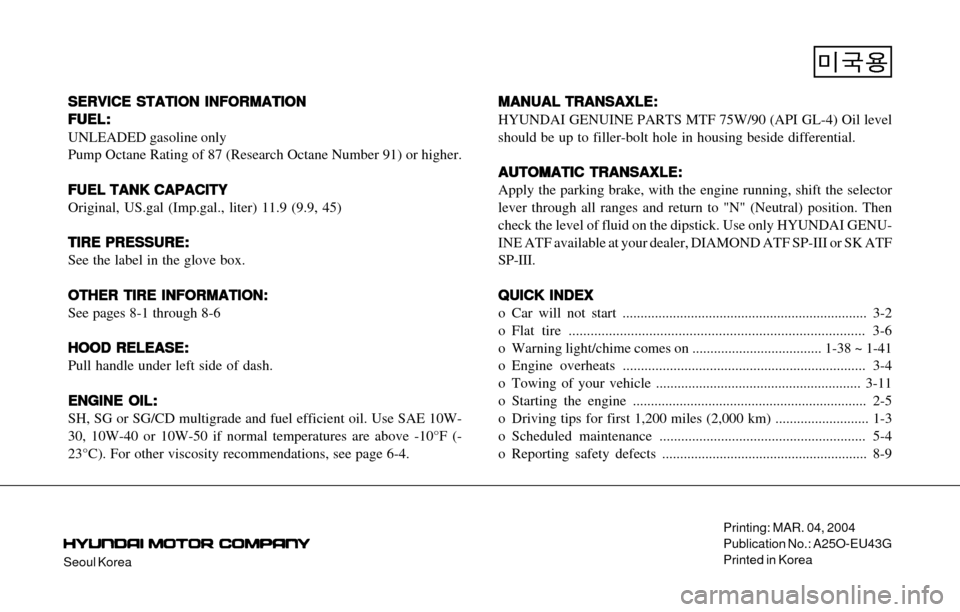

SERVICE STATION INFORMATION SERVICE STATION INFORMATIONSERVICE STATION INFORMATION SERVICE STATION INFORMATION
SERVICE STATION INFORMATION
FUEL: FUEL:FUEL: FUEL:
FUEL:
UNLEADED gasoline only
Pump Octane Rating of 87 (Research Octane Number 91) or higher.
FUEL TANK CAPACITY FUEL TANK CAPACITYFUEL TANK CAPACITY FUEL TANK CAPACITY
FUEL TANK CAPACITY
Original, US.gal (Imp.gal., liter) 11.9 (9.9, 45)
TIRE PRESSURE: TIRE PRESSURE:TIRE PRESSURE: TIRE PRESSURE:
TIRE PRESSURE:
See the label in the glove box.
OTHER TIRE INFORMATION: OTHER TIRE INFORMATION:OTHER TIRE INFORMATION: OTHER TIRE INFORMATION:
OTHER TIRE INFORMATION:
See pages 8-1 through 8-6
HOOD RELEASE: HOOD RELEASE:HOOD RELEASE: HOOD RELEASE:
HOOD RELEASE:
Pull handle under left side of dash.
ENGINE OIL: ENGINE OIL:ENGINE OIL: ENGINE OIL:
ENGINE OIL:
SH, SG or SG/CD multigrade and fuel efficient oil. Use SAE 10W-
30, 10W-40 or 10W-50 if normal temperatures are above -10°F (-
23°C). For other viscosity recommendations, see page 6-4.MANUAL TRANSAXLE: MANUAL TRANSAXLE:MANUAL TRANSAXLE: MANUAL TRANSAXLE:
MANUAL TRANSAXLE:
HYUNDAI GENUINE PARTS MTF 75W/90 (API GL-4) Oil level
should be up to filler-bolt hole in housing beside differential.
AUTOMATIC TRANSAXLE: AUTOMATIC TRANSAXLE:AUTOMATIC TRANSAXLE: AUTOMATIC TRANSAXLE:
AUTOMATIC TRANSAXLE:
Apply the parking brake, with the engine running, shift the selector
lever through all ranges and return to "N" (Neutral) position. Then
check the level of fluid on the dipstick. Use only HYUNDAI GENU-
INE ATF available at your dealer, DIAMOND ATF SP-III or SK ATF
SP-III.
QUICK INDEX QUICK INDEXQUICK INDEX QUICK INDEX
QUICK INDEX
o Car will not start .................................................................... 3-2
o Flat tire ................................................................................. 3-6
o Warning light/chime comes on .................................... 1-38 ~ 1-41
o Engine overheats ................................................................... 3-4
o Towing of your vehicle ......................................................... 3-11
o Starting the engine ................................................................. 2-5
o Driving tips for first 1,200 miles (2,000 km) .......................... 1-3
o Scheduled maintenance ......................................................... 5-4
o Reporting safety defects ......................................................... 8-9
