Hyundai Accent 2005 Owner's Manual

6
DO-IT-YOURSELF MAINTENANCE
26
!

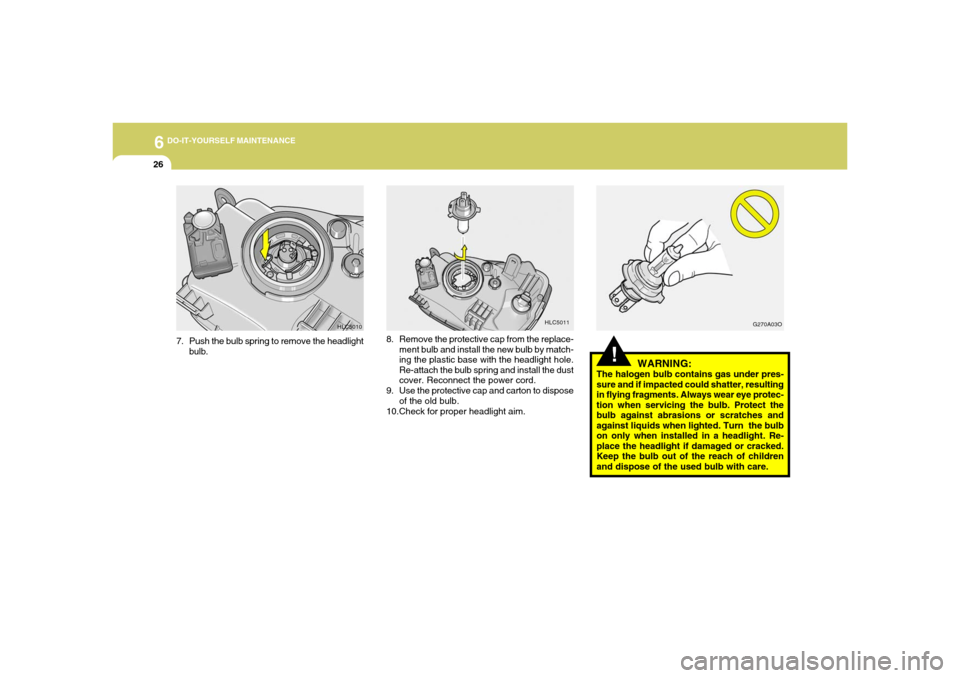

WARNING:
The halogen bulb contains gas under pres-
sure and if impacted could shatter, resulting
in flying fragments. Always wear eye protec-
tion when servicing the bulb. Protect the
bulb against abrasions or scratches and
against liquids when lighted. Turn the bulb
on only when installed in a headlight. Re-
place the headlight if damaged or cracked.
Keep the bulb out of the reach of children
and dispose of the used bulb with care. 8. Remove the protective cap from the replace-
ment bulb and install the new bulb by match-
ing the plastic base with the headlight hole.
Re-attach the bulb spring and install the dust
cover. Reconnect the power cord.
9. Use the protective cap and carton to dispose
of the old bulb.
10.Check for proper headlight aim.
G270A03O
HLC5011
7. Push the bulb spring to remove the headlight
bulb.
HLC5010

6
DO-IT-YOURSELF MAINTENANCE
27

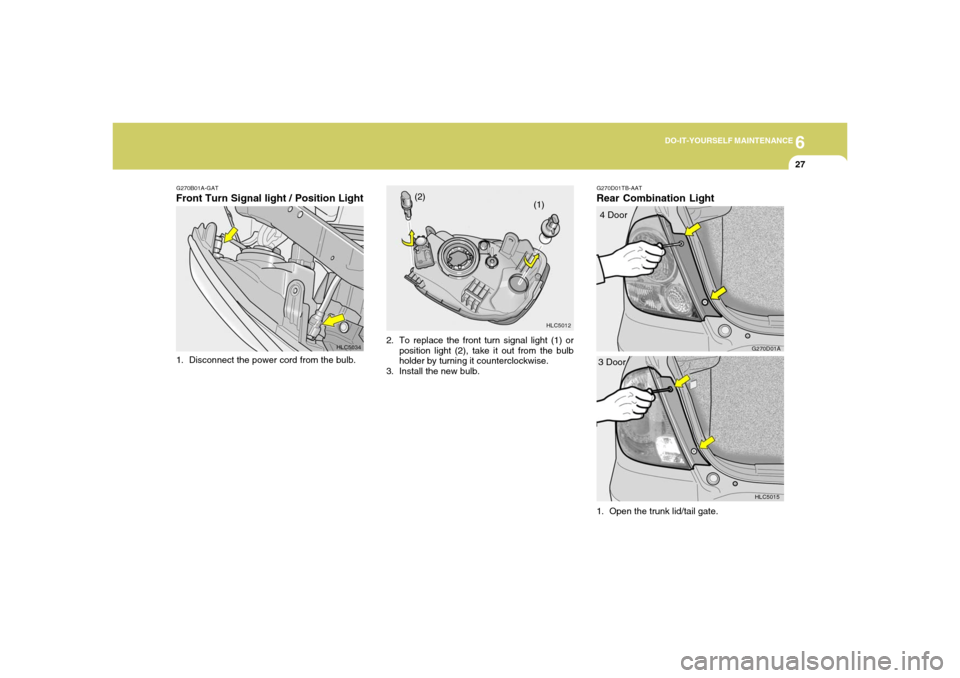

G270B01A-GATFront Turn Signal light / Position Light1. Disconnect the power cord from the bulb.
HLC5034
HLC5012
(1) (2)
2. To replace the front turn signal light (1) or
position light (2), take it out from the bulb
holder by turning it counterclockwise.
3. Install the new bulb.
G270D01TB-AATRear Combination Light
HLC5015
3 Door
G270D01A
4 Door
1. Open the trunk lid/tail gate.

6
DO-IT-YOURSELF MAINTENANCE
28

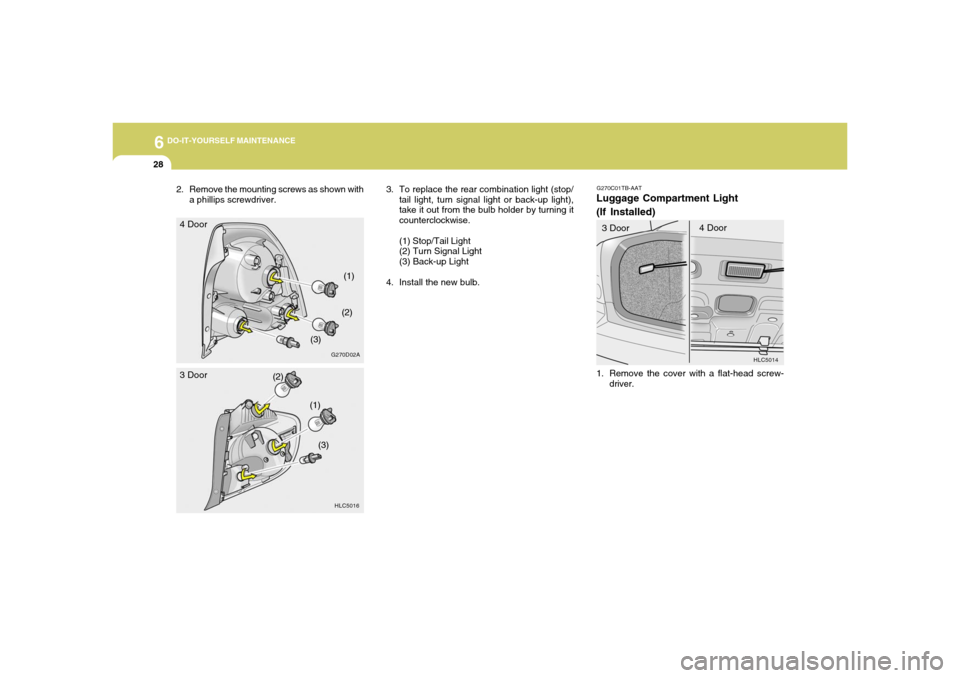

3. To replace the rear combination light (stop/
tail light, turn signal light or back-up light),
take it out from the bulb holder by turning it
counterclockwise.
(1) Stop/Tail Light
(2) Turn Signal Light
(3) Back-up Light
4. Install the new bulb.
G270C01TB-AATLuggage Compartment Light
(If Installed)
HLC5014
1. Remove the cover with a flat-head screw-
driver. 3 Door4 Door
(2)
(1)
(3)
HLC5016
3 Door
G270D02A
4 Door
(1)
(2)
(3) 2. Remove the mounting screws as shown with
a phillips screwdriver.

6
DO-IT-YOURSELF MAINTENANCE
29

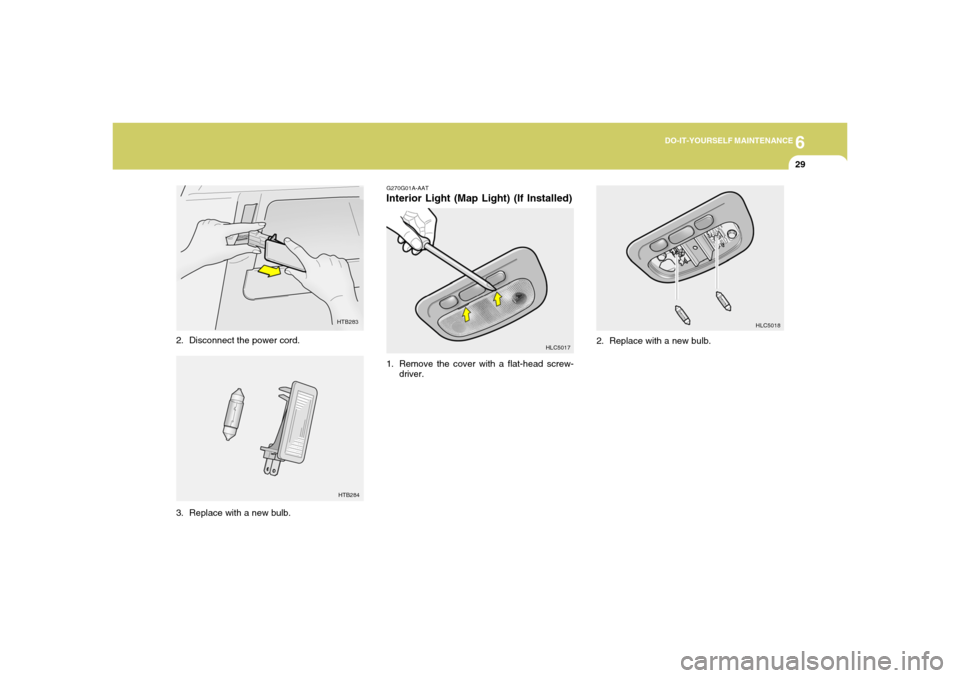

3. Replace with a new bulb.
HTB283
2. Disconnect the power cord.
HTB284
G270G01A-AATInterior Light (Map Light) (If Installed)1. Remove the cover with a flat-head screw-
driver.
HLC5017HLC5018
2. Replace with a new bulb.

6
DO-IT-YOURSELF MAINTENANCE
30

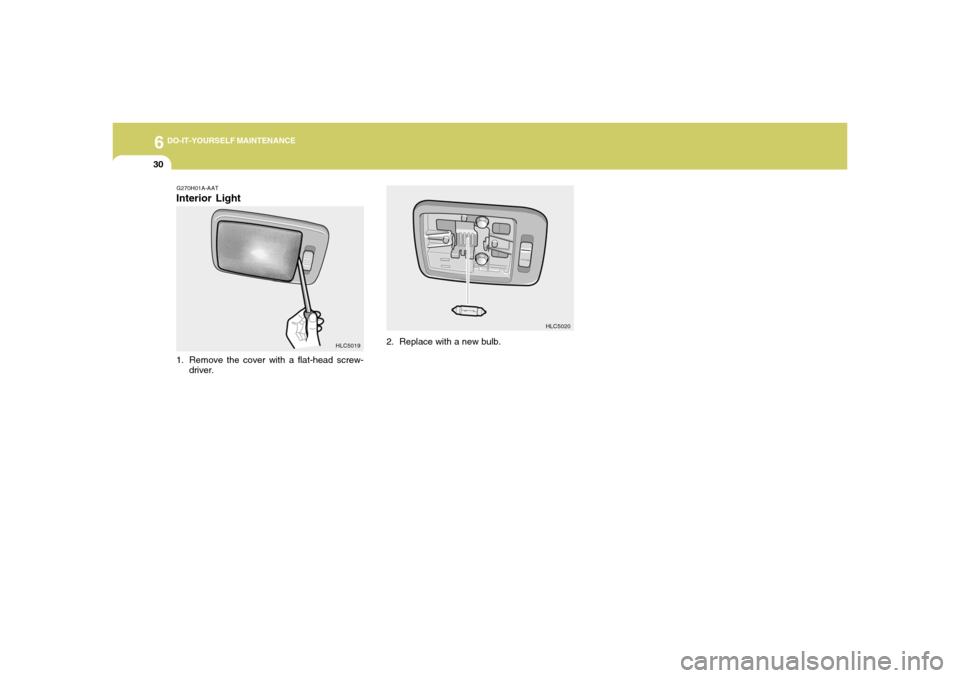

2. Replace with a new bulb.
HLC5020
G270H01A-AATInterior Light1. Remove the cover with a flat-head screw-
driver.
HLC5019

6
DO-IT-YOURSELF MAINTENANCE
31

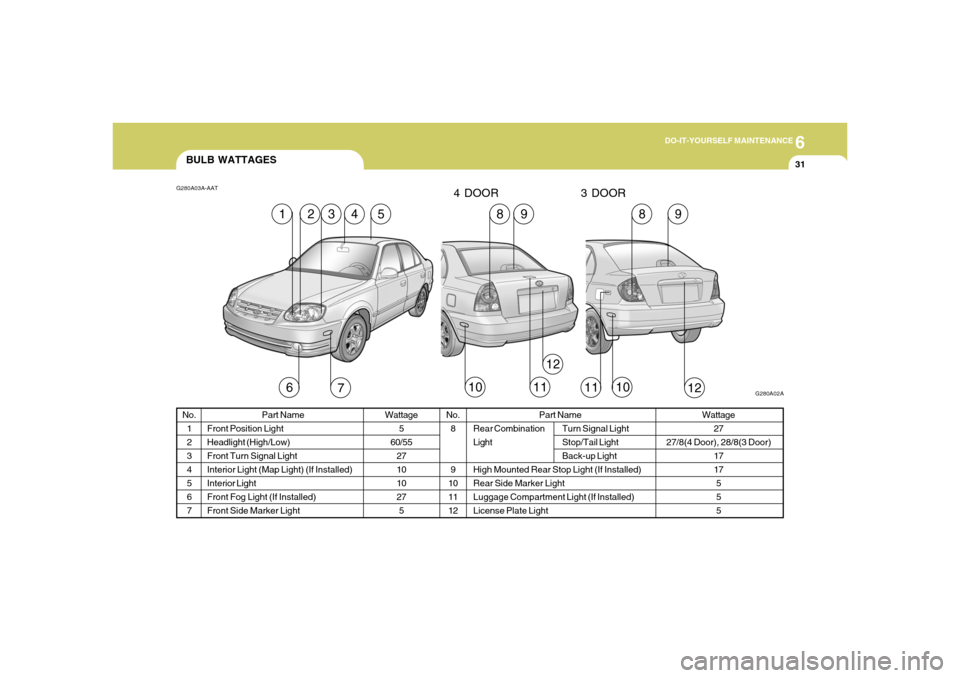

BULB WATTAGES
Part Name
Front Position Light
Headlight (High/Low)
Front Turn Signal Light
Interior Light (Map Light) (If Installed)
Interior Light
Front Fog Light (If Installed)
Front Side Marker LightNo.
8
9
10
11
12
G280A03A-AAT
G280A02A
5
2
Wattage
5
60/55
27
10
10
27
5
No.
1
2
3
4
5
6
7
Wattage
27
27/8(4 Door), 28/8(3 Door)
17
17
5
5
5 Part Name
Rear Combination Turn Signal Light
Light Stop/Tail Light
Back-up Light
High Mounted Rear Stop Light (If Installed)
Rear Side Marker Light
Luggage Compartment Light (If Installed)
License Plate Light
7
6
12
10
11
1
3
4
9
8
9
8
10
11
12
4 DOOR 3 DOOR

6
DO-IT-YOURSELF MAINTENANCE
32
FUSE PANEL DESCRIPTIONG200C02A-GATEngine Compartment
HLC5027
NOTE:Not all fuse panel descriptions in this manual may be applicable to your vehicle. It is accurate at the time of printing. When you inspect the fuse
box on your vehicle, refer to the fuse box label.
FUSE RATING
120A
50A
50A
20A
30A
20A
30A
30A
30A
30A
20APROTECTED COMPONENTS
Charging (Generator)
Fuse 6, 7, 8, 9, Horn fuse, Room lamp fuse
Head lamp fuse, Front fog lamp fuse, Tail lamp relay, H/LP washer fuse
Engine control relay, Generator, Fuel pump relay, ECU #3 fuse
Ignition power source, Star t relay
Radiator fan control
Blower control
ABS control, ABS bleeding connector
ABS control, ABS bleeding connector
Power window
Condenser fan control
ALT
BATTERY
LAMP
ECU
IGN
RAD FAN
BLOWER
ABS
ABS
P/WDW
COND FAN FUSIBLE
LINK
DESCRIPTION

6
DO-IT-YOURSELF MAINTENANCE
33
FUSE RATING
10A
10A
10A
10A
10A
10A
10A
15A
10A
15A
15A
10A
25APROTECTED COMPONENTS
Radiator fan, Condenser fan, ECM, Oxygen sensor, Purge control valve,
SMATRA, Glow plug relay, Heater relay, Stop lamp switch
A/C relay
Horn relay
Illumination lamps, Left rear combination lamp, License lamp, DRL control,
Position lamp, H/LP washer relay
Right rear combination lamp, License lamp, Position lamp
Left head lamp, DRL control, Instrument cluster
Right head lamp
Front fog lamp relay
Instrument cluster, Cour tesy lamp, Trunk room lamp, ETACM, DLC,
Door warning, Multipurpose check connector
Audio, Digital clock, Power antenna, A/C switch, Rear fog lamp switch
Idle speed actuator, ECM, Camshaft position sensor, EGR actuator,
Throttle plate actuator
ECM
Head lamp washer motor
Fuel pump relay, Fuel pump motor
ECU #1
A/CON COMP
HORN
TAIL LH
TAIL RH
H/LP LH
H/LP RH
FRONT FOG
ROOM LP
AUDIO
ECU #2
ECU#3
H/L WASHER FUSE
DESCRIPTION
F/PUMP CHK (E50)

6
DO-IT-YOURSELF MAINTENANCE
34
G200E01A-GATInner Panel
HLC5031
PROTECTED COMPONENTS
Hazard warning, Back-up lamp switch, Transaxle range switch,
A/T shift & key lock control module
ETACM, Pre-Excitation resistor, Instrument cluster, Seat belt timer
Instrument cluster
Air bag
ECM, A/T shift lever, Transaxle range switch, Mass air flow sensor, Vehicle
speed sensor, Water sensor
Power door lock
Hazard warning, ETACM
Stop lamp, A/T shift lever, A/T key interlock solenoid
Rear window defogger
Head lamp, Power window, Head lamp leveling, Head lamp washer,
ETACM, Front fog lamp, Blower control, Rear intermittent washer, Fuel
filter relay
Front wiper & washer
Seat warmer
ABS control, ABS bleeding
Digital clock, Audio, A/T shift & key lock control module
Cigarette lighter
Power outside mirror
Rear window & outside mirror defogger
Rear wiper
FUSE RATING
10A
10A
10A
15A
10A
10A
10A
10A
20A
10A
20A
20A
10A
10A
15A
10A
10A
20A FUSE
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
