Hyundai Accent 2010 Owners Manual

1
FEATURES OF YOUR HYUNDAI
79
B350B01O-GAT Windshield Washer Operation
B350A01MC-AATWindshield Wiper
The windshield wiper switch has three positions:
OMC048902 (A) (B) (C)
Type A
OMC048902N
(A) (B) (C)
Type B
OMC048903
Type A
A) Intermittent wiper operation
B) Low-speed operation
C) High-speed operation NOTE: To prevent damage to the wiper sys- tem, do not attempt to wipe awayheavy accumulations of snow or ice. Accumulated snow and ice should be removed manually. If there is onlya light layer of snow or ice, operate the heater in the defrost mode to melt the snow or ice before using thewiper.
OMC048903N
Type B
To use the windshield washer, pull the wiper/washer lever toward the steering wheel. When the washer lever is oper-ated, the wipers automatically make two passes across the windshield.

1FEATURES OF YOUR HYUNDAI
80
To use the intermittent wiper feature, place the wiper switch in the "---" or "INT" position.
OMC048905
Type A
OMC048905N
Type B
B350C03MC-GAT Adjustable Intermittent Wiper Operation
Mist Wiper Operation
The washer continues to operate until the lever is released. NOTE:
o Do not operate the washer more
than 15 seconds at a time or when the fluid reservoir is empty.
o In icy or freezing weather, be sure
the wiper blades are not frozen tothe glass prior to operating the wipers.
o In areas where water freezes in winter, use windshield washerantifreeze.
If a single wipe is desired in mist, push the windshield wiper and washer control lever upwards.
OMC048904
Type A
OMC048904N
Type B

1
FEATURES OF YOUR HYUNDAI
81
B390A02MC-AAT Rear Window Wiper and Washer (If Installed)
OSA049905L
Type A
1.
: The washer fluid will be sprayed
onto the rear window and the wiper operates while the rear win-dow wiper barrel is placed in this position.
2.
(ON) : The rear window wiper
starts to operate continu- ously.
3.O (OFF) NOTE: Do not operate the washer continu- ously for more than 15 seconds or when the fluid reservoir is empty; this could damage the system. Donot operate the wiper when the win- dow is dry; this can result in scratch- ing as well as premature wiper bladewear.
OSA049905
Type B
With the switch in this position, the interval between wipes can be variedfrom approximately 1 to 15 seconds by turning the interval adjuster barrel (1).

1FEATURES OF YOUR HYUNDAI
82
Loading condition Switch
position
Driver only Driver + front passenger Full passengers (including driver)Full passengers (including driver) + full trunk loading (or light trailer loading)Driver + full trunk loading (or maximum trailer loading) 0
1 2
3 0
To adjust the headlight beam level ac- cording to the number of the passen-gers and the loading weight in the lug- gage area, turn the beam leveling switch. The higher the number of the switchposition, the lower the headlight beam level. Always keep the headlight beam at the proper leveling position, or head-lights may dazzle other road users. Listed below are the examples of proper switch settings. For loading conditionsother than those listed below, adjust the switch position so that the beam level may be the nearest as the conditionobtained according to the list.
HAZARD WARNING SYSTEM
B370A01A-AAT
The hazard warning system should be used whenever you find it necessary to stop the car in a hazardous location. When you must make such an emer-gency stop, always pull off the road as far as possible. The hazard warning lights are turned onby pushing in the hazard switch. This causes all turn signal lights to blink. The hazard warning lights will operateeven though the key is not in the igni- tion. To turn the hazard warning lights off,push the switch a second time.
OMC025067
HEADLIGHT LEVELING DE- VICE SYSTEM
B340G01S-GAT (If Installed)
Left-hand Drive type
Right-hand Drive type
B340G01MC
B340G01MC-R

1
FEATURES OF YOUR HYUNDAI
83FOG LIGHT SWITCH
B360B01FC-GAT Front Fog Light Switch (If Installed) To turn on the front fog lights, push the switch in the "ON" position. They will light when the headlight switch is in thefirst or second position.
CAUTION:
Do not clean the inner side of the rearwindow glass with an abrasive type of glass cleaner or use a scraper to remove foreign deposits from theinner surface of the glass as this may cause damage to the defroster ele- ments. NOTE: The engine must be running for the rear window defroster to operate.
!
B360B01MC
REAR WINDOW DEFROSTER SWITCH
B380A01MC-AAT The rear window defroster is turned on by pushing in the switch. To turn the defroster off, push the switch a secondtime. The rear window defroster auto- matically turns itself off after about 20 minutes. To restart the defroster cycle,push in the switch again after it has turned itself off.
OMC025072
B360B01MC-R
Right-hand Drive Type
Left-hand Drive Type

1FEATURES OF YOUR HYUNDAI
84DIGITAL CLOCK
B400A01A-AAT There are three control buttons for the digital clock. Their functions are: HOUR - Push "H" to advance the hour
indicated. MIN - Push "M" to advance the minute
indicated.RESET - Push "R" to reset minutes to
":00" to facilitate resetting the clock to the correct time. When this is done: Pressing "R" between 10 : 30 and 11 : 29 changes the readout to 11 : 00. Pressing "R" between 11 : 30 and 12 :29 changes the readout to 12 : 00.CIGARETTE LIGHTER
B420A02A-AAT
For the cigarette lighter to work, the key must be in the "ACC" position or the "ON" position. To use the cigarette lighter, push it allthe way into its socket. When the ele- ment has heated, the lighter will pop out to the "ready" position.Do not hold the cigarette lighter pressed in. This can damage the heating ele- ment and create a fire hazard.If it is necessary to replace the ciga- rette lighter, use only a genuine Hyundai replacement or its approved equivalent. HHR2098A
OMC025098
B360A01Y-GAT Rear Fog Light Switch (If Installed)
To turn on the rear fog lights, push the switch. They will light when the head- light switch is in the second position and the key is in the "ON" position.
B360A01MC
B360A01MC-R
Right-hand Drive Type
Left-hand Drive Type

1
FEATURES OF YOUR HYUNDAI
85
CAUTION:
Do not use electric accessories or equipment other than the Hyundai genuine parts in the socket.
!
POWER OUTLET
B500D01MC-GAT
These supply 12V electric power to operate electric accessories or equip- ment only when the key is in the "ON"or "ACC" position. OMC029106
!
CAUTION:
o Only use the power outlet when the engine is running. Unplug the plug from the power outlet when the engine is off if the key will beleft in the "ACC" or "ON" (not recommended) positions, to pre- vent discharging the battery. Us-ing when the engine stops or leav- ing the electric appliance plugged in for many hours may cause thebattery to discharge.
o Do not use the power outlet to
connect electric accessories orequipment other than those de- signed to operate on 12 volts.
o Some electronic devices can cause electronic interference whenplugged into the power outlet. These devices may cause exces-sive audio noise and malfunctions in other electronic systems or de- vices used in your vehicle.

1FEATURES OF YOUR HYUNDAI
86
OMC025034
!WARNING:
Use caution when using the drink holders. A spilled beverage that is very hot can injure your passengers.Spilled liquids can damage interior trim.
B450B01MC-GAT REAR DRINK HOLDER (If Installed) The rear drink holder is located in the rear seat armrest for holding cups orcans. The rear drink holder can be used by pulling the rear seat armrest.
DRINK HOLDERASHTRAY
To use the ashtray, open the cover. To remove the ashtray to empty or clean it, pull it all the way out.
B430A01MC-GAT
OMC025108
OMC025103
!
B450A02O-AAT FRONT DRINK HOLDER The drink holder is located on the main console for holding cups or cans. WARNING:
o Use caution when using the drink holders. A spilled beverage that isvery hot can injure you or your passengers. Spilled liquids can damage interior trim and electri-cal components.
o Do not place objects other than
cups or cans in the drink holder.This objects can be thrown out in the event of a sudden stop or an accident, possibly injuring the pas-sengers in the vehicle.

1
FEATURES OF YOUR HYUNDAI
87
B460B01MC-GAT Opening the Sunroof System If your vehicle is equipped with this feature, you can slide or tilt your sunroof with the sunroof control buttons locatedon the overhead console. The sunroof can only be opened, closed, or tilted when the ignition switch is in the"ON" position.
!
SUNROOF
B460A02Y-AAT (If Installed) Sun Shade
1JBA3110
Your HYUNDAI is equipped with a slid- ing sunshade which you can manually adjust to let in light with the sunroofclosed, or to block sunlight.
WARNING:
Never adjust the sunshade while driv- ing. This could result in loss of con- trol and an accident that may causedeath, serious injury, or property damage.

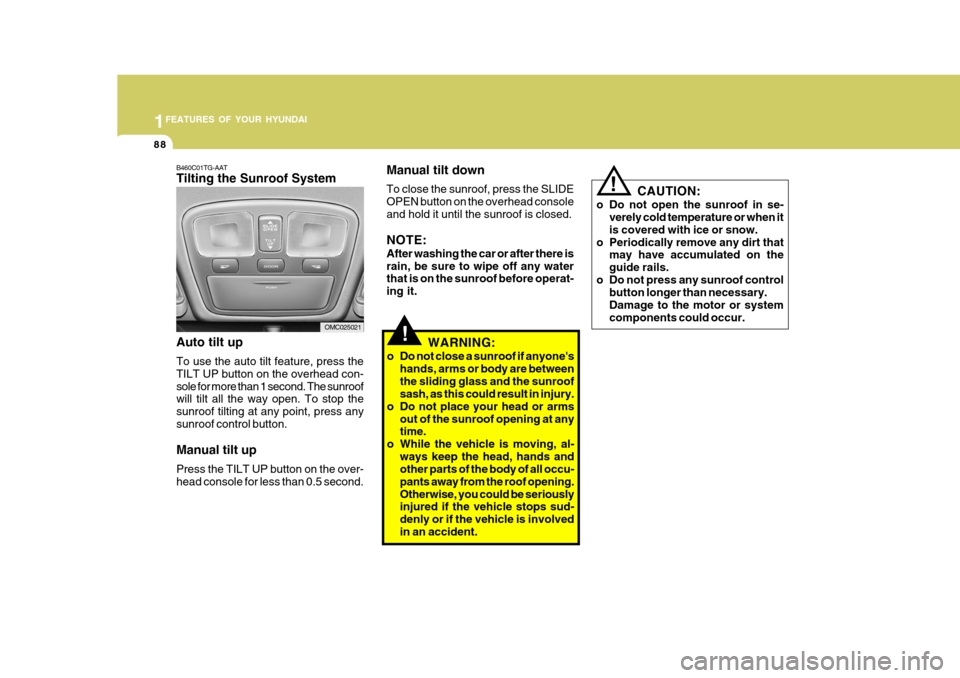

OMC025021
!
Auto slide open To use the auto slide feature, press the SLIDE OPEN button on the overheadconsole for more than 1 second. The sunroof will slide all the way open. To stop the sunroof sliding at any point,press any sunroof control button. Manual slide open Press the SLIDE OPEN button on the overhead console for less than 0.5 second. Manual slide close To close the sunroof, press the TILT UP button on the overhead console andhold it until the sunroof is closed.
WARNING:
Be careful that someone’s head, hands and body are not trapped by a closing sunroof.

1FEATURES OF YOUR HYUNDAI
88
!
CAUTION:
o Do not open the sunroof in se- verely cold temperature or when it is covered with ice or snow.
o Periodically remove any dirt that may have accumulated on theguide rails.
o Do not press any sunroof control button longer than necessary.Damage to the motor or systemcomponents could occur.
!WARNING:
o Do not close a sunroof if anyone's hands, arms or body are between the sliding glass and the sunroof sash, as this could result in injury.
o Do not place your head or arms out of the sunroof opening at anytime.
o While the vehicle is moving, al- ways keep the head, hands andother parts of the body of all occu- pants away from the roof opening.Otherwise, you could be seriously injured if the vehicle stops sud- denly or if the vehicle is involvedin an accident.
B460C01TG-AAT Tilting the Sunroof System Auto tilt up To use the auto tilt feature, press the TILT UP button on the overhead con-sole for more than 1 second. The sunroof will tilt all the way open. To stop the sunroof tilting at any point, press anysunroof control button. Manual tilt up Press the TILT UP button on the over- head console for less than 0.5 second.
OMC025021 Manual tilt down To close the sunroof, press the SLIDE OPEN button on the overhead consoleand hold it until the sunroof is closed. NOTE: After washing the car or after there is rain, be sure to wipe off any water that is on the sunroof before operat- ing it.
