Hyundai Accent 2010 Owner's Manual

1
FEATURES OF YOUR HYUNDAI
89
B460E02TG-GAT Resetting the sunroof Whenever the vehicle battery is discon- nected or discharged, you have to resetyour sunroof system as follows:
1. Turn the ignition key to the "ON" position.
2. Press the TILT UP button for more
than 1 second to tilt up the sunroof completely when the sunroof is fully closed. Then, release the button.
3. Press and hold the TILT UP button once again until the sunroof hasreturned to the original position of TILT UP after it is raised a littlehigher than the maximum TILT UP position. Then, release the button.
4. Press and hold the TILT UP button within 5 seconds until the sunroof isoperated as follows; TILT DOWN SLIDE OPEN
SLIDE CLOSEThen, release the button.
! CAUTION:
If the sunroof is not reset, it may not operate properly.
INTERIOR LIGHT
B480A02MC-GAT Map Light (If Installed) The two map light switches are located on both sides of the front overhead console. Push in the map light switch to turn the light on or off. This light pro-duces a spot beam for convenient use as a map light at night or as a personal light for the driver and the passenger.
OMC025068

1FEATURES OF YOUR HYUNDAI
90
o"ON" In the "ON" position, the light stays on at all times.
CAUTION:
Do not leave the switch in this posi- tion for an extended period of time when the vehicle is not running.
!
o "OFF" In the "OFF" position, the light stays off at all times even though a door is open.
The interior courtesy light switch hasthree positions. The three positions are: o "DOOR" In the "DOOR" position, the interior courtesy light comes on when any dooris opened regardless of the ignition key position and the light goes out after approximately 20 minutes even thoughthe door is open. The light goes out gradually after 30 seconds if the door is closed. However if the ignition switch isON or all doors are locked, interior light will turn off even within 30 seconds.
B490A02MC-AAT Interior Light
B490A03MC
o "DOOR" (If Installed) In the "DOOR" position, the map light comes on when any door is opened regardless of the ignition key positionand the light goes out after approxi- mately 20 minutes even though the door is open.The light goes out gradually after 30 seconds if the door is closed. However if the ignition switch is ON or all doorsare locked, map light will turn off even within 30 seconds.

1
FEATURES OF YOUR HYUNDAI
91
!
SPECTACLE CASE
B491A03O-GAT (If Installed) The spectacle case is located on the front overhead console.Push the end of the cover to open the spectacle case. WARNING:
o Do not keep objects such as sharp or unsuitable things inside thespectacle case. Such objects can be thrown out in the event of asudden stop or an accident, pos- sibly injuring the passengers in the vehicle.
o Do not open the spectacle case while the vehicle is moving. Therear view mirror of the vehicle canbe blocked by an open spectacle case.
B491A03MC
!
GLOVE BOX
WARNING:
To avoid the possibility of injury in case of an accident or a sudden stop, the glove box door should bekept closed when the car is in mo- tion.
B500A01A-AAT
B500A01MC
o To open the glove box, pull on the glove box release lever.

1FEATURES OF YOUR HYUNDAI
92
CAUTION:
If the mirror control is jammed with ice, do not attempt to break it free using the control handle or by ma- nipulating the face of the mirror. Usean approved spray de-icer (not radia- tor antifreeze) to release the frozen mechanism or move the vehicle to awarm place and allow the ice to melt.
!
B510A01A-AAT Manual Type The outside rearview mirrors are equipped with a remote control for your convenience. It is operated by the con-trol lever in the bottom front corner of the window. Before driving away, always check thatyour mirrors are positioned so you can see behind you, both to the left and right sides, as well as directly behind yourvehicle. When using the mirror, always exercise caution when attempting to judge the distance of vehicles behind oralong side of you.
OUTSIDE REARVIEW MIRROR
OMC025049
MULTI BOX
B500B01MC-GAT The multi box is opened by pushing the knob downward.
OMC025105

1
FEATURES OF YOUR HYUNDAI
93
B510B01FC-AAT Electric Type (If Installed) The outside rearview mirrors can be adjusted to your preferred rear vision, both directly behind the vehicle and to the rear of the left and right sides.The remote control outside rearview mirror switch controls the adjustments for both right and left outside mirrors.
OMC029051 To adjust the position of either mirror:
1. Move the selecting switch to the
right or left to activate the adjustable mechanism for the corresponding door mirror.
2. Adjust mirror angle by depressing
the appropriate perimeter switch asillustrated.!
CAUTION:
o Do not operate the switch continu- ously for an unnecessary length of time.
o Scraping ice from the mirror face
could cause permanent damage.To remove any ice, use a sponge, soft cloth or approved de-icer.
WARNING:
Be careful when judging the size ordistance of any object seen in the passenger side rear view mirror. It isa convex mirror with a curved sur- face. Any objects seen in this mirror are closer than they appear.!

1FEATURES OF YOUR HYUNDAI
94PARKING BRAKE
Always engage the parking brake be- fore leaving the car. This also turns on the parking brake indicator light when the key is in the "ON" or "START"position. Before driving away, be sure that the parking brake is fully released and the indicator light is off.
B530A03A-AAT
OMC035017
DAY/NIGHT INSIDE REARVIEW MIRROR
B520A01A-AAT
Your Hyundai is equipped with a day/ night inside rearview mirror. The "night" position is selected by flipping the tab at the bottom of the mirror toward you.In the "night" position, the glare of headlights of cars behind you is re- duced.
OMC025047
!
B510C01A-AAT FOLDING THE OUTSIDE REAR- VIEW MIRRORS
To fold the outside rearview mirrors, push them towards the rear.The outside rearview mirrors can be folded rearward for parking in narrow areas. WARNING:
Do not adjust or fold the outside rearview mirrors while the vehicle is moving. This could result in loss ofcontrol, and an accident which could cause death, serious injury or prop- erty damage.
OMC025051

1
FEATURES OF YOUR HYUNDAI
95
Applying the parking brake To engage the parking brake, first apply the foot brake and then without press-ing the release button in, pull the park-
ing brake lever up as far as possible. In addition it is recommended that whenparking the vehicle on a gradient, the shift lever should be positioned in the appropriate low gear on manual transaxlevehicles or in the P (Park) position on automatic transaxle vehicles.
CAUTION:
Driving with the parking brake ap-plied will cause excessive brake pad (or lining) and brake rotor wear.
!
!WARNING:
Whenever leaving vehicle or parking always set the parking brake as far as possible and fully engage the vehicle's transaxle into the park po-sition. Vehicles not fully engaged in park with the parking brake set are at risk for moving inadvertently andinjuring yourself or others.
Releasing the parking brake To release the parking brake, first apply the foot brake and pull up the parkingbrake lever slightly. Secondly, depress the release button and lower the parking brake lever while holding the button.
HIGH-MOUNTED REAR STOP LIGHT
B550A01S-GAT
(If Installed) In addition to the lower-mounted rear stop lights on either side of the car, thehigh mounted rear stop light in the center of the rear window or inserted in the rear spoiler also lights when thebrakes are applied.
B550A01MC
4 Door
B550A01MC-1
3 Door

1FEATURES OF YOUR HYUNDAI
96
CAUTION:
Make sure that the support rod has been released prior to closing thehood.
!
Before closing the hood, return the support rod to its clip to prevent it fromrattling. Lower the hood until it is about 1 ft. (30 cm) above the closed position and let it drop. Make sure that it locksinto place.
3. Pull the support rod from the hood.
B570A01MC
4. Hold the hood open with the support rod.
B570A02MC
HOOD RELEASE
B570A01MC-GAT
1. Pull the release knob to unlatch the hood.
OMC025019
OMC025020
2. Pull the secondary latch lever up and lift the hood.

1
FEATURES OF YOUR HYUNDAI
97
!WARNING:
o Always double check to be sure that the hood is firmly latched before driving away. If it is not latched, the hood could fly openwhile the vehicle is being driven, causing a total loss of visibility, which might result in an accident.
o The support rod must be inserted completely into the hole providedin the hood whenever you inspectthe engine compartment. This will prevent the hood from falling and possibly injuring you.
o Do not move the vehicle with the hood in the raised position, asvision is obstructed and the hoodcould fall or be damaged.
REMOTE FUEL-FILLER LID RELEASE
B560A01MC-GAT
The fuel-filler lid may be opened from inside the vehicle by pulling up on the fuel-filler lid opener located on the front floor area on the left side of the car. NOTE: If the fuel-filler lid will not open be- cause ice has formed around it, taplightly or push on the lid to break the ice and release the lid. Do not pry on the lid. If necessary, spray aroundthe lid with an approved de-icer fluid (do not use radiator anti-freeze) or move the vehicle to a warm placeand allow the ice to melt.
OMC025017B560A02MC
4 Door
B560A02MC-1
3 Door

1FEATURES OF YOUR HYUNDAI
98

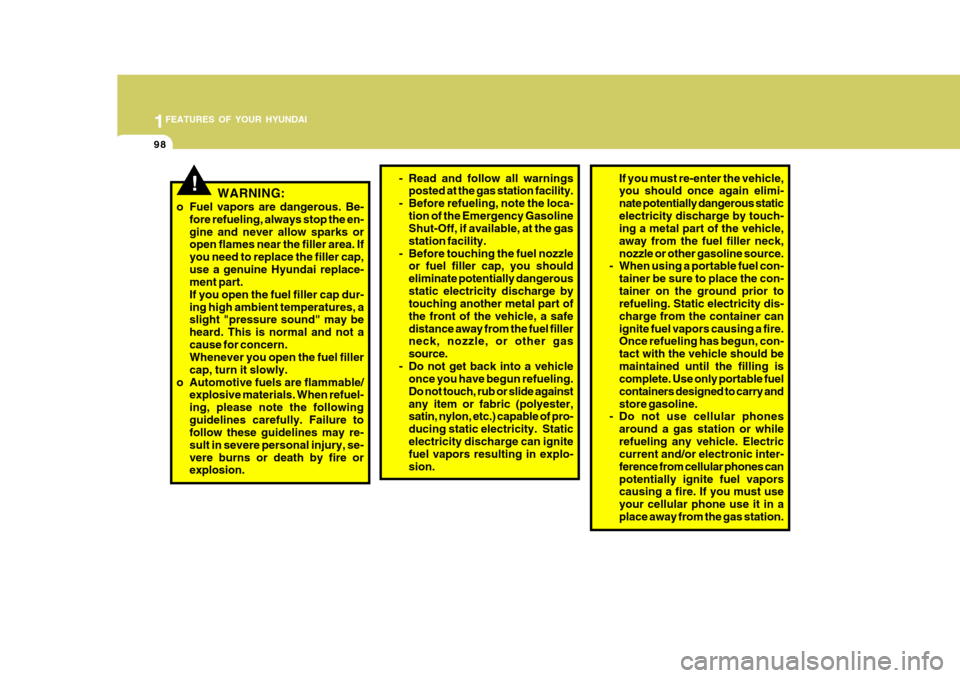

If you must re-enter the vehicle, you should once again elimi- nate potentially dangerous staticelectricity discharge by touch- ing a metal part of the vehicle, away from the fuel filler neck,nozzle or other gasoline source.
- When using a portable fuel con-
tainer be sure to place the con-tainer on the ground prior to refueling. Static electricity dis- charge from the container canignite fuel vapors causing a fire. Once refueling has begun, con- tact with the vehicle should bemaintained until the filling is complete. Use only portable fuel containers designed to carry andstore gasoline.
- Do not use cellular phones
around a gas station or whilerefueling any vehicle. Electric current and/or electronic inter- ference from cellular phones canpotentially ignite fuel vapors causing a fire. If you must use your cellular phone use it in aplace away from the gas station.- Read and follow all warningsposted at the gas station facility.
- Before refueling, note the loca- tion of the Emergency Gasoline Shut-Off, if available, at the gas station facility.
- Before touching the fuel nozzle or fuel filler cap, you shouldeliminate potentially dangerousstatic electricity discharge by touching another metal part of the front of the vehicle, a safedistance away from the fuel filler neck, nozzle, or other gas source.
- Do not get back into a vehicle once you have begun refueling.Do not touch, rub or slide againstany item or fabric (polyester, satin, nylon, etc.) capable of pro- ducing static electricity. Staticelectricity discharge can ignite fuel vapors resulting in explo- sion.
WARNING:
o Fuel vapors are dangerous. Be- fore refueling, always stop the en- gine and never allow sparks or open flames near the filler area. If you need to replace the filler cap,use a genuine Hyundai replace- ment part. If you open the fuel filler cap dur-ing high ambient temperatures, a slight "pressure sound" may be heard. This is normal and not acause for concern. Whenever you open the fuel filler cap, turn it slowly.
o Automotive fuels are flammable/ explosive materials. When refuel-ing, please note the followingguidelines carefully. Failure to follow these guidelines may re- sult in severe personal injury, se-vere burns or death by fire or explosion.!
