FEATURES OF YOUR HYUNDAI
29
*1) When the ignition key is turned from "OFF" position to "ON" within 1 minute.
*2) The switch returns to "ON" when you let go of the key.
*3) If the vehicle speed exceeds 9km/
h, the seat belt chime also sounds for about 1~2 minutes. If the vehicle speed is below 9km/h, 1 minute later the seat belt chimealso sounds for about 1~2 minutes.
NOTE: If the driver's seat belt is operated in this order "unbuckled

buckled



unbuckled" within 9 seconds after the seat belt is buckled, the seat belt warning light and chime will notactivate.
The seat belt warning light and chimewill activate to the following table.
B265E01MC-GAT
Seat Belt Warning Light
and Chime (E.C only)
User (Driver) Condition
Seat Belt WarningLight
Seat Belt Ignition Switch
Unbuckled ON Stay on until buckled up
Buckled ON Come on for 6 seconds
Unbuckled ON * 1
Blink until buckled up
START * 2
Blink until buckled up* 3
Buckled



Unbuckled
B180A01MC-GAT SEAT BELTS 3-Point System with Emergency Locking Retrac-torTo Fasten Your Belt
To fasten your seat belt, pull it out of the retractor and insert the metal tab into the buckle. There will be an audible "click" when the tab locks into thebuckle. The seat belt automatically adjusts to the proper length only after the lap beltis adjusted manually so that it fits snugly around your hips. If you lean forward in a slow, easy motion, the beltwill extend and let you move around. If there is a sudden stop or impact, how- ever, the belt will lock into position. It
B180A01NF will also lock if you try to lean forward too quickly. Check to make sure thatthe belt is properly locked and that the belt is not twisted. NOTE: If the seat belt is not fastened when the ignition key is turned from the "OFF" position to the "ON" position, the seat belt warning will activate toremind the driver to fasten the seat belt as follows. B260E01TB-GAT
Seat Belt Warning Light
(Except E.C)
The seat belt warning light blinks for about 6 seconds when the ignition key is turned from the "OFF" position to the "ON".

1FEATURES OF YOUR HYUNDAI
30
B200A01S-GAT Adjusting Your Seat Belt You should place the belt as low as possible on your hips, not on yourwaist. If the belt is located too high on your body, you could slide under it in case of accident or a sudden stop. Thiscould result of death, serious injury or property damage. Both arms should not be under or over the belt. Rather, oneshould be over and the other under, as shown in the illustration. Never wear the seat belt under the armnearest the door.
B200A01NF B210A01A-AAT To Release the Seat Belt
The seat belt is released by pressing the release button in the locking buckle.When it is released, the belt should automatically draw back into the retrac- tor.If this does not happen, check the belt to be sure it is not twisted, then try again.B210A01NF B220A01MC-AAT SEAT BELTS (2-Point Static Type) (Rear Seat Center)(If Installed)To Fasten Your Seat Belt
To fasten a 2-point static type belt, insert the metal tab into the lockingbuckle. There will be an audible "click" when the tab locks into the buckle. Check to make sure the belt is properlylocked and that the belt is not twisted.
B220A01MC

1
FEATURES OF YOUR HYUNDAI
31
!
B220C01A-AAT To Release the Seat Belt When you want to release the seat belt, press the button in the locking buckle.
WARNING:
The center lap belt latching mecha-nism is different from those for therear seat shoulder belts. When fas- tening the rear seat shoulder belts or the center lap belt, make sure theyare inserted into the correct buckles to obtain maximum protection from the seat belt system and assure properoperation.
B210A02NF
B220B01A-AAT Adjusting Your Seat Belt With a 2-point static type seat belt, the length must be adjusted manually so it fits snugly around your body. Fastenthe belt and pull on the loose end to tighten. The belt should be placed as low as possible on your hips, not onyour waist. If the belt is too high, it could increase the possibility of your being injured in an accident.
B220B01MC
B220A02MC
NOTE: Confirm the metal tab and the buckle marked "CENTER" are latched to- gether.
ShortenCorrect
Too high

1FEATURES OF YOUR HYUNDAI
32
B220D01MC-AAT SEAT BELTS - Rear Seat Center 3-Point System With EmergencyLocking Retractor (If Installed)
1. Before fastening the rear seat center
belt, confirm the metal tab (A) and buckle (B) are latched together. B220D01MC
2. After confirming that (A) and (B) are
latched, pull the seat belt out of the retractor and insert the metal tab (C) into the buckle (D). B220D02MCNOTE: Confirm the metal tab and the buckle marked "CENTER" are latched to- gether. B220D03MC

1
FEATURES OF YOUR HYUNDAI
33
B220D05MC
o To disconnect the metal tab (A) from the buckle (B), insert a nar- row-ended tool into the groovelocated on the buckle (B).
o Lock the metal tab (A) and the
buckle (B) immediately after fold-ing rear seatbacks up.
!WARNING:
o When using the rear seat center belt, you must lock all metal tabs and buckles. If any metal tab or buckle is not locked, it will in- crease the chance of injury in theevent of collision.
o Never unlock the metal tab (A) and
the buckle (B) with the followingexceptions.(1)In case of folding rear seatbacks
down.
(2)If transporting an object on the rear seat may cause damage tothe rear seat center belt.
B220D04MC
There will be an audible "click" when thetab locks in the buckle. The seat beltautomatically adjusts to the proper length only after the lap belt is adjusted manu- ally so that it fits snugly around yourhips. If you lean forward in a slow, easy motion, the belt will extend and let you move around. If there is a sudden stopor impact, the belt will lock into position. It will also lock if you try to lean forward too quickly.

1FEATURES OF YOUR HYUNDAI
34
!
B220C02A-GAT To Release the Seat Belt When you want to release the seat belt, press the button in the locking buckle.
WARNING:
When fastening the outboard seatbelts or the center seat belt, make sure they are inserted into the cor- rect buckles to obtain maximum pro-tection from the seat belt system and assure proper operation.
B210A01NF
CHILD RESTRAINT SYSTEM
B230A04A-GAT (If Installed) Children riding in the car should sit in the rear seat and must always be prop-erly restrained to minimize the risk of injury in an accident, sudden stop or sudden maneuver. According to acci-dent statistics, children are safer when properly restrained in the rear seats than in the front seat. Larger childrennot in a child restraint should use one of the seat belts provided. You are required by law to use safetyrestraints for children. If small children ride in your vehicle you must put them in a child restraint system (safety seat).Child restraint systems are designed to be secured in vehicle seats by lap belts or the lap belt portion of a lap/shoulderbelt, or by a tether anchor and/or ISOFIX anchors (If Installed). Children could be injured or killed in a crash if their re-straints are not properly secured. For small children and babies, a child seat or infant seat must be used. Beforebuying a particular child restraint sys- tem, make sure it fits your car and seat belts, and fits your child. Follow all theinstructions provided by the manufac- turer when installing the child restraint system.
WARNING:
o A child restraint system must be placed in the rear seat. Never in- stall a child or infant seat on the front passenger's seat.Should an accident occur and cause the passenger's airbag to deploy, it could severely injure orkill an infant or child seated in an infant or child seat. Thus, only use a child restraint in the rear seat ofyour vehicle.
o Since a safety belt or child re-
straint system can become veryhot if it is left in a closed vehicle, be sure to check the seat cover and buckles before placing a childthere.
o When the child restraint system is
not in use, store it in the trunk orfasten it with a safety belt so that it will not be thrown forward in the case of a sudden stop or an acci-dent.!

1
FEATURES OF YOUR HYUNDAI
35

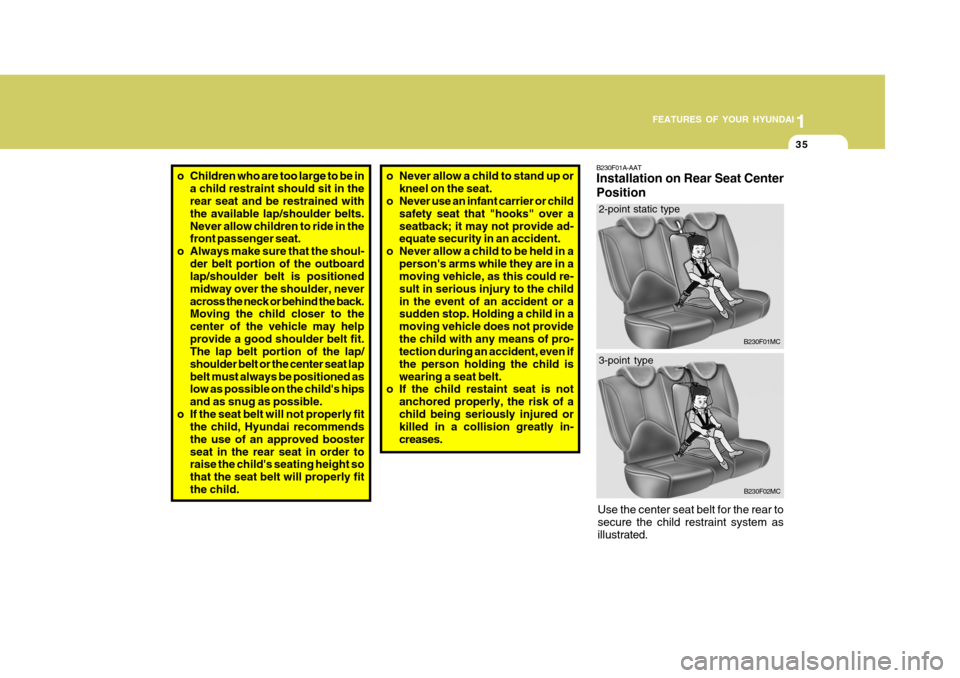

B230F01A-AAT Installation on Rear Seat Center Position
B230F01MC
B230F02MC
Use the center seat belt for the rear to secure the child restraint system asillust rated.
2-point static type 3-point type
o Children who are too large to be in
a child restraint should sit in the rear seat and be restrained with the available lap/shoulder belts.Never allow children to ride in the front passenger seat.
o Always make sure that the shoul-
der belt portion of the outboardlap/shoulder belt is positioned midway over the shoulder, neveracross the neck or behind the back. Moving the child closer to the center of the vehicle may helpprovide a good shoulder belt fit. The lap belt portion of the lap/ shoulder belt or the center seat lapbelt must always be positioned as low as possible on the child's hips and as snug as possible.
o If the seat belt will not properly fit the child, Hyundai recommendsthe use of an approved boosterseat in the rear seat in order to raise the child's seating height so that the seat belt will properly fitthe child.o Never allow a child to stand up or
kneel on the seat.
o Never use an infant carrier or child
safety seat that "hooks" over a seatback; it may not provide ad- equate security in an accident.
o Never allow a child to be held in a
person's arms while they are in amoving vehicle, as this could re- sult in serious injury to the childin the event of an accident or a sudden stop. Holding a child in a moving vehicle does not providethe child with any means of pro- tection during an accident, even if the person holding the child iswearing a seat belt.
o If the child restaint seat is not
anchored properly, the risk of achild being seriously injured or killed in a collision greatly in- creases.

1FEATURES OF YOUR HYUNDAI
36
After installation of the child restraint system, rock the child seat back andforth, and side to side to ensure that it is properly secured by the seat belt. If the child seat moves, readjust thelength of the seat belt. Then, if equipped, insert the child restraint tether strap hook into the child restraint hook holderand tighten to secure the seat. Always refer to the child restraint system manufacturer's recommendation beforeinstalling the child restraint system in your vehicle.
To install a child restraint system in the outboard rear seats, extend the shoul- der/lap belt from its retractor. Install thechild restraint system, buckle the seat belt and allow the seat belt to take up any slack. Make sure that the lap por-tion of the belt is tight around the child restraint system and the shoulder por- tion of the belt is positioned so that itcannot interfere with the child's head or neck. After installation of the child re- straint system, try to move it in alldirections to be sure the child restraint system is securely installed.B230G02JM-GAT Installation on Outboard Rear Seats
OMC039304
If you need to tighten the belt, pull more webbing toward the retractor. NOTE:
o Before installing the child restraintsystem, read the instructions sup- plied by the child restraint systemmanufacturer.
o If the seat belt does not operate as
described, have the systemchecked immediately by your au- thorized Hyundai dealer.

1
FEATURES OF YOUR HYUNDAI
37
L3 :Suitable for Bebe comfort iSEOS (E2 039014) approved for the use in this mass group
L4 : Suitable for GRACO Autobaby (E11
03.44.160/E11 03.44.161) approvedfor the use in this mass group
L5 :Suitable for Romer Lord Plus (E1
03301136) approved for the use inthis mass group
L6 :Suitable for Euro Kids Star (E1
03301127/E1 03301129) approvedfor the use in this mass group
L7 :Suitable for BeSafe iZi COMFORT
(E4 03443206) approved for theuse in this mass group
L8 :Suitable for MAXI-COSI Priori XP
(E1 03301153) approved for theuse in this mass group
L9 :Suitable for Bebe comfort
HiPSOS(E2 031011) approved forthe use in this mass group
L10 : Suitable for "ROMER ISOFIX GR1"
approved for the use in this agegroup Approval No (E1 R44- 04301133)
U : Suitable for "universal" category restraints approved for use in thismass group
UF :Suitable for forward-facing "univer- sal" category restraints approvedfor the use in this mass group
!WARNING:
o Do not install any child restraint system in the front passenger seat. Should an accident occur andcause the passenger side airbag to deploy, it could severely injure or kill an infant or child seated inan infant or child seat. Therefore, only use a child restraint system in the rear seat of your vehicle.
o Before installing a Child Restraint System to vehicles fitted with Cur-tain Airbags, always refer to safetynotices for Curtain Airbag systems in this manual. Whenever install- ing child restraints, use only ap-proved devices and refer to the "Child Restraint System" section to ensure correct installation and thatoccupant protection is maximized.
L1 : Suitable for Bebe comfort ELIOS(E2 037014) approved for the use in this mass group
L2 :Suitable for PegPerego primo
Viaggio (E13 030010) approved forthe use in this mass group
B230H01MC-GAT Child Seat Restraint Suitability For Seat Position Using the SeatBelt Use child safety seats that have been officially approved and are appropriate for your children. When using the childsafety seats, refer to the following table.
Rear
Center
Age Group Seating Position
UU
L1, L2, L3, L4 U
U
Rear
Outboard
Front
Passenger
0 : Up to 10 kg (0 ~ 9 months)0+ : Up to 13 kg(0 ~ 9 months)I : 9kg to 18kg(9 months ~ 4years)II & III : 15kg to36kg (4 ~ 12 years) L1, L2,
L3, L4
L5, L7, L8 U, L10 U
L6, L9 U F U F

1FEATURES OF YOUR HYUNDAI
38
B230B01NF

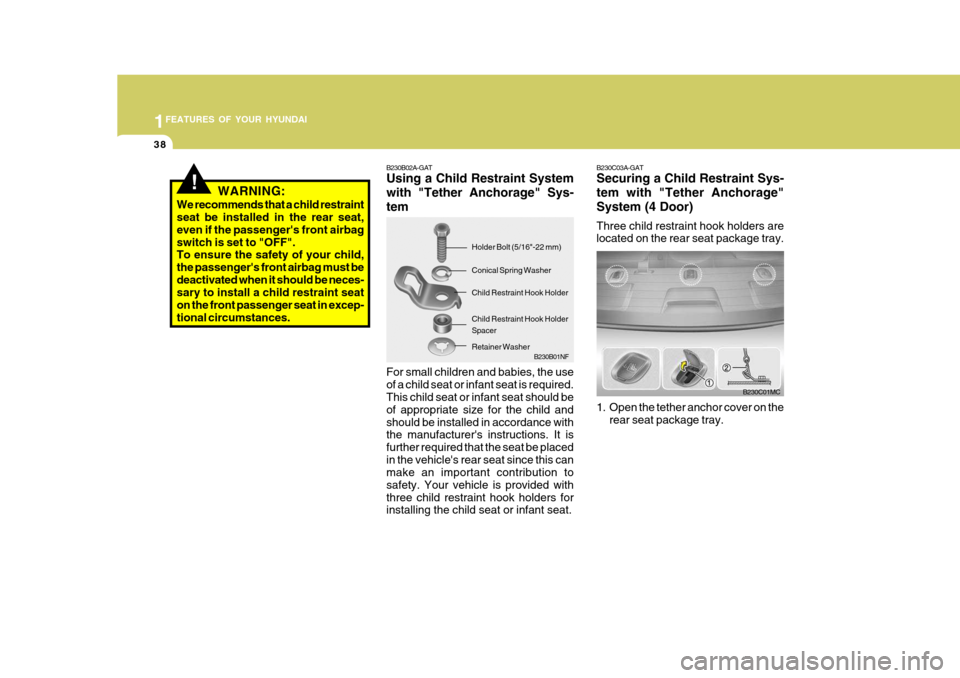

Child Restraint Hook Holder Spacer
B230B02A-GAT Using a Child Restraint System with "Tether Anchorage" Sys-tem For small children and babies, the use of a child seat or infant seat is required. This child seat or infant seat should be of appropriate size for the child andshould be installed in accordance with the manufacturer's instructions. It is further required that the seat be placedin the vehicle's rear seat since this can make an important contribution to safety. Your vehicle is provided withthree child restraint hook holders for installing the child seat or infant seat. Holder Bolt (5/16"-22 mm) Conical Spring Washer Child Restraint Hook Holder Retainer Washer
!WARNING:
We recommends that a child restraint seat be installed in the rear seat, even if the passenger's front airbagswitch is set to "OFF". To ensure the safety of your child, the passenger's front airbag must bedeactivated when it should be neces- sary to install a child restraint seat on the front passenger seat in excep-tional circumstances. B230C03A-GAT Securing a Child Restraint Sys- tem with "Tether Anchorage"System (4 Door) Three child restraint hook holders are located on the rear seat package tray.
1. Open the tether anchor cover on the
rear seat package tray.
B230C01MC
