Hyundai Accent 2011 Owner's Manual

8
CONSUMER INFORMATION, REPORTING SAFETY DEFECTS & BINDING ARBITRATION OF WARRANTY CLAIMS
17
Southern Region: Florida, Georgia, Mary-
land, North Carolina, South Carolina, Vir-
ginia, West Virginia.
Southern Region
270 Riverside Parkway, Suite A
Austell, GA 30168
(800) 633-5151
South Central Region: Alabama, Arkan-
sas, Louisiana, Mississippi, New Mexico,
Oklahoma, Tennessee, Texas.
South Central Region
1421 South Beltline Road, Suite 400
Coppell, TX 75019
(800) 633-5151
Central Region: Illinois, Indiana, lowa,
Kentucky, Michigan, Minnesota, Ne-
braska, North Dakota, South Dakota, Ohio,
Wisconsin, Kansas, Missouri.
Central Region
1705 Sequoia Drive
Aurora, Illinois 60506
(800) 633-5151Western Region: Alaska, Hawaii, Arizona,
California, Colorado, ldaho, Montana, Ne-
vada, Oregon, Utah, Washington, Wyo-
ming.
Western Region
10550 Talbert Avenue
P.O.Box 20850
Fountain Valley, California 92728-0850
(800) 633-5151

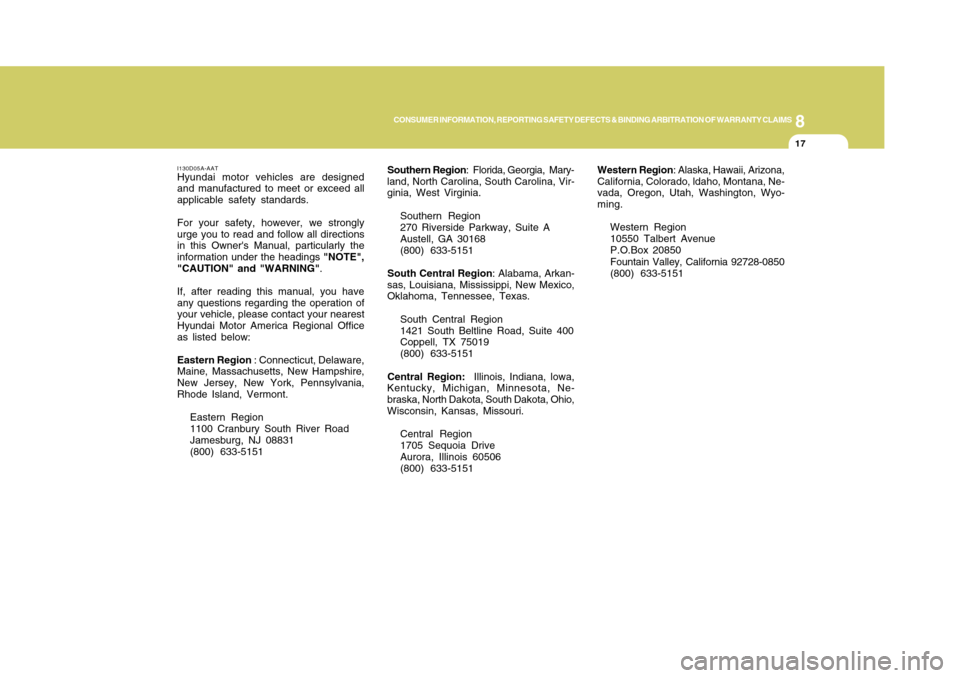

I130D05A-AATHyundai motor vehicles are designed
and manufactured to meet or exceed all
applicable safety standards.
For your safety, however, we strongly
urge you to read and follow all directions
in this Owner's Manual, particularly the
information under the headings "NOTE",
"CAUTION" and "WARNING".
If, after reading this manual, you have
any questions regarding the operation of
your vehicle, please contact your nearest
Hyundai Motor America Regional Office
as listed below:
Eastern Region : Connecticut, Delaware,
Maine, Massachusetts, New Hampshire,
New Jersey, New York, Pennsylvania,
Rhode Island, Vermont.
Eastern Region
1100 Cranbury South River Road
Jamesburg, NJ 08831
(800) 633-5151

8
CONSUMER INFORMATION, REPORTING SAFETY DEFECTS & BINDING ARBITRATION OF WARRANTY CLAIMS
18

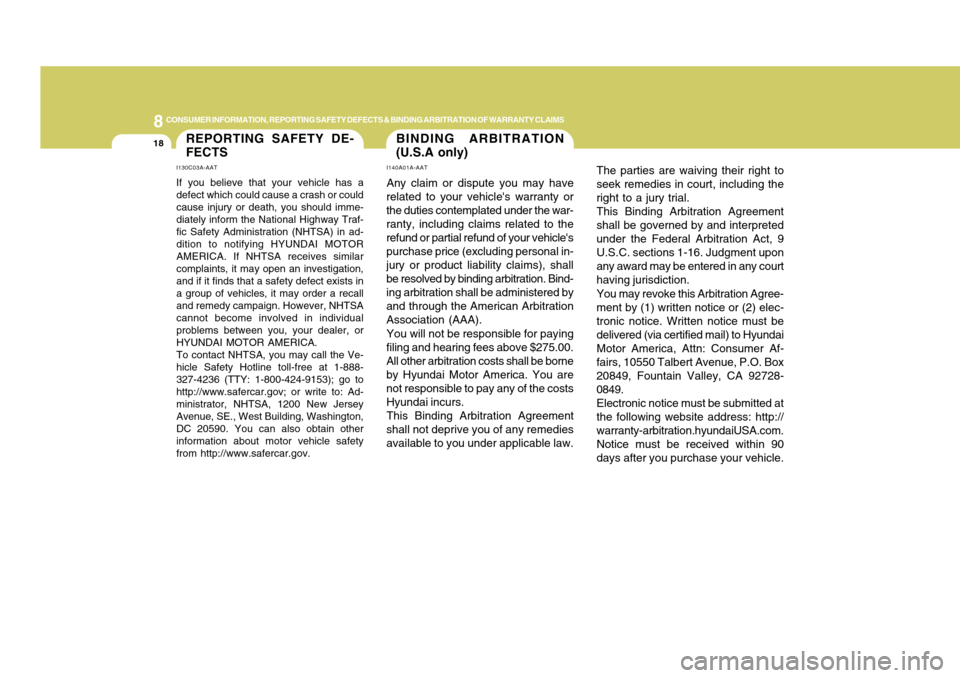

I140A01A-AATAny claim or dispute you may have
related to your vehicle's warranty or
the duties contemplated under the war-
ranty, including claims related to the
refund or partial refund of your vehicle's
purchase price (excluding personal in-
jury or product liability claims), shall
be resolved by binding arbitration. Bind-
ing arbitration shall be administered by
and through the American Arbitration
Association (AAA).
You will not be responsible for paying
filing and hearing fees above $275.00.
All other arbitration costs shall be borne
by Hyundai Motor America. You are
not responsible to pay any of the costs
Hyundai incurs.
This Binding Arbitration Agreement
shall not deprive you of any remedies
available to you under applicable law.The parties are waiving their right to
seek remedies in court, including the
right to a jury trial.
This Binding Arbitration Agreement
shall be governed by and interpreted
under the Federal Arbitration Act, 9
U.S.C. sections 1-16. Judgment upon
any award may be entered in any court
having jurisdiction.
You may revoke this Arbitration Agree-
ment by (1) written notice or (2) elec-
tronic notice. Written notice must be
delivered (via certified mail) to Hyundai
Motor America, Attn: Consumer Af-
fairs, 10550 Talbert Avenue, P.O. Box
20849, Fountain Valley, CA 92728-
0849.
Electronic notice must be submitted at
the following website address: http://
warranty-arbitration.hyundaiUSA.com.
Notice must be received within 90
days after you purchase your vehicle.BINDING ARBITRATION
(U.S.A only)
I130C03A-AATIf you believe that your vehicle has a
defect which could cause a crash or could
cause injury or death, you should imme-
diately inform the National Highway Traf-
fic Safety Administration (NHTSA) in ad-
dition to notifying HYUNDAI MOTOR
AMERICA. If NHTSA receives similar
complaints, it may open an investigation,
and if it finds that a safety defect exists in
a group of vehicles, it may order a recall
and remedy campaign. However, NHTSA
cannot become involved in individual
problems between you, your dealer, or
HYUNDAI MOTOR AMERICA.
To contact NHTSA, you may call the Ve-
hicle Safety Hotline toll-free at 1-888-
327-4236 (TTY: 1-800-424-9153); go to
http://www.safercar.gov; or write to: Ad-
ministrator, NHTSA, 1200 New Jersey
Avenue, SE., West Building, Washington,
DC 20590. You can also obtain other
information about motor vehicle safety
from http://www.safercar.gov.REPORTING SAFETY DE-
FECTS

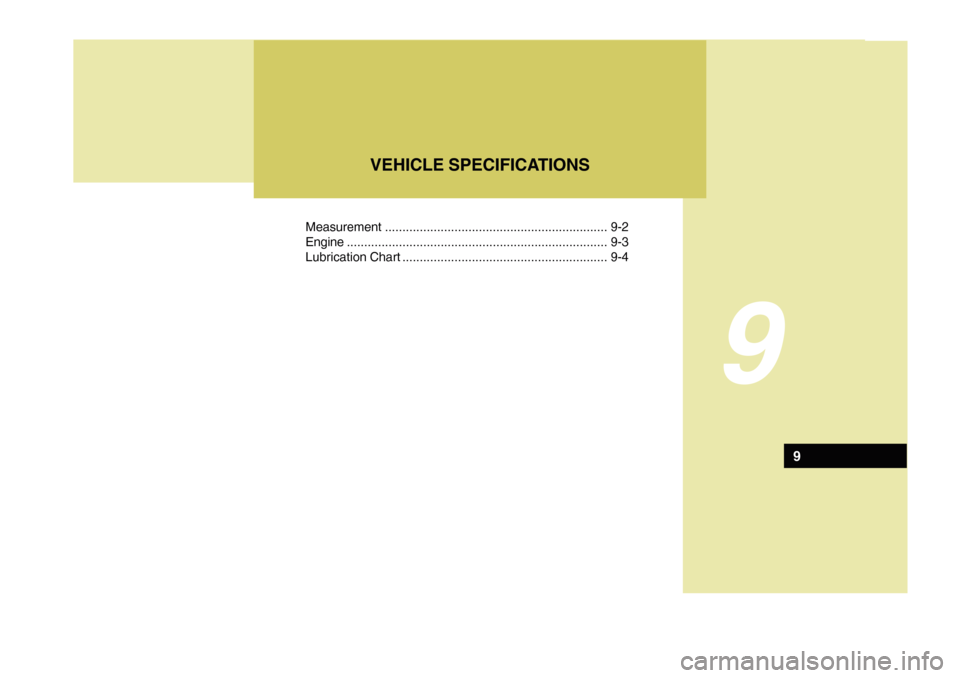

Measurement................................................................ 9-2
Engine...........................................................................9-3
Lubrication Chart ........................................................... 9-4

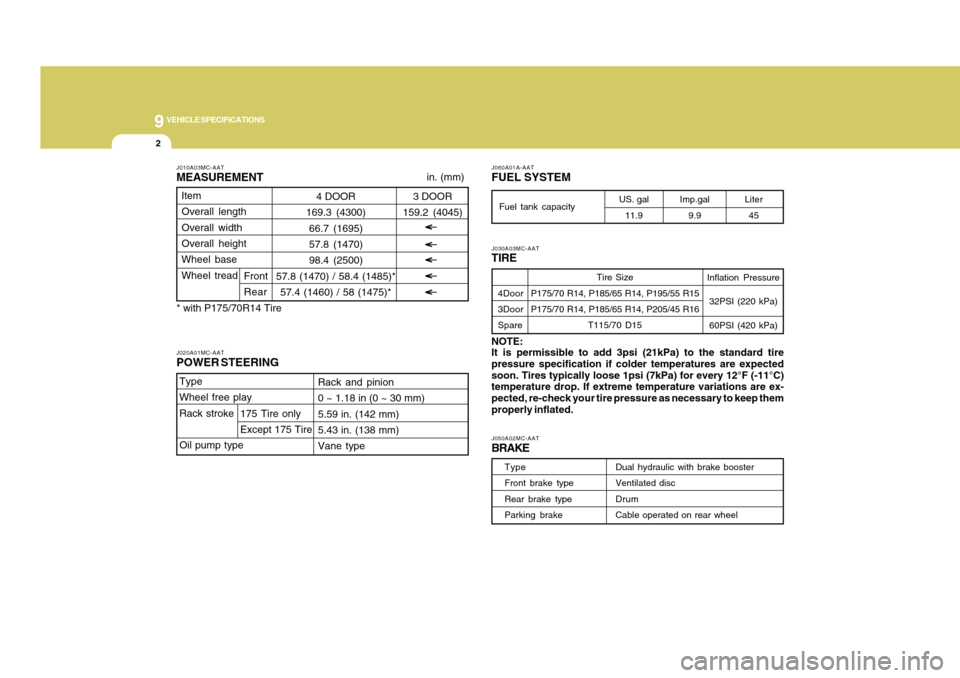

VEHICLE SPECIFICATIONS
9
9

9
VEHICLE SPECIFICATIONS2
Tire Size
P175/70 R14, P185/65 R14, P195/55 R15
P175/70 R14, P185/65 R14, P205/45 R16
T115/70 D15
in. (mm)
Liter
45
4Door
3Door
Spare
US. gal
11.9 Fuel tank capacityImp.gal
9.9
Inflation Pressure
32PSI (220 kPa)
60PSI (420 kPa)
J010A03MC-AATMEASUREMENTJ020A01MC-AATPOWER STEERING
J060A01A-AATFUEL SYSTEMJ030A03MC-AATTIRE
4 DOOR
169.3 (4300)
66.7 (1695)
57.8 (1470)
98.4 (2500)
57.8 (1470) / 58.4 (1485)*
57.4 (1460) / 58 (1475)* Item
Overall length
Overall width
Overall height
Wheel base
Wheel tread
Front
Rear
3 DOOR
159.2 (4045)
Type
Wheel free play
Rack stroke
Oil pump type
Rack and pinion
0 ~ 1.18 in (0 ~ 30 mm)
5.59 in. (142 mm)
5.43 in. (138 mm)
Vane type
175 Tire only
Except 175 Tire
* with P175/70R14 Tire
NOTE:
It is permissible to add 3psi (21kPa) to the standard tire
pressure specification if colder temperatures are expected
soon. Tires typically loose 1psi (7kPa) for every 12°F (-11°C)
temperature drop. If extreme temperature variations are ex-
pected, re-check your tire pressure as necessary to keep them
properly inflated.
Dual hydraulic with brake booster
Ventilated disc
Drum
Cable operated on rear wheel Type
Front brake type
Rear brake type
Parking brake
J050A02MC-AATBRAKE

9
VEHICLE SPECIFICATIONS
3

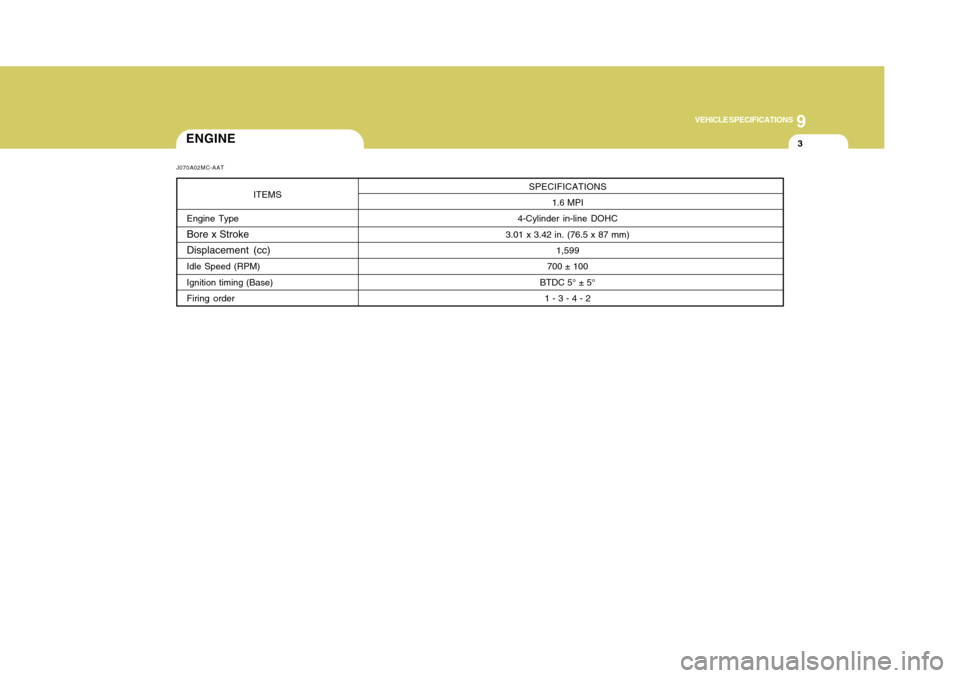

ENGINE
SPECIFICATIONS
1.6 MPI
4-Cylinder in-line DOHC
3.01 x 3.42 in. (76.5 x 87 mm)
1,599
700 ± 100
BTDC 5° ± 5°
1 - 3 - 4 - 2
J070A02MC-AAT
ITEMS
Engine Type
Bore x Stroke
Displacement (cc)Idle Speed (RPM)
Ignition timing (Base)
Firing order

9
VEHICLE SPECIFICATIONS4

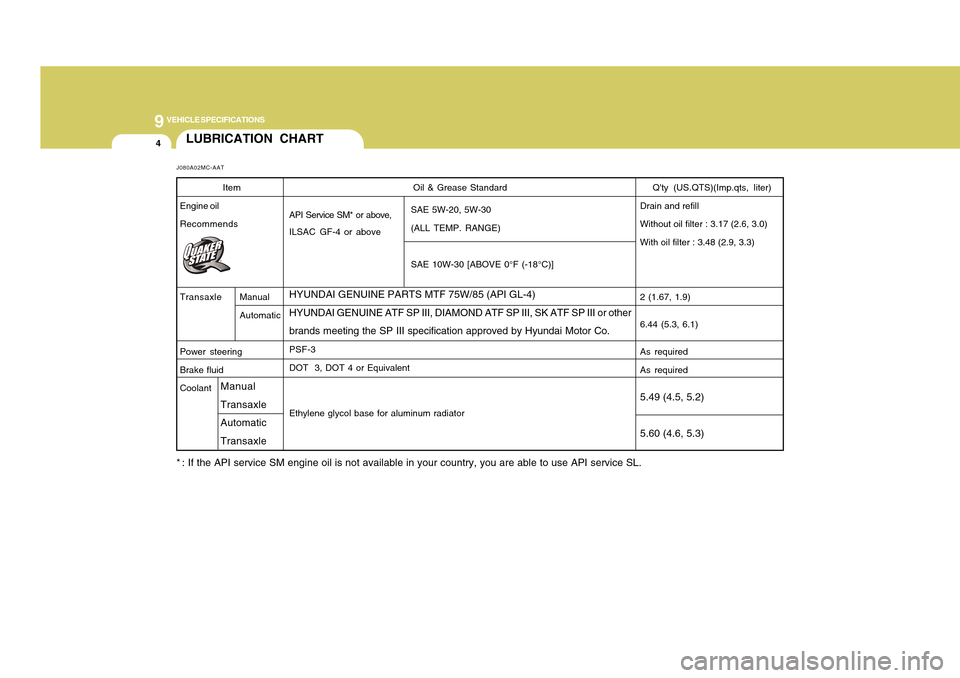

Oil & Grease Standard
API Service SM* or above,
ILSAC GF-4 or above
HYUNDAI GENUINE PARTS MTF 75W/85 (API GL-4)
HYUNDAI GENUINE ATF SP III, DIAMOND ATF SP III, SK ATF SP III or other
brands meeting the SP III specification approved by Hyundai Motor Co.PSF-3
DOT 3, DOT 4 or Equivalent
Ethylene glycol base for aluminum radiatorSAE 5W-20, 5W-30
(ALL TEMP. RANGE)
SAE 10W-30 [ABOVE 0°F (-18°C)]
LUBRICATION CHART
Item
Engine oil
Recommends
TransaxleManual
Automatic
Power steering
Brake fluid
CoolantManual
Transaxle
Automatic
Transaxle
J080A02MC-AAT
Q'ty (US.QTS)(Imp.qts, liter)
Drain and refill
Without oil filter : 3.17 (2.6, 3.0)
With oil filter : 3.48 (2.9, 3.3)
2 (1.67, 1.9)
6.44 (5.3, 6.1)
As required
As required
5.49 (4.5, 5.2)
5.60 (4.6, 5.3)
* : If the API service SM engine oil is not available in your country, you are able to use API service SL.

10

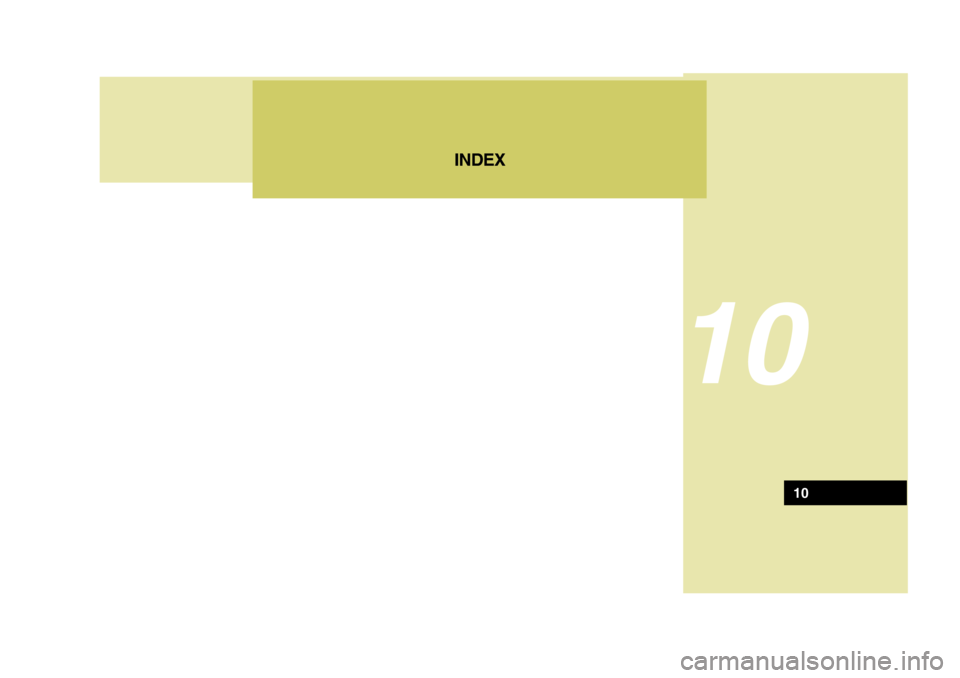

INDEX
10

10
INDEX
2

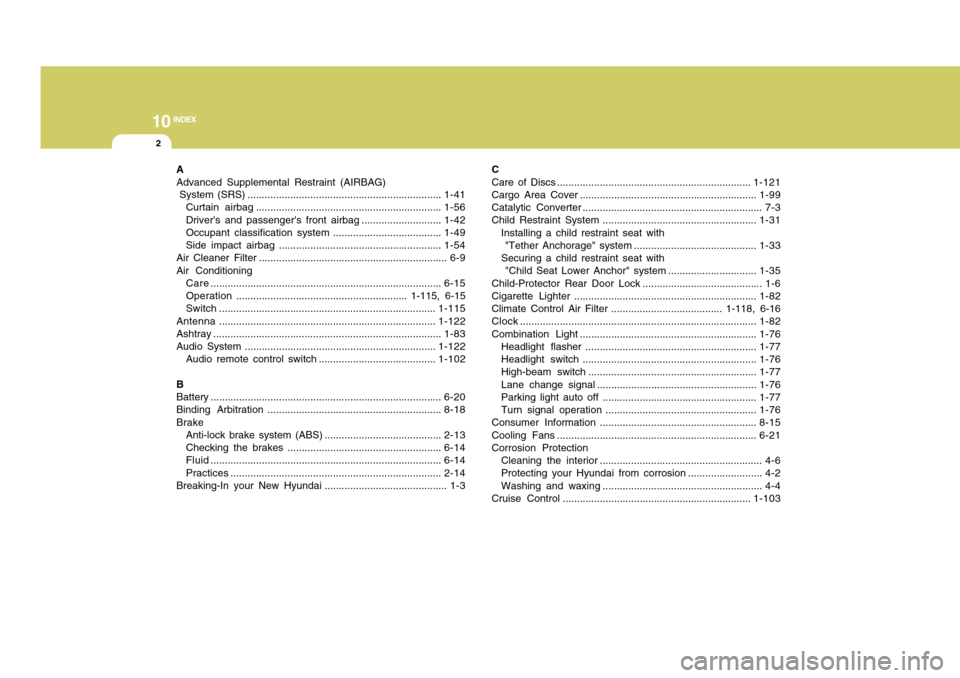

A
Advanced Supplemental Restraint (AIRBAG)
System (SRS) ....................................................................1-41
Curtain airbag .................................................................1-56
Driver's and passenger's front airbag ............................1-42
Occupant classification system ......................................1-49
Side impact airbag .........................................................1-54
Air Cleaner Filter .................................................................. 6-9
Air Conditioning
Care.................................................................................6-15
Operation............................................................ 1-115, 6-15
Switch............................................................................1-115
Antenna ............................................................................1-122
Ashtray................................................................................1-83
Audio System ...................................................................1-122
Audio remote control switch .........................................1-102
B
Battery .................................................................................6-20
Binding Arbitration .............................................................8-18
Brake
Anti-lock brake system (ABS) .........................................2-13
Checking the brakes ......................................................6-14
Fluid.................................................................................6-14
Practices..........................................................................2-14
Breaking-In your New Hyundai ........................................... 1-3C
Care of Discs ....................................................................1-121
Cargo Area Cover ..............................................................1-99
Catalytic Converter ............................................................... 7-3
Child Restraint System ......................................................1-31
Installing a child restraint seat with
"Tether Anchorage" system ...........................................1-33
Securing a child restraint seat with
"Child Seat Lower Anchor" system ...............................1-35
Child-Protector Rear Door Lock .......................................... 1-6
Cigarette Lighter ................................................................1-82
Climate Control Air Filter ....................................... 1-118, 6-16
Clock...................................................................................1-82
Combination Light ..............................................................1-76
Headlight flasher ............................................................1-77
Headlight switch .............................................................1-76
High-beam switch ...........................................................1-77
Lane change signal ........................................................1-76
Parking light auto off ......................................................1-77
Turn signal operation .....................................................1-76
Consumer Information .......................................................8-15
Cooling Fans ......................................................................6-21
Corrosion Protection
Cleaning the interior ......................................................... 4-6
Protecting your Hyundai from corrosion .......................... 4-2
Washing and waxing ........................................................ 4-4
Cruise Control ..................................................................1-103

10
INDEX
3

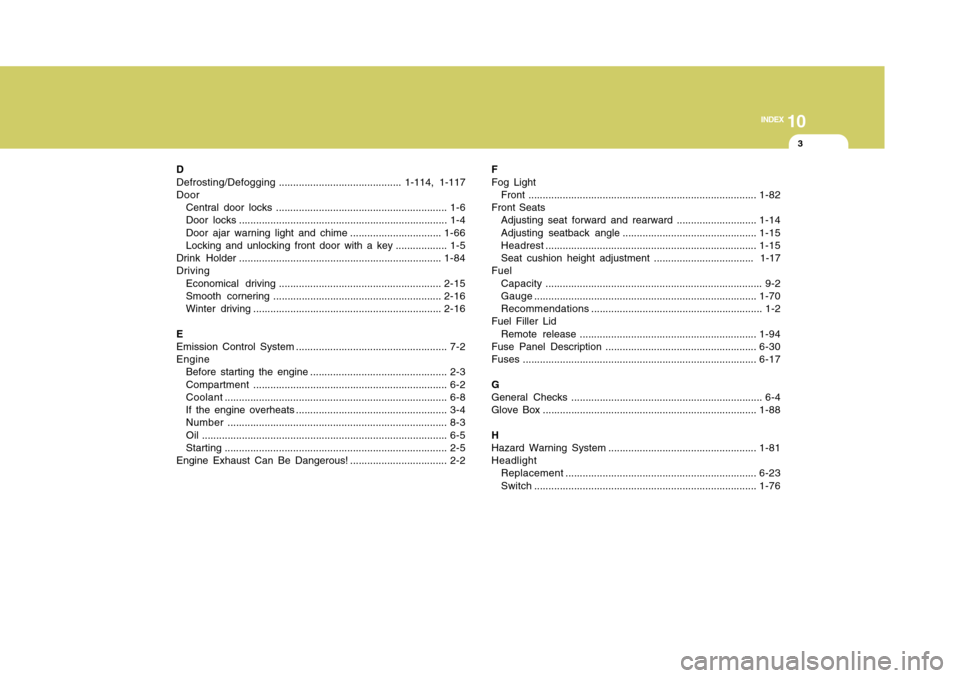

D
Defrosting/Defogging........................................... 1-114, 1-117
Door
Central door locks ............................................................ 1-6
Door locks ......................................................................... 1-4
Door ajar warning light and chime ................................1-66
Locking and unlocking front door with a key .................. 1-5
Drink Holder .......................................................................1-84
Driving
Economical driving .........................................................2-15
Smooth cornering ...........................................................2-16
Winter driving ..................................................................2-16
E
Emission Control System ..................................................... 7-2
Engine
Before starting the engine ................................................ 2-3
Compartment.................................................................... 6-2
Coolant .............................................................................. 6-8
If the engine overheats ..................................................... 3-4
Number............................................................................. 8-3
Oil ...................................................................................... 6-5
Starting.............................................................................. 2-5
Engine Exhaust Can Be Dangerous! .................................. 2-2F
Fog Light
Front ................................................................................1-82
Front Seats
Adjusting seat forward and rearward ............................1-14
Adjusting seatback angle ...............................................1-15
Headrest..........................................................................1-15
Seat cushion height adjustment ................................... 1-17
Fuel
Capacity............................................................................ 9-2
Gauge..............................................................................1-70
Recommendations............................................................ 1-2
Fuel Filler Lid
Remote release ..............................................................1-94
Fuse Panel Description .....................................................6-30
Fuses..................................................................................6-17
G
General Checks ................................................................... 6-4
Glove Box ...........................................................................1-88
H
Hazard Warning System ....................................................1-81
Headlight
Replacement...................................................................6-23
Switch..............................................................................1-76

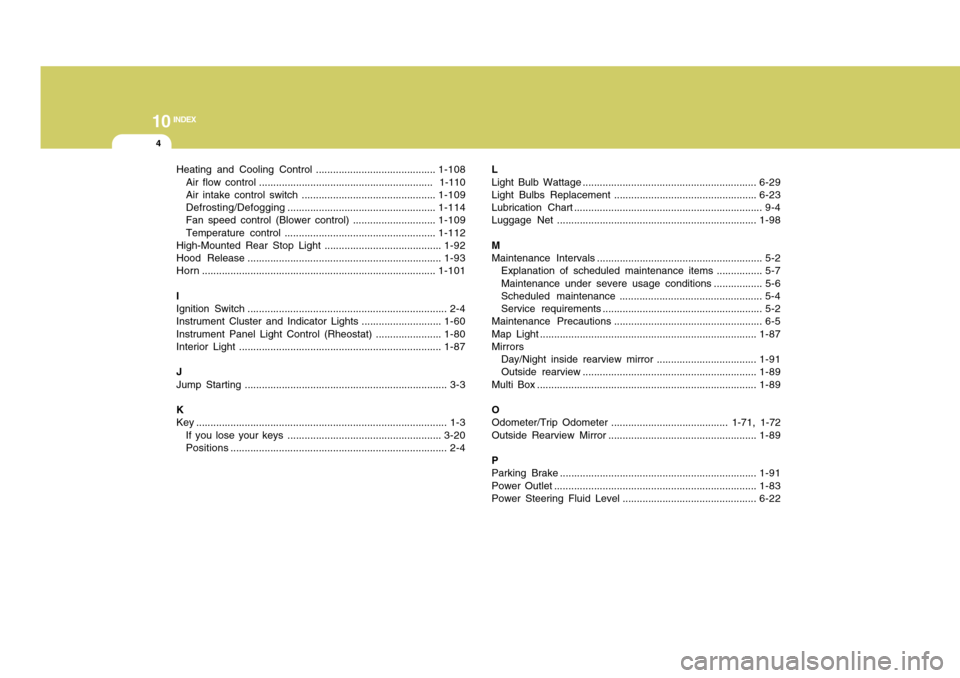

10
INDEX
4
Heating and Cooling Control ..........................................1-108
Air flow control ............................................................. 1-110
Air intake control switch ...............................................1-109
Defrosting/Defogging....................................................1-114
Fan speed control (Blower control) .............................1-109
Temperature control .....................................................1-112
High-Mounted Rear Stop Light .........................................1-92
Hood Release ....................................................................1-93
Horn..................................................................................1-101
I
Ignition Switch ...................................................................... 2-4
Instrument Cluster and Indicator Lights ............................1-60
Instrument Panel Light Control (Rheostat) .......................1-80
Interior Light .......................................................................1-87
J
Jump Starting ....................................................................... 3-3
K
Key ........................................................................................ 1-3
If you lose your keys ......................................................3-20
Positions............................................................................ 2-4L
Light Bulb Wattage .............................................................6-29
Light Bulbs Replacement ..................................................6-23
Lubrication Chart .................................................................. 9-4
Luggage Net ......................................................................1-98
M
Maintenance Intervals .......................................................... 5-2
Explanation of scheduled maintenance items ................ 5-7
Maintenance under severe usage conditions ................. 5-6
Scheduled maintenance .................................................. 5-4
Service requirements ........................................................ 5-2
Maintenance Precautions.................................................... 6-5
Map Light ............................................................................1-87
Mirrors
Day/Night inside rearview mirror ...................................1-91
Outside rearview .............................................................1-89
Multi Box .............................................................................1-89
O
Odometer/Trip Odometer ......................................... 1-71, 1-72
Outside Rearview Mirror ....................................................1-89
P
Parking Brake .....................................................................1-91
Power Outlet .......................................................................1-83
Power Steering Fluid Level ...............................................6-22
