AUX Hyundai Accent 2014 Owner's Manual

491
Features of your vehicle
Aux, USB and iPod®port
If your vehicle has an aux and/or
USB(universal serial bus) port or iPod®
port, you can use an aux port to connect
audio devices and an USB port to plug in
an USB and also an iPod
®port to plug in
an iPod®.
✽ ✽
NOTICE
When using a portable audio device
connected to the power outlet, noise may
occur during playback. If this happens,
use the power source of the portable
audio device.
❈iPod®is a trademark of Apple Inc.
Bluetooth®Wireless Technology
hands-free (if equipped)
You can use a Bluetooth®Wireless
Technology phone.
Detailed information for the
Bluetooth®
Wireless Technology hands-free is
described in the “Audio section” in this
chapter or in the manual supplied sepa-
rately.
ORB044087N
CAUTION
When you return the cargo area
cover to its original position, hold
the cover and lower it.
Do not operate the vehicle with
the cover removed. It may dam-
age to the cover.
The cargo area cover may be lift-
ed when the tailgate is opened.
Ensure that the luggage on the
cover is moved to a safe place.
Since the cargo area cover may be
damaged or malformed, do not
apply excessive force to the cover
or do not put the heavy loads on it.
WARNING
Do not place objects on the cargo
area cover while driving. Such
objects may be thrown about
inside the vehicle and possibly
injure vehicle occupants during
an accident or when braking.
Never allow anyone to ride in the
luggage compartment. It is
designed for luggage only.
Maintain the balance of the vehi-
cle and locate the weight as far
forward as possible.

Features of your vehicle
108 4
SYSTEM CONTROLLERS AND
FUNCTIONS
Audio Head Unit
(for
Bluetooth®equipped model)
1. (EJECT)
Ejects the disc.2.
Changes to FM, AM, XM mode.
Each time the key is pressed, the
mode is changed in order of FM1,
FM2, AM, XM1, XM2, XM3.
❈In Setup>Display, the radio pop up
screen will be displayed when [Mode
Pop up] is turned .
When the pop up screen is displayed,
use the TUNE knob or keys
~ to select the desired mode.
3.
Changes to CD, USB(iPod
®), AUX, My
Music, BT Audio mode.
Each time the key is pressed, the
mode is changed in order of CD,
USB(iPod
®), AUX, My Music, BT
Audio.
❈In Setup>Display, the media pop up
screen will be displayed when [Mode
Pop up] is turned .When the
pop up screen is displayed, use the
TUNE knob or keys
~ to
select the desired mode.4. (for
Bluetooth®Wireless
Technology equipped model)

❈When a phone is not connected, the
connection screen is displayed.
5.
Radio Mode : Automatically searches
for broadcast frequencies.
CD, USB, iPod
®, My Music modes
- Shortly press the key (under 0.8 sec-
onds): Moves to next or previous
song (file)
- Press and hold the key (over 0.8 sec-
onds): Rewinds or fast-forwards the
current song.
BT Audio mode : Moves to next or pre-
vious song(file)
❈The Play/Pause feature may operate
differently depending on the mobile
phone.
6. PWR/VOL knob
Power : Turns power On/Off by
pressing the knob
Volume : Sets volume by turning
the knob left/right
SEEK
TRACK
PHONE
61
On
MEDIA
6
1
On
RADIO

Features of your vehicle
120 4
BASIC METHOD OF USE :
AUDIO CD / MP3 CD / USB /
iPOD
®/ MY MUSIC
Press the key to change the
mode in order of CD➟USB(iPod®)➟AUX➟My Music➟BT Audio.
The folder/file name is displayed on the
screen.

4123
Features of your vehicle
Folder Random
Press the key Set [ F.RDM]
through the TUNE knob or key
to randomly play songs within the current
folder.
❈Press F.RDM again to turn off.
Folder Repeat
Press the key Set [ F.RPT]
through the TUNEknob or key to
repeat songs within the current folder.
❈ Press F.RPT again to turn off.
All Random
Press the key Set [ A.RDM]
through the TUNEknob or key to
randomly play all songs within the CD.
❈ Press A.RDM again to turn off.
Information
Press the key Set [ Info]
through the TUNEknob or key to
display information of the current song.
❈Press the key to turn off info
display.
Copy
Press the key Set [ Copy]
through the TUNE knob or key.
This is used to copy the current song into
My Music. You can play the copied Music
in My Music mode.
❈If another key is pressed while copying
is in progress, a pop up asking you
whether to cancel copying is displayed.
❈If another media is connected or
inserted (USB, CD, iPod
®, AUX) while
copying is in progress, copying is can-
celed.
❈Music will not be played while copying
is in progress.
MENU : iPod®
In iPod®mode, press the key to
set the Repeat, Random, Information and
Search features.
Repeat
Press the key Set [ RPT]
through the TUNEknob or key to
repeat the current song.
❈ Press RPT again to turn repeat off.
Random
Press the key Set [ RDM]
through the TUNEknob or key.
Plays all songs within the currently play-
ing category in random order.
❈Press RDM again to turn off.
2 RDMMENU
1 RPTMENU
MENU
6
MENU
MENU
5MENU
4MENU
3MENU
2 RDM
MENU

Features of your vehicle
126 4
✽
✽
NOTICE - USING THE MY
MUSIC
• Even if memory is available, a maxi-
mum of 6,000 songs can be stored.
• The same song can be copied up to
1,000 times.
• Memory info can be checked in the
System menu of Setup.
AUX
AUX is used to play external MEDIA cur-
rently connected with the AUX terminal.
AUX mode will automatically start when
an external device is connected with the
AUX terminal.
If an external device is connected, you
can also press the key to change
to AUX mode.
❈AUX mode cannot be started unless
there is an external device connected
to the AUX terminal.
✽ ✽
NOTICE - USING THE AUX
Fully insert the AUX cable into the AUX
terminal for use.
MEDIA

4127
Features of your vehicle
Bluetooth®Wireless Technology
AUDIO (if equipped model)
What is
Bluetooth®Wireless
Technology
?
Bluetooth®Wireless Technology allows
devices to be connected in a short distance,
including hands-free devices, stereo head-
sets, wireless remote controllers, etc. For
more information, visit
the Bluetooth®
Wireless Technologywebsite atwww.Bluetooth.com
Before using Bluetooth®Wireless
Technologyaudio features

Bluetooth®Wireless Technologyaudio
may not be supported depending on
the compatibility of your
Bluetooth®
Wireless Technologymobile phone.
In order to use
Bluetooth®Wireless
Technologyaudio, you must first pair
and connect the
Bluetooth®Wireless
Technologymobile phone.

Bluetooth®Wireless Technologyaudio
can be used only when the [Audio
Streaming] of Phone is turned .
❈Setting
Bluetooth®Wireless TechnologyAudio Streaming : Press the
key Select [Phone] Select [Audio
Streaming] through the TUNE
knob Set
/
Starting Bluetooth®Wireless
Technology Audio
Press the key to change the
mode in order of CD➟USB➟AUX➟My
Music➟BT Audio.
If BT Audio is selected,
Bluetooth®
Wireless Technology audio will start
playing.
❈Audio may not automatically start play-
ing in some mobile phones.
Using the Bluetooth®Wireless
Technology audio features

Press the TUNE knob to play and
pause the current song.
❈The play / pause functions may not be
supported in some mobile phones.
MEDIA
OffOn
SETUP
On

4145
Features of your vehicle

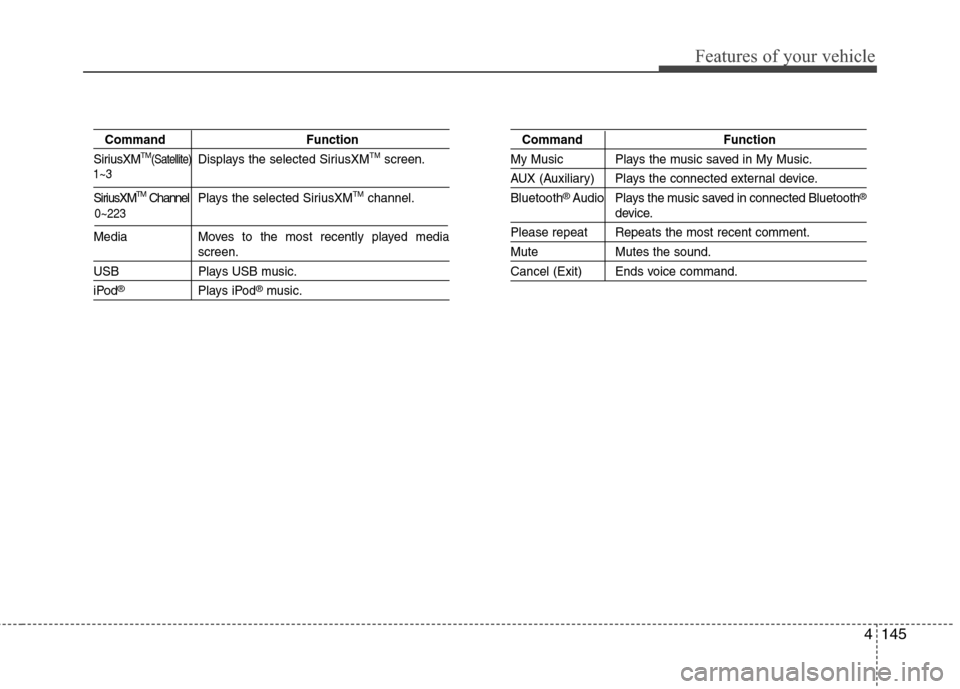

Command Function
SiriusXMTM(Satellite)Displays the selected SiriusXMTMscreen.
SiriusXMTMChannel P l ay s the selected SiriusXMTMchannel.
Media Moves to the most recently played media
screen.
USB Plays USB music.
iPod®Plays iPod®music.
Command Function
My Music Plays the music saved in My Music.
AUX (Auxiliary) Plays the connected external device.
Bluetooth
®Audio Plays the music saved in connected Bluetooth®
device.
Please repeat Repeats the most recent comment.
Mute Mutes the sound.
Cancel (Exit) Ends voice command.
0~223 1~3

Maintenance
58 7
Description Fuse rating Protected component3SPARE 10A Not Used
TCU 15A Vehicle Speed Sensor, Transaxle Range Switch
4SPARE 15A Not used
1IG2 10APower Window Relay, A/C Control Module, Instrument Cluster (MICOM), BCM,
Sunroof Motor, E/R Fuse & Relay Box (Blower Relay)
WIPER FRT 25A Multifunction Switch (Wiper), Front Wiper Motor
DR LOCK 20A Door Lock/Unlock Relay, Two Turn Unlock Relay, Driver Door Lock Actuator
SAFETY
POWER WINDOW25A Safety Power Window Module
S/HEATER 15A Driver/Passenger Seat Heater Module
5SPARE 10A Not Used
ROOM LP 1 10AInstrument Cluster (IND.,ILL.), Tire Pressure Monitoring Module, BCM, A/C Control Module,
Luggage Room Lamp, Trunk Room Lamp, Center Room Lamp, Overhead Console Lamp, Map Lamp
AUDIO 20A Audio
TAIL LAMP LH 10ARear Combination Lamp LH, Head Lamp LH, Front Turn Signal Lamp LH,
License Lamp LH/RH (4Door), License Lamp (5Door)
TAIL LAMP RH 10AHead Lamp RH, Rear Combination Lamp RH, Rheostat, Audio, Front Turn Signal Lamp RH,
Hazard Switch, Instrument Cluster (ILL.+), AUX & USB Jack, ESC Off Switch, A/C Switch,
ECO Switch, Multifunction Switch (Remote Control), A/C Control Module, Rear Defogger Switch,
Front Deicer Switch, ATM Shift Lever Switch ILL.
START 10A Transaxle Range Switch, Ignition Lock Switch
H/LAMP 10A Instrument Cluster, Engine Compartment Fuse & Relay Box (Head Lamp Relay)
P/WDW LH 25A Power Window Main Switch, Rear Power Window Switch LH
P/WDW RH 25A Power Window Main Switch, Rear Power Window Switch RH, Passenger Power Window Switch
HTD MIRR 10AECM, PCM, Rear Defogger Switch, Driver Power Outside Mirror,
Passenger Power Outside Mirror
A/CON 10A A/C Control Module (Auto A/C)
BLOWER 10A ECM, PCM, Blower Switch, Blower Resistor, A/C Control Module (Manual A/C)

Index
2I
Active ECO system ·······················································5-31
Air bag warning label ····················································3-60
Air bag warning light·····················································3-37
Air bags··········································································3-34
Air bag warning label················································3-60
Air bag warning light ················································3-37
Curtain air bag···························································3-51
Driver's and passenger's front air bag ·······················3-46
Occupant detection system········································3-41
Side impact air bag····················································3-50
SRS components and functions ································3-37
Air cleaner ·····································································7-28
Antenna (Roof) ······························································4-94
Anti-lock brake system (ABS) ······································5-19
Appearance care·····························································7-70
Exterior care ······························································7-70
Interior care ·······························································7-74
Armrest(front) ··································································3-6
Audio system ·································································4-94
Roof antenna ·····························································4-94
Steering wheel audio control·····································4-95
Automatic climate control system ·································4-74
Air conditioning ························································4-79
Automatic heating and air conditioning····················4-75
Manual heating and air conditioning ························4-76
Automatic transaxle Sports mode··································5-12
Automatic transaxle ·······················································5-10Aux, USB and iPod
®port ·············································4-91
Base curb weight ···························································5-47
Battery············································································7-34
Battery saver function····················································4-52
Before driving ··································································5-3
Bottle holders, see cup holders ······································4-87
Brake system··································································5-16
Anti-lock brake system (ABS) ··································5-19
Electronic stability control (ESC) ·····························5-21
Hill-start assist control ··············································5-26
Parking brake ····························································5-17
Power brakes ·····························································5-16
Vehicle stability management ···································5-25
Brakes/clutch fluid ·························································7-26
Bulb replacement ···························································7-61
Bulb wattage ····································································8-2
California perchlorate notice ·········································7-79
Capacities (Lubricants) ····················································8-4
Care
Exterior care ······························································7-70
Interior care ·······························································7-74
Tire care·····································································7-37A
B
C

I5
Index
Hazard warning flasher··················································4-52
Hazardous driving conditions ········································5-34
Headrest(front) ·································································3-6
Headrest(rear) ··································································3-9
Height adjustment ··························································3-16
Highway driving ····························································5-37
Hill-start assist control ···················································5-26
Hood···············································································4-21
Horn ···············································································4-32
How to use this manual ···················································1-2
Indicators and warnings ·················································4-43
Inside rearview mirror ···················································4-32
Instrument cluster ··························································4-36
Engine temperature gauge·········································4-38
Fuel gauge ·································································4-39
Instrument panel illumination ···································4-37
Odometer ···································································4-40
Speedometer ······························································4-37
Tachometer ································································4-37
Trip computer ····························································4-39
Warning and indicators ·············································4-43
Instrument panel fuse·····················································7-52
Instrument panel illumination········································4-37Instrument panel overview ··············································2-3
Interior care····································································7-74
Interior features······························································4-87
Aux, USB and iPod®port ·········································4-91
Cargo area cover ·······················································4-90
Clothes hanger···························································4-89
Cup holder ·································································4-87
Digital clock ······························································4-89
Floor mat anchor(s) ···················································4-90
Power outlet ······························································4-88
Sunvisor·····································································4-87
Interior light ···································································4-61
Interior overview ·····························································2-2
Jack and tools·································································6-17
Jump starting····································································6-4
Key ···················································································5-5
Keys ·················································································4-3
I
H
J
K
