bluetooth Hyundai Accent 2014 Quick Reference Guide

MENUPH O NERADIO ME DIA
CA T
Scheduled MaintenanceNormal UsageSevere Usage*
Engine Oil and FilterReplace7,500 or 12 mos.Replace3,750 or 6 mos.
Fuel Additive *1Add7,500 or 12 mos.AddSame As Normal
Tire RotationPerform7,500Perform7,500
Air Cleaner FilterInspectReplace7,50030,000InspectReplaceSame As NormalMore Frequently
Battery ConditionInspect7,500InspectSame As Normal
Vacuum HoseInspect7,500InspectSame As Normal
Climate Control Air Filter (For A/C and Heater unit)Replace15,000 ReplaceMore Frequently
Air Conditioning RefrigerantInspect15,000InspectSame As Normal
Brake Hoses & LinesInspect15,000InspectSame As Normal
Front Brake Disc / Pads, CalipersInspect15,000InspectMore Frequently
Rear Brake Disc / PadsInspect15,000InspectMore Frequently
Drive Shafts & BootsInspect15,000InspectMore Frequently
Exhaust Pipe & MufflerInspect15,000InspectSame As Normal
Fuel Tank Air FilterInspect30,000InspectSame As Normal
Steering Gear Box, Linkage & Boots/Upper & Lower Arm Ball JointsInspect15,000Inspect7,500 or 6 mos.
Suspension Mounting BoltsInspect15,000InspectSame As Normal
Brake / Clutch FluidInspect30,000InspectSame As Normal
Fuel Lines, Fuel Hoses and ConnectionsInspect30,000InspectSame As Normal
Parking BrakeInspect30,000InspectMore Frequently
Spark Plugs (Iridium Coated)Replace105,000ReplaceMore Frequently
Vapor Hose & Fuel Filler CapInspect30,000InspectSame As Normal
Automatic Transaxle FluidNo check, No service requiredReplace60,000
Manual Transaxle FluidInspect37,500Replace75,000
Fuel FilterInspect30,000ReplaceMore Frequently
Valve Clearance Inspect60,000InspectSame As Normal
Coolant1st Replace 120,000 or 120 mos. Add’l Replace 30,000 or 24 mos.ReplaceSame As Normal
Drive Belt1st Inspect 60,000 or 72 mos.Add’l Inspect 15,000 or 24 mos.InspectSame As Normal
*1 If TOP TIER Detergent Gasoline is not available, one bottle of additive is recommended. Additives are available from your authorized Hyundai dearler along with information on how to use \
them. Do not mix other additives.
*See Owner’s Manual for details.
Looking for more detailed information? This Quick Reference Guide does not replace your vehicle’s Owner’s Manual. If you require additional information or are unsure of a specific issue, you should always refer to the vehicle’s Owner’s Manual or contact your authorized Hyundai dealer.
The information contained in this Quick Reference Guide was correct at the time of printing; however, specifications and equipment can change without notice. No warranty or g\
uarantee is being extended in this Quick Reference Guide, and Hyundai reserves the right to change product specifications and equipment at any time without incurring obligations. Some vehicles are shown with optional equipment. Specifications apply to U.S. vehicles only. Please contact your Hyundai dealer for current vehicle specifications.
NP150-Q2014(REV 11/04/13) Printed 11/07/13
MAINTENANCE
www.hyundai.com
Roadside Assistance: 1-800-243-7766
Consumer Affairs: 1-800-633-5151
XM®Radio: 1-800-967-2346
HYUNDAI ACCENT
Quick Reference Guide
☐ TIRE PRESSURE MONITORING SYSTEM
(TPMS) – page 22
Explain TPMS function to customer.
- When illuminated, one or more
tires are under-inflated.
- Blinks for approximately one minute
then remains illuminated when there
is a malfunction with the TPMS.
☐ CLOCK ADJUSTMENT – page 20
- With Radio Off
☐ VEHICLE SETTINGS – pages 10-11
- Demonstrate vehicle settings
in instrument cluster
- Show radio presets
☐ BLUETOOTH – page 18
- Demonstrate phone pairing
Refer to www.hyundaiusa.com/bluetooth
- Demonstrate QR code
1. Press and hold the SETUP button
until the clock blinks.
2. Rotate the TUNE knob to adjust.
3. Press TUNE knob when done.
WALK THE CUSTOMER THROUGH EACH OF
THE FOLLOWING KEY DELIVERY FEATURES
☐ CLIMATE CONTROL – pages 12-13
- Explain the different air modes to customer.

Instrument cluster
Pages 10-11
Trip computer**
Page 11
Cruise control system
Page 14
Wiper and washer
Page 07
Head lights and fog lights
Page 06
Audio
Page 19
Transmission
Page 21
AUX, USB and iPod port
Page 20
Climate control
Pages 12-13
Steering wheel adjustment
Page 04
* Some vehicles may not be equipped with all the listed features.
Table of contents
GETTING STARTED
Front seat adjustment 02
Headrest adjustment 03
Remote keyless entry 02
Seat belt adjustment 03
FEATURES AND CONTROLS
Active ECO system 23
Central door lock switch 05
Child-protector rear door lock (4Door) 08
Clock adjustment 20
Climate control 12-13
Cruise control 14
Driver’s main controls 05
Electronic stability control (ESC) 22
Fuel filler lid 04
Head lights and fog lights 06
Instrument cluster 10-11
Instrument panel illumination 11
Interior lights 08
Rear seat folding 09
Steering wheel adjustment 04
Steering wheel functions 14-15
Tire Pressure Monitoring System (TPMS) 22
Transmission 21
Trip computer 11
Wiper and washer 07
MULTIMEDIA
Audio 19
AUX, USB and iPod port 20
Bluetooth operational tips 16-17
Bluetooth phone pairing 18
Voice recognition tips 17
Use this Quick Reference Guide to learn
about the features that will enhance your
enjoyment of your Hyundai. More detailed
information about these features are
available in your Owner’s Manual.
WARNING!
To reduce the risk of serious injury to yourself and others,
read and understand the important SAFETY INFORMATION
in your Owner’s Manual.
** behind steering wheel
FREQUENTLY ASKED QUESTIONS
• Pair phone to your vehicle. Refer to page 18.

1514ACCENTHYUNDAI

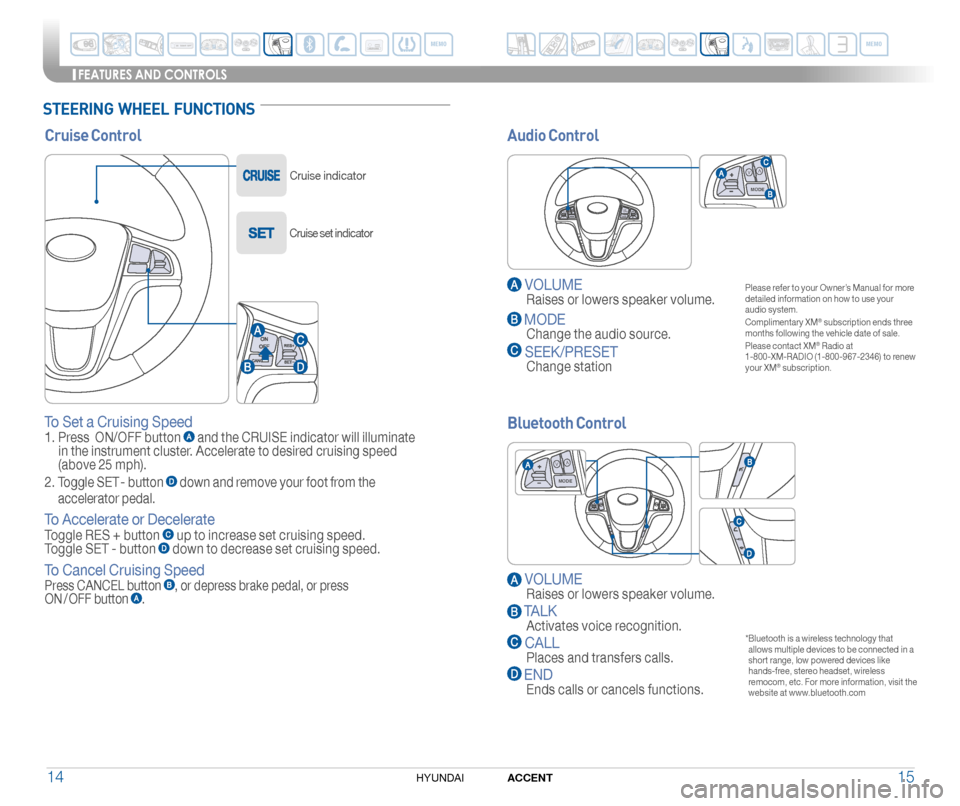

STEERING WHEEL FUNCTIONS
Cruise Control
To Set a Cruising Speed
1. Press ON/OFF button and the CRUISE indicator will illuminate in the instrument cluster. Accelerate to desired cruising speed (above 25 mph).
2. Toggle SET - button down and remove your foot from the
accelerator pedal.
To Accelerate or Decelerate
Toggle RES + button up to increase set cruising speed.
Toggle SET - button down to decrease set cruising speed.
To Cancel Cruising Speed
Press CANCEL button , or depress brake pedal, or press ON / OFF button .
Cruise indicator
Cruise set indicator
VOLUME
Raises or lowers speaker volume.
MODE
Change the audio source.
SEEK/PRESET
Change station
MODE\/\/O
N
O FFCA NC
EL
MODE
\/\/ON
OF F
CAN CEL
Audio Control
Please refer to your Owner’s Manual for more detailed information on how to use your audio system.Complimentary XM® subscription ends three months following the vehicle date of sale. Please contact XM® Radio at 1-800-XM-RADIO (1-800-967-2346) to renew your XM® subscription.
Bluetooth Control
VOLUME
Raises or lowers speaker volume.
TALK
Activates voice recognition.
CALL
Places and transfers calls.
END
Ends calls or cancels functions.
MODE
\/\/ON
OF F
CAN CEL
* Bluetooth is a wireless technology that allows multiple devices to be connected in a short range, low powered devices like hands-free, stereo headset, wireless remocom, etc. For more information, visit the website at www.bluetooth.com
FEATURES AND CONTROLS
MEMO
MEMO

1716ACCENTHYUNDAI
MULTIMEDIA
To Answer a Call:
• Press button on the steering wheel.
To Reject a Call:
• Press button on the steering wheel.
To Adjust Ring Volume:
• Use the VOLUME buttons on the steering wheel.
To Transfer a Call to the Phone
(Secret Call):
• Press and hold button on the steering wheel until the
audio system transfers a call to the phone.
To Finish a Call:
• Press button on the steering wheel.
BLUETOOTH OPERATIONAL TIPS
In the following situations you or the other party may have difficulty
hearing each other:
1. Keep the Bluetooth volume to a low level. High level volume may result
in distortion and echo.
2. When driving on a rough road, high speeds and/or with the window open.
3. When the air conditioning vents are facing the microphone and/or when
the air conditioning fan is at the max speed.
Steering wheel bluetooth control
Making a call using voice recognition:
The menu tree identifies available voice recognition Bluetooth® functions.
Calling by Name:
1. Press button.
2. Say the following command:
• “Call ”: Connects the call to John.
• “ Call on : Connects the call
to John’s Mobile, Home, or Office phone number.
Dialing by Number:
1. Press button.
2. Say “Call”.
3. Say “By number” when prompted.
4. Say desired phone numbers.
5. Say “Dial” to complete the number and make a call.
For complete list of commands, refer to your Owner’s Manual.
Your vehicle is equipped with Voice Recognition technology which allows
drivers to operate their phones without having to take their eyes off the road
to minimize distractions.
Voice recognition performance may be affected if driving with windows
and sun roof open; when the heating-cooling system is on; when passing
a tunnel or when driving on rugged and uneven roads.
Quick reference on using voice commands
To start voice command. Press the key, the following commands are available:
CommandFunction
More HelpProvides guidance on commands that can be used anywhere in the system
HelpProvides guidance on commands that can be used within the current mode.
Calls Calls saved in Contacts. Ex) Call “John”
Dial Call can be made by dialing the spoken numbers. Ex) Call “123”
PhoneProvides guidance on Phone related commands. After saying this command, say “Call History”, “Contacts” to execute corresponding functions.
Call HistoryDisplays the Call History screen.
Contacts (Call by NameDisplays the Contacts screen. After saying this command, say the name of a contact saved in the Contacts to automatically connect the cell.
Dial NumberDisplay the Dial number screen. After saying this command, you can say the number what you want to call.
VOICE RECOGNITION TIPS
VOLUME
Raises or lowers speaker volume.
TALK
Activates voice recognition.
CALL
Places and transfers calls.
END
Ends calls or cancels functions.
MODE
\/\/ON
OF F
CAN CEL
MEMO
MEMO

MENUPH ON E
RADI O MED IA
CA T
1918ACCENTHYUNDAI
BLUETOOTH PHONE PAIRINGAUDIO
Press POWER button to turn radio on.
• TUNING / LISTENING TO CHANNELS
1. Press RADIO .
2. Rotate TUNE knob to desired channel.
NOTE
A clear view of the southern sky is recommended to ensure XM® radio reception.
• SETTING PRESET MEMORY BUTTONS (FM/AM/XM® )
Press and hold any preset button (1-6) until audible beep is heard to store current channel.
• ADJUSTING THE SOUND CONTROL
1. Press TUNE knob to select.
2. Select “ Bass / Mid / Tre / Fad / Bal ” by rotating TUNE
knob , then press TUNE knob to select.
3. Rotate TUNE knob to adjust, then press TUNE knob .
4. Press TUNE knob when done.
Please refer to your Owner’s Manual for more detailed information on how to use your audio system. Complimentary XM subscription ends three months following the vehicle date of sale. Please contact XM Radio at 1-800-XM-RADIO (1-800-967-2346) to renew your XM subscription.
Pairing tutorials, phone compatibility and
Operational tips can be found through the
Smart QR code using the QR reader
application on your Smartphone.

4. Enable Bluetooth on your mobile phone. Select ACCENT from the
Bluetooth device list on your mobile phone.
5. Input passkey displayed on the screen.
6. After pairing is completed, your phone may start to transfer phone/
contact list to the audio system.
- This process may take a few minutes depending on the phone
model and number of entries in the phone/contact list.
- Some phones may request approval to download phone/contact
list to the audio system. (If approval is not granted, the phone may
frequently disconnect or not download phone/contact list.)
Phone setup (pairing phone) with Audio
1. Push the PHONE button .
M ENUPH O NERADIO ME DIA
CA T
2. Select “Phone” item by rotating
the TUNE knob , then press
TUNE knob to select.
3. Select “Pair” by rotating the TUNE
knob , then press TUNE knob .
NOTEVehicle must be parked to complete pairing process. - The phone will pair if the ignition is set to ACC or ON. - If standing outside and the ignition is set to ACC or ON, the phone may pair depending on the phone radio frequency.
MULTIMEDIA
MEMO
MEMO

2322ACCENTHYUNDAI
KEY WEBSITES
Hyundai website - www.hyundai.com Hyundai owner website - www.myhyundai.com Bluetooth phone compatibility - www.hyundaiusa.com/bluetooth
FEATURES AND CONTROLS
ELECTRONIC STABILITY CONTROL (ESC)
The ESC system is an electronic system designed to help the driver maintain vehicle control under adverse conditions.
• To turn the ESC off, press the ESC OFF button.
• To turn ESC on, press it again.
• System defaults to ON position at start.
TIRE PRESSURE MONITORING SYSTEM (TPMS)
LOW TIRE PRESSURE INDICATOR
Illuminates if one or more of your tires is significantly under-inflated.
TPMS MALFUNCTION INDICATOR
Blinks for approximately one minute then remains illuminated if there
is a malfunction with the TPMS system. Have the system checked by
an authorized Hyundai dealer.
NOTE
Tire pressure may vary in colder temperatures causing the low tire
pressure light to illuminate.
Low Tire Pressure Indicator /
TPMS Malfunction Indicator
ACTIVE ECO SYSTEM
Active ECO system(automatic transmission)
Active ECO system helps
improve fuel efficiency by
revising the calibration of engine,
transmission, and air conditioning.
Press to activate. An LED will
illuminate on the button, and the
ECO indicator will illuminate in the
instrument cluster.
Press again to deactivate.
ECO shift (manual transmission)
or symbol is displayed along
with the recommended gear
number, which indicates you
should upshift or downshift for
higher fuel efficiency.
When Active ECO system is activated, the behavior of the vehicle
will change to a suppressed acceleration and delayed gear shifts
under part throttle operation.
To improve your fuel efficiency:
• Drive smoothly, accelerate at a moderate rate.
• Avoid full throttle shifts.
• Maintain steady cruising speed.
•
Adjust your speed to the traffic to avoid unnecessary speed changes.
•
Take care of your tires, keep them inflated to the recommended
pressure, use the TPMS to prevent low pressure and excessive tire wear.
• Don’t let the engine idle longer than necessary.
• Avoid unnecessary braking.
MEMO
MEMO
