windshield wipers Hyundai Accent 2016 Owner's Manual

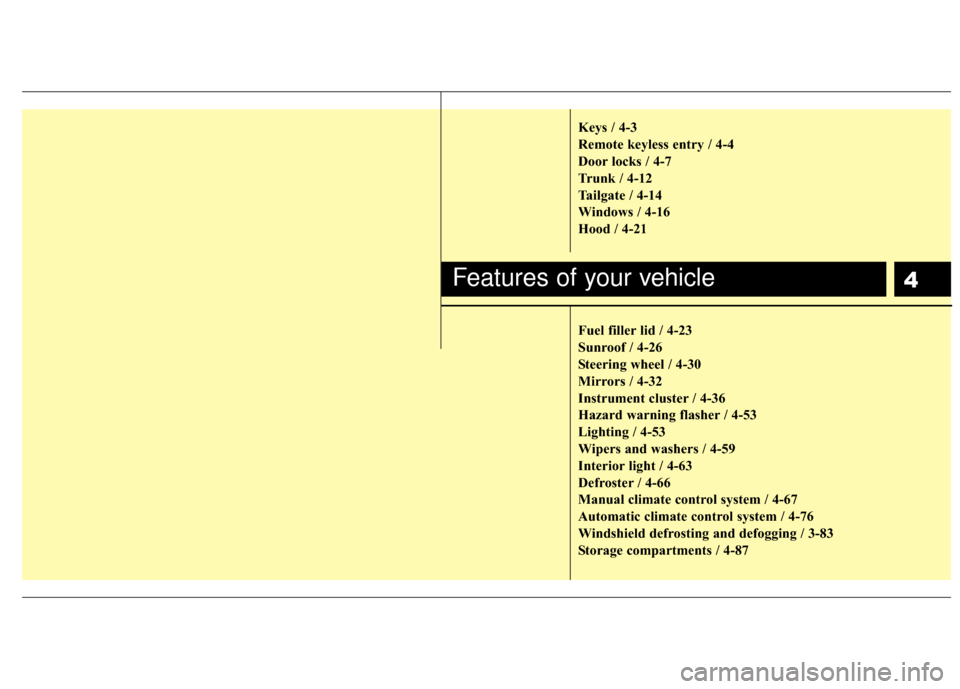

4Features of your vehicle
Keys / 4-3
Remote keyless entry / 4-4
Door locks / 4-7
Trunk / 4-12
Tailgate / 4-14
Windows / 4-16
Hood / 4-21
Fuel filler lid / 4-23
Sunroof / 4-26
Steering wheel / 4-30
Mirrors / 4-32
Instrument cluster / 4-36
Hazard warning flasher / 4-53
Lighting / 4-53
Wipers and washers / 4-59
Interior light / 4-63
Defroster / 4-66
Manual climate control system / 4-67
Automatic climate control system / 4-76
Windshield defrosting and defogging / 3-83
Storage compartments / 4-87

Features of your vehicle
60
4

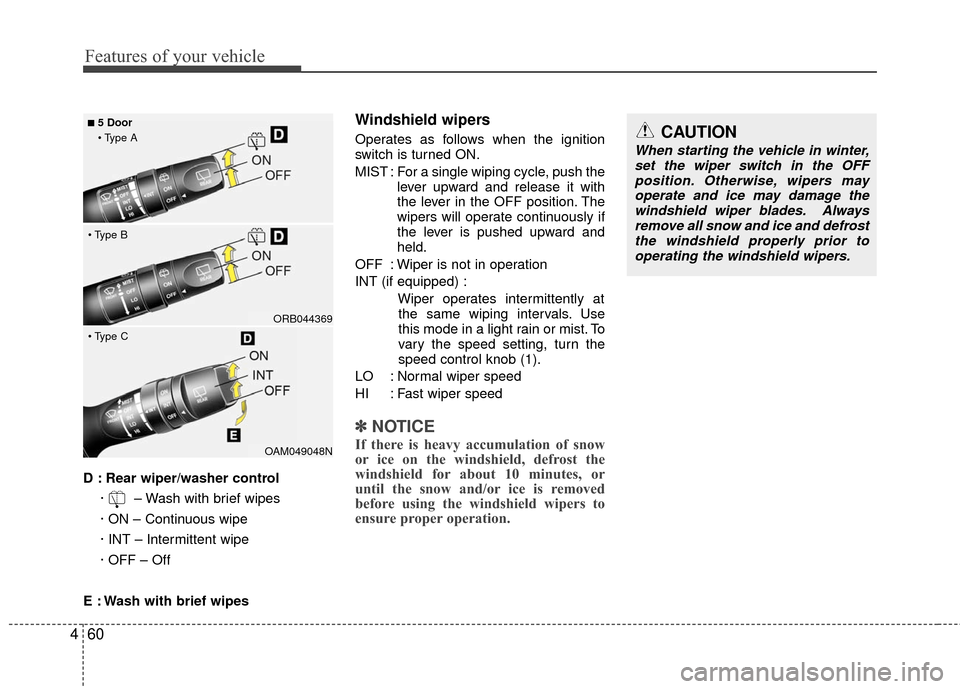

D : Rear wiper/washer control
· – Wash with brief wipes
· ON – Continuous wipe
· INT – Intermittent wipe
· OFF – Off
E : Wash with brief wipes
Windshield wipers
Operates as follows when the ignition
switch is turned ON.
MIST : For a single wiping cycle, push the lever upward and release it with
the lever in the OFF position. The
wipers will operate continuously if
the lever is pushed upward and
held.
OFF : Wiper is not in operation
INT (if equipped) : Wiper operates intermittently atthe same wiping intervals. Use
this mode in a light rain or mist. To
vary the speed setting, turn the
speed control knob (1).
LO : Normal wiper speed
HI : Fast wiper speed
✽ ✽ NOTICE
If there is heavy accumulation of snow
or ice on the windshield, defrost the
windshield for about 10 minutes, or
until the snow and/or ice is removed
before using the windshield wipers to
ensure proper operation.OAM049048N
ORB044369
■5 Door


CAUTION
When starting the vehicle in winter, set the wiper switch in the OFFposition. Otherwise, wipers may operate and ice may damage thewindshield wiper blades. Alwaysremove all snow and ice and defrost the windshield properly prior tooperating the windshield wipers.

461
Features of your vehicle
ORB045377ORB045375
■4 Door

■5 Door

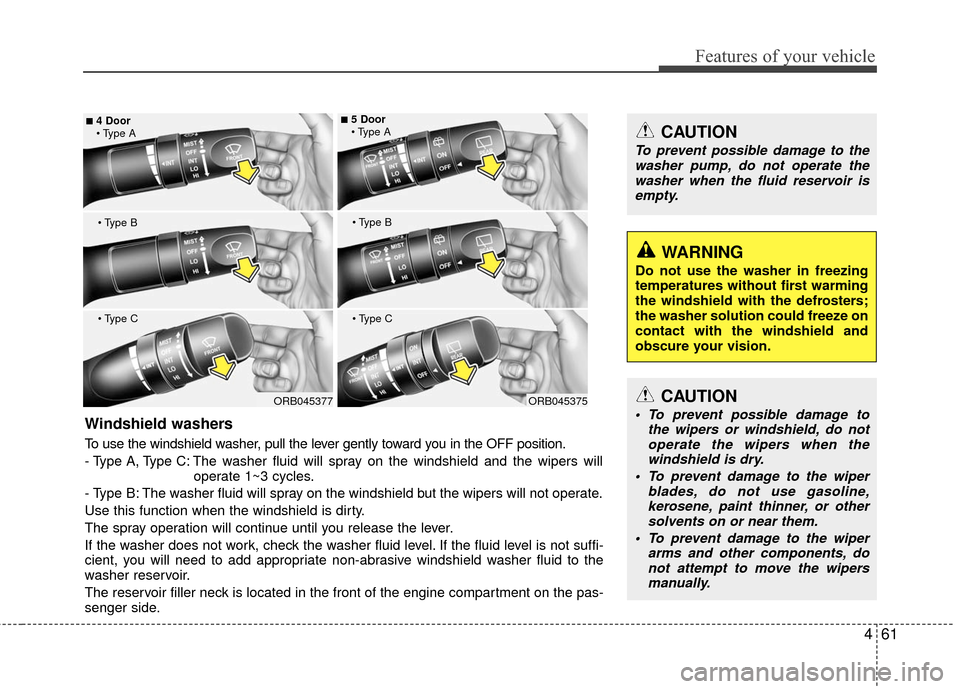

Windshield washers
To use the windshield washer, pull the lever gently toward you in the OFF position.
- Type A, Type C: The washer fluid will spray on the windshield and the wipers will operate 1~3 cycles.
- Type B: The washer fluid will spray on the windshield but the wipers will not operate.
Use this function when the windshield is dirty.
The spray operation will continue until you release the lever.
If the washer does not work, check the washer fluid level. If the fluid level is not suffi-
cient, you will need to add appropriate non-abrasive windshield washer fluid to the
washer reservoir.
The reservoir filler neck is located in the front of the engine compartment on the pas-
senger side.
CAUTION
To prevent possible damage to the wipers or windshield, do notoperate the wipers when thewindshield is dry.
To prevent damage to the wiper blades, do not use gasoline,kerosene, paint thinner, or othersolvents on or near them.
To prevent damage to the wiper arms and other components, donot attempt to move the wipersmanually.
WARNING
Do not use the washer in freezing
temperatures without first warming
the windshield with the defrosters;
the washer solution could freeze on
contact with the windshield and
obscure your vision.
CAUTION
To prevent possible damage to the
washer pump, do not operate thewasher when the fluid reservoir is empty.

731
Maintenance
WIPER BLADES
Blade inspection
✽
✽NOTICE
Commercial hot waxes applied by auto-
matic car washes have been known to
make the windshield difficult to clean.
Contamination of either the windshield or
the wiper blades with foreign matter can
reduce the effectiveness of the wind-
shield wipers. Common sources of con-
tamination are insects, tree sap, and hot
wax treatments used by some commer-
cial car washes. If the blades are not wip-
ing properly, clean both the window and
the blades with a good cleaner or mild
detergent, and rinse thoroughly with
clean water.Blade replacement
When the wipers no longer clean ade-
quately, the blades may be worn or
cracked, and require replacement.
1JBA5122CAUTION
To prevent damage to the wiper
blades, do not use gasoline,kerosene, paint thinner, or othersolvents on or near them.
CAUTION
To prevent damage to the wiperarms or other components, do notattempt to move the wipers manual- ly.
CAUTION
The use of a non-specified wiperblade could result in wiper malfunc- tion and failure.

I9
Index
Tires and wheels··················\
··················\
···········8-3
Towing ··················\
··················\
··················\
· ·6-32
Towing capacity ··················\
··················\
········· ·5-44
Transaxle Automatic transaxle ··················\
··················\
· ·5-10
Manual transaxle ··················\
··················\
·······5-7
Trip computer ··················\
··················\
··········· ·4-39
Trunk ··················\
··················\
··················\
··· ·4-12
Vehicle break-in process ··················\
··················\
·1-5
Vehicle capacity weight ··················\
··················\
·5-43
Vehicle certification label ··················\
··················\
8-6
Vehicle curb weight ··················\
··················\
···· ·5-48
Vehicle data collection and event data recorders ·········1-6
Vehicle identification number (VIN) ··················\
·····8-6
Vehicle load limit ··················\
··················\
······· ·5-43
Cargo capacity ··················\
··················\
······· ·5-44
Certification label ··················\
··················\
··· ·5-46
Seating capacity ··················\
··················\
····· ·5-44
Steps For Determining Correct Load Limit ··········5-44
Tire and loading information label ··················\
···5-43
Towing capacity ··················\
··················\
····· ·5-44
Vehicle capacity weight ··················\
···············5-43
Vehicle stability management ··················\
············5-26
Vehicle weight ··················\
··················\
·········· ·5-48
Base curb weight ··················\
··················\
···· ·5-48Cargo weight
··················\
··················\
········· ·5-48
GAW (Gross axle weight) ··················\
·············5-48
GAWR (Gross axle weight rating) ··················\
···5-48
GVW (Gross vehicle weight) ··················\
·········5-48
GVWR (Gross vehicle weight rating) ·················5-48
Vehicle curb weight ··················\
··················\
· ·5-48
Volume/weight ··················\
··················\
············ ·8-3
Warning and indicators ··················\
··················\
·4-44
Washer fluid ··················\
··················\
··············7-26
Weight/volume ··················\
··················\
············ ·8-3
Wheel alignment and tire balance ··················\
·······7-39
Wheel replacement ··················\
··················\
····· ·7-42
W

indows ··················\
··················\
················· ·4-16
Auto down window ··················\
··················\
· ·4-18
Auto up/down window ··················\
··············· ·4-18
Power window lock button ··················\
···········4-19
Windshield defrosting and defogging ··················\
···4-83
Automatic ventilation ··················\
················ ·4-86
Defogging logic ··················\
··················\
····· ·4-85
Winter driving ··················\
··················\
··········· ·5-39
Snow tires ··················\
··················\
············ ·5-39
Tire chains ··················\
··················\
············ ·5-40
Wiper blades ··················\
··················\
··············7-31
Wipers and washers ··················\
··················\
···· ·4-59
V
W
