Hyundai Azera 2008 Owner's Guide

1
FEATURES OF YOUR HYUNDAI
17
!

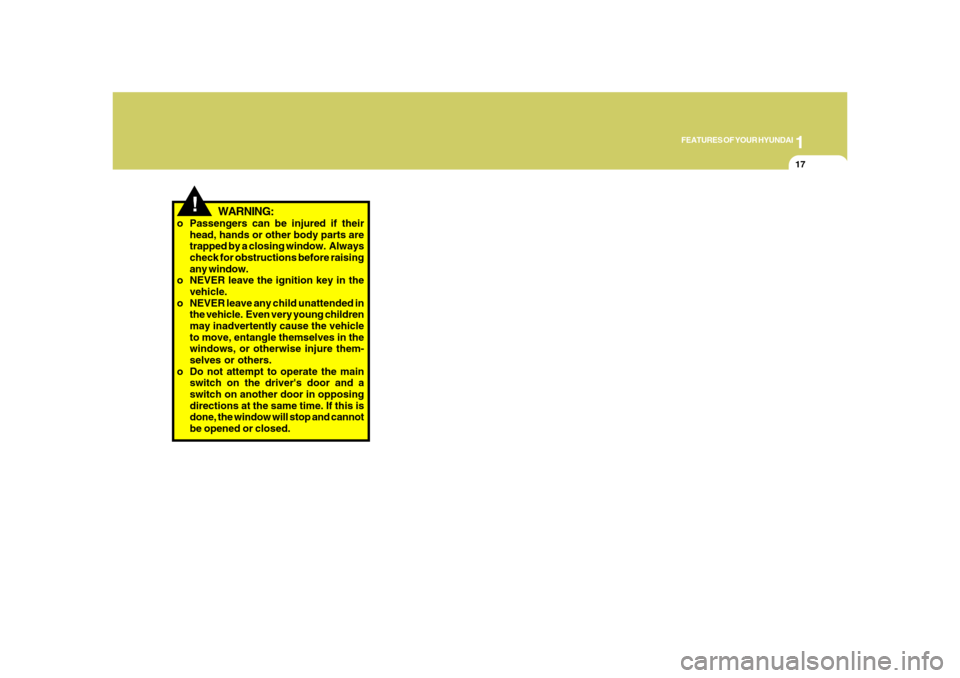

WARNING:
o Passengers can be injured if their
head, hands or other body parts are
trapped by a closing window. Always
check for obstructions before raising
any window.
o NEVER leave the ignition key in the
vehicle.
o NEVER leave any child unattended in
the vehicle. Even very young children
may inadvertently cause the vehicle
to move, entangle themselves in the
windows, or otherwise injure them-
selves or others.
o Do not attempt to operate the main
switch on the driver's door and a
switch on another door in opposing
directions at the same time. If this is
done, the window will stop and cannot
be opened or closed.

1FEATURES OF YOUR HYUNDAI18

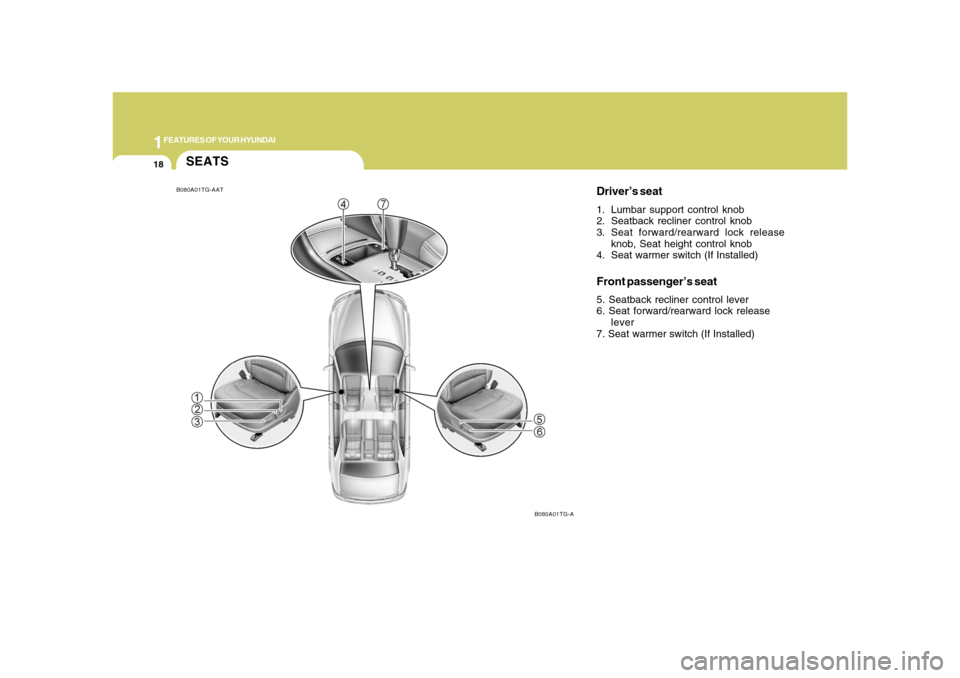

SEATS
Driver’s seat1. Lumbar support control knob
2. Seatback recliner control knob
3. Seat forward/rearward lock release
knob, Seat height control knob
4. Seat warmer switch (If Installed)Front passenger’s seat5. Seatback recliner control lever
6. Seat forward/rearward lock release
lever
7. Seat warmer switch (If Installed)
B080A01TG-AAT
B080A01TG-A

1
FEATURES OF YOUR HYUNDAI
19
!
B090A02TG-AATFRONT POWER SEATSThe front seats can be adjusted appropri-
ately by using the control knob of the seat.
Before driving, adjust the seat to the proper
position so as to easily control the steering
wheel, pedals and switches on the instru-
ment panel.
CAUTION:
Do not operate two knobs at the same
time.
WARNING:
o Never adjust the driver’s seat while
the vehicle is moving. Any sudden or
unexpected movement of the seat
could cause you to lose control of the
vehicle resulting in an accident. Only
adjust the driver’s seat when the ve-
hicle is stationary.
o Do not sit or lean unnecessarily close
to the airbag. Position the seat so that
you can sit as far back as possible
from the airbag and still comfortably
reach all controls.
!
B090B01NF-GATAdjusting Seat Forward and Rear-
wardPull the control knob forward or rearward
to move the seat forward or rearward to the
desired position. Release the control knob
and the seat will remain at that position.
HTG2037B090D01NF-AAT
Adjusting Seatback AnglePull the upper portion of the control knob
forward or backward to recline the seatback
to the desired position. Release the con-
trol knob and the seatback will remain in
that position.
HTG2040

1FEATURES OF YOUR HYUNDAI20
!

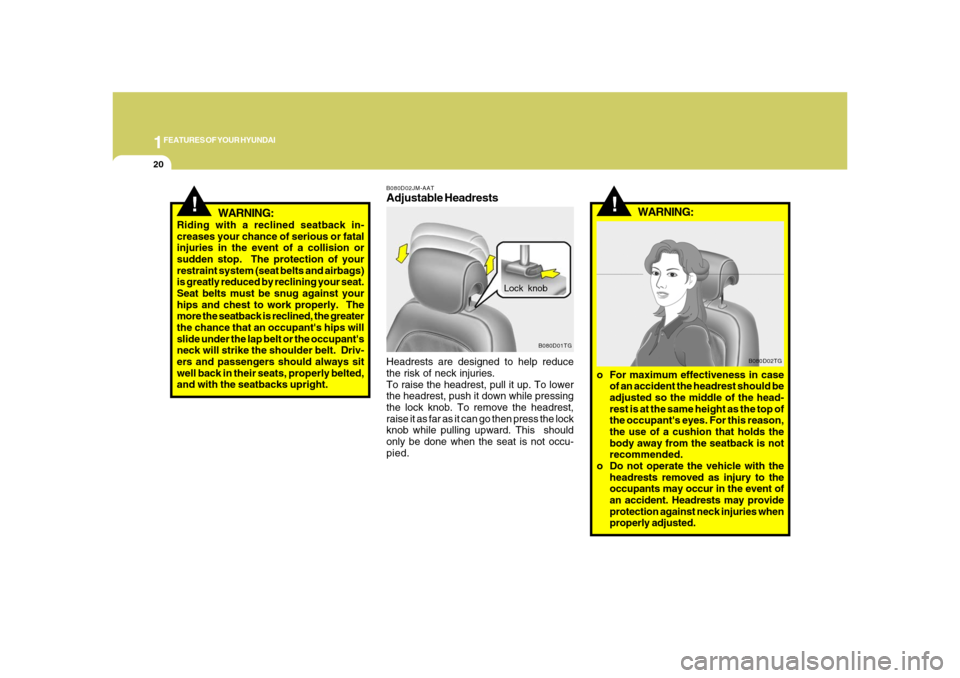

WARNING:
Riding with a reclined seatback in-
creases your chance of serious or fatal
injuries in the event of a collision or
sudden stop. The protection of your
restraint system (seat belts and airbags)
is greatly reduced by reclining your seat.
Seat belts must be snug against your
hips and chest to work properly. The
more the seatback is reclined, the greater
the chance that an occupant's hips will
slide under the lap belt or the occupant's
neck will strike the shoulder belt. Driv-
ers and passengers should always sit
well back in their seats, properly belted,
and with the seatbacks upright.
B080D02JM-AATAdjustable HeadrestsHeadrests are designed to help reduce
the risk of neck injuries.
To raise the headrest, pull it up. To lower
the headrest, push it down while pressing
the lock knob. To remove the headrest,
raise it as far as it can go then press the lock
knob while pulling upward. This should
only be done when the seat is not occu-
pied.
B080D01TG
Lock knob
!
WARNING:
o For maximum effectiveness in case
of an accident the headrest should be
adjusted so the middle of the head-
rest is at the same height as the top of
the occupant's eyes. For this reason,
the use of a cushion that holds the
body away from the seatback is not
recommended.
o Do not operate the vehicle with the
headrests removed as injury to the
occupants may occur in the event of
an accident. Headrests may provide
protection against neck injuries when
properly adjusted.
B080D02TG

1
FEATURES OF YOUR HYUNDAI
21

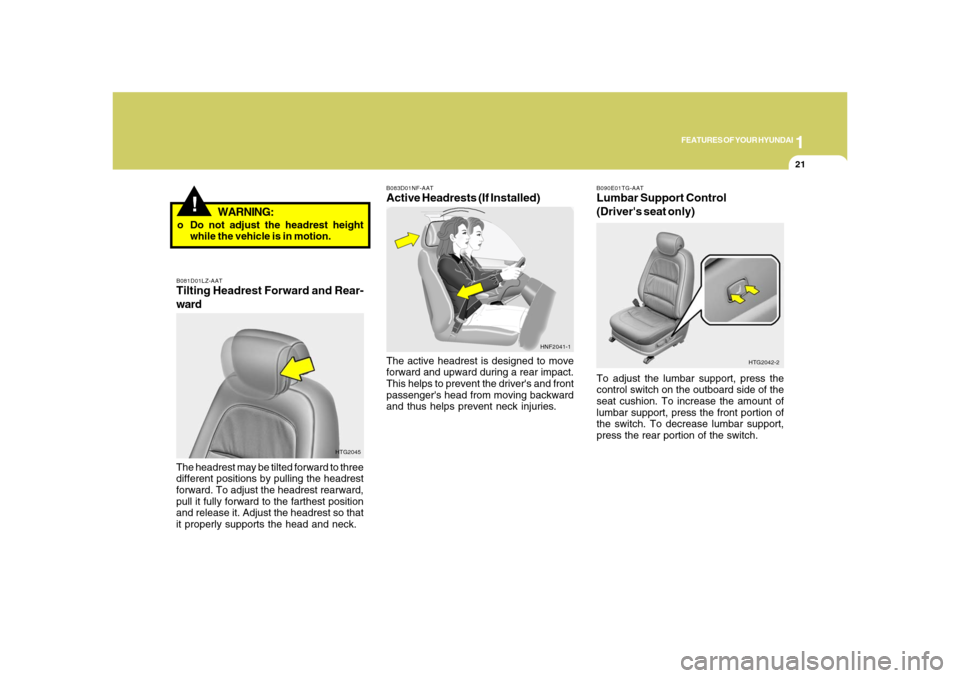

B081D01LZ-AATTilting Headrest Forward and Rear-
wardThe headrest may be tilted forward to three
different positions by pulling the headrest
forward. To adjust the headrest rearward,
pull it fully forward to the farthest position
and release it. Adjust the headrest so that
it properly supports the head and neck.
HTG2045
B083D01NF-AATActive Headrests (If Installed)The active headrest is designed to move
forward and upward during a rear impact.
This helps to prevent the driver's and front
passenger's head from moving backward
and thus helps prevent neck injuries.
HNF2041-1
!
WARNING:
o Do not adjust the headrest height
while the vehicle is in motion.
B090E01TG-AATLumbar Support Control
(Driver's seat only)To adjust the lumbar support, press the
control switch on the outboard side of the
seat cushion. To increase the amount of
lumbar support, press the front portion of
the switch. To decrease lumbar support,
press the rear portion of the switch.
HTG2042-2

1FEATURES OF YOUR HYUNDAI22
NOTE:o If the battery has been recharged or
disconnected, the driving position
memory will be lost.
o The buzzer sounds 10 times if there is
a malfunction of the integrated
memory system. Have the I.M.S
checked by an authorized Hyundai
dealer.I.M.S control switchLocated on the driver's door trim and func-
tions as follows;
SET: When the button is pressed, the sys-
tem will memorize the position with
a beep sound.
1,2 : Used to memorize 2 different posi-
tions.

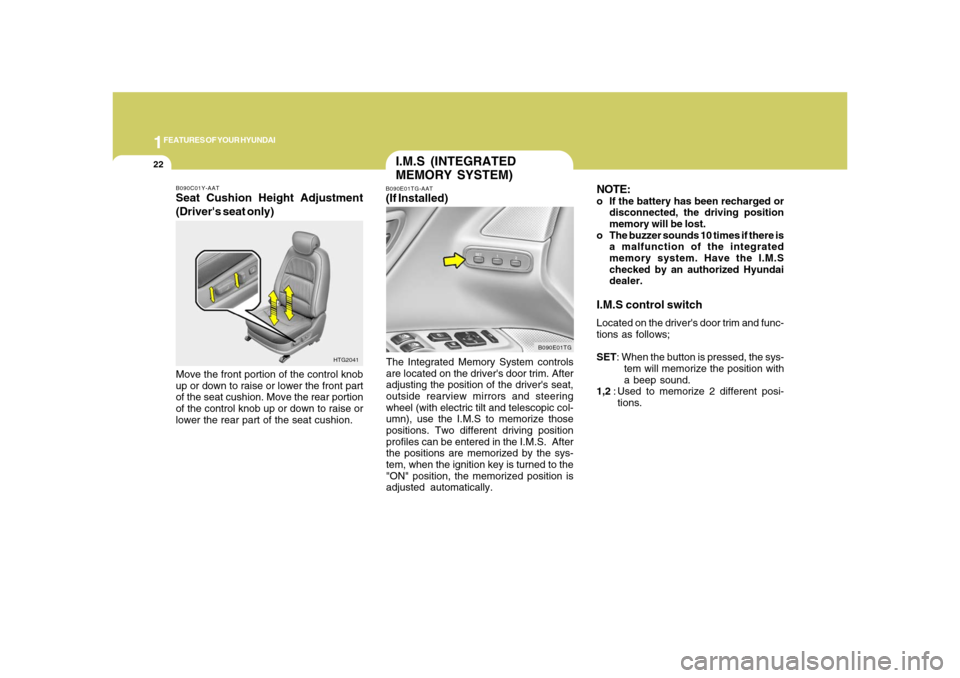

I.M.S (INTEGRATED
MEMORY SYSTEM)B090E01TG-AAT(If Installed)The Integrated Memory System controls
are located on the driver's door trim. After
adjusting the position of the driver's seat,
outside rearview mirrors and steering
wheel (with electric tilt and telescopic col-
umn), use the I.M.S to memorize those
positions. Two different driving position
profiles can be entered in the I.M.S. After
the positions are memorized by the sys-
tem, when the ignition key is turned to the
"ON" position, the memorized position is
adjusted automatically.
B090E01TG B090C01Y-AAT
Seat Cushion Height Adjustment
(Driver's seat only)Move the front portion of the control knob
up or down to raise or lower the front part
of the seat cushion. Move the rear portion
of the control knob up or down to raise or
lower the rear part of the seat cushion.
HTG2041

1
FEATURES OF YOUR HYUNDAI
23
!
CAUTION:
In the following conditions, the I.M.S will
not memorize a position.
1. When the "1" or "2" button is not
pushed within five seconds.
2. When the seat is being adjusted.
3. When the key is not in the "ON" posi-
tion.
4. When the shift lever is positioned in
other than "P" position.To memorize a position1. Place the shift lever into "P" while the
ignition switch is ON.
2. Adjust the driver's seat, outside rear-
view mirrors and steering wheel (with
electric tilt and telescopic column) to the
desired position.
3. Push the "SET" button on the I.M.S until
the signal beeps.
4. Within five seconds, push button "1" or
"2" until the signal beeps twice. The
beep sounds mean that the positions
are memorized in the I.M.S.
!
To activate the memorized position1. Place the shift lever into "P" while the
ignition switch is ON.
2. When you push button "1" or "2", the
driving position will be automatically
adjusted to the position recorded for
that button.
CAUTION:
In the following conditions, the I.M.S will
not activate.
1. When the key is in the "OFF" positon.
2. When the vehicle is running above
1.86 MPH (3 km/h).
3. When the seat is being adjusted.
4. When the shift lever is positioned in
other than "P" position.
Reverse Parking Aid Function
(If Installed)While the vehicle is moving backward, the
outside rearview mirror(s) will move down-
ward to aid reverse parking. According to
the position of the outside rearview mirror
switch knob, the outside rearview mirror(s)
will operate as follows:
B090E02TG

1FEATURES OF YOUR HYUNDAI24
!
B100A01TG-AATSEAT WARMER (If Installed)The front seats can be electrically heated
individually when the ignition switch is ON.
When the switch is ON, a number ranging
from 1 to 5 is displayed on the switch (5 =
warmest setting).
To turn off the seat warmer, set the switch
to 0.NOTE:o The seat warmer may not operate if
the ambient temperature is warm.
o If the seat warmer doesn't operate
when the ambient temperature is
lower than 75.2°F (24°C), it must be
checked at an authorized dealer.
B100A01TG
WARNING:
Do not turn on the seat warmers if the
seat is occupied by someone who can-
not monitor the temperature and turn off
the seat warmer if it becomes too warm.
The seat warmers should not be turned
on when children, the elderly, ill people,
and sleeping people occupy the seat. L : When the remote control outside rear-
view mirror switch knob is selected to
the "L" position, both outside rearview
mirrors will move downward.
R : When the remote control outside rear-
view mirror switch knob is selected to
the "R" position, only the passenger's
outside rearview mirror will move
downward.
Neutral : When the remote control out-
side rearview mirror switch knob
is placed in the middle position,
the outside rearview mirrors will
not operate while the vehicle is
moving backward.
NOTE:The outside rearview mirrors will auto-
matically revert to their original posi-
tions under the following conditions:
1. Ignition key is in the "LOCK" position.
2. Shift lever is moved to any position
except "R".
3. Remote control outside rearview mir-
ror switch knob is placed in the middle
position.

1
FEATURES OF YOUR HYUNDAI
25
B110A01NF-GATREAR SEAT
Folding Rear Seatbackso To unlock the seatback, pull the
seatback release lever, then pull for-
ward on the seatback panel.
o When you return the seatback to its
upright position, always be sure it has
locked into position by pulling and push-
ing on the top of the seatback.
B110A01TG
!
WARNING:
The purpose of the folding rear
seatbacks is to allow you to carry longer
objects than could otherwise be accom-
modated. Do not allow passengers to sit
on top of the folded down seatback, while
the car is moving as this is not a proper
seating position and no seat belts are
available for use. This could result in
serious injury or death in case of an
accident or sudden stop. Objects car-
ried on the folded down seatback should
not extend higher than the top of the front
seats. This could allow cargo to slide
forward and cause injury or damage
during sudden stops.
B085D01TG-AATAdjustable HeadrestsHeadrests are designed to help reduce
the risk of neck injuries.
To raise the headrest, pull it up. To lower
the headrest, push it down while pressing
the lock knob. To remove the headrest,
raise it as far as it can go then press the lock
knob while pulling upward. This should
only be done when the seat is not occu-
pied.
B080D01TG-1
Lock knob

1FEATURES OF YOUR HYUNDAI26
!

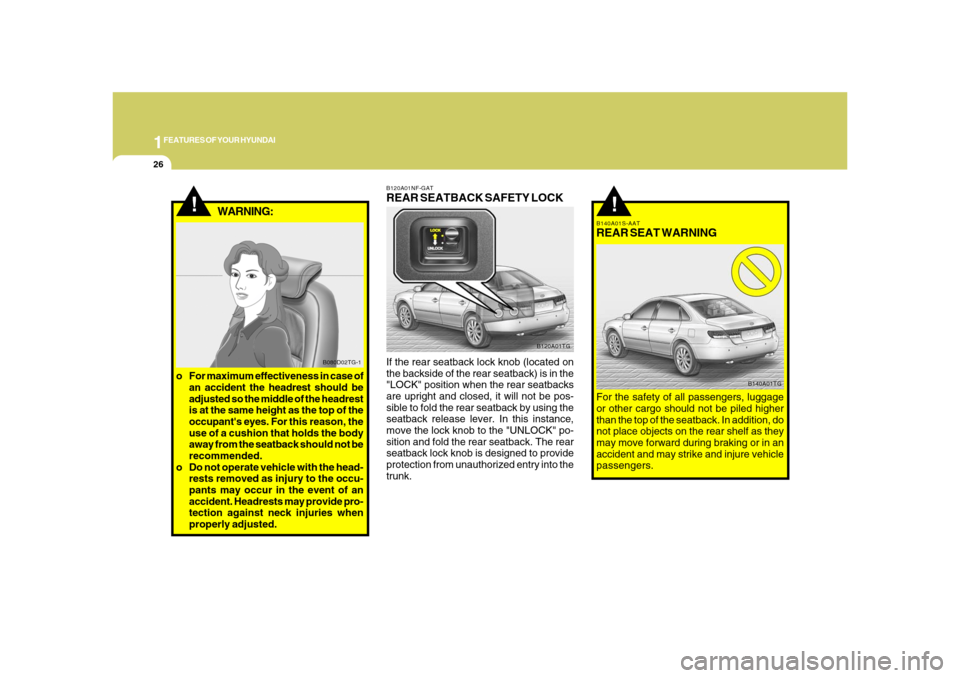

B140A01S-AATREAR SEAT WARNINGFor the safety of all passengers, luggage
or other cargo should not be piled higher
than the top of the seatback. In addition, do
not place objects on the rear shelf as they
may move forward during braking or in an
accident and may strike and injure vehicle
passengers.
B140A01TG B120A01NF-GAT
REAR SEATBACK SAFETY LOCKIf the rear seatback lock knob (located on
the backside of the rear seatback) is in the
"LOCK" position when the rear seatbacks
are upright and closed, it will not be pos-
sible to fold the rear seatback by using the
seatback release lever. In this instance,
move the lock knob to the "UNLOCK" po-
sition and fold the rear seatback. The rear
seatback lock knob is designed to provide
protection from unauthorized entry into the
trunk.
B120A01TG
!
WARNING:
B080D02TG-1
o For maximum effectiveness in case of
an accident the headrest should be
adjusted so the middle of the headrest
is at the same height as the top of the
occupant's eyes. For this reason, the
use of a cushion that holds the body
away from the seatback should not be
recommended.
o Do not operate vehicle with the head-
rests removed as injury to the occu-
pants may occur in the event of an
accident. Headrests may provide pro-
tection against neck injuries when
properly adjusted.
