Page 481 of 520

Hyundai Azera 2017  Owners Manual 765
Maintenance
HID lamps have superior perform-
ance vs. halogen bulbs. HID lamps
are estimated by the manufacturer to
last twice as long or longer than
halogen bulbs depending on their
frequency of

Page 482 of 520

Hyundai Azera 2017  Owners Manual Maintenance
66
7
Turn signal light
1. Turn off the engine.
2. Open the hood.
3. Remove the socket from the
assembly by turning the socket
counterclockwise until the tabs on
the socket align with the s

Page 483 of 520

Hyundai Azera 2017  Owners Manual 767
Maintenance
Side repeater light bulb
replacement
If the light bulb does not operate,
have the vehicle checked by an
authorized HYUNDAI dealer.
✽ ✽NOTICE
A skilled technician should check or
r

Page 484 of 520

Hyundai Azera 2017  Owners Manual Maintenance
68
7

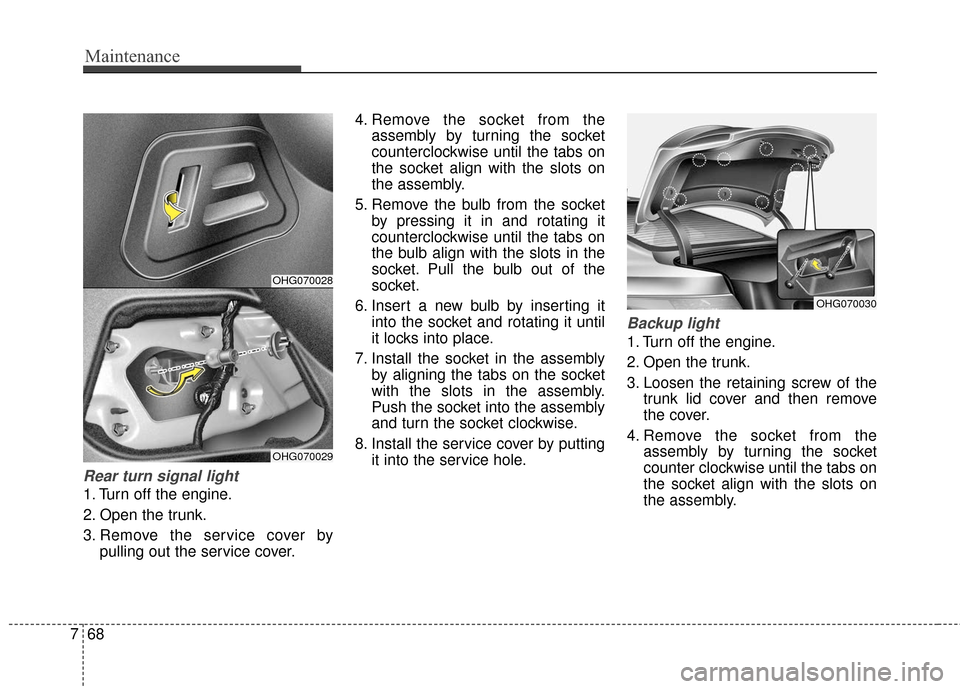

Rear turn signal light
1. Turn off the engine.
2. Open the trunk.
3. Remove the service cover by
pulling out the service cover. 4. Remove the socket from the
assembly by turning the

Page 485 of 520

Hyundai Azera 2017  Owners Manual 769
Maintenance
5. Remove the bulb by pulling itstraight out.
6. Insert a new bulb by inserting it into the socket and rotating it until
it locks into place.
7. Install the socket into the assem- bly

Page 486 of 520

Hyundai Azera 2017  Owners Manual Maintenance
70
7
Interior light bulb replacement
Glove box lamp and luggage room
lamp
1. Using a flat-blade screwdriver, gently pry the lens from the interi-
or light housing.
2. Remove the bulb by pu

Page 487 of 520

Hyundai Azera 2017  Owners Manual 771
Maintenance
■Room lamp
Type A
OHG070037/OHG070038
Type B
OHG071052A
■Vanity mirror lamp
Map lamp, room lamp, door cour-
tesy lamp and vanity mirror lamp
If the light bulb does not operate,
ha

Page 488 of 520

Hyundai Azera 2017  Owners Manual Maintenance
72
7

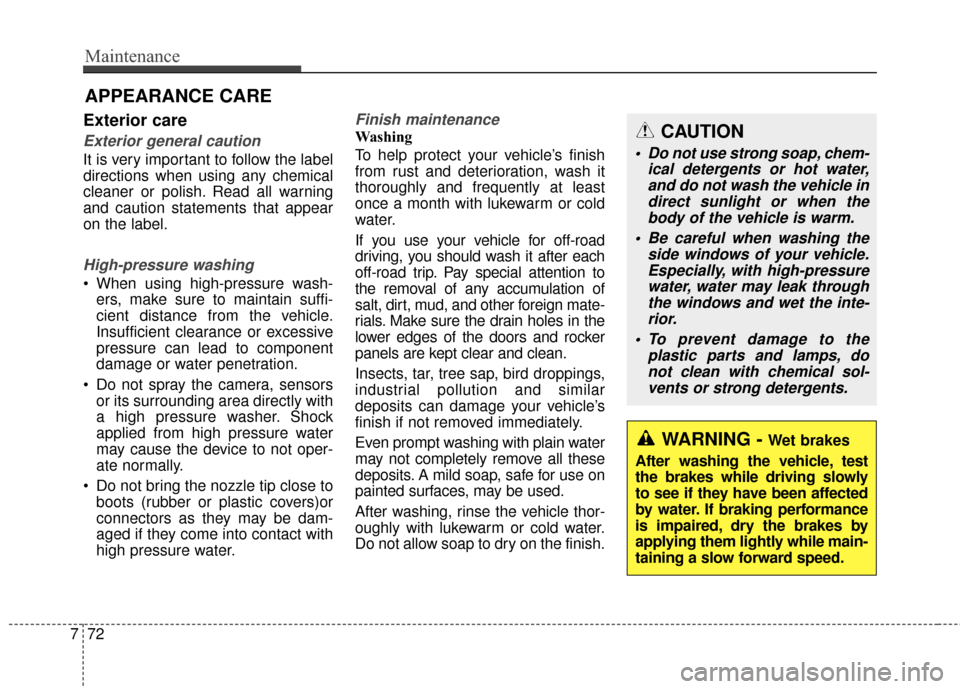

Exterior care
Exterior general caution
It is very important to follow the label
directions when using any chemical
cleaner or polish. Read all warning
and caution statements that app

Page 489 of 520

Hyundai Azera 2017  Owners Manual 773
Maintenance
Waxing
A good coat of wax is a barrier
between your paint and contaminate.
Keeping a good coat of wax on your
vehicle will help protect it.
Wax the vehicle when water will no
longer be

Page 490 of 520

Hyundai Azera 2017  Owners Manual Maintenance
74
7

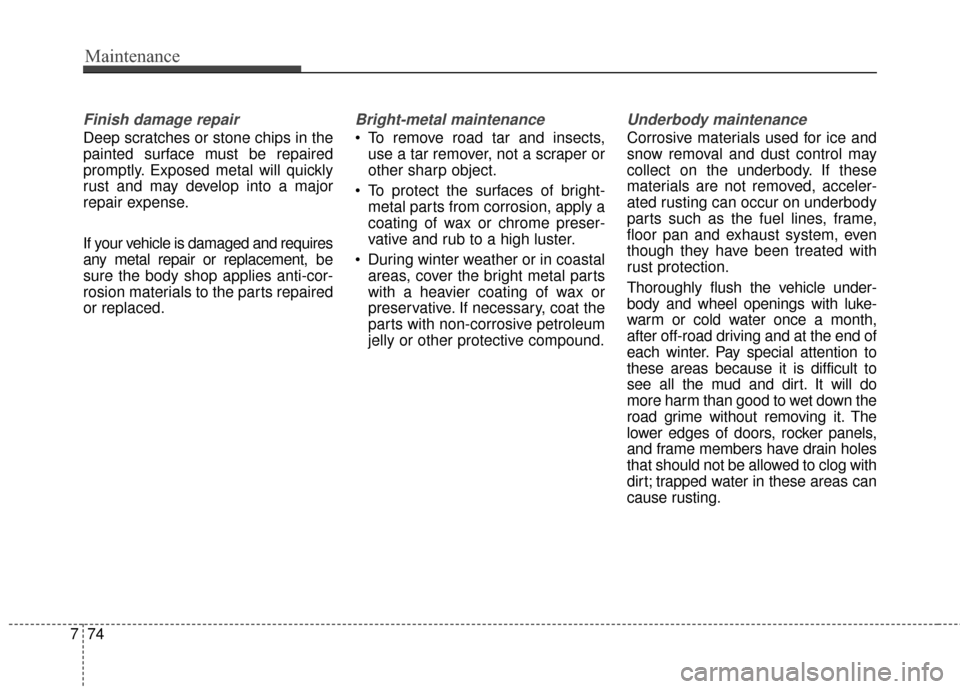

Finish damage repair
Deep scratches or stone chips in the
painted surface must be repaired
promptly. Exposed metal will quickly
rust and may develop into a major
repair expense.
If y
