1FEATURES OF YOUR HYUNDAI
18
!WARNING:
Don't drive with the passenger side seatback reclined. It is dangerous tomove it while driving. Be sure the seatback is caterred firmly before driving. B099A01F-AAT BEFORE FOLDING THE REAR SEATS In order to prevent the shoulder belt from being damaged while folding therear seat, the shoulder belt must be passed through the hanger to keep it out of the way.
HGK2034
CAUTION:
Seat belts must be removed fromthe hanger when in use.
!
By pulling up the walk in device lever (1) at the right-upper side of the passengerside seatback, the seatback will tilt forward. Then push the seat forward to allow the occupants to enter. Recliner Memory By pulling up the walk in device lever (1), the seatback is reclined and re- turned to the original position. (1)
HGK2036-1

1CONTROLS AND EQUIPMENT
16
By pulling up the walk in device lever (1) at the left-up side of the passengerside seatback, the seatback will tilt forward. And then push the seat for- ward to enter the occupants. Recliner Memory By pulling up the walk in device lever (1) seatback is reclined and return to the memorized original position. (1)

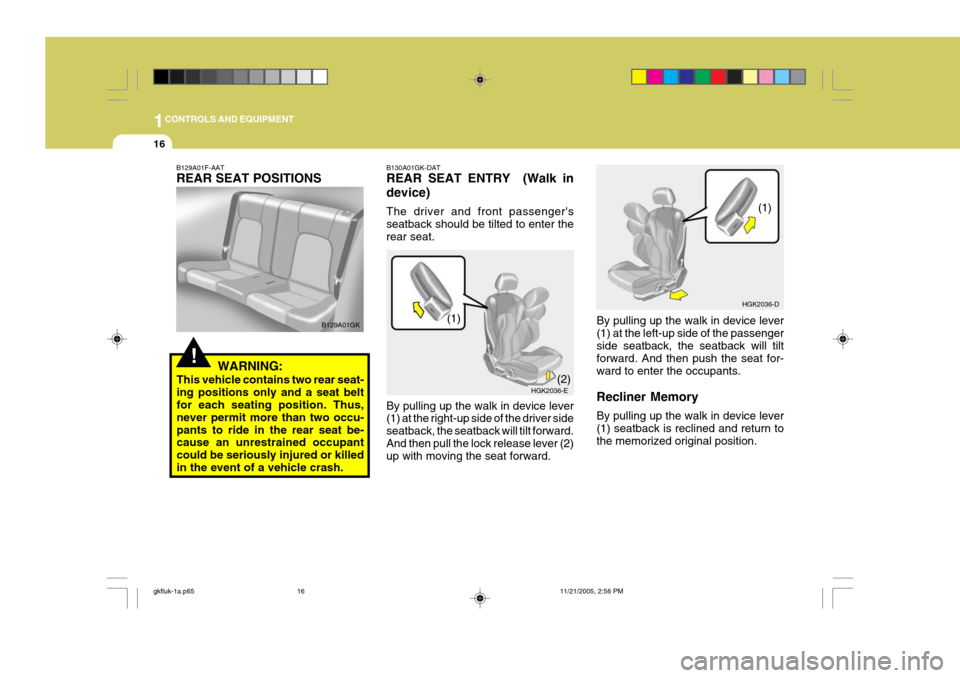

B129A01F-AAT REAR SEAT POSITIONS
!WARNING:
This vehicle contains two rear seat- ing positions only and a seat belt for each seating position. Thus, never permit more than two occu-pants to ride in the rear seat be- cause an unrestrained occupant could be seriously injured or killedin the event of a vehicle crash. B130A01GK-DAT REAR SEAT ENTRY (Walk in device) The driver and front passenger's seatback should be tilted to enter therear seat. By pulling up the walk in device lever (1) at the right-up side of the driver side seatback, the seatback will tilt forward.And then pull the lock release lever (2) up with moving the seat forward.
B129A01GK
HGK2036-E
(1)
(2) HGK2036-D
