F11
1. Passenger's Air Bag (If installed)
2. Rear Fog Light Switch (If installed) 3. Outside Temperature Switch
4. Hazard Warning Switch
5. Digital Clock
6. Front Fog Light Switch (If installed)
7. Windshield Wiper/Washer Switch
8. Horn and Driver's Airbag 9. Ignition Switch
10. Multi-Function Light Switch
CAUTION:
When installing a container of liquid air freshener inside the vehicle, do not place it near the instrument cluster nor on the instrument panel surface. If there is any leakage from the air freshener onto these areas (Instrument cluster, instrument panel or air ventilator), it may damage these parts. If the liquid from the air freshener doesleak onto these areas, wash them with water immediately.
! 11. Glove Box
12. Audio System (If installed)
13. Cigarette Lighter
14. Front Seat Warmer (If installed)
15. Shift Lever
16. Parking Brake Lever
17. Ashtray
18. Heating and Airconditioning Control Panel
19. Steering Wheel Tilt Lever
20. Hood Release Lever
21. Fuse Box Relay
Page 12 of 483
YOUR VEHICLE AT A GLANCE
F12B255A02GK-GAT INDICATOR SYMBOLS ON THE INSTRUMENT PANEL * More detailed explanations of these items will be found beginning on page 1-44.
Malfunction Indicator Light (If installed)
SRS (Airbag) Service Reminder Indicator (SRI)(If installed)
Tail Gate Open Warning Light
Low Fuel Level Warning Light
Door Ajar Warning Light (If installed)
ABS Service Reminder Indicator (If installed)
Turn Signal Indicator Lights
High Beam Indicator Light Low Oil Pressure Warning Light Parking Brake/Brake Fluid Level Warning Light
Charging System Warning Light CRUISE Indicator Light (If installed)
Seat Belt Warning Light CRUISE SET Indicator Light (If installed)
Electronic Stability Program (ESP) Indicator Light (If installed)
Immobilizer Warning Light (If installed)
120
km/hOverspeed warning Light (Mideast only)
Page 13 of 483
Fuel Recommendations ............................................... 1-2
Breaking In Your New Hyundai .................................... 1-3
Keys .............................................................................. 1-4
Immobilizer System ...................................................... 1-4
Door Locks ................................................................... 1-7
Theft-Alarm System ...................................................... 1-9
Power Windows ..........................................................1-12
Seats .......................................................................... 1-13
Seat Belts .................................................................... 1-20
Child Restraint System ................................................ 1-25
Supplemental Restraint (AIRBAG ) System................. 1-34
Instrument Cluster and Indicator Lights .......................1-42
Warning and Indicator Lights....................................... 1-44
Trip Computer .............................................................. 1-53
Multi-function Light Switch ........................................... 1-56
Windshield Wiper/Washer Switch ................................1-58
Sunroof ........................................................................ 1-65
Mirror ........................................................................... 1-69
Hood R elease .............................................................. 1-73
Cruise Co ntrol.............................................................. 1-79
Audio Remote Contro l Switch ...................................... 1-82
Heating and Cooling Control .......... ..............................1-83
Antenna ..................................................................... 1-102
Stereo Sound System ............................................... 1-103
Audio System ............................................................ 1-105
FEATURES OF YOUR HYUNDAI
1
1
Page 14 of 483
1FEATURES OF YOUR HYUNDAI
2FUEL RECOMMENDATIONS
B010A03A-GAT Use Unleaded Gasoline For Europe – For the optimal vehicle
performance, we recommend you to use unleaded gasoline with an octanerating of RON (Research Octane Num- ber) 95 /AKI (Anti Knock Index) 91 or higher.You may use unleaded gasoline with an octane rating of RON 91~94/AKI 87~90 but it may result in slight performancereduction of the vehicle. Except Europe – Unleaded gasoline
with a Pump Octane Rating of 87 (Re- search Octane Number 91) or higher must be used in Hyundai vehicle. If leaded gasoline is used, it will causethe catalytic converter to become inef-fective and the emission control sys- tem to malfunction. This can also result in increased main-tenance expense. To avoid accidental use of leaded fuel, the large nozzle used with leaded gasoline at servicestations can not be inserted into fuel tank opening of Hyundai vehicle. NOTE:
o For some countries, Hyundai
vehicles are designed to use leaded gasoline. When you are going to use leaded gasoline,ask to Hyundai dealer whether leaded gasoline in your vehicle is available or not.
o Octane Rating of leaded gaso- line is same with unleaded one. B010B01A-AAT What About Gasohol? Gasohol (a mixture of 90% unleaded gasoline and 10% ethanol or grainalcohol) may be used in your Hyundai. However, if your engine develops driveability problems, the use of 100%unleaded gasoline is recommended. Fuels with unspecified quantities of alcohol, or alcohols other than ethanol,should not be used.
B010D01S-AAT Do not Use Methanol Fuels containing methanol (wood al- cohol) should not be used in your Hyundai. This type of fuel can reducevehicle performance and damage com- ponents of the fuel system.
CAUTION:
Your Hyundai's New Vehicle Lim- ited Warranty may not cover dam-age to the fuel system and perfor- mance problems that are caused by the use of methanol or fuels con-taining methanol.
!
OGK016100
Page 15 of 483
1
FEATURES OF YOUR HYUNDAI
3BREAKING IN YOUR NEW HYUNDAI
B010E01A-AAT Gasolines for Cleaner Air To help contribute to cleaner air, Hyundai recommends that you usegasolines treated with detergent addi- tives, which help prevent deposit for- mation in the engine. These gasolineswill help the engine run cleaner and enhance performance of the Emission Control System. B010F01A-AAT Operation in Foreign Countries If you are going to drive your Hyundai in another country, be sure to:
o Observe all regulations regarding
registration and insurance.
o Determine that acceptable fuel is
available. B020A01S-GAT During the First 2,000 Km (1,200 Miles) No formal "break-in" procedure is re- quired with your new Hyundai. How- ever, you can contribute to the eco-nomical operation and durability of your Hyundai by observing the following recommendations during the first 2,000km (1,200 miles).
o Don't drive faster than 88 km/h (55
mph).
o While driving, keep your engine
speed (rpm, or revolutions per minute) between 2,000 rpm and 4,000 rpm.
o Use moderate acceleration. Don't start, depress the accelerator pedalfully.
o For the first 300 km (200 miles), try to avoid hard stops.
o Don't lug the engine (in other words,
don't drive so slowly. In too high a gear that the engine "bucks" shift to a lower gear). o Whether going fast or slow, vary
your speed from time to time.
o Don't let the engine idle longer than 3 minutes at one time.
o Don't tow a trailer during the first 2,000 km (1,200 miles) of opera-tion.
Page 16 of 483
1FEATURES OF YOUR HYUNDAI
4KEYSIMMOBILIZER SYSTEM

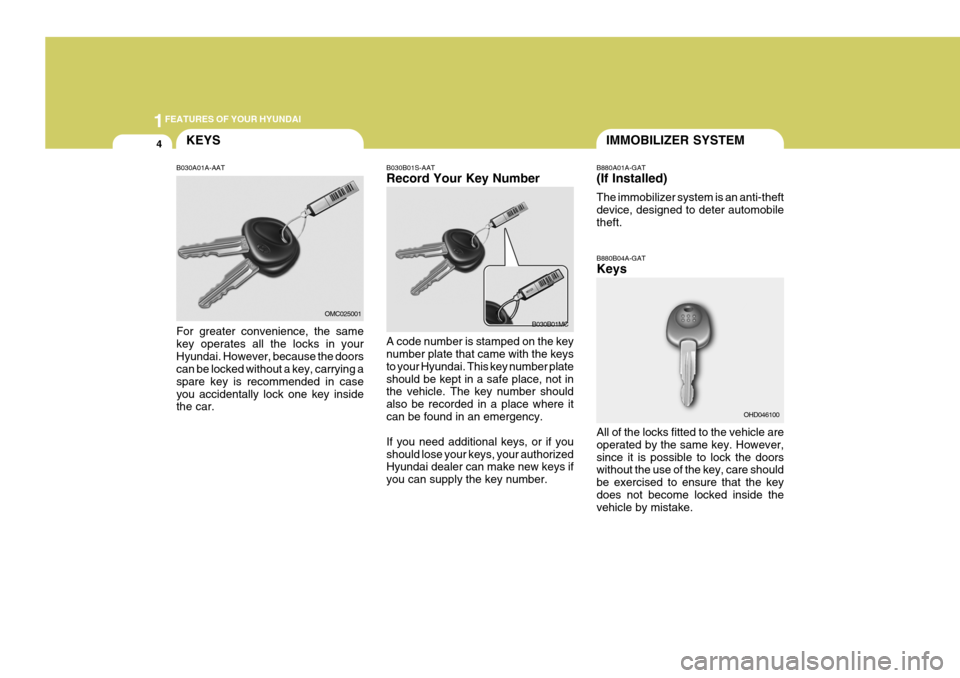

B030A01A-AAT For greater convenience, the same key operates all the locks in yourHyundai. However, because the doors can be locked without a key, carrying a spare key is recommended in caseyou accidentally lock one key inside the car. B030B01S-AAT Record Your Key Number A code number is stamped on the key number plate that came with the keys to your Hyundai. This key number plateshould be kept in a safe place, not in the vehicle. The key number should also be recorded in a place where itcan be found in an emergency. If you need additional keys, or if you should lose your keys, your authorized Hyundai dealer can make new keys if you can supply the key number. B880A01A-GAT (If Installed) The immobilizer system is an anti-theft device, designed to deter automobiletheft. B880B04A-GAT Keys All of the locks fitted to the vehicle are operated by the same key. However,since it is possible to lock the doors without the use of the key, care should be exercised to ensure that the keydoes not become locked inside the vehicle by mistake.
OMC025001
B030B01MC
OHD046100
Page 17 of 483
1
FEATURES OF YOUR HYUNDAI
5

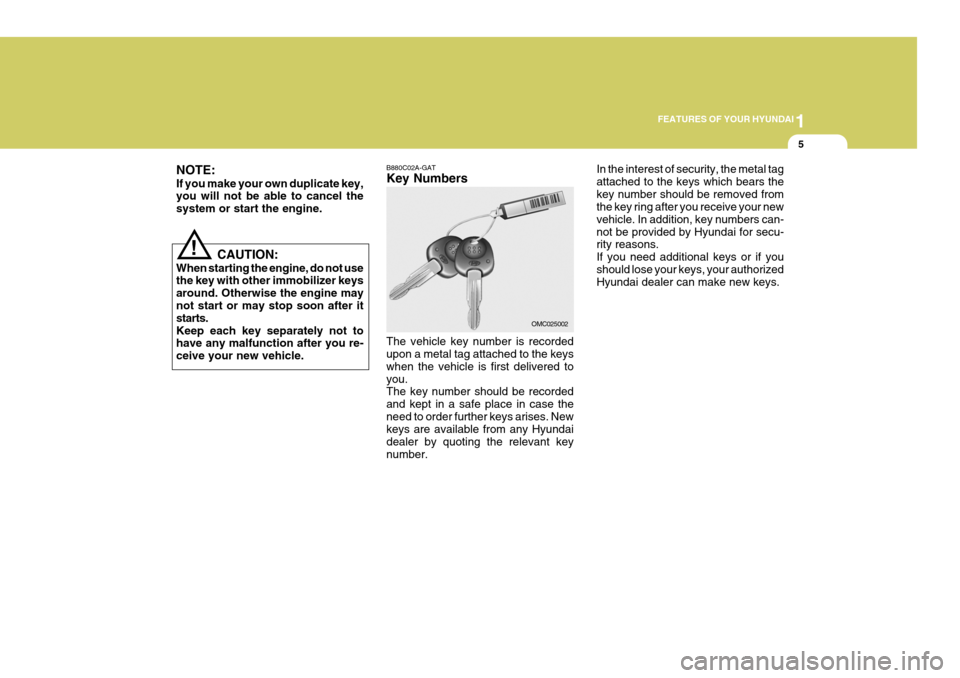

B880C02A-GAT Key Numbers The vehicle key number is recorded upon a metal tag attached to the keys when the vehicle is first delivered toyou. The key number should be recorded and kept in a safe place in case theneed to order further keys arises. New keys are available from any Hyundai dealer by quoting the relevant keynumber. In the interest of security, the metal tagattached to the keys which bears thekey number should be removed from the key ring after you receive your new vehicle. In addition, key numbers can-not be provided by Hyundai for secu- rity reasons. If you need additional keys or if youshould lose your keys, your authorized Hyundai dealer can make new keys.
OMC025002
NOTE: If you make your own duplicate key, you will not be able to cancel the system or start the engine.
!
CAUTION:
When starting the engine, do not use the key with other immobilizer keys around. Otherwise the engine maynot start or may stop soon after it starts. Keep each key separately not to have any malfunction after you re- ceive your new vehicle.
Page 18 of 483
1FEATURES OF YOUR HYUNDAI
6
!

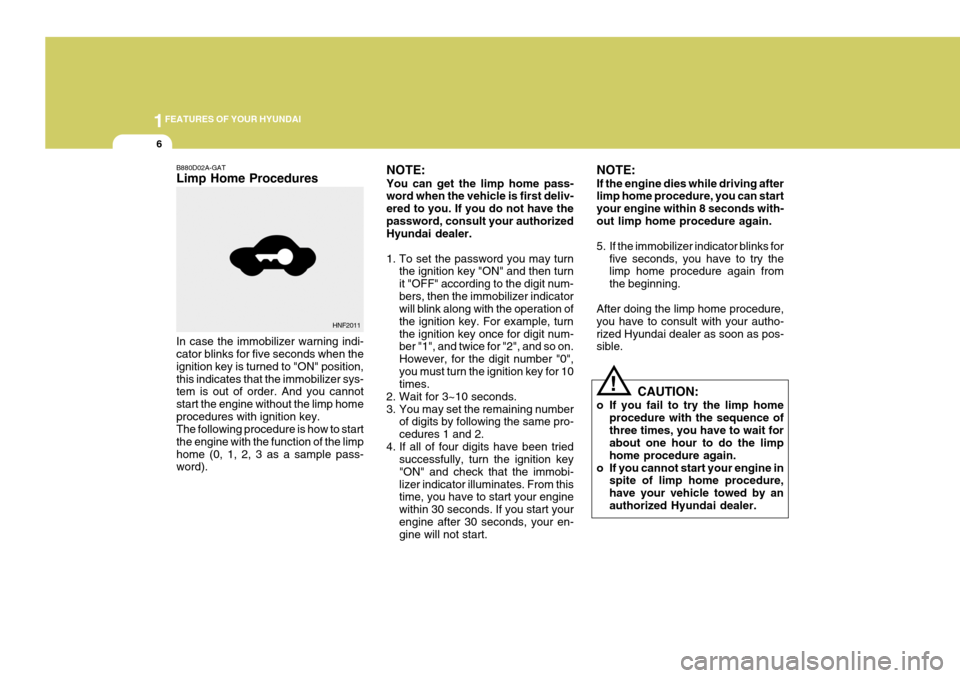

NOTE: You can get the limp home pass- word when the vehicle is first deliv- ered to you. If you do not have thepassword, consult your authorized Hyundai dealer.
1. To set the password you may turn
the ignition key "ON" and then turn it "OFF" according to the digit num-bers, then the immobilizer indicator will blink along with the operation of the ignition key. For example, turnthe ignition key once for digit num- ber "1", and twice for "2", and so on. However, for the digit number "0",you must turn the ignition key for 10 times.
2. Wait for 3~10 seconds.
3. You may set the remaining number of digits by following the same pro-cedures 1 and 2.
4. If all of four digits have been tried successfully, turn the ignition key"ON" and check that the immobi-lizer indicator illuminates. From this time, you have to start your engine within 30 seconds. If you start yourengine after 30 seconds, your en- gine will not start. NOTE: If the engine dies while driving after limp home procedure, you can start your engine within 8 seconds with-out limp home procedure again.
5. If the immobilizer indicator blinks for
five seconds, you have to try the limp home procedure again from the beginning.
After doing the limp home procedure,you have to consult with your autho-rized Hyundai dealer as soon as pos- sible.
CAUTION:
o If you fail to try the limp home procedure with the sequence of three times, you have to wait for about one hour to do the limp home procedure again.
o If you cannot start your engine in spite of limp home procedure,have your vehicle towed by anauthorized Hyundai dealer.
B880D02A-GAT Limp Home Procedures In case the immobilizer warning indi- cator blinks for five seconds when the ignition key is turned to "ON" position,this indicates that the immobilizer sys- tem is out of order. And you cannot start the engine without the limp homeprocedures with ignition key. The following procedure is how to start the engine with the function of the limphome (0, 1, 2, 3 as a sample pass- word). HNF2011
Page 19 of 483
1
FEATURES OF YOUR HYUNDAI
7
!
DOOR LOCKS
B040A01GK-GAT

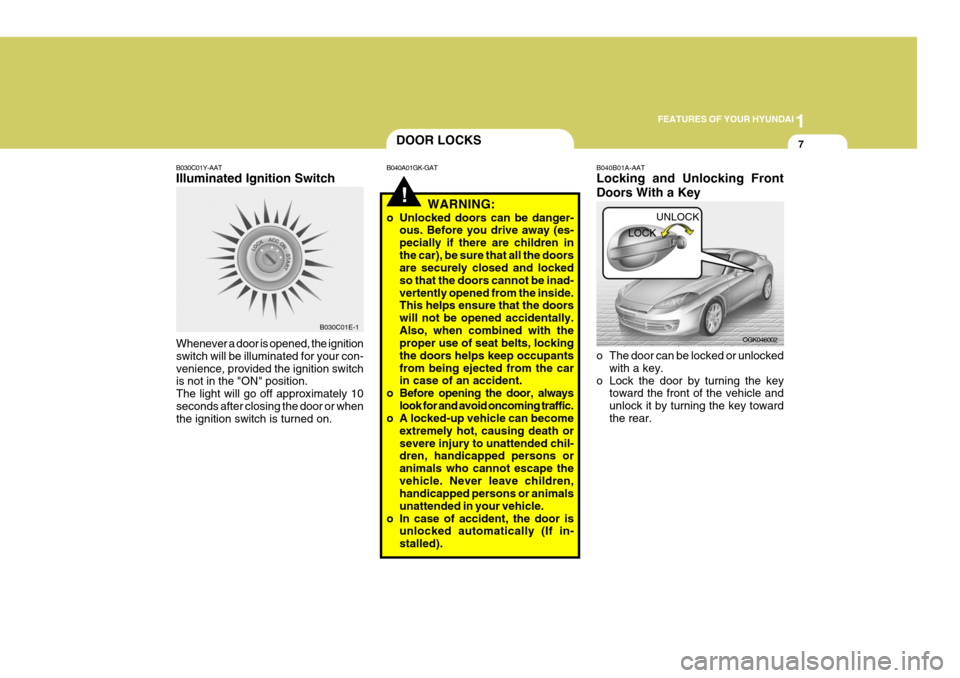

WARNING:
o Unlocked doors can be danger- ous. Before you drive away (es- pecially if there are children inthe car), be sure that all the doors are securely closed and locked so that the doors cannot be inad-vertently opened from the inside. This helps ensure that the doors will not be opened accidentally.Also, when combined with the proper use of seat belts, locking the doors helps keep occupantsfrom being ejected from the car in case of an accident.
o Before opening the door, always look for and avoid oncoming traffic.
o A locked-up vehicle can become
extremely hot, causing death or severe injury to unattended chil- dren, handicapped persons or animals who cannot escape thevehicle. Never leave children, handicapped persons or animals unattended in your vehicle.
o In case of accident, the door is unlocked automatically (If in-stalled).
B040B01A-AAT Locking and Unlocking Front Doors With a Key
o The door can be locked or unlocked
with a key.
o Lock the door by turning the key toward the front of the vehicle and unlock it by turning the key towardthe rear. OGK046002
UNLOCK
LOCKB030C01Y-AAT Illuminated Ignition Switch
Whenever a door is opened, the ignition switch will be illuminated for your con-venience, provided the ignition switch is not in the "ON" position. The light will go off approximately 10seconds after closing the door or when the ignition switch is turned on. B030C01E-1
Page 20 of 483
1FEATURES OF YOUR HYUNDAI
8

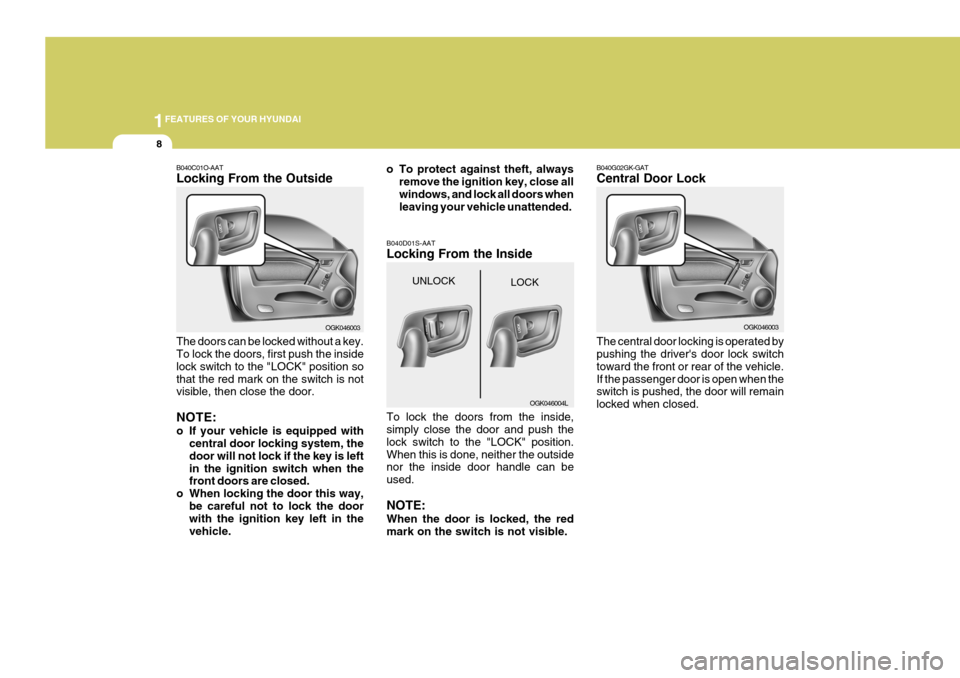

B040G02GK-GAT Central Door Lock The central door locking is operated by pushing the driver's door lock switch toward the front or rear of the vehicle.If the passenger door is open when the switch is pushed, the door will remain locked when closed. OGK046003
B040D01S-AAT Locking From the Inside To lock the doors from the inside, simply close the door and push the lock switch to the "LOCK" position.When this is done, neither the outside nor the inside door handle can be used. NOTE: When the door is locked, the red mark on the switch is not visible.UNLOCK
OGK046004L
LOCK
B040C01O-AAT Locking From the Outside The doors can be locked without a key. To lock the doors, first push the inside lock switch to the "LOCK" position sothat the red mark on the switch is not visible, then close the door. NOTE:
o If your vehicle is equipped with
central door locking system, the door will not lock if the key is leftin the ignition switch when the front doors are closed.
o When locking the door this way,
be careful not to lock the doorwith the ignition key left in the vehicle. OGK046003
o To protect against theft, always
remove the ignition key, close allwindows, and lock all doors when leaving your vehicle unattended.
