Hyundai Coupe 2008 Owner's Manual

1
FEATURES OF YOUR HYUNDAI
119
H265C01GK-GAT COMPACT DISC PLAYER OPERATION (H265) (If installed)
GK_265_UR
11
4
2
9
10 1. CD DECK 2. CD INDICATOR3. CD Disc EJECT Button 4. CD Selection Button 5. Fast Backward
6. Fast Forward 7. Automatic Previous Track Selec-
tion Button
8. Automatic Next Track Selection Button
9. Section Repeat Button 10. Information Display Screen (LCD) 11. SCAN Button
7568
3
1

1FEATURES OF YOUR HYUNDAI
120
H265D01GK-GAT 1. CD Deck Make sure the printed side of the disk faces upward when you insert the disk.If you insert the disk when the ignition switch of the automobile is set to ACC (1st notch) or ON (2nd notch), the CDDECK will automatically play CD even if the power was off. This CD DECK can play both 12cm and8cm audio disks. If you insert video CD, then the screen will display the status of the CD but it will not play the video fileand therefore there will be no sound.
2. CD Indicator This indicator light will be on if the CD is inside the CD DECK if the ignition switch of the automobile is set to ACC(1st notch) or ON (2nd notch) regard- less of whether the audio system is on or off. This light will go off when the CDis ejected.
3. CD Eject Button Press [
] button to eject the disk while
playing the disk. This will eject the CD whether or not the ignition switch is on or off. 4. CD Selection Button Press this button while the disk is inside the CD DECK to listen to the CD.If the radio was on previously then it will be turned off and CD player will be activated. If you press [CD] buttonwhen the disk is ejected and hanging in the opening the system will automati- cally insert the disk and play the CD. 5. Fast Backward (REW) Press and hold [REW] button while playing CD then the player will play the disk backwards 5 times the regularspeed for first 5 seconds and 15 times faster after that. The sound will be reduced by 12dB while you are holdingthe button.
6. Fast Forward (FF) Press and hold [FF] button while play- ing CD then the player will play the diskforward 5 times the regular speed for first 5 seconds and 15 times faster after that. The sound will be reduced by 12dBwhile you are holding the button.
7. Automatic Previous Track Se-
lection Button
Press [
] button to go to the beginning
of the song you are listening to while playing the CD. Press the button again to go to the beginning of the song beforethe song you were listening to. When you press this button while listening to the first track of the CD then the systemwill move to the beginning of the last track of the CD.
8. Automatic Next Track Selec-
tion Button
Press [
] button to go to the beginning
of the song next to the song you are listening to while playing the CD. When you press this button while listening to the last track of the CD then the systemwill move to the beginning of the first track of the CD.
9. Section Repeat Button (RPT) Press [RPT] button to repeat the song you are listening to. Press this button again to cancel repetition.

1
FEATURES OF YOUR HYUNDAI
121
10. Information Display Screen (LCD)
Various status of the CD will be dis- played on the screen while listening tothe CD such as "CD" while playing the CD, the track title and number and RPT. 11. SCAN Button If you press this button, the player will play 10 seconds of each track. Press it again to cancel scanning. CAUTION:
o Do not insert warped or poor qual- ity discs into the CD player asdamage to the unit may occur.
o Do not insert anything like coins
into the player slot as damage tothe unit may occur.
o Do not place beverages close to the audio system. The playbackmechanism may be damaged if you spill them.
o Do not strike or allow anything to impact the audio system, damageto the system mechanisms couldoccur.
o Off-road or rough surface driving
may cause the compact disc toskip. Do not use the compact disc when driving in such conditions as damage to the compact discface could occur.
o Do not attempt to grab or pull the
compact disc out while the disc isbeing pulled into the audio unit by the self-loading mechanism. Dam- age to the audio unit and compactdisc could occur.
!
o Avoid using recorded compactdiscs in your audio unit. Original compact discs are recommended.

1FEATURES OF YOUR HYUNDAI
122
H465A01GK-GAT STEREO RADIO OPERATION (H465) (If Installed)
GK_465_UR
1, 23
5 8 4 9 6 7
1, 2. Power Button and Volume
Control
3. Radio Band Selection Button 4. Automatic Channel Selection Memorization Button 5. Automatic Channel Selection
Button
6. Manual Channel Selection Control (TUNE Control) 7. Preset Button8. Information Display Screen (LCD) 9. AUDIO Select Button

1
FEATURES OF YOUR HYUNDAI
123
H465B01GK-GAT
1. Power Button (POWER ON) Press this button when the ignition switch of the automobile is set to ACC(1st notch) or ON (2nd notch) to turn on the power and the audio system. Press once again when the audio system is onto turn off the power. 2. Volume Control (VOLUME) Turn the volume control clockwise to increase volume and counterclockwise to reduce. The volume level will bedisplayed on the screen when you ad- just the volume. 3. Radio Band Selection Button (FM/AM)
o Press this button to listen to either FM or AM.
o The radio will be set to each of the
following modes each time you press the button. FM1 ➟ FM2 ➟ AM NOTE: Push this button when the power is off to turn on the power automati- cally. 4. Automatic Channel Selection
Memorization Button (BSM: Best Station Memory)
Press this button once to automatically select channels starting from the cur-rent channel and memorize into the preset buttons (1~6) in the selected order and turn to the channel memo-rized in preset button 1. 5. Automatic Channel Selection Button (SEEK)
Press the [SEEK
] button to auto-
matically increase frequency and press the [TRACK
] button to automati-
cally decrease frequency to select and play the next available channel. If the received channel is memorized in thepreset buttons then the screen will dis- play the memorized channel. 6. Manual Channel Selection
Control (TUNE)
Turn the TUNE control clockwise to increase frequency and counterclock-wise to reduce frequency by 1 step for each click.
7. Preset Button (1~6) Press this button to listen to the chan- nels memorized to each button. If you want to memorize the current channelto the preset button, press the button for more than 1.5 seconds then the channel will be memorized to the buttonwith a beep.
8. Information Display Screen (LCD)
A variety of information will be dis- played on the screen including the radiobands (FM1/FM2/AM) while listening to the radio, frequency of each channel, the number of preset channel and "ST"for FM stereo broadcasting.

1FEATURES OF YOUR HYUNDAI
124
!

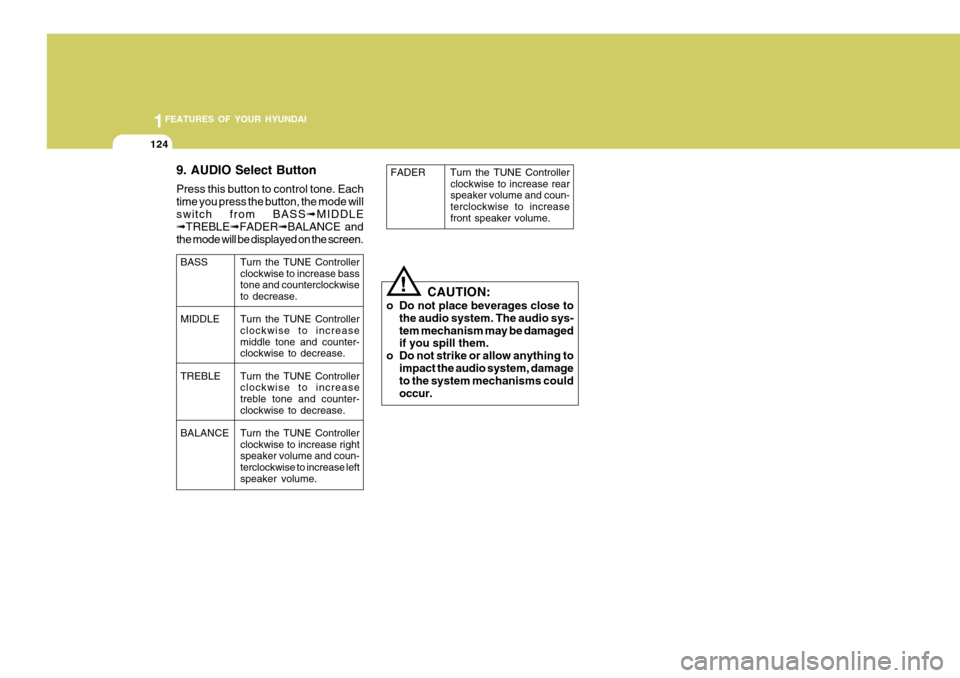

9. AUDIO Select Button Press this button to control tone. Each time you press the button, the mode willswitch from BASS
➟MIDDLE
➟ TREBLE ➟FADER ➟BALANCE and
the mode will be displayed on the screen.
CAUTION:
o Do not place beverages close to the audio system. The audio sys-tem mechanism may be damaged if you spill them.
o Do not strike or allow anything to impact the audio system, damageto the system mechanisms could occur.
BASS MIDDLE TREBLE BALANCE Turn the TUNE Controller clockwise to increase basstone and counterclockwise to decrease. Turn the TUNE Controller clockwise to increase middle tone and counter-clockwise to decrease. Turn the TUNE Controller clockwise to increasetreble tone and counter- clockwise to decrease. Turn the TUNE Controller clockwise to increase right speaker volume and coun-terclockwise to increase left speaker volume.
FADER Turn the
TUNE Controller
clockwise to increase rear speaker volume and coun-terclockwise to increase front speaker volume.

1
FEATURES OF YOUR HYUNDAI
125
H465C01GK-GAT COMPACT DISC PLAYER OPERATION (H465) (If installed)
GK_465_UR
109 1
8 1. CD Deck 2. CD Load 3. CD Eject 4. Information Display Screen (LCD)5. CD Changer Selection Button 6. Disc Selection Button 7. Fast Backward
8. Fast Forward 9. Automatic Previous Track Selec-
tion Button
10. Automatic Next Track Selection
Button
11. Repeat Button12. SCAN Button 13. EQ Button14. MARK Button 15. RDM Button 16. File Search Knob17. Scroll Button 18. Directory Search Button
71 1 17
4
16
18
1415
5
3
12
132
6

1FEATURES OF YOUR HYUNDAI
126
H465D01GK-GAT 1.CD Deck The deck will open only when you press [LOAD] button. Make sure the printedside of the disk faces upward when you insert the disk. The CD changer can only play 12cm disks. If you insertvideo CD or DATA CD, then the screen will display "ERROR DISC," eject the disk and return to the previous mode.
2. CD Load Button When you press [LOAD] button, the empty lots of the CD Changer will beopened in the order of 1, 2, 3, 4, 5 and 6. When you insert CD, you can listen to the corresponding CD. In this case,the last CD you inserted will be played. If you do not take any actions after pressing (LOAD) then the (LOAD) willbe cancelled.
3. CD Eject Button When you press [
] button, the cur-
rently played CD will be ejected. If you press the button for more than 2 sec- onds, you will be able to eject all CDs.If currently played CD is in the 3rd slot, the ejection order will be 3, 4, 5, 6, 1 and 2. 4. Information Display Screen
(LCD)
This shows the location of disk insidethe CD Changer and the correspondingCD deck number will flicker when you load or eject the CD.
5. CD Changer Selection Button If the power was turned off when the CD is inside the CD changer or if you press "CD" button when radio was on, thesystem will play CD. If you press [CD] button when there is no CD in the changer then the system will display"NO DISK" for 2 seconds and return to the previous mode. NOTE: If you press this button when the power is off and CD is inside the deck, the power will be automati-cally turned on.
6. Disc Selection Button If you press [DISC
] button while
using CD Changer, the next disc will be played (If you press the button when you are listening to CD 1, the CD 2 will be played). If you wish to listen to the previous CD, then press [DISC
] button then the
previous disc will be played (If you press the button when you are listening to CD 2, the CD 1 will be played). If the CD Changer is not fully loaded, this willmove to the next available deck. When the player moves from deck to deck, the screen will display the selecteddeck number.
7. Fast Backward (REW) Press and hold [REW] button while playing CD then the player will play the disk backwards 5 times the regular speed for first 5 seconds and 15 timesfaster after that. The sound will be reduced by 12dB while you are holding the button.
8. Fast Forward (FF) Press and hold [FF] button while play- ing CD then the player will play the disk forward 5 times the regular speed for first 5 seconds and 15 times faster afterthat. The sound will be reduced by 12dB while you are holding the button.

1
FEATURES OF YOUR HYUNDAI
127
9. Automatic Previous Track Se- lection Button
Press [TRACK
] button to go to the
beginning of the song you are listening to while playing the CD. Press thebutton again to go to the beginning of the song before the song you were listening to. 10. Automatic Next Track Selec-
tion Button
Press [SEEK
] button to go to the
beginning of the song next to the song you are listening to while playing theCD. 11. Section Repeat Button (RPT) Press [RPT] button to repeat the song you are listening to. Press this button again to cancel repetition. 12. SCAN Button If you press this button, the player will play 10 seconds of each track. Press itagain to cancel scanning. 13. EQ Button Each time you press this button the sound equalizer setting will switch fromPOP
➟JAZZ ➟ROCK ➟CLASSIC ➟OFF
(Not displayed). 14. BOOKMARK Button This button lets you select the songs you want to listen to in the CD. Move tothe track and press (MARK) for more than 1 second then the screen will display " M " and select the track. Pressthe button less than 1 second to play the songs you selected and the system will display " M " 15. RDM (Random) Button Press [RDM] button to play the songs in random order. NOTE: When you use CD-R or CD-RW, the CD may not be played due to the manufacturing method of CD mak-ers and the recording method of the user. In this case, change CD unless the continuous use of such CDs maycause damage to the system. 16. FILE Search Knob Turn this knob to the left and right while listening to CD to change track number.If you press the button within 5 seconds then the selected track will be played. If you do not press the button within 5seconds then it will display the cur- rently played track. 17. SCROLL Button If the title of MP3 or WMA file is too long, press this button to scroll theentire song title on the LCD screen. 18. Directory Search Button In case the MP3/WMA CD contains more than 2 folders, press this button up and down to search each directory. You can move to the directory and turnthe search knob to search through the tracks. If you do not press the knob within 5 seconds after you select atrack then the system will automati- cally return to the current track.

1FEATURES OF YOUR HYUNDAI
128
CAUTION:
o Do not insert warped or poor qual- ity discs into the CD player as damage to the unit may occur.
o Do not insert anything like coins
into the player slot as damage tothe unit may occur.
o Do not place beverages close to the audio system. The playbackmechanism may be damaged if you spill them.
o Do not strike or allow anything to impact the audio system, damageto the system mechanisms couldoccur.
o Off-road or rough surface driving
may cause the compact disc toskip. Do not use the compact disc when driving in such conditions as damage to the compact discface could occur.
o Do not attempt to grab or pull the
compact disc out while the disc isbeing pulled into the audio unit by the self-loading mechanism. Dam- age to the audio unit and compactdisc could occur.
!o Avoid using recorded compactdiscs in your audio unit. Original compact discs are recommended.
