Hyundai Coupe 2008 Owners Manual

1
FEATURES OF YOUR HYUNDAI
79SUN VISOR
B580A01GK-GAT Your Hyundai is equipped with sun visors to give the driver and front pas-senger either frontal or sideward shade. To reduce glare or to shut out direct rays of the sun, turn the sun visor down.A ticket holder is provided on the back of the sun visor for the driver. Vanity mirrors are provided on the back of thesunvisor for the driver and the front passenger (If Installed). Vanity mirror
HGK2119
!
NOTE: The Supplemental Restraint System (SRS) label containing useful infor- mation can be found on the front ofeach sun visor.WARNING:
Do not place the sun visor in such a manner that it obscures visibility of the roadway, traffic or other ob-jects. B580C01JM-AAT Sun Visor Extender (If Installed) Your vehicle is equipped with sun visor extenders that may be used when the visor is in the side glass position.
B580C01MC

1FEATURES OF YOUR HYUNDAI
80LUGGAGE NET
B540D02HP-GAT (If Installed) Type A
Some objects can be kept in the net of the luggage compartment. Use the luggage net on the floor or atthe back of the luggage compartment to prevent objects from sliding. HGK2126
Type B
OGK046023
HORN
!
STEERING WHEEL TILT LEVER
B600A01HP-AAT (If installed) To adjust the steering wheel:
1. Pull the lever toward you and hold it
to unlock.
2. Raise or lower the steering wheel to
the desired position.
3. After adjustment, release the lever.
WARNING:
Do not attempt to adjust the steer- ing wheel while driving as this mayresult in loss of control of the ve- hicle and serious injury or death. B610A01S-GAT Press the pad on the steering wheel to sound the horn.
OGK046022
Working Zone

1
FEATURES OF YOUR HYUNDAI
81CRUISE CONTROL
!
!
CAUTION:
To prevent damage to the goods or the vehicle, care should be taken when carrying fragile or bulky ob- jects in the luggage compartment.
WARNING:
Avoid eye injury. DO NOT over-stretch. ALWAYS keep face and body out of recoil path. DO NOT use when strap has visible signs ofwear or damage. B660A02S-GAT (If Installed) The cruise control system provides automatic speed control for your com- fort when driving on freeways, tollroads,or other noncongested highways.Main switch
OGK016660
!WARNING:
Pay particular attention during the down-hill driving with cruise control system as the vehicle speed can be increased gradually.
Type A
Main switch
OGK018660
Type B This is designed to function above ap- proximately 40 km/h (25 mph).

1FEATURES OF YOUR HYUNDAI
82
!
2. Accelerate to the desired cruising
speed above 40 km/h (25 mph).
3. Push the control switch downward to "SET (COAST : Type A,

1
FEATURES OF YOUR HYUNDAI
83
o Depress the brake pedal.
o Depress the clutch pedal (Manual transaxle).
o Shift the selector lever to "N" posi-
tion (Automatic transaxle).
o Decrease the vehicle speed lower than the memorized speed by 15km/h (9 mph).
o Decrease the vehicle speed to less than 40 km/h (25 mph).
o Release the main switch. B660D01E-GAT To Resume the Preset Speed
The vehicle will automatically resume the speed set prior to cancellation whenyou push the control switch upward to "RESUME (ACCEL : Type A, + : Type B)" position and release it, providing thevehicle speed is above 40 km/h (25 mph).
OGK016663
Type A
OGK018663
Type B
B660E01E-AAT To Reset at a Faster Speed
1. Push the control switch upward to
"RESUME (ACCEL : Type A, + : Type B)" position and hold it.
2. Accelerate to desired speed and
release the control switch. Whilethe control switch is held, the ve- hicle will gradually gain speed.

1FEATURES OF YOUR HYUNDAI
84
B660F01GK-AAT To Reset at a Slower Speed
1. Push the control switch downward to
"SET (COAST : Type A,

1
FEATURES OF YOUR HYUNDAI
85
SEEK UP ( ) Switch Press the SEEK UP ( ) switch 1 sec. or more.
1. RADIO mode When the SEEK UP ( ) switch is pressed, the unit will automatically tune to the next higher frequency.
2. TAPE mode Pressing the SEEK UP ( ) switch will play the beginning of the next music segment.
3. CD (compact disc)/CDC (compact disc changer) mode
Press the SEEK UP ( ) switch once to skip forward to the beginning of the next track.
VOL ( / ) Switch
o Press the VOL ( ) button to in- crease volume.
o Press the VOL ( ) button to de- cease volume.AUDIO REMOTE CONTROL SWITCH
o With the cruise control engaged,
when the brake pedal is applied, it is normal to hear the cruise con- trol system deactivate. This is an indication of normal system op-eration.
o During normal cruise control
operation, when the "SET(COAST: Type A,

1FEATURES OF YOUR HYUNDAI

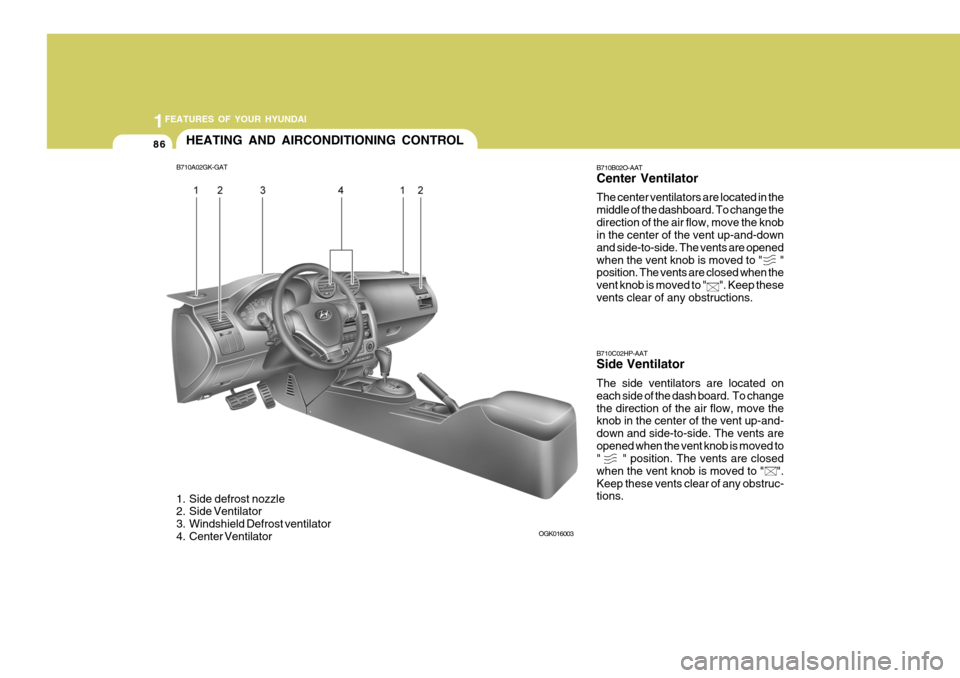

86HEATING AND AIRCONDITIONING CONTROL
B710A02GK-GAT
1. Side defrost nozzle
2. Side Ventilator
3. Windshield Defrost ventilator
4. Center Ventilator
OGK016003 B710B02O-AAT Center Ventilator The center ventilators are located in the middle of the dashboard. To change thedirection of the air flow, move the knob in the center of the vent up-and-down and side-to-side. The vents are openedwhen the vent knob is moved to " " position. The vents are closed when the vent knob is moved to " ". Keep thesevents clear of any obstructions. B710C02HP-AAT Side Ventilator The side ventilators are located on each side of the dash board. To changethe direction of the air flow, move the knob in the center of the vent up-and- down and side-to-side. The vents areopened when the vent knob is moved to " " position. The vents are closed when the vent knob is moved to " ".Keep these vents clear of any obstruc- tions.

1
FEATURES OF YOUR HYUNDAI
87HEATING AND VENTILATION
B670A02GK-GAT Rotary Type
1. Temperature control switch
2. Air intake control switch
3. Air flow control switch
4. Air Conditioning switch
5. Fan speed control switch
6. Rear window defroster switch OGK046038L
B670B01A-AAT Fan Speed Control (Blower Control) This is used to turn the blower fan on or off and to select the fan speed. This blower fan speed, and therefore the volume of air delivered from thesystem, may be controlled manually by setting the blower control between the "1" and "4" positions. B670E02A-AAT Temperature Control This control is used to adjust the degree of heating or cooling desired.
Cool
OGK046045 OGK046043
Warm

1FEATURES OF YOUR HYUNDAI
88

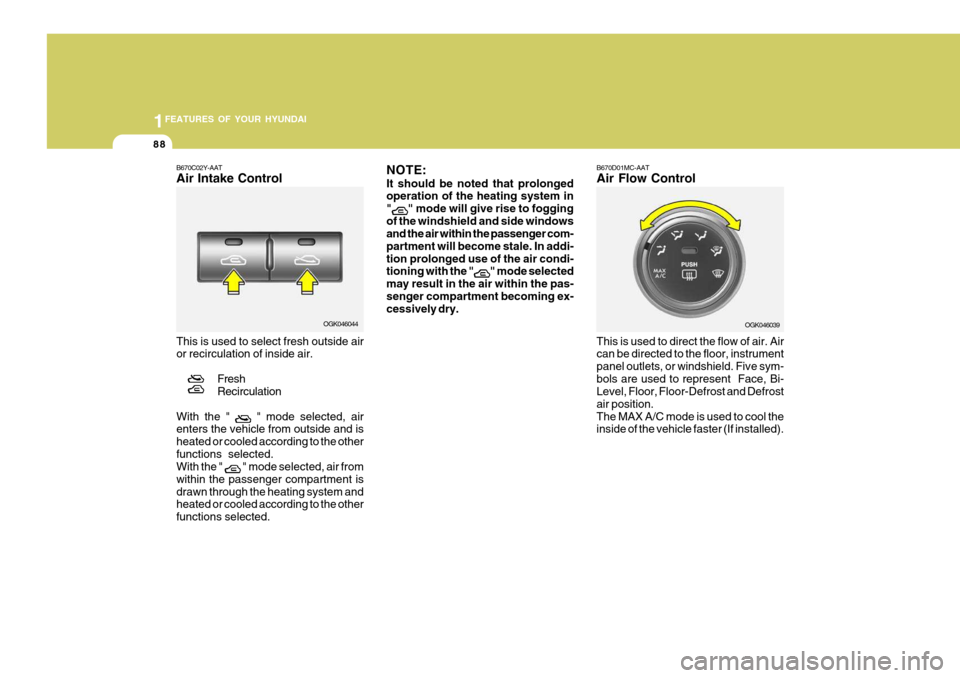

B670C02Y-AAT Air Intake Control This is used to select fresh outside air or recirculation of inside air.
FreshRecirculation
With the "
" mode selected, air
enters the vehicle from outside and is heated or cooled according to the otherfunctions selected. With the "
" mode selected, air from
within the passenger compartment is drawn through the heating system and heated or cooled according to the other functions selected. NOTE: It should be noted that prolonged operation of the heating system in "
" mode will give rise to fogging
of the windshield and side windows and the air within the passenger com- partment will become stale. In addi-tion prolonged use of the air condi- tioning with the "
" mode selected
may result in the air within the pas- senger compartment becoming ex- cessively dry.
OGK046044
B670D01MC-AAT Air Flow Control This is used to direct the flow of air. Air can be directed to the floor, instrument panel outlets, or windshield. Five sym-bols are used to represent Face, Bi- Level, Floor, Floor-Defrost and Defrost air position.The MAX A/C mode is used to cool the inside of the vehicle faster (If installed). OGK046039
